1 |

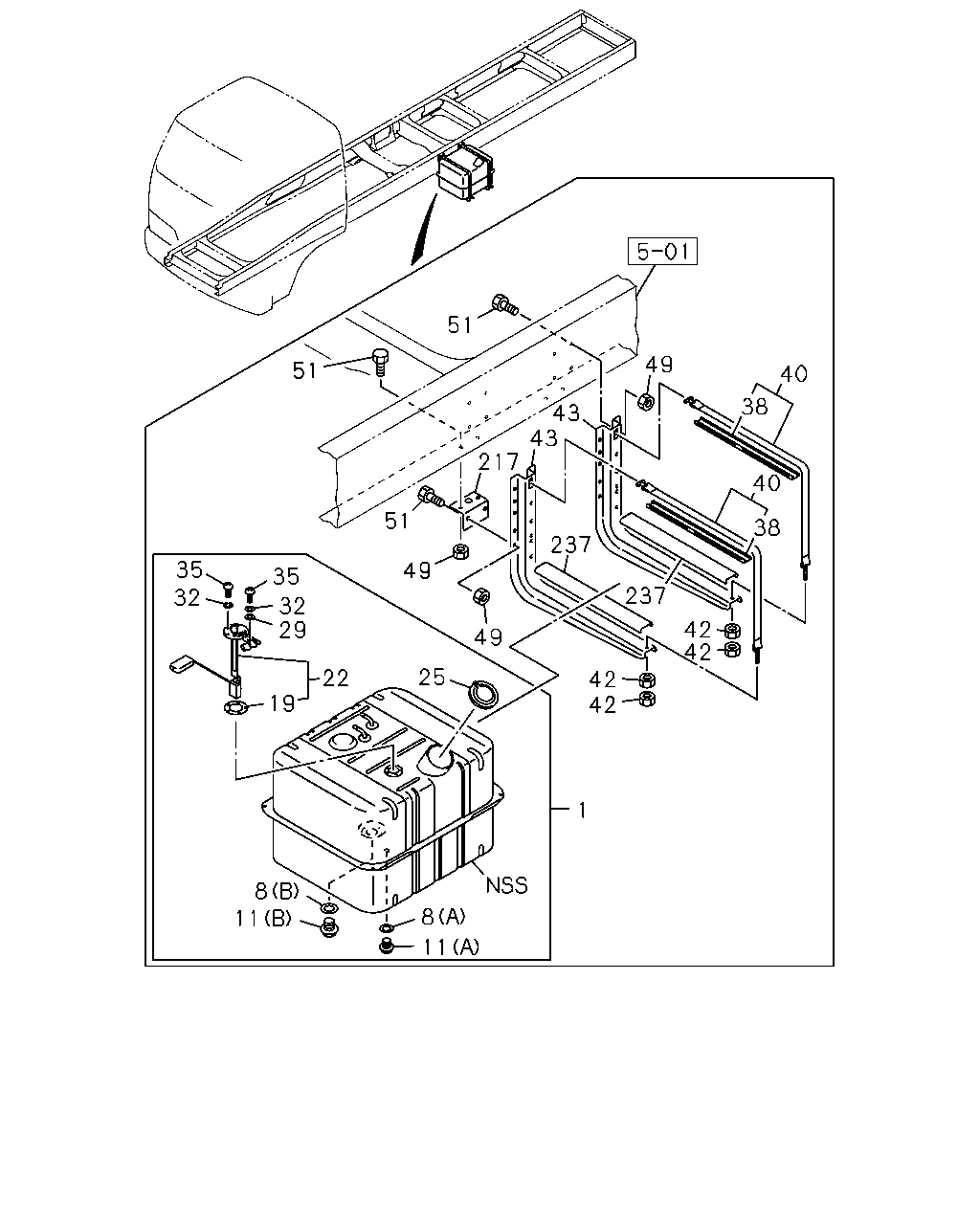

TANK; FUEL
720X610X496 200L
|
1-22400-996-0 |
01 |
1 |
9806-0003 |
● |
|
| |
1 |
TANK; FUEL
720X610X496 200L
|
1-22401-120-1 |
01 |
1 |
0004-0112 |
● |
|
| |
1 |
TANK; FUEL
720X610X496 200L
|
1-22401-192-2 |
01 |
1 |
0201-1505 |
● |
|
| |
1 |
TANK; FUEL
720X610X496 200L
|
8-98299-274-0 |
01 |
1 |
1506- |
● |
|
| |
1 |

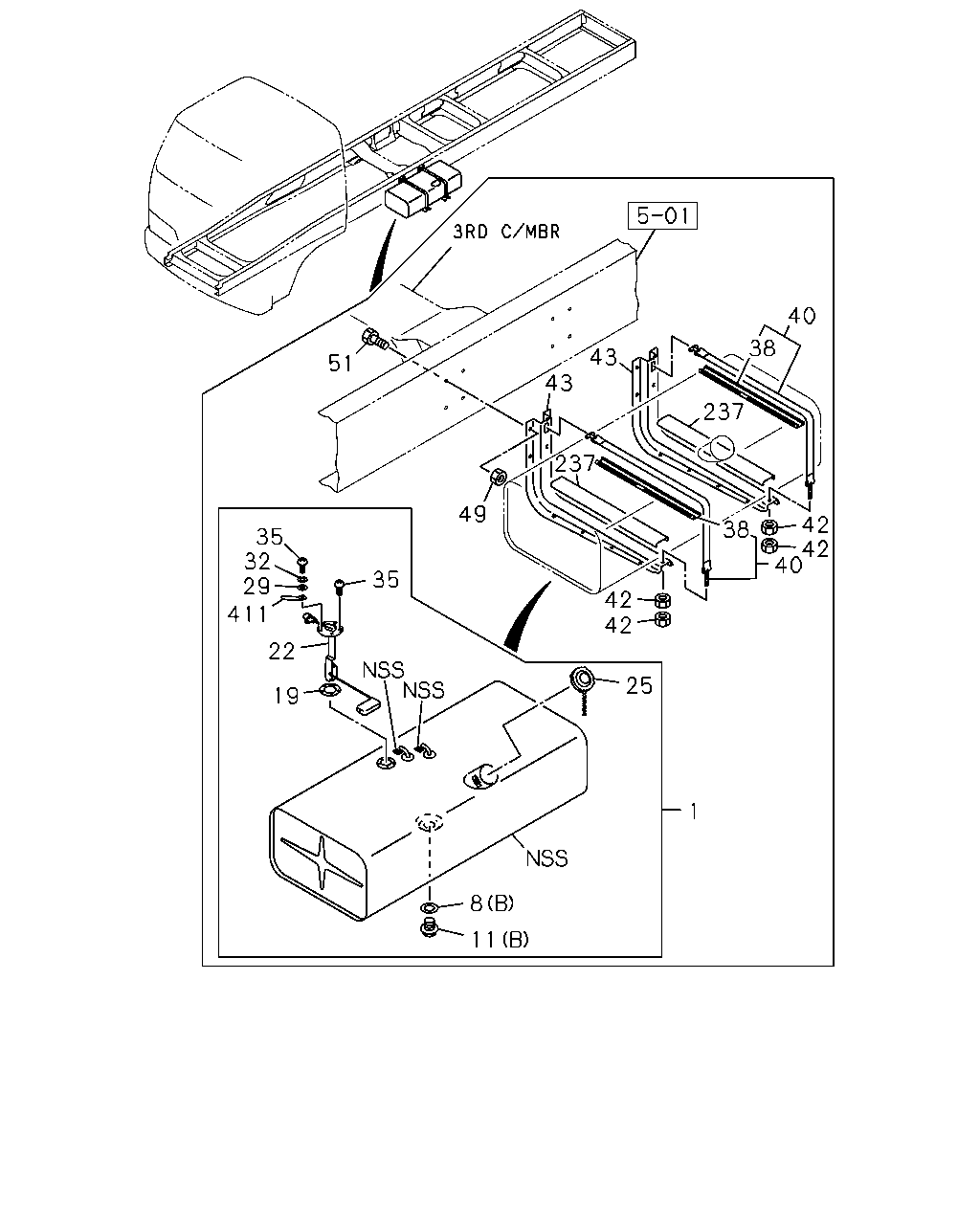

TANK; FUEL
1220X533X323 200L
|
1-22400-995-2 |
01 |
1 |
9806- |
|
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(A)
T=1.60
|
1-22416-001-0 |
01 |
1 |
9806-0112 |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(B)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0107-0112 |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(A),(B)
ID=14.2 OD=23.0
|
9-09572-014-0 |
02 |
1 |
0201- |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(B)
T=2.0
|
9-09923-030-0 |
01 |
1 |
9806-0106 |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(B)
T=2.0
|
9-09923-030-0 |
01 |
1 |
0107-0509 |
|
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(B)
T=2.0
|
8-98030-375-0 |
01 |
1 |
0510- |
|
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
(A)
M18X12
|
1-09604-081-0 |
01 |
1 |
9806-0112 |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
(B)
M14X14
|
9-09862-156-0 |
01 |
1 |
0107-0112 |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
(A),(B)
M14X14
|
9-09862-156-0 |
02 |
1 |
0201- |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
(B)
M36
|
1-09604-052-0 |
01 |
1 |
9806-0106 |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
(B)
M36
|
1-09604-052-0 |
01 |
1 |
0107- |
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
0005- |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
|
9-83135-003-0 |
01 |
1 |
9806-0004 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
ID=42
|
9-83135-011-0 |
01 |
1 |
9806-0004 |
|
● |
| |
22 |
UNIT; FUEL TANK
|
1-83141-124-0 |
01 |
1 |
9806-1505 |
● |
|
| |
22 |
UNIT; FUEL TANK
|
8-98296-671-0 |
01 |
1 |
1506- |
● |
|
| |
22 |
UNIT; FUEL TANK
|
1-83141-084-1 |
01 |
1 |
9806- |
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
|
1-22440-033-2 |
01 |
1 |
9806-0003 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
|
1-22440-067-0 |
01 |
1 |
0004-0109 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
|
1-22440-069-0 |
01 |
1 |
0110-0112 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
|
1-22440-067-0 |
01 |
1 |
0201-0309 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
|
1-22440-070-0 |
01 |
1 |
0310-0404 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
|
1-22440-046-1 |
01 |
1 |
0405- |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
|
1-22440-028-0 |
01 |
1 |
9806- |
|
● |
| |
29 |
WASHER; PL,FUEL TANK UNIT
ID=5.3
|
9-09160-505-0 |
01 |
1 |
9806-0605 |
● |
● |
| |
29 |
WASHER; PL,FUEL TANK UNIT
ID=5.3
|
0-91610-505-0 |
01 |
1 |
0606- |
● |
● |
| |
32 |
WASHER; LK,FUEL TANK UNIT
ID=5.1
|
9-09150-505-0 |
05 |
1 |
9806-0603 |
● |
|
| |
32 |
WASHER; LK,FUEL TANK UNIT
ID=5.1
|
0-91510-505-0 |
05 |
1 |
0604- |
● |
|
| |
32 |
WASHER; LK,FUEL TANK UNIT
ID=5.1
|
9-09150-505-0 |
01 |
1 |
9806-0501 |
|
● |
| |
35 |
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0502-0604 |
|
● |
| |
35 |
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
|
0-36220-510-0 |
05 |
1 |
0605- |
|
● |
| |
35 |
SCREW; FUEL TANK UNIT
M5X10
|
9-93497-510-0 |
05 |
1 |
9806-0501 |
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
M5X10
|
9-93497-510-0 |
05 |
1 |
0502-0604 |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
M5X10
|
0-34218-510-0 |
05 |
1 |
0605- |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
L=540
|
1-22553-014-2 |
02 |
1 |
0802- |
|
● |
| |
38 |
INSULATION; SUPPORT BELT
L=650
|
1-22553-022-1 |
02 |
1 |
9806- |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
L=540
|
1-22553-014-2 |
02 |
1 |
9806-0112 |
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1030
|
1-22550-204-2 |
02 |
1 |
9806- |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=775
|
1-22550-211-2 |
02 |
1 |
9806-0112 |
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
L=790
|
1-22550-186-2 |
02 |
1 |
0201- |
|
● |
| |
42 |
NUT; SUPPORT BELT
M10
|
9-09110-510-0 |
04 |
1 |
9806-0512 |
● |
● |
| |
42 |
NUT; SUPPORT BELT
M10
|
0-91110-510-0 |
04 |
1 |
0601- |
● |
● |
| |
43 |
BRACKET; FUEL TANK
|
1-53461-279-4 |
02 |
1 |
9806- |
● |
|
| |
43 |
BRACKET; FUEL TANK
|
1-53461-206-1 |
02 |
1 |
9806- |
|
● |
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91150-212-0 |
16 |
1 |
9806-0004 |
● |
● |
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91150-212-0 |
16 |
1 |
9806-0004 |
● |
|
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91150-212-0 |
16 |
1 |
0005-0602 |
● |
|
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91180-212-0 |
16 |
1 |
0603- |
● |
|
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91150-212-0 |
12 |
1 |
9806-0602 |
|
● |
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91180-212-0 |
12 |
1 |
0603- |
|
● |
| |
51 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28681-235-0 |
16 |
1 |
9806-0512 |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28651-235-0 |
16 |
1 |
0601- |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28681-235-0 |
12 |
1 |
9806-0512 |
|
● |
| |
51 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28651-235-0 |
12 |
1 |
0601- |
|
● |
| |
237 |
GASKET; BRKT TO FUEL TANK
L=580
|
1-22553-003-0 |
02 |
1 |
9806- |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
L=480
|
1-22553-002-0 |
02 |
1 |
9806- |
|
● |
| |
411 |
CLIP; FUEL TANK UNIT HARNESS
L=50
|
1-09700-416-0 |
01 |
1 |
9806- |
|
● |
