Isuzu WW
▶
TRUCKS
▶
FSS
▶
10717 - FSS/FTS-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#65252) — 63 parça
Tümü
A - 6HH1 STD ENG
B - 6HH1 N ENG
◀

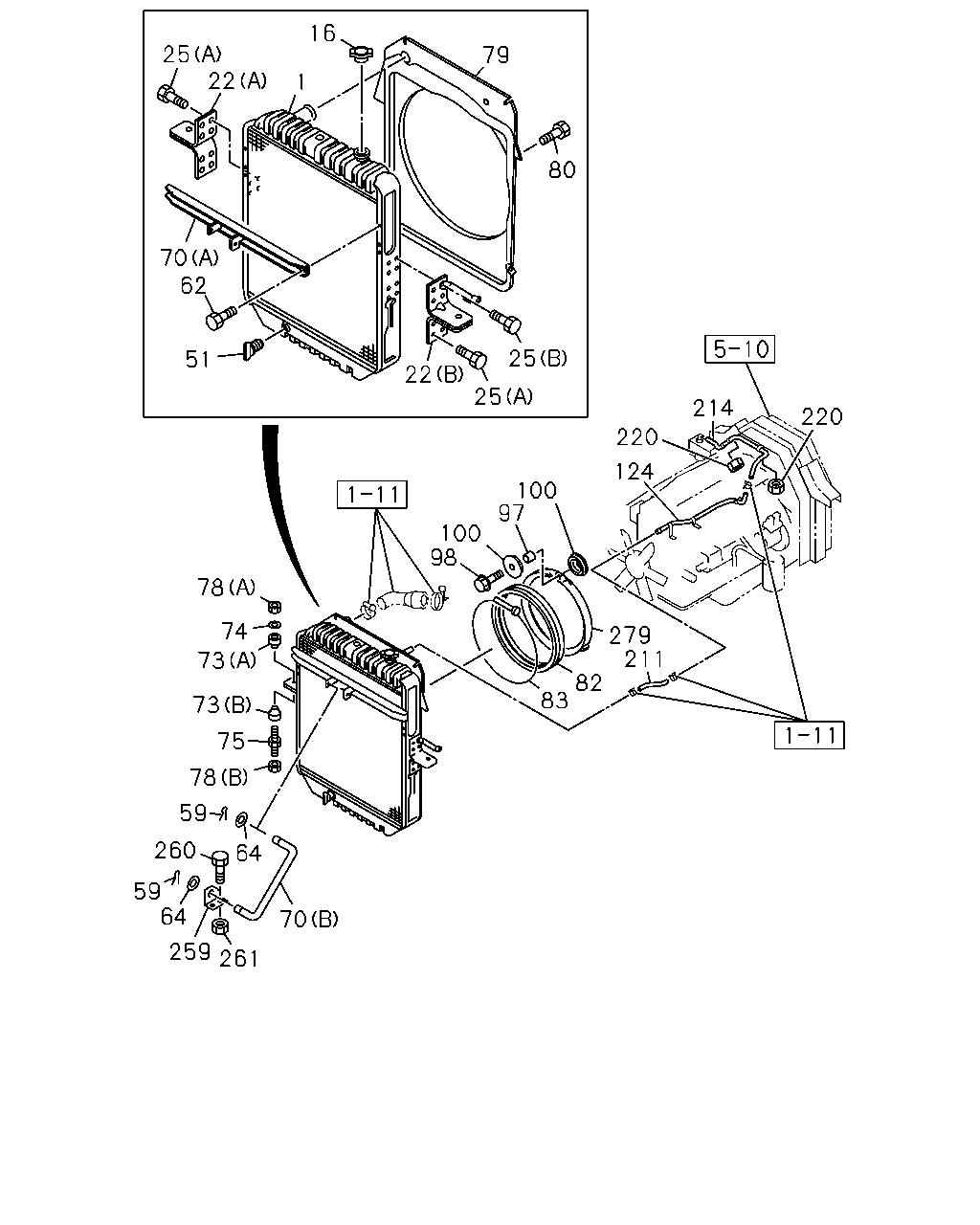

[110A] RADIATOR AND OTHER PARTS (58 parça)
[110A] FAN GUIDE STAY (5 parça)
▶
16
25
22
79
1
80
70
62
25
51
22
25
214
220
220
124
100
97
100
98
78
74
279
211
73
82
83
73
75
78
59
260
64
59
64
70
259
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
RADIATOR HEAVY DUTY<V05>
1-21410-675-1
01
1
9905-
●
1
RADIATOR ASM
1-21410-674-1
01
1
9806-9904
●
●
1
RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>
1-21410-674-1
01
1
9905-
●
1
RADIATOR ASM
1-21410-674-1
01
1
9905-
●
16
CAP; RAD
EXC. RADIATOR HEAVY DUTY<V05>
1-21450-142-0
01
1
0309-0311
●
16
CAP; RAD
1-21450-142-0
01
1
0309-0311
●
16
CAP; RAD
1-21450-142-0
01
1
0312-
●
●
16
CAP; RAD
1-21450-053-2
01
1
9806-0308
●
●
16
CAP; RAD
RADIATOR HEAVY DUTY<V05>
1-21450-053-2
01
1
0309-0311
●
22
BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05> (B)
1-21464-548-0
01
1
0204-
●
22
BRACKET; RAD MTG
(B)
1-21464-548-0
01
1
0204-
●
22
BRACKET; RAD MTG
(A)
1-21464-361-0
01
1
9806-
●
●
22
BRACKET; RAD MTG
(B)
1-21464-544-0
01
1
9806-0203
●
●
22
BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (B)
1-21464-544-0
01
1
0204-
●
25
BOLT; BRKT
(A) M8X12 FLANGE
0-28080-812-0
15
1
9806-
●
●
25
BOLT; BRKT
(B) M8X16 FLANGE
0-28080-816-0
01
1
9806-
●
●
51
PLUG; DRAIN
W/GASKET
1-09609-009-0
01
1
9806-
●
●
59
PIN; SNAP,STAY
1-09987-158-1
02
1
9806-
●
●
62
BOLT; STAY
M8X12 FLANGE
0-28080-812-0
02
1
9806-
●
●
64
WASHER; STAY TO RAD
ID=12.5
9-09160-512-0
02
1
9806-0605
●
●
64
WASHER; STAY TO RAD
ID=12.5 OD=22
0-91610-512-0
02
1
0606-
●
●
70
STAY; RAD
(A)
1-21522-064-0
01
1
9806-
●
●
70
STAY; RAD
(B)
1-21522-069-0
01
1
9806-
●
●
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
9806-
●
●
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
9806-
●
●
74
WASHER; PL,CUSHION RUBBER
OD=55
9-09852-169-0
02
1
9806-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
9806-
●
●
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91150-212-0
02
1
9806-0602
●
●
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
0603-
●
●
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
5-09440-006-0
02
1
9806-
●
●
79
GUIDE; FAN,RAD
1-21551-374-2
01
1
9806-
●
●
80
BOLT; FAN GUIDE
M6X10 FLANGE
0-28080-610-0
04
1
9806-
●
●
82
COVER; FAN,RAD
1-21559-340-0
01
1
9806-
●
●
83
CLIP; FAN COVER
1-09707-177-2
01
1
9806-
●
●
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
9806-
●
●
98
BOLT; RAD FAN GUIDE
M8X30 FLANGE
0-28680-830-0
03
1
9806-0512
●
●
98
BOLT; RAD FAN GUIDE
M8X30 FLANGE
0-28650-830-0
03
1
0601-
●
●
100
RUBBER; MTG
OD=32
8-94395-766-0
06
1
9806-
●
●
124
PIPE; WATER,TANK TO RAD
8-94396-222-2
01
1
9806-
●
●
211
HOSE; RAD TO PIPE
L=290 SERVICED BY L=3000
0-03257-300-0
01
1
9806-0109
●
●
211
HOSE; RAD TO PIPE
L=290 SERVICED BY L=3000
0-03557-300-0
01
1
0110-
●
●
214
HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000
0-03257-300-0
01
1
9806-0010
●
214
HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000
0-03257-300-0
01
1
0011-0109
●
214
HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000
0-03557-300-0
01
1
0110-
●
214
HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000
0-03257-300-0
01
1
9806-0109
●
214
HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000
0-03557-300-0
01
1
0110-
●
220
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
9806-0010
●
220
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
9806-0004
●
220
NUT; CLIP
M8 FLANGE
0-91150-108-0
04
1
0005-0010
●
220
NUT; CLIP
M8 FLANGE
0-91150-108-0
04
1
0011-0602
●
●
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
259
BRACKET; RAD STAY
1-21523-025-0
01
1
9806-
●
259
BRACKET; RAD STAY
1-21523-024-0
01
1
9806-
●
260
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
9806-0512
●
●
260
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
261
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
9806-0602
●
●
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
279
BELL MOUTH
8-94394-808-2
01
1
9806-
●
●
96
87
87
96
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
87
STAY; FAN GUIDE
(C)
8-94394-775-0
01
1
9806-
●
●
87
STAY; FAN GUIDE
(A)
8-94396-496-1
01
1
9806-
●
●
87
STAY; FAN GUIDE
(B)
8-94397-395-1
01
1
9806-
●
●
96
BOLT; STAY FIX
M10X16 FLANGE
0-28181-016-0
02
1
9806-0512
●
●
96
BOLT; STAY FIX
M10X16 FLANGE
0-28151-016-0
02
1
0601-
●
●
