0-41 — FUEL FILTER AND BRACKET (#65236) — 38 parça

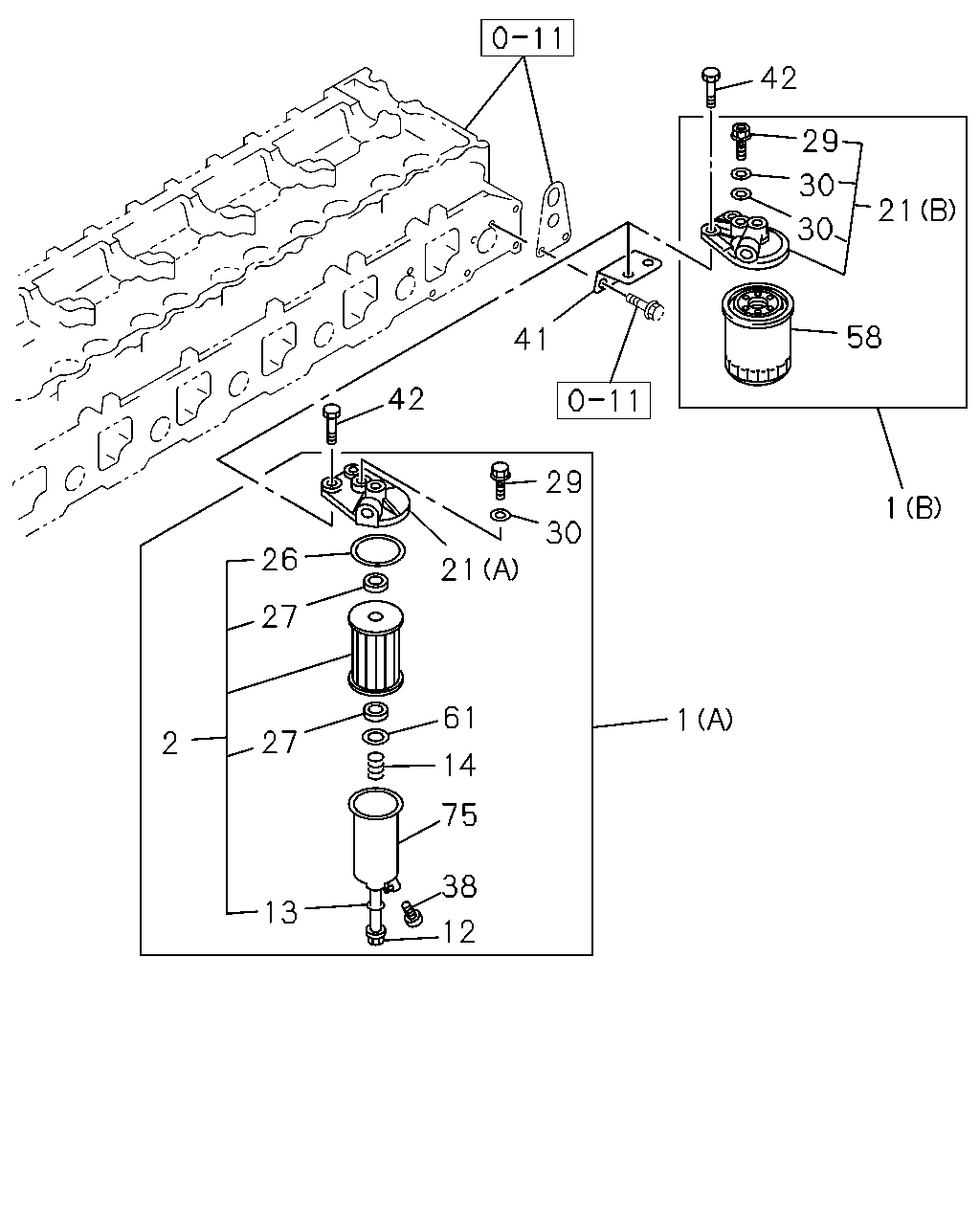

çizim 63536
42 29 30 21 30 58 41 42 29 1 30 26 21 27 61 1 27 2 14 75 38 13 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-94397-113-3 01 1 9806-9901 ●
1 FILTER ASM; FUEL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-94397-113-3 01 1 9902- ● ●
1 FILTER ASM; FUEL
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-94393-449-1 01 1 9806-9810 ●
1 FILTER ASM; FUEL
(B) 		8-94393-449-1 01 1 9806-9810 ●
1 FILTER ASM; FUEL
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-94393-449-3 01 1 9811- ● ●
2 ELEMENT KIT; FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-88511-191-1 01 1 9806-9901 ●
2 ELEMENT KIT; FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-88511-191-1 01 1 9902- ● ●
12 BOLT; CENTER,FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13231-053-0 01 1 9806-9901 ●
12 BOLT; CENTER,FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13231-053-0 01 1 9902- ● ●
13 GASKET; CENTER BOLT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09720-541-0 01 1 9806-9901 ●
13 GASKET; CENTER BOLT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09720-541-0 01 1 9902- ● ●
14 SPRING; ELEMENT SUPPORT,FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09742-109-0 01 1 9806-9901 ●
14 SPRING; ELEMENT SUPPORT,FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09742-109-0 01 1 9902- ● ●
21 COVER; UPR,FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		9-13212-804-0 01 1 9806-9901 ●
21 COVER; UPR,FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		9-13212-804-0 01 1 9902- ● ●
21 COVER; UPR,FUEL FILTER
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-94396-669-0 01 1 9806-9810 ●
21 COVER; UPR,FUEL FILTER
(B) 		8-94396-669-0 01 1 9806-9810 ●
21 COVER; UPR,FUEL FILTER
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-94396-669-1 01 1 9811- ● ●
26 GASKET; COVER TO BODY
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-13213-601-0 01 1 9806-9901 ●
26 GASKET; COVER TO BODY
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-13213-601-0 01 1 9902- ● ●
27 GASKET; ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09720-542-0 02 1 9806-9901 ●
27 GASKET; ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09720-542-0 02 1 9902- ● ●
29 VALVE; OVERFLOW 8-94399-170-0 01 1 9806- ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9806-1312 ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
38 PLUG; DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-052-0 01 1 9806-9901 ●
38 PLUG; DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-052-0 01 1 9902- ● ●
41 BRACKET; FUEL FILTER 8-94399-441-0 01 1 9806- ● ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28681-035-0 02 1 9806-0512 ● ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
58 ELEMENT; FUEL FILTER
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94394-079-1 01 1 9806-9810 ●
58 ELEMENT; FUEL FILTER 8-94394-079-1 01 1 9806-9810 ●
58 ELEMENT; FUEL FILTER
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94394-079-2 01 1 9811- ● ●
58 ELEMENT; FUEL FILTER
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> BEST VALUE PARTS 		1-87610-054-1 01 1 9811- ● ●
61 SEAT; SPR ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09651-068-0 01 1 9806-9901 ●
61 SEAT; SPR ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09651-068-0 01 1 9902- ● ●
75 BODY; FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94393-518-1 01 1 9806-9901 ●
75 BODY; FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94393-518-1 01 1 9902- ● ●
