0-39 — AIR COMPRESSOR; BRAKE (#65234) — 27 parça

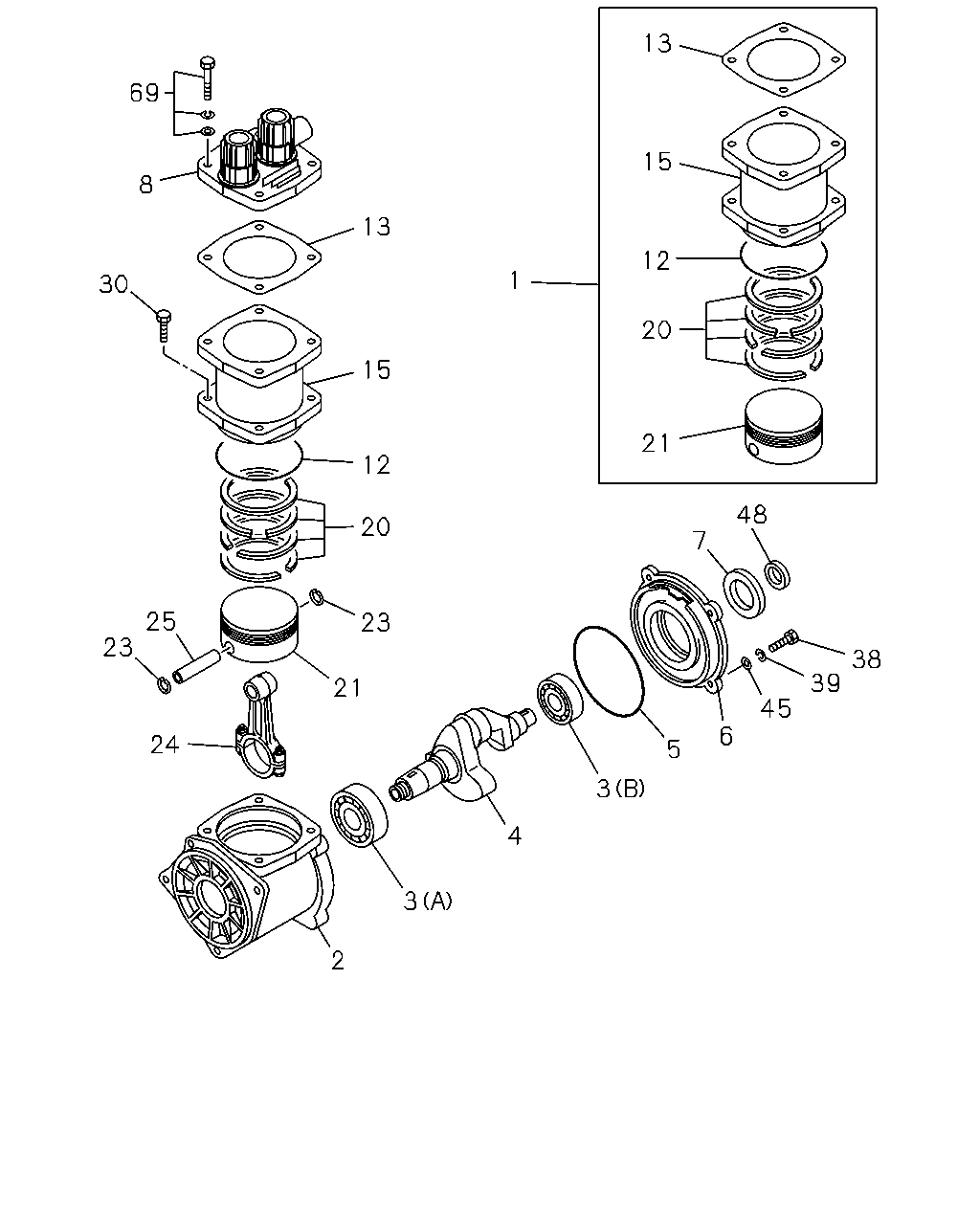

çizim 62637
69 8 13 30 15 12 20 25 23 23 21 24 2 3 4 3 5 6 45 39 38 7 48 21 20 12 15 13 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINER KIT; CYL,AIR CMPR 1-19163-050-1 01 1 9806- ● ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 9806- ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 9806- ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 9806- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-047-1 01 1 9806- ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9806-1107 ● ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 9806- ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 9806- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-019-0 01 1 9806- ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9806-1107 ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ● ●
13 GASKET; AIR CMPR 8-98113-036-0 01 1 0005- ● ●
13 GASKET; AIR CMPR 1-19115-006-1 01 1 9806-0004 ● ●
15 CYLINDER; AIR CMPR 1-19151-250-0 01 1 9806- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-043-0 01 1 9806- ● ●
21 PISTON; AIR CMPR 1-19161-021-0 01 1 9806- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9806-1107 ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1108- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-017-0 01 1 9806- ● ●
25 PIN; PISTON,AIR CMPR 9-19167-006-0 01 1 9806- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 9806- ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 9806- ● ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9806- ● ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 9806- ● ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 9806- ● ●
69 BOLT ASM; AIR COMP 1-19119-031-0 04 1 9806- ● ●
