0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#65233) — 31 parça

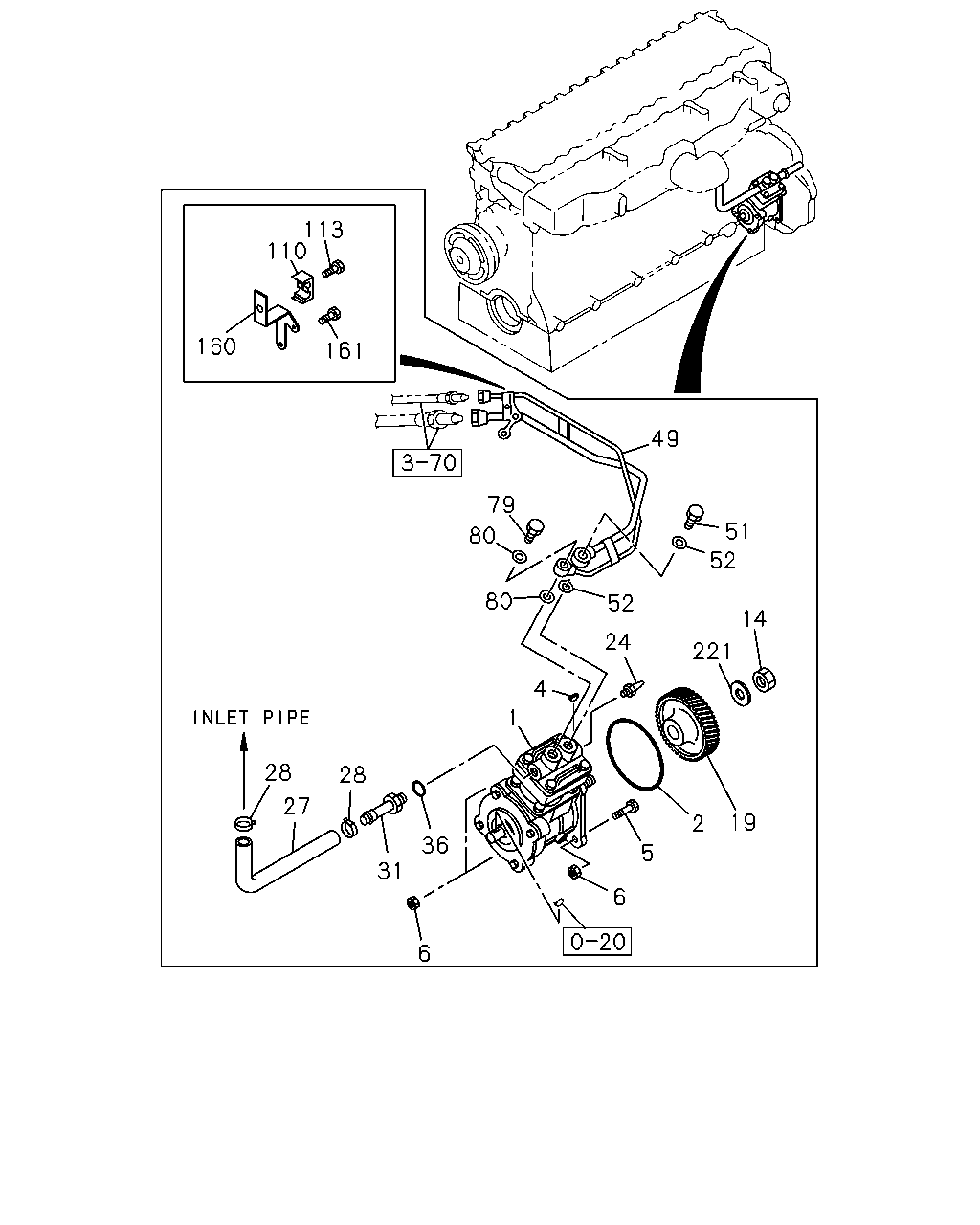

çizim 62273
113 110 160 161 49 79 51 80 52 80 52 14 24 221 4 1 28 28 27 19 2 36 5 31 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-891-4 01 1 9806-1107 ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-98187-309-1 01 1 1108- ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 9806- ● ●
4 KEY; INJ PUMP GEAR 9-08055-516-0 01 1 9806- ● ●
5 BOLT; AIR CMPR FIX
M12X95 FLANGE 		8-94396-485-1 01 1 9806- ● ●
6 NUT; AIR CMPR
M10 FLANGE 		0-91150-110-0 02 1 9806-0602 ● ●
6 NUT; AIR CMPR
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
6 NUT; AIR CMPR
M12 FLANGE 		0-91150-112-0 01 1 9806-0602 ● ●
6 NUT; AIR CMPR
M12 FLANGE 		0-91180-112-0 01 1 0603- ● ●
14 NUT; GEAR
M20 		9-99110-520-0 01 1 9806-0512 ● ●
14 NUT; GEAR
M20 		0-91110-520-0 01 1 0601- ● ●
19 GEAR; INJ PUMP
Z=35 		8-94336-157-4 01 1 9806- ● ●
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 9806- ● ●
27 HOSE; AIR CMPR,SUCTION 8-94395-082-0 01 1 9806- ● ●
28 CLIP; HOSE,AIR CMPR
ID=26 		1-09707-091-0 02 1 9806- ● ●
31 PIPE; AIR,AIR CMPR SUCTION 8-94399-942-1 01 1 9806- ● ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 01 1 9806- ● ●
49 PIPE; AIR,CHARGE 8-94390-063-1 01 1 9806-0112 ● ●
49 PIPE; AIR,CHARGE 8-94394-275-1 01 1 0201- ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
M20X38 		1-09675-133-1 01 1 9806- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 02 1 9806- ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
M18X33 		1-09675-058-0 01 1 9806- ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9806- ● ●
110 CLIP; AIR PIPE 8-94393-037-0 01 1 9806- ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9806-0512 ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28050-640-0 01 1 0601- ● ●
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 9806- ● ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9806-0512 ● ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
221 WASHER; PL,GEAR
ID=21 		9-09160-520-0 01 1 9806-0605 ● ●
221 WASHER; PL,GEAR
ID=21 		0-91610-520-0 01 1 0606- ● ●
