1 |

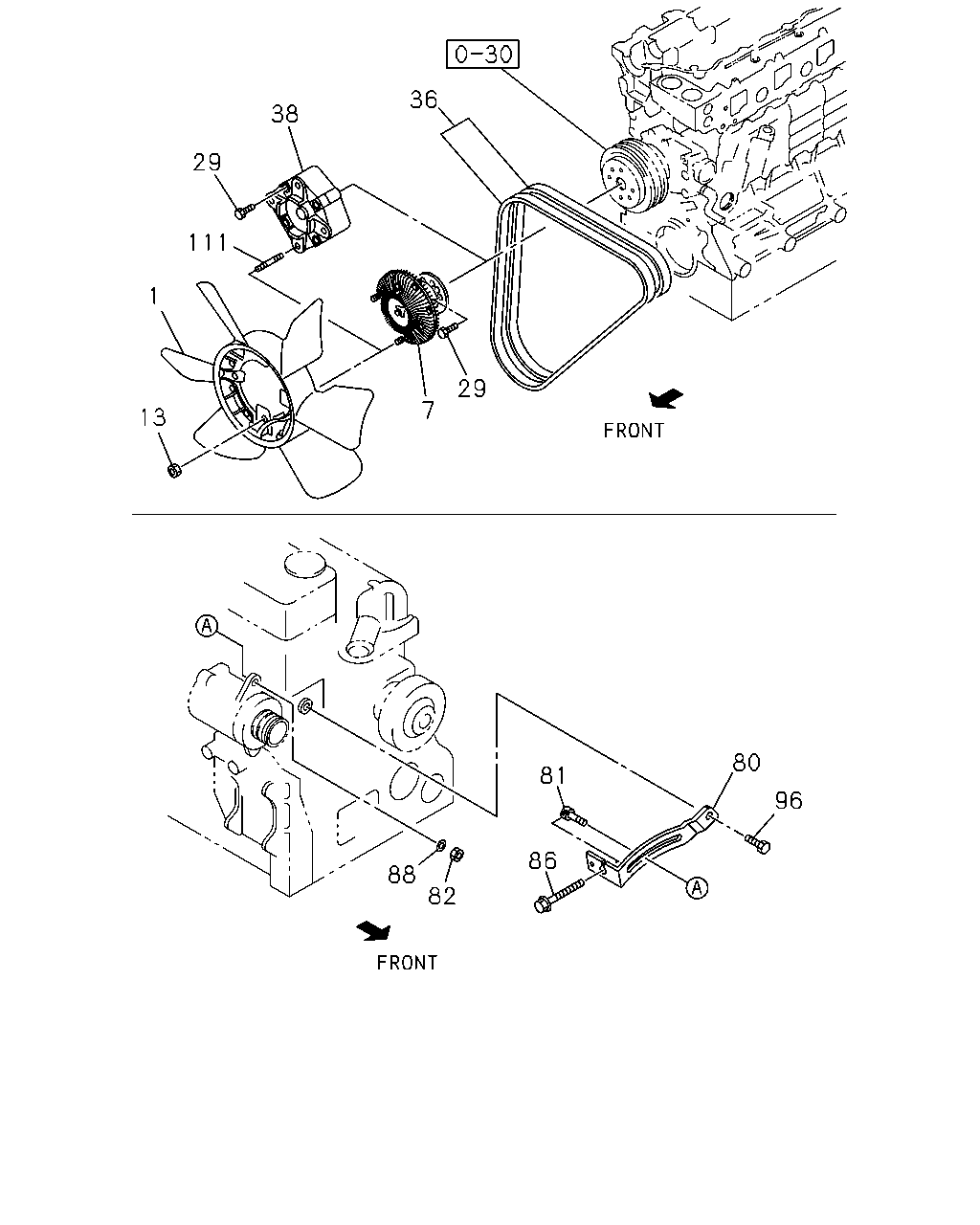

FAN; COOLING
OD=500
|
8-94399-286-1 |
01 |
1 |
9806- |
● |
● |
| |
7 |
COUPLING; FAN
FLUID DRIVE FAN<KA3>
|
8-94395-254-1 |
01 |
1 |
9806- |
● |
|
| |
7 |
COUPLING; FAN
FLUID DRIVE FAN<KA3>
|
8-94391-701-0 |
01 |
1 |
0006- |
|
● |
| |
13 |
NUT; COOLING FAN
M6 FLANGE
|
0-91150-106-0 |
04 |
1 |
9806-0602 |
● |
● |
| |
13 |
NUT; COOLING FAN
M6 FLANGE
|
0-91180-106-0 |
04 |
1 |
0603- |
● |
● |
| |
29 |
BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3>
M8X14 FLANGE
|
8-94399-451-1 |
04 |
1 |
9806-0005 |
● |
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3>
M8X14 FLANGE
|
8-94399-451-1 |
04 |
1 |
0006- |
● |
● |
| |
29 |
BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3>
M8X70 FLANGE
|
0-28080-870-0 |
04 |
1 |
9806-0005 |
● |
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
M8X70 FLANGE
|
0-28080-870-0 |
04 |
1 |
9806-0005 |
|
● |
| |
29 |
BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3>
M8X70 FLANGE
|
0-28080-870-0 |
04 |
1 |
0006-0512 |
● |
● |
| |
29 |
BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3>
M8X70 FLANGE
|
0-28050-870-0 |
04 |
1 |
0601- |
● |
● |
| |
36 |
BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI
|
1-13671-194-0 |
01 |
1 |
9806-1402 |
● |
● |
| |
36 |
BELT; COOLING FAN
1 SET=2 PIECE(8982534550) MITSUBOSHI
|
8-98253-275-0 |
01 |
1 |
1403- |
● |
● |
| |
38 |
SPACER; FAN
EXC. FLUID DRIVE FAN<KA3>
|
8-94393-896-0 |
01 |
1 |
9806-0005 |
● |
|
| |
38 |
SPACER; FAN
|
8-94393-896-0 |
01 |
1 |
9806-0005 |
|
● |
| |
38 |
SPACER; FAN
EXC. FLUID DRIVE FAN<KA3>
|
8-94393-896-0 |
01 |
1 |
0006-0402 |
● |
● |
| |
38 |
SPACER; FAN
EXC. FLUID DRIVE FAN<KA3>
|
8-94393-896-0 |
01 |
1 |
0403-0906 |
● |
|
| |
38 |
SPACER; FAN
|
8-94393-896-0 |
01 |
1 |
0403-0906 |
|
● |
| |
38 |
SPACER; FAN
EXC. FLUID DRIVE FAN<KA3>
|
8-94393-896-0 |
01 |
1 |
0907-1104 |
● |
● |
| |
38 |
SPACER; FAN
EXC. FLUID DRIVE FAN<KA3>
|
8-98167-649-0 |
01 |
1 |
1105- |
● |
● |
| |
80 |
PLATE; ADJ
|
8-94390-021-1 |
01 |
1 |
9806-0001 |
● |
● |
| |
80 |
PLATE; ADJ
|
8-97601-021-0 |
01 |
1 |
0002- |
● |
● |
| |
81 |
PIECE; SLIDING
M12X45
|
1-13674-160-0 |
01 |
1 |
9806- |
● |
● |
| |
82 |
NUT; ADJ PLATE
M12 FLANGE
|
0-91150-112-0 |
01 |
1 |
9806-0602 |
● |
● |
| |
82 |
NUT; ADJ PLATE
M12 FLANGE
|
0-91180-112-0 |
01 |
1 |
0603- |
● |
● |
| |
86 |
BOLT; ADJ
M10X155 FLANGE
|
1-09009-114-1 |
01 |
1 |
9806- |
● |
● |
| |
88 |
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
|
9-09164-712-0 |
01 |
1 |
9806-0605 |
● |
● |
| |
88 |
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
|
0-91614-712-0 |
01 |
1 |
0606- |
● |
● |
| |
96 |
BOLT; ADJ PLATE
M10X45 FLANGE
|
0-28181-045-0 |
01 |
1 |
9806-0512 |
● |
● |
| |
96 |
BOLT; ADJ PLATE
M10X45 FLANGE
|
0-28151-045-0 |
01 |
1 |
0601- |
● |
● |
| |
111 |
STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3>
M6X12 L=21
|
9-04110-612-0 |
04 |
1 |
9806-0005 |
● |
|
| |
111 |
STUD; FAN DRIVE
M6X12 L=21
|
9-04110-612-0 |
04 |
1 |
9806-0005 |
|
● |
| |
111 |
STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3>
M6X12 L=21
|
9-04110-612-0 |
04 |
1 |
0006-0402 |
● |
● |
| |
111 |
STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3>
M6X12 L=21
|
9-04110-612-0 |
04 |
1 |
0403-0604 |
● |
|
| |
111 |
STUD; FAN DRIVE
M6X12 L=21
|
9-04110-612-0 |
04 |
1 |
0403-0604 |
|
● |
| |
111 |
STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3>
M6X12 L=21
|
0-41010-612-0 |
04 |
1 |
0605- |
● |
● |
