0-31 — THERMOSTAT AND HOUSING (#65229) — 32 parça

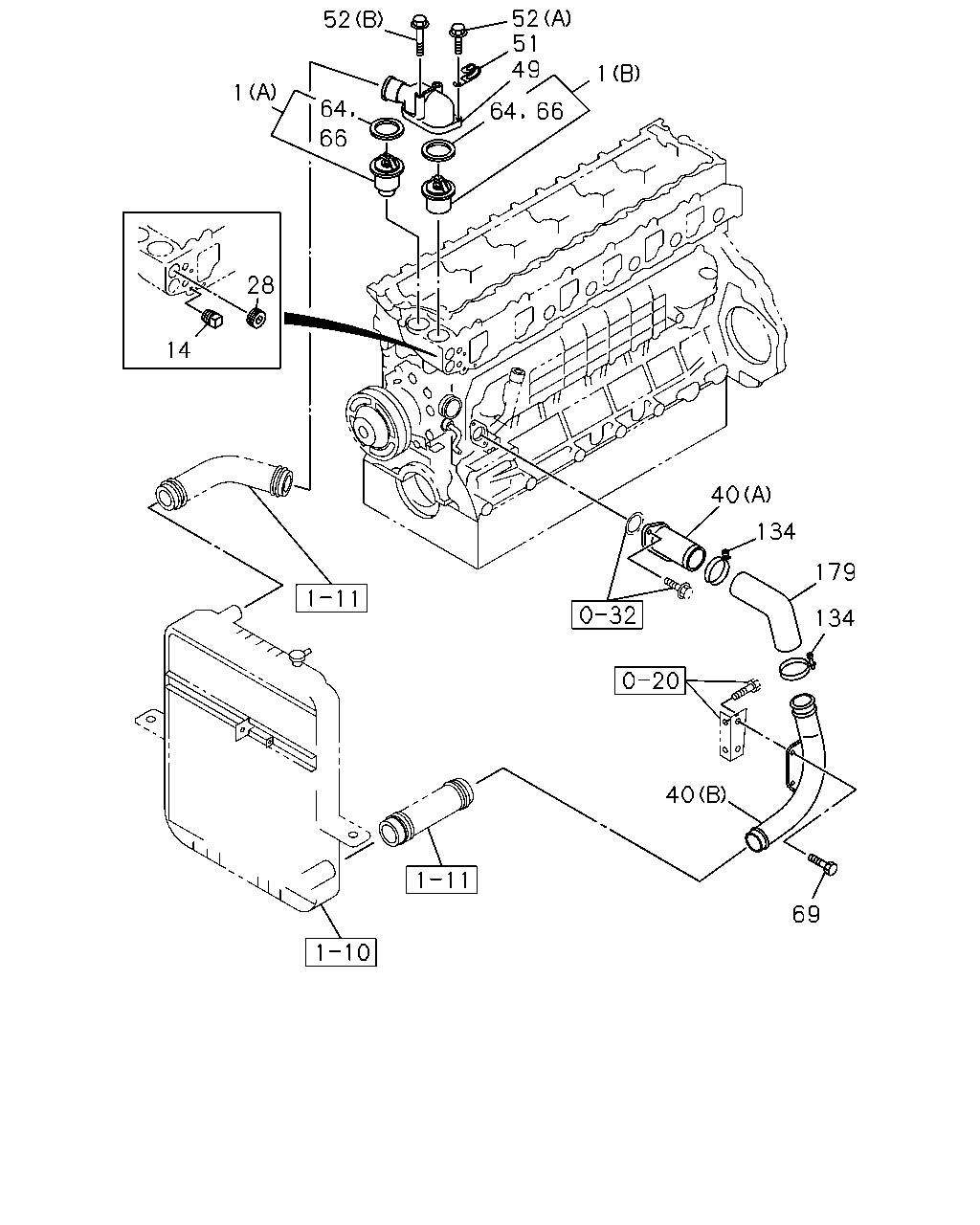

çizim 41696
52 51 49 52 1 1 64 66 64 66 28 14 40 134 179 134 40 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-94393-349-1 01 1 9806-0105 ● ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-97602-036-0 01 1 0106-0112 ● ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-97602-392-2 01 1 0201- ● ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94393-350-1 01 1 9806-9807 ● ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94392-816-0 01 1 9808-0105 ● ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-97602-035-3 01 1 0106- ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 9806-0105 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-97602-048-3 01 1 0106- ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94397-311-0 01 1 9806-9807 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0105 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-97602-393-1 01 1 0201-1501 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 9806- ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 9806- ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 9806- ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9806- ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9806-0105 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9806-0801 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9806-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9806-0105 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-1501 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 9806-0512 ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9806- ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 9806- ● ●
