0-30 — WATER PUMP AND CORROSION RESISTOR (#65228) — 46 parça

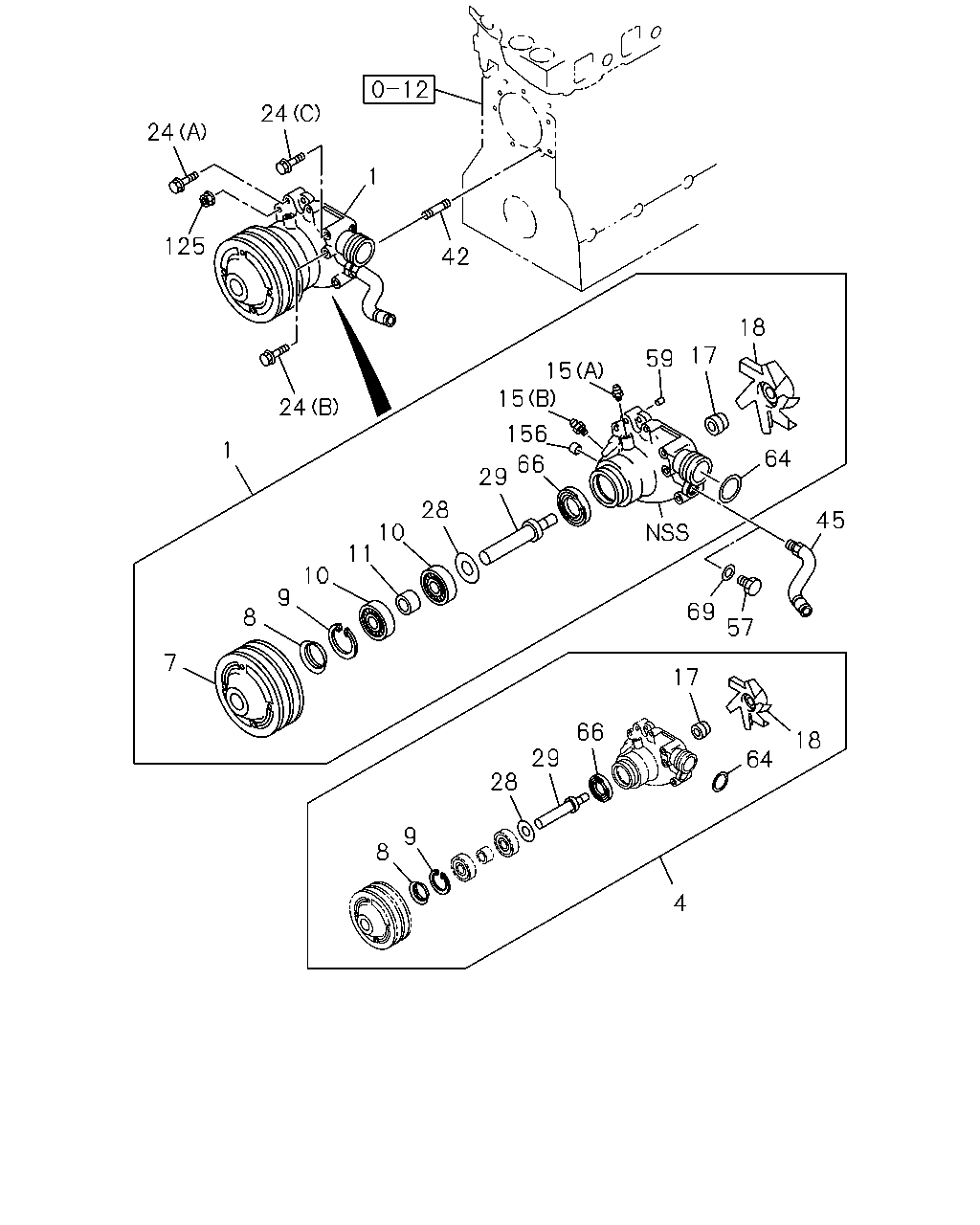

çizim 184819
24 24 125 1 42 15 15 24 1 7 9 8 11 10 28 4 8 28 66 29 9 17 64 18 57 69 45 64 18 17 59 156 29 66 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER<C41> 		8-94395-657-6 01 1 9806-0301 ● ●
1 PUMP ASM; WATER,W/GASKET 8-97602-775-0 01 1 0302-0801 ● ●
1 PUMP ASM; WATER,W/GASKET 8-97627-357-1 01 1 0802-1208 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-842-0 01 1 1209-1312 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-916-0 01 1 1401-1405 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-988-0 01 1 1406- ● ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER<C41> 		8-94390-601-5 01 1 9806-0301 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-051-0 01 1 9806-9911 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-027-1 01 1 9912-0801 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-363-0 01 1 0802-1208 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-948-0 01 1 1209-1312 ● ●
4 REPAIR KIT; WATER PUMP 1-87814-173-0 01 1 1401-1405 ● ●
4 REPAIR KIT; WATER PUMP 1-87814-613-0 01 1 1406- ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 9806- ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9806- ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9806- ● ●
10 BEARING; WATER PUMP 1-09800-011-0 02 1 9806- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9806- ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9806- ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9806-0512 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9806-9912 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001-1208 ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9806- ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9806-0512 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9806- ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9806- ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9806- ● ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 9806- ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9806-0604 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER<C41> 		8-94397-377-2 01 1 9806- ● ●
57 PLUG; HTR,WATER PUMP
EXC. HEATER & DEFROSTER<C41> M20 		9-99202-320-0 01 1 0302- ● ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 9806-0801 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0802- ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9806- ● ●
66 SEAL; SECONDARY 1-09625-437-0 01 1 9806-0801 ● ●
66 SEAL; SECONDARY 8-98084-780-0 01 1 0802- ● ●
69 GASKET; PLUG,HTR
EXC. HEATER & DEFROSTER<C41> ID=20.5 OD=28.0 		9-09571-420-0 01 1 0302- ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0004- ● ●
