◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10717 - FSS/FTS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#65227) — 10 parça

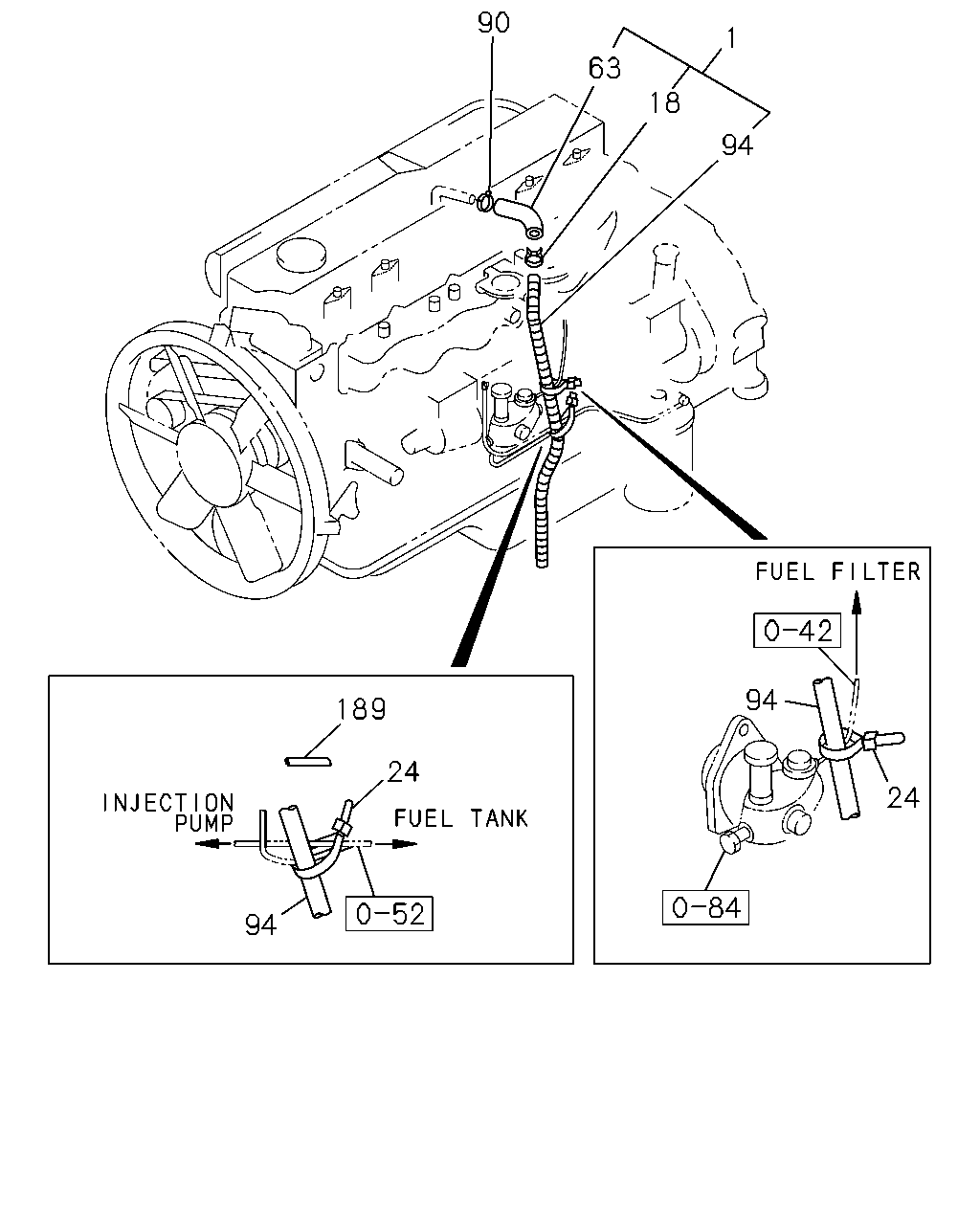

çizim 40544
90 1 63 18 94 94 189 24 24 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 BREATHER; AIR 8-94394-859-4 01 1 9806- ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
ID=33.6 		8-94362-518-0 01 1 9806- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9806-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 02 1 1206- ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02828-070-0 01 1 0704-1005 ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1006- ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 9806-9808 ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9806- ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-1 01 1 9806- ● ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002- ● ●
