0-27 — EXHAUST MANIFOLD (#65226) — 18 parça

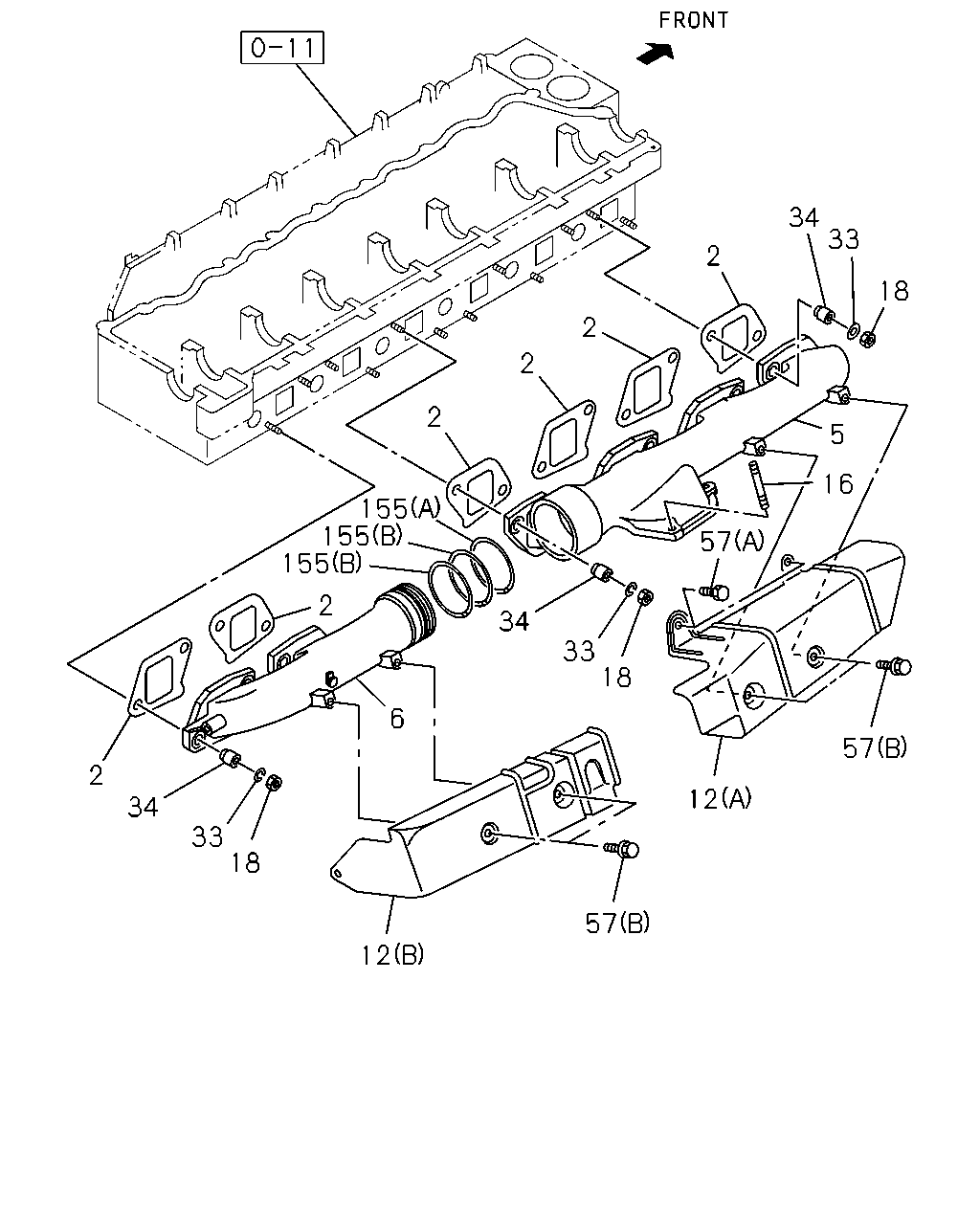

çizim 39638
34 33 2 18 2 2 2 5 16 155 155 155 57 2 34 33 18 6 57 2 12 34 33 18 57 12
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 9806- ● ●
5 MANIFOLD; EXH,FRT 8-94394-753-1 01 1 9806- ● ●
6 MANIFOLD; EXH,RR 8-94394-755-4 01 1 9806- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94391-040-0 01 1 9806-9809 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94392-947-0 01 1 9810- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A) 		8-94395-204-0 01 1 9806- ● ●
16 STUD; EXH PIPE TO MANIF
M12X103 L=123 		8-94394-656-0 03 1 9806- ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 12 1 9806-0602 ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91180-210-0 12 1 0603- ● ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 12 1 9806- ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-94395-679-0 12 1 9806-0209 ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0210- ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9806-0512 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 9806-0408 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-97378-075-0 05 1 0409- ● ●
155 RING; SEAL,EXH MANIF
(A) STAMP RH 		1-14149-151-0 01 1 9806- ● ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 9806- ● ●
