0-25 — INLET MANIFOLD (#65225) — 11 parça

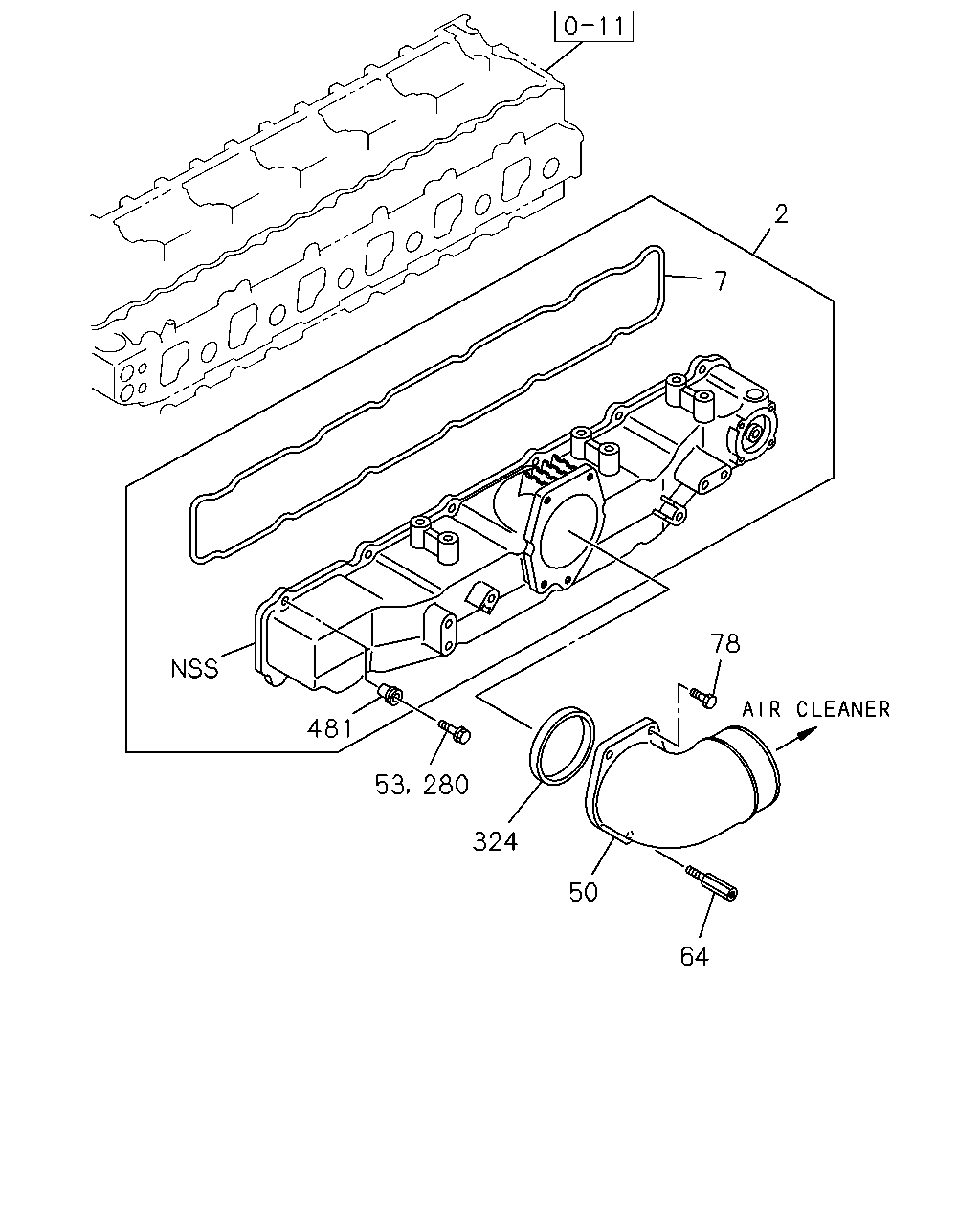

çizim 184818
2 7 78 481 53 280 324 50 64
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; INL 8-94395-960-0 01 1 9806- ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9806- ● ●
50 PIPE; INL 8-94397-063-2 01 1 9806- ● ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28080-812-0 04 1 9806-0512 ● ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28050-812-0 04 1 0601-1006 ● ●
64 STUD; INL PIPE
M10X25 L=75 		8-94397-086-0 01 1 9806- ● ●
78 BOLT; INL PIPE TO INL MANIF
M10X30 FLANGE 		0-28181-030-0 02 1 9806-0512 ● ●
78 BOLT; INL PIPE TO INL MANIF
M10X30 FLANGE 		0-28151-030-0 02 1 0601- ● ●
280 BOLT; INL COVER
M8X28 FLANGE 		0-28080-828-0 12 1 9806- ● ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94399-417-0 01 1 9806- ● ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 9806- ● ●
