10717 - FSS/FTS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

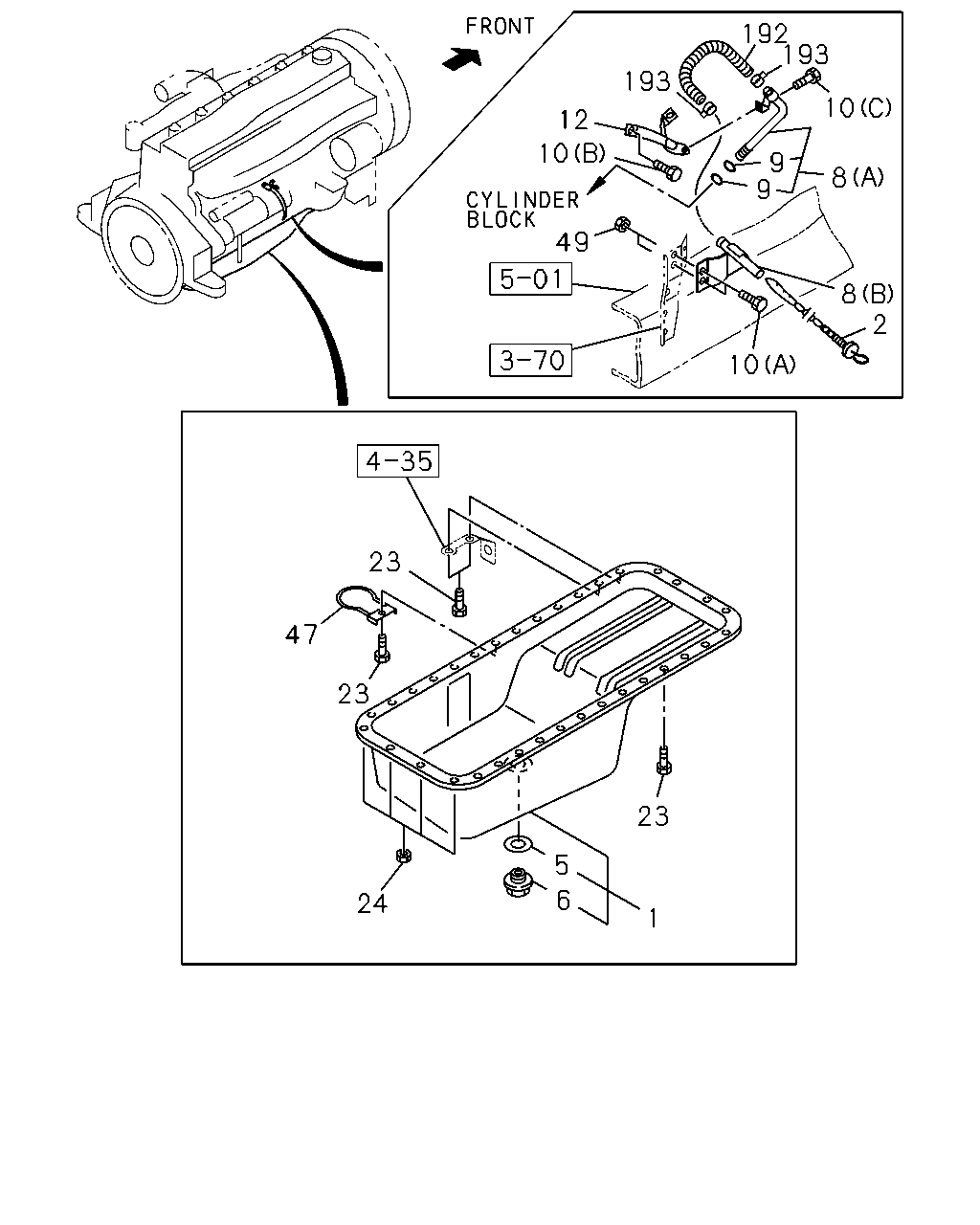

0-13 — OIL PAN AND LEVEL GAUGE
(#65220) — 30 parça
Tümü
A - 6HH1 STD ENG
B - 6HH1 N ENG
192
193
193
10
12
10
9
9
8
49
8
2
10
23
47
23
23
5
6
24
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PAN ASM; OIL
8-94395-861-1
01
1
9806-
●
●
2
GAUGE; OIL LEVEL
1-11760-396-1
01
1
9806-
●
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24
1-09623-183-0
01
1
9806-0004
●
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0005-
●
●
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
9806-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-453-0
01
1
9903-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-452-0
01
1
9806-9902
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-452-0
01
1
9903-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-94395-114-3
01
1
9806-
●
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
5-09623-002-0
02
1
9806-0112
●
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0201-
●
●
10
BOLT; GUIDE TUBE
(B) M8X12 FLANGE
0-28080-812-0
01
1
9806-0512
●
●
10
BOLT; GUIDE TUBE
(B) M8X12 FLANGE
0-28050-812-0
01
1
0601-
●
●
10
BOLT; GUIDE TUBE
(C) M8X16 FLANGE
0-28080-816-0
01
1
9806-0512
●
●
10
BOLT; GUIDE TUBE
(C) M8X16 FLANGE
0-28050-816-0
01
1
0601-
●
●
10
BOLT; GUIDE TUBE
(B) M8X30 FLANGE
0-28080-830-0
01
1
9806-0512
●
●
10
BOLT; GUIDE TUBE
(B) M8X30 FLANGE
0-28050-830-0
01
1
0601-
●
●
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28680-820-0
02
1
9806-0512
●
●
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
12
BRACKET; TUBE,OIL LEVEL GAUGE
8-94395-150-0
01
1
9806-
●
●
23
BOLT; OIL PAN
M8X18 FLANGE
0-28080-818-0
30
1
9806-
●
●
24
NUT; OIL PAN
M8 FLANGE
0-91150-108-0
04
1
9806-0602
●
●
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
47
CLIP; HOSE,AIR BREATHER
1-11369-115-0
01
1
9806-1506
●
●
47
CLIP; HOSE,AIR BREATHER
8-98303-447-0
01
1
1507-
●
●
49
NUT; GUIDE TUBE
M8 FLANGE
0-91150-108-0
02
1
9806-0602
●
●
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
192
HOSE; GUIDE TUBE
L=300
1-09360-945-1
01
1
9806-0305
●
●
192
HOSE; GUIDE TUBE
L=300
1-09360-978-0
01
1
0306-
●
●
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
9806-
●
●
