1 |

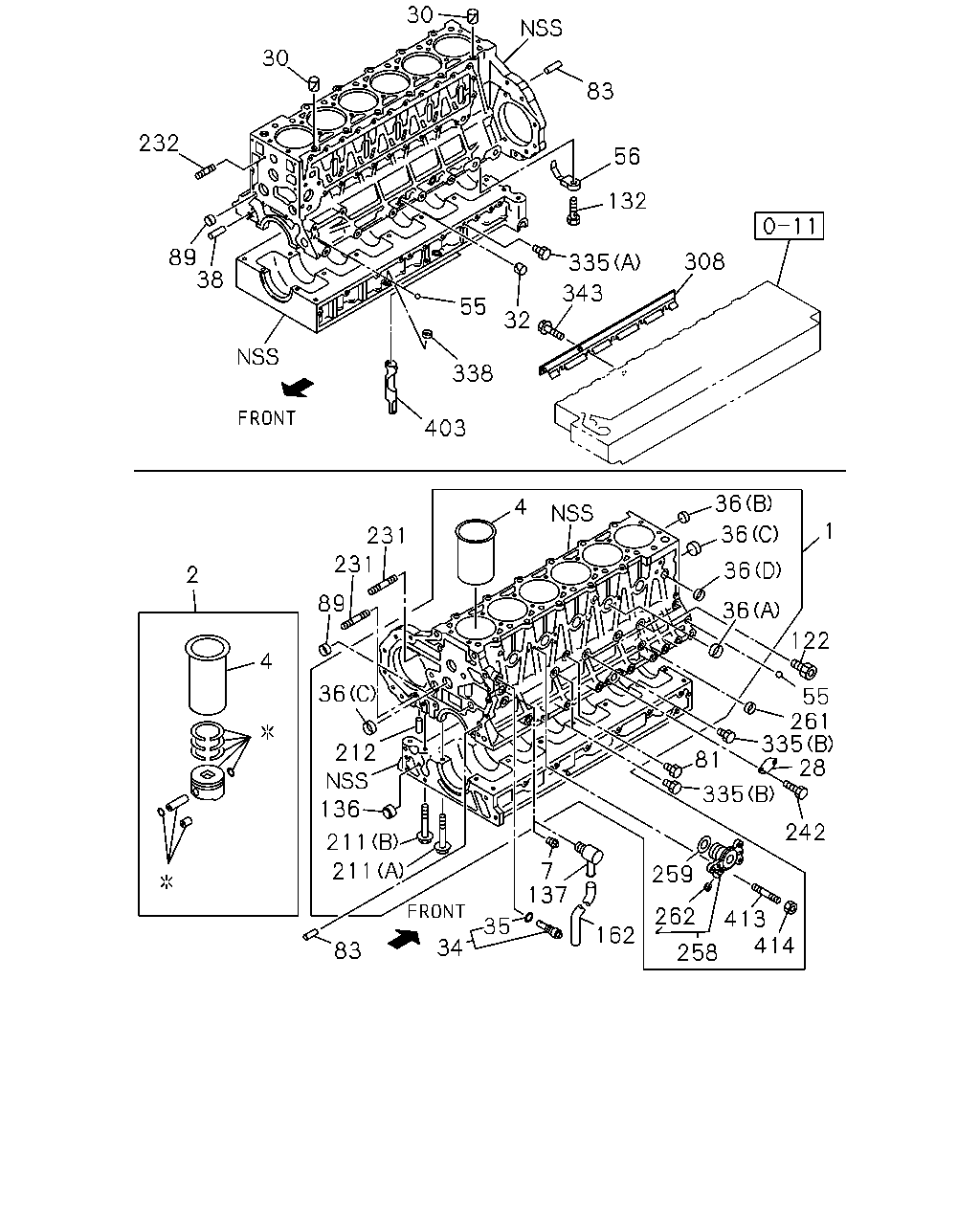

BLOCK ASM; CYL
|
8-94394-057-9 |
01 |
1 |
9806-9807 |
● |
● |
| |
1 |
BLOCK ASM; CYL
|
8-94392-491-2 |
01 |
1 |
9808-0002 |
● |
● |
| |
1 |
BLOCK ASM; CYL
|
8-97600-415-2 |
01 |
1 |
0003-0504 |
● |
● |
| |
1 |
BLOCK ASM; CYL
|
8-98005-414-2 |
01 |
1 |
0505-1012 |
● |
● |
| |
1 |
BLOCK ASM; CYL
|
8-98180-710-0 |
01 |
1 |
1101-1209 |
● |
● |
| |
1 |
BLOCK ASM; CYL
|
8-98206-961-0 |
01 |
1 |
1210- |
● |
● |
| |
2 |
LINER SET; ENG CYL
GRADE=1X
|
1-87811-665-9 |
06 |
1 |
9806- |
● |
● |
| |
2 |
LINER SET; ENG CYL
GRADE=3X
|
1-87811-666-9 |
06 |
1 |
9806- |
● |
● |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=1X,ID GRADE=NON
|
8-94391-602-1 |
06 |
1 |
9806- |
● |
● |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=3X,ID GRADE=NON
|
8-94391-603-1 |
06 |
1 |
9806- |
● |
● |
| |
7 |
PLUG; WATER DRAIN
PT3/8
|
8-94397-338-0 |
01 |
1 |
1101- |
● |
● |
| |
28 |
COVER; OIL PORT
|
1-11219-163-0 |
01 |
1 |
9806- |
● |
● |
| |
30 |
PIN; CYL HD GASKET SETTING
OD=18.15
|
8-94399-688-1 |
02 |
1 |
9806- |
● |
● |
| |
32 |
PIN; INJ PUMP BRKT
OD=14
|
8-94453-344-0 |
02 |
1 |
9806- |
● |
● |
| |
34 |
VALVE; OIL RELIEF
|
8-94393-077-1 |
01 |
1 |
9806- |
● |
● |
| |
35 |
GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=27.7
|
5-09623-035-0 |
01 |
1 |
9806- |
● |
● |
| |
36 |
CUP; SEALING,WATER JACKET
(A)
OD=45
|
1-09600-005-2 |
05 |
1 |
9806- |
● |
● |
| |
36 |
CUP; SEALING,WATER JACKET
(D)
OD=25
|
1-09600-016-0 |
01 |
1 |
9806- |
● |
● |
| |
36 |
CUP; SEALING,WATER JACKET
(B)
OD=25
|
8-94399-005-0 |
01 |
1 |
9806- |
● |
● |
| |
36 |
CUP; SEALING,WATER JACKET
(C)
OD=40
|
8-94399-639-0 |
04 |
1 |
9806-0502 |
● |
● |
| |
36 |
CUP; SEALING,WATER JACKET
(C)
OD=40
|
8-97096-824-0 |
04 |
1 |
0503- |
● |
● |
| |
38 |
PIN; TIMING GEAR CASE
L=22
|
8-94483-674-0 |
02 |
1 |
9806- |
● |
● |
| |
55 |
PLUG; OIL GALLERY
3/8" BALL
|
9-00097-011-0 |
02 |
1 |
9806- |
● |
● |
| |
56 |
JET; OIL,PISTON COOLING
|
8-94399-187-1 |
06 |
1 |
9806- |
● |
● |
| |
81 |
PLUG; WATER JACKET
M14
|
8-94399-225-0 |
01 |
1 |
9806-0703 |
● |
● |
| |
81 |
PLUG; WATER JACKET
M14X16.5
|
8-97329-617-0 |
01 |
1 |
0704- |
● |
● |
| |
83 |
PIN; FLYWHEEL HSG
L=22
|
8-94483-674-0 |
02 |
1 |
9806-0306 |
● |
● |
| |
83 |
PIN; FLYWHEEL HSG
OD=10 L=20
|
8-97135-423-0 |
02 |
1 |
0307-0307 |
● |
● |
| |
83 |
PIN; FLYWHEEL HSG
L=22
|
8-94483-674-0 |
02 |
1 |
0308- |
● |
● |
| |
89 |
CUP; SEALING,OIL GALLERY
OD=20
|
9-11219-192-0 |
03 |
1 |
9806-0908 |
● |
● |
| |
89 |
CUP; SEALING,OIL GALLERY
OD=20
|
9-11129-128-0 |
03 |
1 |
0909- |
● |
● |
| |
122 |
ADAPTER; OIL PRESSURE SWITCH
|
8-94399-858-2 |
01 |
1 |
9806- |
● |
● |
| |
132 |
VALVE; CHECK,OIL
M10X18.5
|
1-13161-012-0 |
06 |
1 |
9806-0704 |
● |
● |
| |
132 |
VALVE; CHECK,OIL
M10X18.5
|
8-97329-618-0 |
06 |
1 |
0705- |
● |
● |
| |
136 |
BUSHING; DRIVE SHAFT,OIL PUMP
|
8-94393-596-1 |
02 |
1 |
0005-0812 |
● |
● |
| |
136 |
BUSHING; DRIVE SHAFT,OIL PUMP
|
8-98091-566-0 |
02 |
1 |
0901- |
● |
● |
| |
137 |
COCK; DRAIN,WATER
|
1-09680-024-0 |
01 |
1 |
9806-1012 |
● |
● |
| |
162 |
HOSE; WATER DRAIN,C/BL
L=310
SERVICED BY L=3000
|
0-03259-300-0 |
01 |
1 |
9806-0206 |
● |
● |
| |
162 |
HOSE; WATER DRAIN,C/BL
L=310
SERVICED BY L=3000
|
0-03559-300-0 |
01 |
1 |
0207-1012 |
● |
● |
| |
211 |
BOLT; CRANKCASE
(A)
M14X115 W/FLANGE
|
8-94396-207-3 |
14 |
1 |
9806-0905 |
● |
● |
| |
211 |
BOLT; CRANKCASE
(A)
M14X115 W/FLANGE
|
8-97077-638-0 |
14 |
1 |
0906- |
● |
● |
| |
211 |
BOLT; CRANKCASE
(B)
M10X82
|
8-94399-553-2 |
25 |
1 |
9806- |
● |
● |
| |
212 |
PIN; CRANKCASE
L=22
|
8-94483-674-0 |
02 |
1 |
9806-0306 |
● |
● |
| |
212 |
PIN; CRANKCASE
OD=10 L=20
|
8-97135-423-0 |
02 |
1 |
0307- |
● |
● |
| |
231 |
STUD; AIR CMPR
M10X36.5 L=48.5
|
8-94396-145-0 |
02 |
1 |
9806-0301 |
● |
● |
| |
231 |
STUD; AIR CMPR
M10X25 L=40
|
0-49841-025-0 |
02 |
1 |
0302-0512 |
● |
● |
| |
231 |
STUD; AIR CMPR
M10X25 L=48.5
|
0-49241-025-0 |
02 |
1 |
0601- |
● |
● |
| |
232 |
STUD; WATER PUMP
M8X55 L=67
|
9-04110-855-0 |
03 |
1 |
9806-0604 |
● |
● |
| |
232 |
STUD; WATER PUMP
M8X55 L=67
|
0-41010-855-0 |
03 |
1 |
0605- |
● |
● |
| |
242 |
BOLT; COVER,OIL PORT
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9806-0512 |
● |
● |
| |
242 |
BOLT; COVER,OIL PORT
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0601- |
● |
● |
| |
258 |
ADAPTER; BLOCK HTR
|
8-94395-868-0 |
01 |
1 |
0505-0507 |
● |
● |
| |
259 |
GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=38.7
|
1-09623-184-0 |
01 |
1 |
0505-0507 |
● |
● |
| |
261 |
PLUG; OIL PRESS UNIT
OD=12.3
|
5-09600-013-0 |
01 |
1 |
9806-0307 |
● |
● |
| |
262 |
PLUG; ADAPTER
|
1-13163-002-0 |
01 |
1 |
0505-0507 |
● |
● |
| |
308 |
PROTECTOR; HEAT,HD COVER
|
8-94390-548-0 |
01 |
1 |
9806-9901 |
● |
● |
| |
308 |
PROTECTOR; HEAT,HD COVER
|
8-94391-759-2 |
01 |
1 |
9902-1005 |
● |
● |
| |
308 |
PROTECTOR; HEAT,HD COVER
|
8-98171-339-0 |
01 |
1 |
1006- |
● |
● |
| |
335 |
PLUG; C/BL,SIDE
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>
(A)
M8X6
|
8-94399-421-0 |
01 |
1 |
9806-0004 |
● |
|
| |
335 |
PLUG; C/BL,SIDE
(A)
M8X6
|
8-94399-421-0 |
01 |
1 |
9806-0004 |
|
● |
| |
335 |
PLUG; C/BL,SIDE
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>
(A)
M8X6
|
8-94399-421-0 |
01 |
1 |
0005-0501 |
● |
● |
| |
335 |
PLUG; C/BL,SIDE
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>
(A)
M8X10
|
8-98003-416-0 |
01 |
1 |
0502- |
● |
● |
| |
335 |
PLUG; C/BL,SIDE
(B)
M14
|
8-94399-225-0 |
04 |
1 |
9806-0703 |
● |
● |
| |
335 |
PLUG; C/BL,SIDE
(B)
M14X16.5
|
8-97329-617-0 |
04 |
1 |
0704- |
● |
● |
| |
338 |
CUP; SEALING,GUIDE TUBE HOLE
OD=15.6
|
5-11129-003-0 |
01 |
1 |
9806-0607 |
● |
● |
| |
338 |
CUP; SEALING,GUIDE TUBE HOLE
OD=15.6
|
5-11129-003-0 |
02 |
1 |
0608- |
● |
● |
| |
343 |
BOLT; HEAT PROTECTOR
M8X12 FLANGE
|
0-28080-812-0 |
05 |
1 |
9806-0512 |
● |
● |
| |
343 |
BOLT; HEAT PROTECTOR
M8X12 FLANGE
|
0-28050-812-0 |
05 |
1 |
0601- |
● |
● |
| |
403 |
GUIDE; GALLERY
|
8-94395-351-1 |
01 |
1 |
9806- |
● |
● |
| |
413 |
STUD; ADAPTER
M8X30 L=41
|
9-04110-830-0 |
02 |
1 |
0505-0507 |
● |
● |
| |
414 |
NUT; ADAPTER
M8 FLANGE
|
0-91150-208-0 |
02 |
1 |
0505-0507 |
● |
● |
