0-11 — CYLINDER HEAD (#65218) — 38 parça

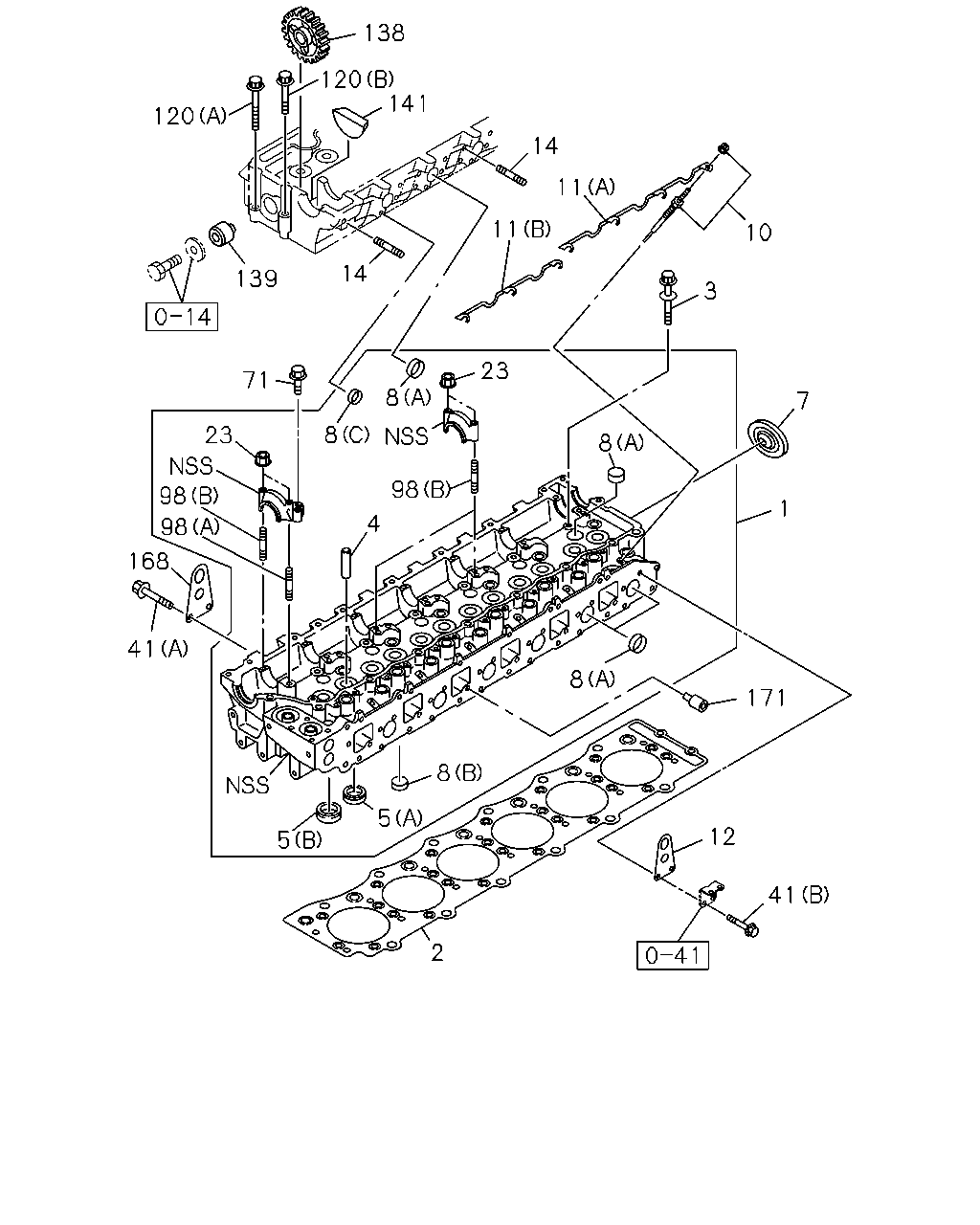

çizim 15012
120 120 139 138 141 14 14 11 11 10 3 7 1 8 23 8 8 71 23 168 98 98 41 5 5 8 8 171 12 41 4 98 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94390-082-7 01 1 9806-1012 ● ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-3 01 1 9806- ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9806-0901 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9806- ● ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 9806- ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9806- ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9806-0303 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 18 1 9806- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9806- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9806- ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9806-9808 ● ●
10 PLUG; GLOW 1-82513-043-2 06 1 9810- ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9806-0206 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207- ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 9806- ● ●
12 HANGER; ENG,RR 8-94399-404-3 01 1 9806- ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9806- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9806-0602 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9806-0512 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9806- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9806-0512 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9806- ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9806- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9806- ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9806- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 9806- ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 9806- ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9806-1005 ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ● ●
168 HANGER; ENG,FRT 8-94399-403-1 01 1 9806- ● ●
171 SEAT; VLV 8-94395-571-1 06 1 9806- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
