8-90 — RADIO AND TV (#65213) — 58 parça

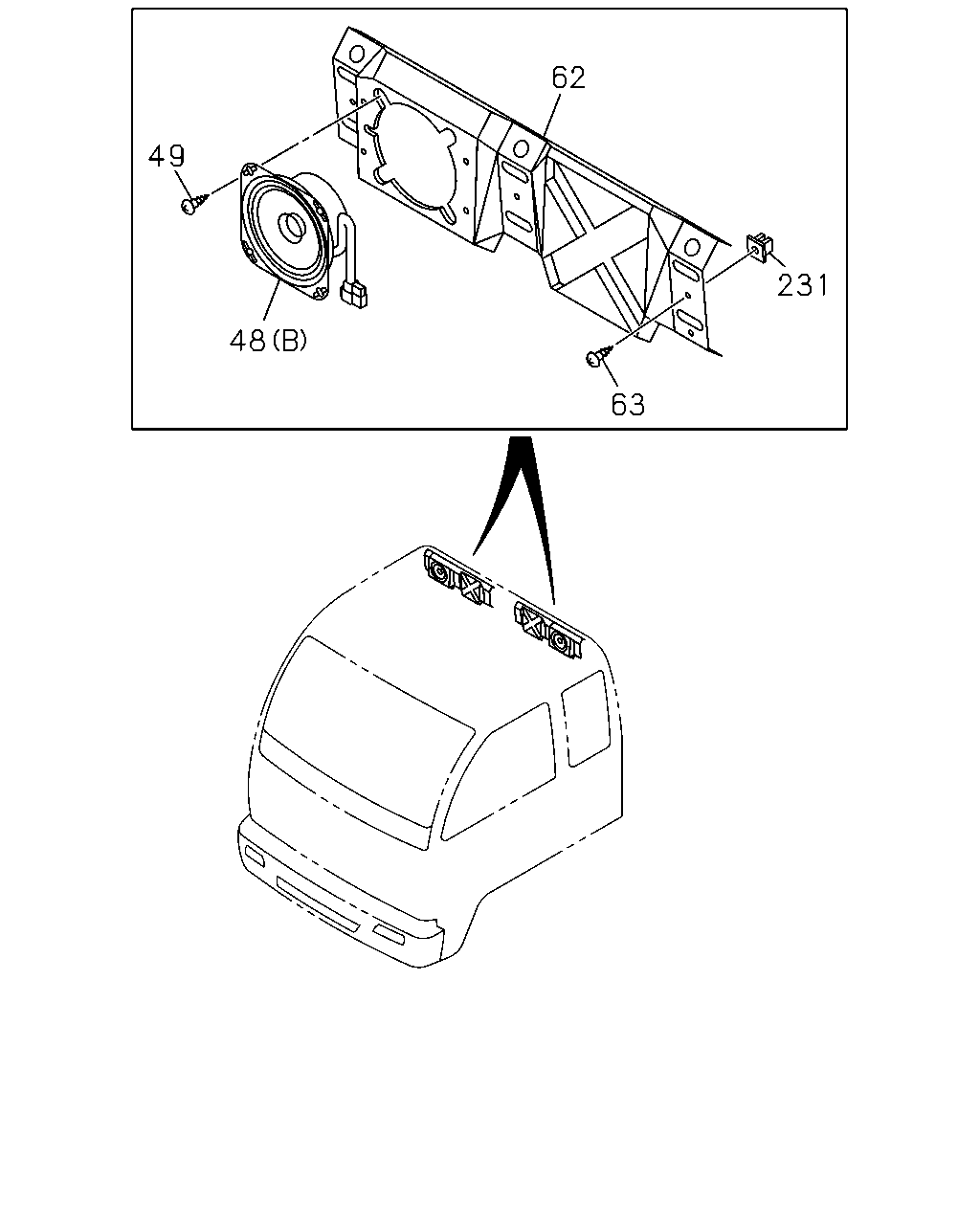

62 49 231 48 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	SPEAKER; AUDIO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A)	1-84114-050-0	01	1	9601-0308
48	SPEAKER; AUDIO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A)	1-84114-073-0	01	1	0309-0702
48	SPEAKER; AUDIO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A)	1-84114-073-0	02	1	0703-0905
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION<SK2> (A)	1-84114-073-0	02	1	0703-0905
48	SPEAKER; AUDIO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A)	8-98140-326-1	02	1	0906-
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION<SK2> (A)	8-98140-326-1	02	1	0906-
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> EXC. RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> (A)	1-84114-062-0	02	1	9601-0004
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION<SK2> (A)	1-84114-050-0	02	1	9601-0308
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION<SK2> (A)	1-84114-073-0	02	1	0309-0702
48	SPEAKER; AUDIO SPEAKER SYSTEM RR 2 SPEAKERS<TLS> (B)	1-84114-057-0	02	1	9805-0004
49	SCREW; SPEAKER SPEAKER SYSTEM RR 2 SPEAKERS<TLS> M5X16 W/LK&PL WASHER	8-94279-400-0	08	1	9805-0004
62	BOX; RR SPEAKER SPEAKER SYSTEM RR 2 SPEAKERS<TLS>	1-73996-197-5	01	1	9805-0004
62	BOX; RR SPEAKER SPEAKER SYSTEM RR 2 SPEAKERS<TLS>	1-73996-196-5	01	1	9805-0004
63	SCREW; RR SPEAKER BOX SPEAKER SYSTEM RR 2 SPEAKERS<TLS> M5X20	5-09981-059-0	12	1	9805-0004
231	GROMMET; SCREW,SPEAKER BOX SPEAKER SYSTEM RR 2 SPEAKERS<TLS> D=8.6X7.7 L=7.5	8-94279-078-0	12	1	9805-0004

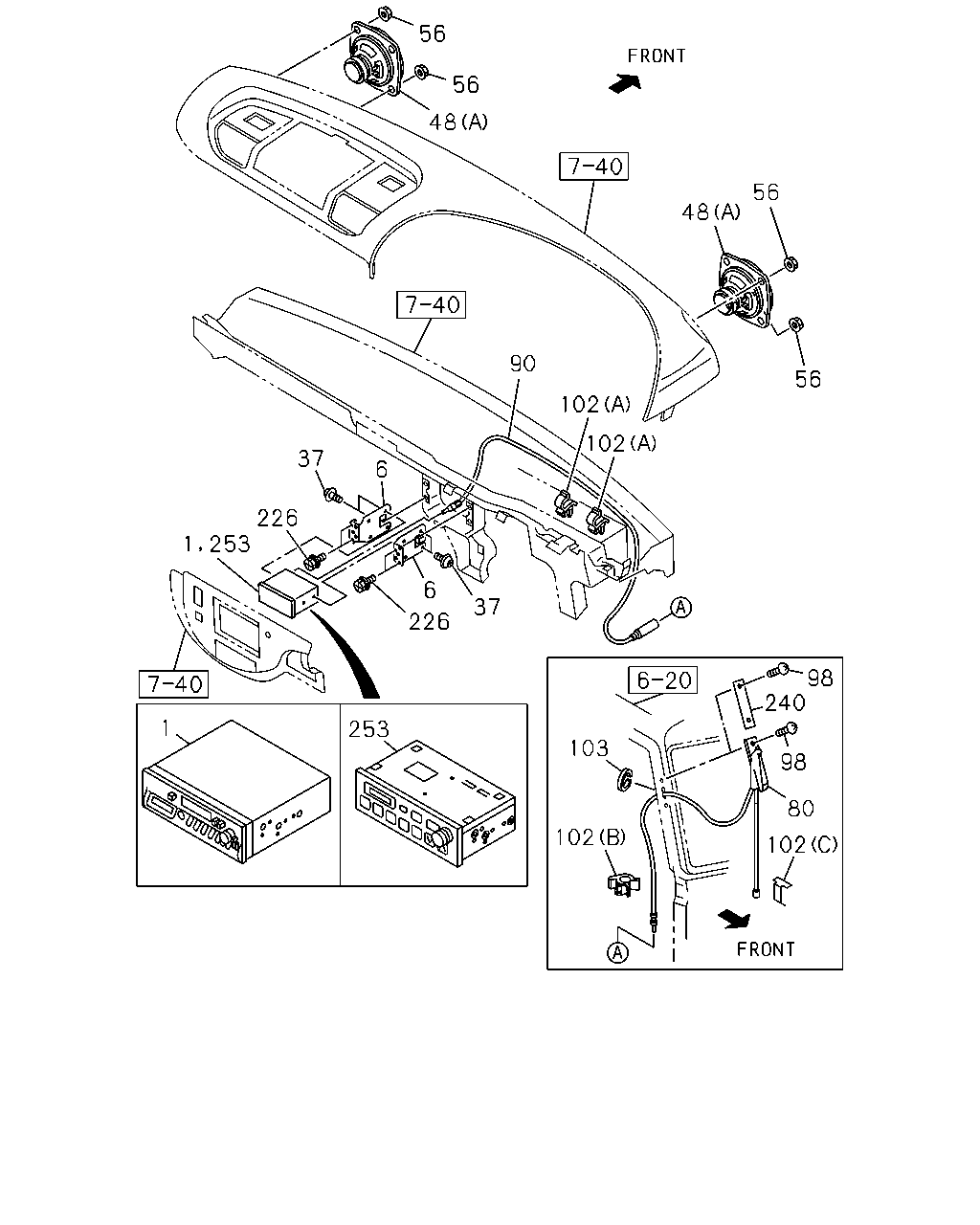

56 56 48 56 48 56 102 90 102 37 6 226 6 37 226 253 1 1 253 103 98 240 98 80 102 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>	1-84112-063-0	01	1	9601-0702
1	RADIO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> CLARION AM/FM	8-98029-605-0	01	1	0703-
6	BRACKET; RADIO TO PANEL	1-65671-551-4	02	1	9601-9804
6	BRACKET; RADIO TO PANEL	1-65671-551-4	02	1	9805-0612
6	BRACKET; RADIO TO PANEL	1-65671-822-1	02	1	0701-
37	SCREW; CASSETTE & RADIO RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9601-0604
37	SCREW; CASSETTE & RADIO RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0605-
48	SPEAKER; AUDIO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A)	1-84114-050-0	01	1	9601-0308
48	SPEAKER; AUDIO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A)	1-84114-073-0	01	1	0309-0702
48	SPEAKER; AUDIO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A)	1-84114-073-0	02	1	0703-0905
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION<SK2> (A)	1-84114-073-0	02	1	0703-0905
48	SPEAKER; AUDIO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A)	8-98140-326-1	02	1	0906-
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION<SK2> (A)	8-98140-326-1	02	1	0906-
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> EXC. RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> (A)	1-84114-062-0	02	1	9601-0004
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION<SK2> (A)	1-84114-050-0	02	1	9601-0308
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION<SK2> (A)	1-84114-073-0	02	1	0309-0702
48	SPEAKER; AUDIO SPEAKER SYSTEM RR 2 SPEAKERS<TLS> (B)	1-84114-057-0	02	1	9805-0004
56	NUT; SPEAKER,RADIO OR STEREO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE	1-09984-170-0	02	1	9601-0004
56	NUT; SPEAKER,RADIO OR STEREO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE	1-09984-170-0	02	1	0005-0702
56	NUT; SPEAKER,RADIO OR STEREO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE	1-09984-170-0	04	1	0703-
56	NUT; SPEAKER,RADIO OR STEREO RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE	1-09984-170-0	04	1	0703-
56	NUT; SPEAKER,RADIO OR STEREO SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE	1-09984-170-0	04	1	9601-9804
56	NUT; SPEAKER,RADIO OR STEREO SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE	1-09984-170-0	04	1	9805-0004
56	NUT; SPEAKER,RADIO OR STEREO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE	1-09984-170-0	04	1	9805-0004
56	NUT; SPEAKER,RADIO OR STEREO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE	1-09984-170-0	04	1	0005-0702
80	ANTENNA ANTENNA RADIO<U73>	1-84115-055-2	01	1	9601-1203
80	ANTENNA ANTENNA RADIO<U73>	8-98210-874-1	01	1	1204-
90	CABLE; ANTENNA,FEEDER ANTENNA RADIO<U73>	1-84113-011-2	01	1	9601-
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	9601-0004
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	0005-
102	CLIP; CABLE ANTENNA RADIO<U73> (C) L=20 SET=10 PIECE	1-09987-246-2	01	1	1410-
102	CLIP; CABLE ANTENNA RADIO<U73> (A) ID=4.8	8-94128-483-0	02	1	9601-9804
102	CLIP; CABLE ANTENNA RADIO<U73> (A) ID=4.8	8-94128-483-0	07	1	9805-9808
102	CLIP; CABLE ANTENNA RADIO<U73> (A) ID=4.8	8-94128-483-0	06	1	9809-9809
102	CLIP; CABLE ANTENNA RADIO<U73> (A) ID=4.8	8-94128-483-0	07	1	9810-9902
102	CLIP; CABLE ANTENNA RADIO<U73> (A) ID=4.8	8-94128-483-0	02	1	9903-
102	CLIP; CABLE ANTENNA RADIO<U73> (A) ID=4.8	8-94128-483-0	05	1	9601-9804
102	CLIP; CABLE ANTENNA RADIO<U73> (B) ID=4.8	1-73907-618-0	05	1	9903-
103	GROMMET; ANTENNA HOLE,FRT ANTENNA RADIO<U73>	8-97027-381-0	01	1	9601-
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9601-9804
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9805-
240	COVER; ANTENNA EXC. ANTENNA RADIO<U73>	1-79996-296-0	01	1	9601-
253	DECK ASM; RADIO & CD RADIO AM/FM STEREO & TAPE PLAYER<UN3> SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> CLARION	1-84122-032-3	01	1	9601-
