8-75 — CONDENSER (#65211) — 32 parça

150 30 1 150 79 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0605-
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0605-0904
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	05	1	0605-
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0605-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-785-2	01	1	0605-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-786-1	01	1	0605-

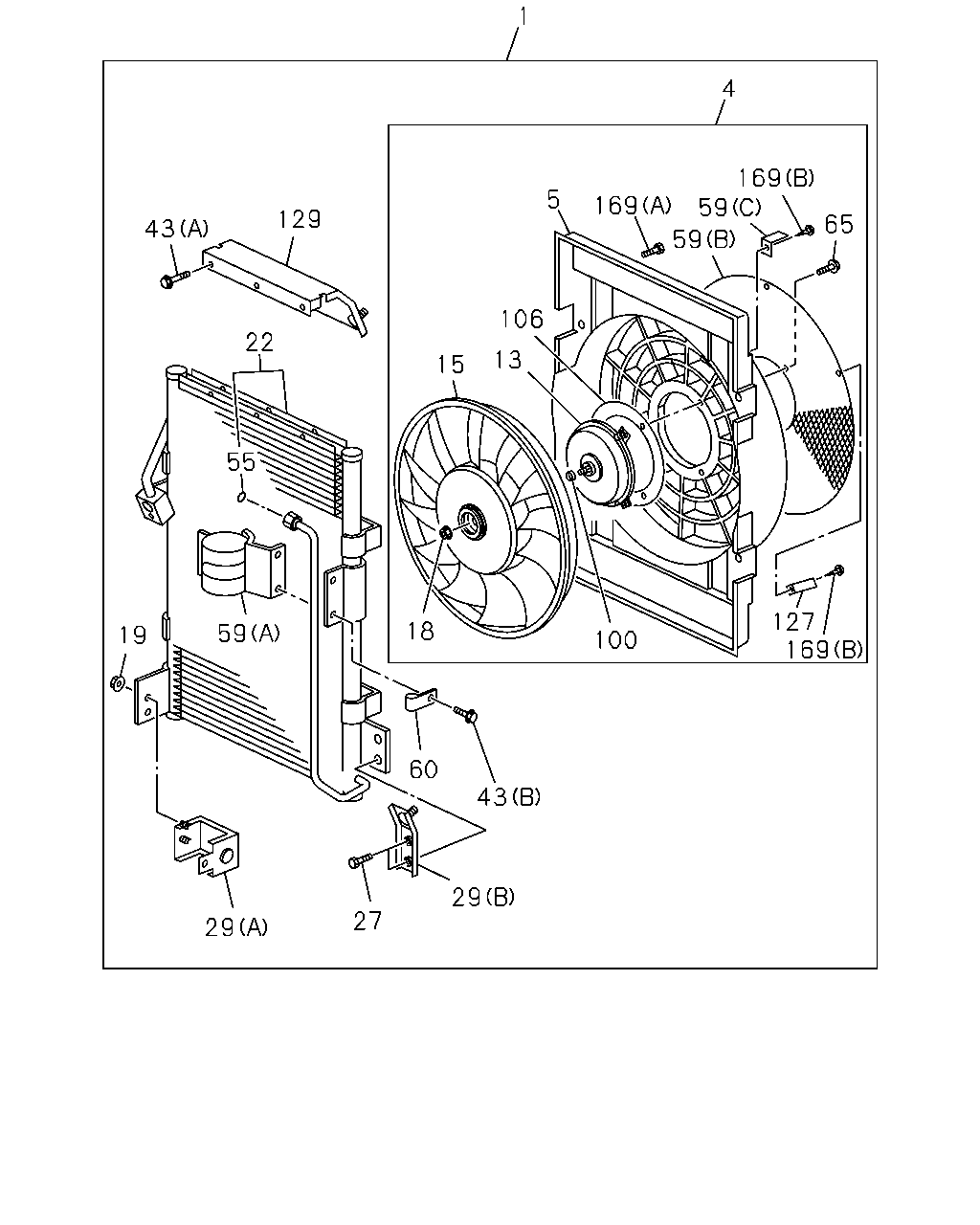

1 4 169 59 5 169 129 65 43 59 106 22 13 15 55 127 169 18 59 19 100 60 43 29 27 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-211-2	01	1	0605-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-156-1	01	1	0605-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-343-0	01	1	0605-
13	MOTOR; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-157-1	01	1	0605-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-158-0	01	1	0605-
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	0605-
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	02	1	0605-
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-224-0	01	1	0605-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-975-0	02	1	0605-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	0605-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-348-1	01	1	0605-
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-975-0	02	1	0605-
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97018-671-0	03	1	0605-
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	0605-
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-228-2	01	1	0605-
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-344-0	01	1	0605-
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-346-0	01	1	0605-
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	0605-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-97117-796-0	03	1	0605-
100	COLLAR; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-349-0	01	1	0605-
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-345-0	01	1	0605-
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94158-260-0	01	1	0605-
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-347-1	01	1	0605-
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-974-0	08	1	0605-
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-975-0	04	1	0605-
