◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#65209) — 184 parça

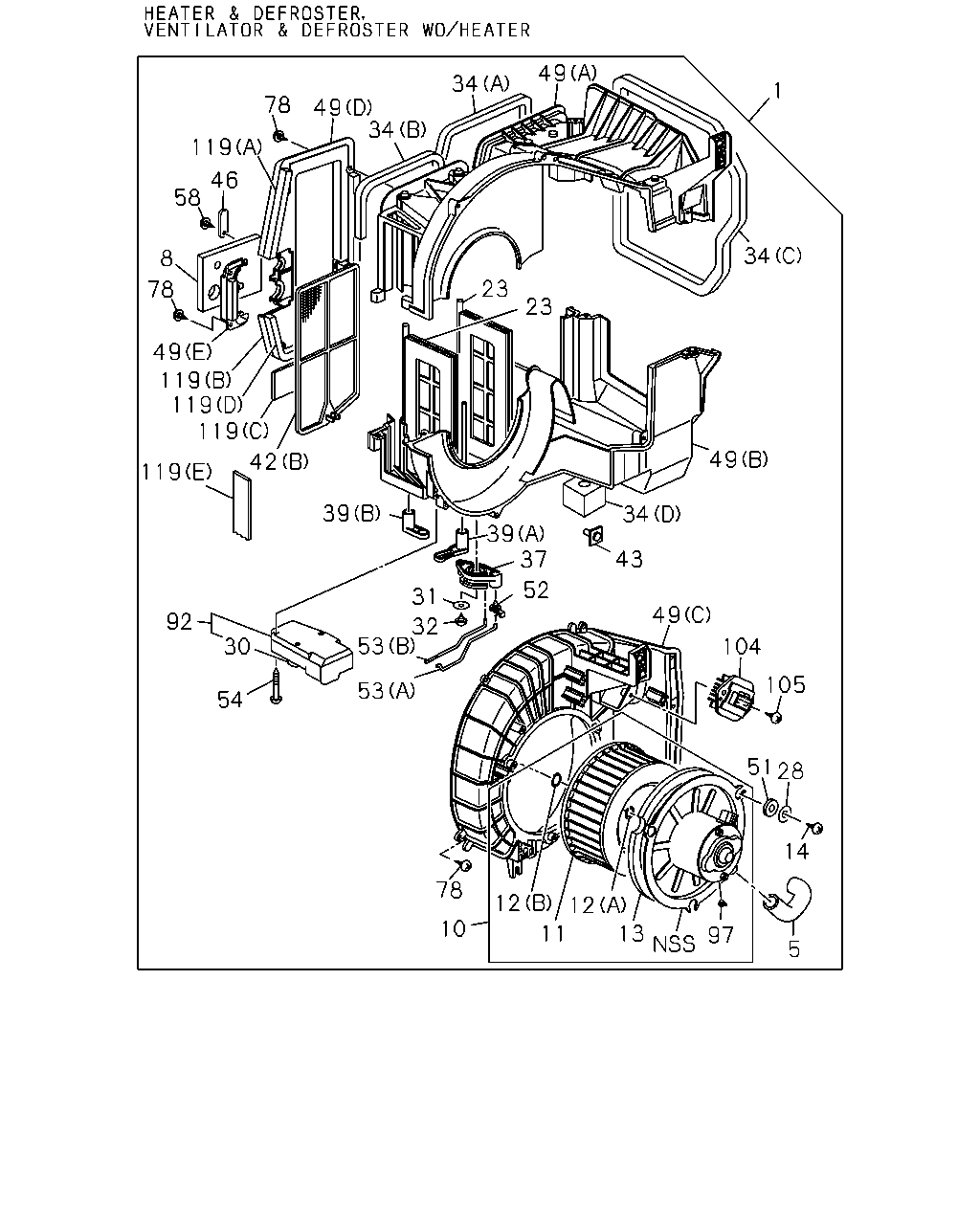

çizim 184763
49 34 1 78 49 34 119 46 58 34 8 23 78 23 49 119 119 119 49 42 119 39 34 39 37 43 52 31 49 92 32 53 104 30 105 53 54 51 28 14 78 12 12 10 13 11 97 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-180-2 01 1 0605-
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-105-9 01 1 9601-0703
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98065-903-0 01 1 0704-
5 HOSE; AIR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-140-0 01 1 9601-0604
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-140-0 01 1 0605-
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 0605-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-801-1 01 1 9601-
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-100-1 01 1 9601-9901
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-161-0 01 1 9902-0604
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-161-0 01 1 0605-
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-635-0 01 1 9601-0604
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-635-0 01 1 0605-
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		5-83569-088-0 01 1 9601-0604
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		5-83569-088-0 01 1 0605-
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94243-962-0 01 1 9601-0604
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94243-962-0 01 1 0605-
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-636-0 01 1 9601-0604
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-636-0 01 1 0605-
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 03 1 9601-9901
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 03 1 9902-0604
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 03 1 0605-
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 0605-
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 9601-
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-170-0 03 1 9601-0604
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-170-0 03 1 0605-
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-345-1 01 1 9601-0604
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-345-1 01 1 0605-
31 WASHER; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-095-0 01 1 9601-0604
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-095-0 01 1 0605-
32 SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 01 1 9601-9901
32 SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 9902-0604
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 0605-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-633-2 01 1 9601-0604
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-633-2 01 1 0605-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-634-2 01 1 9601-0604
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-634-2 01 1 0605-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-644-0 01 1 9601-0604
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-644-0 01 1 0605-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-687-0 01 1 9601-9901
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-344-0 01 1 9601-0604
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-344-0 01 1 0605-
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-342-0 01 1 9601-0604
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-342-0 01 1 0605-
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-343-0 01 1 9601-0604
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-343-0 01 1 0605-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 0605-
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-643-2 01 1 9601-0604
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-643-3 01 1 0605-
43 BOLT; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 04 1 9601-0604
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 04 1 0605-
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83571-870-1 01 1 9601-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 0605-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-406-1 01 1 0605-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-337-4 01 1 9601-0604
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-337-4 01 1 0605-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83564-339-1 01 1 9601-0604
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83564-339-1 01 1 0605-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-351-1 01 1 9601-0604
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-351-1 01 1 0605-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-352-5 01 1 9601-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83564-353-1 01 1 9601-0604
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83564-353-1 01 1 0605-
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-496-0 03 1 9601-0604
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-496-0 03 1 0605-
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-488-0 02 1 9601-9901
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 02 1 9902-0604
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 02 1 0605-
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-638-0 01 1 9601-0604
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-638-0 01 1 0605-
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-639-0 01 1 9601-0604
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-639-0 01 1 0605-
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9601-0604
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 0605-
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 01 1 9601-
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 17 1 9601-0604
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 17 1 0605-
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-640-1 01 1 9601-0604
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-640-1 01 1 0605-
97 PLUG; FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-248-0 01 1 9601-9702
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 0605-
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-073-1 01 1 9601-0703
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-092-0 01 1 0704-
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 02 1 9601-0604
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 02 1 0605-
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-961-0 01 1 0605-
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-670-1 01 1 9601-0604
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-670-1 01 1 0605-
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-671-1 01 1 9601-0604
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-671-1 01 1 0605-
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-672-0 01 1 9601-9901
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-673-1 01 1 9601-9901
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83579-839-0 02 1 9601-

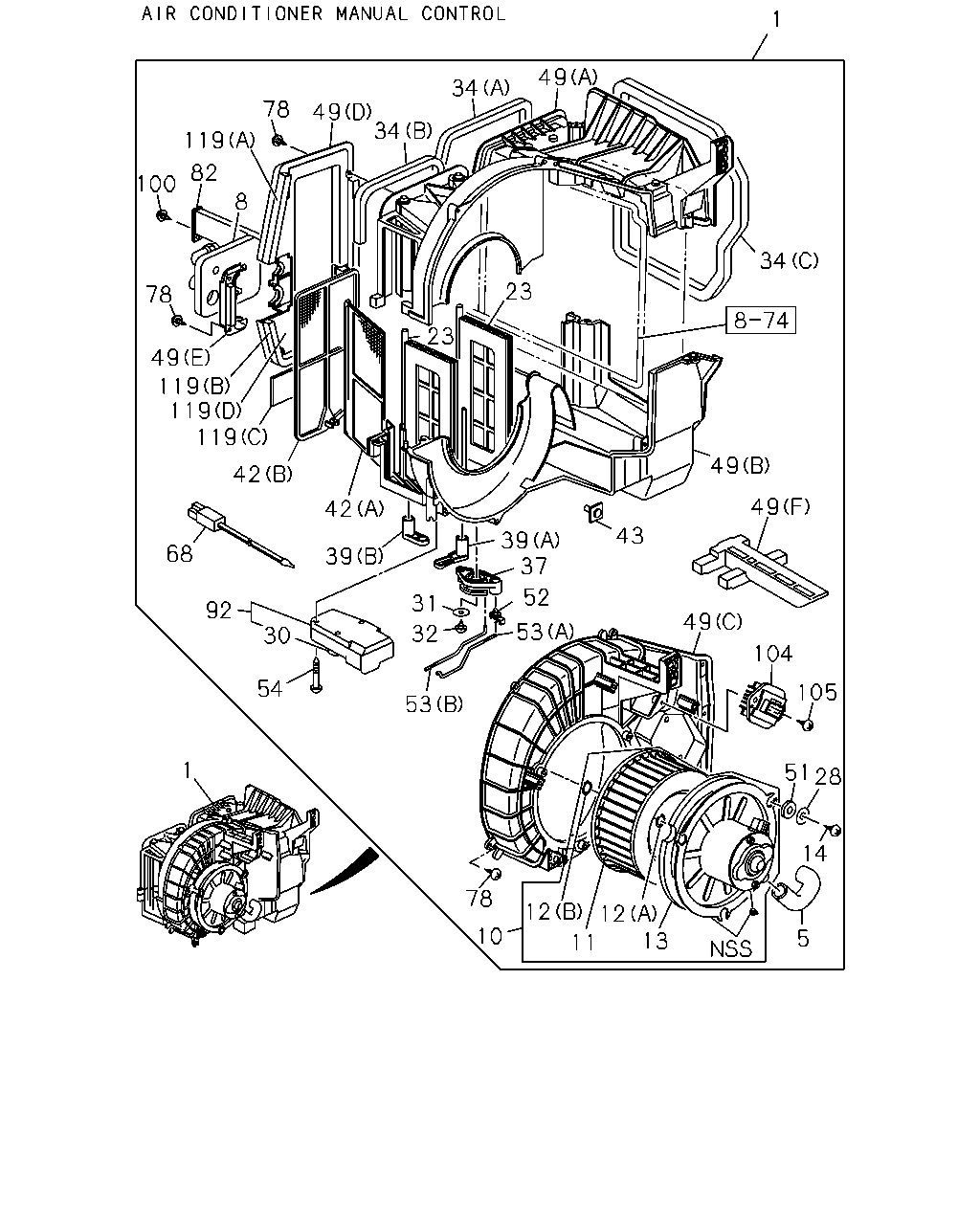

çizim 184790
1 49 34 78 49 34 119 82 100 8 34 23 78 23 49 119 119 119 49 42 49 42 39 37 43 68 39 52 31 92 49 53 32 30 104 54 105 53 1 51 28 14 78 12 12 13 10 5 11
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-180-2 01 1 0605-
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-105-9 01 1 9601-0703
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98065-903-0 01 1 0704-
5 HOSE; AIR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-140-0 01 1 9601-0604
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-140-0 01 1 0605-
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 0605-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-801-1 01 1 9601-
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-100-1 01 1 9601-9901
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-161-0 01 1 9902-0604
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-161-0 01 1 0605-
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-635-0 01 1 9601-0604
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-635-0 01 1 0605-
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		5-83569-088-0 01 1 9601-0604
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		5-83569-088-0 01 1 0605-
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94243-962-0 01 1 9601-0604
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94243-962-0 01 1 0605-
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-636-0 01 1 9601-0604
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-636-0 01 1 0605-
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 03 1 9601-9901
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 03 1 9902-0604
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 03 1 0605-
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 0605-
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 9601-
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-170-0 03 1 9601-0604
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-170-0 03 1 0605-
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-345-1 01 1 9601-0604
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-345-1 01 1 0605-
31 WASHER; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-095-0 01 1 9601-0604
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-095-0 01 1 0605-
32 SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 01 1 9601-9901
32 SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 9902-0604
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 0605-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-633-2 01 1 9601-0604
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-633-2 01 1 0605-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-634-2 01 1 9601-0604
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-634-2 01 1 0605-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-644-0 01 1 9601-0604
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-644-0 01 1 0605-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-687-0 01 1 9601-9901
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-344-0 01 1 9601-0604
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-344-0 01 1 0605-
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-342-0 01 1 9601-0604
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-342-0 01 1 0605-
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-343-0 01 1 9601-0604
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-343-0 01 1 0605-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 0605-
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-643-2 01 1 9601-0604
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-643-3 01 1 0605-
43 BOLT; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 04 1 9601-0604
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 04 1 0605-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 0605-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-406-1 01 1 0605-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-337-4 01 1 9601-0604
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-337-4 01 1 0605-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83564-339-1 01 1 9601-0604
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83564-339-1 01 1 0605-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-351-1 01 1 9601-0604
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-351-1 01 1 0605-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-352-5 01 1 9601-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83564-353-1 01 1 9601-0604
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83564-353-1 01 1 0605-
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-496-0 03 1 9601-0604
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-496-0 03 1 0605-
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-488-0 02 1 9601-9901
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 02 1 9902-0604
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 02 1 0605-
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-638-0 01 1 9601-0604
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-638-0 01 1 0605-
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-639-0 01 1 9601-0604
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-639-0 01 1 0605-
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9601-0604
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 0605-
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-035-1 01 1 0605-
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 17 1 9601-0604
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 17 1 0605-
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-871-1 01 1 0605-
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-640-1 01 1 9601-0604
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-640-1 01 1 0605-
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 0605-
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 0605-
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-073-1 01 1 9601-0703
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-092-0 01 1 0704-
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 02 1 9601-0604
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 02 1 0605-
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-961-0 01 1 0605-
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-670-1 01 1 9601-0604
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-670-1 01 1 0605-
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-671-1 01 1 9601-0604
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-671-1 01 1 0605-
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-672-0 01 1 9601-9901
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-673-1 01 1 9601-9901
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83579-839-0 02 1 9601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
