Sayfa 8-60 - Isuzu EPC

8-60 — HEATER UNIT; FRONT (#65207) — 201 parça

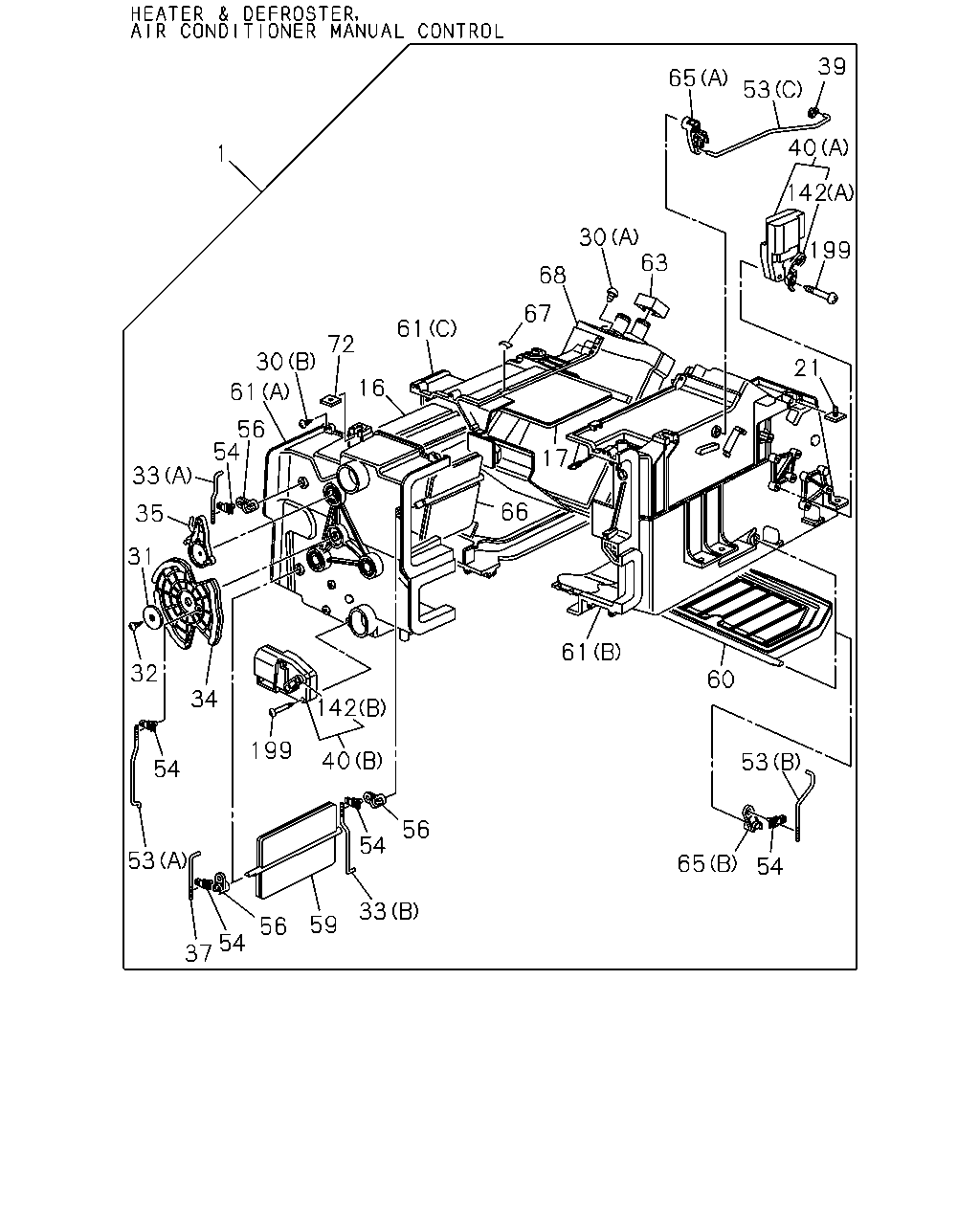

39 65 53 40 1 30 63 199 68 67 61 72 30 21 16 61 56 54 17 33 66 35 31 61 32 60 34 199 40 53 54 56 54 53 65 54 33 59 56 54 37 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT HEATER & DEFROSTER(C41)	1-83511-129-8	01	1	9601-0109
1	HEATER UNIT HEATER & DEFROSTER(C41)	1-83511-175-1	01	1	0110-0604
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-175-1	01	1	0605-1409
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98238-476-0	01	1	1410-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83511-139-3	01	1	9601-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-625-1	01	1	9601-0604
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-625-1	01	1	0605-
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41)	1-83579-628-1	01	1	9601-0604
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-628-1	01	1	0605-
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	02	1	9601-0604
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	02	1	0605-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) (A) M5X20	9-09829-324-1	01	1	0005-0604
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20	9-09829-324-1	01	1	0605-1409
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16	8-94248-820-0	01	1	1410-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	11	1	0012-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) (A) M5X20	9-09829-324-1	01	1	9601-9702
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	12	1	9601-0011
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) (B) M4X16	8-94324-850-0	12	1	0012-0604
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16	8-94324-850-0	12	1	0605-
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94129-950-0	01	1	9601-0604
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94129-950-0	01	1	0605-
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	02	1	9601-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	01	1	9601-0604
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0605-1409
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16	8-94248-820-0	01	1	1410-
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-619-0	01	1	9601-0604
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-619-0	01	1	0605-
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-621-0	01	1	9601-0011
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41) (B)	1-83579-621-0	01	1	0012-0604
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-621-0	01	1	0605-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-326-0	01	1	9601-0604
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-326-0	01	1	0605-
35	LEVER; SHUTTER,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	02	1	0012-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	03	1	9601-0011
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41)	8-94389-502-1	03	1	0012-0604
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94389-502-1	03	1	0605-
37	ROD; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-620-1	01	1	9601-0604
37	ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-620-1	01	1	0605-
39	CLIP; HTR UNIT HEATER & DEFROSTER(C41)	1-83574-136-0	01	1	9601-0604
39	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-136-0	01	1	0605-
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41) (A)	1-83579-650-1	01	1	9601-0604
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-1	01	1	0605-
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-649-1	01	1	9601-0604
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-649-1	01	1	0605-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41) (B)	1-83579-623-0	01	1	9601-0604
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	0605-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41) (C)	1-83579-624-0	01	1	9601-0604
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	0605-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-622-0	01	1	9601-0604
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-622-0	01	1	0605-
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41)	1-83579-488-0	05	1	9601-9702
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41)	8-94248-794-0	05	1	9703-0604
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	0605-
54	CLIP; SHUTTER LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	04	1	9601-0011
54	CLIP; SHUTTER LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94248-794-0	03	1	0012-
56	LEVER; SHUTTER,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	02	1	0012-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	03	1	9601-0011
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41)	1-83564-325-0	03	1	0012-0604
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-325-0	03	1	0605-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-626-2	01	1	9601-0604
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-626-2	01	1	0605-
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41)	1-83579-629-0	01	1	9601-0109
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41)	1-83578-084-0	01	1	0110-0604
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-084-0	01	1	0605-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98299-713-0	01	1	1410-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98299-715-0	01	1	1410-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41) (B)	1-83564-401-0	01	1	9703-0011
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-401-0	01	1	0012-0604
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-401-0	01	1	0605-1409
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-401-0	01	1	1410-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41) (A)	1-83564-402-0	01	1	9703-0011
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-402-0	01	1	0012-0604
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-402-0	01	1	0605-1409
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-402-0	01	1	1410-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-323-5	01	1	9601-9702
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-347-3	01	1	9601-9702
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-323-5	01	1	9703-0011
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-346-3	01	1	9601-0604
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-346-3	01	1	0605-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-347-3	01	1	9703-0011
63	LINING; HTR UNIT HEATER & DEFROSTER(C41)	1-83579-557-0	02	1	9601-0604
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-557-0	02	1	0605-
63	LINING; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83578-033-0	01	1	0012-
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41) (A)	1-83564-327-0	01	1	9601-0604
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-327-0	01	1	0605-
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41) (B)	1-83564-328-1	01	1	9601-0604
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-328-1	01	1	0605-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-627-0	01	1	9601-0604
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-627-0	01	1	0605-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	01	1	9601-0604
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	01	1	0605-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41)	1-83562-078-1	01	1	9601-0604
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-078-1	01	1	0605-1409
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98238-475-0	01	1	1410-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-659-4	02	1	9601-0604
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-659-4	02	1	0605-
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41) (B)	1-83564-345-1	01	1	9703-0011
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41) (A)	1-83564-414-0	01	1	0012-0604
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-414-0	01	1	0605-
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-345-1	01	1	0012-0604
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-345-1	01	1	0605-
199	SCREW; ACTUATOR VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9601-
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41)	8-94348-809-0	04	1	9601-0604
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	0605-

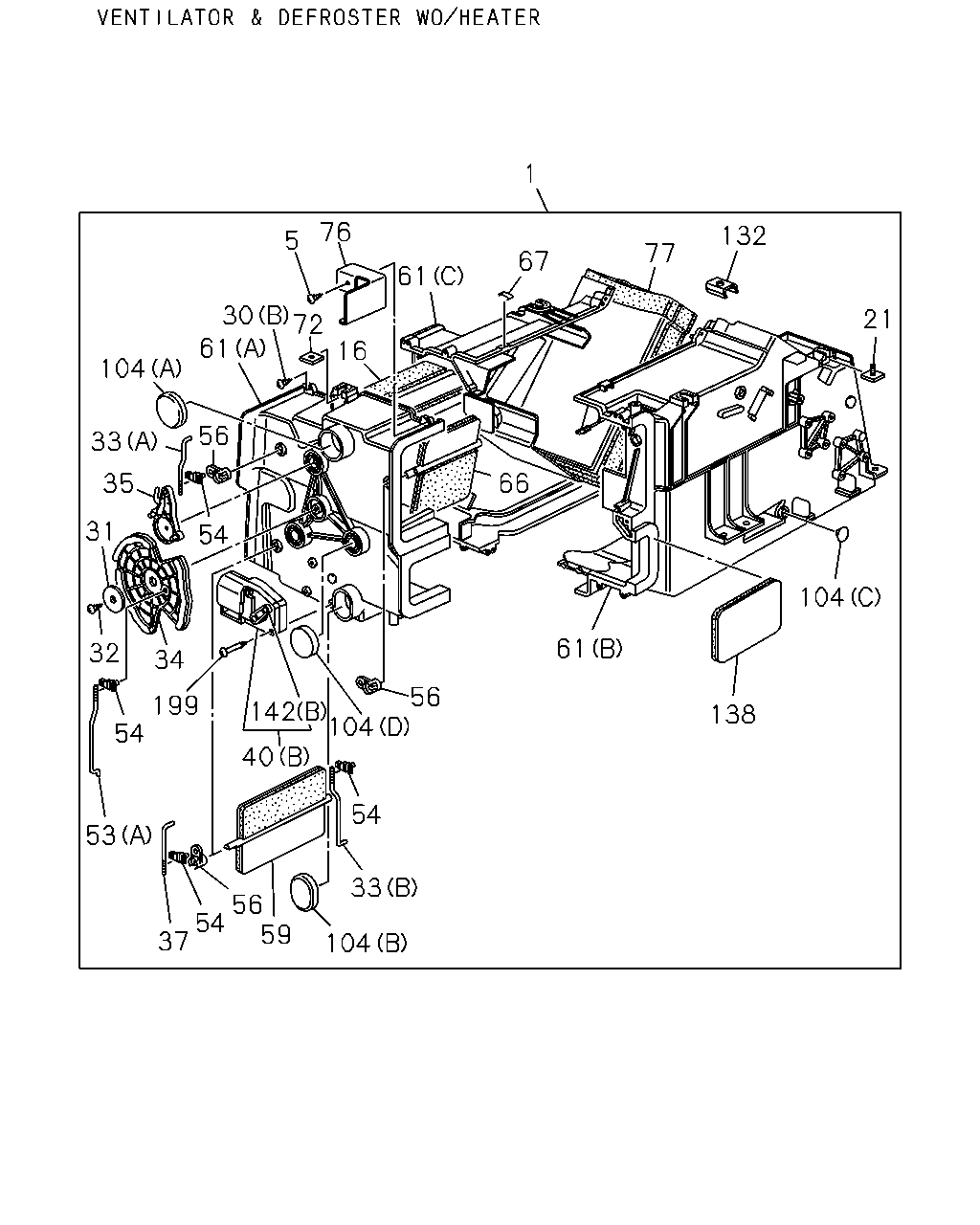

1 76 132 5 77 67 61 30 72 21 61 16 104 56 33 35 66 31 54 104 61 32 34 56 142 104 199 54 138 40 54 53 33 56 54 59 37 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT HEATER & DEFROSTER(C41)	1-83511-129-8	01	1	9601-0109
1	HEATER UNIT HEATER & DEFROSTER(C41)	1-83511-175-1	01	1	0110-0604
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-175-1	01	1	0605-1409
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98238-476-0	01	1	1410-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83511-139-3	01	1	9601-
5	SCREW; BRKT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	01	1	0012-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-625-1	01	1	9601-0604
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-625-1	01	1	0605-
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	02	1	9601-0604
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	02	1	0605-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) (A) M5X20	9-09829-324-1	01	1	0005-0604
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20	9-09829-324-1	01	1	0605-1409
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16	8-94248-820-0	01	1	1410-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	11	1	0012-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) (A) M5X20	9-09829-324-1	01	1	9601-9702
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	12	1	9601-0011
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) (B) M4X16	8-94324-850-0	12	1	0012-0604
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16	8-94324-850-0	12	1	0605-
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94129-950-0	01	1	9601-0604
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94129-950-0	01	1	0605-
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	02	1	9601-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	01	1	9601-0604
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0605-1409
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16	8-94248-820-0	01	1	1410-
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-619-0	01	1	9601-0604
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-619-0	01	1	0605-
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-621-0	01	1	9601-0011
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41) (B)	1-83579-621-0	01	1	0012-0604
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-621-0	01	1	0605-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-326-0	01	1	9601-0604
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-326-0	01	1	0605-
35	LEVER; SHUTTER,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	02	1	0012-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	03	1	9601-0011
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41)	8-94389-502-1	03	1	0012-0604
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94389-502-1	03	1	0605-
37	ROD; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-620-1	01	1	9601-0604
37	ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-620-1	01	1	0605-
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41) (A)	1-83579-650-1	01	1	9601-0604
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-1	01	1	0605-
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-649-1	01	1	9601-0604
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-649-1	01	1	0605-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41) (B)	1-83579-623-0	01	1	9601-0604
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	0605-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41) (C)	1-83579-624-0	01	1	9601-0604
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	0605-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-622-0	01	1	9601-0604
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-622-0	01	1	0605-
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41)	1-83579-488-0	05	1	9601-9702
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41)	8-94248-794-0	05	1	9703-0604
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	0605-
54	CLIP; SHUTTER LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	04	1	9601-0011
54	CLIP; SHUTTER LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94248-794-0	03	1	0012-
56	LEVER; SHUTTER,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	02	1	0012-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	03	1	9601-0011
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41)	1-83564-325-0	03	1	0012-0604
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-325-0	03	1	0605-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-626-2	01	1	9601-0604
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-626-2	01	1	0605-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98299-713-0	01	1	1410-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98299-715-0	01	1	1410-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41) (B)	1-83564-401-0	01	1	9703-0011
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-401-0	01	1	0012-0604
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-401-0	01	1	0605-1409
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-401-0	01	1	1410-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41) (A)	1-83564-402-0	01	1	9703-0011
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-402-0	01	1	0012-0604
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-402-0	01	1	0605-1409
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-402-0	01	1	1410-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-323-5	01	1	9601-9702
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-347-3	01	1	9601-9702
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-323-5	01	1	9703-0011
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-346-3	01	1	9601-0604
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-346-3	01	1	0605-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-347-3	01	1	9703-0011
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-627-0	01	1	9601-0604
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-627-0	01	1	0605-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	01	1	9601-0604
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	01	1	0605-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-659-4	02	1	9601-0604
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-659-4	02	1	0605-
76	BRACKET; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83573-194-0	01	1	0012-
77	COVER; HTR CASE VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-802-0	01	1	9601-0011
77	COVER; HTR CASE VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97102-661-0	01	1	0012-
104	CAP; CASE,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-94387-703-0	01	1	0012-
104	CAP; CASE,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-617-0	01	1	9601-
104	CAP; CASE,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-618-0	01	1	9601-
104	CAP; CASE,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-94328-657-0	04	1	9601-
132	BRACKET; HTR CORE VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83573-195-0	01	1	0012-
138	COVER; HTR CASE VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-599-2	01	1	9601-0011
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41) (B)	1-83564-345-1	01	1	9703-0011
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41) (A)	1-83564-414-0	01	1	0012-0604
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-414-0	01	1	0605-
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-345-1	01	1	0012-0604
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-345-1	01	1	0605-
199	SCREW; ACTUATOR VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9601-
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41)	8-94348-809-0	04	1	9601-0604
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	0605-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
