8-52 — PIPING; AIR CONDITIONING (#65206) — 88 parça

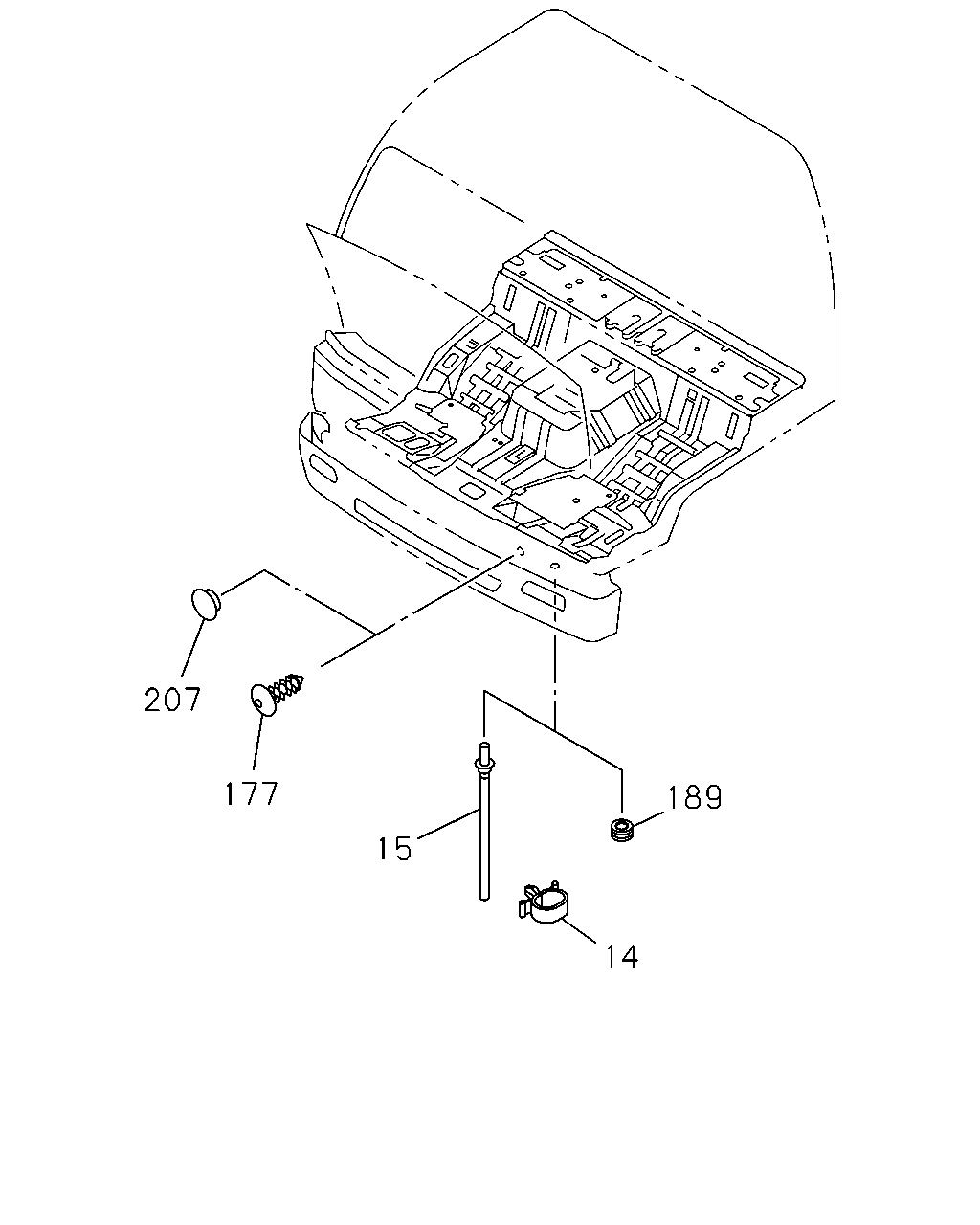

207 177 189 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0605-
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	0605-
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83566-904-2	01	1	9601-9702
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	9703-
177	PLUG; CLIP OD=15 BLACK	8-94279-804-0	01	1	9601-9711
177	PLUG; CLIP OD=15 BLACK	8-94279-804-0	02	1	9712-9801
177	PLUG; CLIP OD=15 BLACK	8-94279-804-0	03	1	9802-9803
177	PLUG; CLIP OD=25 BLACK	1-76798-019-0	03	1	9804-9804
177	PLUG; CLIP OD=25 BLACK	1-76798-019-0	03	1	9805-9805
189	GROMMET EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ)	9-09575-397-0	01	1	9601-0604
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	0605-
207	SEAL; FLEX HOSE OD=25 BLACK	1-76798-019-0	01	1	9903-0004
207	SEAL; FLEX HOSE OD=25 BLACK	1-76798-019-0	01	1	0005-0604
207	SEAL; FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0605-

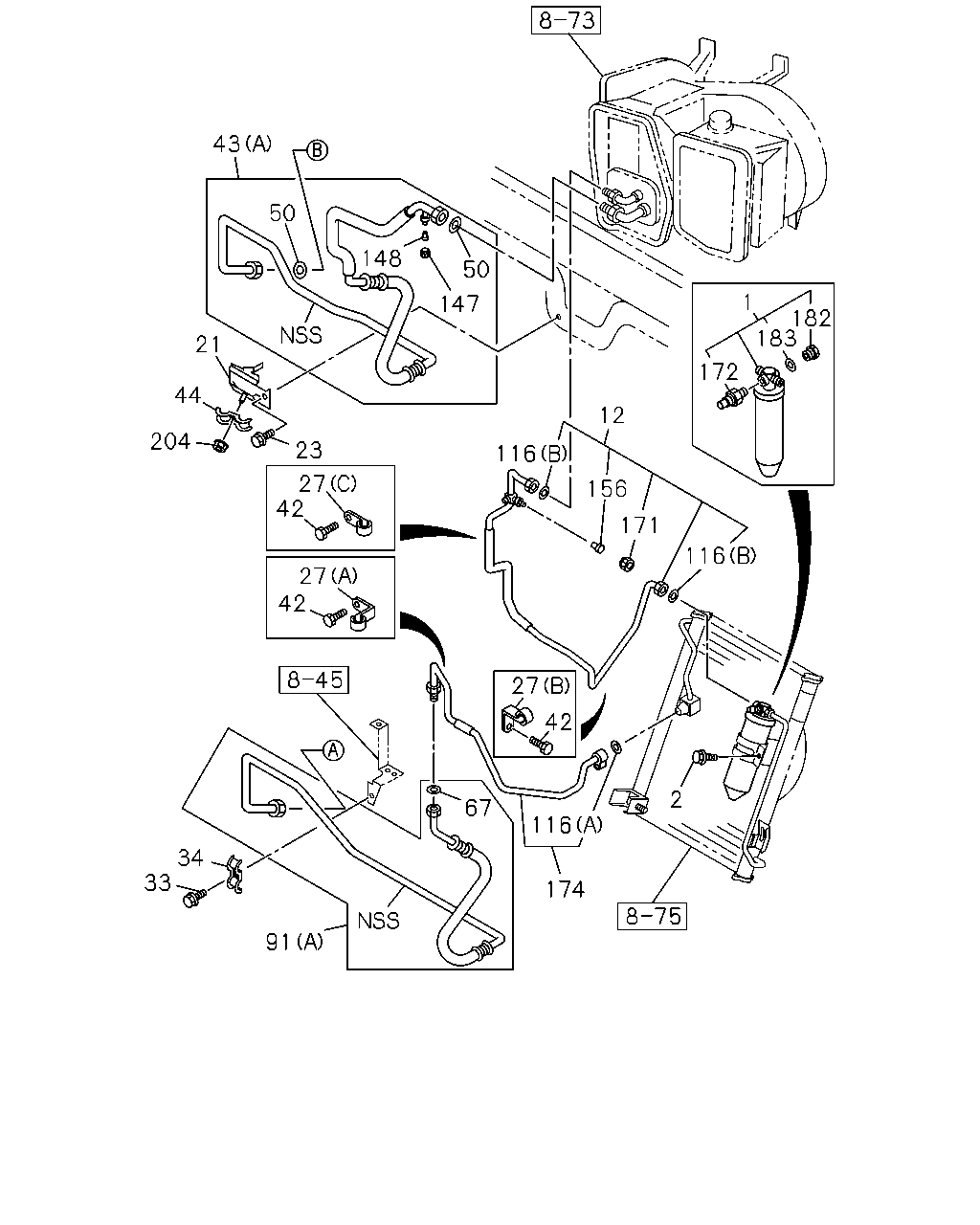

43 50 148 50 1 147 182 183 21 172 44 12 204 23 116 27 42 156 171 116 27 42 27 42 2 67 116 34 33 174 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	0605-
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0605-
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-662-0	01	1	0605-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	0605-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0605-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0605-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0605-0707
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	0605-0606
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	0-95235-235-0	01	1	0607-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0605-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0605-
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0605-0904
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-521-0	01	1	0605-0608
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-131-0	01	1	0609-
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0605-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0605-0608
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0609-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	0605-
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-523-1	01	1	0605-0608
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-132-0	01	1	0609-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0605-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0605-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0605-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0605-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0605-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	0605-
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0605-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-664-1	01	1	0605-0701
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-663-1	01	1	0702-
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	0605-
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	0605-
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0605-

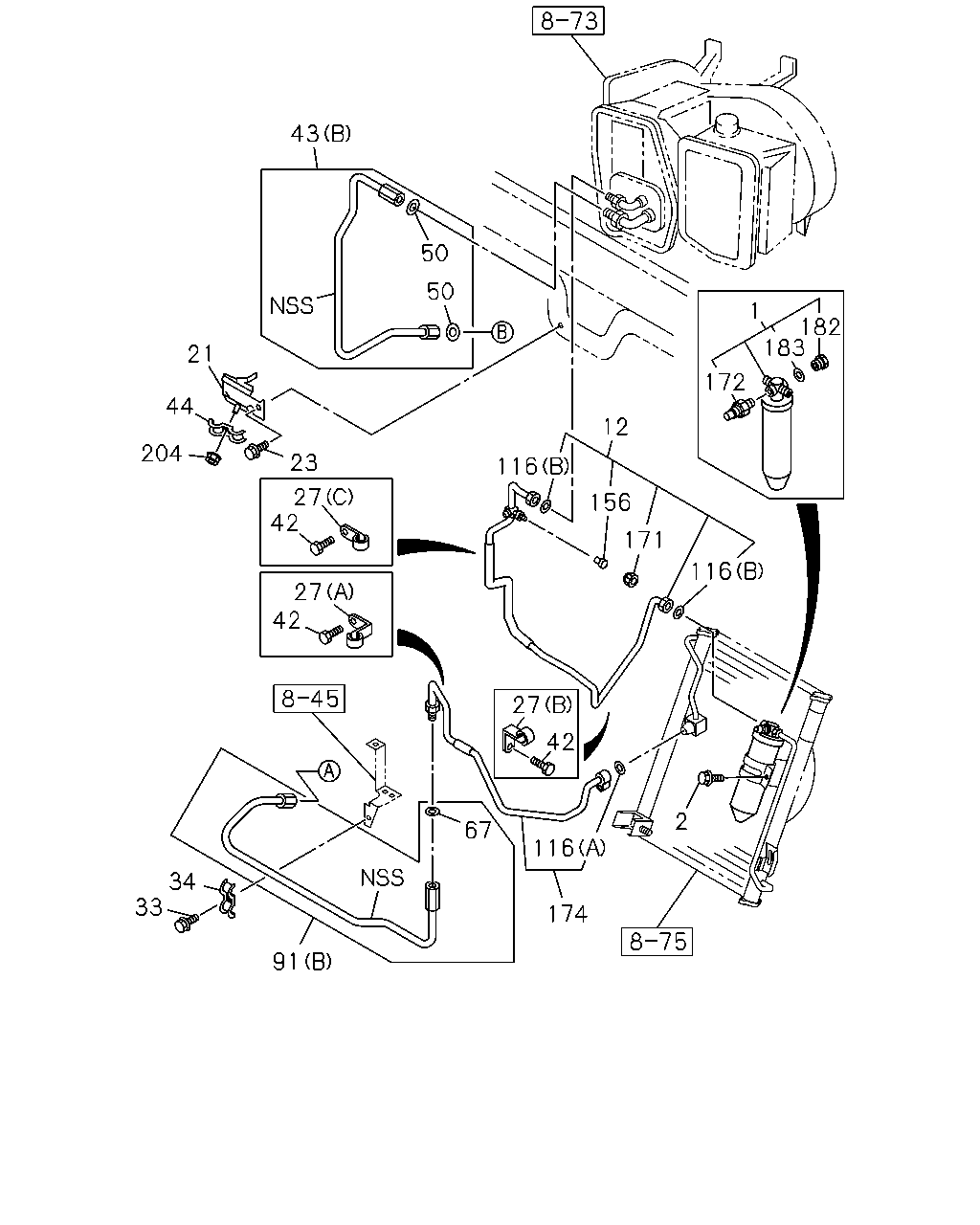

43 50 50 1 182 183 21 172 44 12 204 23 116 27 42 156 171 116 27 42 27 42 2 67 116 34 33 174 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	0605-
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0605-
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-662-0	01	1	0605-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	0605-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0605-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0605-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0605-0707
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	0605-0606
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	0-95235-235-0	01	1	0607-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0605-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0605-
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0605-0904
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-521-0	01	1	0605-0608
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-131-0	01	1	0609-
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0605-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0605-0608
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0609-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	0605-
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-523-1	01	1	0605-0608
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-132-0	01	1	0609-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	0605-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0605-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0605-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	0605-
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0605-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-664-1	01	1	0605-0701
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-663-1	01	1	0702-
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	0605-
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	0605-
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0605-

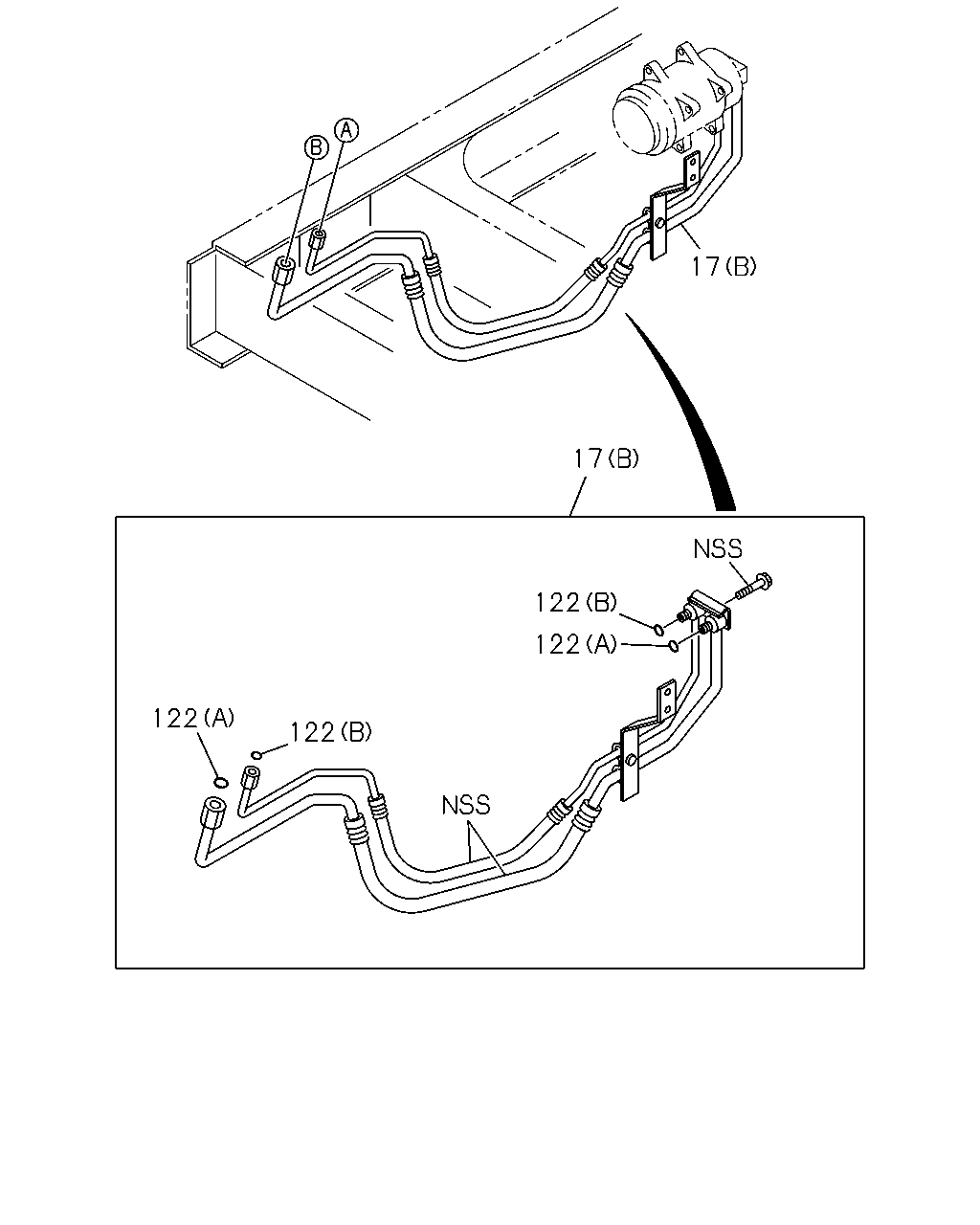

17 17 122 122 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-571-1	01	1	0605-0608
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-133-0	01	1	0609-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	0605-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	0605-

17 17 122 122 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-571-1	01	1	0605-0608
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-133-0	01	1	0609-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	0605-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	0605-
