8-45 — HEATER PIPING (#65204) — 63 parça

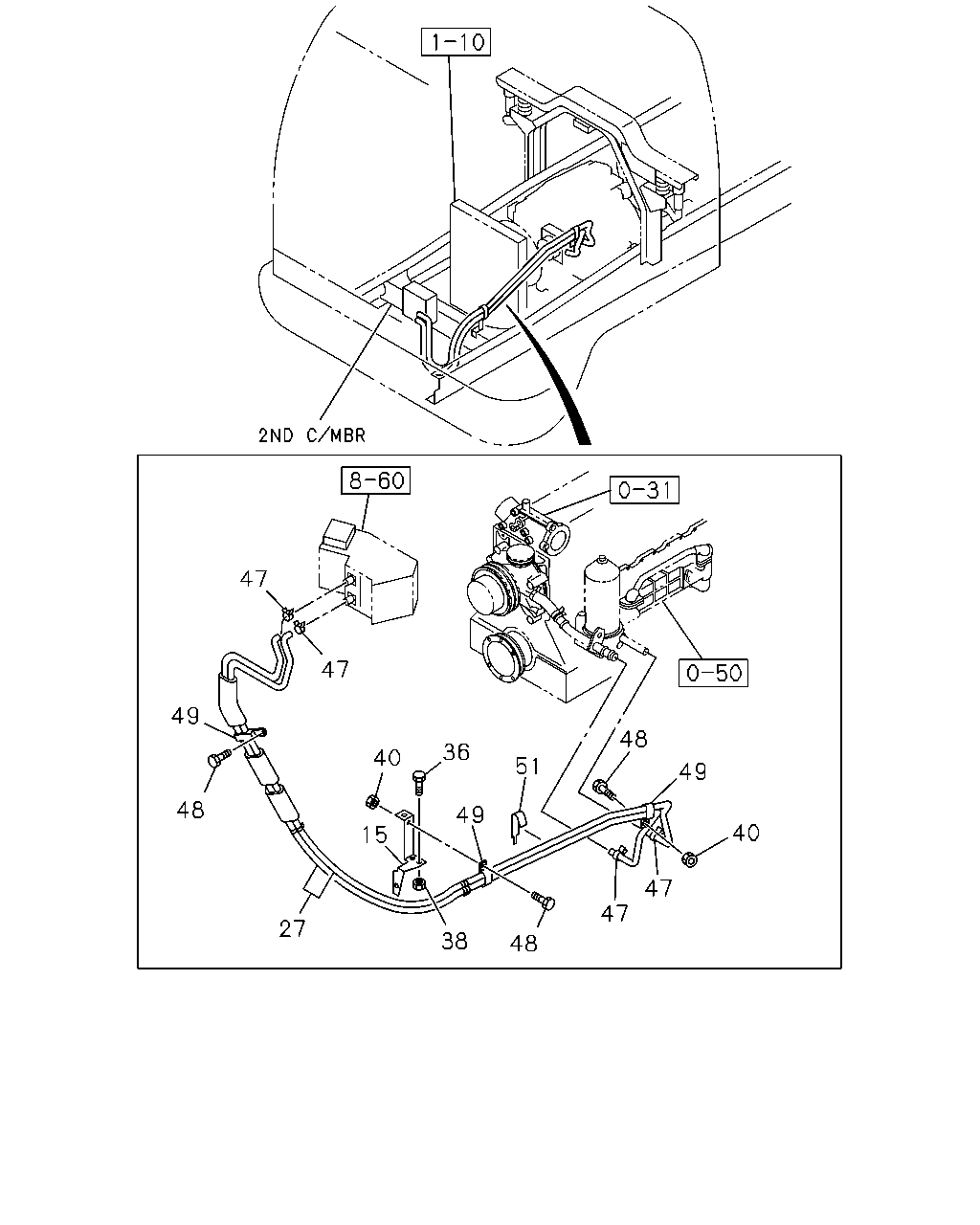

çizim 184760
47 47 49 48 36 40 51 49 48 49 40 15 47 47 27 38 48
BalonParca AdiParca NoAdetTipApplied Date
15 BRACKET; WATER HOSE
HEATER & DEFROSTER(C41) 		1-83571-844-1 01 1 9601-0104
15 BRACKET; WATER HOSE
HEATER & DEFROSTER(C41) 		1-83573-070-1 01 1 0105-0604
15 BRACKET; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-070-1 01 1 0605-
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NJX> EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-83565-791-0 01 1 0605-
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41) 		1-83565-602-1 01 1 9601-9611
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41) 		1-83565-652-1 01 1 9612-9903
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-83565-652-1 01 1 9904-0604
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION<NJX> 		1-83565-652-1 01 1 0605-
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> 		1-83565-731-0 01 1 9904-
36 BOLT; BRKT
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606
36 BOLT; BRKT
HEATER & DEFROSTER(C41) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801
36 BOLT; BRKT
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28680-820-0 02 1 9802-0512
36 BOLT; BRKT
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0604
36 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28650-820-0 02 1 0605-
38 NUT; BRKT
HEATER & DEFROSTER(C41) M8 		9-09110-408-0 02 1 9601-9606
38 NUT; BRKT
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91150-108-0 02 1 9607-0602
38 NUT; BRKT
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91180-108-0 02 1 0603-0604
38 NUT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0605-
40 NUT; CLIP
HEATER & DEFROSTER(C41) M8 		9-09110-408-0 02 1 9601-9606
40 NUT; CLIP
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91150-108-0 02 1 9607-9903
40 NUT; CLIP
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE 		0-91150-108-0 03 1 9904-0602
40 NUT; CLIP
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE 		0-91180-108-0 03 1 0603-0604
40 NUT; CLIP
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE 		0-91180-108-0 03 1 0605-
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91180-108-0 03 1 0605-
40 NUT; CLIP
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE 		0-91150-108-0 02 1 9904-0602
40 NUT; CLIP
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE 		0-91180-108-0 02 1 0603-0604
40 NUT; CLIP
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91180-108-0 02 1 0605-
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=22 		8-94382-401-0 04 1 9601-0604
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 04 1 0605-0611
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-97359-141-0 04 1 0612-
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28080-820-0 03 1 9601-9606
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9801
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28680-820-0 03 1 9802-9804
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28680-820-0 02 1 9805-9901
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28680-820-0 02 1 9902-9903
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28680-820-0 02 1 9902-9903
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE 		0-28680-820-0 02 1 9904-0512
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28680-820-0 02 1 9904-0512
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE 		0-28650-820-0 02 1 0601-0604
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0604
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE 		0-28650-820-0 03 1 0605-
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28650-820-0 03 1 0605-
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28680-820-0 01 1 9805-9901
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE 		0-28680-820-0 03 1 9904-0512
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE 		0-28650-820-0 03 1 0601-0604
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28650-820-0 02 1 0605-
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28650-820-0 02 1 0605-
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 03 1 9601-9804
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 01 1 9805-9901
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9902-9903
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9902-9903
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V> ID=24X2 L=25 		1-09700-710-0 02 1 9904-0604
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9904-0604
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> ID=24X2 L=25 		1-09700-710-0 03 1 0605-
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NJX> ID=24X2 L=25 		1-09700-710-0 03 1 0605-
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9805-9901
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> ID=24X2 L=25 		1-09700-710-0 03 1 9904-0604
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 0605-
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION<NJX> ID=24X2 L=25 		1-09700-710-0 02 1 0605-
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) L=170 		1-83574-139-0 01 1 9601-0604
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		1-83574-139-0 01 1 0605-1205
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		8-98166-021-0 01 1 1206-
