8-28 — CHASSIS ELECTRICAL (#65202) — 110 parça

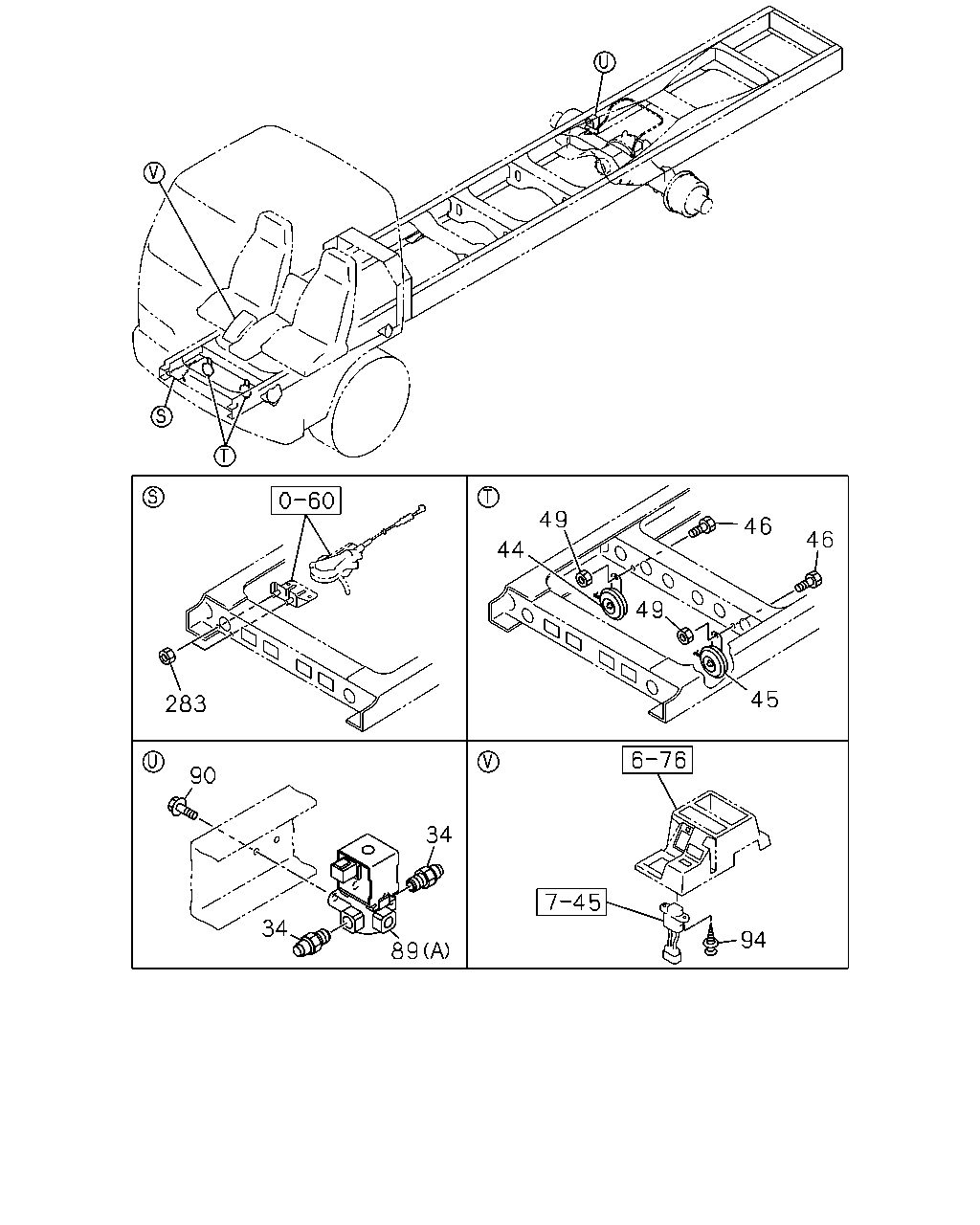

49 46 46 44 49 45 283 90 34 34 94 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9601-9804
34	CONNECTOR; MAG VLV,INL PORT DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	9805-
44	HORN; HIGH NOTE	1-83410-057-1	01	1	9601-9702
44	HORN; HIGH NOTE EXC. SOUTH AFRICA EQUIPMENT(WG4)	1-83410-057-1	01	1	9703-9804
44	HORN; HIGH NOTE EXC. AIR HORN<WB8>,SOUTH AFRICA EQUIPMENT(WG4)	1-83410-057-1	01	1	9805-0004
44	HORN; HIGH NOTE EXC. SOUTH AFRICA EQUIPMENT(WG4)	1-83410-057-1	01	1	0005-0210
44	HORN; HIGH NOTE EXC. SOUTH AFRICA EQUIPMENT(WG4)	1-83410-065-1	01	1	0211-
44	HORN; HIGH NOTE SOUTH AFRICA EQUIPMENT(WG4)	1-83410-061-1	01	1	9703-9804
44	HORN; HIGH NOTE SOUTH AFRICA EQUIPMENT(WG4) EXC. AIR HORN<WB8>	1-83410-061-1	01	1	9805-0004
44	HORN; HIGH NOTE SOUTH AFRICA EQUIPMENT(WG4)	1-83410-061-1	01	1	0005-
45	HORN; LOW NOTE	1-83410-058-1	01	1	9601-9702
45	HORN; LOW NOTE EXC. SOUTH AFRICA EQUIPMENT(WG4)	1-83410-058-1	01	1	9703-9804
45	HORN; LOW NOTE EXC. AIR HORN<WB8>,SOUTH AFRICA EQUIPMENT(WG4)	1-83410-058-1	01	1	9805-0004
45	HORN; LOW NOTE EXC. SOUTH AFRICA EQUIPMENT(WG4)	1-83410-058-1	01	1	0005-0210
45	HORN; LOW NOTE EXC. SOUTH AFRICA EQUIPMENT(WG4)	1-83410-064-1	01	1	0211-
45	HORN; LOW NOTE SOUTH AFRICA EQUIPMENT(WG4)	1-83410-062-1	01	1	9703-9804
45	HORN; LOW NOTE SOUTH AFRICA EQUIPMENT(WG4) EXC. AIR HORN<WB8>	1-83410-062-1	01	1	9805-0004
45	HORN; LOW NOTE SOUTH AFRICA EQUIPMENT(WG4)	1-83410-062-1	01	1	0005-
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9607-9804
46	BOLT; HORN TO BODY EXC. AIR HORN<WB8> M8X25 FLANGE	0-28680-825-0	02	1	9805-0004
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0005-0512
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	5-09440-005-0	02	1	9601-9606
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91150-108-0	02	1	9607-9804
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59>,AIR HORN<WB8> M8 FLANGE	0-91150-108-0	02	1	9805-0004
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91150-108-0	02	1	0005-0602
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91180-108-0	02	1	0603-
89	VALVE; MAG,DIFF LOCK EURO3 SPECIFICATION<NJX> (B)	1-82563-871-2	03	1	0605-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-602-6	01	1	9601-
90	BOLT; MAG VLV M8X30 FLANGE	0-28080-830-0	02	1	9601-0512
90	BOLT; MAG VLV M8X30 FLANGE	0-28050-830-0	02	1	0601-
90	BOLT; MAG VLV M8X30 FLANGE	0-28680-830-0	02	1	9805-9901
94	SCREW; CONSENT TO BLIND PNL M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9601-9804
94	SCREW; CONSENT TO BLIND PNL M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9805-9810
94	SCREW; CONSENT TO BLIND PNL M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9805-9810
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9811-0004
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9811-0004
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0005-0604
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-
283	NUT; BRKT M8 FLANGE	5-09440-005-0	02	1	9601-9606
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0602
283	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0604
283	NUT; BRKT EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0605-

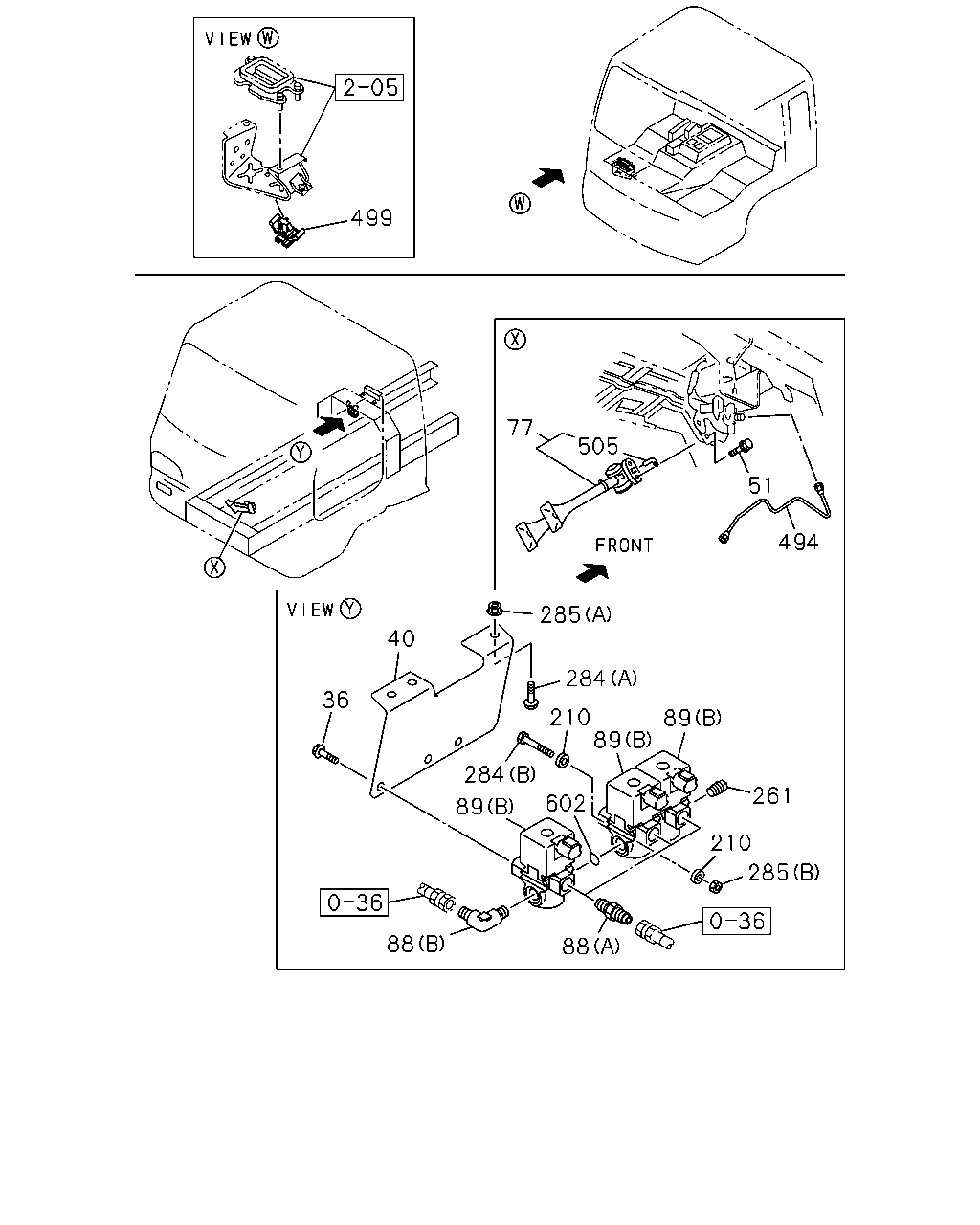

499 77 505 51 494 285 40 284 36 210 89 89 284 261 602 89 210 285 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	BOLT; MAG VLV,PTO CONT EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	03	1	0605-
40	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX>	1-82569-326-0	01	1	0605-
51	BOLT; HORN TO BRKT AIR HORN<WB8> M8X20 FLANGE	0-28680-820-0	02	1	9805-0004
77	HORN ASM AIR HORN<WB8>	1-83430-038-2	01	1	9805-0004
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0605-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0605-
89	VALVE; MAG,DIFF LOCK EURO3 SPECIFICATION<NJX> (B)	1-82563-871-2	03	1	0605-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-602-6	01	1	9601-
210	WASHER; PL,BRKT EURO3 SPECIFICATION<NJX>	1-82569-266-0	04	1	0605-
261	PLUG; MAG VLV EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0605-
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28050-650-0	02	1	0605-
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28650-825-0	03	1	0605-
285	NUT; MAG VLV EURO3 SPECIFICATION<NJX> (B) M6 FLANGE	0-91180-106-0	02	1	0605-
285	NUT; MAG VLV EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91180-108-0	03	1	0605-
494	PIPE; AIR,UNION TO HORN AIR HORN<WB8>	1-49115-750-0	01	1	9805-0004
499	CLIP; SWITCH EURO3 SPECIFICATION<NJX> OD=9 H=6	1-09709-178-0	01	1	0605-
505	JOINT; AIR HORN AIR HORN<WB8>	1-83439-005-0	01	1	9805-0004
602	GASKET; MAG VLV EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	02	1	0605-

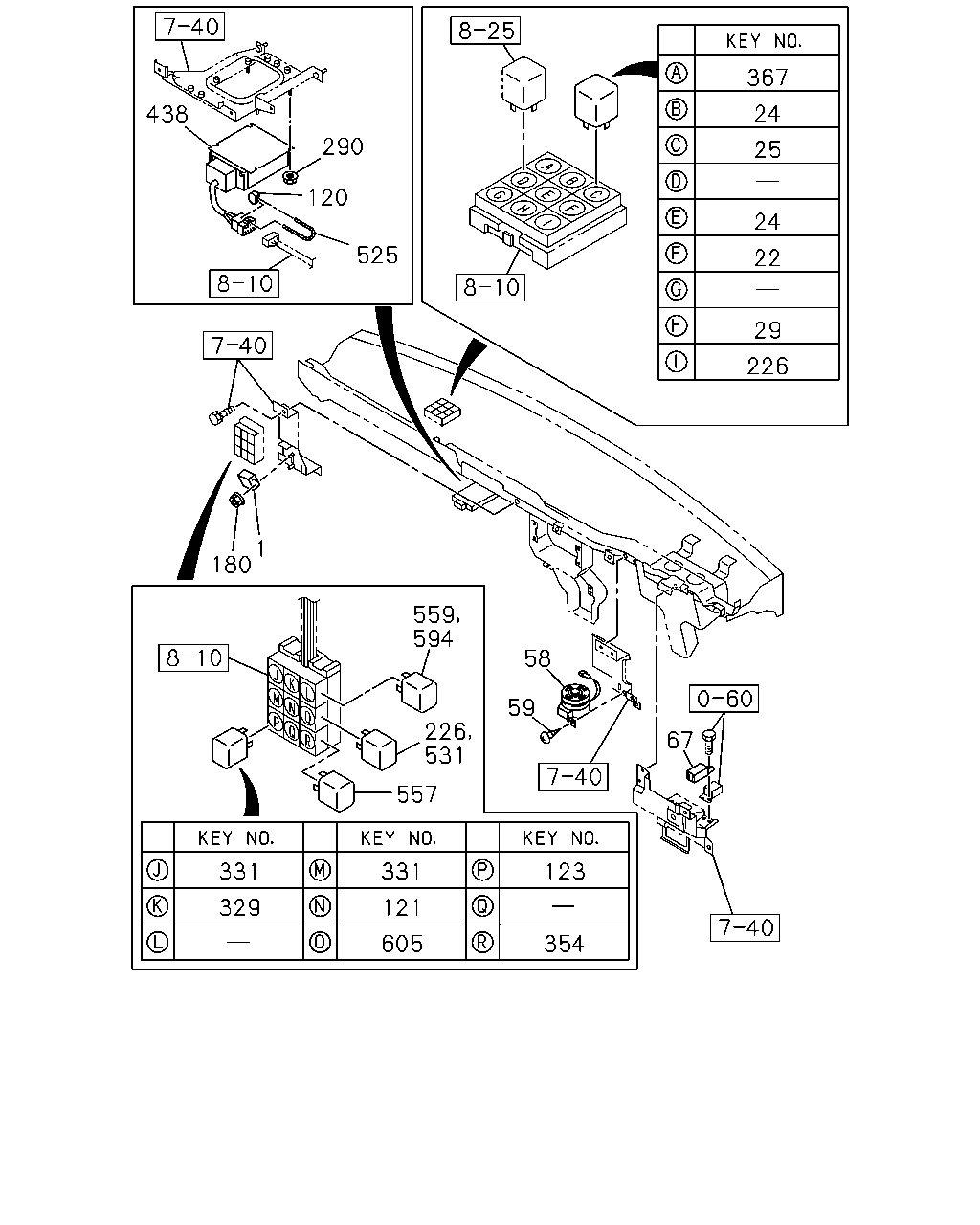

438 367 24 290 25 120 24 525 22 29 226 1 180 559 594 58 59 226 531 67 557 331 331 123 329 121 605 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-060-1	01	1	9601-
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9601-0111
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0111
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9804
29	RELAY; HORN EXC. AIR HORN<WB8> 24V 12.5A MITUBA	8-97062-815-1	01	1	9805-0004
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
58	BUZZER; AIR PRESSURE WARNING EURO3 SPECIFICATION<NJX> METRO DENSO	1-83460-075-0	01	1	0605-0612
58	BUZZER; AIR PRESSURE WARNING EURO3 SPECIFICATION<NJX> METRO DENSO	8-98069-859-0	01	1	0701-
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9601-0004
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0005-0604
58	BUZZER; AIR PRESSURE WARNING EXC. EURO3 SPECIFICATION<NJX> METRO DENSO	1-83460-074-1	01	1	0605-0612
58	BUZZER; AIR PRESSURE WARNING EXC. EURO3 SPECIFICATION<NJX> METRO DENSO	8-98069-865-0	01	1	0701-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-0004
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9601-
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9601-
120	SEAL SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15739-002-0	01	1	9603-0004
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0111
121	RELAY; PARKING BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0111
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0604
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9601-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9804
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9805-9805
226	RELAY; EXH BRK ALLISON MD3560P A/T(Y3B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9805-9805
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-0111
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
290	NUT SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE	0-91150-106-0	04	1	9601-0004
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0004
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0605-
354	RELAY; BRAKE FLUID CHECK AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0004
367	RELAY; NEUTRAL EURO3 SPECIFICATION<NJX> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-
367	RELAY; NEUTRAL ALLISON MD3560P A/T(Y3B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9805-0004
438	UNIT; SPD CONTROL SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-82540-066-0	01	1	9601-0004
525	WIRE; CONTROL UNIT SPEED LIMITER CABLE STROKE CONTROL<TDT>	9-81325-446-0	01	1	9603-0004
531	RELAY; MAIN EURO3 SPECIFICATION<NJX> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-
557	RELAY; WASHER EURO3 SPECIFICATION<NJX> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-
559	RELAY; MAG VLV EURO3 SPECIFICATION<NJX> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-
594	RELAY; A/T ALLISON MD3560P A/T(Y3B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9805-9805
594	RELAY; A/T ALLISON MD3560P A/T(Y3B) 24V 12.5A MITUBA	8-97062-815-1	03	1	9806-0004
605	RELAY; PCV EURO3 SPECIFICATION<NJX> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0605-
