Sayfa 8-26 - Isuzu EPC

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#65201) — 174 parça

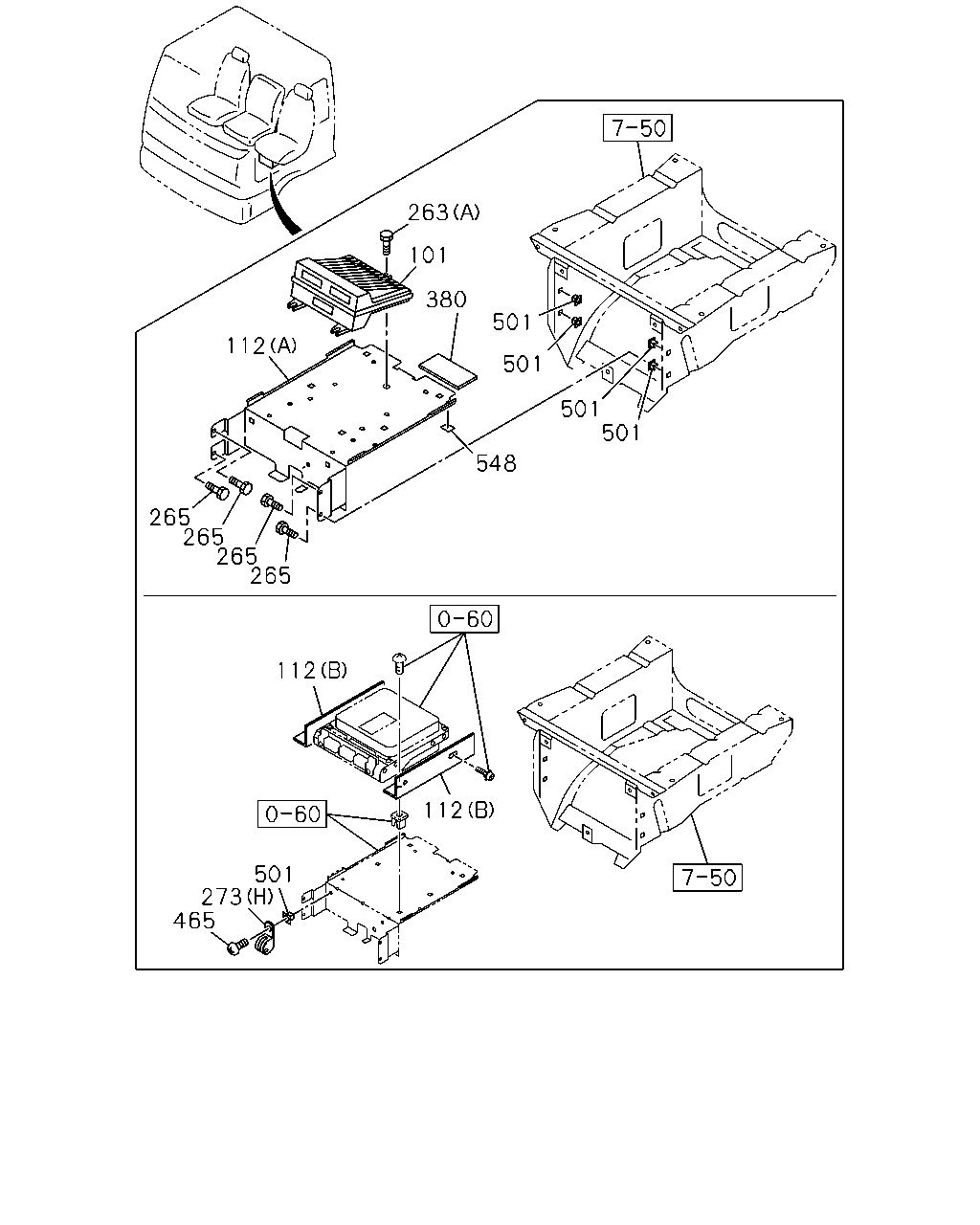

263 101 380 501 112 501 501 501 548 265 265 265 265 112 112 501 273 465

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	CONTROL UNIT; ELEC,A/T ALLISON MD3560P A/T(Y3B)	1-80110-335-0	01	1	9805-0004
112	BRACKET; CONT UNIT EURO3 SPECIFICATION<NJX> (B)	1-75558-566-0	02	1	0605-
112	BRACKET; CONT UNIT ALLISON MD3560P A/T(Y3B) (A)	1-75557-465-4	01	1	9805-0004
263	BOLT; CONT UNIT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0212-
263	BOLT; CONT UNIT ALLISON MD3560P A/T(Y3B) (A) M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9805-0004
265	SCREW; BRKT,CONT UNIT EURO3 SPECIFICATION<NJX> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0605-
265	SCREW; BRKT,CONT UNIT ALLISON MD3560P A/T(Y3B) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9805-0004
273	CLIP; HARNESS EURO3 SPECIFICATION<NJX> (H) ID=35 L=35	1-09700-726-0	01	1	0605-
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (G) ID=12-16 & 12-16	1-09709-191-0	03	1	0212-
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=6-10 & 10-14	1-09709-201-1	01	1	0212-
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=11.5 & 14.5	8-94314-293-0	01	1	0212-
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	8-97101-436-0	01	1	0212-
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50	9-09525-085-0	01	1	0212-0606
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50	0-95235-085-0	01	1	0607-
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20	9-09525-536-0	03	1	0212-0606
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20	0-95235-536-0	03	1	0607-
380	SEAL ALLISON MD3560P A/T(Y3B) 100X30	1-72498-014-1	01	1	9805-9903
380	SEAL ALLISON MD3560P A/T(Y3B) 100X40	1-72498-022-0	01	1	9904-0004
465	BOLT; CLIP EURO3 SPECIFICATION<NJX> M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	0605-
465	BOLT; CLIP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE	0-28680-820-0	03	1	0212-0512
465	BOLT; CLIP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE	0-28650-820-0	03	1	0601-
465	BOLT; CLIP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0212-
501	GROMMET; SCREW EURO3 SPECIFICATION<NJX> D=9.7X9.7 L=8	8-94222-314-0	01	1	0605-
501	GROMMET; SCREW EURO3 SPECIFICATION<NJX> D=9.7X9.7 L=8	8-94222-314-0	04	1	0605-
501	GROMMET; SCREW ALLISON MD3560P A/T(Y3B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9805-0004
548	SEAL; NOISE ALLISON MD3560P A/T(Y3B) 30X30	8-97866-626-0	03	1	9805-0004

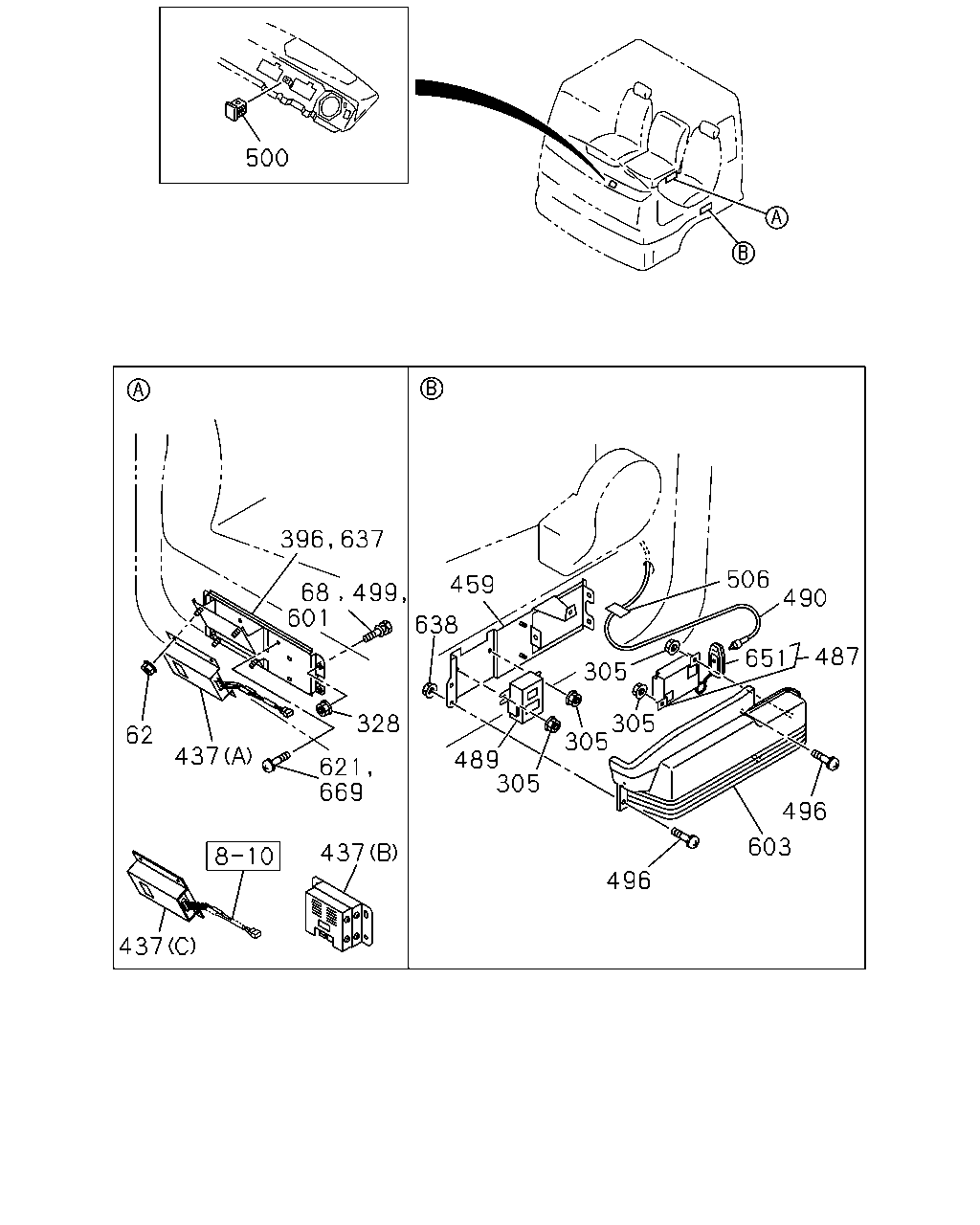

500 506 459 601 490 638 487 651 305 305 305 328 62 437 489 305 621 669 496 603 437 496 437 396 637 68 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	NUT; BRKT ELEC OUTLET 12V<TAW> M6 FLANGE	0-91150-106-0	02	1	9811-9909
62	NUT; BRKT CUSTOM CAB(SR5) M6 FLANGE	0-91150-106-0	02	1	9910-0004
62	NUT; BRKT ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5) M6 FLANGE	0-91150-106-0	02	1	9910-0004
62	NUT; BRKT ELEC OUTLET 12V<TAW> M6 FLANGE	0-91150-106-0	02	1	0005-0602
62	NUT; BRKT ELEC OUTLET 12V<TAW> M6 FLANGE	0-91180-106-0	02	1	0603-
68	BOLT; BRKT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE	0-28680-820-0	01	1	0212-0512
68	BOLT; BRKT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE	0-28650-820-0	01	1	0601-
68	BOLT; BRKT ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9905-9907
68	BOLT; BRKT ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9908-0004
305	NUT; CONT UNIT REMOTE CONT DOOR LOCK<SLG> M6 FLANGE	0-91180-106-0	02	1	0212-0809
305	NUT; CONT UNIT CUSTOM CAB(SR5) M6 FLANGE	0-91150-106-0	04	1	9910-0004
328	NUT ELEC OUTLET 12V<TAW> M6 FLANGE	0-91150-106-0	04	1	9905-9907
328	NUT ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6 FLANGE	0-91150-106-0	04	1	9908-9911
396	BRACKET ELEC OUTLET 12V<TAW>	1-75557-483-0	01	1	9905-9907
396	BRACKET ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70>	1-75557-483-1	01	1	9908-0004
437	CONVERTER; DC LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (D) KOITO	8-97359-129-0	01	1	0605-
437	CONVERTER; DC ELEC OUTLET 12V<TAW> (A)	1-84122-005-0	01	1	9807-0004
437	CONVERTER; DC ELEC OUTLET 12V<TAW> (B)	1-84122-037-1	01	1	0005-0008
437	CONVERTER; DC ELEC OUTLET 12V<TAW> (C) MITSUBISHI	1-84122-034-1	01	1	0009-0603
437	CONVERTER; DC ELEC OUTLET 12V<TAW> (B) METRO DENSO	8-98046-423-0	01	1	0604-
459	BRACKET; CONTROL BOX ELEC OUTLET 12V<TAW>	1-75558-488-5	01	1	9811-9909
459	BRACKET; CONTROL BOX CUSTOM CAB(SR5)	1-75558-488-5	01	1	9910-0004
459	BRACKET; CONTROL BOX ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5)	1-75558-488-5	01	1	9910-0004
459	BRACKET; CONTROL BOX ELEC OUTLET 12V<TAW>	1-75558-488-5	01	1	0005-
487	CONTROL UNIT; DOOR LOCK,AUTO REMOTE REMOTE CONT DOOR LOCK<SLG>	1-86855-033-2	01	1	0212-0809
487	CONTROL UNIT; DOOR LOCK,AUTO REMOTE CUSTOM CAB(SR5)	1-86855-006-1	01	1	9910-0004
489	CONTROL UNIT; AUTO LIGHT AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT>	1-82540-049-1	01	1	9910-0004
490	ANTENNA; AUTO REMOTE DOOR LOCK REMOTE CONT DOOR LOCK<SLG>	1-86855-023-1	01	1	0212-0809
490	ANTENNA; AUTO REMOTE DOOR LOCK CUSTOM CAB(SR5)	1-86855-023-1	01	1	9910-0004
496	SCREW; COVER ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER	8-94279-402-0	03	1	9811-9909
496	SCREW; COVER CUSTOM CAB(SR5) M6X16 W/LK&PL WASHER	8-94279-402-0	03	1	9910-0004
496	SCREW; COVER ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5) M6X16 W/LK&PL WASHER	8-94279-402-0	03	1	9910-0004
496	SCREW; COVER ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER	8-94279-402-0	03	1	0005-0703
496	SCREW; COVER ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER	0-36230-612-0	03	1	0704-
499	BOLT; UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-
500	SENSOR; AUTO LIGHT AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT>	1-82486-002-0	01	1	9910-0004
506	TAPE; ANTENNA REMOTE CONT DOOR LOCK<SLG> 100X30	1-74998-068-0	06	1	0803-0809
506	TAPE; ANTENNA CUSTOM CAB(SR5) 100X30	1-74998-068-0	06	1	9910-0004
601	BOLT; DC-DC CONVERTER ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0005-0703
601	BOLT; DC-DC CONVERTER ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER	0-36230-612-0	02	1	0704-
603	COVER; CONT UNIT,SEAT STAND ELEC OUTLET 12V<TAW>	1-72538-160-2	01	1	9811-9909
603	COVER; CONT UNIT,SEAT STAND CUSTOM CAB(SR5)	1-72538-160-2	01	1	9910-0004
603	COVER; CONT UNIT,SEAT STAND ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5)	1-72538-160-2	01	1	9910-0004
603	COVER; CONT UNIT,SEAT STAND ELEC OUTLET 12V<TAW>	1-72538-160-3	01	1	0005-0810
603	COVER; CONT UNIT,SEAT STAND ELEC OUTLET 12V<TAW>	8-97589-725-0	01	1	0811-
621	SCREW ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/PL WASHER	1-09981-380-0	04	1	9912-0004
637	BRACKET; DC-DC CONVERTER ELEC OUTLET 12V<TAW>	1-75557-483-1	01	1	0005-
638	NUT; DC-DC CONVERTER ELEC OUTLET 12V<TAW> M6 FLANGE	0-91150-106-0	04	1	9811-0602
638	NUT; DC-DC CONVERTER ELEC OUTLET 12V<TAW> M6 FLANGE	0-91180-106-0	04	1	0603-
651	TRANSMITTER; DOOR LOCK,AUTO REMOTE REMOTE CONT DOOR LOCK<SLG>	1-86860-008-0	01	1	0212-0809
651	TRANSMITTER; DOOR LOCK,AUTO REMOTE CUSTOM CAB(SR5)	1-86855-017-0	01	1	9910-0004
669	SCREW; DC-DC CONVERTER ELEC OUTLET 12V<TAW> M6X12 W/PL WASHER	1-09981-380-0	04	1	0005-

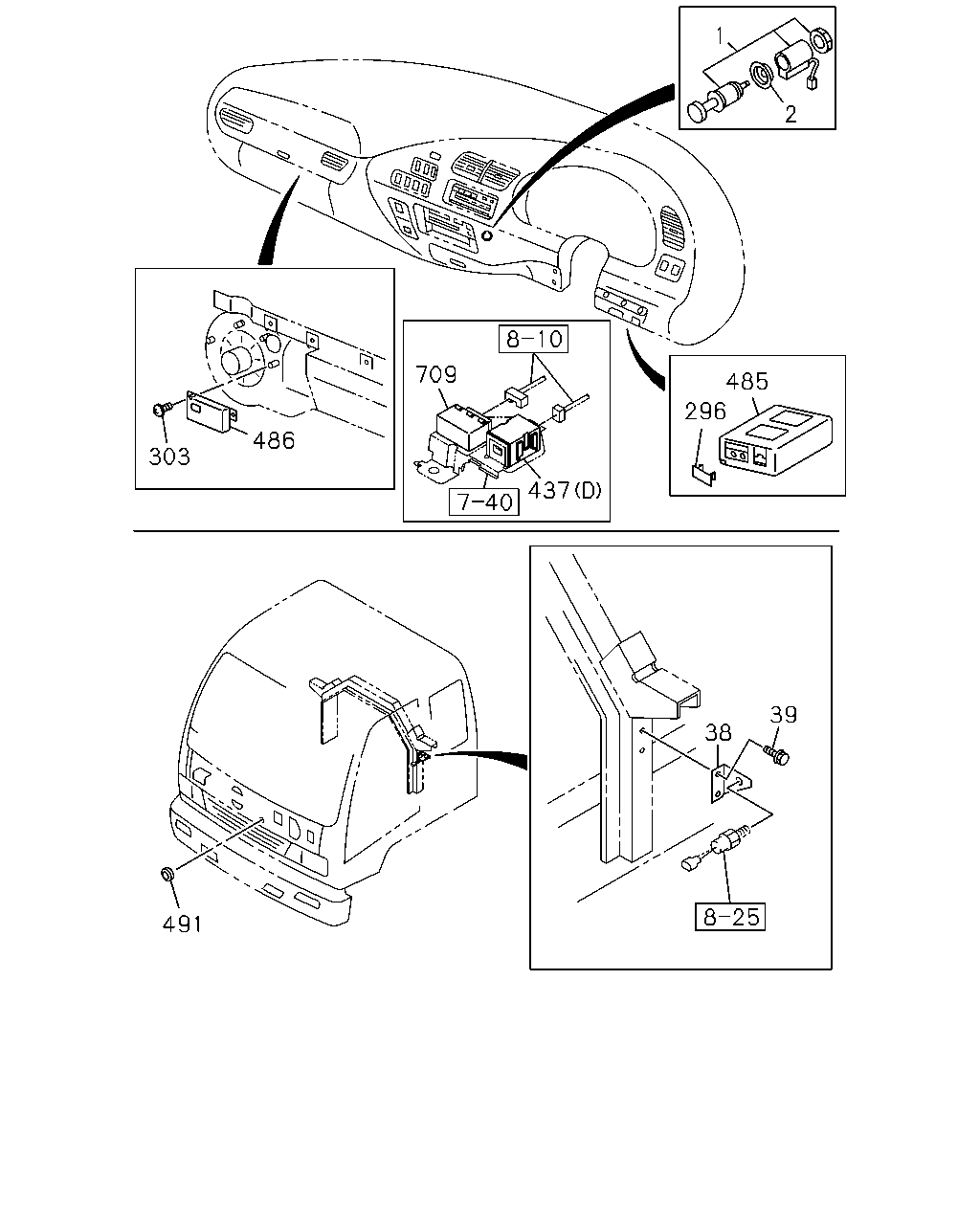

1 2 709 485 296 486 303 437 39 38 491

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LIGHTER; CIGAR	8-97064-970-1	01	1	9601-0108
1	LIGHTER; CIGAR	8-97320-325-0	01	1	0109-
2	BEZEL; CIGAR LIGHTER	1-73998-883-2	01	1	9601-
38	BRACKET; SW,STARTER SUB NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-82699-351-0	01	1	9601-0004
38	BRACKET; SW,STARTER SUB NEW ZEALAND EQUIPMENT(PK5)	1-82698-232-0	01	1	0005-0211
38	BRACKET; SW,STARTER SUB NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D>	1-82698-232-0	01	1	0212-
39	BOLT; BRKT,STARTER SUB SW NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
39	BOLT; BRKT,STARTER SUB SW NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28680-825-0	02	1	9607-9801
39	BOLT; BRKT,STARTER SUB SW NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28680-820-0	02	1	9802-0004
39	BOLT; BRKT,STARTER SUB SW NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28680-820-0	02	1	0005-0211
39	BOLT; BRKT,STARTER SUB SW NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE	0-28680-820-0	02	1	0212-0512
39	BOLT; BRKT,STARTER SUB SW NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE	0-28650-820-0	02	1	0601-
296	COVER; CONT UNIT	1-82549-010-0	01	1	9805-9909
296	COVER; CONT UNIT ALLISON MD3560P A/T(Y3B)	1-82549-010-0	01	1	9805-9909
296	COVER; CONT UNIT ALLISON MD3560P A/T(Y3B)	1-82549-010-0	01	1	9910-0004
296	COVER; CONT UNIT EXC. CUSTOM CAB(SR5),A/T<X9D>	1-82549-010-0	01	1	9910-0004
296	COVER; CONT UNIT CUSTOM CAB(SR5) EXC. A/T<X9D>	1-80199-003-0	01	1	9910-0004
303	SCREW; CONT UNIT EURO3 SPECIFICATION<NJX> M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0605-
303	SCREW; CONT UNIT MIR STAY O/S W/REMOTE<TBA> M5X14	8-94279-325-0	01	1	9911-
437	CONVERTER; DC LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (D) KOITO	8-97359-129-0	01	1	0605-
437	CONVERTER; DC ELEC OUTLET 12V<TAW> (A)	1-84122-005-0	01	1	9807-0004
437	CONVERTER; DC ELEC OUTLET 12V<TAW> (B)	1-84122-037-1	01	1	0005-0008
437	CONVERTER; DC ELEC OUTLET 12V<TAW> (C) MITSUBISHI	1-84122-034-1	01	1	0009-0603
437	CONVERTER; DC ELEC OUTLET 12V<TAW> (B) METRO DENSO	8-98046-423-0	01	1	0604-
485	CONTROL UNIT; SPEED SENSOR ZF9S1110 M/T(Y5E)	1-80190-063-0	01	1	1103-
485	CONTROL UNIT; SPEED SENSOR	1-82540-065-0	01	1	9601-9804
485	CONTROL UNIT; SPEED SENSOR ALLISON MD3560P A/T(Y3B)	1-80190-037-0	01	1	9805-9910
485	CONTROL UNIT; SPEED SENSOR ALLISON MD3560P A/T(Y3B)	1-80190-061-0	01	1	9911-0004
485	CONTROL UNIT; SPEED SENSOR CUSTOM CAB(SR5) EXC. A/T<X9D>	1-80190-038-1	01	1	9910-0004
485	CONTROL UNIT; SPEED SENSOR CUSTOM CAB(SR5) EXC. A/T<X9D>	1-80190-038-1	01	1	0005-0005
485	CONTROL UNIT; SPEED SENSOR SOUTH AFRICA EQUIPMENT(WG4)	1-80190-038-1	01	1	0005-0005
485	CONTROL UNIT; SPEED SENSOR	1-80190-038-1	01	1	0005-0402
485	CONTROL UNIT; SPEED SENSOR	1-80190-149-0	01	1	0403-0410
485	CONTROL UNIT; SPEED SENSOR FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L)	1-80190-158-0	01	1	0411-
485	CONTROL UNIT; SPEED SENSOR FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L)	1-82540-065-0	01	1	9805-9903
485	CONTROL UNIT; SPEED SENSOR FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y)	1-82540-065-0	01	1	9904-9909
485	CONTROL UNIT; SPEED SENSOR FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) EXC. CUSTOM CAB(SR5)	1-82540-065-0	01	1	9910-0004
486	CONTROL UNIT; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-82540-046-0	01	1	9805-
491	PLUG; HOLE,CONT UNIT OD=54.5	1-73907-309-0	01	1	9601-9804
491	PLUG; HOLE,CONT UNIT OD=54.5	1-73907-309-0	01	1	9805-0004
491	PLUG; HOLE,CONT UNIT OD=54.5	1-73907-309-0	01	1	9805-0004
491	PLUG; HOLE,CONT UNIT OD=54.5	1-73907-309-0	01	1	0005-
709	RESISTOR; HD LAMP LEVELING LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	8-97359-130-1	01	1	0605-

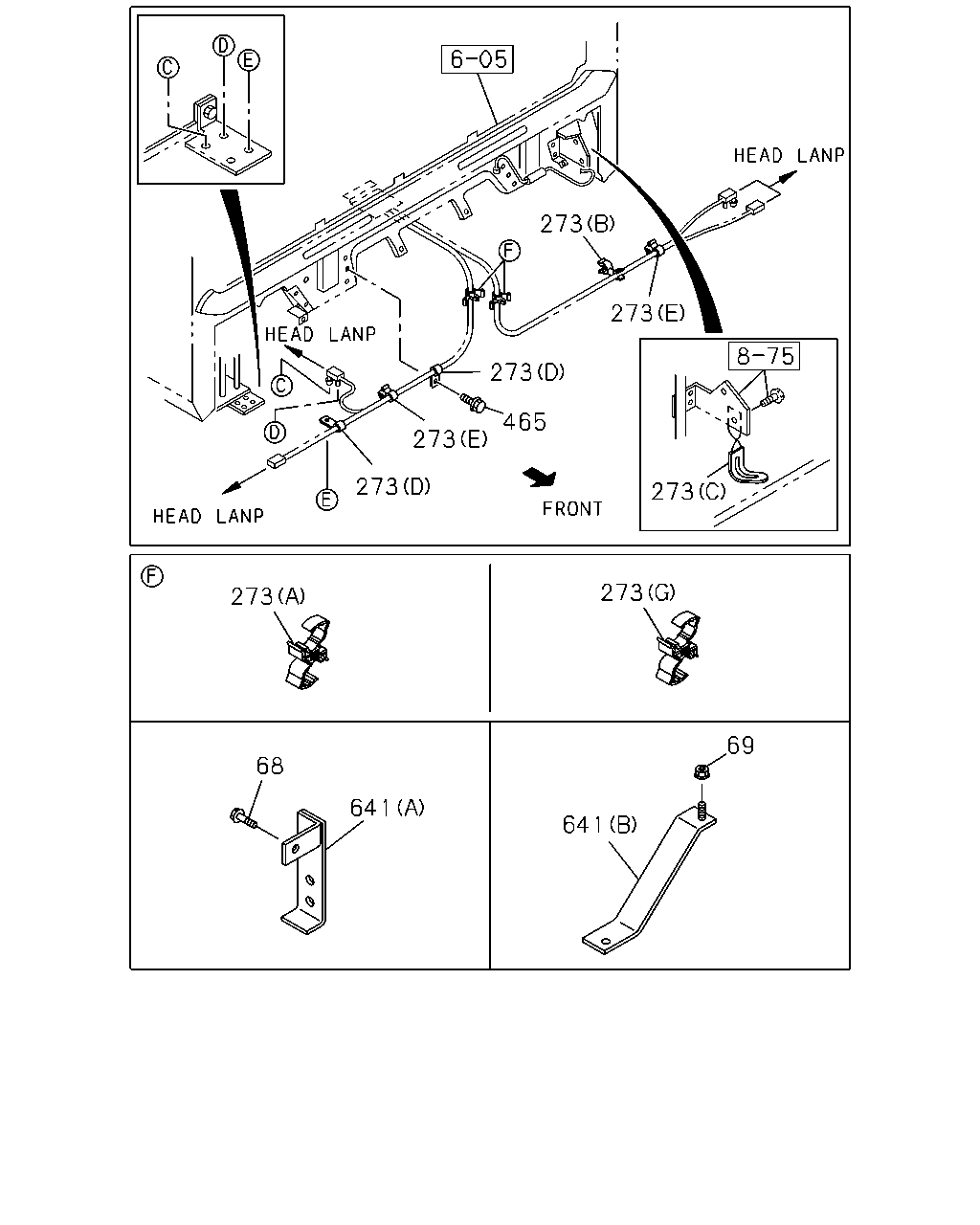

273 273 273 465 273 273 273 273 273 69 68 641 641

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	BOLT; BRKT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE	0-28680-820-0	01	1	0212-0512
68	BOLT; BRKT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE	0-28650-820-0	01	1	0601-
68	BOLT; BRKT ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9905-9907
68	BOLT; BRKT ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9908-0004
69	NUT; BRKT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE	0-91150-108-0	01	1	0212-0602
69	NUT; BRKT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE	0-91180-108-0	01	1	0603-
273	CLIP; HARNESS EURO3 SPECIFICATION<NJX> (H) ID=35 L=35	1-09700-726-0	01	1	0605-
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (G) ID=12-16 & 12-16	1-09709-191-0	03	1	0212-
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=6-10 & 10-14	1-09709-201-1	01	1	0212-
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) ID=11.5 & 14.5	8-94314-293-0	01	1	0212-
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	8-97101-436-0	01	1	0212-
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50	9-09525-085-0	01	1	0212-0606
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=11 L=50	0-95235-085-0	01	1	0607-
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20	9-09525-536-0	03	1	0212-0606
273	CLIP; HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E) ID=16 L=20	0-95235-536-0	03	1	0607-
465	BOLT; CLIP EURO3 SPECIFICATION<NJX> M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	0605-
465	BOLT; CLIP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE	0-28680-820-0	03	1	0212-0512
465	BOLT; CLIP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE	0-28650-820-0	03	1	0601-
465	BOLT; CLIP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0212-
641	BRACKET; CLIP,HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-82698-072-2	01	1	0212-
641	BRACKET; CLIP,HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A)	1-82698-073-1	01	1	0212-0309
641	BRACKET; CLIP,HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A)	1-82698-503-0	01	1	0310-

234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
234	SENSOR; VEHICLE SPD 25 PULSE	1-83127-414-0	01	1	9601-9702
234	SENSOR; VEHICLE SPD FULLER RT7608LL M/T(X8P) 25 PULSE	1-83127-414-1	01	1	9703-
234	SENSOR; VEHICLE SPD ALLISON MD3560P A/T(Y3B)	1-80240-017-0	01	1	9805-9806
234	SENSOR; VEHICLE SPD ZF 9S109 OD M/T(Y2L)	1-83127-241-1	01	1	9703-9804
234	SENSOR; VEHICLE SPD ZF 9S109 OD M/T(Y2L)	1-80240-001-0	01	1	9805-9903
234	SENSOR; VEHICLE SPD ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y)	1-80240-001-0	01	1	9904-0004
234	SENSOR; VEHICLE SPD ZF 9S109 OD M/T(Y2L)	1-80240-001-1	01	1	0005-0202
234	SENSOR; VEHICLE SPD ZF 9S109 OD M/T(Y2L) 25 PULSE ALUMINUM	8-97328-058-1	01	1	0203-

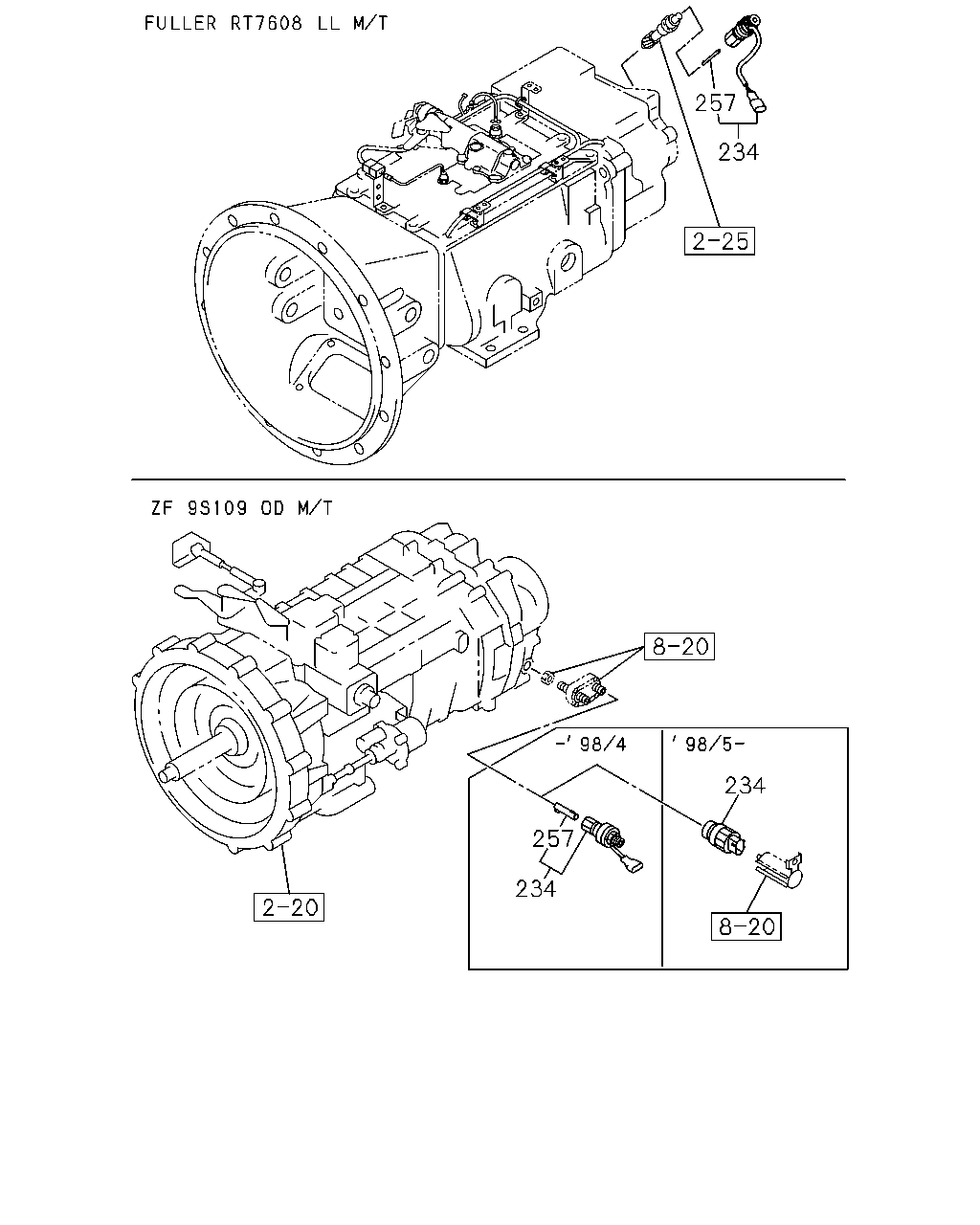

257 234 234 257 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
234	SENSOR; VEHICLE SPD 25 PULSE	1-83127-414-0	01	1	9601-9702
234	SENSOR; VEHICLE SPD FULLER RT7608LL M/T(X8P) 25 PULSE	1-83127-414-1	01	1	9703-
234	SENSOR; VEHICLE SPD ALLISON MD3560P A/T(Y3B)	1-80240-017-0	01	1	9805-9806
234	SENSOR; VEHICLE SPD ZF 9S109 OD M/T(Y2L)	1-83127-241-1	01	1	9703-9804
234	SENSOR; VEHICLE SPD ZF 9S109 OD M/T(Y2L)	1-80240-001-0	01	1	9805-9903
234	SENSOR; VEHICLE SPD ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y)	1-80240-001-0	01	1	9904-0004
234	SENSOR; VEHICLE SPD ZF 9S109 OD M/T(Y2L)	1-80240-001-1	01	1	0005-0202
234	SENSOR; VEHICLE SPD ZF 9S109 OD M/T(Y2L) 25 PULSE ALUMINUM	8-97328-058-1	01	1	0203-
257	KEY; SPEED SENSOR	1-83129-073-0	01	1	9601-9702
257	KEY; SPEED SENSOR FULLER RT7608LL M/T(X8P)	1-83129-073-0	01	1	9703-
257	KEY; SPEED SENSOR ZF 9S109 OD M/T(Y2L)	1-83129-126-0	01	1	9703-9804

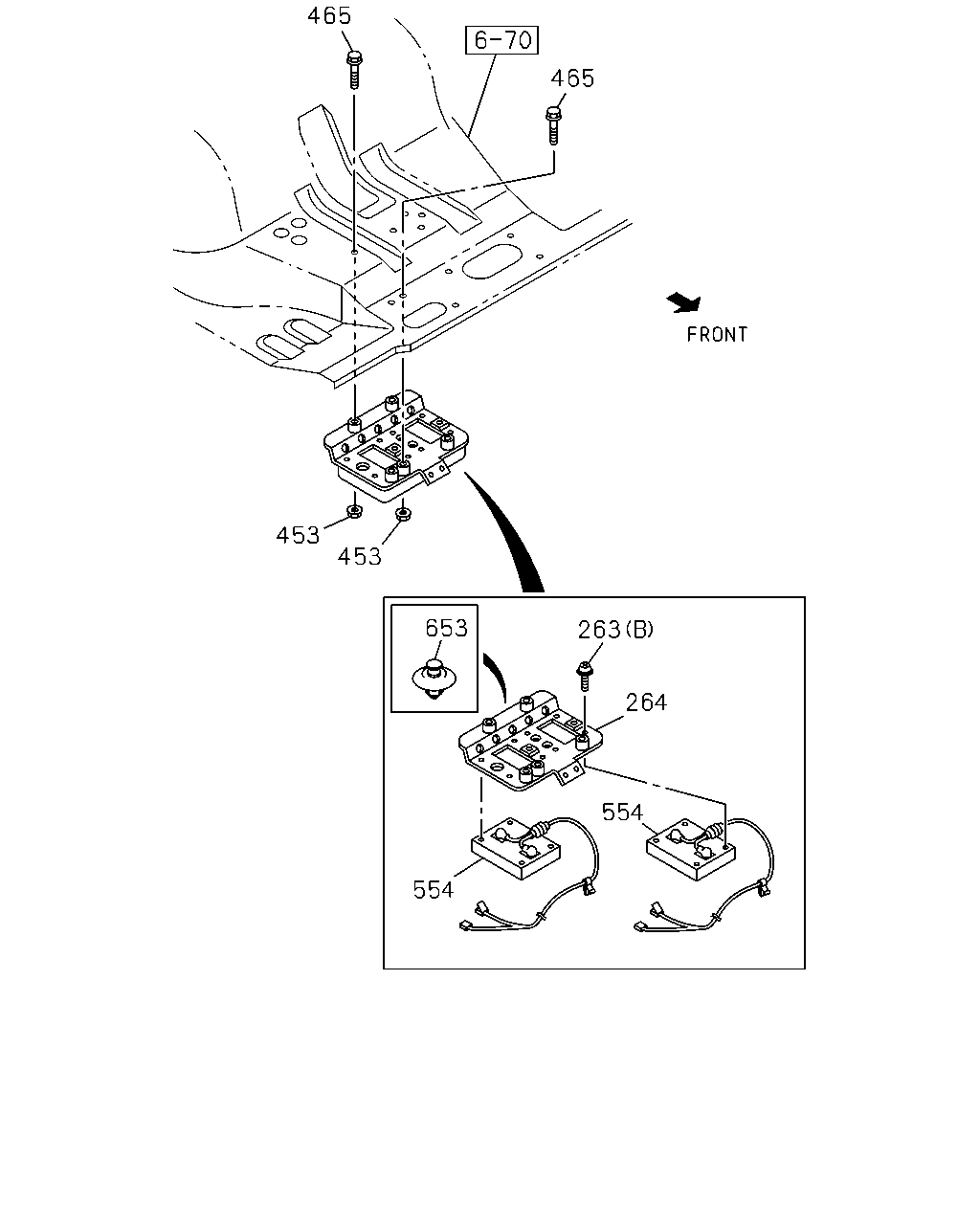

465 465 453 453 653 263 264 554 554

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
263	BOLT; CONT UNIT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0212-
263	BOLT; CONT UNIT ALLISON MD3560P A/T(Y3B) (A) M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9805-0004
264	BRACKET; CONT UNIT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82547-037-5	01	1	0212-
453	NUT; BRKT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE	0-91150-108-0	04	1	0212-0602
453	NUT; BRKT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE	0-91180-108-0	04	1	0603-
465	BOLT; CLIP EURO3 SPECIFICATION<NJX> M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	0605-
465	BOLT; CLIP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE	0-28680-820-0	03	1	0212-0512
465	BOLT; CLIP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X20 FLANGE	0-28650-820-0	03	1	0601-
465	BOLT; CLIP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0212-
554	CONTROL UNIT; HEAD LAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-80150-076-6	01	1	0212-
554	CONTROL UNIT; HEAD LAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-80150-077-5	01	1	0212-
653	CLIP; BRKT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> D8X13.5	1-09987-248-1	01	1	0212-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
