8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#65200) — 75 parça

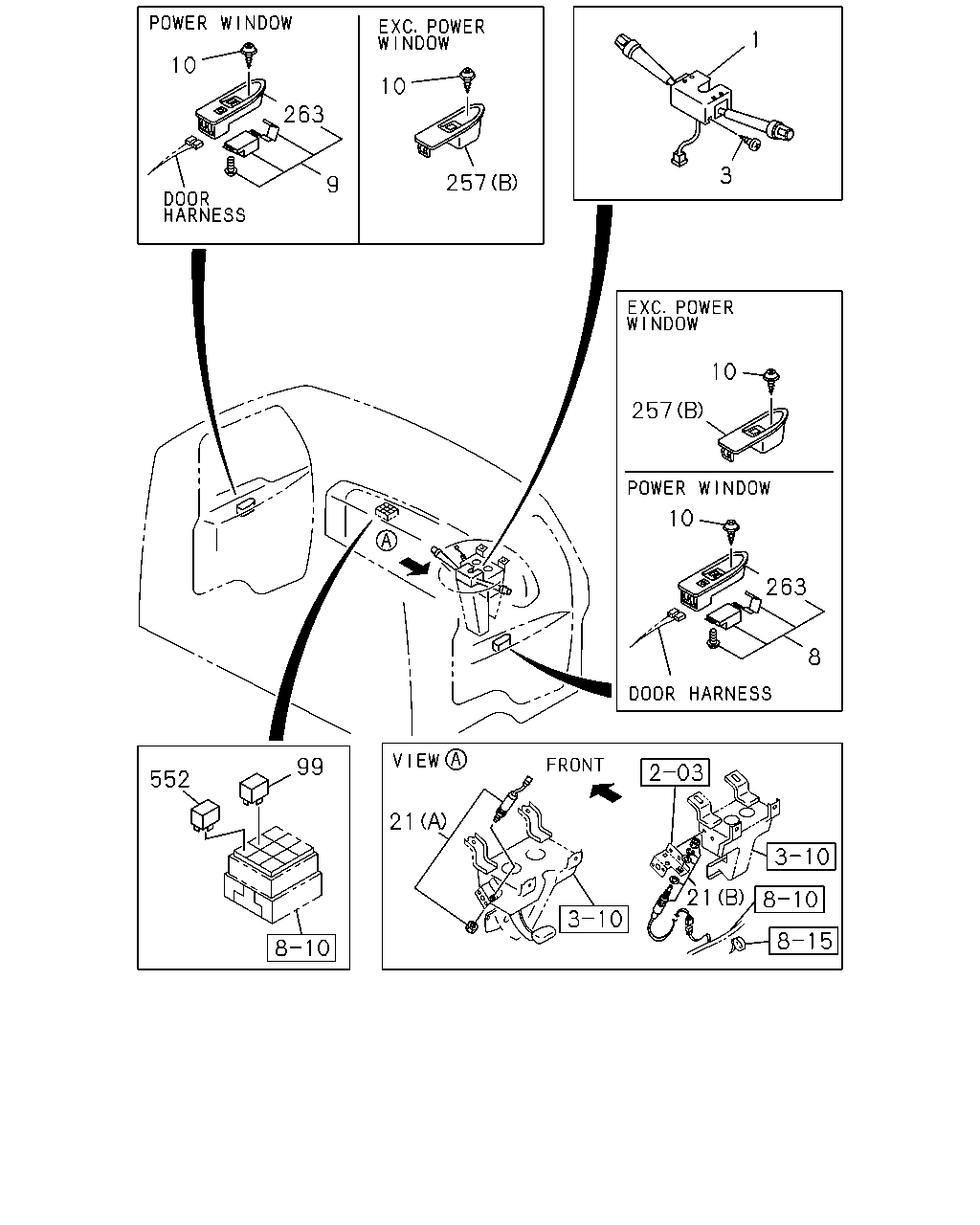

çizim 138007
1 10 10 263 3 257 9 10 257 10 263 8 99 552 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82360-693-0 01 1 0212-0312
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82360-730-0 01 1 0401-
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-532-0 01 1 9910-0004
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-412-3 01 1 9601-9909
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5),AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-412-3 01 1 9910-0004
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-412-3 01 1 0005-0103
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-619-0 01 1 0104-0312
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-715-0 01 1 0401-
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-403-4 01 1 9601-9909
1 SWITCH; COMB
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT>, HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-403-4 01 1 9910-0004
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-403-4 01 1 0005-0103
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-618-0 01 1 0104-0312
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-714-0 01 1 0401-
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-410-4 01 1 9601-0103
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-658-0 01 1 0104-0211
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82360-658-0 01 1 0212-0312
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82360-726-0 01 1 0401-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9601-0604
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605-
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER DRIVER 		1-82380-148-0 01 1 9601-9709
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-155-4 01 1 9710-
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER PASSENGER 		1-82380-138-0 01 1 9601-9709
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-154-3 01 1 9710-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9601-9804
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9805-0004
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9805-0004
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0005-0604
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-
21 SWITCH; CLU
EURO3 SPECIFICATION<NJX> (A) 		1-82440-116-1 01 1 0605-0608
21 SWITCH; CLU
EURO3 SPECIFICATION<NJX> (A) 		1-82440-126-1 01 1 0609-
21 SWITCH; CLU
(B) 		1-82380-114-1 01 1 9601-9804
21 SWITCH; CLU
FULLER M/T<X9B>,ZF M/T<X9E> (B) 		1-82380-114-2 01 1 9805-0004
21 SWITCH; CLU
(B) 		1-82380-114-3 01 1 0005-0604
21 SWITCH; CLU
EXC. EURO3 SPECIFICATION<NJX> (B) 		1-82380-114-3 01 1 0605-
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9601-9909
257 COVER; HOLE,SW
EXC. CUSTOM CAB(SR5) (A) 		8-94229-914-1 01 1 9910-0004
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0404
257 COVER; HOLE,SW
EXC. REMOTE CONT DOOR LOCK<SLG> (A) 		8-94229-914-1 01 1 0405-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9601-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9601-
263 COVER; SW
POWER WINDOW<A30> 		1-82385-006-3 01 1 9601-
263 COVER; SW
POWER WINDOW<A30> 		1-82385-005-2 01 1 9601-
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
çizim 138081
29 30 257 60
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-97855-032-3 01 1 0405-
29 SWITCH; DOOR 8-97855-032-2 01 1 9601-9909
29 SWITCH; DOOR
CUSTOM CAB(SR5) 		8-97855-032-2 02 1 9910-0004
29 SWITCH; DOOR 8-97855-032-3 01 1 0005-0404
29 SWITCH; DOOR
REMOTE CONT DOOR LOCK<SLG> 		8-97855-032-3 02 1 0405-
29 SWITCH; DOOR
EXC. CUSTOM CAB(SR5) 		8-97855-032-2 01 1 9910-0004
30 SCREW; DOOR SW
EXC. REMOTE CONT DOOR LOCK<SLG> M5X11 		1-09981-536-1 01 1 0405-
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9601-9906
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907-9909
30 SCREW; DOOR SW
CUSTOM CAB(SR5) M5X11 		1-09981-536-1 02 1 9910-0004
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0005-0404
30 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<SLG> M5X11 		1-09981-536-1 02 1 0405-
30 SCREW; DOOR SW
EXC. CUSTOM CAB(SR5) M5X11 		1-09981-536-1 01 1 9910-0004
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82380-107-1 01 1 9601-0004
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) 		1-82380-107-1 01 1 0005-0211
60 SWITCH; STARTER SUB
NEW ZEALAND EQUIPMENT(PK5) EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212-
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9601-9909
257 COVER; HOLE,SW
EXC. CUSTOM CAB(SR5) (A) 		8-94229-914-1 01 1 9910-0004
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0404
257 COVER; HOLE,SW
EXC. REMOTE CONT DOOR LOCK<SLG> (A) 		8-94229-914-1 01 1 0405-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9601-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9601-

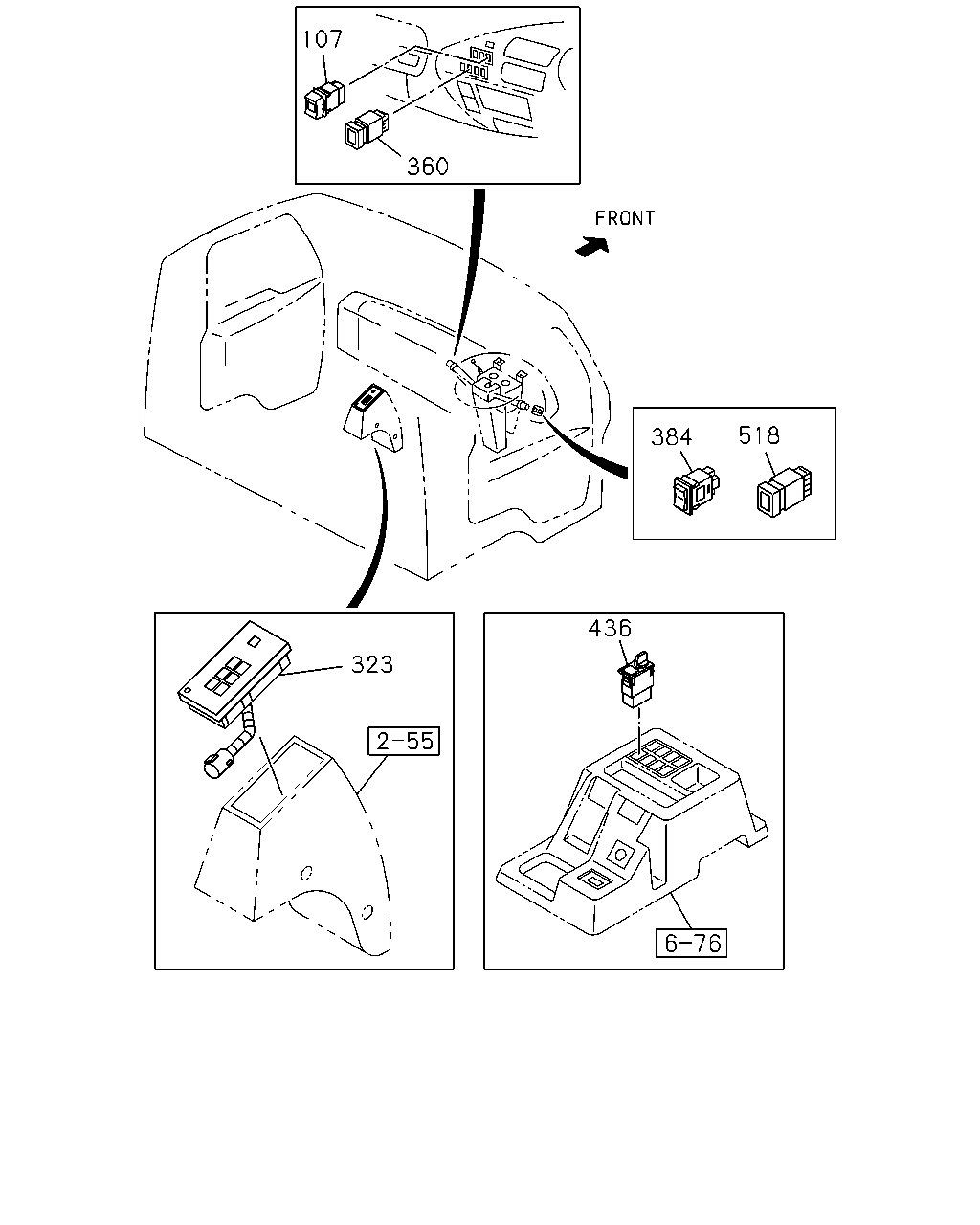

çizim 184653
107 360 518 384 436 323
BalonParca AdiParca NoAdetTipApplied Date
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 9805-
323 SWITCH ASM; SELECTOR
ALLISON MD3560P A/T(Y3B) 		1-80290-001-0 01 1 9805-0004
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 9601-
384 SWITCH; IDLING CONT,ELEC
EURO3 SPECIFICATION<NJX> 		1-82350-213-1 01 1 0605-
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82330-043-0 01 1 0212-
518 SWITCH; RADIO TUNE
RADIO SEEK SW<NBN> 		1-82350-231-0 01 1 9807-0004
518 SWITCH; RADIO TUNE
RADIO SEEK SW<NBN> 		1-82350-231-0 01 1 0011-
