◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#65187) — 310 parça
çizim 184631
259 598 260 577 19 597
BalonParca AdiParca NoAdetTipApplied Date
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 9910-0004
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9601-0604
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0605-
259 PLATE; STUFF,SUN VISOR
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9601-9804
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9805-0004
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0005-
260 SCREW; STUFF PLATE
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9601-9804
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9805-
577 BRACKET; SENSOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72318-414-0 01 1 9910-0004
597 SEAL; HOLE,DASH
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> OD=16 BLACK 		1-76798-037-0 02 1 9601-0004
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0005-
598 GROMMET; SCREW
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 9910-0004

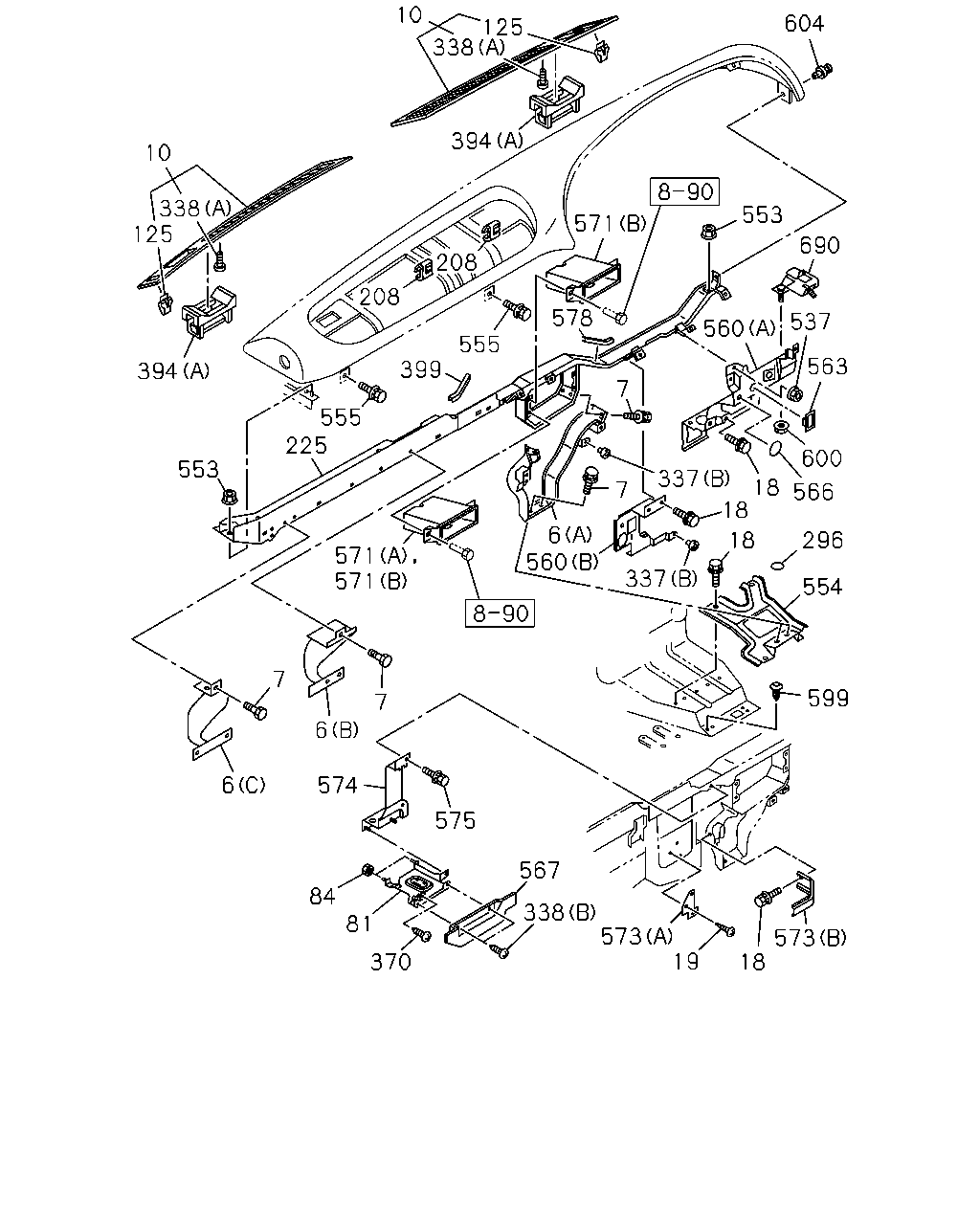

çizim 184637
10 604 125 338 394 10 338 125 553 690 571 208 208 537 563 578 560 555 399 394 7 555 225 600 553 337 18 18 7 566 6 560 296 18 571 571 337 554 7 599 7 6 574 6 575 567 84 338 573 81 19 573 18 370
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
(A) 		1-65680-961-4 01 1 9601-9804
6 SUPPORT; INST PANEL
(A) 		1-65680-961-4 01 1 9805-9904
6 SUPPORT; INST PANEL
(A) 		1-65681-165-1 01 1 9905-0004
6 SUPPORT; INST PANEL
(A) 		1-65681-165-2 01 1 0005-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 9601-0604
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 0605-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 9601-0604
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 0605-
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9601-9804
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9805-
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-0604
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0605-
10 PANEL ASM; GARNISH
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72437-603-2 01 1 9910-0004
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-2 01 1 9601-9909
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> W/SPEAKER NET 		1-72437-601-2 01 1 9910-0004
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 0005-0604
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 0605-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-6 01 1 9601-0604
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 0605-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-72438-158-1 01 1 9601-0604
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 0605-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-72438-157-1 01 1 9601-0604
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 0605-
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0209-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9601-9801
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9802-9804
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9805-0004
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9601-9804
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9805-0004
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005-
18 BOLT; BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9802-9804
18 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 03 1 9805-0004
18 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 03 1 0005-0512
18 BOLT; BRKT
M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601-0604
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0605-
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 9910-0004
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9601-0604
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0605-
81 BRACKET; ELEC CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-73908-156-4 01 1 9601-0004
84 NUT; CONT UNIT BRKT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9601-0004
125 CLIP; INST PANEL 8-97217-066-0 01 1 0005-
125 CLIP; INST PANEL 8-97853-939-4 01 1 9601-9804
125 CLIP; INST PANEL 8-97853-939-4 01 1 9805-9812
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-0004
125 CLIP; INST PANEL 8-97853-939-4 08 1 9601-9812
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901-9909
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL 8-97217-066-0 08 1 0005-
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		8-97217-066-0 08 1 9910-0004
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9601-9804
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9805-
225 FRAME; FACIA 1-65681-096-0 01 1 9601-9804
225 FRAME; FACIA 1-65681-096-0 01 1 9805-0004
225 FRAME; FACIA 1-65681-096-2 01 1 0005-1002
225 FRAME; FACIA 8-98142-102-0 01 1 1003-
296 SEAL; INST CENTER BEZEL
OD=25 BLACK 		1-76798-019-0 01 1 9601-9804
296 SEAL; INST CENTER BEZEL
OD=25 BLACK 		1-76798-019-0 01 1 9805-9806
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0005-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9601-9804
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9805-0004
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9601-
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) TAPPING M5X14 		8-94279-325-0 10 1 9601-9909
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) TAPPING M5X14 		8-94279-325-0 05 1 9910-0004
338 SCREW; COVER
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> (A) TAPPING M5X14 		8-94279-325-0 05 1 9910-0004
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> (A) TAPPING M5X14 		8-94279-325-0 05 1 9910-0004
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) TAPPING M5X14 		8-94279-325-0 10 1 0005-0208
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) TAPPING M5X14 		8-94148-576-1 10 1 0209-0309
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) TAPPING M5X14 		8-94279-325-0 20 1 0310-0405
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) TAPPING M5X14 		8-94279-325-0 10 1 0406-0604
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) TAPPING M5X14 		8-94279-325-0 10 1 0605-0801
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) TAPPING M5X14 		8-94279-325-0 15 1 0802-
338 SCREW; COVER
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M6X16 		8-94479-534-0 02 1 9601-0004
370 SCREW; BRKT,ELEC CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M5X14 		8-94279-325-0 01 1 9601-0004
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9601-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9601-9804
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9805-0004
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0005-
399 FINISHER; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9803-9807
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9808-0604
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 0605-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9601-9804
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9805-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9601-9804
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9805-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
554 BRACKET; CENTER BEZEL 1-65680-963-1 01 1 9601-9804
554 BRACKET; CENTER BEZEL 1-65680-963-1 01 1 9805-0004
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0005-
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9601-9804
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9805-0512
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9601-9804
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9805-
560 BRACKET
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-65681-197-2 01 1 0606-
560 BRACKET
EURO3 SPECIFICATION<NJX> (A) 		1-65671-772-4 01 1 0605-
560 BRACKET
(B) 		1-65680-976-2 01 1 9601-9804
560 BRACKET
(B) 		1-65680-976-2 01 1 9805-0004
560 BRACKET
(B) 		1-65680-976-3 01 1 0005-0605
560 BRACKET
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> (B) 		1-65680-976-3 01 1 0606-
560 BRACKET
(A) 		1-65681-078-3 01 1 9601-9804
560 BRACKET
(A) 		1-65681-078-3 01 1 9805-0004
560 BRACKET
(A) 		1-65681-078-7 01 1 0005-0604
560 BRACKET
EXC. EURO3 SPECIFICATION<NJX> (A) 		1-65681-078-7 01 1 0605-
563 BEZEL; BRKT
EURO3 SPECIFICATION<NJX> 		1-72448-410-3 01 1 0605-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9601-9804
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9805-0004
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0005-0604
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0605-
566 PLUG; HOLE
EURO3 SPECIFICATION<NJX> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0605-
567 COVER; CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-65681-022-1 01 1 9601-0004
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9601-9804
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9805-9812
571 BEZEL; POCKET
EXC. RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> (B) 		1-72438-151-0 01 1 9601-9812
571 BEZEL; POCKET
(B) 		1-72438-151-3 01 1 9901-
571 BEZEL; POCKET
EXC. RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> (B) 		1-72438-151-3 01 1 9901-
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 9601-0604
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 0605-
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 9601-0604
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 0605-
574 PANEL; RELAY BOX 1-73908-011-3 01 1 9601-9804
574 PANEL; RELAY BOX 1-73908-011-3 01 1 9805-9910
574 PANEL; RELAY BOX 1-73908-252-1 01 1 9911-0004
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0005-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-
578 SEAL; PROTECTOR,HARNESS
100X30 		1-72498-014-1 01 1 9601-9804
578 SEAL; PROTECTOR,HARNESS
100X30 		1-72498-014-1 01 1 9805-9903
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-0 01 1 9904-0004
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0005-
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 9601-9804
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 9805-0004
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0005-
600 NUT; PANEL
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> M6 FLANGE 		0-91180-106-0 02 1 0606-
604 CLIP; INST PAD 1-09983-123-0 01 1 9601-
690 PANEL; RELAY,HEADLAMP
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-65681-196-1 01 1 0606-

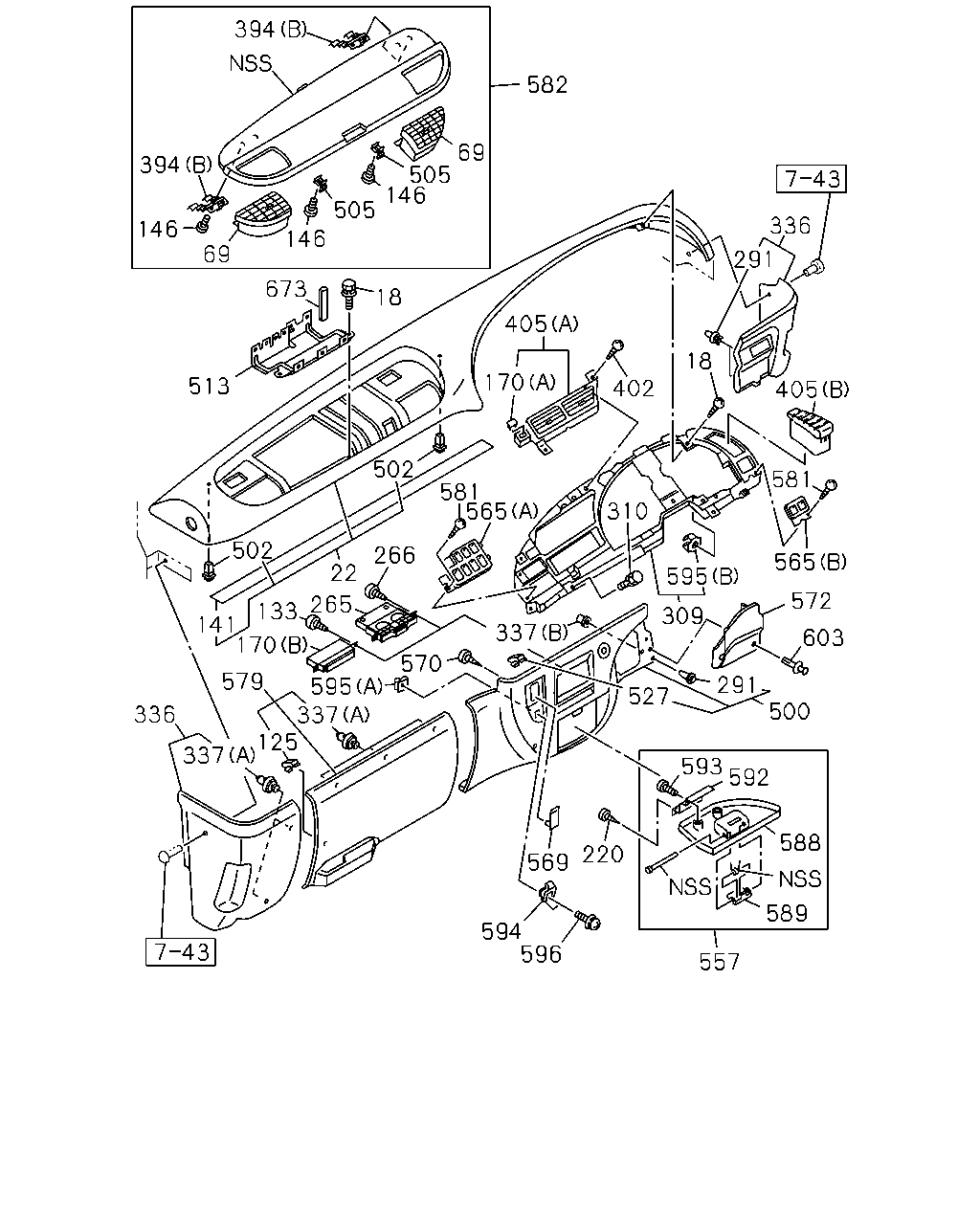

çizim 184648
394 582 69 505 146 394 505 336 146 146 69 291 673 18 405 18 170 513 402 405 502 581 581 565 310 502 266 565 22 595 572 265 133 309 141 170 337 603 570 595 337 125 579 291 527 500 336 337 593 592 588 220 569 589 594 596 557
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0209-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9601-9801
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9802-9804
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9805-0004
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9601-9804
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9805-0004
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005-
18 BOLT; BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9802-9804
18 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 03 1 9805-0004
18 BOLT; BRKT
M8X40 FLANGE 		0-28680-840-0 03 1 0005-0512
18 BOLT; BRKT
M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601-0604
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0605-
22 PAD; INST 1-72318-421-2 01 1 9601-9804
22 PAD; INST 1-72318-421-2 01 1 9805-0004
22 PAD; INST 1-72318-433-4 01 1 0005-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9601-9804
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9805-0004
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0005-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9601-9804
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9805-0004
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0005-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0005-
125 CLIP; INST PANEL 8-97853-939-4 01 1 9601-9804
125 CLIP; INST PANEL 8-97853-939-4 01 1 9805-9812
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-0004
125 CLIP; INST PANEL 8-97853-939-4 08 1 9601-9812
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901-9909
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL 8-97217-066-0 08 1 0005-
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		8-97217-066-0 08 1 9910-0004
133 SCREW; COVER,INST PNL
EXC. INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9601-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9601-9804
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9805-0004
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0005-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9601-9804
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9805-0004
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0005-
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 9601-9804
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 9805-0004
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 0005-
170 COVER; HOLE
EXC. INTERIOR ORNAMENT HOLDER<TEJ> (B) 		1-72438-139-1 01 1 9601-
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 9601-9804
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 9805-0004
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0005-
265 HOLDER; CUP
INTERIOR ORNAMENT HOLDER<TEJ> 		8-97853-172-8 01 1 9601-
266 SCREW; CUP STAND
INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9601-
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0005-
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 9601-9804
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 9805-0004
309 PANEL; SW,INST 1-72418-009-6 01 1 9601-9804
309 PANEL; SW,INST 1-72418-009-6 01 1 9805-0004
309 PANEL; SW,INST 1-72418-009-6 01 1 0005-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0209-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-9804
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9805-
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9601-9804
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9805-0004
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0005-
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9601-9804
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9805-0004
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0005-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0005-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9601-9804
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9805-0004
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9601-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9601-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9601-9804
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9805-0004
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0005-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9601-9804
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9805-0004
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0005-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-1 01 1 9601-9804
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-1 01 1 9805-0004
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0005-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 9601-9804
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 9805-0004
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0005-
500 CLUSTER; INST CENTER 1-72438-117-8 01 1 9601-9804
500 CLUSTER; INST CENTER 1-72438-117-9 01 1 9805-0004
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0005-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9601-9804
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9805-0004
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0005-
505 LOCK; LID 1-72558-024-2 02 1 9601-9804
505 LOCK; LID 1-72558-024-2 02 1 9805-0004
505 LOCK; LID 1-72558-024-2 02 1 0005-
513 BRACKET; RELAY 1-73908-009-9 01 1 9601-9804
513 BRACKET; RELAY 1-73908-009-9 01 1 9805-0004
513 BRACKET; RELAY 1-73908-009-9 01 1 0005-0205
513 BRACKET; RELAY 1-73908-425-0 01 1 0206-
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9601-9804
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9805-9812
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901-0004
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0005-
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 9601-9804
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 9805-0004
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0005-
565 BEZEL; SW PANEL
(A) 		1-72418-010-1 01 1 9601-9804
565 BEZEL; SW PANEL
(A) 		1-72418-010-1 01 1 9805-0004
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0005-
565 BEZEL; SW PANEL
(B) 		1-72418-011-2 01 1 9601-9804
565 BEZEL; SW PANEL
(B) 		1-72418-011-2 01 1 9805-0004
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0005-
569 HOLDER; CARD 1-72498-015-1 01 1 9601-9804
569 HOLDER; CARD 1-72498-015-1 01 1 9805-0004
569 HOLDER; CARD 1-72498-015-2 01 1 0005-
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 9601-9804
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 9805-0004
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 0005-
572 COVER; INSPECTION 1-72438-054-3 01 1 9601-9804
572 COVER; INSPECTION 1-72438-054-3 01 1 9805-0004
572 COVER; INSPECTION 1-72438-183-0 01 1 0005-
579 COVER; INST PNL 1-72438-113-3 01 1 9601-9804
579 COVER; INST PNL 1-72438-113-4 01 1 9805-0004
579 COVER; INST PNL 1-72438-184-1 01 1 0005-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9601-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-127-8 01 1 9601-9804
582 LID; FUSE & RELAY 1-72548-127-8 01 1 9805-0004
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0005-
588 LID; BOX 1-72548-135-3 01 1 9601-9804
588 LID; BOX 1-72548-135-3 01 1 9805-0004
588 LID; BOX 1-72548-135-3 01 1 0005-
589 KNOB; LID 1-72548-143-0 01 1 9601-9804
589 KNOB; LID 1-72548-143-0 01 1 9805-0004
589 KNOB; LID 1-72548-143-0 01 1 0005-
592 HINGE; LID 1-72548-133-3 01 1 9601-9804
592 HINGE; LID 1-72548-133-3 01 1 9805-0004
592 HINGE; LID 1-72548-133-3 01 1 0005-
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 9601-9804
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 9805-0004
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0005-
594 HOOK; COAT 1-72498-013-0 01 1 9601-9804
594 HOOK; COAT 1-72498-013-0 01 1 9805-0004
594 HOOK; COAT 1-72498-013-0 01 1 0005-
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 9601-9804
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 9805-0004
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0005-0012
595 NUT; HOOK
(A) WO/NUT 		8-97810-118-0 01 1 0101-0110
595 NUT; HOOK
(A) W/NUT M5 		1-09984-162-0 01 1 0111-
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 9601-9804
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 9805-0004
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0005-
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 9601-9804
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 9805-0004
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0005-0012
596 SCREW; HOOK
M5X14 		8-94279-325-0 01 1 0101-0110
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0111-
603 CLIP; COVER 1-09987-245-1 01 1 9601-9804
603 CLIP; COVER 1-09987-245-1 01 1 9805-0004
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0005-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0006-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
