Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10707 - FVZ-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶

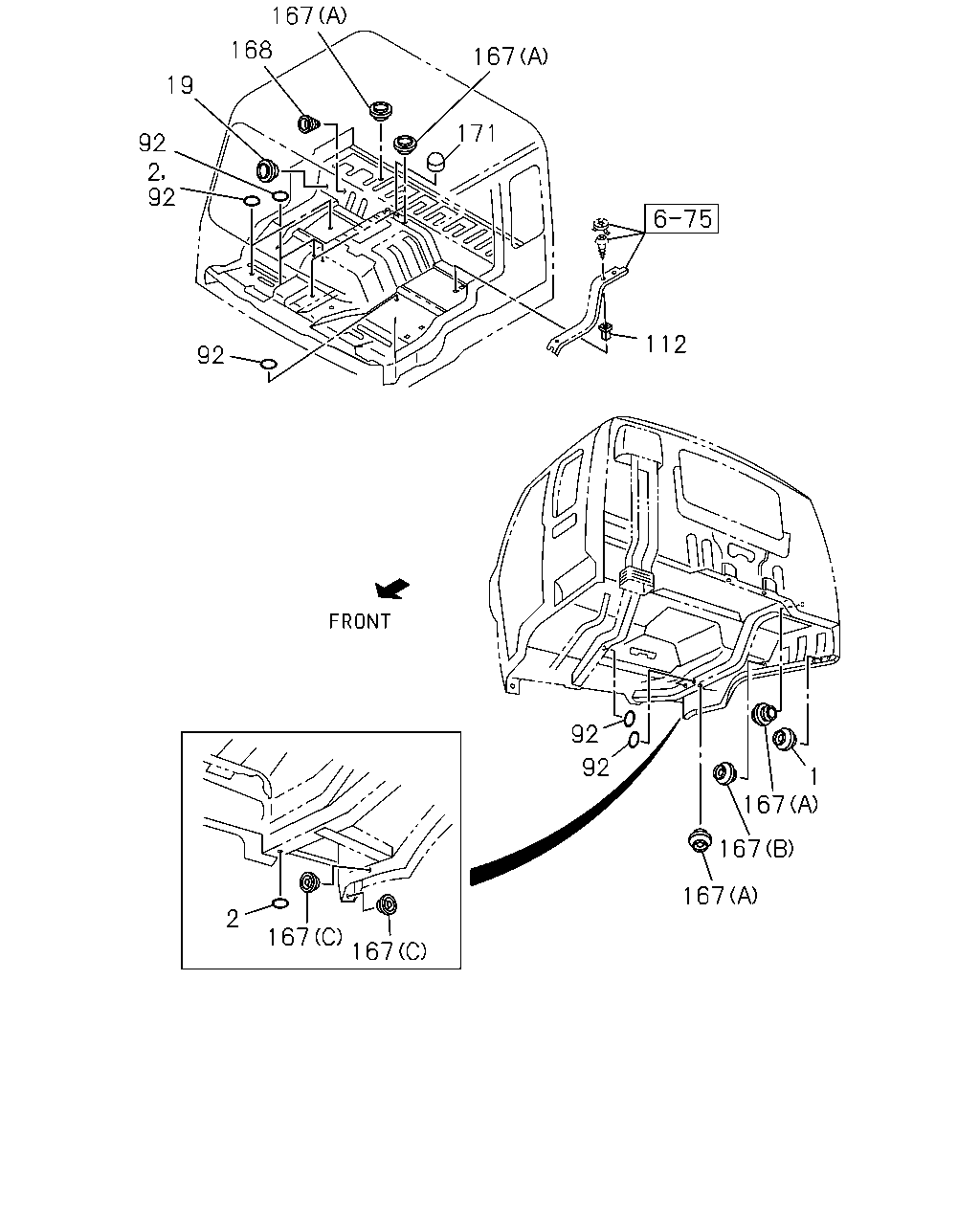

6-78 — FLOOR HOLE PLUG
(#65178) — 27 parça
167
168
167
19
171
92
2
92
112
92
92
92
1
167
167
167
2
167
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GROMMET
OD=40
1-09600-083-0
02
1
9601-
2
GROMMET
OD=25 BLACK
1-76798-019-0
02
1
9601-
19
GROMMET; FLOOR FRT
OD=28
8-94279-720-0
02
1
9601-
92
SEAL; LOCATION HOLE
OD=36 BLACK
1-76798-018-0
02
1
9601-9710
92
SEAL; LOCATION HOLE
OD=36 BLACK
1-76798-018-0
04
1
9711-9806
92
SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK
5-76777-035-0
04
1
9807-0203
92
SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0204-
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
23
1
9601-9710
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
25
1
9711-0004
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
23
1
0005-
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
9601-0004
92
SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK
1-76798-019-0
02
1
9601-0004
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
0005-0604
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
0005-0604
92
SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK
1-76798-019-0
02
1
0005-0604
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
0605-
92
SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK
1-76798-019-0
02
1
0605-
92
SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK
1-76798-019-0
02
1
0605-
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
9601-
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-155-0
08
1
9601-9709
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
08
1
9710-0004
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
04
1
0005-
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
04
1
0005-
167
GROMMET; LOCATION HOLE
(C) OD=35
8-94122-971-0
04
1
9601-
167
GROMMET; LOCATION HOLE
(B) OD=15.0
8-94279-040-0
02
1
9601-
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
9601-
171
CAP; STUD
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F>
1-71736-200-0
02
1
9601-
