◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#65174) — 113 parça

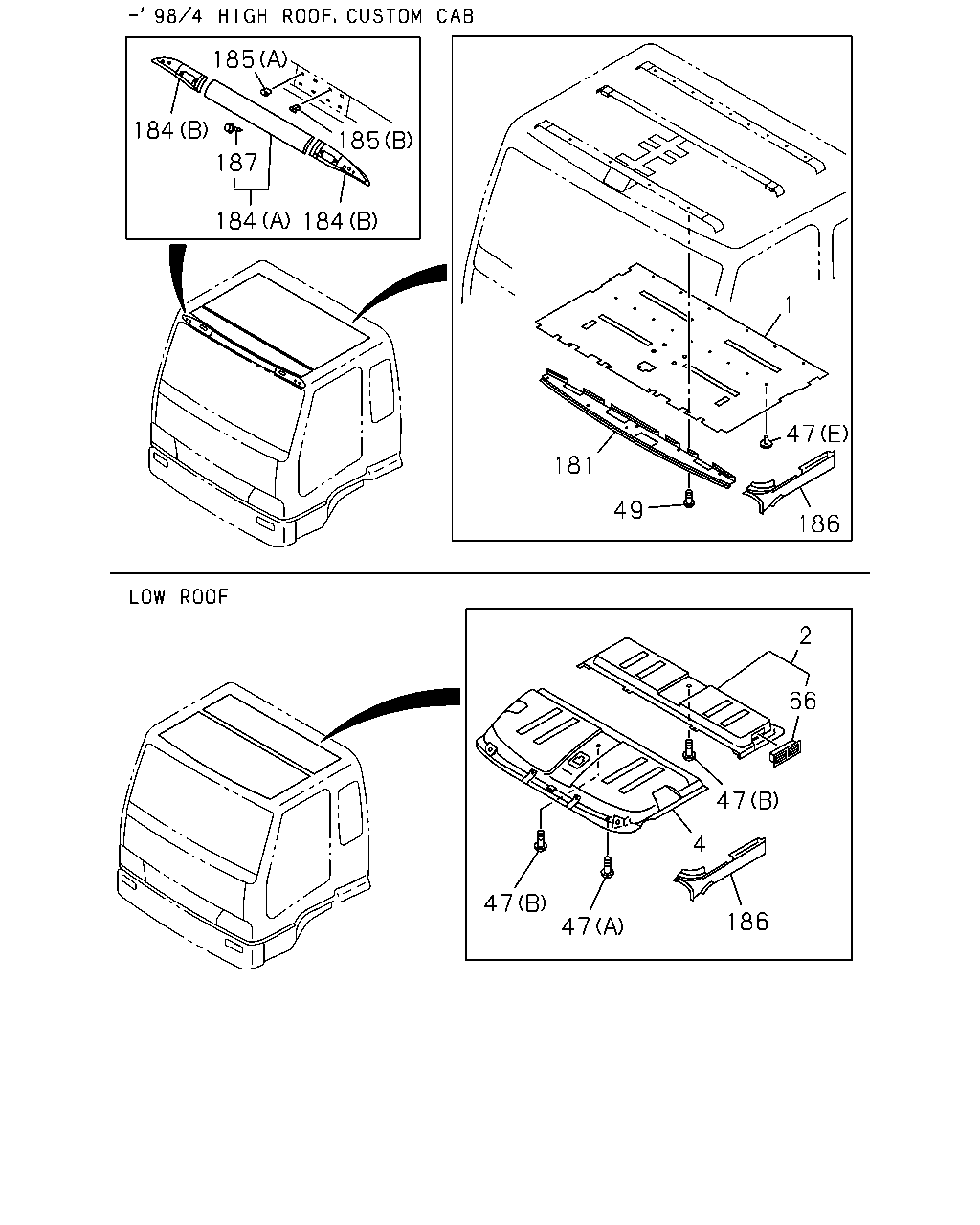

çizim 131622
185 184 185 187 184 184 1 47 181 49 186 2 66 47 4 47 186 47
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
CUSTOM CAB(SR5) 		1-73318-630-1 01 1 9910-9910
1 LINING; HD
CUSTOM CAB(SR5) 		1-73318-685-1 01 1 9911-0004
1 LINING; HD
HIGH ROOF<S2F> 		1-73318-571-1 01 1 9601-9804
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F> 		1-73318-708-2 01 1 0301-
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73318-646-1 01 1 9805-9909
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> EXC. CUSTOM CAB(SR5) 		1-73318-646-1 01 1 9910-0004
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73318-598-3 01 1 9805-9909
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5),SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73318-598-3 01 1 9910-0004
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> 		1-73318-598-3 01 1 0005-0212
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-598-5 01 1 0301-
2 LINING; HD,ROOF RR
LOW ROOF<6XQ> 		1-73318-573-3 01 1 9601-
4 LINING; ROOF,FRT
MAP LAMP<C85> PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F> 		1-73318-696-3 01 1 0301-
4 LINING; ROOF,FRT
MAP LAMP<C85> HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-597-7 01 1 0301-
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		8-97893-788-3 01 1 0301-
4 LINING; ROOF,FRT
HIGH ROOF<S2F> 		8-97865-577-1 01 1 9805-9909
4 LINING; ROOF,FRT
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) 		8-97865-577-1 01 1 9910-0004
4 LINING; ROOF,FRT
HIGH ROOF<S2F> 		8-97865-577-1 01 1 0005-0212
4 LINING; ROOF,FRT
HIGH ROOF<S2F> EXC. MAP LAMP<C85>,PROVISIONAL PACKAGE<NLY> 		8-97865-577-4 01 1 0301-
4 LINING; ROOF,FRT
LOW ROOF<6XQ> 		1-73318-572-3 01 1 9601-
47 CLIP; HEADLINING
CUSTOM CAB(SR5) (E) D4.7X15 GRAY 		8-94279-801-0 07 1 9910-0004
47 CLIP; HEADLINING
HIGH ROOF<S2F> (E) D4.7X15 GRAY 		8-94279-801-0 07 1 9601-9804
47 CLIP; HEADLINING
HIGH ROOF<S2F> (D) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 9805-9909
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (D) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 9910-0004
47 CLIP; HEADLINING
HIGH ROOF<S2F> (D) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0005-
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 9805-9909
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CUSTOM CAB(SR5) (C) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 9910-0004
47 CLIP; HEADLINING
HIGH ROOF<S2F> (C) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0005-
47 CLIP; HEADLINING
LOW ROOF<6XQ> (A) D6X23 DARK GRAY 		1-09987-238-0 08 1 9601-9804
47 CLIP; HEADLINING
LOW ROOF<6XQ> (A) D6X23 LIGHT GRAY 		1-73318-629-0 08 1 9805-
47 CLIP; HEADLINING
LOW ROOF<6XQ> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9601-9804
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9805-9909
47 CLIP; HEADLINING
LOW ROOF<6XQ> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9910-0004
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9910-0004
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-
49 CLIP; TRIM COVER
CUSTOM CAB(SR5) D6X23 DARK GRAY 		1-09987-238-0 01 1 9910-0004
49 CLIP; TRIM COVER
HIGH ROOF<S2F> D6X23 DARK GRAY 		1-09987-238-0 01 1 9601-9804
66 GRILLE; AIR OUTLET
LOW ROOF<6XQ> 		1-73318-608-0 02 1 0005-
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73317-367-1 01 1 9805-9909
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5),SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73317-367-1 01 1 9910-0004
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> 		1-73317-367-1 01 1 0005-
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73317-366-1 01 1 9805-9909
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5),SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73317-366-1 01 1 9910-0004
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> 		1-73317-366-1 01 1 0005-
181 TRIM; ROOM,HEADER
CUSTOM CAB(SR5) 		1-73998-996-9 01 1 9910-9910
181 TRIM; ROOM,HEADER
CUSTOM CAB(SR5) 		1-73908-107-2 01 1 9911-0004
181 TRIM; ROOM,HEADER
HIGH ROOF<S2F> 		1-73908-107-1 01 1 9601-9804
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-581-0 01 1 9601-
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-580-0 01 1 9601-
184 ORNAMENT; ROOF
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-73318-587-0 01 1 9601-
184 ORNAMENT; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (A) 		1-73318-589-0 01 1 9601-
185 GROMMET; ORNAMENT
HIGH ROOF<S2F> (A) 		1-79198-012-0 06 1 9601-
185 GROMMET; ORNAMENT
HIGH ROOF<S2F> (B) 		1-79198-013-0 02 1 9601-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-917-0 01 1 9601-0004
186 TRIM; ROOM,CANT RAIL SIDE
LOW ROOF<6XQ> 		1-73348-963-0 01 1 0005-0212
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-963-1 01 1 0301-
186 TRIM; ROOM,CANT RAIL SIDE
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-963-1 01 1 0301-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-916-0 01 1 9601-0004
186 TRIM; ROOM,CANT RAIL SIDE
LOW ROOF<6XQ> 		1-73348-962-0 01 1 0005-0212
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-962-1 01 1 0301-
186 TRIM; ROOM,CANT RAIL SIDE
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-962-1 01 1 0301-
186 TRIM; ROOM,CANT RAIL SIDE
EXC. LOW ROOF<6XQ> 		1-73348-919-0 01 1 0005-0212
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-919-2 01 1 0301-
186 TRIM; ROOM,CANT RAIL SIDE
EXC. LOW ROOF<6XQ> 		1-73348-918-0 01 1 0005-0212
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-918-2 01 1 0301-
187 PIN; ORNAMENT
HIGH ROOF<S2F> D4.2X13 		1-09983-161-0 08 1 9601-0004
187 PIN; ORNAMENT
HIGH ROOF<S2F> D4.2X13 		1-09983-161-0 08 1 0005-

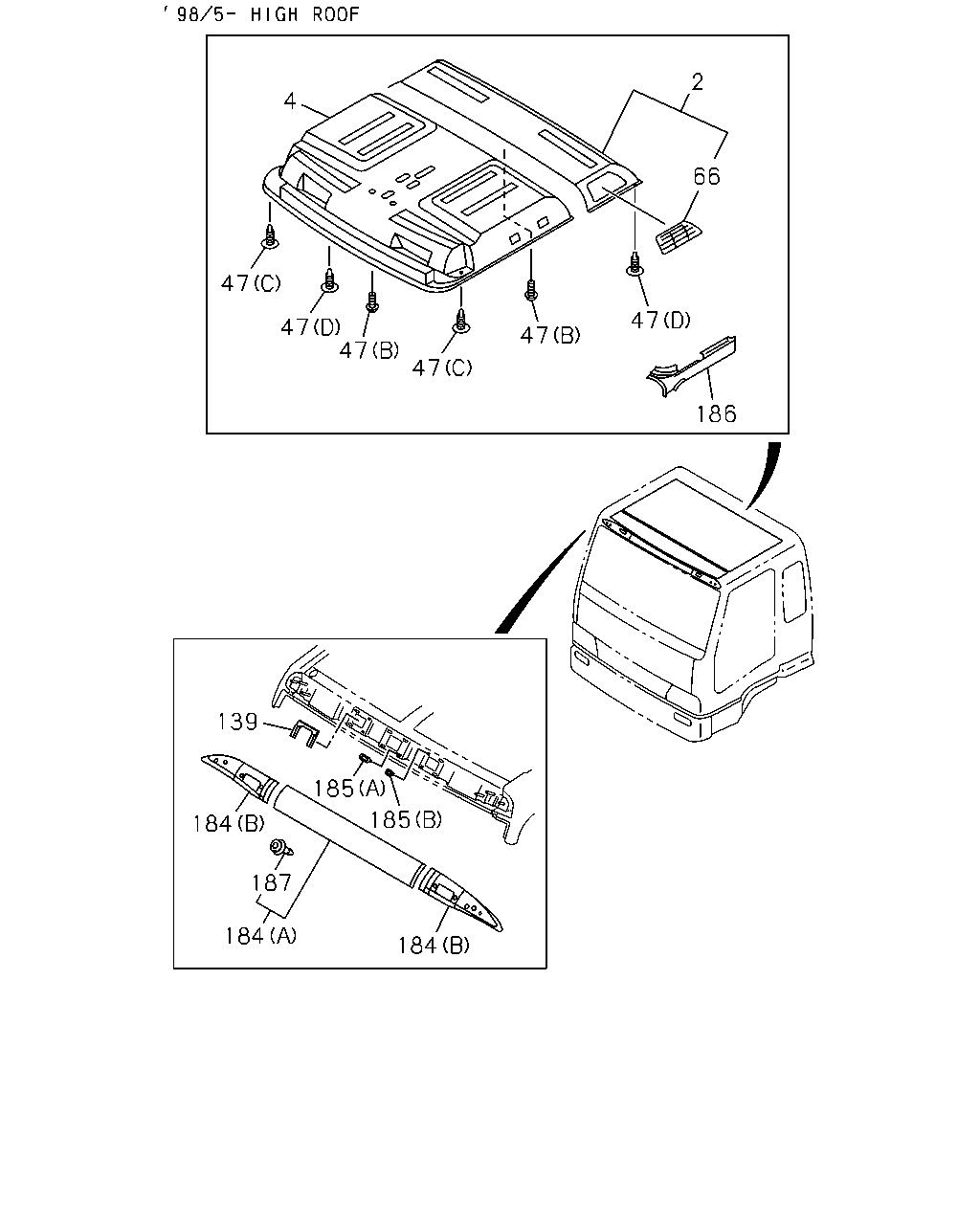

çizim 131672
47 4 47 47 47 47 47 185 66 2 139 184 187 184 184 185 185
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F> 		1-73318-708-2 01 1 0301-
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73318-646-1 01 1 9805-9909
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> EXC. CUSTOM CAB(SR5) 		1-73318-646-1 01 1 9910-0004
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73318-598-3 01 1 9805-9909
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5),SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73318-598-3 01 1 9910-0004
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> 		1-73318-598-3 01 1 0005-0212
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-598-5 01 1 0301-
2 LINING; HD,ROOF RR
LOW ROOF<6XQ> 		1-73318-573-3 01 1 9601-
4 LINING; ROOF,FRT
MAP LAMP<C85> PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F> 		1-73318-696-3 01 1 0301-
4 LINING; ROOF,FRT
MAP LAMP<C85> HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-597-7 01 1 0301-
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		8-97893-788-3 01 1 0301-
4 LINING; ROOF,FRT
HIGH ROOF<S2F> 		8-97865-577-1 01 1 9805-9909
4 LINING; ROOF,FRT
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) 		8-97865-577-1 01 1 9910-0004
4 LINING; ROOF,FRT
HIGH ROOF<S2F> 		8-97865-577-1 01 1 0005-0212
4 LINING; ROOF,FRT
HIGH ROOF<S2F> EXC. MAP LAMP<C85>,PROVISIONAL PACKAGE<NLY> 		8-97865-577-4 01 1 0301-
4 LINING; ROOF,FRT
LOW ROOF<6XQ> 		1-73318-572-3 01 1 9601-
47 CLIP; HEADLINING
CUSTOM CAB(SR5) (E) D4.7X15 GRAY 		8-94279-801-0 07 1 9910-0004
47 CLIP; HEADLINING
HIGH ROOF<S2F> (E) D4.7X15 GRAY 		8-94279-801-0 07 1 9601-9804
47 CLIP; HEADLINING
HIGH ROOF<S2F> (D) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 9805-9909
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (D) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 9910-0004
47 CLIP; HEADLINING
HIGH ROOF<S2F> (D) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0005-
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 9805-9909
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CUSTOM CAB(SR5) (C) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 9910-0004
47 CLIP; HEADLINING
HIGH ROOF<S2F> (C) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0005-
47 CLIP; HEADLINING
LOW ROOF<6XQ> (A) D6X23 DARK GRAY 		1-09987-238-0 08 1 9601-9804
47 CLIP; HEADLINING
LOW ROOF<6XQ> (A) D6X23 LIGHT GRAY 		1-73318-629-0 08 1 9805-
47 CLIP; HEADLINING
LOW ROOF<6XQ> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9601-9804
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9805-9909
47 CLIP; HEADLINING
LOW ROOF<6XQ> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9910-0004
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9910-0004
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-
66 GRILLE; AIR OUTLET
LOW ROOF<6XQ> 		1-73318-608-0 02 1 0005-
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73317-367-1 01 1 9805-9909
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5),SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73317-367-1 01 1 9910-0004
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> 		1-73317-367-1 01 1 0005-
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73317-366-1 01 1 9805-9909
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5),SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-73317-366-1 01 1 9910-0004
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> 		1-73317-366-1 01 1 0005-
139 SEAL; ROOF
LAMPS FOUR ROOF MARKER<PJ5> 		1-73318-562-0 03 1 0707-
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-581-0 01 1 9601-
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-580-0 01 1 9601-
184 ORNAMENT; ROOF
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-73318-587-0 01 1 9601-
184 ORNAMENT; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (A) 		1-73318-589-0 01 1 9601-
185 GROMMET; ORNAMENT
HIGH ROOF<S2F> (A) 		1-79198-012-0 06 1 9601-
185 GROMMET; ORNAMENT
HIGH ROOF<S2F> (B) 		1-79198-013-0 02 1 9601-
187 PIN; ORNAMENT
HIGH ROOF<S2F> D4.2X13 		1-09983-161-0 08 1 9601-0004
187 PIN; ORNAMENT
HIGH ROOF<S2F> D4.2X13 		1-09983-161-0 08 1 0005-
