Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#65172) — 306 parça

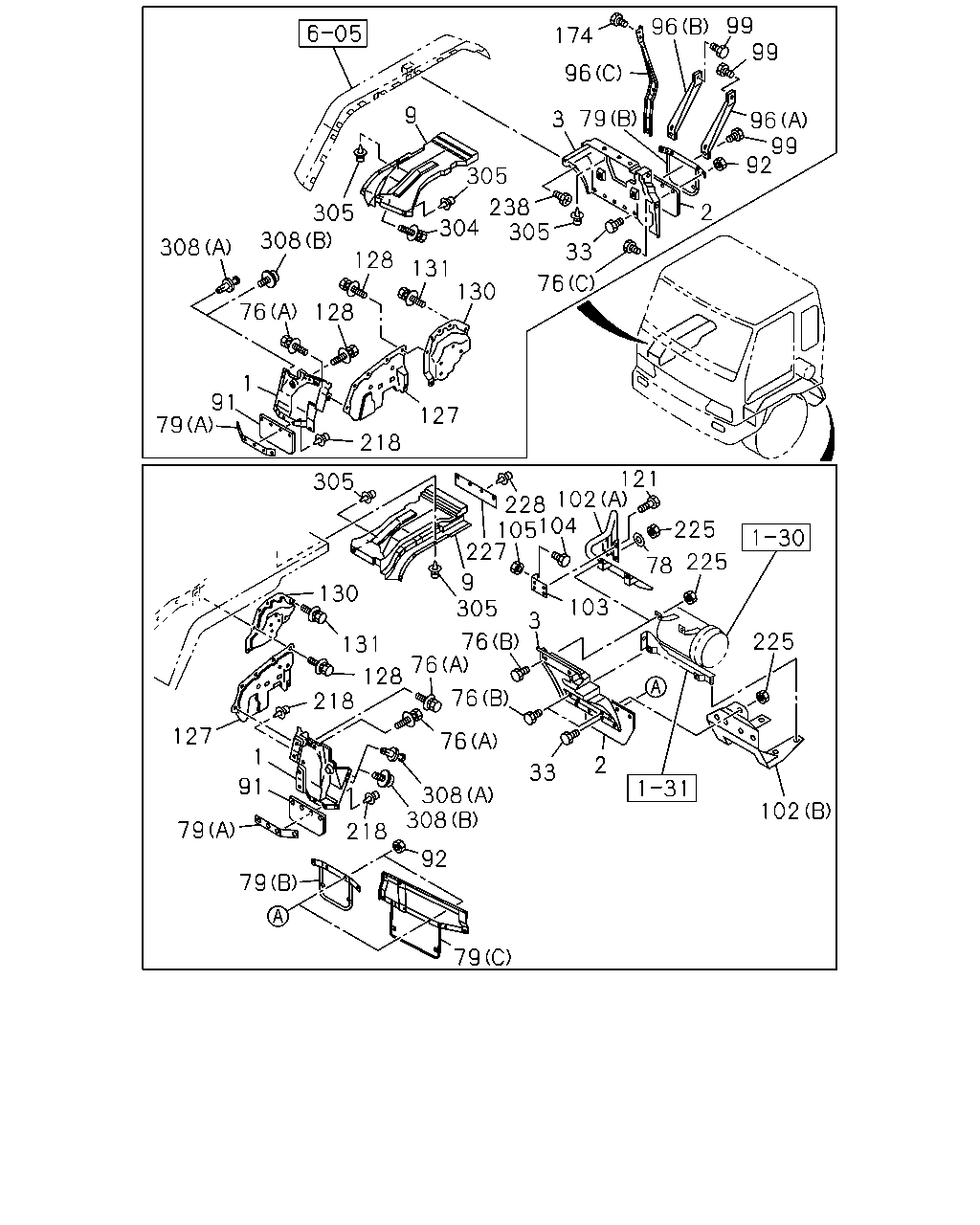

71 114 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	RUBBER; SEAL ALLISON MD3560P A/T(Y3B)	1-21593-085-1	01	1	9805-0004
71	RUBBER; SEAL ALLISON MD3560P A/T(Y3B)	1-21593-086-1	01	1	9805-0004
114	BOLT ALLISON MD3560P A/T(Y3B) M8X25 FLANGE	0-28680-825-0	04	1	9805-0004
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	04	1	9805-9901
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	02	1	9902-0602
175	NUT; STAY FIX M8 FLANGE	0-91180-108-0	02	1	0603-

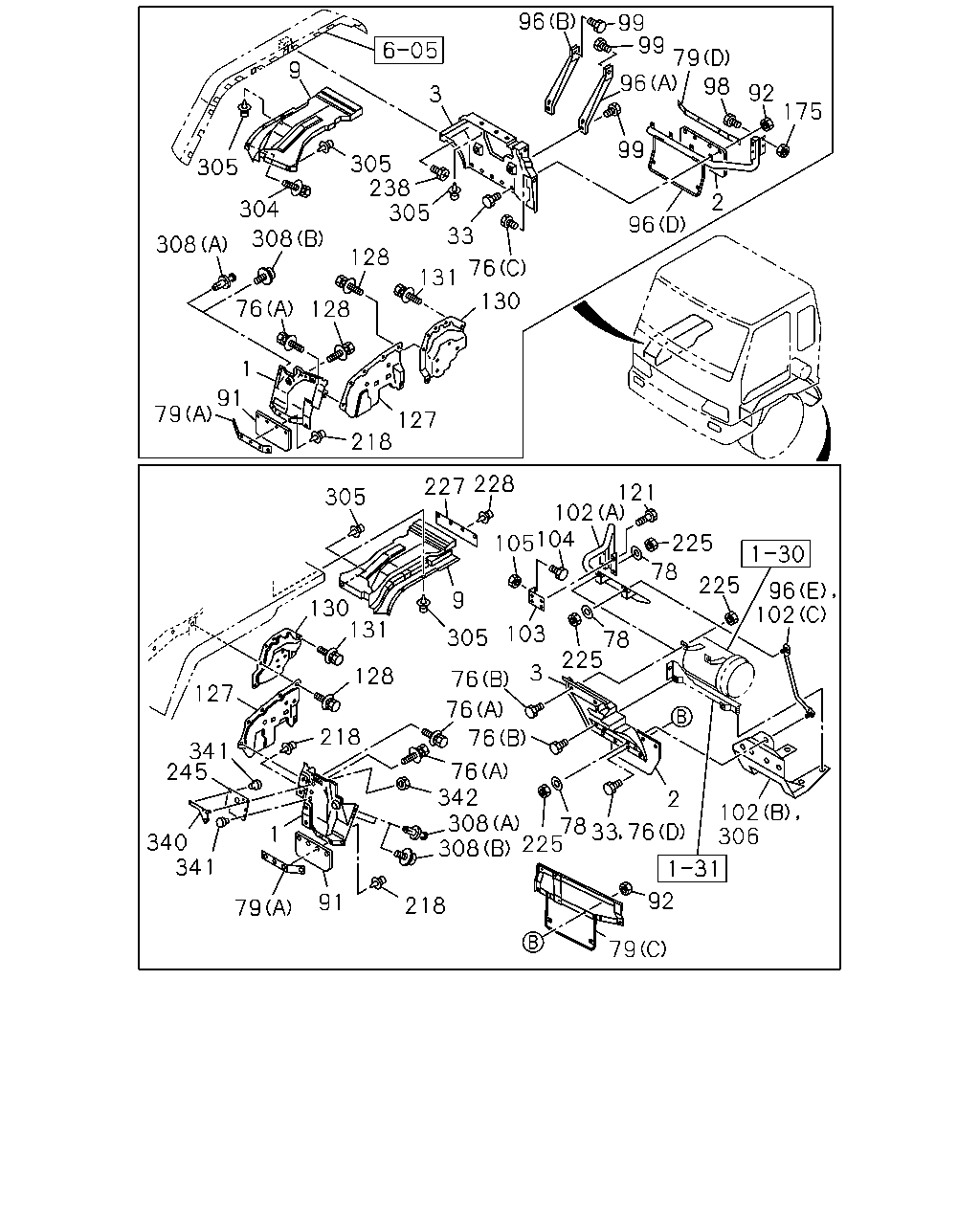

99 99 96 174 96 9 79 3 96 99 92 305 238 304 305 2 305 308 308 33 128 131 76 130 76 128 1 91 127 79 218 121 305 102 228 104 105 227 225 225 78 9 305 130 103 3 76 225 131 76 128 76 218 1 127 76 2 33 91 308 102 79 218 92 79 79 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9601-9804
1	GUARD; MUD,FRT FULLER M/T<X9B>,ZF M/T<X9E>	1-79938-812-8	01	1	9805-0004
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-0010
1	GUARD; MUD,FRT EXC. FRONT SPRING LONG SPAN<W36>	1-79938-812-8	01	1	0011-
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9601-0010
1	GUARD; MUD,FRT EXC. FRONT SPRING LONG SPAN<W36>	1-79938-810-8	01	1	0011-
1	GUARD; MUD,FRT A/T<X9D>	1-79938-995-1	01	1	9805-0004
1	GUARD; MUD,FRT FRONT SPRING LONG SPAN<W36>	1-79936-022-0	01	1	0011-
1	GUARD; MUD,FRT FRONT SPRING LONG SPAN<W36>	1-79936-021-0	01	1	0011-
2	COVER; MUD,TIRE RR	1-79931-255-0	01	1	9601-9606
2	COVER; MUD,TIRE RR	1-79938-972-2	01	1	9607-
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	9601-9804
2	COVER; MUD,TIRE RR	1-79931-270-0	01	1	9805-0004
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0005-
3	GUARD; MUD,RR EURO3 SPECIFICATION<NJX>	1-79936-012-0	01	1	0605-0605
3	GUARD; MUD,RR	1-79938-962-2	01	1	9601-9810
3	GUARD; MUD,RR 6SD1 TCN ENG(31L)	1-79938-962-2	01	1	9811-0605
3	GUARD; MUD,RR 6SD1 TCN ENG(31L)	1-79936-033-0	01	1	0606-
3	GUARD; MUD,RR	1-79938-827-9	01	1	9601-9607
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-0604
3	GUARD; MUD,RR EXC. EURO3 SPECIFICATION<NJX>	1-79938-971-1	01	1	0605-0605
3	GUARD; MUD,RR	1-79938-971-1	01	1	0606-
3	GUARD; MUD,RR 6SD1 STD ENG(37L)	1-79938-999-0	01	1	9811-
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-831-9	01	1	9601-9802
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	9803-
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	9601-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9601-9609
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9702
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-0604
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0605-
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	0605-
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9601-9804
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	9805-9810
76	BOLT; MUD GUARD 6SD1 TCN ENG(31L) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	9811-0805
76	BOLT; MUD GUARD 6SD1 TCN ENG(31L) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	0806-
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9601-
76	BOLT; MUD GUARD 6SD1 STD ENG(37L) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9811-0805
76	BOLT; MUD GUARD 6SD1 STD ENG(37L) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-
76	BOLT; MUD GUARD 6SD1 STD ENG(37L) (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9811-
78	WASHER; PL,MUD GUARD ID=8.4 OD=26	9-09164-808-0	02	1	9805-9810
78	WASHER; PL,MUD GUARD 6SD1 TCN ENG(31L) ID=8.4 OD=26	9-09164-808-0	02	1	9811-0605
78	WASHER; PL,MUD GUARD 6SD1 TCN ENG(31L) ID=8.4 OD=26	0-91614-808-0	02	1	0606-
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9601-0104
79	RETAINER; MUD COVER EXC. FRONT SPRING LONG SPAN<W36> (A)	1-79931-044-0	02	1	0105-
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9601-9703
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	9704-9810
79	RETAINER; MUD COVER 6SD1 TCN ENG(31L) (C)	1-79931-288-0	01	1	9811-
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9601-9804
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	9805-
79	RETAINER; MUD COVER FRONT SPRING LONG SPAN<W36> (A)	1-79931-349-0	02	1	0105-
79	RETAINER; MUD COVER 6SD1 STD ENG(37L) (C)	1-79931-304-0	01	1	9811-
91	COVER; MUD,FRT	1-79931-214-1	02	1	9601-0010
91	COVER; MUD,FRT EXC. FRONT SPRING LONG SPAN<W36>	1-79931-214-1	02	1	0011-
91	COVER; MUD,FRT FRONT SPRING LONG SPAN<W36>	1-79931-348-0	02	1	0011-
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-9703
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	03	1	9811-9902
92	NUT; MUD COVER 6SD1 TCN ENG(31L) M6 FLANGE	0-91150-106-0	03	1	9811-9902
92	NUT; MUD COVER 6SD1 TCN ENG(31L) M6 FLANGE	0-91150-106-0	03	1	9903-0602
92	NUT; MUD COVER 6SD1 TCN ENG(31L) M6 FLANGE	0-91180-106-0	03	1	0603-
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9704-9804
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	10	1	9805-0004
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0005-0602
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-
92	NUT; MUD COVER 6SD1 STD ENG(37L) M6 FLANGE	0-91150-106-0	05	1	9811-0602
92	NUT; MUD COVER 6SD1 STD ENG(37L) M6 FLANGE	0-91180-106-0	05	1	0603-
96	STAY; MUD GUARD 6SD1 TCN ENG(31L) (E)	1-53497-592-1	01	1	0304-
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9601-9607
96	STAY; MUD GUARD (A)	1-79938-968-2	01	1	9608-9804
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9805-
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9601-9607
96	STAY; MUD GUARD (B)	1-79938-969-1	01	1	9608-9804
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9805-
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9712-9804
96	STAY; MUD GUARD (D)	1-53497-577-2	01	1	9805-0004
96	STAY; MUD GUARD (D)	1-53497-661-0	01	1	0005-
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9601-
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	9601-9810
102	STAY; LWR,MUD GUARD 6SD1 TCN ENG(31L) (A)	1-53497-535-0	01	1	9811-
102	STAY; LWR,MUD GUARD (B)	1-53497-593-2	01	1	9704-9810
102	STAY; LWR,MUD GUARD 6SD1 TCN ENG(31L) (B)	1-53497-593-2	01	1	9811-0302
102	STAY; LWR,MUD GUARD 6SD1 TCN ENG(31L) (B)	1-53497-618-0	01	1	0303-0303
102	STAY; LWR,MUD GUARD (C)	1-53497-592-1	01	1	9805-9810
102	STAY; LWR,MUD GUARD 6SD1 TCN ENG(31L) (C)	1-53497-592-1	01	1	9811-0303
103	BRACKET ASM; RR MUD FLAP	1-53497-486-1	01	1	9601-9810
103	BRACKET ASM; RR MUD FLAP 6SD1 TCN ENG(31L)	1-53497-486-2	01	1	9811-
104	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
104	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-9711
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9712-9810
104	BOLT; BRKT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	02	1	9811-0512
104	BOLT; BRKT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28650-820-0	02	1	0601-
105	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9810
105	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	9811-0602
105	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-
121	BOLT M10X25 FLANGE	0-28081-025-0	04	1	9601-9606
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	9607-9810
121	BOLT 6SD1 TCN ENG(31L) M10X30 FLANGE	0-28681-030-0	04	1	9811-0512
121	BOLT 6SD1 TCN ENG(31L) M10X30 FLANGE	0-28651-030-0	04	1	0601-
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3)	1-53192-957-2	01	1	9601-0004
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3)	1-53192-956-1	01	1	9601-0004
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3)	1-53193-222-1	01	1	9601-0004
127	APRON; FRT	1-53193-222-1	01	1	0005-
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-301-2	01	1	9601-9611
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-302-2	01	1	9612-0004
127	APRON; FRT	1-53192-302-2	01	1	0005-
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9601-
130	PANEL; SHUTTER NOISE	1-53192-955-1	01	1	9601-9611
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-955-2	01	1	9612-0004
130	PANEL; SHUTTER NOISE	1-53192-954-1	01	1	9601-9611
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-954-2	01	1	9612-0004
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-307-4	01	1	9612-0004
130	PANEL; SHUTTER NOISE	1-53192-307-4	01	1	0005-0605
130	PANEL; SHUTTER NOISE	1-53194-098-0	01	1	0606-
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-306-1	01	1	9612-0004
130	PANEL; SHUTTER NOISE	1-53192-306-1	01	1	0005-0605
130	PANEL; SHUTTER NOISE	1-53192-954-2	01	1	0606-
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9601-
174	BOLT; STAY FIX M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9712-9804
218	FASTENER; RUBBER	1-09470-001-0	08	1	9601-0104
218	FASTENER; RUBBER FRONT SPRING LONG SPAN<W36>	1-09470-001-0	06	1	0105-
218	FASTENER; RUBBER EXC. FRONT SPRING LONG SPAN<W36>	1-09470-001-0	08	1	0105-
225	NUT; MUD GUARD M8	9-09110-408-0	03	1	9601-9612
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	9701-9810
225	NUT; MUD GUARD 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	9811-0602
225	NUT; MUD GUARD 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	03	1	0603-
225	NUT; MUD GUARD 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9811-0602
225	NUT; MUD GUARD 6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	02	1	0603-
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9601-
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9601-
238	SCREW; MUD GUARD M6X30	1-65481-387-0	01	1	9601-9705
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9706-
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	07	1	9601-9710
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	9711-0404
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	06	1	0405-
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9601-9605
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-0404
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-0404
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-

96 99 99 79 9 96 98 92 3 175 99 305 238 305 305 2 304 96 33 308 308 128 76 131 130 76 128 1 91 79 127 218 227 228 121 305 102 105 104 225 78 225 96 102 9 130 131 78 225 103 305 3 128 76 127 76 218 76 341 245 76 342 308 78 225 308 2 102 306 1 340 341 92 91 218 79 79 33 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9601-9804
1	GUARD; MUD,FRT FULLER M/T<X9B>,ZF M/T<X9E>	1-79938-812-8	01	1	9805-0004
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-0010
1	GUARD; MUD,FRT EXC. FRONT SPRING LONG SPAN<W36>	1-79938-812-8	01	1	0011-
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9601-0010
1	GUARD; MUD,FRT EXC. FRONT SPRING LONG SPAN<W36>	1-79938-810-8	01	1	0011-
1	GUARD; MUD,FRT A/T<X9D>	1-79938-995-1	01	1	9805-0004
1	GUARD; MUD,FRT FRONT SPRING LONG SPAN<W36>	1-79936-022-0	01	1	0011-
1	GUARD; MUD,FRT FRONT SPRING LONG SPAN<W36>	1-79936-021-0	01	1	0011-
2	COVER; MUD,TIRE RR	1-79931-255-0	01	1	9601-9606
2	COVER; MUD,TIRE RR	1-79938-972-2	01	1	9607-
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	9601-9804
2	COVER; MUD,TIRE RR	1-79931-270-0	01	1	9805-0004
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0005-
3	GUARD; MUD,RR EURO3 SPECIFICATION<NJX>	1-79936-012-0	01	1	0605-0605
3	GUARD; MUD,RR	1-79938-962-2	01	1	9601-9810
3	GUARD; MUD,RR 6SD1 TCN ENG(31L)	1-79938-962-2	01	1	9811-0605
3	GUARD; MUD,RR 6SD1 TCN ENG(31L)	1-79936-033-0	01	1	0606-
3	GUARD; MUD,RR	1-79938-827-9	01	1	9601-9607
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-0604
3	GUARD; MUD,RR EXC. EURO3 SPECIFICATION<NJX>	1-79938-971-1	01	1	0605-0605
3	GUARD; MUD,RR	1-79938-971-1	01	1	0606-
3	GUARD; MUD,RR 6SD1 STD ENG(37L)	1-79938-999-0	01	1	9811-
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-831-9	01	1	9601-9802
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	9803-
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	9601-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9601-9609
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9702
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-0604
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0605-
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	0605-
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9601-9804
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	9805-9810
76	BOLT; MUD GUARD 6SD1 TCN ENG(31L) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	9811-0805
76	BOLT; MUD GUARD 6SD1 TCN ENG(31L) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	0806-
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9601-
76	BOLT; MUD GUARD 6SD1 STD ENG(37L) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9811-0805
76	BOLT; MUD GUARD 6SD1 STD ENG(37L) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-
76	BOLT; MUD GUARD 6SD1 STD ENG(37L) (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9811-
78	WASHER; PL,MUD GUARD ID=8.4 OD=26	9-09164-808-0	02	1	9805-9810
78	WASHER; PL,MUD GUARD 6SD1 TCN ENG(31L) ID=8.4 OD=26	9-09164-808-0	02	1	9811-0605
78	WASHER; PL,MUD GUARD 6SD1 TCN ENG(31L) ID=8.4 OD=26	0-91614-808-0	02	1	0606-
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9601-0104
79	RETAINER; MUD COVER EXC. FRONT SPRING LONG SPAN<W36> (A)	1-79931-044-0	02	1	0105-
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9601-9703
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	9704-9810
79	RETAINER; MUD COVER 6SD1 TCN ENG(31L) (C)	1-79931-288-0	01	1	9811-
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9601-9804
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	9805-
79	RETAINER; MUD COVER FRONT SPRING LONG SPAN<W36> (A)	1-79931-349-0	02	1	0105-
79	RETAINER; MUD COVER 6SD1 STD ENG(37L) (C)	1-79931-304-0	01	1	9811-
91	COVER; MUD,FRT	1-79931-214-1	02	1	9601-0010
91	COVER; MUD,FRT EXC. FRONT SPRING LONG SPAN<W36>	1-79931-214-1	02	1	0011-
91	COVER; MUD,FRT FRONT SPRING LONG SPAN<W36>	1-79931-348-0	02	1	0011-
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-9703
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	03	1	9811-9902
92	NUT; MUD COVER 6SD1 TCN ENG(31L) M6 FLANGE	0-91150-106-0	03	1	9811-9902
92	NUT; MUD COVER 6SD1 TCN ENG(31L) M6 FLANGE	0-91150-106-0	03	1	9903-0602
92	NUT; MUD COVER 6SD1 TCN ENG(31L) M6 FLANGE	0-91180-106-0	03	1	0603-
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9704-9804
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	10	1	9805-0004
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0005-0602
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-
92	NUT; MUD COVER 6SD1 STD ENG(37L) M6 FLANGE	0-91150-106-0	05	1	9811-0602
92	NUT; MUD COVER 6SD1 STD ENG(37L) M6 FLANGE	0-91180-106-0	05	1	0603-
96	STAY; MUD GUARD 6SD1 TCN ENG(31L) (E)	1-53497-592-1	01	1	0304-
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9601-9607
96	STAY; MUD GUARD (A)	1-79938-968-2	01	1	9608-9804
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9805-
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9601-9607
96	STAY; MUD GUARD (B)	1-79938-969-1	01	1	9608-9804
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9805-
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9712-9804
96	STAY; MUD GUARD (D)	1-53497-577-2	01	1	9805-0004
96	STAY; MUD GUARD (D)	1-53497-661-0	01	1	0005-
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	9805-0512
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9601-
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	9601-9810
102	STAY; LWR,MUD GUARD 6SD1 TCN ENG(31L) (A)	1-53497-535-0	01	1	9811-
102	STAY; LWR,MUD GUARD (B)	1-53497-593-2	01	1	9704-9810
102	STAY; LWR,MUD GUARD 6SD1 TCN ENG(31L) (B)	1-53497-593-2	01	1	9811-0302
102	STAY; LWR,MUD GUARD 6SD1 TCN ENG(31L) (B)	1-53497-618-0	01	1	0303-0303
102	STAY; LWR,MUD GUARD (C)	1-53497-592-1	01	1	9805-9810
102	STAY; LWR,MUD GUARD 6SD1 TCN ENG(31L) (C)	1-53497-592-1	01	1	9811-0303
103	BRACKET ASM; RR MUD FLAP	1-53497-486-1	01	1	9601-9810
103	BRACKET ASM; RR MUD FLAP 6SD1 TCN ENG(31L)	1-53497-486-2	01	1	9811-
104	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
104	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-9711
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9712-9810
104	BOLT; BRKT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	02	1	9811-0512
104	BOLT; BRKT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28650-820-0	02	1	0601-
105	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9810
105	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	9811-0602
105	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-
121	BOLT M10X25 FLANGE	0-28081-025-0	04	1	9601-9606
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	9607-9810
121	BOLT 6SD1 TCN ENG(31L) M10X30 FLANGE	0-28681-030-0	04	1	9811-0512
121	BOLT 6SD1 TCN ENG(31L) M10X30 FLANGE	0-28651-030-0	04	1	0601-
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3)	1-53192-957-2	01	1	9601-0004
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3)	1-53192-956-1	01	1	9601-0004
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3)	1-53193-222-1	01	1	9601-0004
127	APRON; FRT	1-53193-222-1	01	1	0005-
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-301-2	01	1	9601-9611
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-302-2	01	1	9612-0004
127	APRON; FRT	1-53192-302-2	01	1	0005-
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9601-
130	PANEL; SHUTTER NOISE	1-53192-955-1	01	1	9601-9611
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-955-2	01	1	9612-0004
130	PANEL; SHUTTER NOISE	1-53192-954-1	01	1	9601-9611
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-954-2	01	1	9612-0004
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-307-4	01	1	9612-0004
130	PANEL; SHUTTER NOISE	1-53192-307-4	01	1	0005-0605
130	PANEL; SHUTTER NOISE	1-53194-098-0	01	1	0606-
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-306-1	01	1	9612-0004
130	PANEL; SHUTTER NOISE	1-53192-306-1	01	1	0005-0605
130	PANEL; SHUTTER NOISE	1-53192-954-2	01	1	0606-
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9601-
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	04	1	9805-9901
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	02	1	9902-0602
175	NUT; STAY FIX M8 FLANGE	0-91180-108-0	02	1	0603-
218	FASTENER; RUBBER	1-09470-001-0	08	1	9601-0104
218	FASTENER; RUBBER FRONT SPRING LONG SPAN<W36>	1-09470-001-0	06	1	0105-
218	FASTENER; RUBBER EXC. FRONT SPRING LONG SPAN<W36>	1-09470-001-0	08	1	0105-
225	NUT; MUD GUARD M8	9-09110-408-0	03	1	9601-9612
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	9701-9810
225	NUT; MUD GUARD 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	9811-0602
225	NUT; MUD GUARD 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	03	1	0603-
225	NUT; MUD GUARD 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9811-0602
225	NUT; MUD GUARD 6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	02	1	0603-
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9601-
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9601-
238	SCREW; MUD GUARD M6X30	1-65481-387-0	01	1	9601-9705
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9706-
245	RUBBER; SHUTTER,RAD A/T<X9D>	1-79938-993-0	01	1	9805-9902
245	RUBBER; SHUTTER,RAD A/T<X9D>	1-79936-023-1	01	1	9903-0004
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	07	1	9601-9710
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	9711-0404
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	06	1	0405-
306	BRACKET; MUD GUARD 6SD1 TCN ENG(31L)	1-53497-618-0	01	1	0304-
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9601-9605
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-0404
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-0404
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-
340	BRACKET; RUBBER,SHUTTER A/T<X9D>	1-79938-994-0	01	1	9805-9902
340	BRACKET; RUBBER,SHUTTER A/T<X9D>	1-79936-024-1	01	1	9903-0004
341	CLIP; RUBBER A/T<X9D> ID=6X6 OD=8	1-09987-194-0	03	1	9805-0004
342	NUT; BRKT,RUBBER A/T<X9D> M8 FLANGE	0-91150-108-0	02	1	9805-9907
342	NUT; BRKT,RUBBER A/T<X9D> M8 FLANGE	8-97046-127-0	02	1	9908-0004

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
