1 |

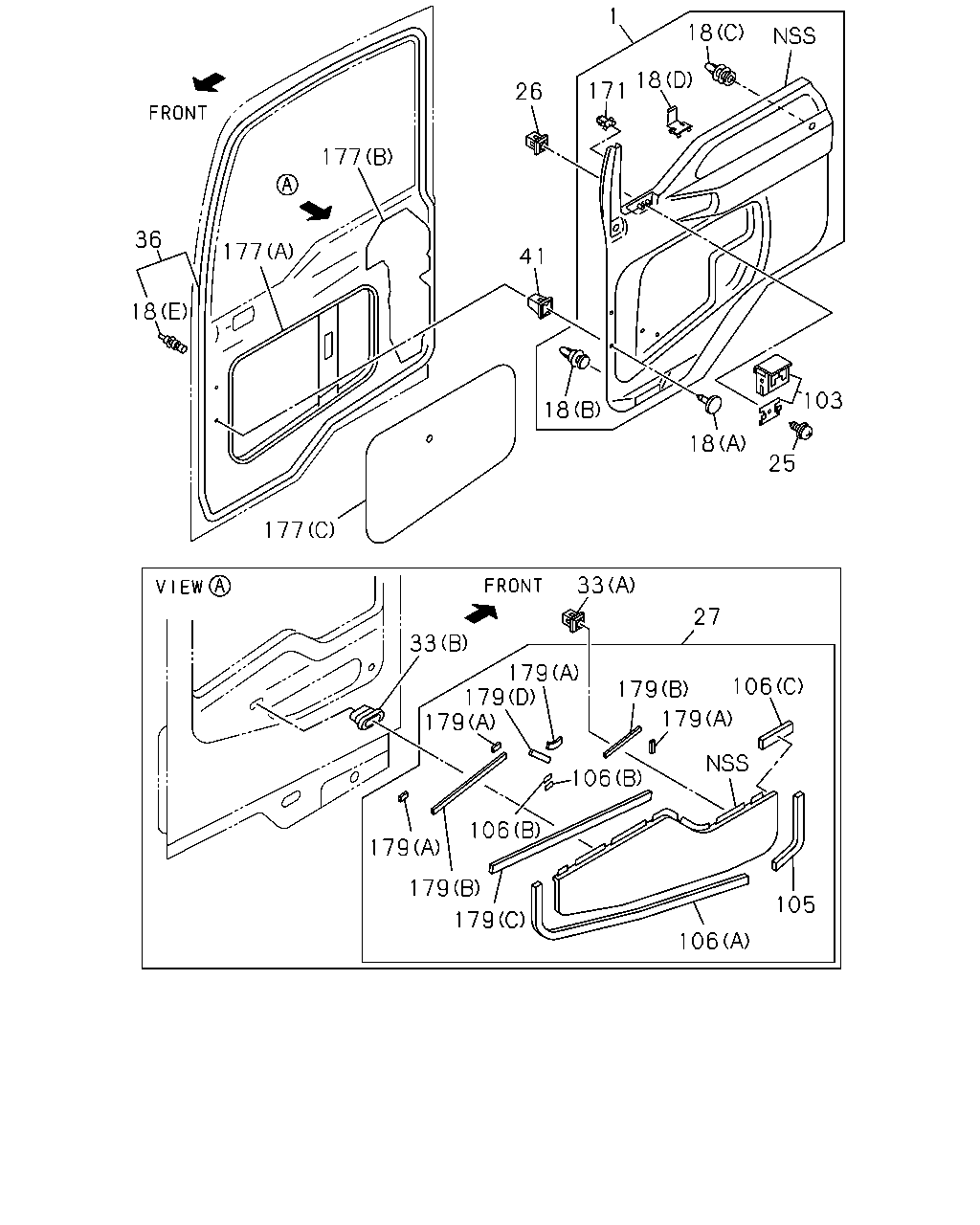

PAD; TRIM,FRT DOOR
AUSTRALIA EQUIPMENT(RR3)
DOOR WINDOW MANUAL CONT<SKF>
|
1-73338-471-4 |
01 |
1 |
9601-0004 |
| |
1 |
PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF>
|
1-73338-449-4 |
01 |
1 |
9601-0004 |
| |
1 |
PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF>
|
1-73338-506-0 |
01 |
1 |
0005-0012 |
| |
1 |
PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF>
|
1-73338-538-0 |
01 |
1 |
0101-0702 |
| |
1 |
PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF>
|
1-73337-515-1 |
01 |
1 |
0703- |
| |
1 |
PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF>
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-73338-467-4 |
01 |
1 |
9601-0004 |
| |
1 |
PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF>
|
1-73337-485-0 |
01 |
1 |
0005-0012 |
| |
1 |
PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF>
|
1-73337-510-0 |
01 |
1 |
0101-0702 |
| |
1 |
PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF>
|
1-73337-514-1 |
01 |
1 |
0703- |
| |
1 |
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
|
1-73338-466-4 |
01 |
1 |
9601-0004 |
| |
1 |
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
|
1-73338-509-0 |
01 |
1 |
0005-0010 |
| |
1 |
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
|
1-73338-509-0 |
01 |
1 |
0011-0012 |
| |
1 |
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
|
1-73338-539-0 |
01 |
1 |
0101-0702 |
| |
1 |
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
|
1-73337-516-1 |
01 |
1 |
0703- |
| |
1 |
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
AUSTRALIA EQUIPMENT(RR3)
|
1-73338-472-4 |
01 |
1 |
9601-0004 |
| |
1 |
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-73338-465-4 |
01 |
1 |
9601-0004 |
| |
1 |
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
|
1-73337-484-0 |
01 |
1 |
0005-0012 |
| |
1 |
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
|
1-73337-509-0 |
01 |
1 |
0101-0702 |
| |
1 |
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
|
1-73337-513-1 |
01 |
1 |
0703- |
| |
1 |
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
DOOR WITH UNDER VIEW WINDOW<YD8>
|
1-73337-486-0 |
01 |
1 |
0011-0012 |
| |
1 |
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
DOOR WITH UNDER VIEW WINDOW<YD8>
|
1-73337-511-1 |
01 |
1 |
0101- |
| |
18 |
CLIP; DOOR PAD
(A)
D4.2X19.9 DARK GRAY
|
1-09987-242-0 |
04 |
1 |
9601-0004 |
| |
18 |
CLIP; DOOR PAD
(A)
D4.2X19.9 GRAY
|
1-09987-272-0 |
04 |
1 |
0005-0010 |
| |
18 |
CLIP; DOOR PAD
DOOR WITH UNDER VIEW WINDOW<YD8>
(A)
D4.2X19.9 GRAY
|
1-09987-272-0 |
02 |
1 |
0011- |
| |
18 |
CLIP; DOOR PAD
(E)
NATURAL
|
1-09987-257-0 |
46 |
1 |
9601-0604 |
| |
18 |
CLIP; DOOR PAD
(E)
NATURAL
|
1-09987-257-0 |
23 |
1 |
0605- |
| |
18 |
CLIP; DOOR PAD
(D)
|
1-09987-262-0 |
10 |
1 |
9601-0010 |
| |
18 |
CLIP; DOOR PAD
POWER WINDOW<A30>
(D)
|
1-09987-262-0 |
05 |
1 |
0011- |
| |
18 |
CLIP; DOOR PAD
POWER WINDOW<A30>
(D)
|
1-09987-262-0 |
05 |
1 |
0011- |
| |
18 |
CLIP; DOOR PAD
(B)
OD=8.5 GRAY
|
8-94126-768-0 |
10 |
1 |
9601-0010 |
| |
18 |
CLIP; DOOR PAD
POWER WINDOW<A30>
(B)
OD=8.5 GRAY
|
8-94126-768-0 |
05 |
1 |
0011-0012 |
| |
18 |
CLIP; DOOR PAD
POWER WINDOW<A30>
(B)
OD=8.5 GRAY
|
8-94126-768-0 |
05 |
1 |
0011-0012 |
| |
18 |
CLIP; DOOR PAD
POWER WINDOW<A30>
DOOR WITH UNDER VIEW WINDOW<YD8>
(B)
OD=8.5 GRAY
|
8-94126-768-0 |
05 |
1 |
0101-0101 |
| |
18 |
CLIP; DOOR PAD
(C)
OD=7.9 BLACK
|
8-94279-974-1 |
02 |
1 |
9601-0010 |
| |
18 |
CLIP; DOOR PAD
POWER WINDOW<A30>
(C)
OD=7.9 BLACK
|
8-94279-974-1 |
01 |
1 |
0011- |
| |
18 |
CLIP; DOOR PAD
POWER WINDOW<A30>
(C)
OD=7.9 BLACK
|
8-94279-974-1 |
01 |
1 |
0011- |
| |
18 |
CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF>
(D)
|
1-09987-262-0 |
10 |
1 |
0011- |
| |
18 |
CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF>
(B)
OD=8.5 GRAY
|
8-94126-768-0 |
10 |
1 |
0011-0012 |
| |
18 |
CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF>
(B)
OD=8.5 GRAY
|
8-97893-482-0 |
10 |
1 |
0101- |
| |
18 |
CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF>
(C)
OD=7.9 BLACK
|
8-94279-974-1 |
02 |
1 |
0011- |
| |
18 |
CLIP; DOOR PAD
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
(A)
D4.2X19.9 GRAY
|
1-09987-272-0 |
04 |
1 |
0011- |
| |
18 |
CLIP; DOOR PAD
POWER WINDOW<A30>
(B)
OD=8.5 GRAY
|
8-97893-482-0 |
05 |
1 |
0101-0101 |
| |
18 |
CLIP; DOOR PAD
POWER WINDOW<A30>
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
(B)
OD=8.5 GRAY
|
8-97893-482-0 |
05 |
1 |
0101-0101 |
| |
18 |
CLIP; DOOR PAD
POWER WINDOW<A30>
(B)
OD=8.5 GRAY
|
8-97893-482-0 |
05 |
1 |
0101- |
| |
18 |
CLIP; DOOR PAD
POWER WINDOW<A30>
(B)
OD=8.5 GRAY
|
8-97893-482-0 |
05 |
1 |
0101- |
| |
18 |
CLIP; DOOR PAD
(E)
NATURAL
|
1-09987-257-0 |
23 |
1 |
0605- |
| |
25 |
SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING
|
8-94279-123-0 |
02 |
1 |
9601- |
| |
26 |
GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL
|
8-94279-043-0 |
02 |
1 |
9601- |
| |
27 |
PANEL; ORNAMENT,DOOR
|
1-76218-095-4 |
01 |
1 |
9601-9804 |
| |
27 |
PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2>
|
1-76218-095-4 |
01 |
1 |
9802-9806 |
| |
27 |
PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2>
|
1-76218-095-7 |
01 |
1 |
9807-1210 |
| |
27 |
PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2>
|
8-98229-328-0 |
01 |
1 |
1211- |
| |
27 |
PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2>
|
1-76218-125-7 |
01 |
1 |
9802-1210 |
| |
27 |
PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2>
|
8-98229-329-0 |
01 |
1 |
1211- |
| |
27 |
PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4>
|
1-76218-099-4 |
01 |
1 |
9601-9801 |
| |
27 |
PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
|
1-76218-099-5 |
01 |
1 |
9802-0010 |
| |
27 |
PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
|
1-76218-099-7 |
01 |
1 |
0011- |
| |
27 |
PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4>
|
1-76218-096-4 |
01 |
1 |
9601-9801 |
| |
27 |
PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
|
1-76218-096-7 |
01 |
1 |
9802- |
| |
33 |
GROMMET; DOOR ORNAMENT
(A)
|
1-09983-149-1 |
02 |
1 |
9601-0010 |
| |
33 |
GROMMET; DOOR ORNAMENT
DOOR WITH UNDER VIEW WINDOW<YD8>
(A)
|
1-09983-149-1 |
01 |
1 |
0011-0802 |
| |
33 |
GROMMET; DOOR ORNAMENT
DOOR WITH UNDER VIEW WINDOW<YD8>
(A)
OD=7.9X7.9 ID=4.2X4.2
|
1-09983-151-1 |
01 |
1 |
0803- |
| |
33 |
GROMMET; DOOR ORNAMENT
(B)
|
1-74998-111-0 |
02 |
1 |
9601-0010 |
| |
33 |
GROMMET; DOOR ORNAMENT
DOOR WITH UNDER VIEW WINDOW<YD8>
(B)
|
1-74998-111-0 |
01 |
1 |
0011- |
| |
33 |
GROMMET; DOOR ORNAMENT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
(A)
|
1-09983-149-1 |
02 |
1 |
0011-0802 |
| |
33 |
GROMMET; DOOR ORNAMENT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
(A)
OD=7.9X7.9 ID=4.2X4.2
|
1-09983-151-1 |
02 |
1 |
0803- |
| |
33 |
GROMMET; DOOR ORNAMENT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
(B)
|
1-74998-111-0 |
02 |
1 |
0011- |
| |
36 |
SEAL; DOOR,MAIN,CAB SIDE
|
1-76718-177-9 |
01 |
1 |
9601-1010 |
| |
36 |
SEAL; DOOR,MAIN,CAB SIDE
|
8-98177-764-0 |
01 |
1 |
1011- |
| |
36 |
SEAL; DOOR,MAIN,CAB SIDE
|
1-76718-176-9 |
01 |
1 |
9601-1010 |
| |
36 |
SEAL; DOOR,MAIN,CAB SIDE
|
8-98177-763-0 |
01 |
1 |
1011- |
| |
41 |
GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2
|
1-09983-151-1 |
04 |
1 |
9601-0010 |
| |
41 |
GROMMET; SCREW,DOOR PAD
DOOR WITH UNDER VIEW WINDOW<YD8>
OD=7.9X7.9 ID=4.2X4.2
|
1-09983-151-1 |
02 |
1 |
0011- |
| |
41 |
GROMMET; SCREW,DOOR PAD
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
OD=7.9X7.9 ID=4.2X4.2
|
1-09983-151-1 |
04 |
1 |
0011- |
| |
103 |
TRAY ASM; ASH,DOOR
|
1-76458-070-6 |
01 |
1 |
9601-9612 |
| |
103 |
TRAY ASM; ASH,DOOR
|
1-76458-078-2 |
01 |
1 |
9701-0004 |
| |
103 |
TRAY ASM; ASH,DOOR
|
1-76457-054-0 |
01 |
1 |
0005-0111 |
| |
103 |
TRAY ASM; ASH,DOOR
|
1-76458-086-1 |
01 |
1 |
0112- |
| |
103 |
TRAY ASM; ASH,DOOR
|
1-76458-069-6 |
01 |
1 |
9601-9612 |
| |
103 |
TRAY ASM; ASH,DOOR
|
1-76458-077-2 |
01 |
1 |
9701-0004 |
| |
103 |
TRAY ASM; ASH,DOOR
|
1-76457-053-0 |
01 |
1 |
0005-0111 |
| |
103 |
TRAY ASM; ASH,DOOR
|
1-76458-085-1 |
01 |
1 |
0112- |
| |
105 |
SEAL; DOOR ORNAMENT,FRT
|
1-76218-082-2 |
02 |
1 |
9601-0010 |
| |
105 |
SEAL; DOOR ORNAMENT,FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
|
1-76218-082-2 |
01 |
1 |
0011- |
| |
105 |
SEAL; DOOR ORNAMENT,FRT
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
|
1-76218-082-2 |
01 |
1 |
0011- |
| |
105 |
SEAL; DOOR ORNAMENT,FRT
|
1-76218-082-2 |
01 |
1 |
0011- |
| |
106 |
SEAL; DOOR ORNAMENT
(C)
|
8-98226-642-0 |
01 |
1 |
1211- |
| |
106 |
SEAL; DOOR ORNAMENT
(A)
|
1-76218-083-2 |
02 |
1 |
9601-0010 |
| |
106 |
SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
(A)
|
1-76218-083-2 |
01 |
1 |
0011- |
| |
106 |
SEAL; DOOR ORNAMENT
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
(A)
|
1-76218-083-2 |
01 |
1 |
0011- |
| |
106 |
SEAL; DOOR ORNAMENT
(A)
|
1-76218-083-2 |
01 |
1 |
0011- |
| |
106 |
SEAL; DOOR ORNAMENT
(B)
|
1-76218-104-0 |
04 |
1 |
9601-9806 |
| |
106 |
SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>
(B)
|
1-76218-104-0 |
02 |
1 |
9807- |
| |
106 |
SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
(B)
|
1-76218-104-0 |
02 |
1 |
9807- |
| |
171 |
RETAINER; DOOR PAD
|
1-09987-264-0 |
02 |
1 |
9601-0010 |
| |
171 |
RETAINER; DOOR PAD
POWER WINDOW<A30>
|
1-09987-264-0 |
01 |
1 |
0011- |
| |
171 |
RETAINER; DOOR PAD
POWER WINDOW<A30>
|
1-09987-264-0 |
01 |
1 |
0011- |
| |
171 |
RETAINER; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF>
|
1-09987-264-0 |
02 |
1 |
0011- |
| |
177 |
SEAL; WATER,DOOR
(B)
|
1-76778-055-2 |
02 |
1 |
9601- |
| |
177 |
SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF>
(C)
|
1-76778-047-3 |
02 |
1 |
9601- |
| |
177 |
SEAL; WATER,DOOR
POWER WINDOW<A30>
(A)
|
1-76778-052-0 |
01 |
1 |
9601-0010 |
| |
177 |
SEAL; WATER,DOOR
POWER WINDOW<A30>
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
(A)
|
1-76778-052-2 |
01 |
1 |
0011- |
| |
177 |
SEAL; WATER,DOOR
POWER WINDOW<A30>
(A)
|
1-76778-035-6 |
01 |
1 |
9601- |
| |
179 |
TAPE; ORNAMENT
(A)
L=45
|
1-76218-063-1 |
08 |
1 |
9601-0010 |
| |
179 |
TAPE; ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
(A)
L=45
|
1-76218-063-2 |
04 |
1 |
0011- |
| |
179 |
TAPE; ORNAMENT
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
(A)
L=45
|
1-76218-063-2 |
04 |
1 |
0011- |
| |
179 |
TAPE; ORNAMENT
(A)
L=45
|
1-76218-063-2 |
04 |
1 |
0011- |
| |
179 |
TAPE; ORNAMENT
(C)
L=770
|
1-76218-091-1 |
02 |
1 |
9601-0010 |
| |
179 |
TAPE; ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
(C)
L=770
|
1-76218-091-2 |
01 |
1 |
0011- |
| |
179 |
TAPE; ORNAMENT
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
(C)
L=770
|
1-76218-091-2 |
01 |
1 |
0011- |
| |
179 |
TAPE; ORNAMENT
(C)
L=770
|
1-76218-091-2 |
01 |
1 |
0011- |
| |
179 |
TAPE; ORNAMENT
(D)
L=160
|
1-76218-094-0 |
02 |
1 |
9601-0010 |
| |
179 |
TAPE; ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
(D)
L=160
|
1-76218-094-1 |
01 |
1 |
0011- |
| |
179 |
TAPE; ORNAMENT
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
(D)
L=160
|
1-76218-094-1 |
01 |
1 |
0011- |
| |
179 |
TAPE; ORNAMENT
(D)
L=160
|
1-76218-094-1 |
01 |
1 |
0011- |
| |
179 |
TAPE; ORNAMENT
(B)
L=235
|
1-76218-127-0 |
04 |
1 |
9601-0010 |
| |
179 |
TAPE; ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
(B)
L=235
|
1-76218-127-1 |
02 |
1 |
0011- |
| |
179 |
TAPE; ORNAMENT
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW
WIDE<WU4>
EXC. DOOR WITH UNDER VIEW WINDOW<YD8>
(B)
L=235
|
1-76218-127-1 |
02 |
1 |
0011- |
| |
179 |
TAPE; ORNAMENT
(B)
L=235
|
1-76218-127-1 |
02 |
1 |
0011- |
