6-31 — FRONT DOOR GLASS AND REGULATOR (#65167) — 271 parça

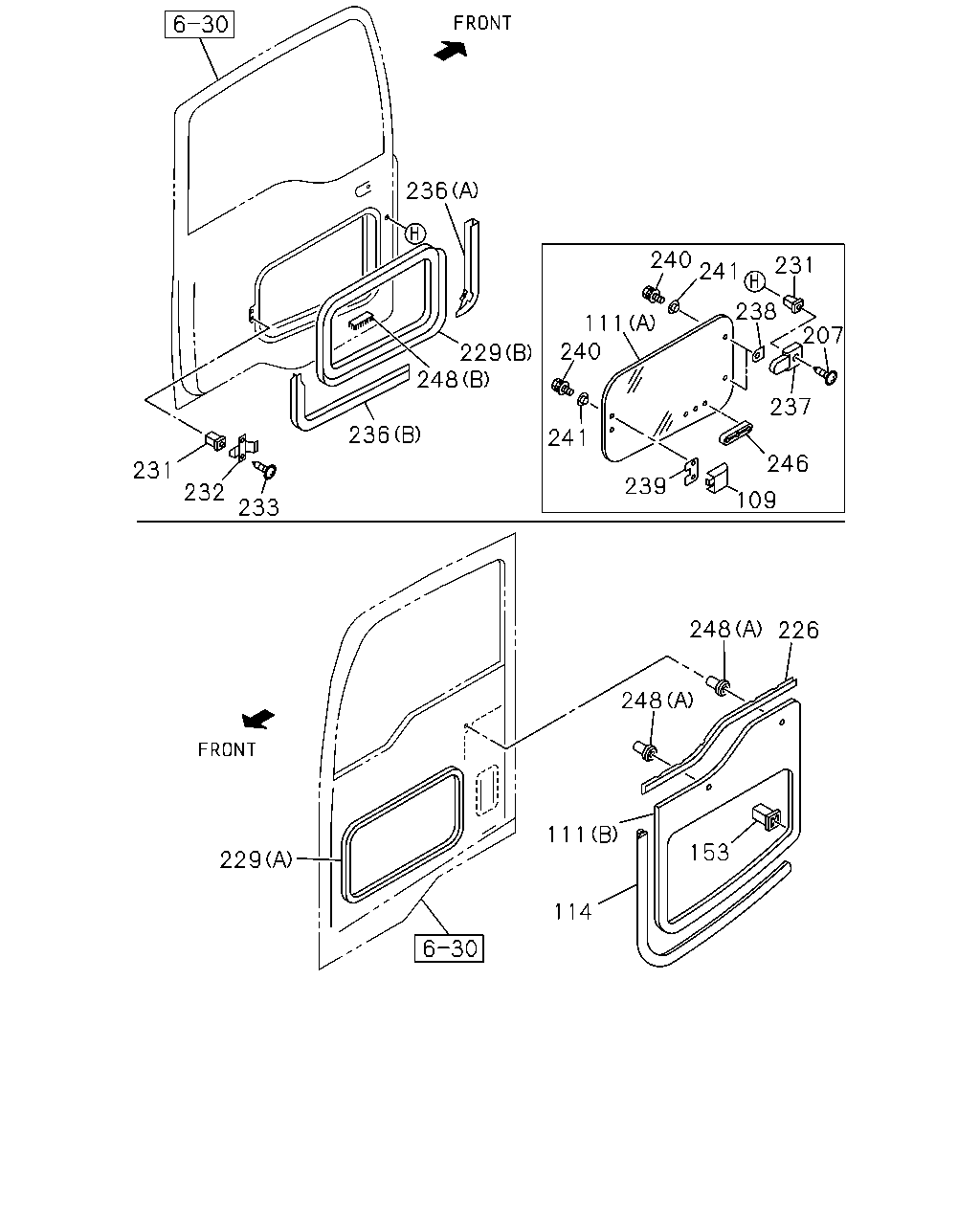

çizim 130677
236 240 241 231 238 111 240 207 229 248 237 236 241 246 231 239 232 109 233 248 226 248 111 153 229 114
BalonParca AdiParca NoAdetTipApplied Date
109 LOCK ASM; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-052-0 01 1 0011-
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76167-155-2 01 1 0011-
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76167-176-0 01 1 0011-
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-71538-038-1 01 1 0011-
153 GROMMET; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 0011-
207 SCREW; DOOR GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0011-
226 FINISHER; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-093-6 01 1 0011-
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76738-096-5 01 1 0011-
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76738-097-4 01 1 0011-
231 GROMMET; SCREW
DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0011-
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-055-1 01 1 0011-0805
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		8-98048-053-0 01 1 0806-
233 SCREW; STRIKER
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0011-
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-73338-363-5 01 1 0011-
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-73338-364-5 01 1 0011-
237 HINGE; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-050-1 02 1 0011-
238 SHEET; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-051-0 02 1 0011-
239 SHEET; LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-053-0 01 1 0011-
240 SCREW; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 		8-94279-346-0 04 1 0011-
241 GASKET; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-054-0 04 1 0011-
246 GRILLE; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74298-002-1 01 1 0011-
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74998-072-1 01 1 0011-
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8 		1-09989-019-0 02 1 0011-

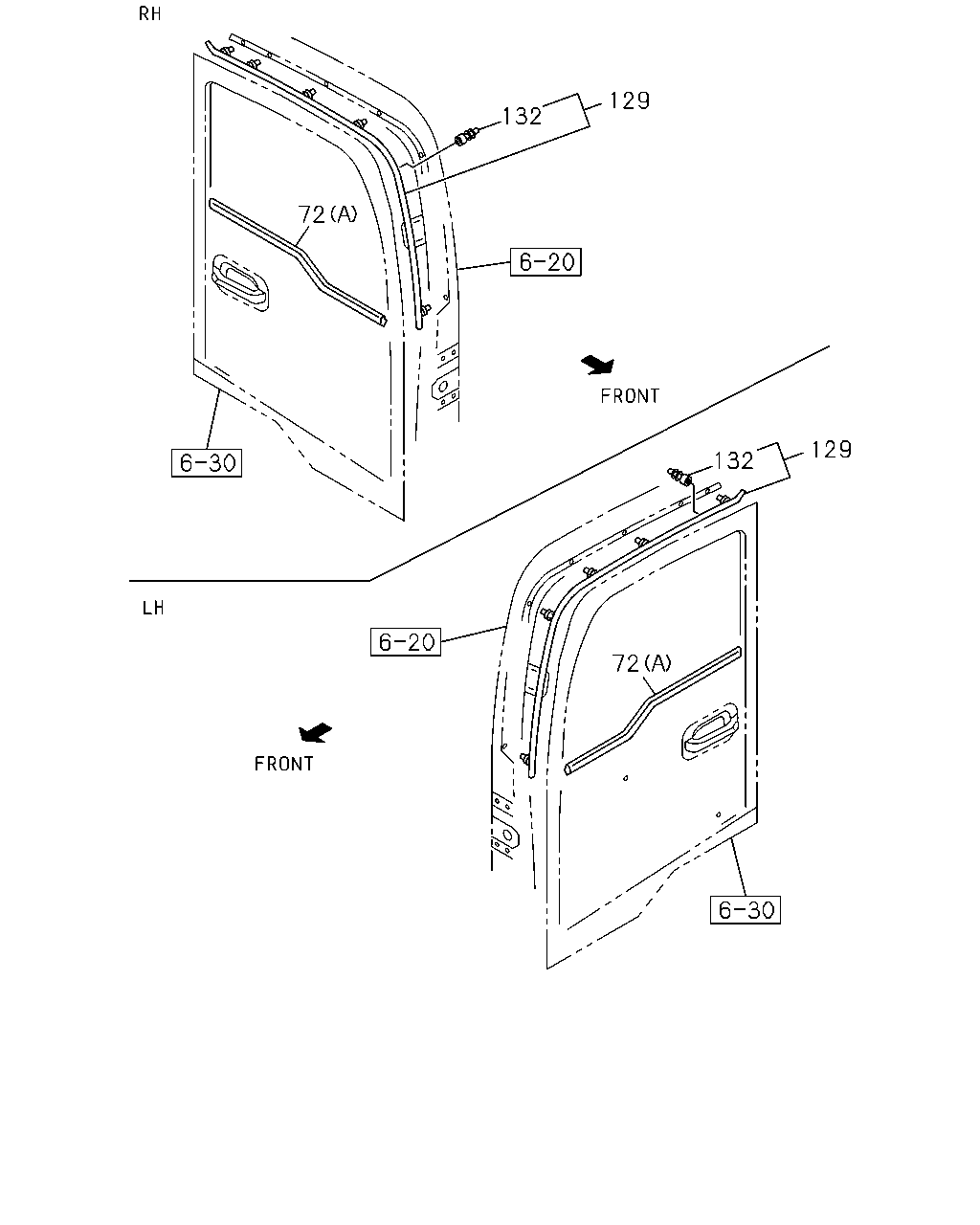

çizim 184614
129 132 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9601-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9601-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9601-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9601-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9601-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9601-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9601-

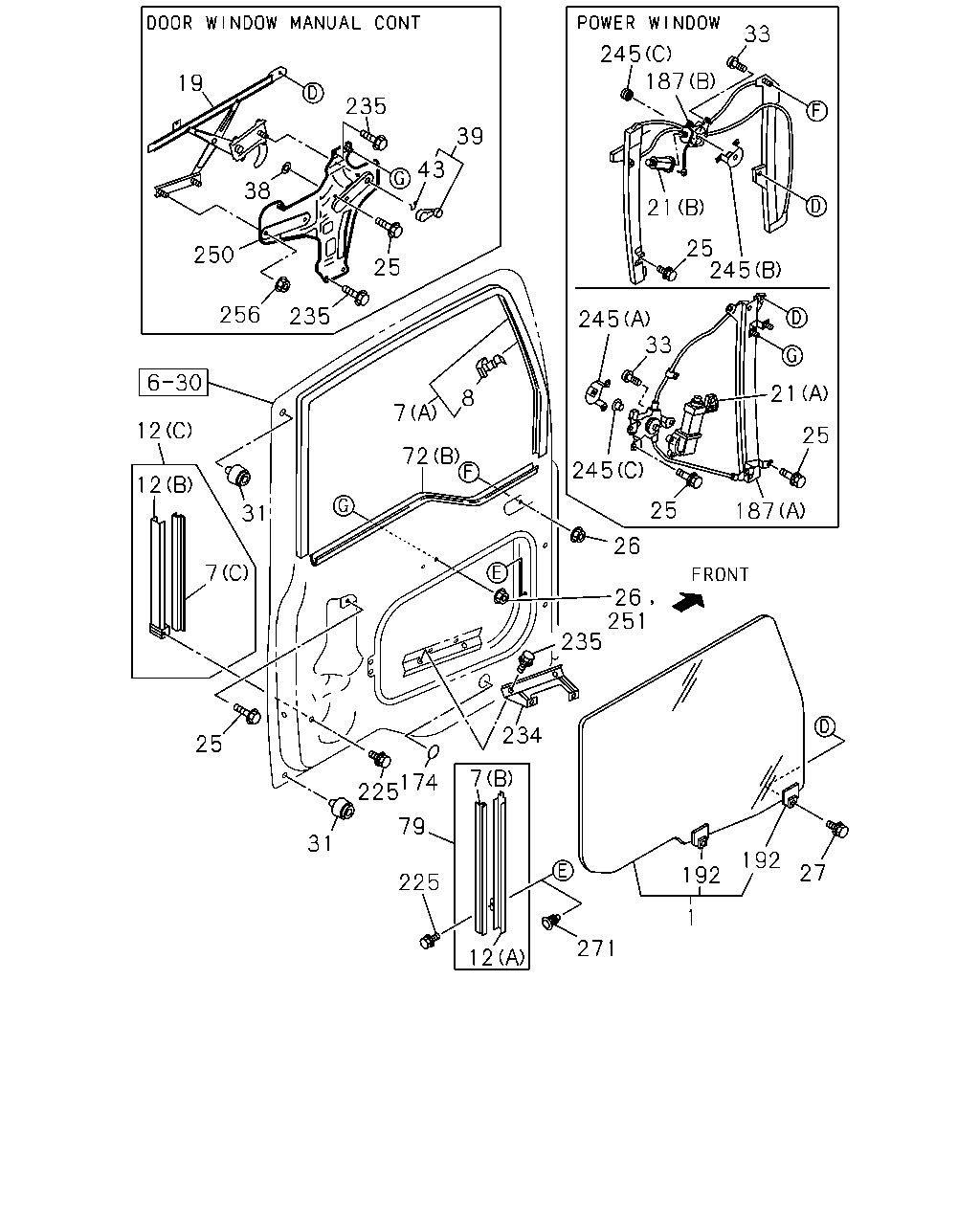

çizim 184618
33 245 187 19 235 39 43 38 21 25 245 250 25 256 235 245 33 21 8 7 12 25 72 245 12 25 187 31 26 7 26 251 235 234 25 7 174 225 79 31 192 27 192 225 1 271 12
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-069-1 01 1 9601-9611
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-079-0 01 1 9612-9801
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-094-2 01 1 9802-
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-068-1 01 1 9601-9611
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76167-159-0 01 1 9612-9801
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76167-174-2 01 1 9802-
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-071-0 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-083-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-0 01 1 9802-0010
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-2 01 1 0011-
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9802-9905
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-2 01 1 9906-
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-2 01 1 0011-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 9601-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
(B) 		1-74318-043-0 01 1 9601-9705
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 9601-
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9601-9705
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 02 1 9706-9901
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-039-0 01 1 0011-0306
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9601-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-037-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-3 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-3 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-047-0 01 1 0011-0306
19 REGULATOR; WINDOW,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-134-5 01 1 9601-
19 REGULATOR; WINDOW,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-144-5 01 1 9601-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> (A) 		1-74418-139-2 01 1 9601-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> (A) 		1-74418-164-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> (A) 		1-74418-177-0 01 1 0004-0010
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-177-0 01 1 0011-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> (A) 		1-74418-153-1 01 1 9601-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> (A) 		1-74418-161-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> (A) 		1-74418-176-0 01 1 0004-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74418-162-0 01 1 0011-
25 BOLT; WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9601-
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9601-0010
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0011-0405
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 07 1 0406-0512
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 07 1 0601-0710
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 07 1 0711-
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0011-0405
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 10 1 0601-0710
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 10 1 0711-
26 NUT; FLANGE,WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE 		1-09984-141-0 04 1 9601-9606
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9601-0010
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 08 1 0011-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 06 1 0011-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9601-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9601-
33 SCREW; REG MOTOR
POWER WINDOW<A30> 		8-98099-646-0 03 1 1204-
33 SCREW; REG MOTOR
POWER WINDOW<A30> 		8-98099-646-0 03 1 1204-
38 WASHER; PL,WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 9601-
39 HANDLE; WINDOW REG,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> BLACK 		8-94371-427-0 02 1 9601-
43 CLIP; REG HANDLE,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		8-94220-591-0 02 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9601-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9601-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9601-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 9902-0010
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-3 01 1 0011-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 9902-
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 20 1 9601-0212
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 22 1 0301-
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=52 BLACK 		1-76798-041-0 06 1 9601-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 14 1 9601-0010
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 11 1 0011-0212
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 13 1 0301-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 0011-0212
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 16 1 0301-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> (A) 		1-74418-138-2 01 1 9601-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> (A) 		1-74418-167-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> (A) 		1-74418-179-0 01 1 0004-0010
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-179-3 01 1 0011-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> (A) 		1-74418-152-0 01 1 9601-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> (A) 		1-74418-165-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> (A) 		1-74418-178-3 01 1 0004-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74418-166-3 01 1 0011-
192 HOLDER; DOOR GLASS 1-74428-013-0 04 1 9601-9801
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 9802-0010
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 0011-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 0011-
192 HOLDER; DOOR GLASS
DOOR WINDOW MANUAL CONT<SKF> 		1-74427-170-0 04 1 0011-
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 04 1 0307-0512
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 04 1 0601-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-0306
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 03 1 0307-0512
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 03 1 0601-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9601-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9601-
235 BOLT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512
235 BOLT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6X16 FLANGE 		0-28050-616-0 08 1 0601-0710
235 BOLT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6X10 FLANGE 		0-28050-610-0 08 1 0711-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-0405
235 BOLT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-0405
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (C) 		1-74417-074-0 01 1 0106-0209
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) 		1-74417-074-0 01 1 0106-0209
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (C) 		1-74417-074-0 01 1 0210-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (C) 		1-74417-074-0 01 1 0210-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-181-0 01 1 0005-0010
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-181-0 01 1 0011-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-180-0 01 1 0005-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74418-147-1 01 1 0011-
250 BRACKET; REGULATOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-149-0 01 1 9601-
250 BRACKET; REGULATOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-148-0 01 1 9601-
251 NUT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE 		1-09984-141-0 04 1 9601-
256 NUT
DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9601-
271 PLUG; HOLE
DOOR WITH UNDER VIEW WINDOW<YD8> OD=16 L=11 		1-76378-155-0 01 1 0307-

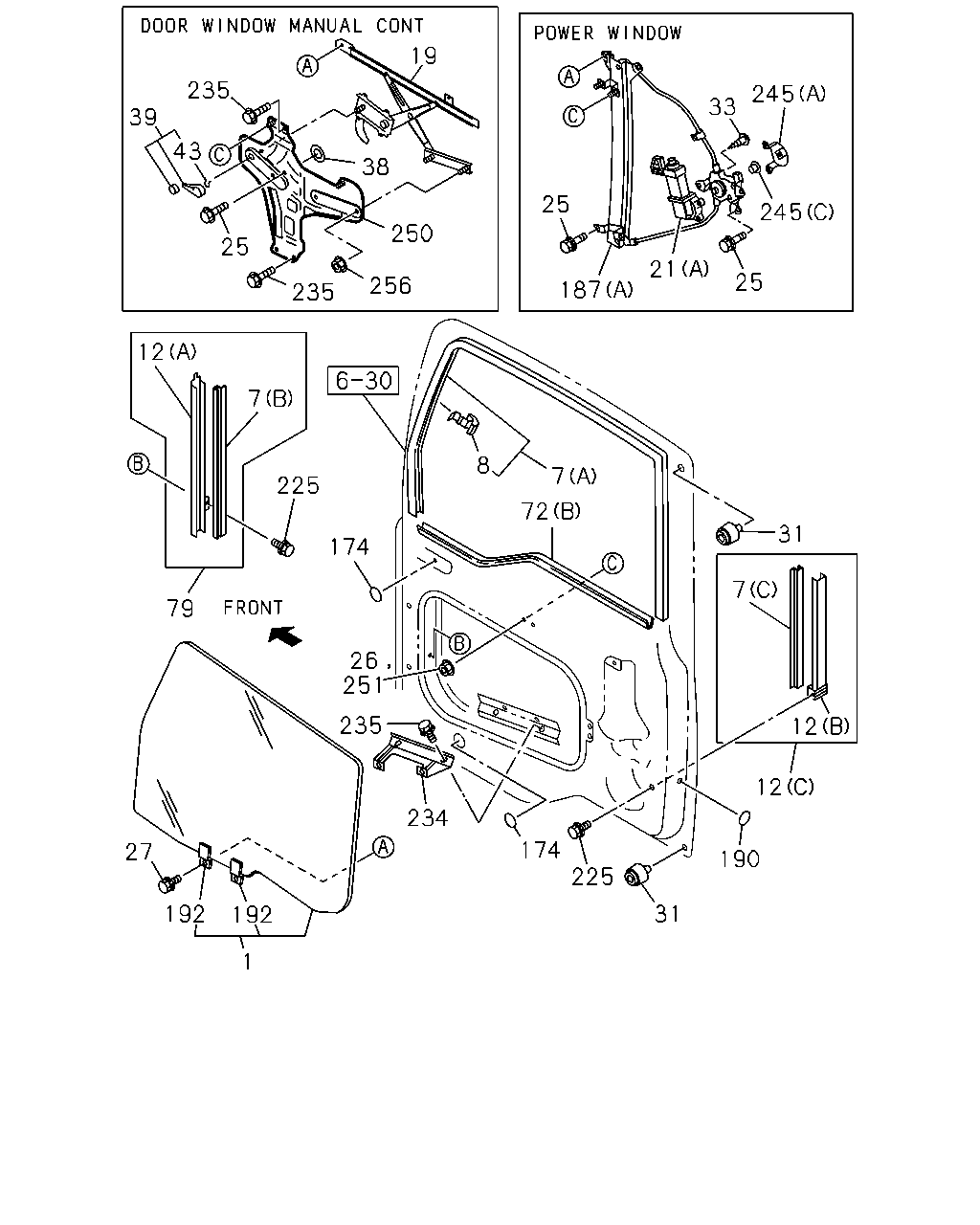

çizim 184620
19 235 245 33 39 43 38 245 25 250 25 21 25 256 187 235 12 7 8 7 225 72 31 174 7 79 26 251 235 12 12 234 174 27 190 225 31 192 12 1
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-069-1 01 1 9601-9611
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-079-0 01 1 9612-9801
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-094-2 01 1 9802-
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-068-1 01 1 9601-9611
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76167-159-0 01 1 9612-9801
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76167-174-2 01 1 9802-
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-071-0 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-083-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-0 01 1 9802-0010
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-2 01 1 0011-
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9802-9905
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-2 01 1 9906-
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-2 01 1 0011-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 9601-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
(B) 		1-74318-043-0 01 1 9601-9705
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 9601-
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9601-9705
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 02 1 9706-9901
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-039-0 01 1 0011-0306
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9601-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-037-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-3 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-3 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-047-0 01 1 0011-0306
19 REGULATOR; WINDOW,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-134-5 01 1 9601-
19 REGULATOR; WINDOW,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-144-5 01 1 9601-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> (A) 		1-74418-139-2 01 1 9601-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> (A) 		1-74418-164-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> (A) 		1-74418-177-0 01 1 0004-0010
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-177-0 01 1 0011-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> (A) 		1-74418-153-1 01 1 9601-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> (A) 		1-74418-161-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> (A) 		1-74418-176-0 01 1 0004-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74418-162-0 01 1 0011-
25 BOLT; WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9601-
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9601-0010
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0011-0405
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 07 1 0406-0512
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 07 1 0601-0710
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 07 1 0711-
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0011-0405
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 10 1 0601-0710
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 10 1 0711-
26 NUT; FLANGE,WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE 		1-09984-141-0 04 1 9601-9606
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9601-0010
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 08 1 0011-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 06 1 0011-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9601-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9601-
33 SCREW; REG MOTOR
POWER WINDOW<A30> 		8-98099-646-0 03 1 1204-
33 SCREW; REG MOTOR
POWER WINDOW<A30> 		8-98099-646-0 03 1 1204-
38 WASHER; PL,WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 9601-
39 HANDLE; WINDOW REG,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> BLACK 		8-94371-427-0 02 1 9601-
43 CLIP; REG HANDLE,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		8-94220-591-0 02 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9601-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9601-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9601-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 9902-0010
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-3 01 1 0011-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 9902-
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 20 1 9601-0212
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 22 1 0301-
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=52 BLACK 		1-76798-041-0 06 1 9601-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 14 1 9601-0010
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 11 1 0011-0212
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 13 1 0301-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 0011-0212
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 16 1 0301-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> (A) 		1-74418-138-2 01 1 9601-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> (A) 		1-74418-167-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> (A) 		1-74418-179-0 01 1 0004-0010
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-179-3 01 1 0011-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> (A) 		1-74418-152-0 01 1 9601-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> (A) 		1-74418-165-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> (A) 		1-74418-178-3 01 1 0004-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74418-166-3 01 1 0011-
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 9601-
192 HOLDER; DOOR GLASS 1-74428-013-0 04 1 9601-9801
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 9802-0010
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 0011-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 0011-
192 HOLDER; DOOR GLASS
DOOR WINDOW MANUAL CONT<SKF> 		1-74427-170-0 04 1 0011-
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 04 1 0307-0512
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 04 1 0601-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-0306
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 03 1 0307-0512
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 03 1 0601-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9601-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9601-
235 BOLT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512
235 BOLT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6X16 FLANGE 		0-28050-616-0 08 1 0601-0710
235 BOLT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6X10 FLANGE 		0-28050-610-0 08 1 0711-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-0405
235 BOLT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-0405
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (C) 		1-74417-074-0 01 1 0106-0209
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) 		1-74417-074-0 01 1 0106-0209
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (C) 		1-74417-074-0 01 1 0210-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (C) 		1-74417-074-0 01 1 0210-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-181-0 01 1 0005-0010
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-181-0 01 1 0011-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-180-0 01 1 0005-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74418-147-1 01 1 0011-
250 BRACKET; REGULATOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-149-0 01 1 9601-
250 BRACKET; REGULATOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-148-0 01 1 9601-
251 NUT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE 		1-09984-141-0 04 1 9601-
256 NUT
DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
