Sayfa 6-05 - Isuzu EPC

6-05 — FRONT PANEL (#65163) — 265 parça

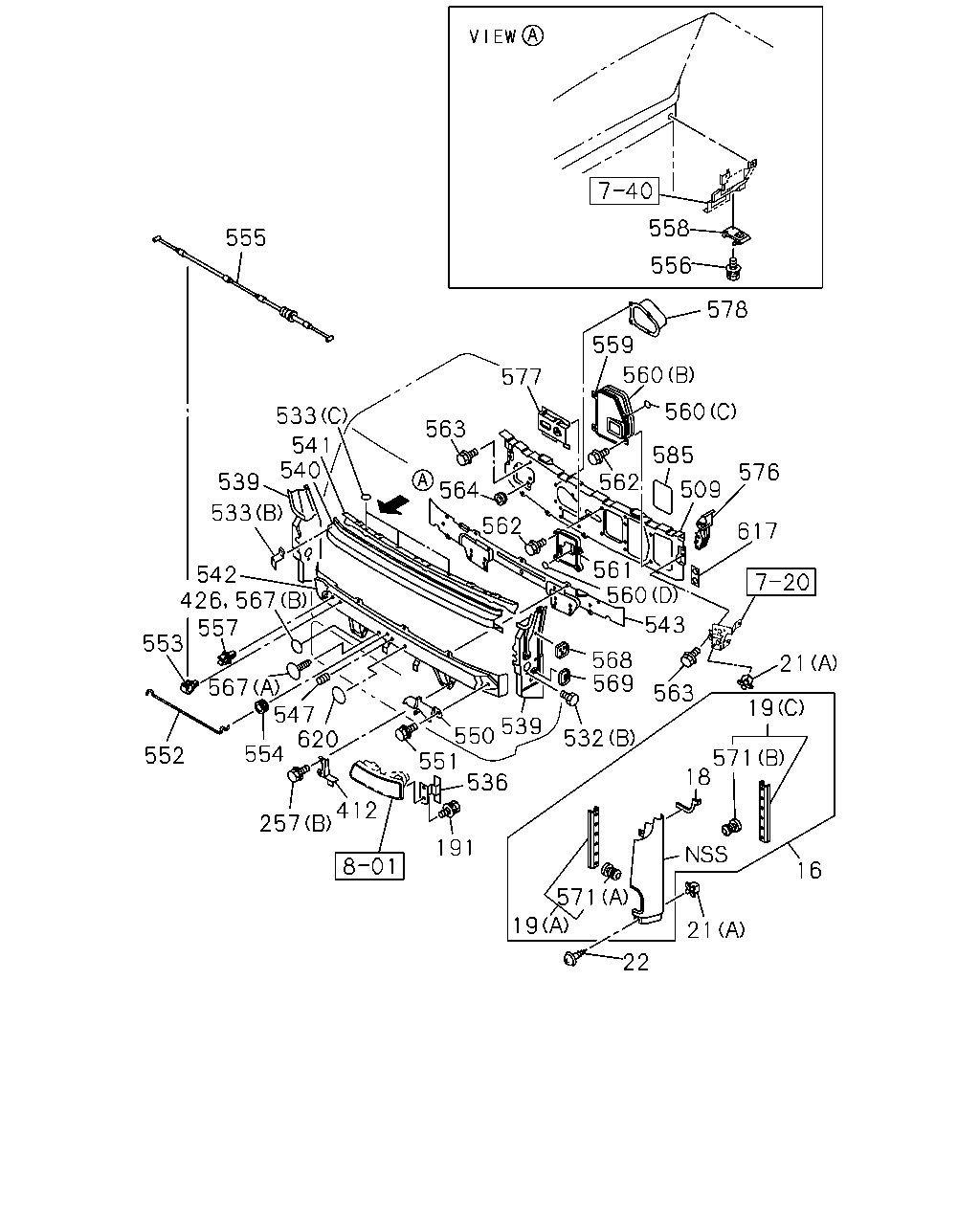

558 555 556 578 559 560 577 560 533 563 541 540 585 576 539 562 509 564 533 562 617 561 560 542 557 543 553 568 569 21 567 547 620 563 19 539 550 551 532 554 552 571 18 536 412 257 191 16 571 19 21 22 426 567

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PANEL; FRONT,SIDE WHITE	1-65481-590-1	01	1	9601-9803
16	PANEL; FRONT,SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2> WHITE	1-65481-590-1	01	1	9804-0004
16	PANEL; FRONT,SIDE MIR O/S RR VIEW WIDE<WU4> WHITE	1-65481-563-2	01	1	9601-9803
16	PANEL; FRONT,SIDE EXC. MIR O/S RR VIEW WIDE<WU4> WHITE	1-65481-591-1	01	1	9601-9803
16	PANEL; FRONT,SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE	1-65481-591-1	01	1	9804-0004
16	PANEL; FRONT,SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2> WHITE	1-65481-590-2	01	1	9804-
16	PANEL; FRONT,SIDE MIR O/S RR VIEW LONG ARM<DH2> WHITE	1-65481-562-3	01	1	9811-
16	PANEL; FRONT,SIDE MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE	1-65481-563-3	01	1	9804-
16	PANEL; FRONT,SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW FLAT<YS1> WHITE	1-65481-591-2	01	1	0005-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-899-2	01	1	9601-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-898-2	01	1	9601-9803
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. MIR O/S RR VIEW LONG ARM<DH2>	1-71998-898-2	01	1	9804-9810
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-898-2	01	1	9811-
19	SEAL; FRT SIDE PANEL (C)	1-71996-102-1	01	1	9601-
19	SEAL; FRT SIDE PANEL (A)	1-71998-807-4	01	1	9601-
19	SEAL; FRT SIDE PANEL (C)	1-71996-101-1	01	1	9601-
19	SEAL; FRT SIDE PANEL (A)	1-71998-806-3	01	1	9601-9803
19	SEAL; FRT SIDE PANEL EXC. MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71998-806-3	01	1	9804-9810
19	SEAL; FRT SIDE PANEL (A)	1-71998-806-4	01	1	9811-
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	9704-
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9601-
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9601-
22	SCREW; FRT PANEL SIDE M5X16 W/PL WASHER TAPPING	8-94279-123-0	12	1	9601-0003
22	SCREW; FRT PANEL SIDE M5X20 W/PL WASHER TAPPING	8-97893-344-0	12	1	0004-0810
22	SCREW; FRT PANEL SIDE M5X16 W/PL WASHER TAPPING	8-94279-123-0	12	1	0811-1010
22	SCREW; FRT PANEL SIDE M5X20 W/PL WASHER TAPPING	8-97893-344-0	12	1	1011-
191	BOLT; HINGE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9601-0004
191	BOLT; HINGE M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0005-0102
191	BOLT; HINGE HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0103-0604
191	BOLT; HINGE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0605-0708
191	BOLT; HINGE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X16 FLANGE	0-28650-616-0	04	1	0709-
257	BOLT; BRKT (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9601-
257	BOLT; BRKT HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9601-0004
257	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0102
257	BOLT; BRKT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0103-0604
257	BOLT; BRKT HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0605-0904
257	BOLT; BRKT HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
412	BRACKET ASM; HD LAMP UPR HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-044-3	01	1	9601-0004
412	BRACKET ASM; HD LAMP UPR	1-86830-044-3	01	1	0005-0102
412	BRACKET ASM; HD LAMP UPR HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-044-3	01	1	0103-0604
412	BRACKET ASM; HD LAMP UPR HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-044-3	01	1	0605-
412	BRACKET ASM; HD LAMP UPR HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-043-3	01	1	9601-0004
412	BRACKET ASM; HD LAMP UPR	1-86830-043-3	01	1	0005-0102
412	BRACKET ASM; HD LAMP UPR HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-043-3	01	1	0103-0604
412	BRACKET ASM; HD LAMP UPR HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-043-3	01	1	0605-
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	04	1	0605-
426	GASKET OD=25 BLACK	1-76798-019-0	04	1	9805-0604
426	GASKET AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	02	1	0605-
509	PANEL; DASH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-62280-213-1	02	1	0005-0604
509	PANEL; DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-62280-213-2	01	1	0605-
509	PANEL; DASH EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ)	1-62280-215-1	02	1	0005-0604
509	PANEL; DASH EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-62280-215-2	01	1	0605-
509	PANEL; DASH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-62280-213-1	01	1	9601-0004
509	PANEL; DASH EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ)	1-62280-215-1	01	1	9601-0004
532	BOLT; FRT PANEL (A) M8X20	1-79198-002-0	02	1	9601-
532	BOLT; FRT PANEL (B) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9601-
533	SEAL; FRT PANEL (D) L=30	1-71996-079-2	06	1	0005-0406
533	SEAL; FRT PANEL (D) L=30	1-71996-079-2	03	1	0407-
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-3	02	1	9601-
533	SEAL; FRT PANEL (C) OD=36 BLACK	1-76798-018-0	13	1	9601-9806
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	13	1	9807-
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	9601-
536	HINGE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-004-5	01	1	9601-0004
536	HINGE	1-86830-004-5	01	1	0005-0102
536	HINGE HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-004-5	01	1	0103-0604
536	HINGE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-004-5	01	1	0605-
536	HINGE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-003-5	01	1	9601-0004
536	HINGE	1-86830-003-5	01	1	0005-0102
536	HINGE HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-003-5	01	1	0103-0604
536	HINGE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-003-5	01	1	0605-
539	CLOSING; PILLAR	1-61480-674-6	01	1	9601-
539	CLOSING; PILLAR	1-61480-673-6	01	1	9601-
540	PANEL; FRONT,OUTER	1-61480-785-1	01	1	9601-
541	PANEL; FRONT,INNER	1-61480-679-0	01	1	9601-
542	RAIL; FRT MOUNTING	1-61480-773-9	01	1	9601-
543	CLOSING; FRT MTG RAIL	1-61480-687-4	01	1	9601-
547	RUBBER; CUSHION OD=22 L=29	8-94324-556-2	03	1	9601-
550	LOCK ASM; FRT LID	1-79318-010-2	01	1	9601-
550	LOCK ASM; FRT LID	1-79318-009-4	01	1	9601-
551	BOLT; LOCK M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9601-
552	STAY; FRT LID	1-71998-810-2	01	1	9601-0205
552	STAY; FRT LID	1-71996-310-0	01	1	0206-0706
552	STAY; FRT LID	1-71996-352-0	01	1	0707-
553	CLIP; STAY	8-97031-428-0	01	1	9601-
554	GROMMET; STAY ID=8 OD=20 T=9	9-09956-038-0	01	1	9601-
555	CABLE; FRT LID L=2142	1-79348-001-4	01	1	9601-
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9601-9611
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	9612-
557	CLIP; CABLE ID=4.8	8-94128-483-0	02	1	9601-
558	LEVER; FRT LID	1-79338-003-1	01	1	9601-0212
558	LEVER; FRT LID	1-79338-007-1	01	1	0301-
559	COVER; EVAPOLATOR	1-71996-162-0	01	1	9601-9608
559	COVER; EVAPOLATOR	1-71996-194-1	01	1	9609-
560	SEAL; COVER (B)	1-71998-827-1	01	1	9601-
560	SEAL; COVER (C)	1-76798-018-0	01	1	9601-9804
560	SEAL; COVER (C) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9805-0604
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0605-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41) (D)	1-76798-018-0	02	1	9601-9806
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41) (D) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9807-0604
561	COVER; HEATER CORE	1-71998-829-1	01	1	9601-
562	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9601-
563	BOLT; DASH PANEL M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	0203-
563	BOLT; DASH PANEL M8X20	1-79198-002-0	12	1	9601-9707
563	BOLT; DASH PANEL M8X20	1-79198-002-0	10	1	9708-9807
563	BOLT; DASH PANEL M8X20	1-79198-002-0	14	1	9808-0202
563	BOLT; DASH PANEL M8X20	1-79198-002-0	12	1	0203-
563	BOLT; DASH PANEL M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	9601-9707
563	BOLT; DASH PANEL M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	9708-9807
564	GROMMET; DASH PANEL OD=23.5	1-09983-101-0	02	1	9601-
567	PLUG; FRT MTG RAIL (A) OD=15 BLACK	8-94279-804-0	01	1	9601-9803
567	PLUG; FRT MTG RAIL (B) OD=25 BLACK	1-76798-019-0	01	1	9804-9804
568	PATCH; INST REINF	1-61480-675-2	02	1	9601-
569	PATCH; LWR GRIP	1-61480-736-2	01	1	9601-
569	PATCH; LWR GRIP	1-61480-689-2	01	1	9601-
571	CLIP; SEAL (A)	1-09987-228-0	12	1	9601-9803
571	CLIP; SEAL EXC. MIR O/S RR VIEW LONG ARM<DH2> (A)	1-09987-228-0	06	1	9804-9810
571	CLIP; SEAL (A)	1-09987-228-0	06	1	9804-9810
571	CLIP; SEAL (A)	1-09987-228-0	06	1	9811-0001
571	CLIP; SEAL (A)	1-09987-228-0	06	1	9811-0001
571	CLIP; SEAL (B) NATURAL	1-09987-257-0	07	1	0208-
571	CLIP; SEAL (A)	1-09987-228-0	06	1	0002-0208
571	CLIP; SEAL (A)	1-09987-228-0	06	1	0002-0208
571	CLIP; SEAL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>,MI R O/S RR VIEW FLAT<YS1> (A)	1-09987-228-0	06	1	0209-
571	CLIP; SEAL (A)	1-09987-228-0	06	1	0209-
571	CLIP; SEAL (B) NATURAL	1-09987-257-0	14	1	9601-0207
571	CLIP; SEAL (B) NATURAL	1-09987-257-0	07	1	0208-
576	FRAME; INST SIDE	1-62280-177-7	01	1	9601-
576	FRAME; INST SIDE	1-62280-176-6	01	1	9601-
577	BRACKET; IDLER	1-62280-195-0	01	1	9601-
578	COVER; WIPER MOTOR	1-62280-173-4	01	1	9601-
585	PLATE; EVAPOLATOR EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ)	1-71996-084-1	01	1	9601-0604
585	PLATE; EVAPOLATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-71996-084-1	01	1	0605-
617	SEAL; DASH	1-61281-497-0	04	1	0005-0604
617	SEAL; DASH	1-61281-497-1	02	1	0605-
617	SEAL; DASH	1-61281-497-0	02	1	9601-0004
620	SEAL; FRT MTG OD=25 BLACK	1-76798-019-0	02	1	9805-

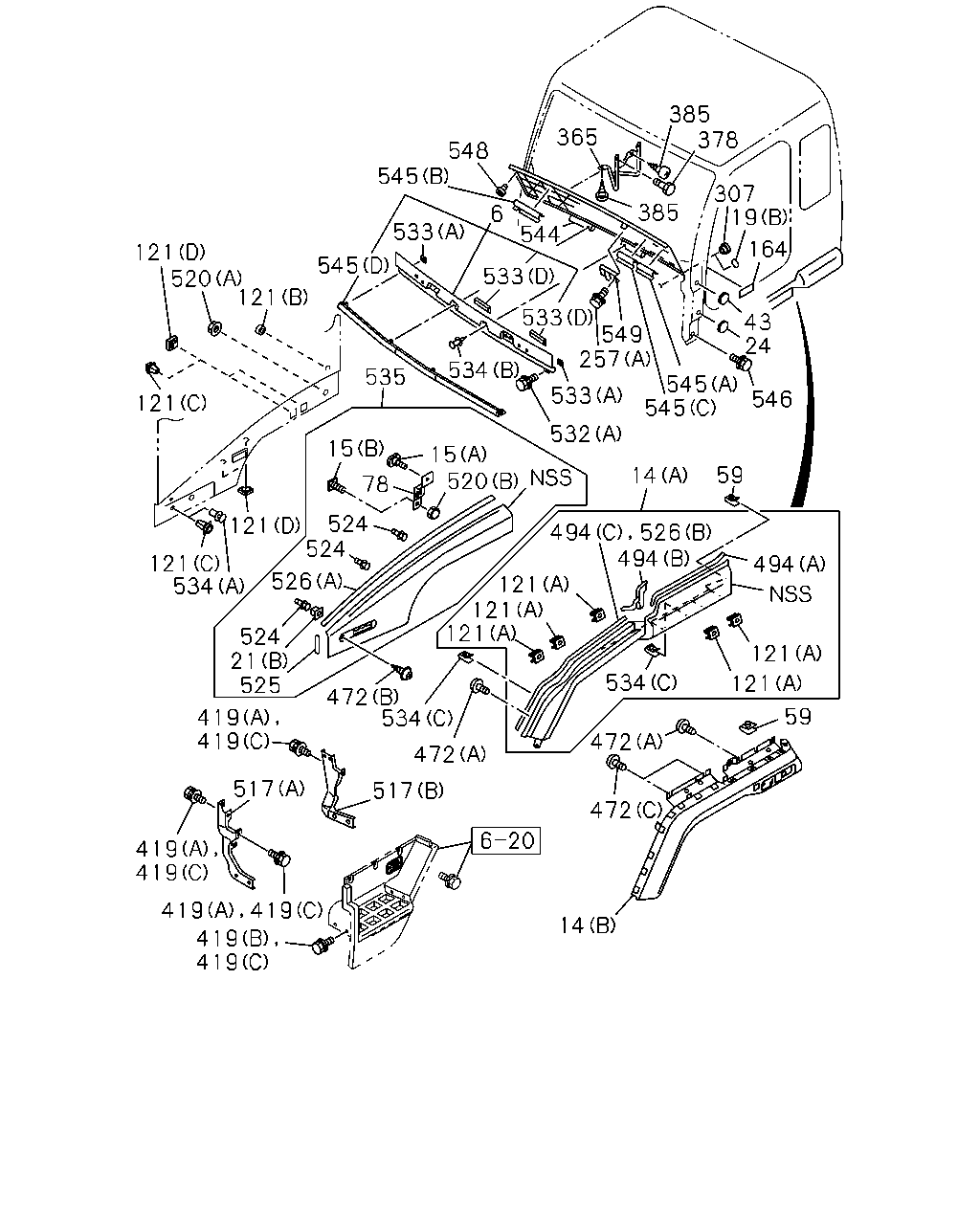

385 378 365 548 545 307 19 385 6 533 544 164 121 520 545 533 121 533 549 257 534 43 24 535 533 545 545 546 121 532 15 15 520 59 14 78 121 524 524 494 121 534 494 526 121 121 121 524 21 525 121 534 121 472 534 59 419 419 472 472 517 517 472 419 419 419 14 419 419 419 494 526

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PANEL; FRONT	1-65481-556-2	01	1	9601-9807
6	PANEL; FRONT	1-65481-744-2	01	1	9808-
14	FENDER; FRT (A)	1-65481-638-1	01	1	9601-0209
14	FENDER; FRT (A) WHITE	1-65482-045-0	01	1	0210-
14	FENDER; FRT (A)	1-65481-637-1	01	1	9601-0209
14	FENDER; FRT (A) WHITE	1-65482-044-0	01	1	0210-
14	FENDER; FRT (B)	1-71996-149-5	01	1	9601-9703
14	FENDER; FRT (B) GRAY	1-71996-178-1	01	1	9704-
14	FENDER; FRT (B)	1-71996-148-4	01	1	9601-9703
14	FENDER; FRT (B) GRAY	1-71996-177-1	01	1	9704-
15	BOLT; FENDER (A) M6X7	1-71268-294-0	02	1	9601-
15	BOLT; FENDER (B) M6X14 SQUARE HEAD	1-71268-300-1	02	1	9601-
19	SEAL; FRT SIDE PANEL (C)	1-71996-102-1	01	1	9601-
19	SEAL; FRT SIDE PANEL (A)	1-71998-807-4	01	1	9601-
19	SEAL; FRT SIDE PANEL (C)	1-71996-101-1	01	1	9601-
19	SEAL; FRT SIDE PANEL (A)	1-71998-806-3	01	1	9601-9803
19	SEAL; FRT SIDE PANEL EXC. MIR O/S RR VIEW LONG ARM<DH2> (A)	1-71998-806-3	01	1	9804-9810
19	SEAL; FRT SIDE PANEL (A)	1-71998-806-4	01	1	9811-
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	9704-
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9601-
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9601-
24	SEAL; FRT PANEL LWR DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK	1-76798-019-0	06	1	9601-0004
24	SEAL; FRT PANEL LWR DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK	1-76798-019-0	08	1	0005-
24	SEAL; FRT PANEL LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	02	1	9601-9903
24	SEAL; FRT PANEL LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	04	1	9904-
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	9601-
59	GROMMET; SCREW	8-94279-723-0	03	1	9601-9705
59	GROMMET; SCREW	8-94279-723-0	02	1	9706-
78	BRACKET; FENDER	1-71268-323-0	01	1	9601-
78	BRACKET; FENDER	1-71268-322-0	01	1	9601-
121	GROMMET; FENDER (B)	1-09983-162-0	02	1	9601-1009
121	GROMMET; FENDER (C) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	12	1	9601-9603
121	GROMMET; FENDER (C) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9604-0304
121	GROMMET; FENDER (C) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	12	1	0305-
121	GROMMET; FENDER (A)	8-94279-723-0	16	1	9601-
121	GROMMET; FENDER (D) 14.5X14.5 BLACK	8-94279-714-0	10	1	9604-0304
164	SEAL; FRT PILLAR	1-71907-414-0	02	1	9601-
257	BOLT; BRKT (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9601-
257	BOLT; BRKT HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9601-0004
257	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0102
257	BOLT; BRKT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0103-0604
257	BOLT; BRKT HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0605-0904
257	BOLT; BRKT HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
307	GROMMET; FRT PANEL OD=44	8-94279-727-0	03	1	9601-9703
365	SUPPORT; FENDER	1-71996-147-1	01	1	9601-
378	BOLT; SUPPORT M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9601-
385	SCREW; FENDER LWR M6X30	1-65481-387-0	04	1	9601-
419	BOLT; STEP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	18	1	9601-0009
419	BOLT; STEP (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	0010-0904
419	BOLT; STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	10	1	0905-
419	BOLT; STEP (B) M8X20 W/LK&PL WASHER	8-94279-216-0	08	1	0010-0204
419	BOLT; STEP (B) M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	0205-0301
419	BOLT; STEP (B) M8X20 W/LK&PL WASHER	8-94279-216-0	08	1	0302-
472	SCREW; FENDER TO CAB (A) M6X22	1-65481-386-0	06	1	9601-9606
472	SCREW; FENDER TO CAB (A) M6X30	1-65481-387-0	27	1	9601-9606
472	SCREW; FENDER TO CAB (A) M6X30	1-65481-387-0	34	1	9607-9607
472	SCREW; FENDER TO CAB (A) M6X30	1-65481-387-0	32	1	9608-9802
472	SCREW; FENDER TO CAB (A) M6X30	1-65481-387-0	28	1	9803-9804
472	SCREW; FENDER TO CAB (A) M6X30	1-65481-387-0	26	1	9805-
472	SCREW; FENDER TO CAB (B) M5X20	5-09981-102-0	02	1	9601-9706
472	SCREW; FENDER TO CAB (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	9707-
472	SCREW; FENDER TO CAB (C) M6X25	1-65481-736-0	04	1	9602-
472	SCREW; FENDER TO CAB (A) M6X22	1-65481-386-0	02	1	9607-9802
472	SCREW; FENDER TO CAB (A) M6X22	1-65481-386-0	07	1	9803-9804
472	SCREW; FENDER TO CAB (A) M6X22	1-65481-386-0	08	1	9805-
494	FINISHER; FENDER (C)	1-71998-900-3	02	1	9601-0604
494	FINISHER; FENDER BODY COLOR ARC WHITE(729) (B)	1-71998-900-3	02	1	0605-0610
494	FINISHER; FENDER (B)	1-71907-641-0	02	1	0611-
494	FINISHER; FENDER (A)	1-71998-999-0	02	1	9601-0604
494	FINISHER; FENDER BODY COLOR ARC WHITE(729) (A)	1-71998-999-0	02	1	0605-0705
494	FINISHER; FENDER (A)	1-71998-999-0	02	1	0706-
494	FINISHER; FENDER (B)	1-71907-181-4	01	1	9601-
494	FINISHER; FENDER (B)	1-71907-180-4	01	1	9601-
517	SUPPORT; STEP PANEL (B)	1-71996-083-4	01	1	9601-
517	SUPPORT; STEP PANEL (A)	1-71998-780-5	01	1	9601-0004
517	SUPPORT; STEP PANEL (A)	1-71996-078-3	01	1	0005-0212
517	SUPPORT; STEP PANEL (A)	1-71998-780-5	01	1	0301-
517	SUPPORT; STEP PANEL (B)	1-71996-082-2	01	1	9601-
517	SUPPORT; STEP PANEL (A)	1-71998-779-5	01	1	9601-
520	NUT; FENDER (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-
520	NUT; FENDER (B) M6	1-09984-189-0	02	1	9601-
524	CLIP; FENDER COVER D5.4X8	1-09983-174-0	08	1	9601-9803
524	CLIP; FENDER COVER D5.4X8	1-09983-154-0	08	1	9804-
525	SEAL; FENDER 10X145	1-71268-281-1	02	1	9601-0409
525	SEAL; FENDER 10X145	1-71267-342-0	02	1	0410-
526	FINISHER; FENDER (A)	1-71268-275-1	02	1	9601-
526	FINISHER; FENDER (B)	1-71998-900-3	04	1	9805-0207
526	FINISHER; FENDER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	1-71998-900-3	04	1	0208-0209
526	FINISHER; FENDER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	1-71998-900-3	02	1	0210-0610
526	FINISHER; FENDER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	1-71907-641-0	02	1	0611-
532	BOLT; FRT PANEL (A) M8X20	1-79198-002-0	02	1	9601-
532	BOLT; FRT PANEL (B) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9601-
533	SEAL; FRT PANEL (D) L=30	1-71996-079-2	06	1	0005-0406
533	SEAL; FRT PANEL (D) L=30	1-71996-079-2	03	1	0407-
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-3	02	1	9601-
533	SEAL; FRT PANEL (C) OD=36 BLACK	1-76798-018-0	13	1	9601-9806
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	13	1	9807-
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	9601-
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-019-0	08	1	9601-9803
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-020-1	08	1	9804-0001
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0002-1302
534	FASTENER (A) ID=5.4 OD=6.8	8-98241-984-0	08	1	1303-
534	FASTENER (C)	1-71996-035-1	02	1	9601-9605
534	FASTENER (C)	1-71996-035-1	04	1	9606-0404
534	FASTENER (C)	1-71996-035-1	06	1	0405-
534	FASTENER (C)	1-71996-035-1	20	1	9601-
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	9601-
535	FENDER; BLISTER WHITE	1-71268-361-3	01	1	9601-0209
535	FENDER; BLISTER WHITE	1-71268-429-1	01	1	0210-
535	FENDER; BLISTER WHITE	1-71268-360-3	01	1	9601-0209
535	FENDER; BLISTER WHITE	1-71268-428-1	01	1	0210-
544	LID; FRT	1-71108-073-3	01	1	9601-9703
544	LID; FRT WHITE	1-71108-118-1	01	1	9704-9804
544	LID; FRT HITACHI CHEMICAL	1-71108-152-0	01	1	9805-0004
544	LID; FRT FRONT PANEL CARGO FACE<NGD> OR MITRAS	1-71108-116-0	01	1	0007-0411
544	LID; FRT FRONT PANEL CARGO FACE<NGD> HITACHI CHEMICAL	1-71108-152-0	01	1	0005-
544	LID; FRT EXC. FRONT PANEL CARGO FACE<NGD>	1-71108-235-3	01	1	0005-
545	SEAL; FRT LID (D)	1-71998-814-3	01	1	9601-9807
545	SEAL; FRT LID (D)	1-71998-814-3	02	1	9808-0406
545	SEAL; FRT LID (D)	1-71998-814-4	01	1	0407-
545	SEAL; FRT LID (B)	1-71998-871-2	01	1	9601-9908
545	SEAL; FRT LID (B)	1-71996-253-1	01	1	9909-
545	SEAL; FRT LID (C)	1-71998-873-2	01	1	9601-9908
545	SEAL; FRT LID (C)	1-71996-255-0	01	1	9909-
545	SEAL; FRT LID (A) L=63	1-71998-963-2	01	1	9601-
546	PLUG; DUMMY HOLE OD=16 L=11	1-76378-155-0	02	1	9601-
548	STRIKER; FRT LID PANEL	1-79318-008-1	02	1	9601-
549	BRACKET; STOPPER,FRT LID	1-71108-033-4	01	1	9601-0301
549	BRACKET; STOPPER,FRT LID	1-71108-358-0	01	1	0302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
