Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10707 - FVZ-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶

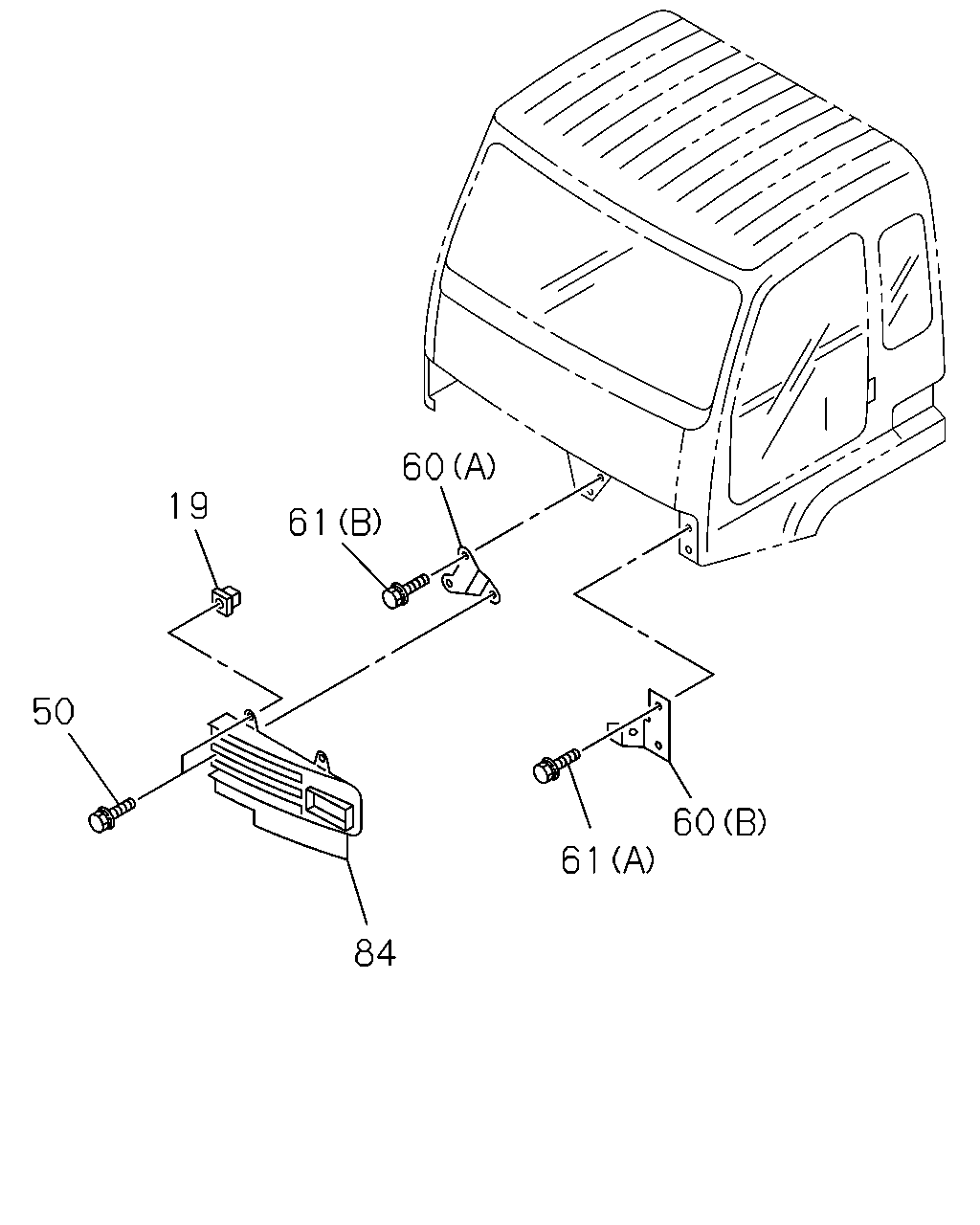

6-03 — RADIATOR GRILLE
(#65161) — 25 parça
◀
[603A] BUMPER W/HEADLAMPS (11 parça)
[603A] FIXING;RADIATOR GRILLE (14 parça)
▶
60
19
61
50
60
61
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
GROMMET; SCREW,RAD GRILLE
BUMPER W/HEADLAMPS<SLB> D=7.5X7.5 L=7
8-94430-147-0
04
1
9703-
50
BOLT; GRILLE
BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
9703-
60
BRACKET; RAD GRILLE SIDE
BUMPER W/HEADLAMPS<SLB> (B)
1-71118-776-1
01
1
9703-
60
BRACKET; RAD GRILLE SIDE
BUMPER W/HEADLAMPS<SLB> (A)
1-71118-785-1
01
1
9703-
60
BRACKET; RAD GRILLE SIDE
BUMPER W/HEADLAMPS<SLB> (A)
1-71118-752-1
01
1
9703-
60
BRACKET; RAD GRILLE SIDE
BUMPER W/HEADLAMPS<SLB> (B)
1-71118-775-1
01
1
9703-
61
BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
9703-
61
BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> (B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9703-0904
61
BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> (B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
84
GRILLE; RAD SIDE
BUMPER W/HEADLAMPS<SLB>
1-71118-769-3
01
1
9703-
84
GRILLE; RAD SIDE
BUMPER W/HEADLAMPS<SLB>
1-71118-768-3
01
1
9703-
1
8
40
9
1
8
38
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
CUSTOM CAB(SR5) (A)
1-88434-531-0
01
1
9910-0004
1
GRILLE; RAD
HEADLAMPS RECTANGULAR<TR4> (B) BLACK
1-71118-766-1
01
1
9601-0004
1
GRILLE; RAD
BUMPER W/HEADLAMPS<SLB> (B) BLACK
1-71118-766-1
01
1
0005-
1
GRILLE; RAD
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)
1-71118-702-3
01
1
9601-9909
1
GRILLE; RAD
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. CUSTOM CAB(SR5) (A)
1-71118-702-3
01
1
9910-0004
1
GRILLE; RAD
EXC. FRONT PANEL CARGO FACE<NGD>,BUMPER W/HEADLAMPS<SLB> (A) WHITE
1-71118-818-1
01
1
0005-
1
GRILLE; RAD
FRONT PANEL CARGO FACE<NGD> EXC. BUMPER W/HEADLAMPS<SLB> (A)
1-71118-702-3
01
1
0005-
8
GROMMET; SCREW,RAD GRILLE
8-94279-704-0
01
1
9601-
9
SCREW; RAD GRILLE
M5X16 W/PL WASHER TAPPING
8-94279-123-0
01
1
9601-
38
CLIP; GRILLE
HEADLAMPS RECTANGULAR<TR4> BLACK
8-94218-027-0
06
1
9805-0004
38
CLIP; GRILLE
BUMPER W/HEADLAMPS<SLB> BLACK
8-94218-027-0
06
1
0005-
40
CLIP; RAD GRILLE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> BLACK
8-94218-027-0
06
1
9601-0004
40
CLIP; RAD GRILLE
EXC. FRONT PANEL CARGO FACE<NGD>,BUMPER W/HEADLAMPS<SLB> BLACK
8-94218-027-0
06
1
0005-0010
40
CLIP; RAD GRILLE
EXC. BUMPER W/HEADLAMPS<SLB> BLACK
8-94218-027-0
06
1
0011-
