5-10 — CAB MOUNTING; FRAME SIDE (#65156) — 185 parça

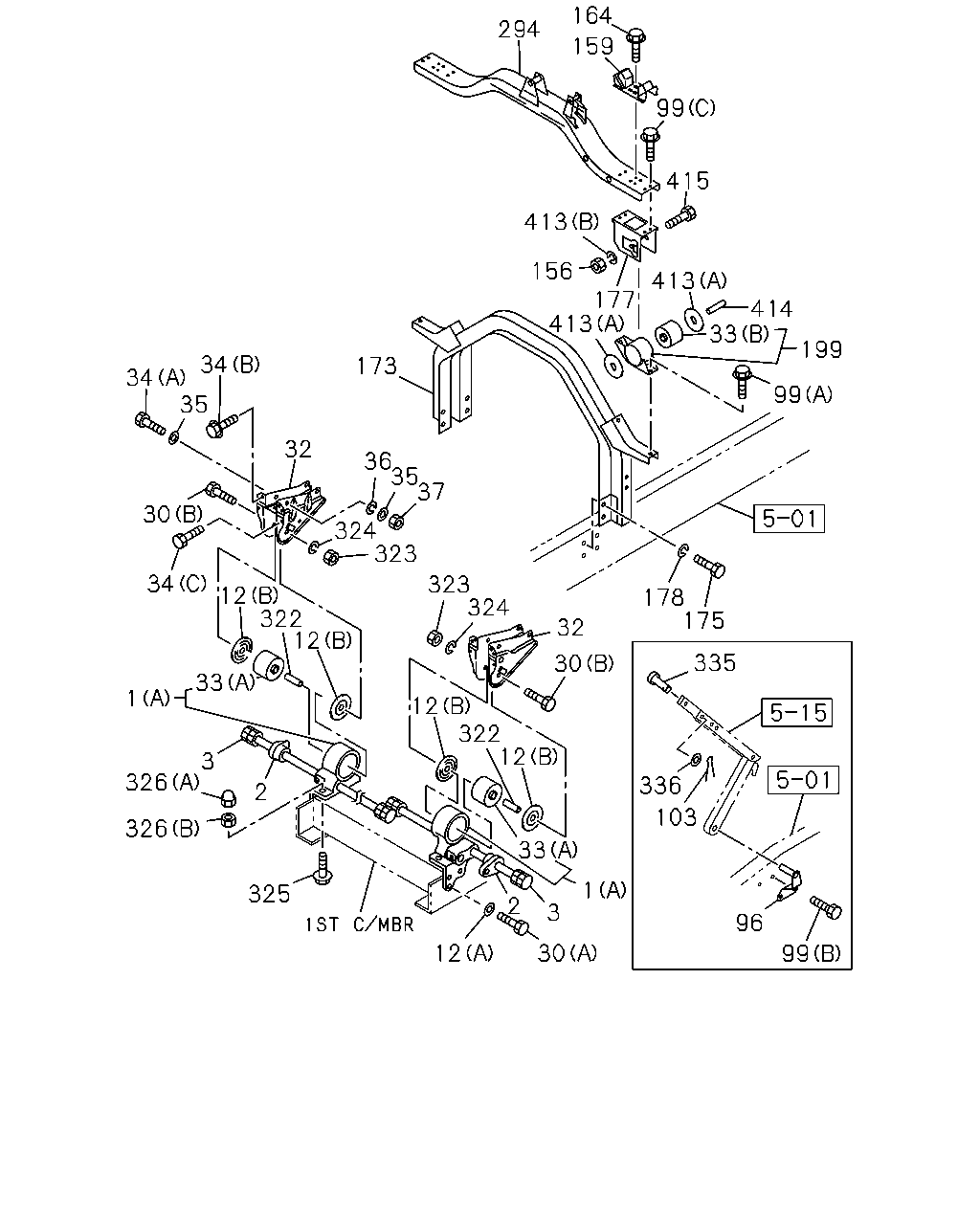

164 294 159 99 415 413 156 413 177 413 414 33 199 34 173 34 35 99 32 36 35 37 30 324 323 34 323 324 12 322 12 178 175 32 335 30 33 1 12 322 12 3 326 336 2 103 326 33 1 325 2 3 96 12 30 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG (A)	1-53453-268-0	01	1	9601-9804
1	BRACKET; CAB MTG NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-268-0	01	1	9805-0004
1	BRACKET; CAB MTG NEW ZEALAND EQUIPMENT(PK5),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-268-0	01	1	0005-
1	BRACKET; CAB MTG (A)	1-53453-267-0	01	1	9601-9804
1	BRACKET; CAB MTG NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-267-0	01	1	9805-0004
1	BRACKET; CAB MTG NEW ZEALAND EQUIPMENT(PK5),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-267-0	01	1	0005-
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	9805-
1	BRACKET; CAB MTG EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-289-0	01	1	9805-0004
1	BRACKET; CAB MTG EXC. NEW ZEALAND EQUIPMENT(PK5),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-289-0	01	1	0005-
1	BRACKET; CAB MTG EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-288-0	01	1	9805-0004
1	BRACKET; CAB MTG EXC. NEW ZEALAND EQUIPMENT(PK5),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-288-0	01	1	0005-
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9601-
3	TORSION BAR	1-09585-130-0	01	1	9601-
3	TORSION BAR	1-09585-129-0	01	1	9601-
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	9601-0306
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9601-1201
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9601-
30	BOLT; CAB FRT FOOT (A) M14X50	9-92061-450-0	10	1	9601-0201
30	BOLT; CAB FRT FOOT (A) M14X45	9-92061-445-0	10	1	0202-
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	9601-
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	9601-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	1-53458-634-0	02	1	9601-9804
33	BUSHING; RUBBER,CAB MTG BRKT,FRT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53458-634-0	02	1	9805-0004
33	BUSHING; RUBBER,CAB MTG BRKT,FRT NEW ZEALAND EQUIPMENT(PK5),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53458-634-0	02	1	0005-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	1-53458-635-0	02	1	9601-9804
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53458-681-0	02	1	9805-0004
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53458-681-0	02	1	0005-
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0605-0904
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9601-
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9601-0604
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0605-0904
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9601-
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9601-
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9601-
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9601-
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9601-
99	BOLT; BRKT (C) M8X20 FLANGE	0-28080-820-0	08	1	9601-9606
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9607-0512
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-
99	BOLT; BRKT (A) M12X25 FLANGE	0-28081-225-0	04	1	9601-9606
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9607-0512
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9601-9606
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-0512
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9601-
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	9601-0512
156	NUT; CAB MTG RR M16	0-91110-516-0	02	1	0601-
159	RUBBER; CUSHION,CAB MTG	1-53458-285-0	02	1	9601-
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28080-820-0	04	1	9601-9606
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9607-0512
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28650-820-0	04	1	0601-
173	MEMBER; CAB MTG RR EURO3 SPECIFICATION<NJX>	1-53454-861-2	01	1	0605-
173	MEMBER; CAB MTG RR	1-53454-599-3	01	1	9601-9804
173	MEMBER; CAB MTG RR	1-53454-705-2	01	1	9805-0604
173	MEMBER; CAB MTG RR EXC. EURO3 SPECIFICATION<NJX>	1-53454-705-3	01	1	0605-
175	BOLT; MEMBER TO FRAME M12X40	9-92061-240-0	08	1	9601-0512
175	BOLT; MEMBER TO FRAME M12X40	0-20951-240-0	08	1	0601-
177	BRACKET; MEMBER	1-53454-529-1	01	1	9601-9804
177	BRACKET; MEMBER	1-53454-528-1	01	1	9601-9804
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9601-0603
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-
199	BRACKET; CAB RR MTG	1-53454-627-1	02	1	9601-9804
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	9805-0207
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	0208-1403
199	BRACKET; CAB RR MTG	8-98269-637-0	02	1	1404-
294	MEMBER; FLOATING	1-53454-602-0	01	1	9601-
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	9601-
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9601-0512
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9601-0603
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-
325	BOLT; GUIDE NUT M12X35 FLANGE	0-28081-235-0	02	1	9601-9606
325	BOLT; GUIDE NUT M12X35 FLANGE	0-28681-235-0	02	1	9607-9612
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-0512
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9601-9612
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9601-0109
326	NUT; GUIDE NUT (B) M12 SELF LOCK	8-97028-390-1	02	1	0110-
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9601-
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9601-
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	9601-0306
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53457-076-1	04	1	0307-
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	9601-0603
413	WASHER; LK,CAB MTG RR (B) ID=16.2	0-91510-816-0	02	1	0604-
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	9601-
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	9601-

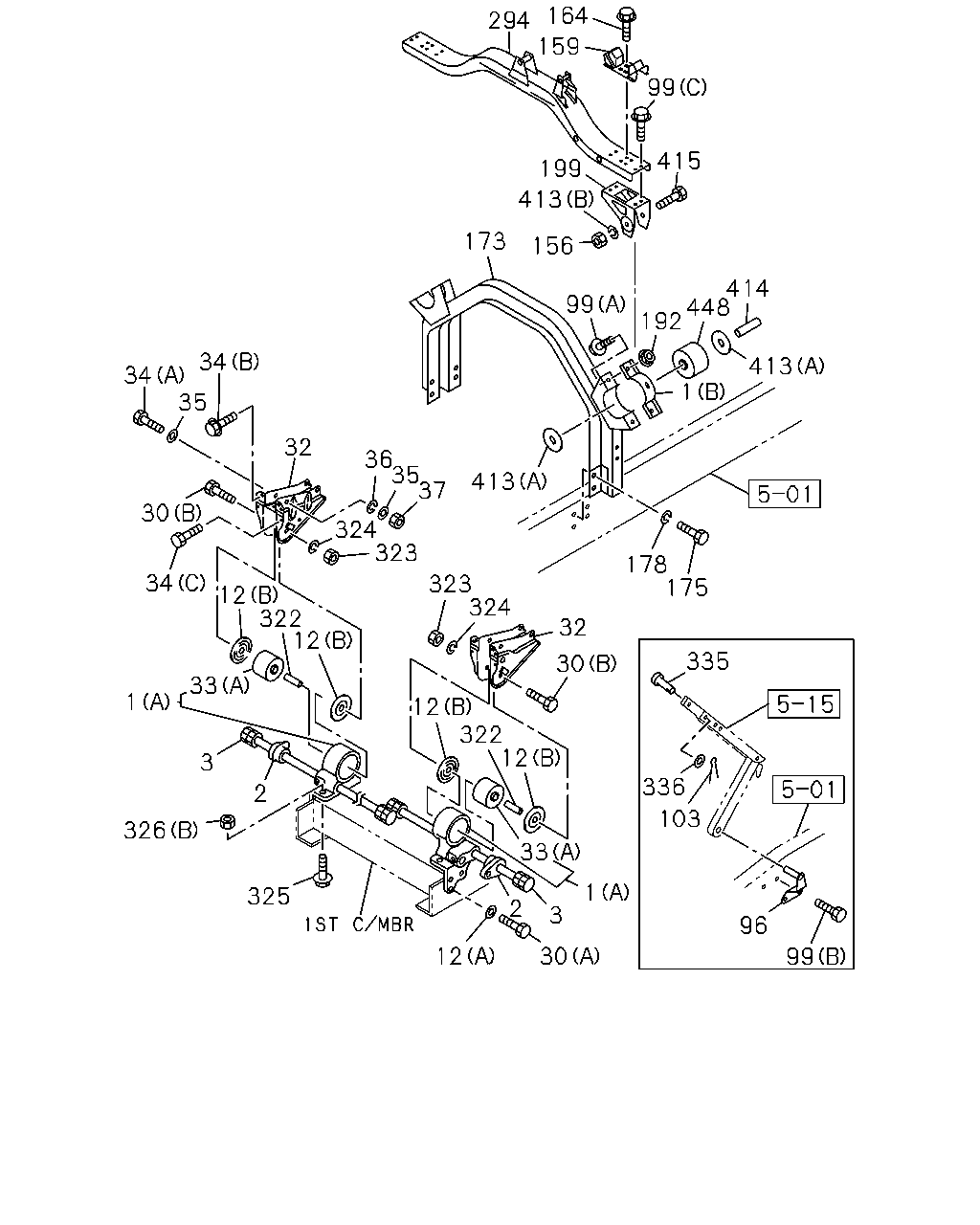

164 294 159 99 415 199 413 173 156 414 448 192 99 34 413 34 35 1 32 36 35 37 413 30 324 323 178 175 34 323 324 12 322 2 32 335 30 33 1 12 322 12 3 336 2 103 326 33 1 325 2 3 96 12 30 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG (A)	1-53453-268-0	01	1	9601-9804
1	BRACKET; CAB MTG NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-268-0	01	1	9805-0004
1	BRACKET; CAB MTG NEW ZEALAND EQUIPMENT(PK5),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-268-0	01	1	0005-
1	BRACKET; CAB MTG (A)	1-53453-267-0	01	1	9601-9804
1	BRACKET; CAB MTG NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-267-0	01	1	9805-0004
1	BRACKET; CAB MTG NEW ZEALAND EQUIPMENT(PK5),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-267-0	01	1	0005-
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	9805-
1	BRACKET; CAB MTG EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-289-0	01	1	9805-0004
1	BRACKET; CAB MTG EXC. NEW ZEALAND EQUIPMENT(PK5),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-289-0	01	1	0005-
1	BRACKET; CAB MTG EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-288-0	01	1	9805-0004
1	BRACKET; CAB MTG EXC. NEW ZEALAND EQUIPMENT(PK5),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53453-288-0	01	1	0005-
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9601-
3	TORSION BAR	1-09585-130-0	01	1	9601-
3	TORSION BAR	1-09585-129-0	01	1	9601-
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	9601-0306
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9601-1201
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9601-
30	BOLT; CAB FRT FOOT (A) M14X50	9-92061-450-0	10	1	9601-0201
30	BOLT; CAB FRT FOOT (A) M14X45	9-92061-445-0	10	1	0202-
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	9601-
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	9601-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	1-53458-634-0	02	1	9601-9804
33	BUSHING; RUBBER,CAB MTG BRKT,FRT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53458-634-0	02	1	9805-0004
33	BUSHING; RUBBER,CAB MTG BRKT,FRT NEW ZEALAND EQUIPMENT(PK5),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53458-634-0	02	1	0005-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	1-53458-635-0	02	1	9601-9804
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53458-681-0	02	1	9805-0004
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),SOUTH AFRICA EQUIPMENT(WG4) (A)	1-53458-681-0	02	1	0005-
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0605-0904
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9601-
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9601-0604
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0605-0904
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9601-
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9601-
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9601-
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9601-
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9601-
99	BOLT; BRKT (C) M8X20 FLANGE	0-28080-820-0	08	1	9601-9606
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9607-0512
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-
99	BOLT; BRKT (A) M12X25 FLANGE	0-28081-225-0	04	1	9601-9606
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9607-0512
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9601-9606
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-0512
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9601-
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	9601-0512
156	NUT; CAB MTG RR M16	0-91110-516-0	02	1	0601-
159	RUBBER; CUSHION,CAB MTG	1-53458-285-0	02	1	9601-
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28080-820-0	04	1	9601-9606
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9607-0512
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28650-820-0	04	1	0601-
173	MEMBER; CAB MTG RR EURO3 SPECIFICATION<NJX>	1-53454-861-2	01	1	0605-
173	MEMBER; CAB MTG RR	1-53454-599-3	01	1	9601-9804
173	MEMBER; CAB MTG RR	1-53454-705-2	01	1	9805-0604
173	MEMBER; CAB MTG RR EXC. EURO3 SPECIFICATION<NJX>	1-53454-705-3	01	1	0605-
175	BOLT; MEMBER TO FRAME M12X40	9-92061-240-0	08	1	9601-0512
175	BOLT; MEMBER TO FRAME M12X40	0-20951-240-0	08	1	0601-
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9601-0603
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-
192	NUT; BRKT FIX M12 FLANGE	0-91150-212-0	04	1	9805-0602
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0603-
199	BRACKET; CAB RR MTG	1-53454-627-1	02	1	9601-9804
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	9805-0207
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	0208-1403
199	BRACKET; CAB RR MTG	8-98269-637-0	02	1	1404-
294	MEMBER; FLOATING	1-53454-602-0	01	1	9601-
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	9601-
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9601-0512
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9601-0603
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-
325	BOLT; GUIDE NUT M12X35 FLANGE	0-28081-235-0	02	1	9601-9606
325	BOLT; GUIDE NUT M12X35 FLANGE	0-28681-235-0	02	1	9607-9612
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-0512
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9601-9612
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9601-0109
326	NUT; GUIDE NUT (B) M12 SELF LOCK	8-97028-390-1	02	1	0110-
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9601-
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9601-
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	9601-0306
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53457-076-1	04	1	0307-
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	9601-0603
413	WASHER; LK,CAB MTG RR (B) ID=16.2	0-91510-816-0	02	1	0604-
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	9601-
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	9601-
448	BUSHING; CAB MTG	1-53458-635-0	02	1	9805-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
