Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#65150) — 198 parça

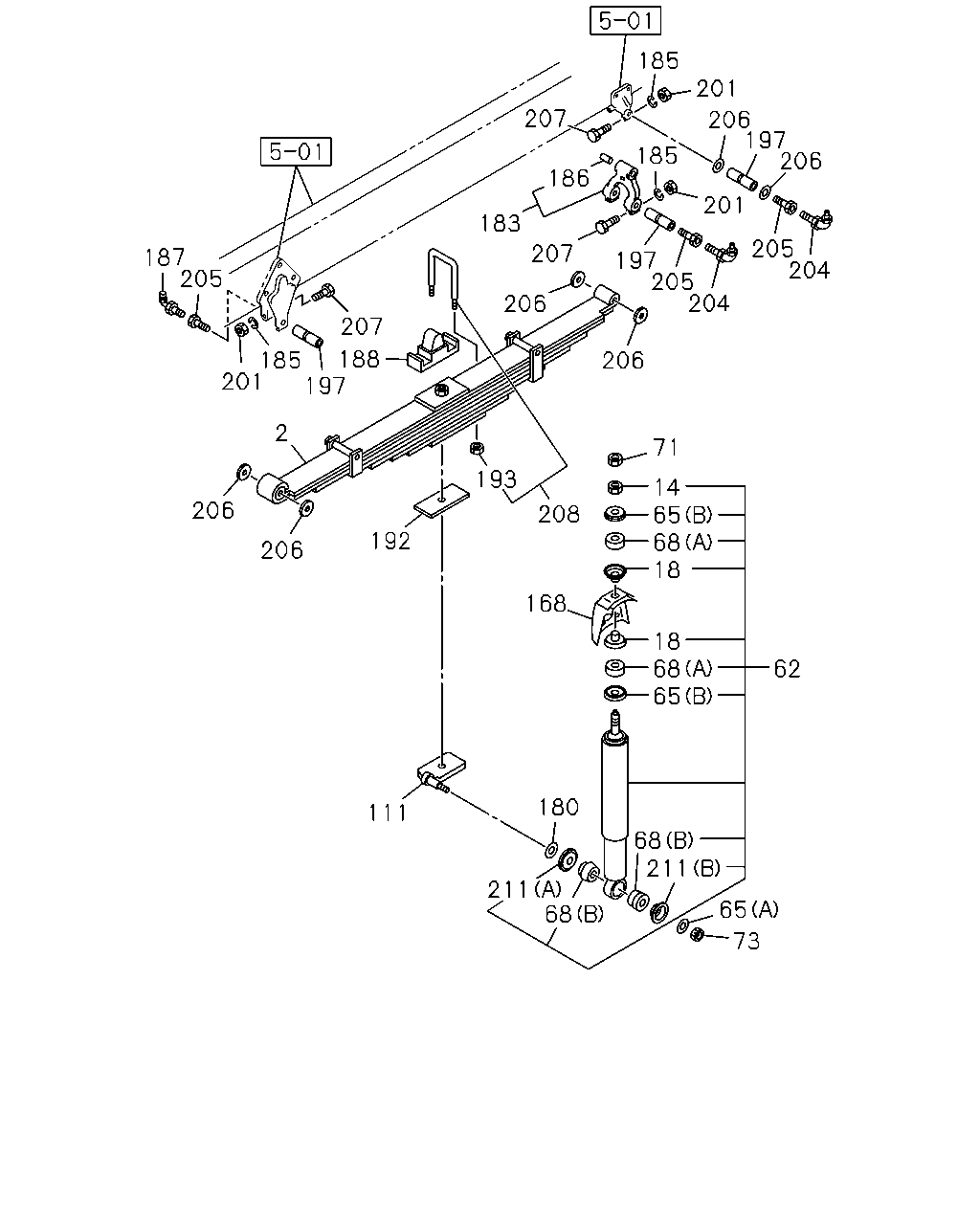

185 201 207 206 197 206 185 186 201 183 205 204 207 187 205 197 205 204 206 207 185 188 201 197 206 2 71 193 14 65 68 18 206 208 192 206 168 18 68 65 62 180 111 68 211 211 68 65 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 9-LEAF	1-51130-476-0	01	1	9601-9711
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF	1-51130-474-0	01	1	9712-0010
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> 8-LEAF	1-51130-474-0	01	1	0011-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 9-LEAF	1-51130-349-0	01	1	9601-9711
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF	1-51130-343-0	01	1	9712-0010
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> 8-LEAF	1-51130-343-0	01	1	0011-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> 3-LEAF	1-51130-744-0	01	1	0011-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> 3-LEAF	1-51130-743-0	01	1	0011-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 9-LEAF	1-51130-349-0	02	1	9601-0004
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 9-LEAF	1-51130-349-0	02	1	0005-
14	NUT; S/ABS,UPR M14	9-99111-414-0	02	1	9601-9804
14	NUT; S/ABS,UPR M14	9-99111-414-0	02	1	9805-0010
14	NUT; S/ABS,UPR EXC. FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	02	1	0011-0101
14	NUT; S/ABS,UPR FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> M14	9-99111-414-0	02	1	0011-0101
14	NUT; S/ABS,UPR M14	9-99111-414-0	02	1	0102-
18	WASHER; CENTERING,S/ABS ID=24	1-51631-067-0	04	1	9601-9711
18	WASHER; CENTERING,S/ABS EXC. FRONT STABILIZER SHAFT<F59> ID=24	1-51631-067-0	04	1	9712-9804
18	WASHER; CENTERING,S/ABS FRONT STABILIZER SHAFT<F59> ID=20.8	9-51631-041-0	04	1	9712-9804
18	WASHER; CENTERING,S/ABS ID=20.8	9-51631-041-0	04	1	9805-0010
18	WASHER; CENTERING,S/ABS EXC. FRONT STABILIZER SHAFT<F59> ID=20.8	9-51631-041-0	04	1	0011-
18	WASHER; CENTERING,S/ABS FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> ID=20.8	9-51631-041-0	04	1	0011-
18	WASHER; CENTERING,S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> ID=24	1-51631-067-0	04	1	0102-
62	ABSORBER ASM; SHOCK,FRT FRONT STABILIZER SHAFT<F59>	1-51630-644-0	02	1	9712-0010
62	ABSORBER ASM; SHOCK,FRT FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36>	1-51630-644-0	02	1	0011-
62	ABSORBER ASM; SHOCK,FRT FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36>	1-51630-415-0	02	1	0011-0101
62	ABSORBER ASM; SHOCK,FRT FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36>	1-51600-415-0	02	1	0102-
62	ABSORBER ASM; SHOCK,FRT EXC. FRONT STABILIZER SHAFT<F59>	1-51630-433-1	02	1	9601-9804
62	ABSORBER ASM; SHOCK,FRT EXC. FRONT STABILIZER SHAFT<F59>	1-51630-579-0	02	1	9805-
62	ABSORBER ASM; SHOCK,FRT EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS	1-87610-155-0	02	1	9805-
65	WASHER; S/ABS (A) ID=16.5	1-09503-266-0	02	1	9601-9711
65	WASHER; S/ABS EXC. FRONT STABILIZER SHAFT<F59> (A) ID=16.5	1-09503-266-0	02	1	9712-9804
65	WASHER; S/ABS (B) ID=16.5	1-51631-068-0	04	1	9601-9711
65	WASHER; S/ABS EXC. FRONT STABILIZER SHAFT<F59> (B) ID=16.5	1-51631-068-0	04	1	9712-9804
65	WASHER; S/ABS FRONT STABILIZER SHAFT<F59> (B) ID=16.5	9-51631-040-0	04	1	9712-9804
65	WASHER; S/ABS (B) ID=16.5	9-51631-040-0	04	1	9805-0010
65	WASHER; S/ABS EXC. FRONT STABILIZER SHAFT<F59> (B) ID=16.5	9-51631-040-0	04	1	0011-
65	WASHER; S/ABS FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> (B) ID=16.5	9-51631-040-0	04	1	0011-
65	WASHER; S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> (B) ID=27	9-51631-027-0	02	1	0011-0101
65	WASHER; S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> (B) ID=16.5	1-09503-266-0	02	1	0102-
65	WASHER; S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> (B) ID=21	9-51631-028-0	02	1	0011-0101
65	WASHER; S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> (B) ID=16.5	1-51631-068-0	04	1	0102-
68	BUSHING; S/ABS (A) ID=16 T=25	1-51631-069-0	04	1	9601-9711
68	BUSHING; S/ABS EXC. FRONT STABILIZER SHAFT<F59> (A) ID=16 T=25	1-51631-069-0	04	1	9712-9804
68	BUSHING; S/ABS (B)	9-51631-026-0	04	1	9601-0010
68	BUSHING; S/ABS EXC. FRONT STABILIZER SHAFT<F59> (B)	9-51631-026-0	04	1	0011-0101
68	BUSHING; S/ABS FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> (B)	9-51631-026-0	04	1	0011-0101
68	BUSHING; S/ABS (B)	9-51631-026-0	04	1	0102-
68	BUSHING; S/ABS FRONT STABILIZER SHAFT<F59> (A)	9-51631-039-0	04	1	9712-9804
68	BUSHING; S/ABS (A)	9-51631-039-0	04	1	9805-0010
68	BUSHING; S/ABS EXC. FRONT STABILIZER SHAFT<F59> (A)	9-51631-039-0	04	1	0011-
68	BUSHING; S/ABS FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> (A)	9-51631-039-0	04	1	0011-
68	BUSHING; S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> (C)	9-51631-026-0	08	1	0011-0101
68	BUSHING; S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> (B) ID=16 T=25	1-51631-069-0	04	1	0102-
71	NUT; LK,S/ABS,UPR M14	9-99111-414-0	02	1	9601-0512
71	NUT; LK,S/ABS,UPR M14	0-91111-514-0	02	1	0601-
73	NUT; BRKT,SHOCK M20	9-99110-420-0	02	1	9601-0311
73	NUT; BRKT,SHOCK M20	9-99110-520-0	02	1	0312-0512
73	NUT; BRKT,SHOCK M20	0-91110-520-0	02	1	0601-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>	1-51681-723-1	01	1	9601-1004
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>	8-98153-484-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>	1-51681-722-1	01	1	9601-1004
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>	8-98153-483-0	01	1	1005-
168	BRACKET; S/ABS,FRT SUSP	1-51681-616-0	02	1	9601-
180	WASHER; PL,PIN ID=21	9-09160-520-0	02	1	9601-0605
180	WASHER; PL,PIN ID=21	0-91610-520-0	02	1	0606-
183	SHACKLE; FRT SUSP	1-51162-029-5	02	1	9601-
185	WASHER; LK,PIN ID=12.2	9-09150-612-0	12	1	9601-0603
185	WASHER; LK,PIN ID=12.2	0-91510-612-0	12	1	0604-
186	BUSHING; SHACKLE OD=38	1-51351-009-0	02	1	9601-0902
186	BUSHING; SHACKLE OD=38	8-98081-829-0	02	1	0903-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	9601-0512
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0601-
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-088-1	02	1	9601-
192	PIECE; DIST EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5	1-51177-284-1	01	1	9601-
193	NUT; U BOLT M22	9-09112-822-0	08	1	9601-0512
193	NUT; U BOLT M22	0-91112-822-0	08	1	0601-1206
193	NUT; U BOLT M22	8-98179-318-0	08	1	1207-
197	PIN; FRT SPR,FRT	1-51161-031-0	06	1	9601-
201	NUT; PIN LK M12	9-99110-512-0	12	1	9601-0512
201	NUT; PIN LK M12	0-91110-512-0	12	1	0601-
204	NIPPLE; GREASE,RR PT1/8 ELBOW	9-09031-210-0	02	1	9601-0512
204	NIPPLE; GREASE,RR PT1/8 ELBOW	0-90301-610-0	02	1	0601-
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	02	1	9601-0512
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	06	1	9601-
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	12	1	9601-
207	BOLT; SPR TO SHACKLE M12X80	0-10806-280-0	12	1	9601-0512
207	BOLT; SPR TO SHACKLE M12X80	0-10856-280-0	12	1	0601-
208	U-BOLT SET; FRT SPRING L=210	1-87870-380-0	04	1	9601-9606
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=210	1-87870-380-0	04	1	9607-9711
208	U-BOLT SET; FRT SPRING L=210	1-87870-380-0	04	1	9712-0011
208	U-BOLT SET; FRT SPRING EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> L=210	1-87870-380-1	04	1	0012-1206
208	U-BOLT SET; FRT SPRING EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> L=210	1-87870-498-0	04	1	1207-
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> L=230	1-87870-269-1	04	1	9607-9711
208	U-BOLT SET; FRT SPRING FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> L=190	1-87870-163-4	04	1	0012-
211	WASHER; BRKT,SHOCK (A) ID=27	9-51631-027-0	02	1	9601-
211	WASHER; BRKT,SHOCK (B) ID=21	9-51631-028-0	02	1	9601-

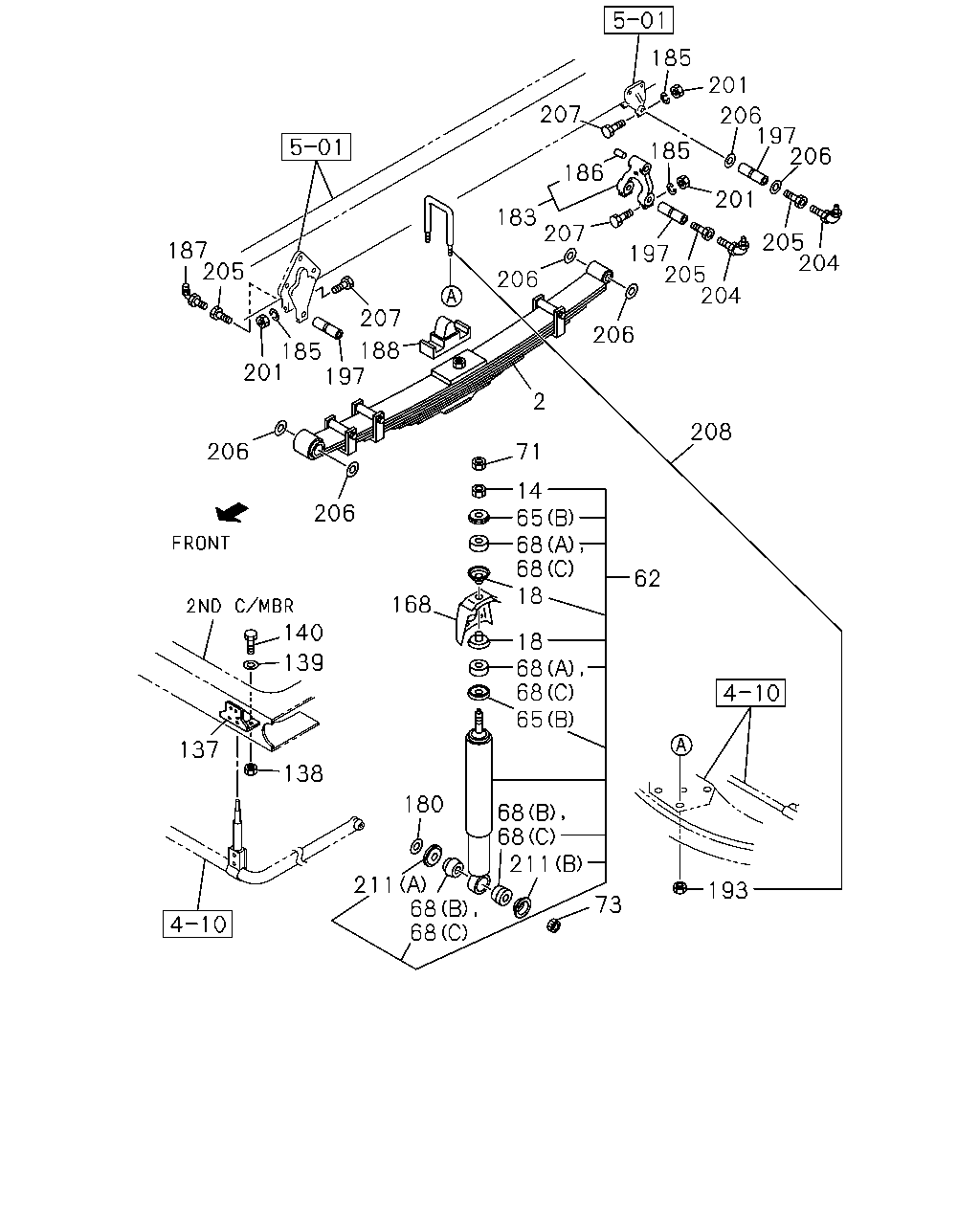

185 201 207 206 197 206 185 186 201 183 207 205 204 187 205 197 205 204 206 207 206 185 188 201 197 2 208 206 71 14 65 68 68 18 206 62 168 140 18 68 68 65 139 137 138 180 68 68 211 211 68 68 193 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 9-LEAF	1-51130-476-0	01	1	9601-9711
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF	1-51130-474-0	01	1	9712-0010
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> 8-LEAF	1-51130-474-0	01	1	0011-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 9-LEAF	1-51130-349-0	01	1	9601-9711
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF	1-51130-343-0	01	1	9712-0010
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> 8-LEAF	1-51130-343-0	01	1	0011-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> 3-LEAF	1-51130-744-0	01	1	0011-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> 3-LEAF	1-51130-743-0	01	1	0011-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 9-LEAF	1-51130-349-0	02	1	9601-0004
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 9-LEAF	1-51130-349-0	02	1	0005-
14	NUT; S/ABS,UPR M14	9-99111-414-0	02	1	9601-9804
14	NUT; S/ABS,UPR M14	9-99111-414-0	02	1	9805-0010
14	NUT; S/ABS,UPR EXC. FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	02	1	0011-0101
14	NUT; S/ABS,UPR FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> M14	9-99111-414-0	02	1	0011-0101
14	NUT; S/ABS,UPR M14	9-99111-414-0	02	1	0102-
18	WASHER; CENTERING,S/ABS ID=24	1-51631-067-0	04	1	9601-9711
18	WASHER; CENTERING,S/ABS EXC. FRONT STABILIZER SHAFT<F59> ID=24	1-51631-067-0	04	1	9712-9804
18	WASHER; CENTERING,S/ABS FRONT STABILIZER SHAFT<F59> ID=20.8	9-51631-041-0	04	1	9712-9804
18	WASHER; CENTERING,S/ABS ID=20.8	9-51631-041-0	04	1	9805-0010
18	WASHER; CENTERING,S/ABS EXC. FRONT STABILIZER SHAFT<F59> ID=20.8	9-51631-041-0	04	1	0011-
18	WASHER; CENTERING,S/ABS FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> ID=20.8	9-51631-041-0	04	1	0011-
18	WASHER; CENTERING,S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> ID=24	1-51631-067-0	04	1	0102-
62	ABSORBER ASM; SHOCK,FRT FRONT STABILIZER SHAFT<F59>	1-51630-644-0	02	1	9712-0010
62	ABSORBER ASM; SHOCK,FRT FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36>	1-51630-644-0	02	1	0011-
62	ABSORBER ASM; SHOCK,FRT FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36>	1-51630-415-0	02	1	0011-0101
62	ABSORBER ASM; SHOCK,FRT FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36>	1-51600-415-0	02	1	0102-
62	ABSORBER ASM; SHOCK,FRT EXC. FRONT STABILIZER SHAFT<F59>	1-51630-433-1	02	1	9601-9804
62	ABSORBER ASM; SHOCK,FRT EXC. FRONT STABILIZER SHAFT<F59>	1-51630-579-0	02	1	9805-
62	ABSORBER ASM; SHOCK,FRT EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS	1-87610-155-0	02	1	9805-
65	WASHER; S/ABS (A) ID=16.5	1-09503-266-0	02	1	9601-9711
65	WASHER; S/ABS EXC. FRONT STABILIZER SHAFT<F59> (A) ID=16.5	1-09503-266-0	02	1	9712-9804
65	WASHER; S/ABS (B) ID=16.5	1-51631-068-0	04	1	9601-9711
65	WASHER; S/ABS EXC. FRONT STABILIZER SHAFT<F59> (B) ID=16.5	1-51631-068-0	04	1	9712-9804
65	WASHER; S/ABS FRONT STABILIZER SHAFT<F59> (B) ID=16.5	9-51631-040-0	04	1	9712-9804
65	WASHER; S/ABS (B) ID=16.5	9-51631-040-0	04	1	9805-0010
65	WASHER; S/ABS EXC. FRONT STABILIZER SHAFT<F59> (B) ID=16.5	9-51631-040-0	04	1	0011-
65	WASHER; S/ABS FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> (B) ID=16.5	9-51631-040-0	04	1	0011-
65	WASHER; S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> (B) ID=27	9-51631-027-0	02	1	0011-0101
65	WASHER; S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> (B) ID=16.5	1-09503-266-0	02	1	0102-
65	WASHER; S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> (B) ID=21	9-51631-028-0	02	1	0011-0101
65	WASHER; S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> (B) ID=16.5	1-51631-068-0	04	1	0102-
68	BUSHING; S/ABS (A) ID=16 T=25	1-51631-069-0	04	1	9601-9711
68	BUSHING; S/ABS EXC. FRONT STABILIZER SHAFT<F59> (A) ID=16 T=25	1-51631-069-0	04	1	9712-9804
68	BUSHING; S/ABS (B)	9-51631-026-0	04	1	9601-0010
68	BUSHING; S/ABS EXC. FRONT STABILIZER SHAFT<F59> (B)	9-51631-026-0	04	1	0011-0101
68	BUSHING; S/ABS FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> (B)	9-51631-026-0	04	1	0011-0101
68	BUSHING; S/ABS (B)	9-51631-026-0	04	1	0102-
68	BUSHING; S/ABS FRONT STABILIZER SHAFT<F59> (A)	9-51631-039-0	04	1	9712-9804
68	BUSHING; S/ABS (A)	9-51631-039-0	04	1	9805-0010
68	BUSHING; S/ABS EXC. FRONT STABILIZER SHAFT<F59> (A)	9-51631-039-0	04	1	0011-
68	BUSHING; S/ABS FRONT STABILIZER SHAFT<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> (A)	9-51631-039-0	04	1	0011-
68	BUSHING; S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> (C)	9-51631-026-0	08	1	0011-0101
68	BUSHING; S/ABS FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> (B) ID=16 T=25	1-51631-069-0	04	1	0102-
71	NUT; LK,S/ABS,UPR M14	9-99111-414-0	02	1	9601-0512
71	NUT; LK,S/ABS,UPR M14	0-91111-514-0	02	1	0601-
73	NUT; BRKT,SHOCK M20	9-99110-420-0	02	1	9601-0311
73	NUT; BRKT,SHOCK M20	9-99110-520-0	02	1	0312-0512
73	NUT; BRKT,SHOCK M20	0-91110-520-0	02	1	0601-
137	BRACKET; STAB BAR TO FRAME FRONT STABILIZER SHAFT<F59>	1-51781-046-3	02	1	9601-
138	NUT; BRKT FRONT STABILIZER SHAFT<F59> M10	9-09110-510-0	08	1	9601-9606
138	NUT; BRKT FRONT STABILIZER SHAFT<F59> M10 FLANGE	0-91150-210-0	08	1	9607-0602
138	NUT; BRKT FRONT STABILIZER SHAFT<F59> M10 FLANGE	0-91180-210-0	08	1	0603-
139	WASHER; PL,BRKT FRONT STABILIZER SHAFT<F59> ID=10.5 OD=26	9-09160-710-0	08	1	9601-9606
140	BOLT; BRKT FRONT STABILIZER SHAFT<F59> M10X30 FLANGE	0-28081-030-0	08	1	9601-9606
140	BOLT; BRKT FRONT STABILIZER SHAFT<F59> M10X35 FLANGE	0-28681-035-0	08	1	9607-0001
140	BOLT; BRKT FRONT STABILIZER SHAFT<F59> M10X30 FLANGE	0-28681-030-0	08	1	0002-0512
140	BOLT; BRKT FRONT STABILIZER SHAFT<F59> M10X30 FLANGE	0-28651-030-0	08	1	0601-
168	BRACKET; S/ABS,FRT SUSP	1-51681-616-0	02	1	9601-
180	WASHER; PL,PIN ID=21	9-09160-520-0	02	1	9601-0605
180	WASHER; PL,PIN ID=21	0-91610-520-0	02	1	0606-
183	SHACKLE; FRT SUSP	1-51162-029-5	02	1	9601-
185	WASHER; LK,PIN ID=12.2	9-09150-612-0	12	1	9601-0603
185	WASHER; LK,PIN ID=12.2	0-91510-612-0	12	1	0604-
186	BUSHING; SHACKLE OD=38	1-51351-009-0	02	1	9601-0902
186	BUSHING; SHACKLE OD=38	8-98081-829-0	02	1	0903-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	9601-0512
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0601-
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-088-1	02	1	9601-
193	NUT; U BOLT M22	9-09112-822-0	08	1	9601-0512
193	NUT; U BOLT M22	0-91112-822-0	08	1	0601-1206
193	NUT; U BOLT M22	8-98179-318-0	08	1	1207-
197	PIN; FRT SPR,FRT	1-51161-031-0	06	1	9601-
201	NUT; PIN LK M12	9-99110-512-0	12	1	9601-0512
201	NUT; PIN LK M12	0-91110-512-0	12	1	0601-
204	NIPPLE; GREASE,RR PT1/8 ELBOW	9-09031-210-0	02	1	9601-0512
204	NIPPLE; GREASE,RR PT1/8 ELBOW	0-90301-610-0	02	1	0601-
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	02	1	9601-0512
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	06	1	9601-
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	12	1	9601-
207	BOLT; SPR TO SHACKLE M12X80	0-10806-280-0	12	1	9601-0512
207	BOLT; SPR TO SHACKLE M12X80	0-10856-280-0	12	1	0601-
208	U-BOLT SET; FRT SPRING L=210	1-87870-380-0	04	1	9601-9606
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=210	1-87870-380-0	04	1	9607-9711
208	U-BOLT SET; FRT SPRING L=210	1-87870-380-0	04	1	9712-0011
208	U-BOLT SET; FRT SPRING EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> L=210	1-87870-380-1	04	1	0012-1206
208	U-BOLT SET; FRT SPRING EXC. FRT TAPER LEAF SUSPENSION<SAR>,FRONT SPRING LONG SPAN<W36> L=210	1-87870-498-0	04	1	1207-
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> L=230	1-87870-269-1	04	1	9607-9711
208	U-BOLT SET; FRT SPRING FRT TAPER LEAF SUSPENSION<SAR> FRONT SPRING LONG SPAN<W36> L=190	1-87870-163-4	04	1	0012-
211	WASHER; BRKT,SHOCK (A) ID=27	9-51631-027-0	02	1	9601-
211	WASHER; BRKT,SHOCK (B) ID=21	9-51631-028-0	02	1	9601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
