◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#65147) — 33 parça

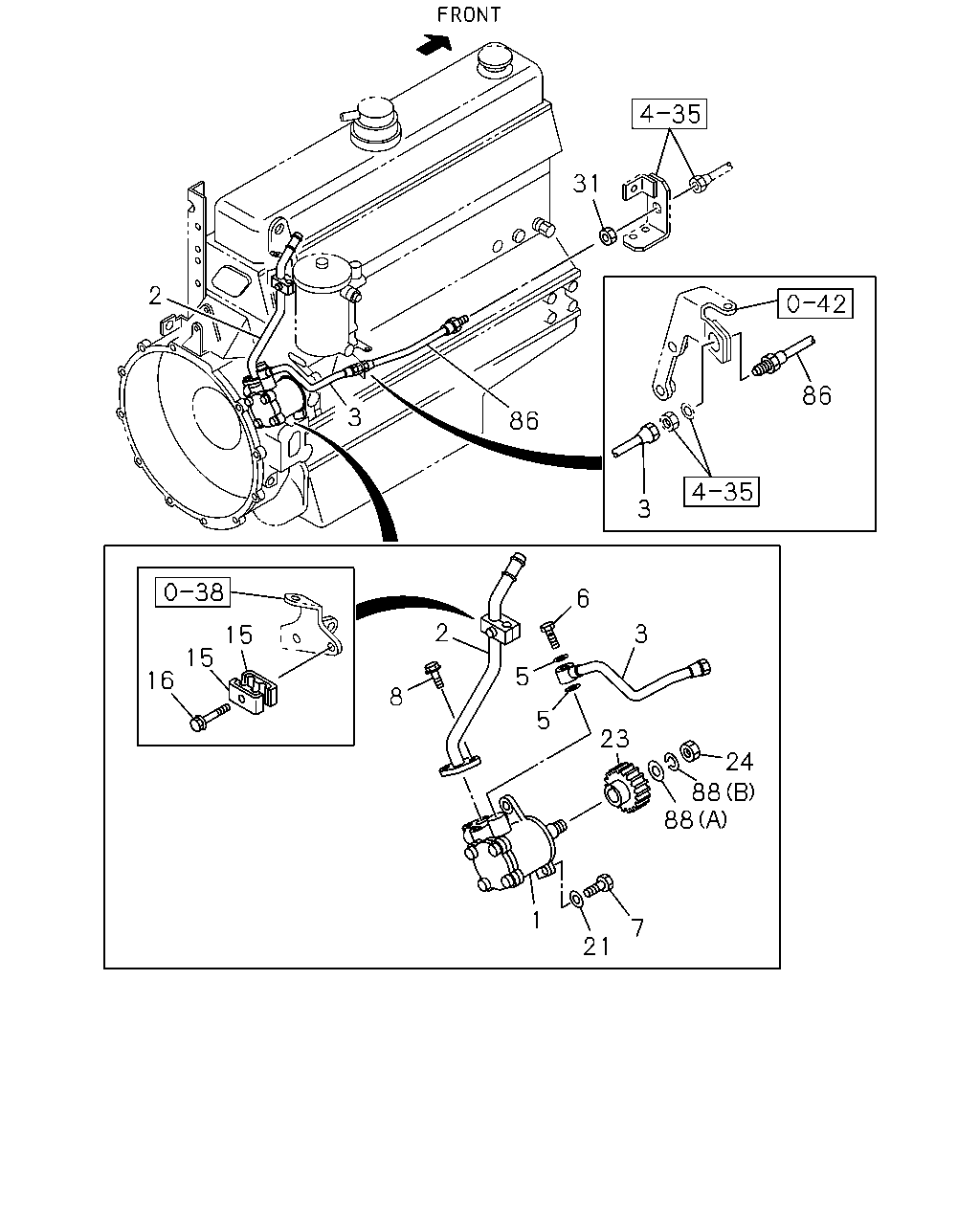

çizim 124085
31 2 86 3 86 3 6 2 3 15 15 5 16 8 5 23 24 88 88 1 7 21
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-2 01 1 9601-
2 PIPE ASM; OIL,SUCTION 1-13313-963-0 01 1 0605-
3 PIPE; OIL,CHARGE,P/S 1-13313-962-0 01 1 0605-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 0605-
6 BOLT; EYE,P/S PIPE
M18X36 		1-09675-205-0 01 1 0605-
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 9601-
8 BOLT; OIL PIPE
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 0605-0906
8 BOLT; OIL PIPE
M8X18 W/LK&PL WASHER 		0-50640-818-0 02 1 0907-
15 CLIP; OIL PIPE SUCTION 1-09701-210-0 02 1 0605-
16 BOLT; STAY,P/S OIL PUMP
M6X45 FLANGE 		0-28050-645-0 01 1 0605-
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 9601-0605
21 WASHER; PL,P/S OIL PUMP
ID=12.5 OD=22 		0-91610-512-0 02 1 0606-
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 9601-
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 9601-
31 NUT; FLEX HOSE
M20 		9-99111-420-0 01 1 9601-0512
31 NUT; FLEX HOSE
M20 		0-91111-520-0 01 1 0601-
86 HOSE; FLEX,P/S
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> 		0-09536-400-0 01 1 0605-0606
86 HOSE; FLEX,P/S 0-89536-400-0 01 1 0607-
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 9601-
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 9601-

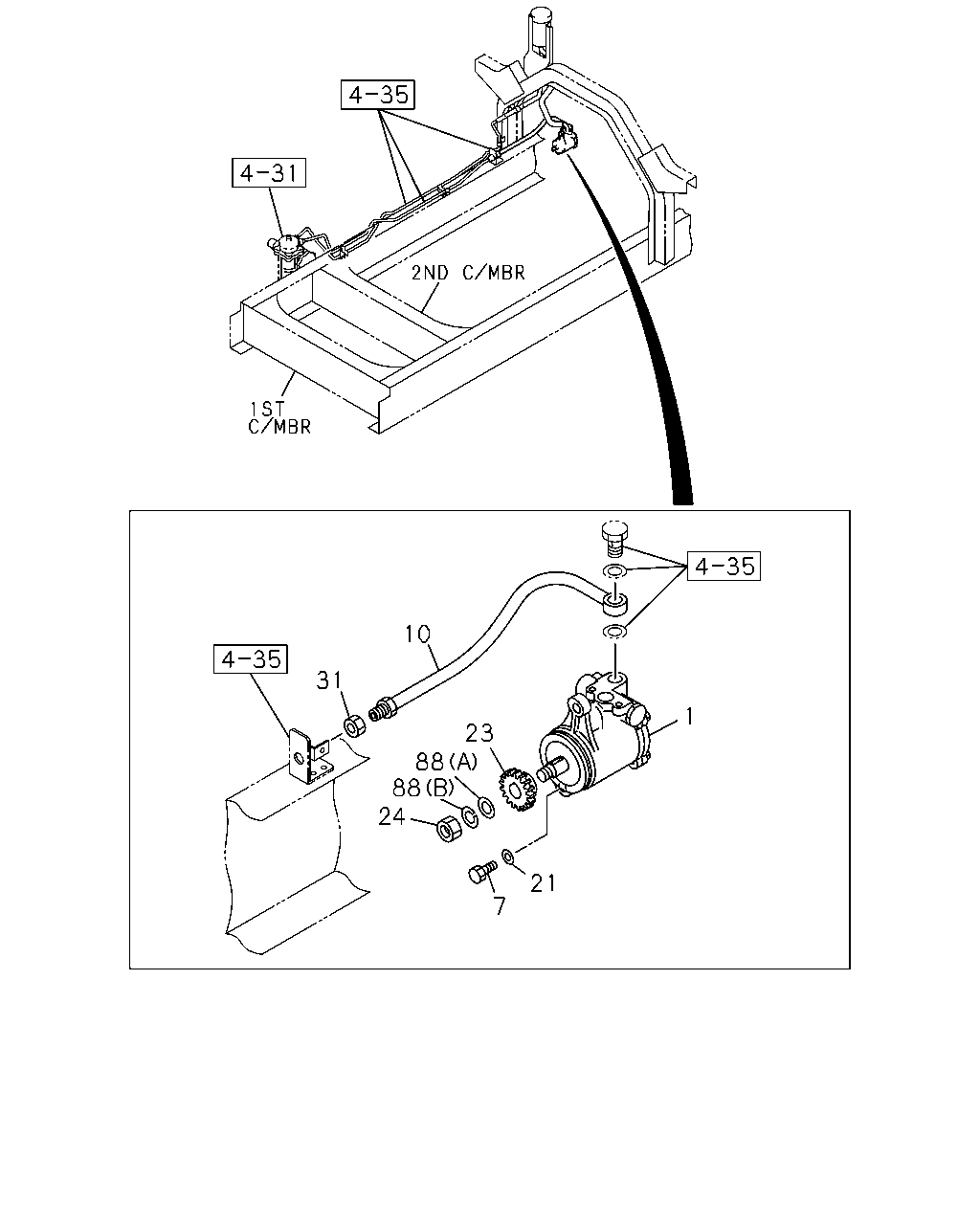

çizim 184592
10 31 1 23 88 88 24 21 7
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-2 01 1 9601-
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 9601-
10 HOSE; FLEX,P/S OIL PUMP,INL 0-09539-520-0 01 1 9601-0604
10 HOSE; FLEX,P/S OIL PUMP,INL
EXC. EURO3 SPECIFICATION<NJX> 		0-09539-520-0 01 1 0605-0606
10 HOSE; FLEX,P/S OIL PUMP,INL
EXC. EURO3 SPECIFICATION<NJX> 		0-89539-520-0 01 1 0607-
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 9601-0605
21 WASHER; PL,P/S OIL PUMP
ID=12.5 OD=22 		0-91610-512-0 02 1 0606-
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 9601-
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 9601-
31 NUT; FLEX HOSE
M20 		9-99111-420-0 01 1 9601-0512
31 NUT; FLEX HOSE
M20 		0-91111-520-0 01 1 0601-
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 9601-
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 9601-
