4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#65146) — 122 parça

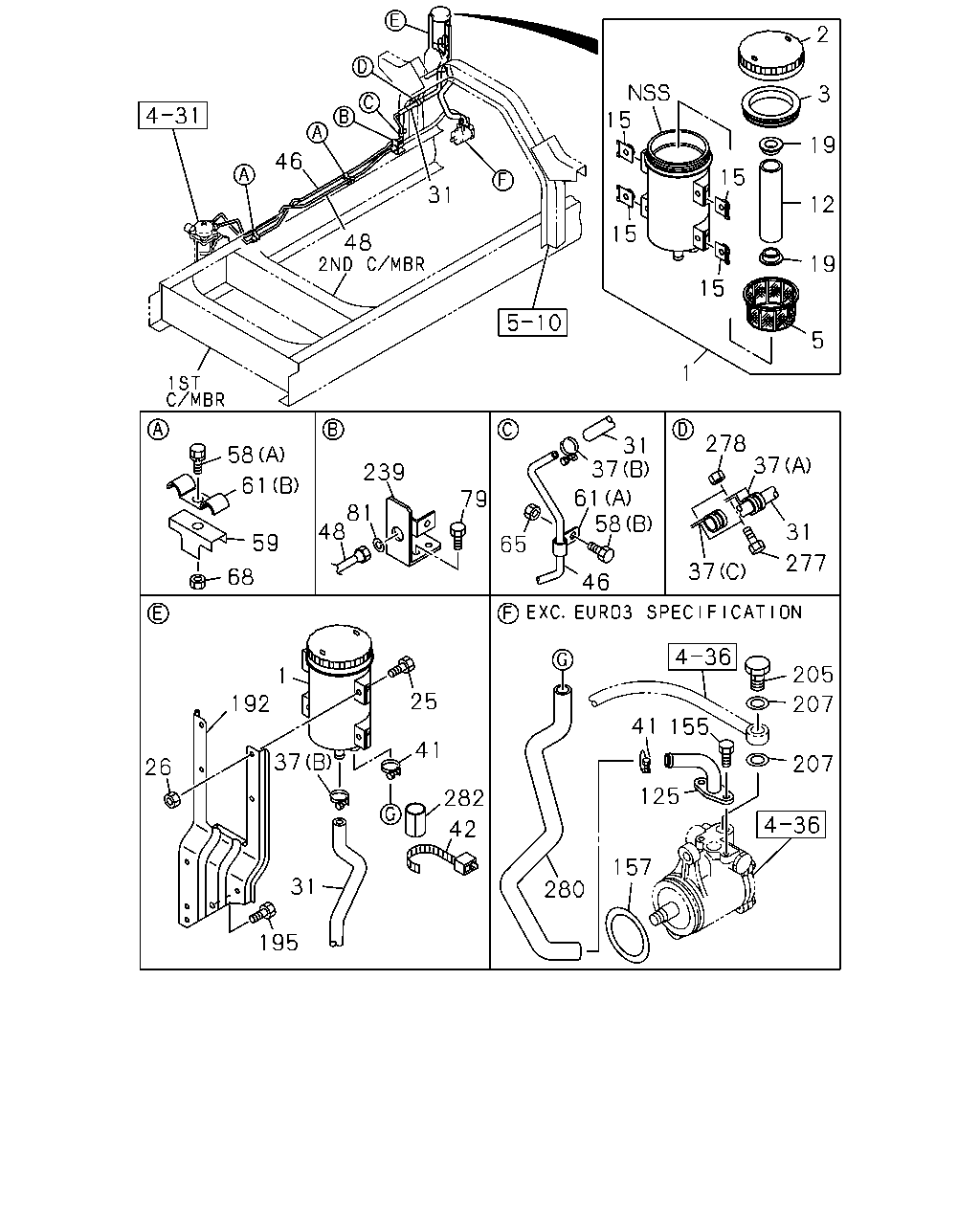

çizim 184602
2 15 3 19 46 15 31 12 15 48 19 15 5 1 278 37 31 37 58 239 61 61 58 79 81 48 31 59 65 277 37 68 46 205 1 192 25 207 41 155 41 37 207 26 125 282 42 157 31 280 195
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-152-6 01 1 9601-0508
1 TANK ASM; OIL,P/S 1-21210-237-2 01 1 0509-1006
1 TANK ASM; OIL,P/S 8-98166-927-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 9601-1006
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9601-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9601-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 9601-
15 PLATE; FILTER,OIL TANK 1-21249-007-1 04 1 9601-0508
15 PLATE; FILTER,OIL TANK 1-21249-016-0 04 1 0509-
19 SEAT; OIL TANK 1-21249-004-0 02 1 9601-
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 9607-0512
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
26 NUT; OIL TANK TO BRKT
M8 		9-09110-408-0 04 1 9601-9606
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 9607-0602
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
31 HOSE; P/S OIL TANK,INL
EURO3 SPECIFICATION<NJX> 		1-21116-974-0 01 1 0605-
31 HOSE; P/S OIL TANK,INL 1-21115-465-2 01 1 9601-0604
31 HOSE; P/S OIL TANK,INL
EXC. EURO3 SPECIFICATION<NJX> 		1-21115-465-2 01 1 0605-
37 CLIP; HOSE,P/S
EURO3 SPECIFICATION<NJX> (C) ID=24 L=24 		1-09701-001-1 01 1 0605-
37 CLIP; HOSE,P/S
(A) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9601-0108
37 CLIP; HOSE,P/S
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-
37 CLIP; HOSE,P/S
(B) ID=26 		1-09704-082-0 02 1 9601-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9601-
42 CLIP; HOSE,P/S
L=250 		1-09707-126-0 01 1 9601-
46 PIPE; OIL,P/S UNIT TO OIL TANK
EURO3 SPECIFICATION<NJX> 		1-21117-896-0 01 1 0605-
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21115-566-0 01 1 9601-9804
46 PIPE; OIL,P/S UNIT TO OIL TANK
FULLER M/T<X9B>,ZF M/T<X9E> 		1-21115-566-0 01 1 9805-0004
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21115-566-0 01 1 0005-0604
46 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. EURO3 SPECIFICATION<NJX> 		1-21115-566-0 01 1 0605-
46 PIPE; OIL,P/S UNIT TO OIL TANK
A/T<X9D> 		1-21116-048-0 01 1 9805-0004
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
EURO3 SPECIFICATION<NJX> 		1-21117-895-0 01 1 0605-
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 1-21115-563-0 01 1 9601-9804
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
FULLER M/T<X9B>,ZF M/T<X9E> 		1-21115-563-0 01 1 9805-0004
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 1-21115-563-0 01 1 0005-0604
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
EXC. EURO3 SPECIFICATION<NJX> 		1-21115-563-0 01 1 0605-
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
A/T<X9D> 		1-21116-047-0 01 1 9805-0004
58 BOLT; CLIP
EXC. TRANSMISSION OIL COOLER<C2C> (A) M8X45 FLANGE 		0-28080-845-0 02 1 0302-0512
58 BOLT; CLIP
EXC. TRANSMISSION OIL COOLER<C2C> (A) M8X45 FLANGE 		0-28050-845-0 02 1 0601-
58 BOLT; CLIP
(B) M8X25 FLANGE 		0-28080-825-0 01 1 9601-9606
58 BOLT; CLIP
(A) M8X45 FLANGE 		0-28080-845-0 02 1 9607-9804
58 BOLT; CLIP
A/T<X9D> (A) M8X45 FLANGE 		0-28080-845-0 01 1 9805-0004
58 BOLT; CLIP
(A) M8X45 FLANGE 		0-28080-845-0 02 1 0005-0301
58 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> (A) M8X45 FLANGE 		0-28080-845-0 01 1 0302-0512
58 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> (A) M8X45 FLANGE 		0-28050-845-0 01 1 0601-
58 BOLT; CLIP
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9601-9606
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9607-0512
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
58 BOLT; CLIP
FULLER M/T<X9B>,ZF M/T<X9E> (A) M8X45 FLANGE 		0-28080-845-0 02 1 9805-0004
59 BRACKET; CLIP,OIL PIPE
EXC. TRANSMISSION OIL COOLER<C2C> 		1-47475-427-1 02 1 0302-
59 BRACKET; CLIP,OIL PIPE 1-47475-427-1 02 1 9601-9804
59 BRACKET; CLIP,OIL PIPE
A/T<X9D> 		1-47475-427-1 01 1 9805-0004
59 BRACKET; CLIP,OIL PIPE 1-47475-427-1 02 1 0005-0301
59 BRACKET; CLIP,OIL PIPE
TRANSMISSION OIL COOLER<C2C> 		1-47475-427-1 01 1 0302-
59 BRACKET; CLIP,OIL PIPE
FULLER M/T<X9B>,ZF M/T<X9E> 		1-47475-427-1 02 1 9805-0004
61 CLIP; OIL PIPE
EXC. TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 0302-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 9601-9804
61 CLIP; OIL PIPE
A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 9805-0004
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 0005-0301
61 CLIP; OIL PIPE
TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 0302-
61 CLIP; OIL PIPE
(A) ID=16 L=40 		9-09525-576-0 01 1 9601-0606
61 CLIP; OIL PIPE
(A) ID=16 L=40 		0-95235-576-0 01 1 0607-
61 CLIP; OIL PIPE
FULLER M/T<X9B>,ZF M/T<X9E> (B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 9805-0004
65 NUT; BRKT
M8 		9-09110-408-0 03 1 9601-9606
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 9607-9804
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9805-0602
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9805-0602
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
68 NUT; CLIP,OIL PIPE
EXC. TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 0302-0602
68 NUT; CLIP,OIL PIPE
EXC. TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 02 1 0603-
68 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 02 1 9601-9606
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9607-9804
68 NUT; CLIP,OIL PIPE
A/T<X9D> M8 FLANGE 		0-91150-108-0 01 1 9805-0004
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 0005-0301
68 NUT; CLIP,OIL PIPE
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0302-0602
68 NUT; CLIP,OIL PIPE
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 01 1 0603-
68 NUT; CLIP,OIL PIPE
FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 9805-0004
79 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9610
79 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9611-0512
79 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 02 1 0601-
81 WASHER; LK,FLEX HOSE
ID=20.2 		9-09150-520-0 01 1 9601-0603
81 WASHER; LK,FLEX HOSE
ID=20.2 		0-91510-520-0 01 1 0604-
125 CONNECTOR; P/S PUMP 1-21122-019-2 01 1 9601-0604
125 CONNECTOR; P/S PUMP
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> 		1-21122-019-2 01 1 0605-
125 CONNECTOR; P/S PUMP
6SD1 STD ENG(37L) 		1-21122-019-2 01 1 0605-
155 BOLT; CONNECTOR
M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9601-0604
155 BOLT; CONNECTOR
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 0605-0906
155 BOLT; CONNECTOR
6SD1 STD ENG(37L) M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 0605-0906
155 BOLT; CONNECTOR
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> M8X18 W/LK&PL WASHER 		0-50640-818-0 02 1 0907-
155 BOLT; CONNECTOR
6SD1 STD ENG(37L) M8X18 W/LK&PL WASHER 		0-50640-818-0 02 1 0907-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=77 		1-09623-143-0 01 1 9601-
192 BRACKET; P/S OIL TANK 1-21219-093-2 01 1 9601-
195 BOLT; BRKT
M10X20 FLANGE 		0-28081-020-0 03 1 9601-9606
195 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 03 1 9607-0406
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 03 1 0407-0512
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 03 1 0601-
205 BOLT; EYE,FLEX HOSE,P/S
M18X36 		1-09675-205-0 01 1 9601-0604
205 BOLT; EYE,FLEX HOSE,P/S
EXC. EURO3 SPECIFICATION<NJX> M18X36 		1-09675-205-0 01 1 0605-
207 GASKET; FLEX HOSE,P/S PUMP
ID=18.2 OD=26.0 		9-09571-418-0 02 1 9601-0604
207 GASKET; FLEX HOSE,P/S PUMP
EXC. EURO3 SPECIFICATION<NJX> ID=18.2 OD=26.0 		9-09571-418-0 02 1 0605-
239 BRACKET; FLEX HOSE 1-47477-639-0 01 1 9601-
277 BOLT; HOSE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9601-9606
277 BOLT; HOSE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9607-0512
277 BOLT; HOSE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0604
277 BOLT; HOSE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0605-
277 BOLT; HOSE CLIP
EURO3 SPECIFICATION<NJX> M8X25 FLANGE 		0-28650-825-0 01 1 0605-
278 NUT; HOSE CLIP
M8 		9-09110-408-0 01 1 9601-9606
278 NUT; HOSE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-0602
278 NUT; HOSE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-0604
278 NUT; HOSE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0605-
278 NUT; HOSE CLIP
EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91180-108-0 01 1 0605-
280 HOSE; P/S OIL PUMP,INL
EURO3 SPECIFICATION<NJX> 		1-21116-804-0 01 1 0605-
280 HOSE; P/S OIL PUMP,INL 1-21115-048-1 01 1 9601-0604
280 HOSE; P/S OIL PUMP,INL
EXC. EURO3 SPECIFICATION<NJX> 		1-21115-048-1 01 1 0605-
282 SLEEVE; RUBBER,PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 9601-

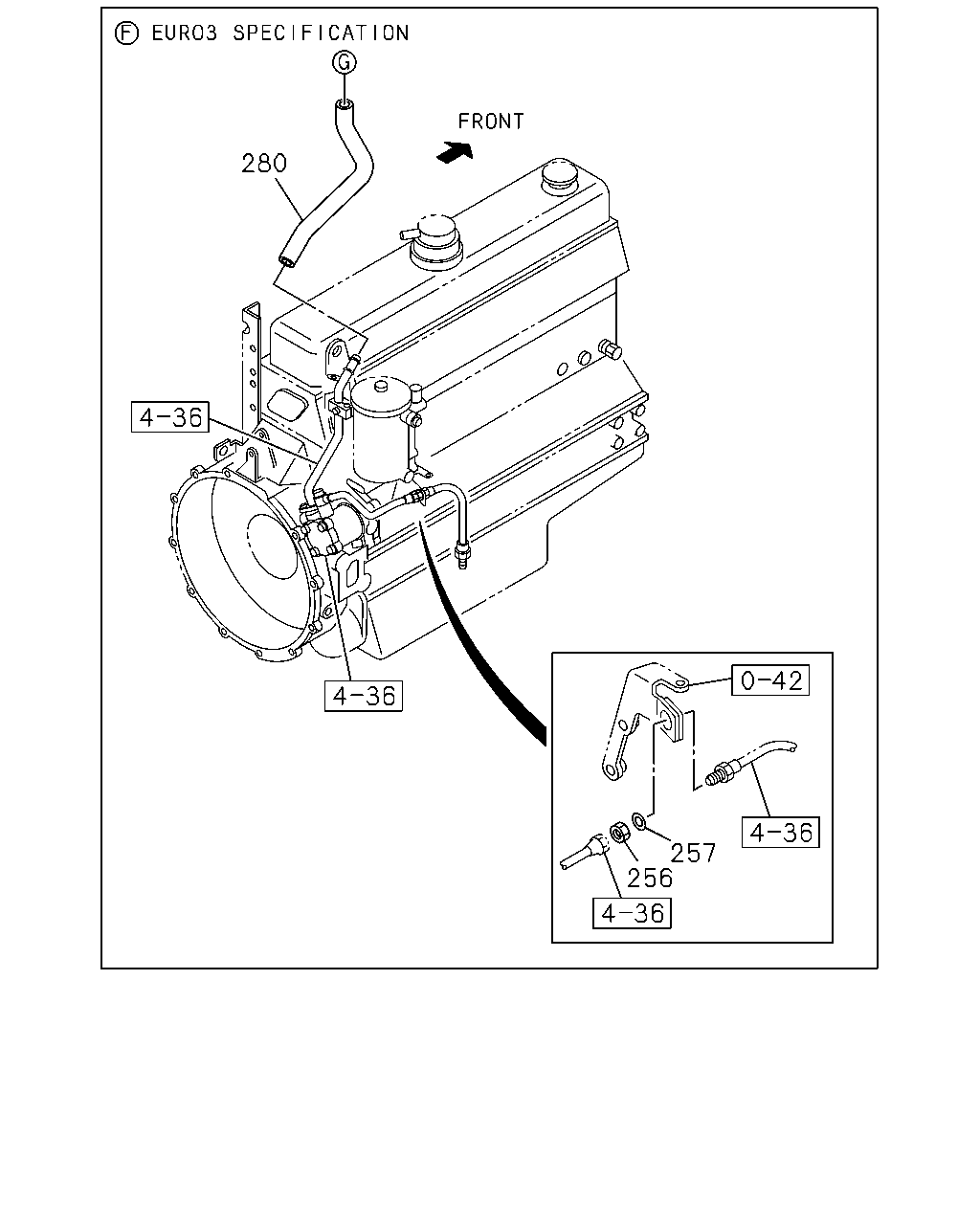

çizim 185629
280 257 256
BalonParca AdiParca NoAdetTipApplied Date
256 NUT; UNION
M20 		0-91111-520-0 01 1 0605-
257 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 01 1 0605-
280 HOSE; P/S OIL PUMP,INL
EURO3 SPECIFICATION<NJX> 		1-21116-804-0 01 1 0605-
280 HOSE; P/S OIL PUMP,INL 1-21115-048-1 01 1 9601-0604
280 HOSE; P/S OIL PUMP,INL
EXC. EURO3 SPECIFICATION<NJX> 		1-21115-048-1 01 1 0605-
