◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25A - REAR FINAL DRIVE ▶
4-25A — REAR FINAL DRIVE (#65141) — 3071 parça

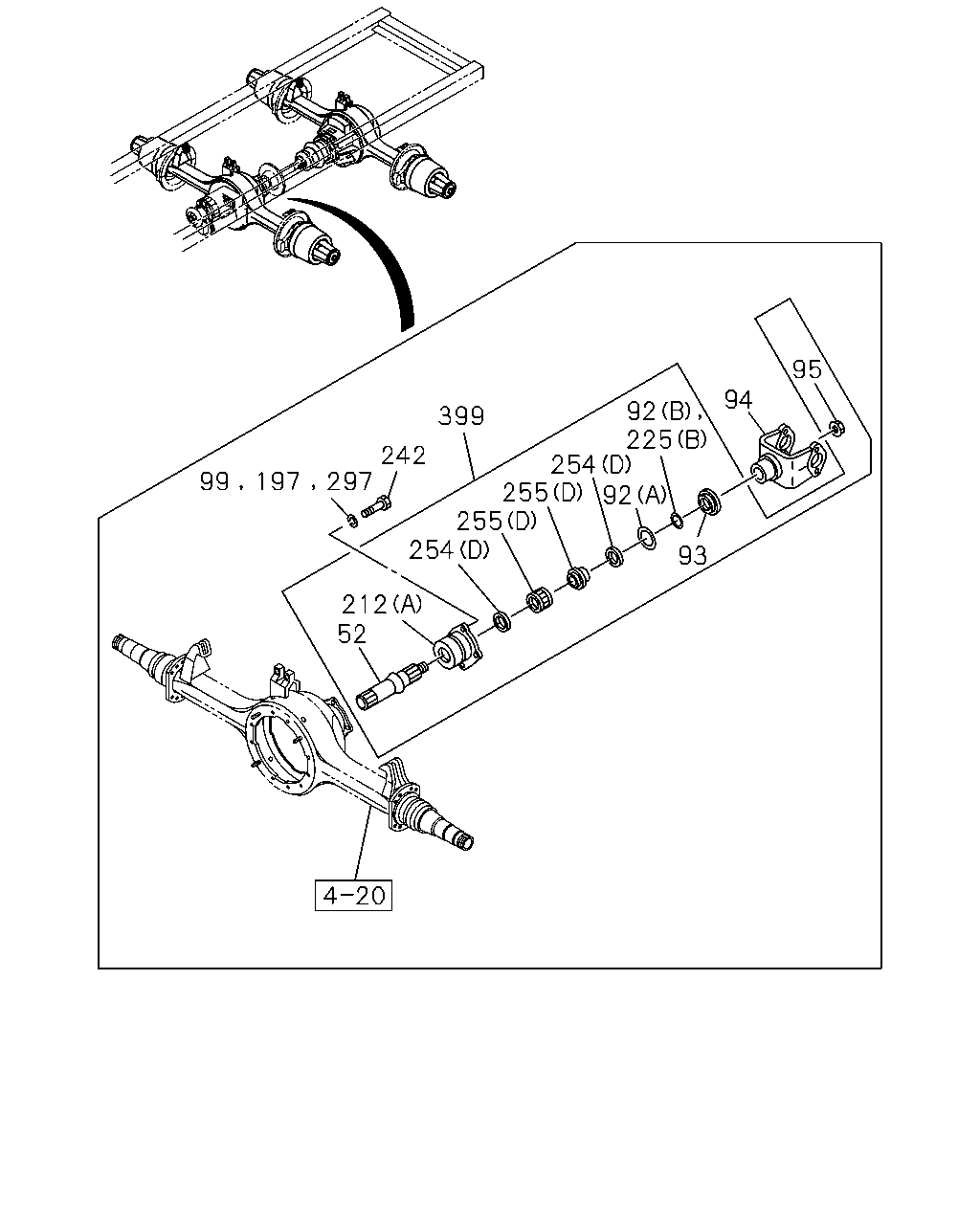

çizim 123103
95 94 92 225 254 255 92 255 254 399 242 297 99 197 93 212 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
52 SHAFT; OUTPUT 1-41343-025-0 01 1 9601-9804 ● ● ● ●
52 SHAFT; OUTPUT 1-41343-025-0 01 1 9805-0004 ● ● ● ● ●
52 SHAFT; OUTPUT 1-41343-025-0 01 1 0005- ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 9811-0211 ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 0212-0604 ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 0605- ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(A) 		1-41349-161-0 01 1 9601-9804 ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(A) 		1-41349-161-0 01 1 9805-0004 ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(A) 		1-41349-161-0 01 1 0005- ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(B) 		1-41349-162-0 01 1 9601-9802 ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(C) OD=90.5 		9-09180-185-0 01 1 9811-0211 ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(C) OD=90.5 		9-09180-185-0 01 1 0212-0604 ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(C) OD=90.5 		9-09180-185-0 01 1 0605- ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-163-0 01 1 9601-9804 ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-163-0 01 1 9805-0004 ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-41349-163-0 01 1 0005- ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-163-0 01 1 0005- ●
93 SEAL; OIL,OUTPUT SHAFT
AUTO ADJUSTER BRAKE<BCU> 		1-41349-182-0 01 1 0005- ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 9811-0211 ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 0212-0604 ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 0605- ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-315-0 01 1 9601-9804 ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-315-0 01 1 9805-0004 ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-315-0 01 1 0005- ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 9811-0211 ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 0212-0604 ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 0605- ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 9601-9804 ● ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 9805-0004 ● ● ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 0005- ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 9811-0211 ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 0212-0604 ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 0605- ● ● ●
99 WASHER; LK 1-41349-152-0 04 1 9601-9802 ● ● ● ●
197 COVER; HELICAL GEAR CASE
AUTO ADJUSTER BRAKE<BCU> 		1-41329-037-0 04 1 0005- ● ●
212 COVER
(A) 		1-41519-049-0 01 1 9601-9804 ● ● ● ●
212 COVER
(A) 		1-41519-049-0 01 1 9805-0004 ● ● ● ● ●
212 COVER
(A) 		1-41519-049-0 01 1 0005- ● ● ●
212 COVER
(B) 		1-41329-080-0 01 1 9803- ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 9601-9804 ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 9805-0004 ● ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 0005- ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 9803-9804 ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 9805-0004 ● ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 0005- ● ● ●
225 WASHER; THRUST
(C) T=5.9 		1-41552-024-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=5.9 		1-41552-024-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=5.9 		1-41552-024-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.0 		1-41552-025-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.0 		1-41552-025-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.0 		1-41552-025-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.1 		1-41552-026-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.1 		1-41552-026-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.1 		1-41552-026-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.2 		1-41552-027-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.2 		1-41552-027-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.2 		1-41552-027-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.3 		1-41552-028-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.3 		1-41552-028-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.3 		1-41552-028-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.4 		1-41552-029-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.4 		1-41552-029-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.4 		1-41552-029-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.5 		1-41552-030-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.5 		1-41552-030-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.5 		1-41552-030-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.6 		1-41552-031-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.6 		1-41552-031-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.6 		1-41552-031-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.7 		1-41552-032-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.7 		1-41552-032-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.7 		1-41552-032-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.8 		1-41552-033-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.8 		1-41552-033-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.8 		1-41552-033-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.9 		1-41552-034-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.9 		1-41552-034-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.9 		1-41552-034-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=7.0 		1-41552-035-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=7.0 		1-41552-035-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=7.0 		1-41552-035-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=7.1 		1-41552-036-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=7.1 		1-41552-036-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=7.1 		1-41552-036-2 AR 1 0605- ● ● ●
242 BOLT; COVER 1-41349-153-0 04 1 9601-9802 ● ● ● ●
242 BOLT; COVER 1-41349-175-0 04 1 9803-9804 ● ● ● ●
242 BOLT; COVER 1-41349-175-0 04 1 9805-0004 ● ● ● ● ●
242 BOLT; COVER 1-41349-175-0 04 1 0005- ● ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 9811-0211 ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 0212-0604 ● ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 0605- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41349-156-0 01 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 9803-9804 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 0005- ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 04 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 9803-9804 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 0005- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-048-0 01 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 9601-9804 ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(B) 		1-41349-157-0 01 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 9803-9804 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-040-0 04 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 9803-9804 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-047-0 01 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 9601-9804 ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 0005- ● ● ●
297 WASHER; COVER 1-41329-037-0 04 1 9803-9804 ● ● ● ●
297 WASHER; COVER 1-41329-037-0 04 1 9805-0004 ● ● ● ● ●
297 WASHER; COVER
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-41329-037-0 04 1 0005- ● ●
297 WASHER; COVER 1-41329-037-0 04 1 0005- ●
399 SHAFT ASM; OUTPUT 1-41343-024-0 01 1 9601-9804 ● ● ● ●
399 SHAFT ASM; OUTPUT 1-41343-024-0 01 1 9805-0004 ● ● ● ● ●
399 SHAFT ASM; OUTPUT 1-41343-024-0 01 1 0005- ● ● ●

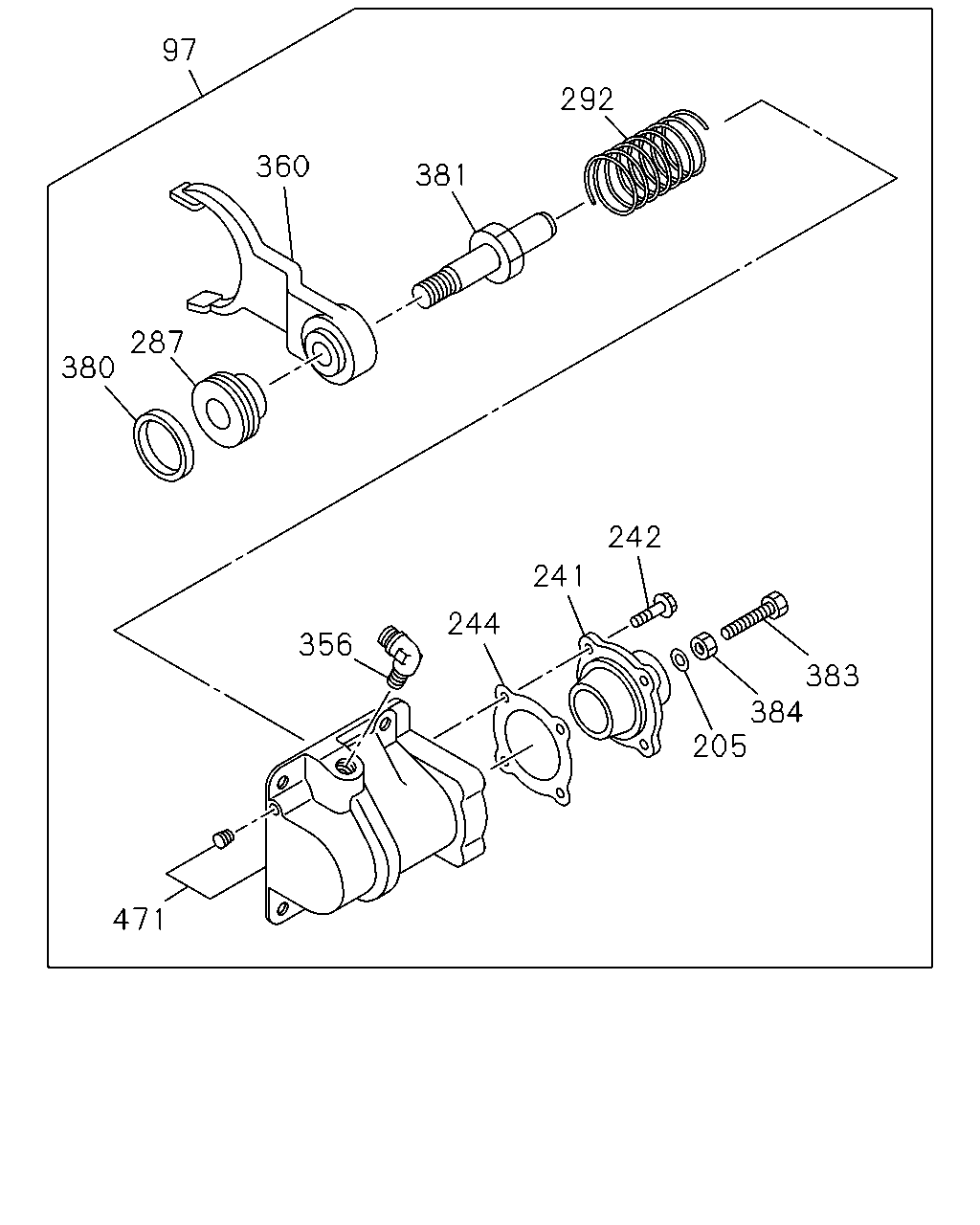

çizim 123126
97 380 287 360 381 292 471 356 244 241 242 383 384 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 9601-9804 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 9805-0004 ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 0005- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 9811-0211 ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0212-0604 ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0605- ● ● ●
205 WASHER; PL 1-41329-016-0 06 1 9803- ● ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 9811-0211 ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 0212-0604 ● ● ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 0605- ● ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 9811-0211 ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 0212-0604 ● ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 0605- ● ● ●
242 BOLT; COVER 1-41349-153-0 04 1 9601-9802 ● ● ● ●
242 BOLT; COVER 1-41349-175-0 04 1 9803-9804 ● ● ● ●
242 BOLT; COVER 1-41349-175-0 04 1 9805-0004 ● ● ● ● ●
242 BOLT; COVER 1-41349-175-0 04 1 0005- ● ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 9811-0211 ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 0212-0604 ● ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 0605- ● ● ●
244 GASKET; COVER 1-41349-155-0 01 1 9601-9802 ● ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 9811-0211 ●
244 GASKET; COVER 1-48269-062-0 01 1 0212-0604 ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 0605- ● ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 9811-0211 ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 0212-0604 ● ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 0605- ● ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 9811-0211 ●
292 SPRING; PISTON 1-48265-007-0 01 1 0212-0604 ● ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 0605- ● ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9811-0211 ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0212-0604 ● ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0605- ● ● ●
360 FORK; SHIFT 1-41519-046-0 01 1 9601-9804 ● ● ● ●
360 FORK; SHIFT 1-41519-046-0 01 1 9805-0004 ● ● ● ● ●
360 FORK; SHIFT 1-41519-046-0 01 1 0005- ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 9811-0211 ●
360 FORK; SHIFT 1-48269-066-0 01 1 0212-0604 ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 0605- ● ● ●
380 GASKET; PISTON 1-48269-064-0 01 1 9811-0211 ●
380 GASKET; PISTON 1-48269-064-0 01 1 0212-0604 ● ● ●
380 GASKET; PISTON 1-48269-064-0 01 1 0605- ● ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 9811-0211 ●
381 ROD; SHIFT 1-48263-005-0 01 1 0212-0604 ● ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 0605- ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 9803-9804 ● ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 9805-0004 ● ● ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 0005- ● ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 9811-0211 ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 0212-0604 ● ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 0605- ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 9803-9804 ● ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 9805-0004 ● ● ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 0005- ● ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 9811-0211 ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 0212-0604 ● ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 0605- ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 9811-0211 ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 0212-0604 ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 0605- ● ● ●

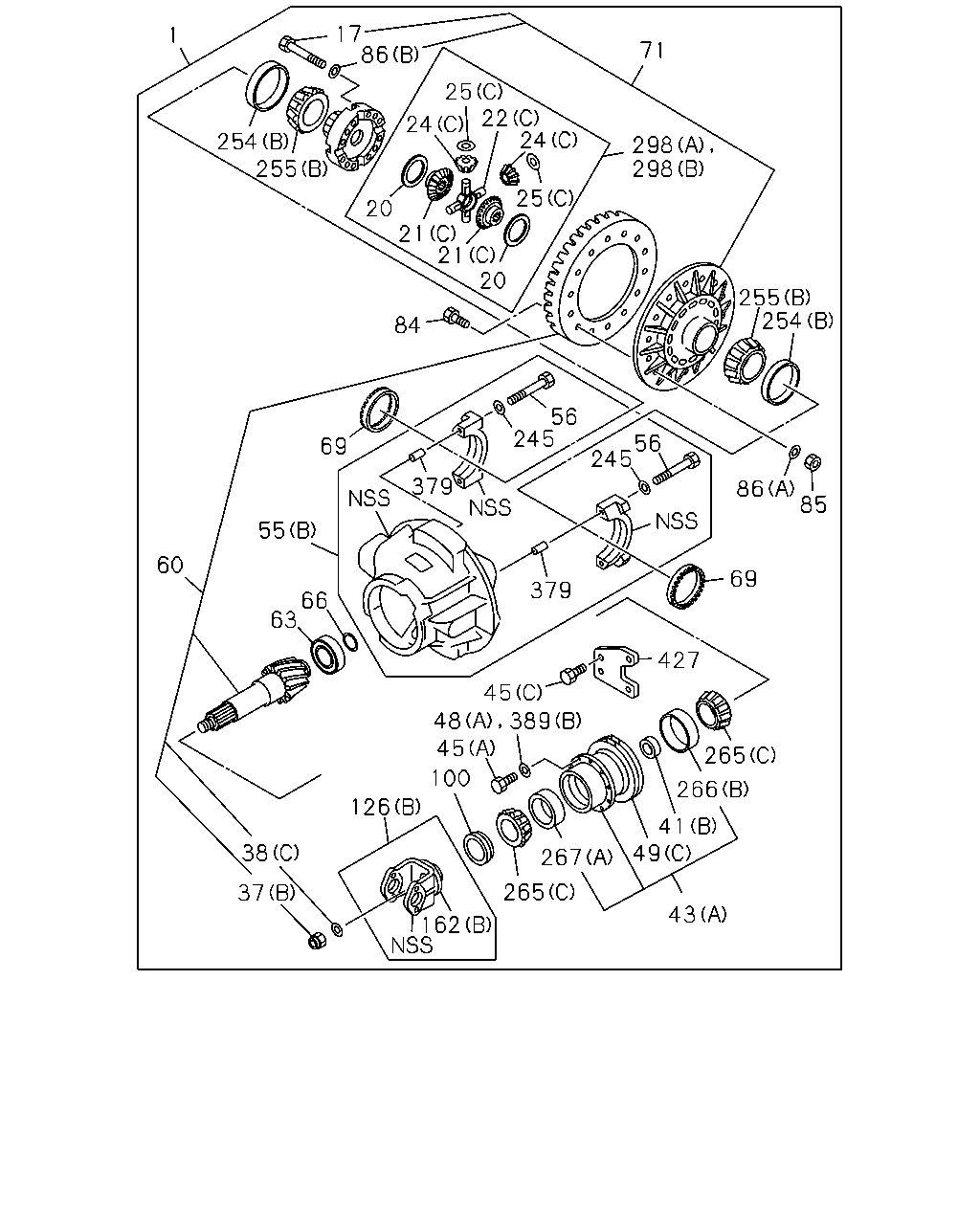

çizim 184594
17 86 1 71 25 22 24 24 254 255 298 298 25 20 21 21 20 255 254 84 56 245 56 245 69 379 86 85 55 60 69 379 66 63 427 45 48 45 265 100 266 126 41 49 38 267 162 265 37 43 389
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-042-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-044-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-139-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-343-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
AUTO ADJUSTER BRAKE<BCU> FORWARD 39/8 		1-41002-749-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-142-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-348-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
AUTO ADJUSTER BRAKE<BCU> FORWARD 37/7 		1-41002-750-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-140-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-143-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-345-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-350-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
EXC. AUTO ADJUSTER BRAKE<BCU> FORWARD 39/8 		1-41002-350-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-138-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-342-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-141-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-347-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
REARWARD 37/7 		1-41002-346-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
FORWARD 37/7 		1-41002-351-0 01 1 9703-0004 ●
1 DRIVE ASM; FINAL,RR
EXC. AUTO ADJUSTER BRAKE<BCU> FORWARD 37/7 		1-41002-351-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41002-344-0 01 1 9805-0004 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-349-0 01 1 9805-0004 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 9811- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-038-0 01 1 9811- ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 9601-9804 ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 9805-0004 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 0005- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 9803-9804 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 9805-0004 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 0005- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0605- ● ● ●
21 GEAR; SIDE,DIFF
(C) 		1-41561-118-0 04 1 9803-9804 ● ● ● ●
21 GEAR; SIDE,DIFF
(C) 		1-41561-118-0 04 1 9805-0004 ● ● ● ● ●
21 GEAR; SIDE,DIFF
(C) 		1-41561-118-0 04 1 0005- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 9811-0211 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 0212-0409 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0410-0604 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0605-0905 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 04 1 0906- ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 9811-0211 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 0212-0407 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0408-0604 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0605-0911 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-169-0 01 1 0912- ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-055-0 02 1 9601-9802 ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 9803-9804 ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 9805-0004 ● ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 0005- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 02 1 9811-0211 ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0212-0604 ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0605- ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 9811-0211 ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0212-0604 ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0605- ● ● ●
24 GEAR; PINION,DIFF
(C) 		1-41551-037-0 08 1 9803-9804 ● ● ● ●
24 GEAR; PINION,DIFF
(C) 		1-41551-037-0 08 1 9805-0004 ● ● ● ● ●
24 GEAR; PINION,DIFF
(C) 		1-41551-037-0 08 1 0005- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 9811-0211 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 0212-0409 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0410-0604 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0605-0905 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 08 1 0906- ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-031-0 04 1 9811-0211 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-031-0 04 1 0212-0407 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0408-0604 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0605-0911 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-055-0 04 1 0912- ● ● ●
25 WASHER; THRUST,PINION
(C) 		1-41552-038-0 08 1 9803-9804 ● ● ● ●
25 WASHER; THRUST,PINION
(C) 		1-41552-038-0 08 1 9805-0004 ● ● ● ● ●
25 WASHER; THRUST,PINION
(C) 		1-41552-038-0 08 1 0005- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 9811-0211 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0212-0604 ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0605- ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 9811-0211 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0212-0604 ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0605- ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 01 1 9601-9802 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9803-9804 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9805-0004 ● ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0005- ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9601-9804 ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9805-0004 ● ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0005- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 9811-0211 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0212-0604 ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0605- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 9811-0211 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0212-0604 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0605- ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 9601-9804 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 9805-0004 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 0005- ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 9601-9804 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 9805-0004 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 0005- ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 9803-9804 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 9805-0004 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 0005- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41219-049-0 01 1 9601-9802 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41229-341-0 01 1 9803-9804 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41229-341-0 01 1 9805-0004 ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41229-341-0 01 1 0005- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) 		1-41229-296-0 02 1 9601-9802 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.60 		1-41229-237-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.60 		1-41229-237-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.60 		1-41229-237-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.80 		1-41229-238-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.80 		1-41229-238-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.80 		1-41229-238-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.00 		1-41229-239-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.00 		1-41229-239-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.00 		1-41229-239-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.20 		1-41229-240-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.20 		1-41229-240-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.20 		1-41229-240-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.40 		1-41229-241-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.40 		1-41229-241-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.40 		1-41229-241-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.60 		1-41229-242-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.60 		1-41229-242-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.60 		1-41229-242-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.80 		1-41229-243-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.80 		1-41229-243-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.80 		1-41229-243-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=9.00 		1-41229-244-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=9.00 		1-41229-244-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=9.00 		1-41229-244-0 AR 1 0605- ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 9601-9804 ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 9805-0004 ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 0005- ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 9803-9804 ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 9805-0004 ● ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 0005- ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 9811-0211 ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 0212-0604 ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 0605- ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 9811-0211 ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 0212-0604 ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 0605- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 08 1 9601-9802 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 9803-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 9601-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 9803-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 9811-0211 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0212-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0605- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 9811-0211 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0212-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0605- ● ● ●
48 WASHER; LK,FINAL PINION
(A) 		1-41329-034-0 08 1 9601-9804 ● ● ● ●
48 WASHER; LK,FINAL PINION
(B) 		1-41329-069-0 05 1 9601-9802 ● ● ● ●
48 WASHER; LK,FINAL PINION
AUTO ADJUSTER BRAKE<BCU> (A) 		1-41329-034-0 08 1 0005- ● ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		9-09150-516-0 08 1 9811-0211 ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		9-09150-516-0 08 1 0212-0603 ● ● ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		0-91510-516-0 08 1 0604-0604 ● ● ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		0-91510-516-0 08 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
LOAD SENSING PROPORTIONING VALVE<JR7> (C) 		1-41554-090-0 01 1 9805-0004 ●
49 SHIM; FINAL PINION CAGE
AUTO ADJUSTER BRAKE<BCU> (C) 		1-41154-103-0 01 1 0005- ● ●
49 SHIM; FINAL PINION CAGE
EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (C) 		1-41154-090-0 01 1 9805-0004 ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-090-0 01 1 9805-0004 ● ● ● ●
49 SHIM; FINAL PINION CAGE
EXC. AUTO ADJUSTER BRAKE<BCU> (C) 		1-41154-090-0 01 1 0005- ● ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-090-0 01 1 0005- ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-090-0 01 1 9601-9802 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-103-0 01 1 9803-9804 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0605- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-111-0 01 1 9601-9802 ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-054-0 01 1 9803-0004 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-054-0 01 1 0005- ●
55 CARRIER; DIFF
(A) 		1-41321-027-0 01 1 9601-9802 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 9803-9804 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 9805-0004 ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 0005- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-055-0 01 1 9803-0004 ● ●
55 CARRIER; DIFF
EXC. AUTO ADJUSTER BRAKE<BCU> (A) 		1-41310-055-0 01 1 0005- ● ●
55 CARRIER; DIFF
AUTO ADJUSTER BRAKE<BCU> (A) 		1-41310-059-0 01 1 0005- ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 9811-0211 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0212-0604 ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0605- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 9811-0211 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0212-0604 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0605- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 9601-9804 ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 9805-0004 ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 0005- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 9811-0211 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0212-0604 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0605- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/10 		1-41210-551-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/10 		1-41210-589-0 01 1 9803-0004 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/10 		1-41210-554-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/10 		1-41210-594-0 01 1 9803-0004 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-552-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-555-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-590-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-595-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-550-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-588-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-553-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-593-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 37/7 		1-41210-591-0 01 1 9703- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 37/7 		1-41210-596-0 01 1 9703- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-592-0 01 1 9805-0004 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-597-0 01 1 9805-0004 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-464-0 01 1 9811-9901 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 9811- ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 9601-9804 ● ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 9805-0004 ● ● ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 0005- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 9811-0211 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0212-0604 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0605- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 9811-0211 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0212-0604 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0605- ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 9601-9804 ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 9805-0004 ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 0005- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 9811-0211 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 0212-0604 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 02 1 0605- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 9601-9804 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 9805-0004 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 0005- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 9811-0211 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0212-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0605- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 9811-0211 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0212-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0605- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0601-0604 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0605- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-249-0 02 1 9601-9802 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 9803-9804 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 9805-0004 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 0005- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-248-0 02 1 9601-9802 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 02 1 9803- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 9811-0211 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0212-0509 ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 9601-9804 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 9805-0004 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 0005- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 9811-0211 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0212-0604 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0605- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 9601-9804 ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 9805-0004 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0005- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 9811-0211 ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 0212-0512 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0601-0604 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0605- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 9601-9804 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 9805-0004 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0005- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 9601-9804 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 9805-0004 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 0005- ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-041-0 01 1 9601-9804 ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-041-0 01 1 9805-0004 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-41219-041-0 01 1 0005- ● ●
100 SEAL; OIL,FINAL PINION 1-41219-041-0 01 1 0005- ●
100 SEAL; OIL,FINAL PINION
AUTO ADJUSTER BRAKE<BCU> 		1-41349-181-0 01 1 0005- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 9811-0211 ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0212-0604 ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0605- ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 9601-9804 ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 9805-0004 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0005- ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 9601-9804 ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 9805-0004 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 0005- ● ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-225-1 01 1 9811-9901 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 9902-0211 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 0212-0604 ● ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 0605- ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 9601-9804 ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 9805-0004 ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 0005- ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 9601-9804 ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 9805-0004 ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 0005- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 9601-9804 ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 9805-0004 ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 0005- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41349-156-0 01 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 9803-9804 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 0005- ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 04 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 9803-9804 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 0005- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-048-0 01 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 9601-9804 ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(B) 		1-41349-157-0 01 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 9803-9804 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-040-0 04 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 9803-9804 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-047-0 01 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 9601-9804 ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 9601-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 9601-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 02 1 9601-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 02 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 02 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 9803-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 9803-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0005- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 9601-9804 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 9805-0004 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 0005- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 02 1 9601-9802 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 9803-9804 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 9805-0004 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 0005- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 9803-9804 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 9805-0004 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 0005- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 9601-9804 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 9805-0004 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0005- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 9803-9804 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 9805-0004 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0005- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 9803-9804 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 9805-0004 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0005- ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(C) 		1-41550-030-0 02 1 9601-9802 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(A) 		1-41550-031-0 01 1 9803-9804 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(B) 		1-51550-031-0 01 1 9803-9804 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(A) 		1-41550-031-0 02 1 9805-0004 ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(A) 		1-41550-031-0 02 1 0005- ● ● ●
379 PIN; SPLIT 1-41129-012-0 04 1 9601-9804 ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 04 1 9805-0004 ● ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 04 1 0005- ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 9803-9804 ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 9805-0004 ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 0005- ● ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41329-034-0 08 1 9805-0004 ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
EXC. AUTO ADJUSTER BRAKE<BCU> (B) 		1-41329-034-0 08 1 0005- ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41329-034-0 08 1 0005- ●
427 PLATE; LSPV 1-41119-073-0 01 1 9803-9804 ● ●
427 PLATE; LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-41119-073-0 01 1 9805-0004 ● ● ● ● ●
427 PLATE; LSPV 1-41119-073-0 01 1 0005- ● ●
427 PLATE; LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-41119-073-0 01 1 0005- ●

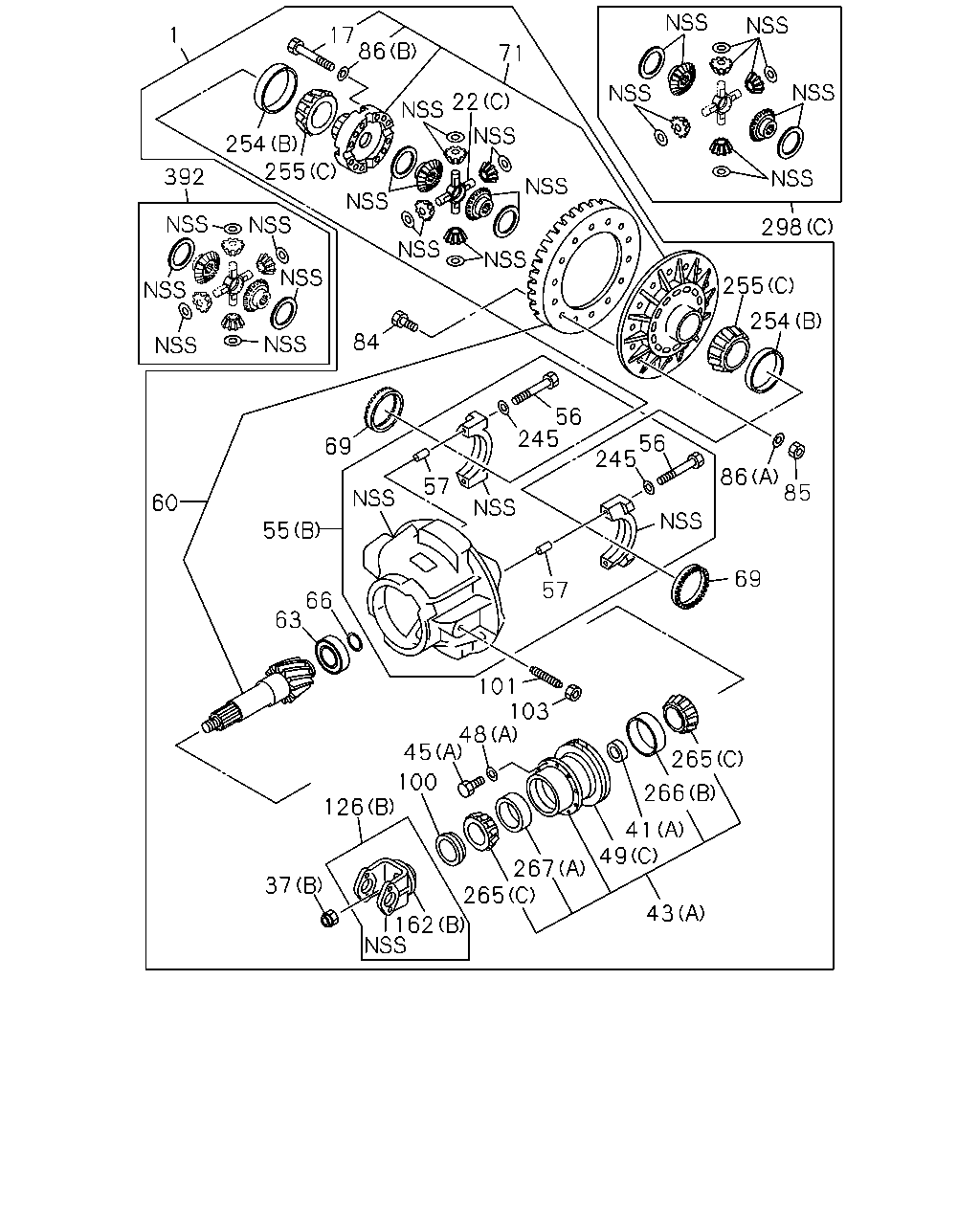

çizim 184598
17 86 1 71 22 254 255 392 298 255 254 84 56 245 56 245 69 86 85 57 60 55 69 57 66 63 101 103 48 45 265 100 126 266 41 49 267 265 162 37 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-042-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-044-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-139-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-343-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
AUTO ADJUSTER BRAKE<BCU> FORWARD 39/8 		1-41002-749-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-142-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-348-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
AUTO ADJUSTER BRAKE<BCU> FORWARD 37/7 		1-41002-750-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-140-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-143-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-345-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-350-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
EXC. AUTO ADJUSTER BRAKE<BCU> FORWARD 39/8 		1-41002-350-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-138-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-342-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-141-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-347-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
REARWARD 37/7 		1-41002-346-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
FORWARD 37/7 		1-41002-351-0 01 1 9703-0004 ●
1 DRIVE ASM; FINAL,RR
EXC. AUTO ADJUSTER BRAKE<BCU> FORWARD 37/7 		1-41002-351-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41002-344-0 01 1 9805-0004 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-349-0 01 1 9805-0004 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 9811- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-038-0 01 1 9811- ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 9601-9804 ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 9805-0004 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 0005- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 0605- ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-055-0 02 1 9601-9802 ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 9803-9804 ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 9805-0004 ● ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 0005- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 02 1 9811-0211 ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0212-0604 ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0605- ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 9811-0211 ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0212-0604 ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0605- ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 01 1 9601-9802 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9803-9804 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9805-0004 ● ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0005- ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9601-9804 ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9805-0004 ● ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0005- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 9811-0211 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0212-0604 ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0605- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 9811-0211 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0212-0604 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41219-049-0 01 1 9601-9802 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41229-341-0 01 1 9803-9804 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41229-341-0 01 1 9805-0004 ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41229-341-0 01 1 0005- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) 		1-41229-296-0 02 1 9601-9802 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.60 		1-41229-237-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.60 		1-41229-237-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.60 		1-41229-237-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.80 		1-41229-238-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.80 		1-41229-238-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.80 		1-41229-238-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.00 		1-41229-239-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.00 		1-41229-239-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.00 		1-41229-239-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.20 		1-41229-240-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.20 		1-41229-240-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.20 		1-41229-240-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.40 		1-41229-241-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.40 		1-41229-241-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.40 		1-41229-241-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.60 		1-41229-242-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.60 		1-41229-242-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.60 		1-41229-242-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.80 		1-41229-243-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.80 		1-41229-243-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.80 		1-41229-243-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=9.00 		1-41229-244-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=9.00 		1-41229-244-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=9.00 		1-41229-244-0 AR 1 0605- ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 9601-9804 ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 9805-0004 ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 0005- ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 9803-9804 ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 9805-0004 ● ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 0005- ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 9811-0211 ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 0212-0604 ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 0605- ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 9811-0211 ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 0212-0604 ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 0605- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 08 1 9601-9802 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 9803-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 9601-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 9803-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 9811-0211 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0212-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0605- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 9811-0211 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0212-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0605- ● ● ●
48 WASHER; LK,FINAL PINION
(A) 		1-41329-034-0 08 1 9601-9804 ● ● ● ●
48 WASHER; LK,FINAL PINION
(B) 		1-41329-069-0 05 1 9601-9802 ● ● ● ●
48 WASHER; LK,FINAL PINION
AUTO ADJUSTER BRAKE<BCU> (A) 		1-41329-034-0 08 1 0005- ● ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		9-09150-516-0 08 1 9811-0211 ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		9-09150-516-0 08 1 0212-0603 ● ● ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		0-91510-516-0 08 1 0604-0604 ● ● ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		0-91510-516-0 08 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
LOAD SENSING PROPORTIONING VALVE<JR7> (C) 		1-41554-090-0 01 1 9805-0004 ●
49 SHIM; FINAL PINION CAGE
AUTO ADJUSTER BRAKE<BCU> (C) 		1-41154-103-0 01 1 0005- ● ●
49 SHIM; FINAL PINION CAGE
EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (C) 		1-41154-090-0 01 1 9805-0004 ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-090-0 01 1 9805-0004 ● ● ● ●
49 SHIM; FINAL PINION CAGE
EXC. AUTO ADJUSTER BRAKE<BCU> (C) 		1-41154-090-0 01 1 0005- ● ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-090-0 01 1 0005- ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-090-0 01 1 9601-9802 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-103-0 01 1 9803-9804 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0605- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-111-0 01 1 9601-9802 ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-054-0 01 1 9803-0004 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-054-0 01 1 0005- ●
55 CARRIER; DIFF
(A) 		1-41321-027-0 01 1 9601-9802 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 9803-9804 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 9805-0004 ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 0005- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-055-0 01 1 9803-0004 ● ●
55 CARRIER; DIFF
EXC. AUTO ADJUSTER BRAKE<BCU> (A) 		1-41310-055-0 01 1 0005- ● ●
55 CARRIER; DIFF
AUTO ADJUSTER BRAKE<BCU> (A) 		1-41310-059-0 01 1 0005- ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 9811-0211 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0212-0604 ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0605- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 9811-0211 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0212-0604 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0605- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 9601-9804 ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 9805-0004 ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 0005- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 9811-0211 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0212-0604 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0605- ● ● ●
57 DOWEL; BRG CAP 1-41119-071-0 04 1 9601-9802 ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/10 		1-41210-551-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/10 		1-41210-589-0 01 1 9803-0004 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/10 		1-41210-554-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/10 		1-41210-594-0 01 1 9803-0004 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-552-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-555-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-590-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-595-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-550-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-588-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-553-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-593-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 37/7 		1-41210-591-0 01 1 9703- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 37/7 		1-41210-596-0 01 1 9703- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-592-0 01 1 9805-0004 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-597-0 01 1 9805-0004 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-464-0 01 1 9811-9901 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 9811- ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 9601-9804 ● ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 9805-0004 ● ● ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 0005- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 9811-0211 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0212-0604 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0605- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 9811-0211 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0212-0604 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0605- ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 9601-9804 ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 9805-0004 ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 0005- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 9811-0211 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 0212-0604 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 02 1 0605- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 9601-9804 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 9805-0004 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 0005- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 9811-0211 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0212-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0605- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 9811-0211 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0212-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0605- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0601-0604 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0605- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-249-0 02 1 9601-9802 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 9803-9804 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 9805-0004 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 0005- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-248-0 02 1 9601-9802 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 02 1 9803- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 9811-0211 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0212-0509 ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 9601-9804 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 9805-0004 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 0005- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 9811-0211 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0212-0604 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0605- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 9601-9804 ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 9805-0004 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0005- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 9811-0211 ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 0212-0512 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0601-0604 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0605- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 9601-9804 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 9805-0004 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0005- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 9601-9804 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 9805-0004 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 0005- ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-041-0 01 1 9601-9804 ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-041-0 01 1 9805-0004 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-41219-041-0 01 1 0005- ● ●
100 SEAL; OIL,FINAL PINION 1-41219-041-0 01 1 0005- ●
100 SEAL; OIL,FINAL PINION
AUTO ADJUSTER BRAKE<BCU> 		1-41349-181-0 01 1 0005- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 9811-0211 ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0212-0604 ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0605- ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41119-067-0 02 1 9601-9802 ● ● ● ●
103 NUT; ADJ BOLT 1-41119-068-0 02 1 9601-9802 ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 9601-9804 ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 9805-0004 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0005- ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 9601-9804 ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 9805-0004 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 0005- ● ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-225-1 01 1 9811-9901 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 9902-0211 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 0212-0604 ● ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 0605- ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 9601-9804 ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 9805-0004 ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 0005- ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 9601-9804 ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 9805-0004 ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 0005- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 9601-9804 ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 9805-0004 ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 0005- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41349-156-0 01 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 9803-9804 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 0005- ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 04 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 9803-9804 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 0005- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-048-0 01 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 9601-9804 ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(B) 		1-41349-157-0 01 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 9803-9804 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-040-0 04 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 9803-9804 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-047-0 01 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 9601-9804 ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 9601-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 9601-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 02 1 9601-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 02 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 02 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 9803-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 9803-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0005- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 9601-9804 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 9805-0004 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 0005- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 02 1 9601-9802 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 9803-9804 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 9805-0004 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 0005- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 9803-9804 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 9805-0004 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 0005- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 9601-9804 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 9805-0004 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0005- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 9803-9804 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 9805-0004 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0005- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 9803-9804 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 9805-0004 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0005- ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(C) 		1-41550-030-0 02 1 9601-9802 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(A) 		1-41550-031-0 01 1 9803-9804 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(B) 		1-51550-031-0 01 1 9803-9804 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(A) 		1-41550-031-0 02 1 9805-0004 ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(A) 		1-41550-031-0 02 1 0005- ● ● ●
392 WASHER KIT; THRUST,DIFF 1-41559-002-0 02 1 9601-9802 ● ● ● ●
çizim 184599
379 1 379 56 69 254 255 85 245 56 245 86 392 60 84 255 254 69 22 71 86 17 11 255 254 244 398 249 232 46 47 397 55 388 97 13 12 253 254 255 195 32 38 101 103 8 162 9 126 83 98 3 361 225 360 16 29 265 266 38 37 11 48 41 195 41 266 298 265 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-042-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-044-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-139-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-343-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
AUTO ADJUSTER BRAKE<BCU> FORWARD 39/8 		1-41002-749-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-142-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-348-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
AUTO ADJUSTER BRAKE<BCU> FORWARD 37/7 		1-41002-750-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-140-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-143-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-345-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-350-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
EXC. AUTO ADJUSTER BRAKE<BCU> FORWARD 39/8 		1-41002-350-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-138-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-342-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-141-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-347-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
REARWARD 37/7 		1-41002-346-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
FORWARD 37/7 		1-41002-351-0 01 1 9703-0004 ●
1 DRIVE ASM; FINAL,RR
EXC. AUTO ADJUSTER BRAKE<BCU> FORWARD 37/7 		1-41002-351-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41002-344-0 01 1 9805-0004 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-349-0 01 1 9805-0004 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 9811- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-038-0 01 1 9811- ●
3 NUT; INPUT SHAFT 1-41219-028-0 01 1 9601-9802 ● ● ● ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 9811-0211 ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 0212-0604 ● ● ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 0605- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(C) 		1-41349-154-0 01 1 9601-9804 ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(C) 		1-41349-154-0 01 1 9805-0004 ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
EXC. AUTO ADJUSTER BRAKE<BCU> (C) 		1-41349-154-0 01 1 0005- ● ●
8 SEAL; OIL,INPUT SHAFT
(C) 		1-41349-154-0 01 1 0005- ●
8 SEAL; OIL,INPUT SHAFT
AUTO ADJUSTER BRAKE<BCU> (C) 		1-41349-183-0 01 1 0005- ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 9811-0211 ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 0212-0604 ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 0605- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 9811-0211 ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 0212-0604 ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 0605- ● ● ●
9 RING; SNAP,BRG,INPUT 1-41519-043-0 01 1 9601-9802 ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 9811-0211 ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 0212-0604 ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 0605- ● ● ●
11 COVER; INTER AXLE DIFF
(A) 		1-41151-078-0 01 1 9601-9802 ● ● ● ●
11 COVER; INTER AXLE DIFF
(A) 		1-41151-089-0 01 1 9803-0004 ● ● ●
11 COVER; INTER AXLE DIFF
(A) 		1-41151-089-0 01 1 0005- ●
11 COVER; INTER AXLE DIFF
(B) 		1-41329-068-0 01 1 9601-9802 ● ● ● ●
11 COVER; INTER AXLE DIFF
(A) 		1-41151-090-0 01 1 9803- ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 9601-9804 ● ● ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 9805-0004 ● ● ● ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 0005- ● ● ●
13 WASHER; COVER TO CASE 1-41329-034-0 07 1 9601-9804 ● ● ● ●
13 WASHER; COVER TO CASE 1-41329-034-0 07 1 9805-0004 ● ● ● ● ●
13 WASHER; COVER TO CASE
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-41329-034-0 07 1 0005- ● ●
13 WASHER; COVER TO CASE 1-41329-034-0 07 1 0005- ●
13 WASHER; COVER TO CASE
AUTO ADJUSTER BRAKE<BCU> 		1-41329-084-0 07 1 0005- ● ●
16 SHAFT ASM; INPUT 1-41341-026-0 01 1 9601-9802 ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-026-0 01 1 9803-0004 ● ● ●
16 SHAFT ASM; INPUT 1-41341-026-0 01 1 0005- ●
16 SHAFT ASM; INPUT 1-41341-030-0 01 1 9803- ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 9811-0211 ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 0212-0604 ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 9601-9804 ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 9805-0004 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 0005- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 0605- ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-055-0 02 1 9601-9802 ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 9803-9804 ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 9805-0004 ● ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 0005- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 02 1 9811-0211 ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0212-0604 ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0605- ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 9811-0211 ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0212-0604 ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0605- ● ● ●
29 SHIM; BRG RET
(A) 		1-41154-091-0 01 1 9601-9802 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(C) T=0.30 		1-41349-146-0 AR 1 9811-0211 ●
29 SHIM; BRG RET
(C) T=0.30 		1-41349-146-0 AR 1 0212-0604 ● ● ●
29 SHIM; BRG RET
(C) T=0.30 		1-41349-146-0 AR 1 0605- ● ● ●
29 SHIM; BRG RET
(C) T=0.40 		1-41349-147-0 AR 1 9811-0211 ●
29 SHIM; BRG RET
(C) T=0.40 		1-41349-147-0 AR 1 0212-0604 ● ● ●
29 SHIM; BRG RET
(C) T=0.40 		1-41349-147-0 AR 1 0605- ● ● ●
29 SHIM; BRG RET
(C) T=0.50 		1-41349-148-0 AR 1 9811-0211 ●
29 SHIM; BRG RET
(C) T=0.50 		1-41349-148-0 AR 1 0212-0604 ● ● ●
29 SHIM; BRG RET
(C) T=0.50 		1-41349-148-0 AR 1 0605- ● ● ●
29 SHIM; BRG RET
(C) T=1.000 		1-41349-149-0 AR 1 9811-0211 ●
29 SHIM; BRG RET
(C) T=1.000 		1-41349-149-0 AR 1 0212-0604 ● ● ●
29 SHIM; BRG RET
(C) T=1.000 		1-41349-149-0 AR 1 0605- ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41519-044-0 01 1 9601-9802 ● ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 9811-0211 ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 0212-0604 ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 0605- ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 01 1 9601-9802 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9803-9804 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9805-0004 ● ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0005- ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9601-9804 ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9805-0004 ● ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0005- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 9811-0211 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0212-0604 ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0605- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 9811-0211 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0212-0604 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0605- ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 9601-9804 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 9805-0004 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 0005- ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 9601-9804 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 9805-0004 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 0005- ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 9803-9804 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 9805-0004 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 0005- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41219-049-0 01 1 9601-9802 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41229-341-0 01 1 9803-9804 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41229-341-0 01 1 9805-0004 ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41229-341-0 01 1 0005- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) 		1-41229-296-0 02 1 9601-9802 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.60 		1-41229-237-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.60 		1-41229-237-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.60 		1-41229-237-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.80 		1-41229-238-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.80 		1-41229-238-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.80 		1-41229-238-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.00 		1-41229-239-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.00 		1-41229-239-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.00 		1-41229-239-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.20 		1-41229-240-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.20 		1-41229-240-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.20 		1-41229-240-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.40 		1-41229-241-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.40 		1-41229-241-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.40 		1-41229-241-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.60 		1-41229-242-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.60 		1-41229-242-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.60 		1-41229-242-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.80 		1-41229-243-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.80 		1-41229-243-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.80 		1-41229-243-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=9.00 		1-41229-244-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=9.00 		1-41229-244-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=9.00 		1-41229-244-0 AR 1 0605- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 08 1 9601-9802 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 9803-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 9601-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 9803-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 9811-0211 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0212-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0605- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 9811-0211 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0212-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0605- ● ● ●
46 BOLT 1-41349-159-0 03 1 9601-9802 ● ● ● ●
47 WASHER; LK 1-41329-016-0 03 1 9601-9804 ● ● ● ●
47 WASHER; LK 1-41329-016-0 03 1 9805-0004 ● ● ● ● ●
47 WASHER; LK 1-41329-016-0 03 1 0005- ● ● ●
48 WASHER; LK,FINAL PINION
(A) 		1-41329-034-0 08 1 9601-9804 ● ● ● ●
48 WASHER; LK,FINAL PINION
(B) 		1-41329-069-0 05 1 9601-9802 ● ● ● ●
48 WASHER; LK,FINAL PINION
AUTO ADJUSTER BRAKE<BCU> (A) 		1-41329-034-0 08 1 0005- ● ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		9-09150-516-0 08 1 9811-0211 ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		9-09150-516-0 08 1 0212-0603 ● ● ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		0-91510-516-0 08 1 0604-0604 ● ● ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		0-91510-516-0 08 1 0605- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-111-0 01 1 9601-9802 ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-054-0 01 1 9803-0004 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-054-0 01 1 0005- ●
55 CARRIER; DIFF
(A) 		1-41321-027-0 01 1 9601-9802 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 9803-9804 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 9805-0004 ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 0005- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-055-0 01 1 9803-0004 ● ●
55 CARRIER; DIFF
EXC. AUTO ADJUSTER BRAKE<BCU> (A) 		1-41310-055-0 01 1 0005- ● ●
55 CARRIER; DIFF
AUTO ADJUSTER BRAKE<BCU> (A) 		1-41310-059-0 01 1 0005- ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 9811-0211 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0212-0604 ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0605- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 9811-0211 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0212-0604 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0605- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 9601-9804 ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 9805-0004 ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 0005- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 9811-0211 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0212-0604 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0605- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/10 		1-41210-551-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/10 		1-41210-589-0 01 1 9803-0004 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/10 		1-41210-554-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/10 		1-41210-594-0 01 1 9803-0004 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-552-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-555-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-590-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-595-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-550-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-588-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-553-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-593-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 37/7 		1-41210-591-0 01 1 9703- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 37/7 		1-41210-596-0 01 1 9703- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-592-0 01 1 9805-0004 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-597-0 01 1 9805-0004 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-464-0 01 1 9811-9901 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 9811- ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 9601-9804 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 9805-0004 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 0005- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 9811-0211 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0212-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0605- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 9811-0211 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0212-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0605- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0601-0604 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0605- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-249-0 02 1 9601-9802 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 9803-9804 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 9805-0004 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 0005- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-248-0 02 1 9601-9802 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 02 1 9803- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 9811-0211 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0212-0509 ● ● ●
83 CAGE ASM; DIFF 1-41510-250-0 01 1 9601-9802 ● ● ● ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 9811-0211 ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 0212-0604 ● ● ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 0605- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 9601-9804 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 9805-0004 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 0005- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 9811-0211 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0212-0604 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0605- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 9601-9804 ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 9805-0004 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0005- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 9811-0211 ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 0212-0512 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0601-0604 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0605- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 9601-9804 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 9805-0004 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0005- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 9601-9804 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 9805-0004 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 0005- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 9601-9804 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 9805-0004 ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 0005- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 9811-0211 ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0212-0604 ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0605- ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER 1-41329-064-0 01 1 9601-9802 ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28181-050-0 01 1 9811-0211 ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28181-050-0 01 1 0212-0512 ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 0601-0604 ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 0605- ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28781-025-0 03 1 9811-0211 ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28781-025-0 03 1 0212-0512 ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 0601-0604 ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 0605- ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41119-067-0 02 1 9601-9802 ● ● ● ●
103 NUT; ADJ BOLT 1-41119-068-0 02 1 9601-9802 ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 9601-9804 ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 9805-0004 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0005- ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 9601-9804 ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 9805-0004 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 0005- ● ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-225-1 01 1 9811-9901 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 9902-0211 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 0212-0604 ● ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 0605- ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 9601-9804 ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 9805-0004 ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 0005- ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 9601-9804 ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 9805-0004 ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 0005- ● ● ●
195 GEAR; DRIVEN
(A) 		1-41251-360-0 01 1 9601-9802 ● ● ● ●
195 GEAR; DRIVEN
(B) 		1-41519-045-0 01 1 9601-9802 ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 9601-9804 ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 9805-0004 ● ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 0005- ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 9803-9804 ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 9805-0004 ● ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 0005- ● ● ●
225 WASHER; THRUST
(C) T=5.9 		1-41552-024-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=5.9 		1-41552-024-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=5.9 		1-41552-024-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.0 		1-41552-025-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.0 		1-41552-025-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.0 		1-41552-025-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.1 		1-41552-026-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.1 		1-41552-026-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.1 		1-41552-026-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.2 		1-41552-027-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.2 		1-41552-027-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.2 		1-41552-027-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.3 		1-41552-028-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.3 		1-41552-028-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.3 		1-41552-028-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.4 		1-41552-029-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.4 		1-41552-029-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.4 		1-41552-029-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.5 		1-41552-030-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.5 		1-41552-030-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.5 		1-41552-030-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.6 		1-41552-031-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.6 		1-41552-031-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.6 		1-41552-031-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.7 		1-41552-032-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.7 		1-41552-032-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.7 		1-41552-032-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.8 		1-41552-033-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.8 		1-41552-033-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.8 		1-41552-033-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.9 		1-41552-034-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.9 		1-41552-034-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.9 		1-41552-034-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=7.0 		1-41552-035-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=7.0 		1-41552-035-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=7.0 		1-41552-035-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=7.1 		1-41552-036-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=7.1 		1-41552-036-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=7.1 		1-41552-036-2 AR 1 0605- ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 9601-9804 ● ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 9805-0004 ● ● ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 0005- ● ● ●
244 GASKET; COVER 1-41349-155-0 01 1 9601-9802 ● ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 9811-0211 ●
244 GASKET; COVER 1-48269-062-0 01 1 0212-0604 ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 0605- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 9601-9804 ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 9805-0004 ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 0005- ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 9601-9804 ● ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 9805-0004 ● ● ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 0005- ● ● ●
253 NUT 1-41329-065-0 01 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41349-156-0 01 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 9803-9804 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 0005- ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 04 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 9803-9804 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 0005- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-048-0 01 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 9601-9804 ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(B) 		1-41349-157-0 01 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 9803-9804 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-040-0 04 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 9803-9804 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-047-0 01 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 9601-9804 ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 9601-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 9601-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 02 1 9601-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 02 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 02 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 9803-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 9803-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0005- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 9601-9804 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 9805-0004 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 0005- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 02 1 9601-9802 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 9803-9804 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 9805-0004 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 0005- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 9803-9804 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 9805-0004 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 0005- ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(C) 		1-41550-030-0 02 1 9601-9802 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(A) 		1-41550-031-0 01 1 9803-9804 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(B) 		1-51550-031-0 01 1 9803-9804 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(A) 		1-41550-031-0 02 1 9805-0004 ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(A) 		1-41550-031-0 02 1 0005- ● ● ●
360 FORK; SHIFT 1-41519-046-0 01 1 9601-9804 ● ● ● ●
360 FORK; SHIFT 1-41519-046-0 01 1 9805-0004 ● ● ● ● ●
360 FORK; SHIFT 1-41519-046-0 01 1 0005- ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 9811-0211 ●
360 FORK; SHIFT 1-48269-066-0 01 1 0212-0604 ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 0605- ● ● ●
361 GEAR; DRIVE 1-41351-036-0 01 1 9601-9802 ● ● ● ●
361 GEAR; DRIVE 1-41351-039-0 01 1 9803-9804 ● ● ● ●
361 GEAR; DRIVE 1-41351-039-0 01 1 9805-0004 ● ● ● ● ●
361 GEAR; DRIVE 1-41351-039-0 01 1 0005- ● ● ●
379 PIN; SPLIT 1-41129-012-0 04 1 9601-9804 ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 04 1 9805-0004 ● ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 04 1 0005- ● ● ●
388 BOLT; COUPLING 1-37249-160-0 04 1 9601-9804 ● ● ● ●
388 BOLT; COUPLING 1-37249-160-0 04 1 9805-0004 ● ● ● ● ●
388 BOLT; COUPLING 1-37249-160-0 04 1 0005- ● ● ●
392 WASHER KIT; THRUST,DIFF 1-41559-002-0 02 1 9601-9802 ● ● ● ●
397 BAFFLE; OIL 1-41349-158-0 01 1 9601-9804 ● ● ● ●
397 BAFFLE; OIL 1-41349-158-0 01 1 9805-0004 ● ● ● ● ●
397 BAFFLE; OIL 1-41349-158-0 01 1 0005- ● ● ●
398 DOWEL; CASE 1-41119-071-0 04 1 9601-9802 ● ● ● ●
çizim 184601
94 92 90 90 95 96 1 69 93 17 71 52 91 20 21 21 70 84 88 88 83 85 24 25 34 35 22 20 56 54 89 17 53 22 69 70 9 67 31 25 10 55 10 376 24 8 68 33 225 16 36 15 10 226 374 375 206 32 8 6 21 377 98 66 61 3 61 355 373 50 42 43 97 8 366 65 64 63 62 5 372 39 40 49 45 31 365 371 368 367 370 37 369 60 27 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-042-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-044-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-139-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-343-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
AUTO ADJUSTER BRAKE<BCU> FORWARD 39/8 		1-41002-749-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-142-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-348-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
AUTO ADJUSTER BRAKE<BCU> FORWARD 37/7 		1-41002-750-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-140-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-143-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-345-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-350-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
EXC. AUTO ADJUSTER BRAKE<BCU> FORWARD 39/8 		1-41002-350-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-138-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-342-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-141-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-347-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
REARWARD 37/7 		1-41002-346-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
FORWARD 37/7 		1-41002-351-0 01 1 9703-0004 ●
1 DRIVE ASM; FINAL,RR
EXC. AUTO ADJUSTER BRAKE<BCU> FORWARD 37/7 		1-41002-351-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41002-344-0 01 1 9805-0004 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-349-0 01 1 9805-0004 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 9811- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-038-0 01 1 9811- ●
3 NUT; INPUT SHAFT 1-41219-028-0 01 1 9601-9802 ● ● ● ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 9811-0211 ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 0212-0604 ● ● ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 0605- ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 9811-0211 ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 0212-0604 ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 0605- ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-265-2 01 1 9811-0211 ●
6 FLANGE ASM; INPUT SHAFT 1-37245-265-2 01 1 0212-0604 ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-265-2 01 1 0605- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(C) 		1-41349-154-0 01 1 9601-9804 ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(C) 		1-41349-154-0 01 1 9805-0004 ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
EXC. AUTO ADJUSTER BRAKE<BCU> (C) 		1-41349-154-0 01 1 0005- ● ●
8 SEAL; OIL,INPUT SHAFT
(C) 		1-41349-154-0 01 1 0005- ●
8 SEAL; OIL,INPUT SHAFT
AUTO ADJUSTER BRAKE<BCU> (C) 		1-41349-183-0 01 1 0005- ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 9811-0211 ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 0212-0604 ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 0605- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 9811-0211 ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 0212-0604 ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 0605- ● ● ●
9 RING; SNAP,BRG,INPUT 1-41519-043-0 01 1 9601-9802 ● ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 9811-0211 ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 0212-0604 ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 0605- ● ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 9811-0211 ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 0212-0604 ● ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 0605- ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 9811-0211 ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 0212-0604 ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09811-347-0 01 1 0605- ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 9811-0211 ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 0212-0604 ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 0605- ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 9811-0211 ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 0212-0604 ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 0605- ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 9811-0211 ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 0212-0604 ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 0605- ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 9811-0211 ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 0212-0604 ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 0605- ● ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 9811-0211 ●
15 CATCHER; OIL 1-41129-007-0 01 1 0212-0604 ● ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 0605- ● ● ●
16 SHAFT ASM; INPUT 1-41341-026-0 01 1 9601-9802 ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-026-0 01 1 9803-0004 ● ● ●
16 SHAFT ASM; INPUT 1-41341-026-0 01 1 0005- ●
16 SHAFT ASM; INPUT 1-41341-030-0 01 1 9803- ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 9811-0211 ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 0212-0604 ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 9601-9804 ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 9805-0004 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 0005- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 9803-9804 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 9805-0004 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 0005- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0605- ● ● ●
21 GEAR; SIDE,DIFF
(C) 		1-41561-118-0 04 1 9803-9804 ● ● ● ●
21 GEAR; SIDE,DIFF
(C) 		1-41561-118-0 04 1 9805-0004 ● ● ● ● ●
21 GEAR; SIDE,DIFF
(C) 		1-41561-118-0 04 1 0005- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 9811-0211 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 0212-0409 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0410-0604 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0605-0905 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 04 1 0906- ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 9811-0211 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 0212-0407 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0408-0604 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0605-0911 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-169-0 01 1 0912- ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-055-0 02 1 9601-9802 ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 9803-9804 ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 9805-0004 ● ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 0005- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 02 1 9811-0211 ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0212-0604 ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0605- ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 9811-0211 ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0212-0604 ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0605- ● ● ●
24 GEAR; PINION,DIFF
(C) 		1-41551-037-0 08 1 9803-9804 ● ● ● ●
24 GEAR; PINION,DIFF
(C) 		1-41551-037-0 08 1 9805-0004 ● ● ● ● ●
24 GEAR; PINION,DIFF
(C) 		1-41551-037-0 08 1 0005- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 9811-0211 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 0212-0409 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0410-0604 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0605-0905 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 08 1 0906- ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-031-0 04 1 9811-0211 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-031-0 04 1 0212-0407 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0408-0604 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0605-0911 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-055-0 04 1 0912- ● ● ●
25 WASHER; THRUST,PINION
(C) 		1-41552-038-0 08 1 9803-9804 ● ● ● ●
25 WASHER; THRUST,PINION
(C) 		1-41552-038-0 08 1 9805-0004 ● ● ● ● ●
25 WASHER; THRUST,PINION
(C) 		1-41552-038-0 08 1 0005- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 9811-0211 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0212-0604 ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0605- ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 9811-0211 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0212-0604 ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0605- ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50051-235-0 08 1 9811-0211 ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50051-235-0 08 1 0212-0604 ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50051-235-0 08 1 0605-0906 ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 0907- ● ● ●
29 SHIM; BRG RET
(A) 		1-41154-091-0 01 1 9601-9802 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(C) T=0.30 		1-41349-146-0 AR 1 9811-0211 ●
29 SHIM; BRG RET
(C) T=0.30 		1-41349-146-0 AR 1 0212-0604 ● ● ●
29 SHIM; BRG RET
(C) T=0.30 		1-41349-146-0 AR 1 0605- ● ● ●
29 SHIM; BRG RET
(C) T=0.40 		1-41349-147-0 AR 1 9811-0211 ●
29 SHIM; BRG RET
(C) T=0.40 		1-41349-147-0 AR 1 0212-0604 ● ● ●
29 SHIM; BRG RET
(C) T=0.40 		1-41349-147-0 AR 1 0605- ● ● ●
29 SHIM; BRG RET
(C) T=0.50 		1-41349-148-0 AR 1 9811-0211 ●
29 SHIM; BRG RET
(C) T=0.50 		1-41349-148-0 AR 1 0212-0604 ● ● ●
29 SHIM; BRG RET
(C) T=0.50 		1-41349-148-0 AR 1 0605- ● ● ●
29 SHIM; BRG RET
(C) T=1.000 		1-41349-149-0 AR 1 9811-0211 ●
29 SHIM; BRG RET
(C) T=1.000 		1-41349-149-0 AR 1 0212-0604 ● ● ●
29 SHIM; BRG RET
(C) T=1.000 		1-41349-149-0 AR 1 0605- ● ● ●
31 GEAR; DRIVEN,HELICAL
(C) 		1-41251-360-0 01 1 9803-9804 ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(C) 		1-41251-360-0 01 1 9805-0004 ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(C) 		1-41251-360-0 01 1 0005- ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-030-0 01 1 9811-0211 ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-030-0 01 1 0212-0407 ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-042-0 01 1 0408-0604 ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-042-0 01 1 0605-0911 ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 0912- ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 9811-0211 ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 0212-0604 ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 0605- ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41519-044-0 01 1 9601-9802 ● ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 9811-0211 ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 0212-0604 ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 0605- ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 9811-0211 ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 0212-0604 ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 0605- ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23801-440-0 10 1 9811-0211 ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23801-440-0 10 1 0212-0512 ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 0601-0604 ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 0605- ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		9-09150-814-0 10 1 9811-0211 ●
35 WASHER; CASE TO CARRIER
ID=14.2 		9-09150-814-0 10 1 0212-0603 ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 0604-0604 ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 0605- ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 9811-0211 ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 0212-0604 ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 0605- ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 01 1 9601-9802 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9803-9804 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9805-0004 ● ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0005- ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9601-9804 ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9805-0004 ● ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0005- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 9811-0211 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0212-0604 ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0605- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 9811-0211 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0212-0604 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0605- ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 9811-0211 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 0212-0604 ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 0605- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-1 01 1 9811-0211 ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-1 01 1 0212-0604 ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 0605- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 9811-0211 ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0212-0604 ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0605- ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 9811-0211 ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0212-0604 ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0605- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 9811-0211 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 0212-0604 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 0605- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 9811-0211 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 0212-0604 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 0605- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 9811-0211 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 0212-0604 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 0605- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 9811-0211 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 0212-0604 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 0605- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 9811-0211 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 0212-0604 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 0605- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 9811-0211 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 0212-0604 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 0605- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 9811-0211 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 0212-0604 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 0605- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 9811-0211 ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 0212-0604 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 0605- ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 9601-9804 ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 9805-0004 ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 0005- ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 9803-9804 ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 9805-0004 ● ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 0005- ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 9811-0211 ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 0212-0604 ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 0605- ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 9811-0211 ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 0212-0604 ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 0605- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 08 1 9601-9802 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 9803-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 9601-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 9803-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 9811-0211 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0212-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0605- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 9811-0211 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0212-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
LOAD SENSING PROPORTIONING VALVE<JR7> (C) 		1-41554-090-0 01 1 9805-0004 ●
49 SHIM; FINAL PINION CAGE
AUTO ADJUSTER BRAKE<BCU> (C) 		1-41154-103-0 01 1 0005- ● ●
49 SHIM; FINAL PINION CAGE
EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (C) 		1-41154-090-0 01 1 9805-0004 ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-090-0 01 1 9805-0004 ● ● ● ●
49 SHIM; FINAL PINION CAGE
EXC. AUTO ADJUSTER BRAKE<BCU> (C) 		1-41154-090-0 01 1 0005- ● ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-090-0 01 1 0005- ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-090-0 01 1 9601-9802 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-103-0 01 1 9803-9804 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0605- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 9811-0211 ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0212-0604 ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0605- ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 9811-0211 ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 0212-0604 ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 0605- ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 9811-0211 ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 0212-0604 ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 0605- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 9811-0211 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 0212-0604 ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 0605- ● ● ●
52 SHAFT; OUTPUT 1-41343-025-0 01 1 9601-9804 ● ● ● ●
52 SHAFT; OUTPUT 1-41343-025-0 01 1 9805-0004 ● ● ● ● ●
52 SHAFT; OUTPUT 1-41343-025-0 01 1 0005- ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 9811-0211 ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 0212-0604 ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 0605- ● ● ●
53 NUT; FINAL DRIVE SET
M16 		9-99110-516-0 01 1 9811-0211 ●
53 NUT; FINAL DRIVE SET
M16 		9-99110-516-0 01 1 0212-0512 ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 0601-0604 ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 0605- ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 9811-0211 ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 0212-0604 ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 0605- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-111-0 01 1 9601-9802 ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-054-0 01 1 9803-0004 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-054-0 01 1 0005- ●
55 CARRIER; DIFF
(A) 		1-41321-027-0 01 1 9601-9802 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 9803-9804 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 9805-0004 ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 0005- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-055-0 01 1 9803-0004 ● ●
55 CARRIER; DIFF
EXC. AUTO ADJUSTER BRAKE<BCU> (A) 		1-41310-055-0 01 1 0005- ● ●
55 CARRIER; DIFF
AUTO ADJUSTER BRAKE<BCU> (A) 		1-41310-059-0 01 1 0005- ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 9811-0211 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0212-0604 ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0605- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 9811-0211 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0212-0604 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0605- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 9601-9804 ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 9805-0004 ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 0005- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 9811-0211 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0212-0604 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0605- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/10 		1-41210-551-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/10 		1-41210-589-0 01 1 9803-0004 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/10 		1-41210-554-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/10 		1-41210-594-0 01 1 9803-0004 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-552-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-555-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-590-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-595-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-550-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-588-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-553-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-593-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 37/7 		1-41210-591-0 01 1 9703- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 37/7 		1-41210-596-0 01 1 9703- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-592-0 01 1 9805-0004 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-597-0 01 1 9805-0004 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-464-0 01 1 9811-9901 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 9811- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 9811-0211 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 0212-0604 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 0605- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 9811-0211 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 0212-0604 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 0605- ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 9601-9804 ● ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 9805-0004 ● ● ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 0005- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 9811-0211 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0212-0604 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0605- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 9811-0211 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0212-0604 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0605- ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 04 1 9811-0211 ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 04 1 0212-0512 ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 04 1 0601-0604 ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 04 1 0605- ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 9811-0211 ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 0212-0604 ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 0605-0805 ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 04 1 0806- ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 9601-9804 ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 9805-0004 ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 0005- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 9811-0211 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 0212-0604 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 02 1 0605- ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 9811-0211 ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 0212-0604 ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 0605- ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 9811-0211 ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 0212-0604 ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 0605- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 9601-9804 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 9805-0004 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 0005- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 9811-0211 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0212-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0605- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 9811-0211 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0212-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0605- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 9811-0211 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 0212-0604 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 0605- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0601-0604 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0605- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-249-0 02 1 9601-9802 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 9803-9804 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 9805-0004 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 0005- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-248-0 02 1 9601-9802 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 02 1 9803- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 9811-0211 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0212-0509 ● ● ●
83 CAGE ASM; DIFF 1-41510-250-0 01 1 9601-9802 ● ● ● ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 9811-0211 ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 0212-0604 ● ● ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 0605- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 9601-9804 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 9805-0004 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 0005- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 9811-0211 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0212-0604 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0605- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 9601-9804 ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 9805-0004 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0005- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 9811-0211 ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 0212-0512 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0601-0604 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0605- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 9811-0211 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0212-0604 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0605- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 9811-0211 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0212-0604 ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0605- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 08 1 9811-0211 ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 08 1 0212-0512 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 08 1 0601-0604 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 08 1 0605- ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 9811-0211 ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 0212-0604 ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 0605- ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 9811-0211 ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 0212-0604 ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 0605- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 9811-0211 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 0212-0604 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 0605- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 9811-0211 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 0212-0604 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 0605- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 9811-0211 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 0212-0604 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 0605- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 9811-0211 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 0212-0604 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 0605- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 9811-0211 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 0212-0604 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 0605- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 9811-0211 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 0212-0604 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 0605- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 9811-0211 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 0212-0604 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 0605- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 9811-0211 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 0212-0604 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 0605- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 9811-0211 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 0212-0604 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 0605- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 9811-0211 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 0212-0604 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 0605- ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(A) 		1-41349-161-0 01 1 9601-9804 ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(A) 		1-41349-161-0 01 1 9805-0004 ● ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(A) 		1-41349-161-0 01 1 0005- ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(B) 		1-41349-162-0 01 1 9601-9802 ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(C) OD=90.5 		9-09180-185-0 01 1 9811-0211 ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(C) OD=90.5 		9-09180-185-0 01 1 0212-0604 ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
(C) OD=90.5 		9-09180-185-0 01 1 0605- ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-163-0 01 1 9601-9804 ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-163-0 01 1 9805-0004 ● ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-41349-163-0 01 1 0005- ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-163-0 01 1 0005- ●
93 SEAL; OIL,OUTPUT SHAFT
AUTO ADJUSTER BRAKE<BCU> 		1-41349-182-0 01 1 0005- ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 9811-0211 ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 0212-0604 ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 0605- ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-315-0 01 1 9601-9804 ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-315-0 01 1 9805-0004 ● ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-315-0 01 1 0005- ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 9811-0211 ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 0212-0604 ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 0605- ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 9601-9804 ● ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 9805-0004 ● ● ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 0005- ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 9811-0211 ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 0212-0604 ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 0605- ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 9811-0211 ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 0212-0604 ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 0605- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 9601-9804 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 9805-0004 ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 0005- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 9811-0211 ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0212-0604 ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0605- ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER 1-41329-064-0 01 1 9601-9802 ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28181-050-0 01 1 9811-0211 ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28181-050-0 01 1 0212-0512 ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 0601-0604 ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 0605- ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28781-025-0 03 1 9811-0211 ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28781-025-0 03 1 0212-0512 ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 0601-0604 ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 0605- ● ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 9811-0211 ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 0212-0604 ● ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 0605- ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 9601-9804 ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 9805-0004 ● ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 0005- ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 9803-9804 ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 9805-0004 ● ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 0005- ● ● ●
225 WASHER; THRUST
(C) T=5.9 		1-41552-024-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=5.9 		1-41552-024-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=5.9 		1-41552-024-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.0 		1-41552-025-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.0 		1-41552-025-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.0 		1-41552-025-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.1 		1-41552-026-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.1 		1-41552-026-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.1 		1-41552-026-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.2 		1-41552-027-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.2 		1-41552-027-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.2 		1-41552-027-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.3 		1-41552-028-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.3 		1-41552-028-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.3 		1-41552-028-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.4 		1-41552-029-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.4 		1-41552-029-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.4 		1-41552-029-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.5 		1-41552-030-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.5 		1-41552-030-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.5 		1-41552-030-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.6 		1-41552-031-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.6 		1-41552-031-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.6 		1-41552-031-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.7 		1-41552-032-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.7 		1-41552-032-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.7 		1-41552-032-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.8 		1-41552-033-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.8 		1-41552-033-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.8 		1-41552-033-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.9 		1-41552-034-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.9 		1-41552-034-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.9 		1-41552-034-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=7.0 		1-41552-035-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=7.0 		1-41552-035-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=7.0 		1-41552-035-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=7.1 		1-41552-036-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=7.1 		1-41552-036-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=7.1 		1-41552-036-2 AR 1 0605- ● ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 9811-0211 ●
226 WASHER; THRUST 1-41562-267-0 01 1 0212-0604 ● ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 0605- ● ● ●
355 RETAINER; BRG 1-41227-011-0 01 1 9811-9906 ●
355 RETAINER; BRG 1-41227-016-0 01 1 9907-0211 ●
355 RETAINER; BRG 1-41227-016-0 01 1 0212-0604 ● ● ●
355 RETAINER; BRG 1-41227-016-0 01 1 0605- ● ● ●
365 PUMP ASM; OIL 1-41381-010-0 01 1 9803- ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 9811-0211 ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 0212-0604 ● ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 0605- ● ● ●
366 BOLT; PUMP 1-41389-018-0 06 1 9803- ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 9811-0211 ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 0212-0604 ● ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 0605- ● ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 9811-0211 ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 0212-0604 ● ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 0605- ● ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 9811-0211 ●
368 SPRING; STRAINER 1-09580-504-0 01 1 0212-0604 ● ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 0605- ● ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 9811-0211 ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 0212-0604 ● ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 0605- ● ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 9811-0211 ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 0212-0604 ● ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 0605- ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		9-09150-808-0 04 1 9811-0211 ●
371 WASHER; LK,PUMP
ID=8.2 		9-09150-808-0 04 1 0212-0603 ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 0604-0604 ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 0605- ● ● ●
372 BALL; CASE 9-00097-517-0 01 1 9811-0211 ●
372 BALL; CASE 9-00097-517-0 01 1 0212-0604 ● ● ●
372 BALL; CASE 9-00097-517-0 01 1 0605- ● ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 9811-0211 ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 0212-0604 ● ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 0605- ● ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 9811-0211 ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 0212-0604 ● ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 0605- ● ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 9811-0211 ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 0212-0604 ● ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 0605- ● ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 9811-0211 ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 0212-0604 ● ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 0605- ● ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 9811-0211 ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 0212-0604 ● ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 0605- ● ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 9811-0211 ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 0212-0604 ● ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 0605- ● ● ●
çizim 184603
69 1 70 85 71 20 21 22 24 25 56 17 21 20 88 89 88 70 84 17 69 55 66 61 61 65 64 63 41 40 39 100 126 62 50 49 43 48 45 4 37 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-042-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-044-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-139-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-343-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
AUTO ADJUSTER BRAKE<BCU> FORWARD 39/8 		1-41002-749-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-142-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-348-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
AUTO ADJUSTER BRAKE<BCU> FORWARD 37/7 		1-41002-750-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-140-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-143-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-345-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-350-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
EXC. AUTO ADJUSTER BRAKE<BCU> FORWARD 39/8 		1-41002-350-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-138-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-342-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-141-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-347-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
REARWARD 37/7 		1-41002-346-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
FORWARD 37/7 		1-41002-351-0 01 1 9703-0004 ●
1 DRIVE ASM; FINAL,RR
EXC. AUTO ADJUSTER BRAKE<BCU> FORWARD 37/7 		1-41002-351-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41002-344-0 01 1 9805-0004 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-349-0 01 1 9805-0004 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 9811- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-038-0 01 1 9811- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 9811-0211 ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 0212-0604 ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 9601-9804 ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 9805-0004 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 0005- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 9803-9804 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 9805-0004 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 0005- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0605- ● ● ●
21 GEAR; SIDE,DIFF
(C) 		1-41561-118-0 04 1 9803-9804 ● ● ● ●
21 GEAR; SIDE,DIFF
(C) 		1-41561-118-0 04 1 9805-0004 ● ● ● ● ●
21 GEAR; SIDE,DIFF
(C) 		1-41561-118-0 04 1 0005- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 9811-0211 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 0212-0409 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0410-0604 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0605-0905 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 04 1 0906- ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 9811-0211 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 0212-0407 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0408-0604 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0605-0911 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-169-0 01 1 0912- ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-055-0 02 1 9601-9802 ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 9803-9804 ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 9805-0004 ● ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 0005- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 02 1 9811-0211 ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0212-0604 ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0605- ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 9811-0211 ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0212-0604 ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0605- ● ● ●
24 GEAR; PINION,DIFF
(C) 		1-41551-037-0 08 1 9803-9804 ● ● ● ●
24 GEAR; PINION,DIFF
(C) 		1-41551-037-0 08 1 9805-0004 ● ● ● ● ●
24 GEAR; PINION,DIFF
(C) 		1-41551-037-0 08 1 0005- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 9811-0211 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 0212-0409 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0410-0604 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0605-0905 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 08 1 0906- ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-031-0 04 1 9811-0211 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-031-0 04 1 0212-0407 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0408-0604 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0605-0911 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-055-0 04 1 0912- ● ● ●
25 WASHER; THRUST,PINION
(C) 		1-41552-038-0 08 1 9803-9804 ● ● ● ●
25 WASHER; THRUST,PINION
(C) 		1-41552-038-0 08 1 9805-0004 ● ● ● ● ●
25 WASHER; THRUST,PINION
(C) 		1-41552-038-0 08 1 0005- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 9811-0211 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0212-0604 ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0605- ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 9811-0211 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0212-0604 ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0605- ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 01 1 9601-9802 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9803-9804 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9805-0004 ● ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0005- ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9601-9804 ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9805-0004 ● ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0005- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 9811-0211 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0212-0604 ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0605- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 9811-0211 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0212-0604 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0605- ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 9811-0211 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 0212-0604 ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 0605- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-1 01 1 9811-0211 ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-1 01 1 0212-0604 ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 0605- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 9811-0211 ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0212-0604 ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0605- ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 9811-0211 ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0212-0604 ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0605- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9811-0211 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0212-0604 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41219-049-0 01 1 9601-9802 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41229-341-0 01 1 9803-9804 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41229-341-0 01 1 9805-0004 ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) 		1-41229-341-0 01 1 0005- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) 		1-41229-296-0 02 1 9601-9802 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.60 		1-41229-237-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.60 		1-41229-237-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.60 		1-41229-237-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.80 		1-41229-238-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.80 		1-41229-238-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=7.80 		1-41229-238-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.00 		1-41229-239-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.00 		1-41229-239-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.00 		1-41229-239-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.20 		1-41229-240-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.20 		1-41229-240-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.20 		1-41229-240-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.40 		1-41229-241-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.40 		1-41229-241-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.40 		1-41229-241-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.60 		1-41229-242-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.60 		1-41229-242-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.60 		1-41229-242-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.80 		1-41229-243-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.80 		1-41229-243-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=8.80 		1-41229-243-0 AR 1 0605- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=9.00 		1-41229-244-0 AR 1 9811-0211 ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=9.00 		1-41229-244-0 AR 1 0212-0604 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(C) T=9.00 		1-41229-244-0 AR 1 0605- ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 9601-9804 ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 9805-0004 ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 0005- ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 9803-9804 ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 9805-0004 ● ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 0005- ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 9811-0211 ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 0212-0604 ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 0605- ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 9811-0211 ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 0212-0604 ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 0605- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 08 1 9601-9802 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 9803-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 9601-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 9803-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 9811-0211 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0212-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0605- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 9811-0211 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0212-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0605- ● ● ●
48 WASHER; LK,FINAL PINION
(A) 		1-41329-034-0 08 1 9601-9804 ● ● ● ●
48 WASHER; LK,FINAL PINION
(B) 		1-41329-069-0 05 1 9601-9802 ● ● ● ●
48 WASHER; LK,FINAL PINION
AUTO ADJUSTER BRAKE<BCU> (A) 		1-41329-034-0 08 1 0005- ● ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		9-09150-516-0 08 1 9811-0211 ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		9-09150-516-0 08 1 0212-0603 ● ● ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		0-91510-516-0 08 1 0604-0604 ● ● ●
48 WASHER; LK,FINAL PINION
(C) ID=16.2 		0-91510-516-0 08 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
LOAD SENSING PROPORTIONING VALVE<JR7> (C) 		1-41554-090-0 01 1 9805-0004 ●
49 SHIM; FINAL PINION CAGE
AUTO ADJUSTER BRAKE<BCU> (C) 		1-41154-103-0 01 1 0005- ● ●
49 SHIM; FINAL PINION CAGE
EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (C) 		1-41154-090-0 01 1 9805-0004 ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-090-0 01 1 9805-0004 ● ● ● ●
49 SHIM; FINAL PINION CAGE
EXC. AUTO ADJUSTER BRAKE<BCU> (C) 		1-41154-090-0 01 1 0005- ● ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-090-0 01 1 0005- ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-090-0 01 1 9601-9802 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(C) 		1-41154-103-0 01 1 9803-9804 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0605- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 9811-0211 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0212-0604 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0605- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 9811-0211 ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0212-0604 ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0605- ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 9811-0211 ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 0212-0604 ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 0605- ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 9811-0211 ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 0212-0604 ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 0605- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 9811-0211 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 0212-0604 ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 0605- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-111-0 01 1 9601-9802 ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-054-0 01 1 9803-0004 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-054-0 01 1 0005- ●
55 CARRIER; DIFF
(A) 		1-41321-027-0 01 1 9601-9802 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 9803-9804 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 9805-0004 ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 0005- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-055-0 01 1 9803-0004 ● ●
55 CARRIER; DIFF
EXC. AUTO ADJUSTER BRAKE<BCU> (A) 		1-41310-055-0 01 1 0005- ● ●
55 CARRIER; DIFF
AUTO ADJUSTER BRAKE<BCU> (A) 		1-41310-059-0 01 1 0005- ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 9811-0211 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0212-0604 ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0605- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 9811-0211 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0212-0604 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0605- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 9601-9804 ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 9805-0004 ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 0005- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 9811-0211 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0212-0604 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0605- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/10 		1-41210-551-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/10 		1-41210-589-0 01 1 9803-0004 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/10 		1-41210-554-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/10 		1-41210-594-0 01 1 9803-0004 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-552-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-555-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-590-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-595-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-550-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-588-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-553-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-593-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 37/7 		1-41210-591-0 01 1 9703- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 37/7 		1-41210-596-0 01 1 9703- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-592-0 01 1 9805-0004 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-597-0 01 1 9805-0004 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-464-0 01 1 9811-9901 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 9811- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 9811-0211 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 0212-0604 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 0605- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 9811-0211 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 0212-0604 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 0605- ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 9601-9804 ● ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 9805-0004 ● ● ● ● ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 0005- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 9811-0211 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0212-0604 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0605- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 9811-0211 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0212-0604 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0605- ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 04 1 9811-0211 ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 04 1 0212-0512 ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 04 1 0601-0604 ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 04 1 0605- ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 9811-0211 ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 0212-0604 ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 0605-0805 ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 04 1 0806- ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 9601-9804 ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 9805-0004 ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 0005- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 9811-0211 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 0212-0604 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 02 1 0605- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 9601-9804 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 9805-0004 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 0005- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 9811-0211 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0212-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0605- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 9811-0211 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0212-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0605- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 9811-0211 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 0212-0604 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 0605- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0601-0604 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0605- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-249-0 02 1 9601-9802 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 9803-9804 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 9805-0004 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 0005- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-248-0 02 1 9601-9802 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 02 1 9803- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 9811-0211 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0212-0509 ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 9601-9804 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 9805-0004 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 0005- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 9811-0211 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0212-0604 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0605- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 9601-9804 ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 9805-0004 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0005- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 9811-0211 ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 0212-0512 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0601-0604 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0605- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 9811-0211 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0212-0604 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0605- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 9811-0211 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0212-0604 ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0605- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 08 1 9811-0211 ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 08 1 0212-0512 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 08 1 0601-0604 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 08 1 0605- ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-041-0 01 1 9601-9804 ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-041-0 01 1 9805-0004 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-41219-041-0 01 1 0005- ● ●
100 SEAL; OIL,FINAL PINION 1-41219-041-0 01 1 0005- ●
100 SEAL; OIL,FINAL PINION
AUTO ADJUSTER BRAKE<BCU> 		1-41349-181-0 01 1 0005- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 9811-0211 ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0212-0604 ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0605- ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 9601-9804 ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 9805-0004 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0005- ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 9601-9804 ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 9805-0004 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 0005- ● ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-225-1 01 1 9811-9901 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 9902-0211 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 0212-0604 ● ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 0605- ● ● ●
çizim 184604
379 1 55 379 56 298 20 22 69 254 255 85 245 245 56 20 21 25 86 60 84 126 212 255 254 69 162 88 71 86 17 13 12 365 401 366 55 205 210 38 265 232 37 167 29 97 249 397 403 13 402 404 267 123 47 265 384 400 383 12 194 105 8 11 266 16 158 411 60 2 265 361 267 225 265 266 29 59 31 59 43 364 389 428 38 37 45 24 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-042-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-044-0 01 1 0212- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-139-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-343-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
AUTO ADJUSTER BRAKE<BCU> FORWARD 39/8 		1-41002-749-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/10 		1-41002-142-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/10 		1-41002-348-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
AUTO ADJUSTER BRAKE<BCU> FORWARD 37/7 		1-41002-750-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-140-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-143-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41002-345-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41002-350-0 01 1 9803-0004 ●
1 DRIVE ASM; FINAL,RR
EXC. AUTO ADJUSTER BRAKE<BCU> FORWARD 39/8 		1-41002-350-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-138-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-342-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/10 		1-41002-141-0 01 1 9601-9802 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/10 		1-41002-347-0 01 1 9803- ●
1 DRIVE ASM; FINAL,RR
REARWARD 37/7 		1-41002-346-0 01 1 9703- ●
1 DRIVE ASM; FINAL,RR
FORWARD 37/7 		1-41002-351-0 01 1 9703-0004 ●
1 DRIVE ASM; FINAL,RR
EXC. AUTO ADJUSTER BRAKE<BCU> FORWARD 37/7 		1-41002-351-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41002-344-0 01 1 9805-0004 ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-349-0 01 1 9805-0004 ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 9811- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-038-0 01 1 9811- ●
2 DIFF ASM; INTER,FINAL 1-41510-264-0 01 1 9803-9804 ● ● ● ●
2 DIFF ASM; INTER,FINAL 1-41510-264-0 01 1 9805-0004 ● ● ● ● ●
2 DIFF ASM; INTER,FINAL
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-41510-264-0 01 1 0005- ● ●
2 DIFF ASM; INTER,FINAL 1-41510-264-0 01 1 0005- ●
2 DIFF ASM; INTER,FINAL
AUTO ADJUSTER BRAKE<BCU> 		1-41510-283-0 01 1 0005- ● ●
8 SEAL; OIL,INPUT SHAFT
(C) 		1-41349-154-0 01 1 9601-9804 ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(C) 		1-41349-154-0 01 1 9805-0004 ● ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
EXC. AUTO ADJUSTER BRAKE<BCU> (C) 		1-41349-154-0 01 1 0005- ● ●
8 SEAL; OIL,INPUT SHAFT
(C) 		1-41349-154-0 01 1 0005- ●
8 SEAL; OIL,INPUT SHAFT
AUTO ADJUSTER BRAKE<BCU> (C) 		1-41349-183-0 01 1 0005- ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 9811-0211 ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 0212-0604 ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 0605- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 9811-0211 ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 0212-0604 ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 0605- ● ● ●
11 COVER; INTER AXLE DIFF
(A) 		1-41151-078-0 01 1 9601-9802 ● ● ● ●
11 COVER; INTER AXLE DIFF
(A) 		1-41151-089-0 01 1 9803-0004 ● ● ●
11 COVER; INTER AXLE DIFF
(A) 		1-41151-089-0 01 1 0005- ●
11 COVER; INTER AXLE DIFF
(B) 		1-41329-068-0 01 1 9601-9802 ● ● ● ●
11 COVER; INTER AXLE DIFF
(A) 		1-41151-090-0 01 1 9803- ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 9601-9804 ● ● ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 9805-0004 ● ● ● ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 0005- ● ● ●
13 WASHER; COVER TO CASE 1-41329-034-0 07 1 9601-9804 ● ● ● ●
13 WASHER; COVER TO CASE 1-41329-034-0 07 1 9805-0004 ● ● ● ● ●
13 WASHER; COVER TO CASE
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-41329-034-0 07 1 0005- ● ●
13 WASHER; COVER TO CASE 1-41329-034-0 07 1 0005- ●
13 WASHER; COVER TO CASE
AUTO ADJUSTER BRAKE<BCU> 		1-41329-084-0 07 1 0005- ● ●
16 SHAFT ASM; INPUT 1-41341-026-0 01 1 9601-9802 ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-026-0 01 1 9803-0004 ● ● ●
16 SHAFT ASM; INPUT 1-41341-026-0 01 1 0005- ●
16 SHAFT ASM; INPUT 1-41341-030-0 01 1 9803- ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 9811-0211 ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 0212-0604 ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 9601-9804 ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 9805-0004 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 32 1 0005- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 08 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 16 1 0605- ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 9811-0211 ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 0212-0604 ● ● ●
17 BOLT; DIFF CAGE SETTING
M10X55 		1-09070-108-0 08 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 9803-9804 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 9805-0004 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 04 1 0005- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0605- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9811-0211 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0212-0604 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0605- ● ● ●
21 GEAR; SIDE,DIFF
(C) 		1-41561-118-0 04 1 9803-9804 ● ● ● ●
21 GEAR; SIDE,DIFF
(C) 		1-41561-118-0 04 1 9805-0004 ● ● ● ● ●
21 GEAR; SIDE,DIFF
(C) 		1-41561-118-0 04 1 0005- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 9811-0211 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 04 1 0212-0409 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0410-0604 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0605-0905 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 04 1 0906- ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 9811-0211 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-103-1 01 1 0212-0407 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0408-0604 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0605-0911 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-169-0 01 1 0912- ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-055-0 02 1 9601-9802 ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 9803-9804 ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 9805-0004 ● ● ● ● ●
22 SPIDER; DIFF PINION
(C) 		1-41521-056-0 02 1 0005- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 02 1 9811-0211 ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0212-0604 ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0605- ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 9811-0211 ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0212-0604 ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0605- ● ● ●
24 GEAR; PINION,DIFF
(C) 		1-41551-037-0 08 1 9803-9804 ● ● ● ●
24 GEAR; PINION,DIFF
(C) 		1-41551-037-0 08 1 9805-0004 ● ● ● ● ●
24 GEAR; PINION,DIFF
(C) 		1-41551-037-0 08 1 0005- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 9811-0211 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 08 1 0212-0409 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0410-0604 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0605-0905 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 08 1 0906- ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-031-0 04 1 9811-0211 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-031-0 04 1 0212-0407 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0408-0604 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0605-0911 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-055-0 04 1 0912- ● ● ●
25 WASHER; THRUST,PINION
(C) 		1-41552-038-0 08 1 9803-9804 ● ● ● ●
25 WASHER; THRUST,PINION
(C) 		1-41552-038-0 08 1 9805-0004 ● ● ● ● ●
25 WASHER; THRUST,PINION
(C) 		1-41552-038-0 08 1 0005- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 9811-0211 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0212-0604 ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0605- ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 9811-0211 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0212-0604 ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0605- ● ● ●
29 SHIM; BRG RET
(A) 		1-41154-091-0 01 1 9601-9802 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.076 		1-41154-096-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.127 		1-41154-097-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(A) T=0.254 		1-41154-098-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.076 		1-41219-053-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.127 		1-41219-054-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 9803-9804 ● ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 9805-0004 ● ● ● ● ●
29 SHIM; BRG RET
(B) T=0.254 		1-41219-055-0 01 1 0005- ● ● ●
29 SHIM; BRG RET
(C) T=0.30 		1-41349-146-0 AR 1 9811-0211 ●
29 SHIM; BRG RET
(C) T=0.30 		1-41349-146-0 AR 1 0212-0604 ● ● ●
29 SHIM; BRG RET
(C) T=0.30 		1-41349-146-0 AR 1 0605- ● ● ●
29 SHIM; BRG RET
(C) T=0.40 		1-41349-147-0 AR 1 9811-0211 ●
29 SHIM; BRG RET
(C) T=0.40 		1-41349-147-0 AR 1 0212-0604 ● ● ●
29 SHIM; BRG RET
(C) T=0.40 		1-41349-147-0 AR 1 0605- ● ● ●
29 SHIM; BRG RET
(C) T=0.50 		1-41349-148-0 AR 1 9811-0211 ●
29 SHIM; BRG RET
(C) T=0.50 		1-41349-148-0 AR 1 0212-0604 ● ● ●
29 SHIM; BRG RET
(C) T=0.50 		1-41349-148-0 AR 1 0605- ● ● ●
29 SHIM; BRG RET
(C) T=1.000 		1-41349-149-0 AR 1 9811-0211 ●
29 SHIM; BRG RET
(C) T=1.000 		1-41349-149-0 AR 1 0212-0604 ● ● ●
29 SHIM; BRG RET
(C) T=1.000 		1-41349-149-0 AR 1 0605- ● ● ●
31 GEAR; DRIVEN,HELICAL
(C) 		1-41251-360-0 01 1 9803-9804 ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(C) 		1-41251-360-0 01 1 9805-0004 ● ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(C) 		1-41251-360-0 01 1 0005- ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-030-0 01 1 9811-0211 ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-030-0 01 1 0212-0407 ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-042-0 01 1 0408-0604 ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-042-0 01 1 0605-0911 ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 0912- ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 9811-0211 ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 0212-0604 ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 0605- ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 01 1 9601-9802 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9803-9804 ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 9805-0004 ● ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0005- ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9601-9804 ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 9805-0004 ● ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0005- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 9811-0211 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0212-0604 ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0605- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 9811-0211 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0212-0604 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0605- ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 9601-9804 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 9805-0004 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 0005- ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 9601-9804 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 9805-0004 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 0005- ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 9803-9804 ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 9805-0004 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(C) 		1-41349-067-0 01 1 0005- ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 9601-9804 ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 9805-0004 ● ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41151-077-0 01 1 0005- ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 9803-9804 ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 9805-0004 ● ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41329-068-0 01 1 0005- ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 9811-0211 ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 0212-0604 ● ● ●
43 CAGE; FINAL PINION
(D) T=81 		1-41151-030-0 01 1 0605- ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 9811-0211 ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 0212-0604 ● ● ●
43 CAGE; FINAL PINION
(C) T=53 		1-41151-053-0 01 1 0605- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 08 1 9601-9802 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 9803-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 14 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 9601-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41329-070-0 05 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 9803-9804 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 9805-0004 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(C) 		1-41159-011-0 02 1 0005- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 9811-0211 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0212-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0605- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 9811-0211 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0212-0604 ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0605- ● ● ●
47 WASHER; LK 1-41329-016-0 03 1 9601-9804 ● ● ● ●
47 WASHER; LK 1-41329-016-0 03 1 9805-0004 ● ● ● ● ●
47 WASHER; LK 1-41329-016-0 03 1 0005- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-111-0 01 1 9601-9802 ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-054-0 01 1 9803-0004 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-054-0 01 1 0005- ●
55 CARRIER; DIFF
(A) 		1-41321-027-0 01 1 9601-9802 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 9803-9804 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 9805-0004 ● ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-118-0 01 1 0005- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-055-0 01 1 9803-0004 ● ●
55 CARRIER; DIFF
EXC. AUTO ADJUSTER BRAKE<BCU> (A) 		1-41310-055-0 01 1 0005- ● ●
55 CARRIER; DIFF
AUTO ADJUSTER BRAKE<BCU> (A) 		1-41310-059-0 01 1 0005- ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 9811-0211 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0212-0604 ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0605- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 9811-0211 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0212-0604 ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0605- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 9601-9804 ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 9805-0004 ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 08 1 0005- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 9811-0211 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0212-0604 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0605- ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-049-0 01 1 9803-9804 ● ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-049-0 01 1 9805-0004 ● ● ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-049-0 01 1 0005- ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-296-0 01 1 9803-9804 ● ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-296-0 01 1 9805-0004 ● ● ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-296-0 01 1 0005- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-478-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-607-0 01 1 0212- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/10 		1-41210-551-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/10 		1-41210-589-0 01 1 9803-0004 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/10 		1-41210-554-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/10 		1-41210-594-0 01 1 9803-0004 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-552-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-555-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/8 		1-41210-590-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/8 		1-41210-595-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-550-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/10 		1-41210-588-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-553-0 01 1 9601-9802 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/10 		1-41210-593-0 01 1 9803- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 37/7 		1-41210-591-0 01 1 9703- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 37/7 		1-41210-596-0 01 1 9703- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-592-0 01 1 9805-0004 ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-597-0 01 1 9805-0004 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-464-0 01 1 9811-9901 ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 9811- ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 9601-9804 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 9805-0004 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-042-0 04 1 0005- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 9811-0211 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0212-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0605- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 9811-0211 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0212-0604 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0605- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0601-0604 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0605- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-249-0 02 1 9601-9802 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 9803-9804 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 9805-0004 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 02 1 0005- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-248-0 02 1 9601-9802 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 02 1 9803- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 9811-0211 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0212-0509 ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 9601-9804 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 9805-0004 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 24 1 0005- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 9811-0211 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0212-0604 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0605- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 9601-9804 ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 9805-0004 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 24 1 0005- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 9811-0211 ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 24 1 0212-0512 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0601-0604 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0605- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 9601-9804 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 9805-0004 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0005- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 9601-9804 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 9805-0004 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 0005- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 9811-0211 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0212-0604 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0605- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 9811-0211 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0212-0604 ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0605- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 9601-9804 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 9805-0004 ● ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 0005- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 9811-0211 ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0212-0604 ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0605- ● ● ●
105 GEAR; SIDE 1-41561-119-0 01 1 9803-9804 ● ● ● ●
105 GEAR; SIDE 1-41561-119-0 01 1 9805-0004 ● ● ● ● ●
105 GEAR; SIDE 1-41561-119-0 01 1 0005- ● ● ●
123 BOLT; BAFFLE PLATE 1-41349-159-0 03 1 9803-9804 ● ● ● ●
123 BOLT; BAFFLE PLATE 1-41349-159-0 03 1 9805-0004 ● ● ● ● ●
123 BOLT; BAFFLE PLATE 1-41349-159-0 03 1 0005- ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 9601-9804 ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 9805-0004 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0005- ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 9601-9804 ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 9805-0004 ● ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 0005- ● ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-225-1 01 1 9811-9901 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 9902-0211 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 0212-0604 ● ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-336-0 01 1 0605- ● ● ●
158 RING; SNAP 1-41519-043-0 01 1 9803-9804 ● ● ● ●
158 RING; SNAP 1-41519-043-0 01 1 9805-0004 ● ● ● ● ●
158 RING; SNAP 1-41519-043-0 01 1 0005- ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 9601-9804 ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 9805-0004 ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 0005- ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 9601-9804 ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 9805-0004 ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 0005- ● ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 9803-9804 ● ● ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 9805-0004 ● ● ● ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 0005- ● ● ●
194 PLUG 1-41329-077-0 01 1 9803- ● ●
205 WASHER; PL 1-41329-016-0 06 1 9803- ● ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 9811-0211 ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 0212-0604 ● ● ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 0605- ● ● ●
210 CONNECTOR; SHIFT UNIT 1-41329-083-0 01 1 9803-9804 ● ● ● ●
210 CONNECTOR; SHIFT UNIT 1-41329-083-0 01 1 9805-0004 ● ● ● ● ●
210 CONNECTOR; SHIFT UNIT 1-41329-083-0 01 1 0005- ● ● ●
212 COVER
(A) 		1-41519-049-0 01 1 9601-9804 ● ● ● ●
212 COVER
(A) 		1-41519-049-0 01 1 9805-0004 ● ● ● ● ●
212 COVER
(A) 		1-41519-049-0 01 1 0005- ● ● ●
212 COVER
(B) 		1-41329-080-0 01 1 9803- ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 9601-9804 ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 9805-0004 ● ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 0005- ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 9803-9804 ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 9805-0004 ● ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 0005- ● ● ●
225 WASHER; THRUST
(C) T=5.9 		1-41552-024-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=5.9 		1-41552-024-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=5.9 		1-41552-024-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.0 		1-41552-025-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.0 		1-41552-025-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.0 		1-41552-025-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.1 		1-41552-026-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.1 		1-41552-026-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.1 		1-41552-026-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.2 		1-41552-027-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.2 		1-41552-027-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.2 		1-41552-027-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.3 		1-41552-028-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.3 		1-41552-028-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.3 		1-41552-028-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.4 		1-41552-029-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.4 		1-41552-029-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.4 		1-41552-029-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.5 		1-41552-030-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.5 		1-41552-030-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.5 		1-41552-030-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.6 		1-41552-031-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.6 		1-41552-031-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.6 		1-41552-031-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.7 		1-41552-032-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.7 		1-41552-032-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.7 		1-41552-032-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.8 		1-41552-033-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.8 		1-41552-033-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.8 		1-41552-033-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=6.9 		1-41552-034-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=6.9 		1-41552-034-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=6.9 		1-41552-034-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=7.0 		1-41552-035-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=7.0 		1-41552-035-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=7.0 		1-41552-035-2 AR 1 0605- ● ● ●
225 WASHER; THRUST
(C) T=7.1 		1-41552-036-2 AR 1 9811-0211 ●
225 WASHER; THRUST
(C) T=7.1 		1-41552-036-2 AR 1 0212-0604 ● ● ●
225 WASHER; THRUST
(C) T=7.1 		1-41552-036-2 AR 1 0605- ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 9601-9804 ● ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 9805-0004 ● ● ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 0005- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 9601-9804 ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 9805-0004 ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 08 1 0005- ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 9601-9804 ● ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 9805-0004 ● ● ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 0005- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41349-156-0 01 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 9803-9804 ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-040-0 02 1 0005- ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 04 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 9803-9804 ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-041-0 02 1 0005- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-048-0 01 1 9601-9802 ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 9601-9804 ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 9805-0004 ● ● ● ● ●
254 CUP; DIFF BRG
(D) 		1-41519-050-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(B) 		1-41349-157-0 01 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 9803-9804 ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-041-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-040-0 04 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 9803-9804 ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-040-0 02 1 0005- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-047-0 01 1 9601-9802 ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 9601-9804 ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 9805-0004 ● ● ● ● ●
255 CONE; DIFF BRG
(D) 		1-41519-051-0 02 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 9601-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 9601-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 02 1 9601-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 02 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 02 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 9803-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 0005- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 9803-9804 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 9805-0004 ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0005- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 9601-9804 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 9805-0004 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 0005- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 02 1 9601-9802 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 9803-9804 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 9805-0004 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 0005- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 9803-9804 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 9805-0004 ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 0005- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 9601-9804 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 9805-0004 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0005- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 9803-9804 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 9805-0004 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0005- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 9803-9804 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 9805-0004 ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0005- ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(C) 		1-41550-030-0 02 1 9601-9802 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(A) 		1-41550-031-0 01 1 9803-9804 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(B) 		1-51550-031-0 01 1 9803-9804 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(A) 		1-41550-031-0 02 1 9805-0004 ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE
(A) 		1-41550-031-0 02 1 0005- ● ● ●
361 GEAR; DRIVE 1-41351-036-0 01 1 9601-9802 ● ● ● ●
361 GEAR; DRIVE 1-41351-039-0 01 1 9803-9804 ● ● ● ●
361 GEAR; DRIVE 1-41351-039-0 01 1 9805-0004 ● ● ● ● ●
361 GEAR; DRIVE 1-41351-039-0 01 1 0005- ● ● ●
364 FILTER; OIL PUMP 1-41383-004-0 01 1 9803- ● ●
365 PUMP ASM; OIL 1-41381-010-0 01 1 9803- ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 9811-0211 ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 0212-0604 ● ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 0605- ● ● ●
366 BOLT; PUMP 1-41389-018-0 06 1 9803- ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 9811-0211 ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 0212-0604 ● ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 0605- ● ● ●
379 PIN; SPLIT 1-41129-012-0 04 1 9601-9804 ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 04 1 9805-0004 ● ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 04 1 0005- ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 9803-9804 ● ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 9805-0004 ● ● ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 0005- ● ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 9811-0211 ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 0212-0604 ● ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 0605- ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 9803-9804 ● ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 9805-0004 ● ● ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 0005- ● ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 9811-0211 ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 0212-0604 ● ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 0605- ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 9803-9804 ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 9805-0004 ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
(A) 		1-41329-037-0 05 1 0005- ● ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41329-034-0 08 1 9805-0004 ● ● ● ● ●
389 WASHER; FINAL PINION CAGE
EXC. AUTO ADJUSTER BRAKE<BCU> (B) 		1-41329-034-0 08 1 0005- ● ●
389 WASHER; FINAL PINION CAGE
(B) 		1-41329-034-0 08 1 0005- ●
397 BAFFLE; OIL 1-41349-158-0 01 1 9601-9804 ● ● ● ●
397 BAFFLE; OIL 1-41349-158-0 01 1 9805-0004 ● ● ● ● ●
397 BAFFLE; OIL 1-41349-158-0 01 1 0005- ● ● ●
400 SCREEN; FILTER 1-41383-005-0 01 1 9803- ● ●
401 GASKET; OIL PUMP 1-41349-155-0 01 1 9803- ● ●
402 VALVE; RELIEF,OIL 1-41329-074-0 01 1 9803- ● ●
403 SPRING; RELIEF VALVE 1-41329-075-0 01 1 9803- ● ●
404 WASHER; RELIEF VALVE 1-41329-076-0 01 1 9803- ● ●
411 SLEEVE; CLU 1-41519-044-0 01 1 9803-9804 ● ● ● ●
411 SLEEVE; CLU 1-41519-044-0 01 1 9805-0004 ● ● ● ● ●
411 SLEEVE; CLU
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-41519-044-0 01 1 0005- ● ●
411 SLEEVE; CLU 1-41519-044-0 01 1 0005- ●
411 SLEEVE; CLU
AUTO ADJUSTER BRAKE<BCU> 		1-41519-082-0 01 1 0005- ● ●
428 ADAPTER; OIL FILTER 1-41389-020-0 01 1 9803- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
