◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#65137) — 261 parça

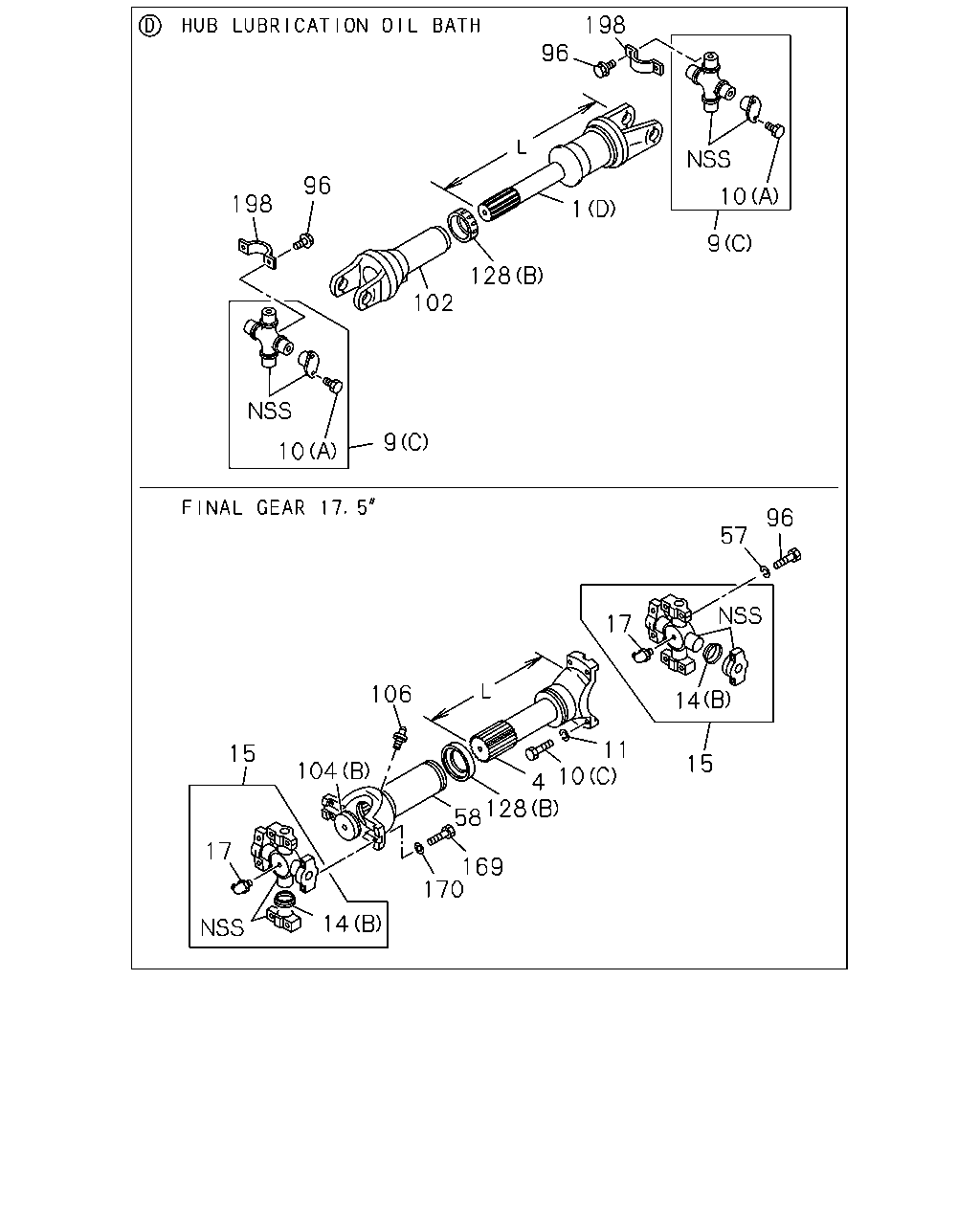

çizim 122604
198 96 96 10 198 1 9 128 102 9 10 96 57 17 106 11 10 15 15 104 4 128 58 17 169 170 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (E) 		8-98183-668-1 01 1 1103- ●
1 SHAFT; PROP
(C) L=1117 		1-37124-081-0 01 1 9601-9607 ●
1 SHAFT; PROP
EXC. ENGINE REAR PTO<SV1> (C) L=1117 		1-37124-081-0 01 1 9608-0004 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) FINAL GEAR 17.5"<B5D> (C) L=1034 		1-37123-918-0 01 1 0005- ●
1 SHAFT; PROP
ENGINE REAR PTO<SV1> (C) L=1027 		1-37123-835-0 01 1 9608-0004 ●
1 SHAFT; PROP
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) HUB LUBRICATION OIL BATH<C5K> ENGINE REAR PTO<SV1> (C) L=1027 		1-37123-835-0 01 1 0005- ●
1 SHAFT; PROP
(D) L=441 		1-37124-191-0 01 1 9601-9810 ● ●
1 SHAFT; PROP
HUB LUBRICATION OIL BATH<C5K> (D) L=441 		1-37124-191-0 01 1 9811- ● ●
1 SHAFT; PROP
(C) L=927 		1-37124-184-0 01 1 9601-9810 ●
1 SHAFT; PROP
HUB LUBRICATION OIL BATH<C5K> (C) L=927 		1-37124-184-0 01 1 9811- ●
1 SHAFT; PROP
(A) L=673 		1-37151-762-0 02 1 9601-9608 ●
1 SHAFT; PROP
(A) L=673 		1-37151-762-0 01 1 9609-9804 ●
1 SHAFT; PROP
(A) L=673 		1-37151-762-0 01 1 9609-9804 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO<SV1> (E) L=513 		1-37152-525-0 01 1 9805-9810 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO<SV1> (E) L=513 		1-37152-525-0 01 1 9811-9903 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO<SV1> (E) L=513 		1-37152-525-0 01 1 9904-0004 ●
1 SHAFT; PROP
ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) (E) L=513 		1-37152-525-0 01 1 9904-0004 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) ENGINE REAR PTO<SV1> (E) L=513 		1-37152-525-0 01 1 0005- ●
1 SHAFT; PROP
(B) L=743 		1-37152-350-0 01 1 9805- ●
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (E) L=653 		1-37152-351-0 01 1 9805-0004 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> (C) L=847 		1-37124-082-0 01 1 9811- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) EXC. ENGINE REAR PTO<SV1> (E) L=603 		1-37152-524-0 01 1 9805- ●
4 SHAFT; PROP
FINAL GEAR 17.5"<B5D> L=348 		1-37171-127-2 01 1 9811- ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (D) 		1-37300-111-0 01 1 1103-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (D) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-090-0 AR 1 9601-9810 ● ●
9 JOURNAL ASM; PROP SHAFT
HUB LUBRICATION OIL BATH<C5K> (C) 		1-37300-090-0 AR 1 9811- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 9601- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-1 AR 1 9601- ●
10 BOLT; UJT
(A) 		1-09087-046-0 AR 1 9601-9810 ● ●
10 BOLT; UJT
HUB LUBRICATION OIL BATH<C5K> (A) 		1-09087-046-0 AR 1 9811- ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 9601-0512 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 AR 1 0601- ● ●
10 BOLT; UJT
FINAL GEAR 17.5"<B5D> (C) M12X45 		9-91066-245-0 AR 1 9811-0805 ● ●
10 BOLT; UJT
FINAL GEAR 17.5"<B5D> (C) M12X45 		8-98036-382-0 04 1 0806- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
FINAL GEAR 17.5"<B5D> ID=12.2 		9-09150-612-0 04 1 9811-0603 ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
FINAL GEAR 17.5"<B5D> ID=12.2 		0-91510-612-0 04 1 0604- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 AR 1 9601- ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 17.5"<B5D> (B) 		1-37319-004-0 AR 1 9811- ● ●
15 UNIVERSAL CENTER
FINAL GEAR 17.5"<B5D> 		1-37300-100-1 02 1 9811- ● ●
17 NIPPLE; GREASE,PROP SHAFT
1ST,END,REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
1ST,END,REAR PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
2ND PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
2ND PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
57 WASHER; LK,YOKE
FINAL GEAR 17.5"<B5D> ID=12.2 		9-09150-612-0 08 1 9811-0603 ● ●
57 WASHER; LK,YOKE
FINAL GEAR 17.5"<B5D> ID=12.2 		0-91510-612-0 08 1 0604- ● ●
58 FLANGE; SPLINED
FINAL GEAR 17.5"<B5D> L=265 		1-37245-317-0 01 1 9811- ● ●
96 BOLT; PROP SHAFT 1-09088-006-0 08 1 9601-9810 ● ●
96 BOLT; PROP SHAFT
HUB LUBRICATION OIL BATH<C5K> 		1-09088-006-0 08 1 9811- ● ●
96 BOLT; PROP SHAFT
FINAL GEAR 17.5"<B5D> M12X45 		9-91066-245-0 08 1 9811-0805 ● ●
96 BOLT; PROP SHAFT
FINAL GEAR 17.5"<B5D> M12X45 		8-98036-382-0 08 1 0806- ● ●
102 YOKE; TRANSFER TO AXLE
L=303.3 		1-37241-094-0 01 1 9601-9810 ● ●
102 YOKE; TRANSFER TO AXLE
HUB LUBRICATION OIL BATH<C5K> L=303.3 		1-37241-094-0 01 1 9811- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 9601- ● ●
104 PLUG; SLEEVE YOKE
FINAL GEAR 17.5"<B5D> (B) 		1-09600-049-0 01 1 9811- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-9810 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 17.5"<B5D> PT1/8 STRAIGHT 		9-09031-010-0 01 1 9811-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9811-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 17.5"<B5D> PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-017-0 01 1 9601-9810 ● ●
128 SEAL; SLEEVE
HUB LUBRICATION OIL BATH<C5K> (B) 		1-37247-017-0 01 1 9811- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 9601- ● ●
128 SEAL; SLEEVE
FINAL GEAR 17.5"<B5D> (B) 		1-37247-006-0 01 1 9811-0312 ● ●
128 SEAL; SLEEVE
FINAL GEAR 17.5"<B5D> (B) 		8-97603-618-0 01 1 0401- ● ●
169 BOLT; YOKE,SLEEVE
FINAL GEAR 17.5"<B5D> M12X45 		9-91066-245-0 04 1 9811-0805 ● ●
169 BOLT; YOKE,SLEEVE
FINAL GEAR 17.5"<B5D> M12X45 		8-98036-382-0 04 1 0806- ● ●
170 WASHER; LK,YOKE,SLEEVE
FINAL GEAR 17.5"<B5D> ID=12.2 		9-09150-612-0 04 1 9811-0603 ● ●
170 WASHER; LK,YOKE,SLEEVE
FINAL GEAR 17.5"<B5D> ID=12.2 		0-91510-612-0 04 1 0604- ● ●
198 PLATE; PROP SHAFT 1-37319-009-0 04 1 9601-9810 ● ●
198 PLATE; PROP SHAFT
HUB LUBRICATION OIL BATH<C5K> 		1-37319-009-0 04 1 9811- ● ●

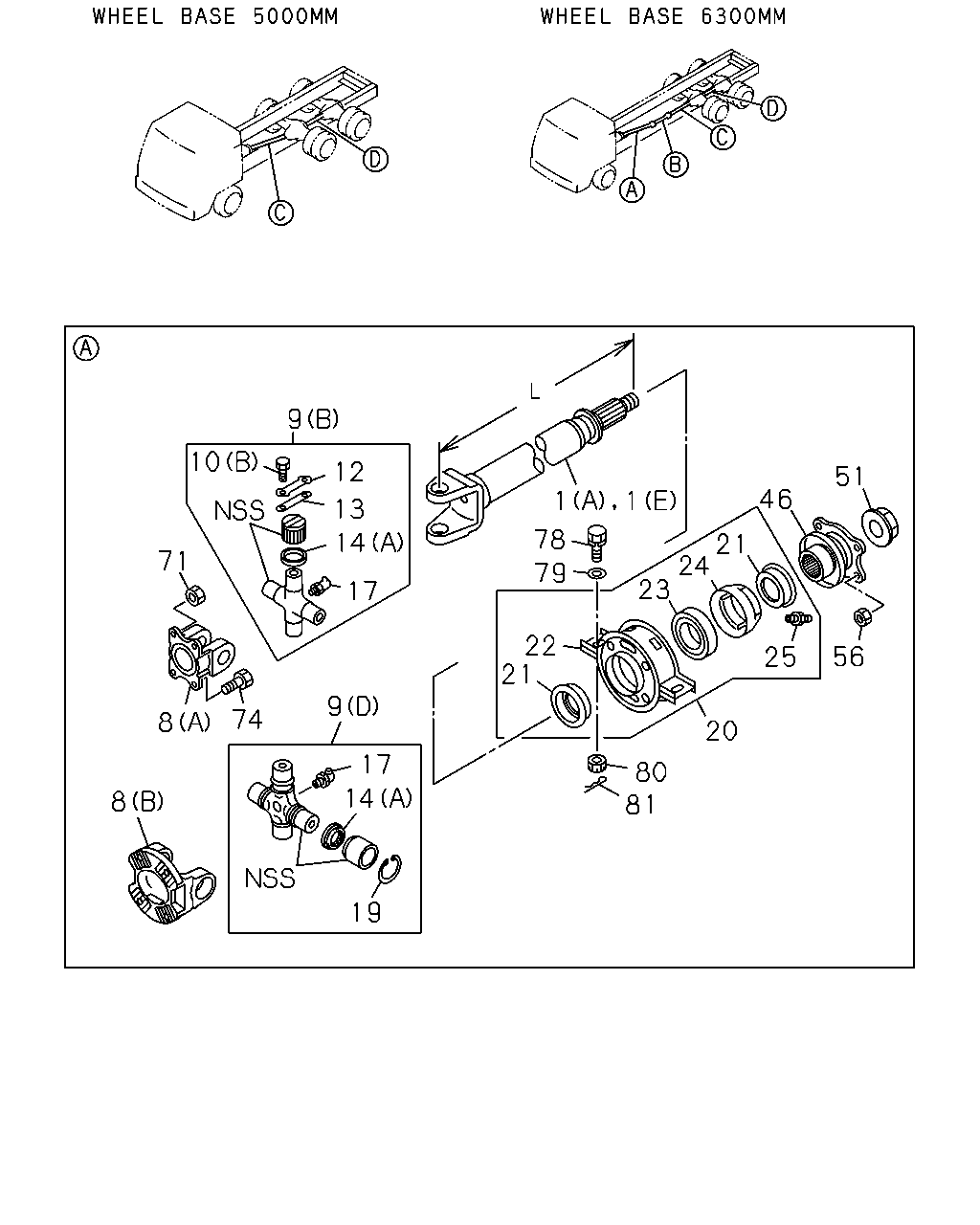

çizim 122888
9 10 12 51 46 1 1 13 14 78 79 21 24 23 71 17 22 21 56 25 9 74 8 20 17 80 81 14 8 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (E) 		8-98183-668-1 01 1 1103- ●
1 SHAFT; PROP
(C) L=1117 		1-37124-081-0 01 1 9601-9607 ●
1 SHAFT; PROP
EXC. ENGINE REAR PTO<SV1> (C) L=1117 		1-37124-081-0 01 1 9608-0004 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) FINAL GEAR 17.5"<B5D> (C) L=1034 		1-37123-918-0 01 1 0005- ●
1 SHAFT; PROP
ENGINE REAR PTO<SV1> (C) L=1027 		1-37123-835-0 01 1 9608-0004 ●
1 SHAFT; PROP
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) HUB LUBRICATION OIL BATH<C5K> ENGINE REAR PTO<SV1> (C) L=1027 		1-37123-835-0 01 1 0005- ●
1 SHAFT; PROP
(D) L=441 		1-37124-191-0 01 1 9601-9810 ● ●
1 SHAFT; PROP
HUB LUBRICATION OIL BATH<C5K> (D) L=441 		1-37124-191-0 01 1 9811- ● ●
1 SHAFT; PROP
(C) L=927 		1-37124-184-0 01 1 9601-9810 ●
1 SHAFT; PROP
HUB LUBRICATION OIL BATH<C5K> (C) L=927 		1-37124-184-0 01 1 9811- ●
1 SHAFT; PROP
(A) L=673 		1-37151-762-0 02 1 9601-9608 ●
1 SHAFT; PROP
(A) L=673 		1-37151-762-0 01 1 9609-9804 ●
1 SHAFT; PROP
(A) L=673 		1-37151-762-0 01 1 9609-9804 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO<SV1> (E) L=513 		1-37152-525-0 01 1 9805-9810 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO<SV1> (E) L=513 		1-37152-525-0 01 1 9811-9903 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO<SV1> (E) L=513 		1-37152-525-0 01 1 9904-0004 ●
1 SHAFT; PROP
ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) (E) L=513 		1-37152-525-0 01 1 9904-0004 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) ENGINE REAR PTO<SV1> (E) L=513 		1-37152-525-0 01 1 0005- ●
1 SHAFT; PROP
(B) L=743 		1-37152-350-0 01 1 9805- ●
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (E) L=653 		1-37152-351-0 01 1 9805-0004 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> (C) L=847 		1-37124-082-0 01 1 9811- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) EXC. ENGINE REAR PTO<SV1> (E) L=603 		1-37152-524-0 01 1 9805- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (B) 		1-37211-079-1 01 1 1103- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 9601-9804 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 01 1 9805-9810 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 9811- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 9601-9608 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 01 1 9609-9804 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 01 1 9609-9804 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 9805-9810 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 01 1 9811-0604 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 01 1 9811-0604 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 01 1 0605- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) (A) 		1-37211-066-1 01 1 0605- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 03 1 9805-9810 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (D) 		1-37300-111-0 01 1 1103-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (D) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-090-0 AR 1 9601-9810 ● ●
9 JOURNAL ASM; PROP SHAFT
HUB LUBRICATION OIL BATH<C5K> (C) 		1-37300-090-0 AR 1 9811- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 9601- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-1 AR 1 9601- ●
10 BOLT; UJT
(A) 		1-09087-046-0 AR 1 9601-9810 ● ●
10 BOLT; UJT
HUB LUBRICATION OIL BATH<C5K> (A) 		1-09087-046-0 AR 1 9811- ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 9601-0512 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 AR 1 0601- ● ●
10 BOLT; UJT
FINAL GEAR 17.5"<B5D> (C) M12X45 		9-91066-245-0 AR 1 9811-0805 ● ●
10 BOLT; UJT
FINAL GEAR 17.5"<B5D> (C) M12X45 		8-98036-382-0 04 1 0806- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 AR 1 9601- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 AR 1 9601- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 AR 1 9601- ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 17.5"<B5D> (B) 		1-37319-004-0 AR 1 9811- ● ●
17 NIPPLE; GREASE,PROP SHAFT
1ST,END,REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
1ST,END,REAR PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
2ND PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
2ND PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 04 1 1103- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 9601- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 9601- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 9601- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 9601- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 9601- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 9601- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 9601- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 9601- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 9601- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 9601- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 9601- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 9601- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 9601- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 9601- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9804 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9804 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9805- ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) M14 FLANGE 		8-97365-444-0 04 1 1103- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-1102 ● ●
71 NUT; YOKE
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) M16 FLANGE 		1-09449-065-0 04 1 1103- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9703- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9703- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9703- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 9601- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 9601- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 9601-0605 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9601-0606 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●

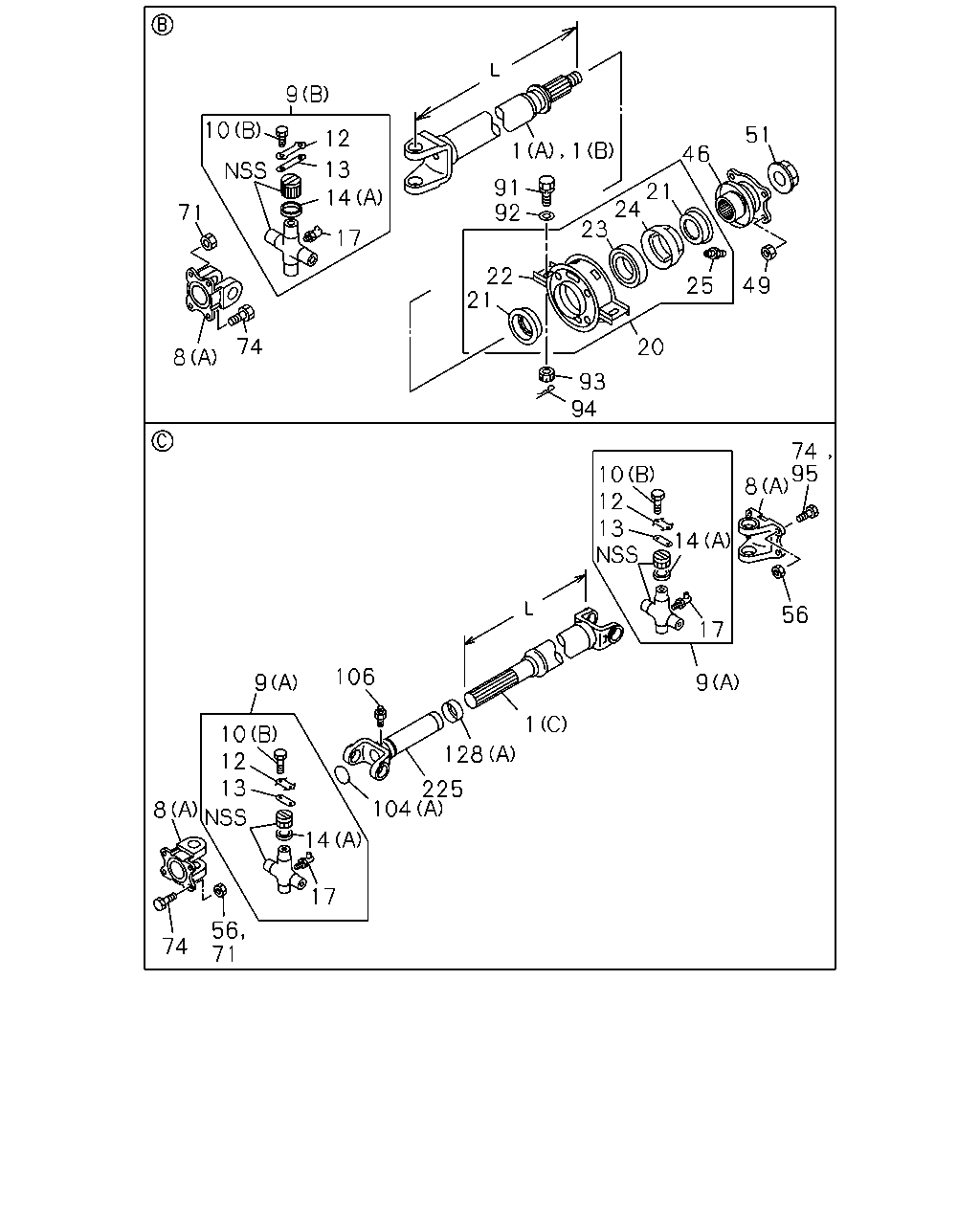

çizim 184584
9 10 51 12 1 1 46 13 14 91 92 21 24 23 71 17 22 21 49 25 74 20 8 93 94 74 95 10 12 13 8 14 56 17 106 9 9 1 10 12 13 128 225 104 8 14 17 56 71 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (E) 		8-98183-668-1 01 1 1103- ●
1 SHAFT; PROP
(C) L=1117 		1-37124-081-0 01 1 9601-9607 ●
1 SHAFT; PROP
EXC. ENGINE REAR PTO<SV1> (C) L=1117 		1-37124-081-0 01 1 9608-0004 ●
1 SHAFT; PROP
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) FINAL GEAR 17.5"<B5D> (C) L=1034 		1-37123-918-0 01 1 0005- ●
1 SHAFT; PROP
ENGINE REAR PTO<SV1> (C) L=1027 		1-37123-835-0 01 1 9608-0004 ●
1 SHAFT; PROP
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) HUB LUBRICATION OIL BATH<C5K> ENGINE REAR PTO<SV1> (C) L=1027 		1-37123-835-0 01 1 0005- ●
1 SHAFT; PROP
(D) L=441 		1-37124-191-0 01 1 9601-9810 ● ●
1 SHAFT; PROP
HUB LUBRICATION OIL BATH<C5K> (D) L=441 		1-37124-191-0 01 1 9811- ● ●
1 SHAFT; PROP
(C) L=927 		1-37124-184-0 01 1 9601-9810 ●
1 SHAFT; PROP
HUB LUBRICATION OIL BATH<C5K> (C) L=927 		1-37124-184-0 01 1 9811- ●
1 SHAFT; PROP
(A) L=673 		1-37151-762-0 02 1 9601-9608 ●
1 SHAFT; PROP
(A) L=673 		1-37151-762-0 01 1 9609-9804 ●
1 SHAFT; PROP
(A) L=673 		1-37151-762-0 01 1 9609-9804 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO<SV1> (E) L=513 		1-37152-525-0 01 1 9805-9810 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO<SV1> (E) L=513 		1-37152-525-0 01 1 9811-9903 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO<SV1> (E) L=513 		1-37152-525-0 01 1 9904-0004 ●
1 SHAFT; PROP
ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) (E) L=513 		1-37152-525-0 01 1 9904-0004 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) ENGINE REAR PTO<SV1> (E) L=513 		1-37152-525-0 01 1 0005- ●
1 SHAFT; PROP
(B) L=743 		1-37152-350-0 01 1 9805- ●
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (E) L=653 		1-37152-351-0 01 1 9805-0004 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> (C) L=847 		1-37124-082-0 01 1 9811- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) EXC. ENGINE REAR PTO<SV1> (E) L=603 		1-37152-524-0 01 1 9805- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (B) 		1-37211-079-1 01 1 1103- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 9601-9804 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 01 1 9805-9810 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 9811- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 9601-9608 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 01 1 9609-9804 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 01 1 9609-9804 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 9805-9810 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 01 1 9811-0604 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 01 1 9811-0604 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 01 1 0605- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) (A) 		1-37211-066-1 01 1 0605- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 03 1 9805-9810 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (D) 		1-37300-111-0 01 1 1103-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (D) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-090-0 AR 1 9601-9810 ● ●
9 JOURNAL ASM; PROP SHAFT
HUB LUBRICATION OIL BATH<C5K> (C) 		1-37300-090-0 AR 1 9811- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 9601- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-1 AR 1 9601- ●
10 BOLT; UJT
(A) 		1-09087-046-0 AR 1 9601-9810 ● ●
10 BOLT; UJT
HUB LUBRICATION OIL BATH<C5K> (A) 		1-09087-046-0 AR 1 9811- ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 9601-0512 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 AR 1 0601- ● ●
10 BOLT; UJT
FINAL GEAR 17.5"<B5D> (C) M12X45 		9-91066-245-0 AR 1 9811-0805 ● ●
10 BOLT; UJT
FINAL GEAR 17.5"<B5D> (C) M12X45 		8-98036-382-0 04 1 0806- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 AR 1 9601- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 AR 1 9601- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 AR 1 9601- ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 17.5"<B5D> (B) 		1-37319-004-0 AR 1 9811- ● ●
17 NIPPLE; GREASE,PROP SHAFT
1ST,END,REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
1ST,END,REAR PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
2ND PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
2ND PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 9601- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 9601- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 9601- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 9601- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 9601- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 9601- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 9601- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 9601- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 9601- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 9601- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 9601- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 9601- ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 9601- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 9601- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9804 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9804 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9805- ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) M14 FLANGE 		8-97365-444-0 04 1 1103- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-1102 ● ●
71 NUT; YOKE
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) M16 FLANGE 		1-09449-065-0 04 1 1103- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9703- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9703- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9703- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 9601- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 9601- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 9601-0605 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9601-0606 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
95 BOLT; YOKE,FINAL
FINAL GEAR 17.5"<B5D> M16X48 		1-09000-383-0 04 1 9902- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 9601- ● ●
104 PLUG; SLEEVE YOKE
FINAL GEAR 17.5"<B5D> (B) 		1-09600-049-0 01 1 9811- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-9810 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 17.5"<B5D> PT1/8 STRAIGHT 		9-09031-010-0 01 1 9811-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9811-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 17.5"<B5D> PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-017-0 01 1 9601-9810 ● ●
128 SEAL; SLEEVE
HUB LUBRICATION OIL BATH<C5K> (B) 		1-37247-017-0 01 1 9811- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 9601- ● ●
128 SEAL; SLEEVE
FINAL GEAR 17.5"<B5D> (B) 		1-37247-006-0 01 1 9811-0312 ● ●
128 SEAL; SLEEVE
FINAL GEAR 17.5"<B5D> (B) 		8-97603-618-0 01 1 0401- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 9601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
