3-77 — BRAKE PIPING; AIR,REAR (#65135) — 151 parça

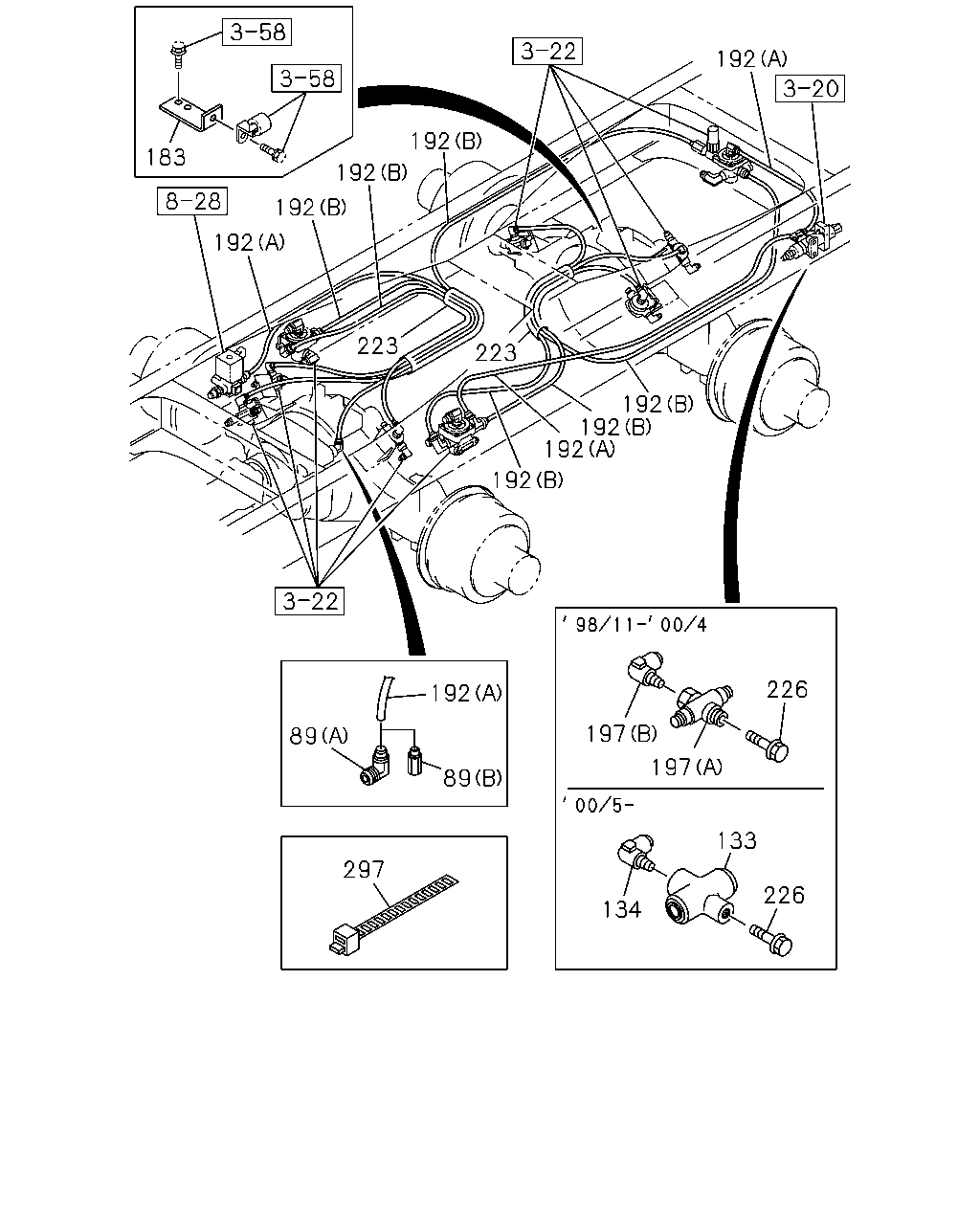

192 192 183 192 192 192 223 223 192 192 192 192 226 192 197 89 197 89 133 297 226 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	CONNECTOR; NYLON TUBE FINAL GEAR 43/7 17.5" HYPOID(W3Y) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0112-0212
89	CONNECTOR; NYLON TUBE REAR AXLE RT210(C2A) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0301-
89	CONNECTOR; NYLON TUBE (A)	1-09660-740-0	01	1	9601-0004
89	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0005-0111
89	CONNECTOR; NYLON TUBE FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q) (A) DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0112-0212
89	CONNECTOR; NYLON TUBE EXC. REAR AXLE RT210(C2A) (A) DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0301-
133	UNION; NIPPLE EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-
134	CONNECTOR EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-
183	BRACKET; NYLON TUBE REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV>	1-42129-411-0	01	1	0605-
192	TUBE; NYLON REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0605-
192	TUBE; NYLON WHEEL BASE 6300MM(63W) REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0605-0609
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0212
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-0604
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0312
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-0211
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0605-
197	UNION ASM; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9811-0004
197	UNION ASM; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9811-0004
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9705-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0103-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0206-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9805-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0206-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0011-
226	BOLT; UNION EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	01	1	9811-0512
226	BOLT; UNION EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28650-825-0	01	1	0601-
297	CLIP; BAND EURO3 SPECIFICATION<NJX> L=250	1-09707-126-0	01	1	0605-

1 7 206 6 7 6 285 285 10 42 10 129 42 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=279	1-47492-449-4	01	1	9601-9702
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. BRAKE REGULATION ECE<TDV> L=279	1-47492-449-4	01	1	9703-9902
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. BRAKE REGULATION ECE<TDV> L=277	1-49121-487-0	01	1	9903-
1	PIPE; AIR,FLEX HOSE TO BRK VLV BRAKE REGULATION ECE<TDV>	1-49112-854-0	01	1	9703-
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0603
6	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0512
7	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
10	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9601-9804
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9805-
10	CONNECTOR; FLEX HOSE (A)	1-09656-451-1	01	1	9601-9804
10	CONNECTOR; FLEX HOSE (A)	1-09656-721-0	01	1	9805-0103
10	CONNECTOR; FLEX HOSE (A)	1-09656-754-0	01	1	0104-
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9601-9804
129	CONNECTOR; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9601-9804
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9805-
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9804
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9805-
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-2	01	1	9601-9702
206	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. BRAKE REGULATION ECE<TDV> L=406	1-47492-451-3	01	1	9703-
206	PIPE; AIR,BRK VLV TO FLEX HOSE BRAKE REGULATION ECE<TDV>	1-49112-855-1	01	1	9703-
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9601-0605
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	02	1	0606-

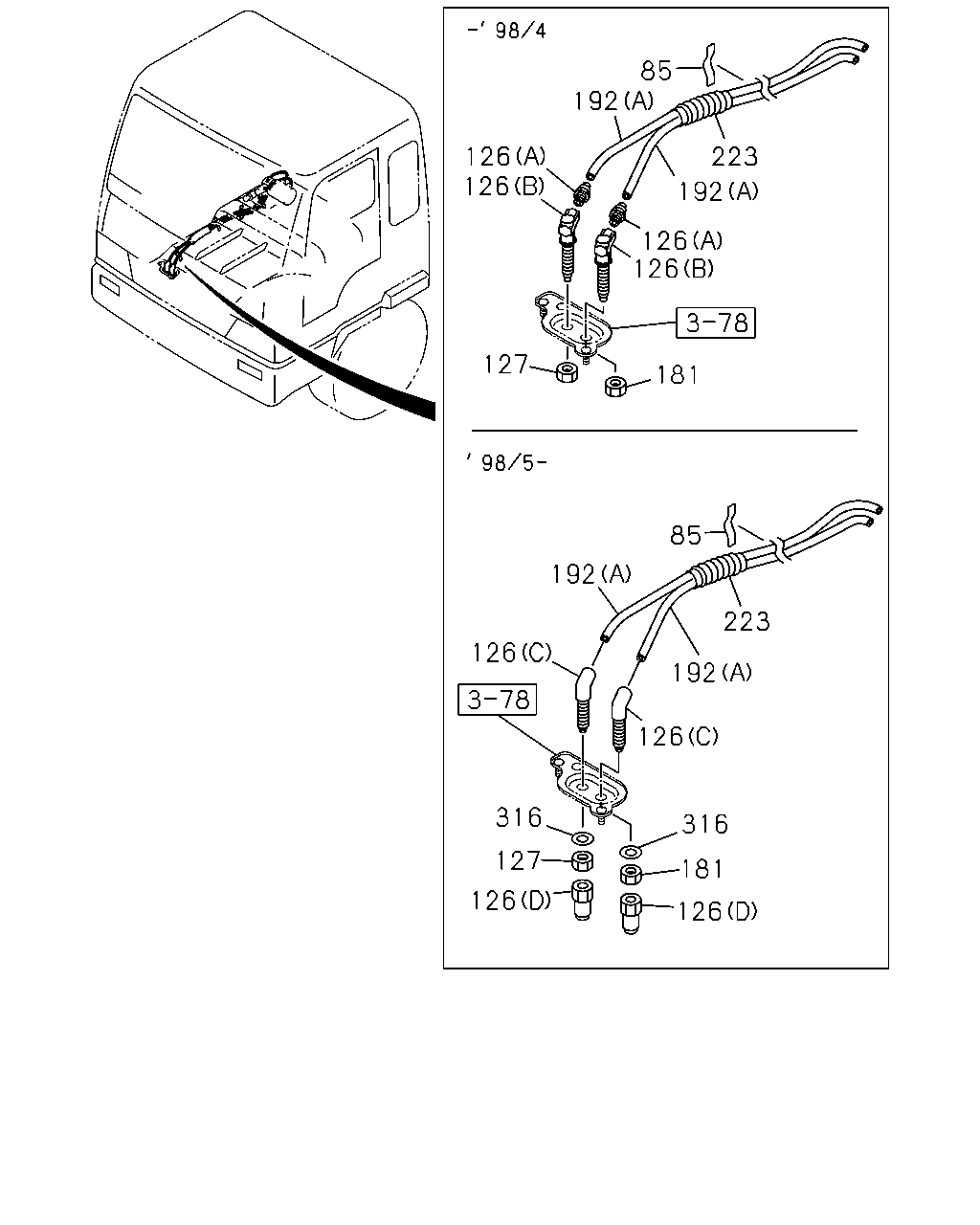

85 192 126 126 223 192 126 126 127 181 85 192 223 126 192 126 316 316 127 181 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
85	GASKET; NYLON TUBE 100X30	1-72498-014-1	05	1	9601-9903
85	GASKET; NYLON TUBE 100X40	1-72498-022-1	05	1	9904-
126	UNION; NYLON TUBE (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9601-9804
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9805-0706
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-
126	UNION; NYLON TUBE (B)	1-09660-743-0	02	1	9601-9804
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	9805-0007
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0008-0706
127	NUT; UNION M18	9-99111-418-0	01	1	9601-9804
127	NUT; UNION M20	9-99111-420-0	01	1	9805-0512
127	NUT; UNION M20	0-91111-520-0	01	1	0601-
181	NUT; TUBE UNION M18	9-99111-418-0	01	1	9601-9804
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	9805-0512
181	NUT; TUBE UNION M20	0-91111-520-0	01	1	0601-
192	TUBE; NYLON REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0605-
192	TUBE; NYLON WHEEL BASE 6300MM(63W) REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0605-0609
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0212
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-0604
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0312
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-0211
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9705-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0103-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0206-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9805-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0206-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0011-
316	WASHER; PL ID=21	9-09160-520-0	02	1	9805-0605
316	WASHER; PL ID=21	0-91610-520-0	02	1	0606-

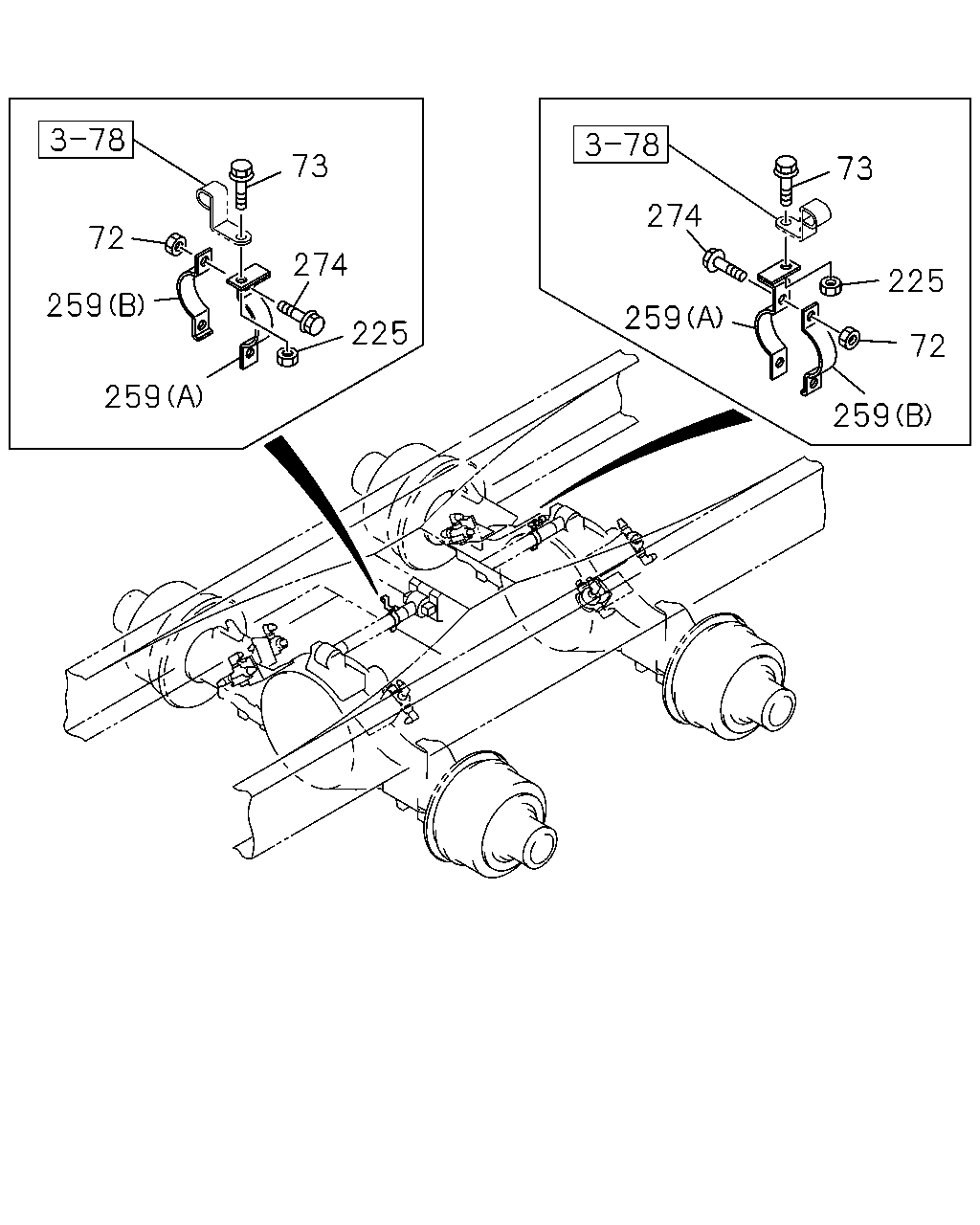

73 73 274 72 274 225 259 259 225 72 259 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	NUT; BRKT M8	9-09110-408-0	04	1	9601-9606
72	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9607-0602
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0008-0211
72	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0212-0602
72	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
73	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
73	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	9607-9702
73	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	04	1	9703-9804
73	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	9805-0512
73	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-
225	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9601-9606
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-9702
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	9703-9804
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9805-0602
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
259	BRACKET; ROD,NYLON TUBE (A)	1-47476-428-0	02	1	9601-0102
259	BRACKET; ROD,NYLON TUBE (A)	1-47479-226-0	02	1	0103-
259	BRACKET; ROD,NYLON TUBE (B)	1-47476-429-0	02	1	9601-
274	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	04	1	9601-9606
274	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-0512
274	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-

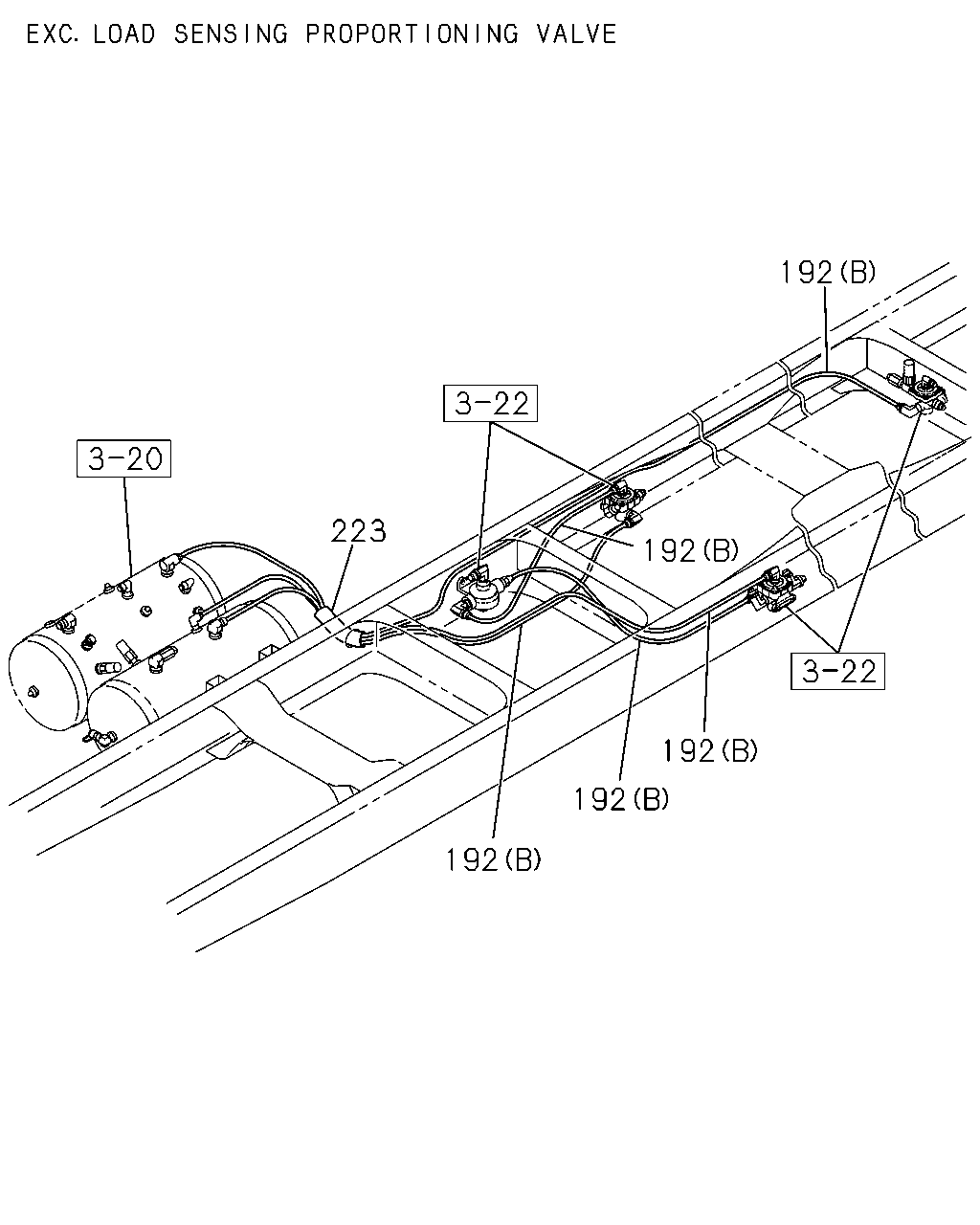

192 223 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	TUBE; NYLON REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0605-
192	TUBE; NYLON WHEEL BASE 6300MM(63W) REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0605-0609
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0212
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-0604
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0312
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-0211
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9705-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0103-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0206-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9805-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0206-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0011-

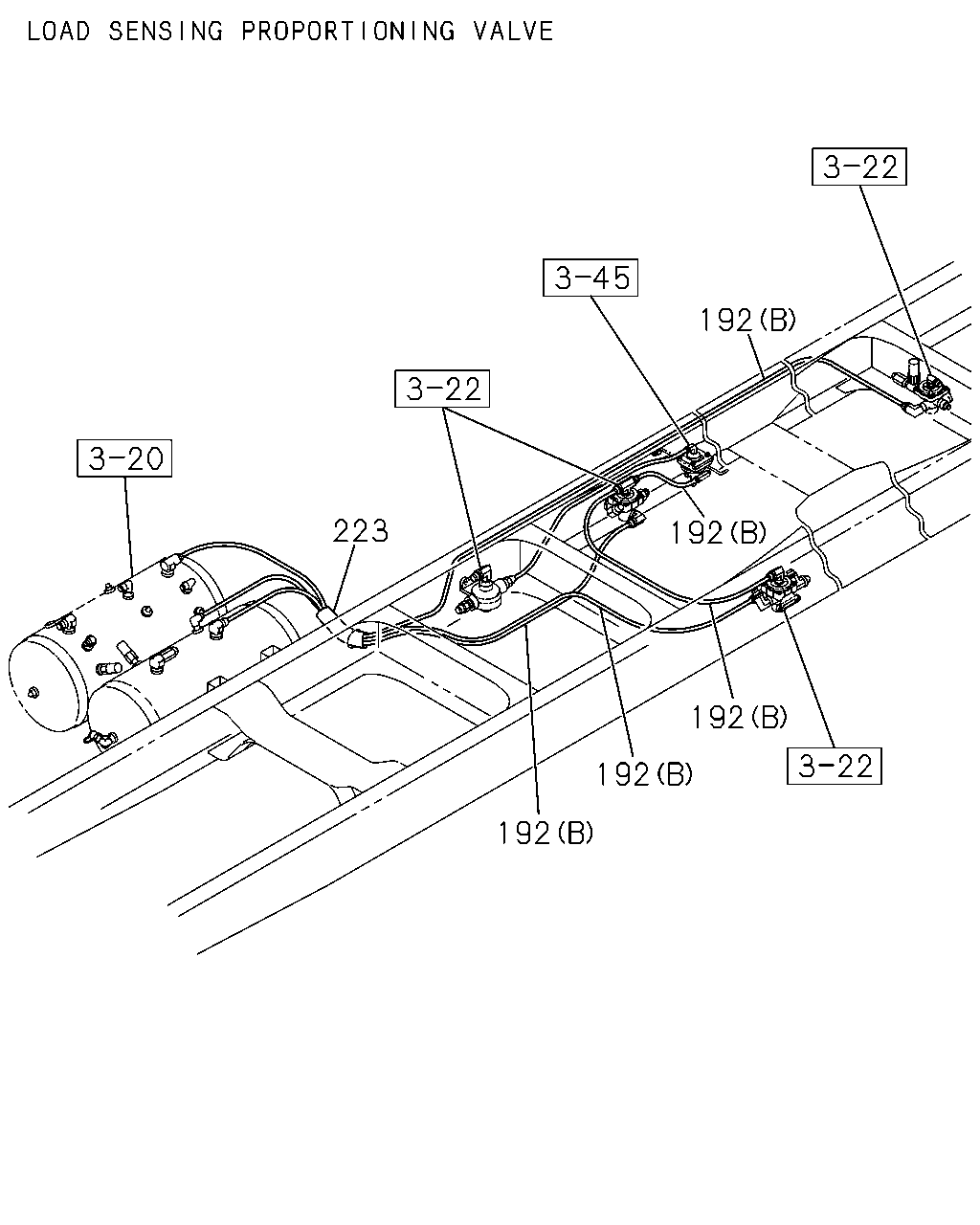

192 223 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	TUBE; NYLON REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0605-
192	TUBE; NYLON WHEEL BASE 6300MM(63W) REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0605-0609
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0212
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-0604
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0312
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-0211
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9705-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0103-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0206-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0605-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9805-0604
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0206-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0011-
