Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#65134) — 261 parça

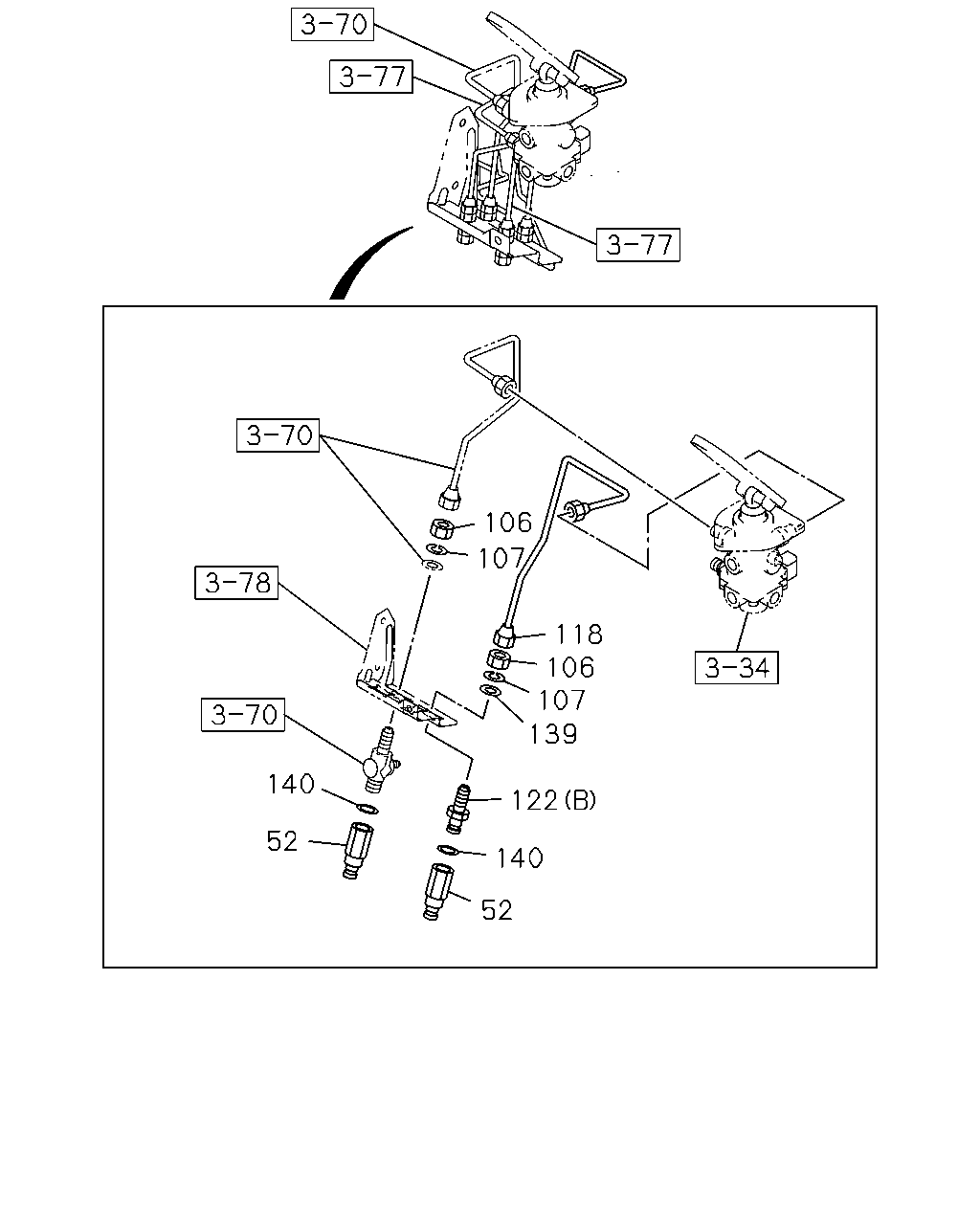

106 107 118 106 107 139 140 122 52 140 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	CONNECTOR; NYLON TUBE	1-09660-728-1	02	1	9601-9804
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9805-0004
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0512
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0512
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0603
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0603
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	9601-
122	CONNECTOR; FLEX HOSE FRONT AXLE MERITOR FG941<BFL> (C)	1-09660-838-0	01	1	0005-0305
122	CONNECTOR; FLEX HOSE FRONT AXLE MERITOR FG941<BFL> (C)	1-09661-592-0	01	1	0306-
122	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9601-9804
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9805-
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9601-0004
122	CONNECTOR; FLEX HOSE FRONT AXLE F063<FS7> BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	0005-0009
122	CONNECTOR; FLEX HOSE BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	0010-0211
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> EXC. AUTO ADJUSTER BRAKE<BCU> (A) L=35	1-09660-039-0	01	1	0212-
122	CONNECTOR; FLEX HOSE FRONT AXLE MERITOR FG941<BFL> (C)	1-09660-685-0	01	1	0005-
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9601-0605
139	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9601-9804

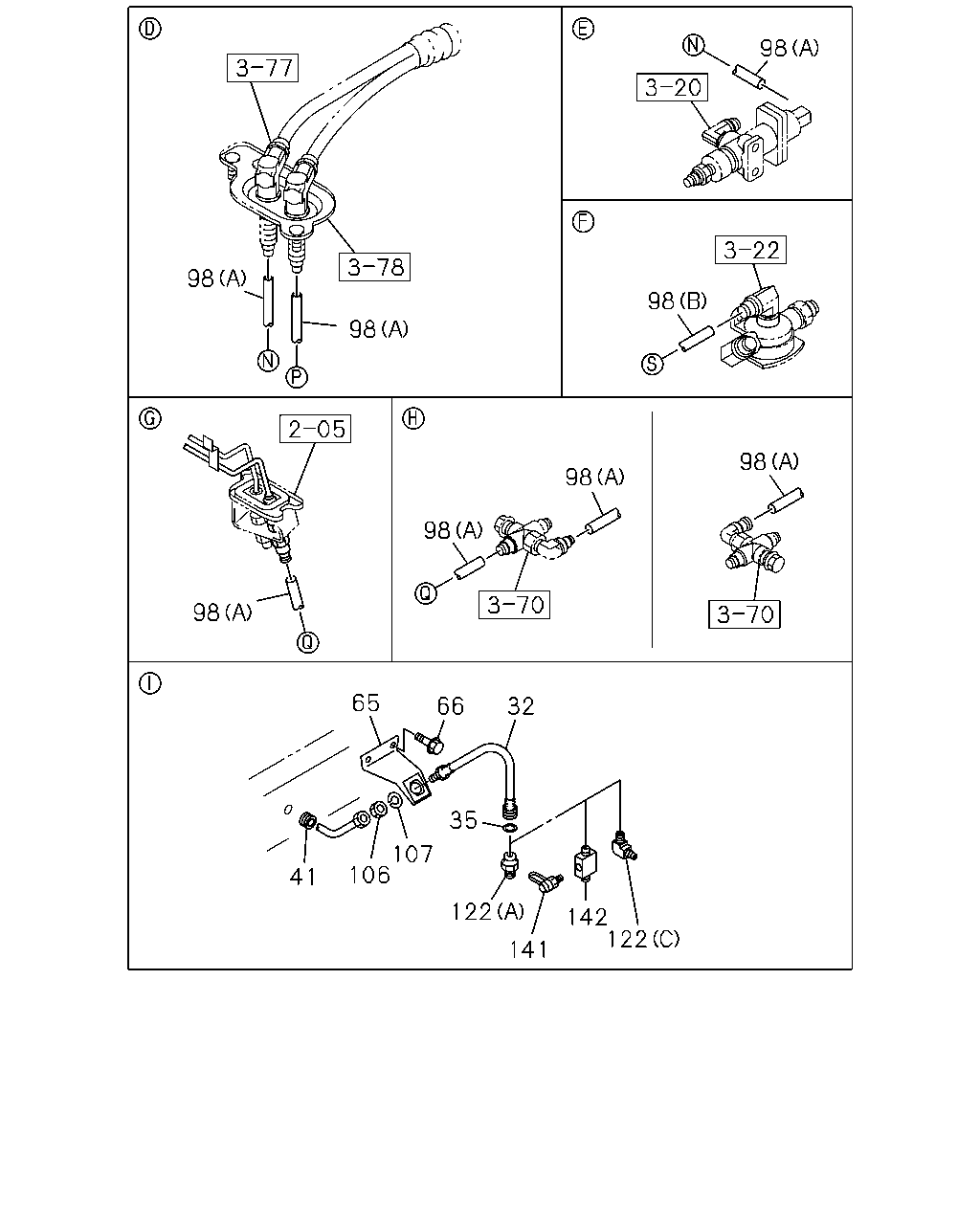

98 98 98 98 98 98 98 98 65 66 32 35 107 106 41 122 142 122 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	HOSE; FLEX,FRT L=630	0-07475-630-1	02	1	9601-0605
32	HOSE; FLEX,FRT L=630	0-57475-630-1	02	1	0606-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9601-
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	9601-
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	9601-
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	9601-
66	BOLT; HOSE BRKT M8X16 FLANGE	0-28080-816-0	04	1	9601-9602
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	9603-0512
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0605-
98	TUBE; NYLON (A) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-0604
98	TUBE; NYLON LOAD SENSING PROPORTIONING VALVE<JR7> EXC. AIR SUSP DRIVER SEAT<A56>,REAR AXLE RT210(C2A) ,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (A) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0605-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9901
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0605-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0604
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A),LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0605-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-0604
98	TUBE; NYLON LOAD SENSING PROPORTIONING VALVE<JR7> EXC. AIR SUSP DRIVER SEAT<A56>,REAR AXLE RT210(C2A) ,DRIVER ISRINGHAUSEN SEAT<SJA> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0605-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-0011
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0604
98	TUBE; NYLON LOAD SENSING PROPORTIONING VALVE<JR7> EXC. AIR SUSP DRIVER SEAT<A56>,REAR AXLE RT210(C2A) ,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0605-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9601-0604
98	TUBE; NYLON LOAD SENSING PROPORTIONING VALVE<JR7> EXC. AIR SUSP DRIVER SEAT<A56>,REAR AXLE RT210(C2A) ,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (A) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0605-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9601-9606
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9805-0604
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0605-
98	TUBE; NYLON (A) SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9805-0102
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0512
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0512
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0603
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0603
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
122	CONNECTOR; FLEX HOSE FRONT AXLE MERITOR FG941<BFL> (C)	1-09660-838-0	01	1	0005-0305
122	CONNECTOR; FLEX HOSE FRONT AXLE MERITOR FG941<BFL> (C)	1-09661-592-0	01	1	0306-
122	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9601-9804
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9805-
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	01	1	9601-0004
122	CONNECTOR; FLEX HOSE FRONT AXLE F063<FS7> BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	0005-0009
122	CONNECTOR; FLEX HOSE BRAKE REGULATION ADR<TDU> (A) L=35	1-09660-039-0	01	1	0010-0211
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> EXC. AUTO ADJUSTER BRAKE<BCU> (A) L=35	1-09660-039-0	01	1	0212-
122	CONNECTOR; FLEX HOSE FRONT AXLE MERITOR FG941<BFL> (C)	1-09660-685-0	01	1	0005-
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9601-0004
141	CONNECTOR; TEST FRONT AXLE MERITOR FG941<BFL> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0005-0009
141	CONNECTOR; TEST FRONT AXLE F063<FS7> BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0005-0009
141	CONNECTOR; TEST FRONT AXLE MERITOR FG941<BFL> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0010-0604
141	CONNECTOR; TEST BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0010-0604
141	CONNECTOR; TEST FRONT AXLE MERITOR FG941<BFL> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0605-
141	CONNECTOR; TEST HUB LUBRICATION OIL BATH<C5K> BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0605-
141	CONNECTOR; TEST BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0605-
142	UNION; 3-WAY BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-09660-838-0	01	1	0212-0305
142	UNION; 3-WAY BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-09661-592-0	01	1	0306-0604
142	UNION; 3-WAY BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-09661-592-0	01	1	0605-
142	UNION; 3-WAY	1-09660-837-0	01	1	9601-0004
142	UNION; 3-WAY FRONT AXLE F063<FS7> EXC. BRAKE REGULATION ADR<TDU>	1-09660-837-0	01	1	0005-0009
142	UNION; 3-WAY BRAKE REGULATION ADR<TDU>	1-09660-837-0	01	1	0010-0211
142	UNION; 3-WAY HUB LUBRICATION OIL BATH<C5K> EXC. AUTO ADJUSTER BRAKE<BCU>	1-09660-837-0	01	1	0212-

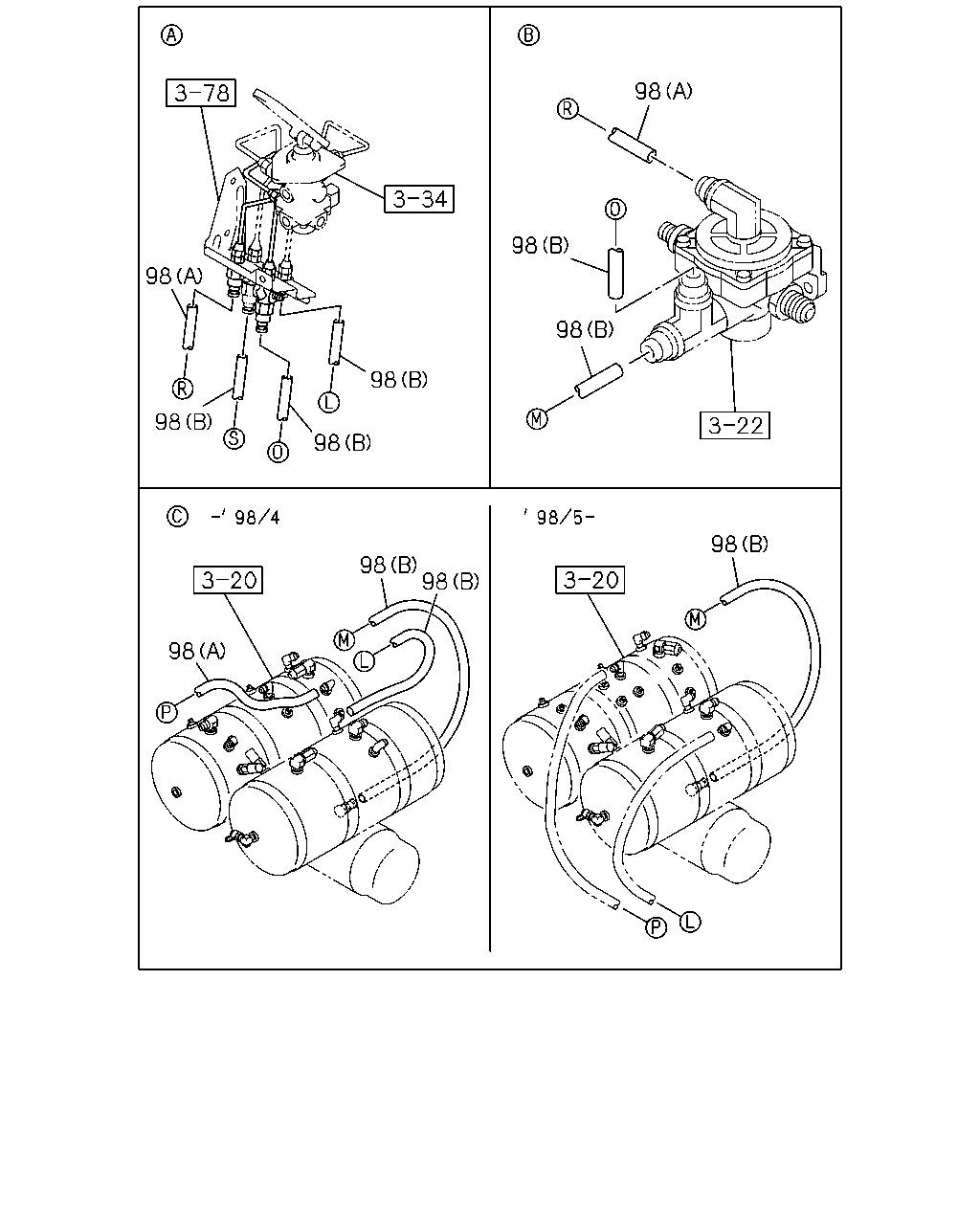

98 98 98 98 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0605-
98	TUBE; NYLON (A) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-0604
98	TUBE; NYLON LOAD SENSING PROPORTIONING VALVE<JR7> EXC. AIR SUSP DRIVER SEAT<A56>,REAR AXLE RT210(C2A) ,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (A) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0605-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9901
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0605-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0604
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A),LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0605-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-0604
98	TUBE; NYLON LOAD SENSING PROPORTIONING VALVE<JR7> EXC. AIR SUSP DRIVER SEAT<A56>,REAR AXLE RT210(C2A) ,DRIVER ISRINGHAUSEN SEAT<SJA> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0605-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-0011
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0604
98	TUBE; NYLON LOAD SENSING PROPORTIONING VALVE<JR7> EXC. AIR SUSP DRIVER SEAT<A56>,REAR AXLE RT210(C2A) ,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0605-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9601-0604
98	TUBE; NYLON LOAD SENSING PROPORTIONING VALVE<JR7> EXC. AIR SUSP DRIVER SEAT<A56>,REAR AXLE RT210(C2A) ,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (A) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0605-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9601-9606
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9805-0604
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0605-
98	TUBE; NYLON (A) SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9805-0102

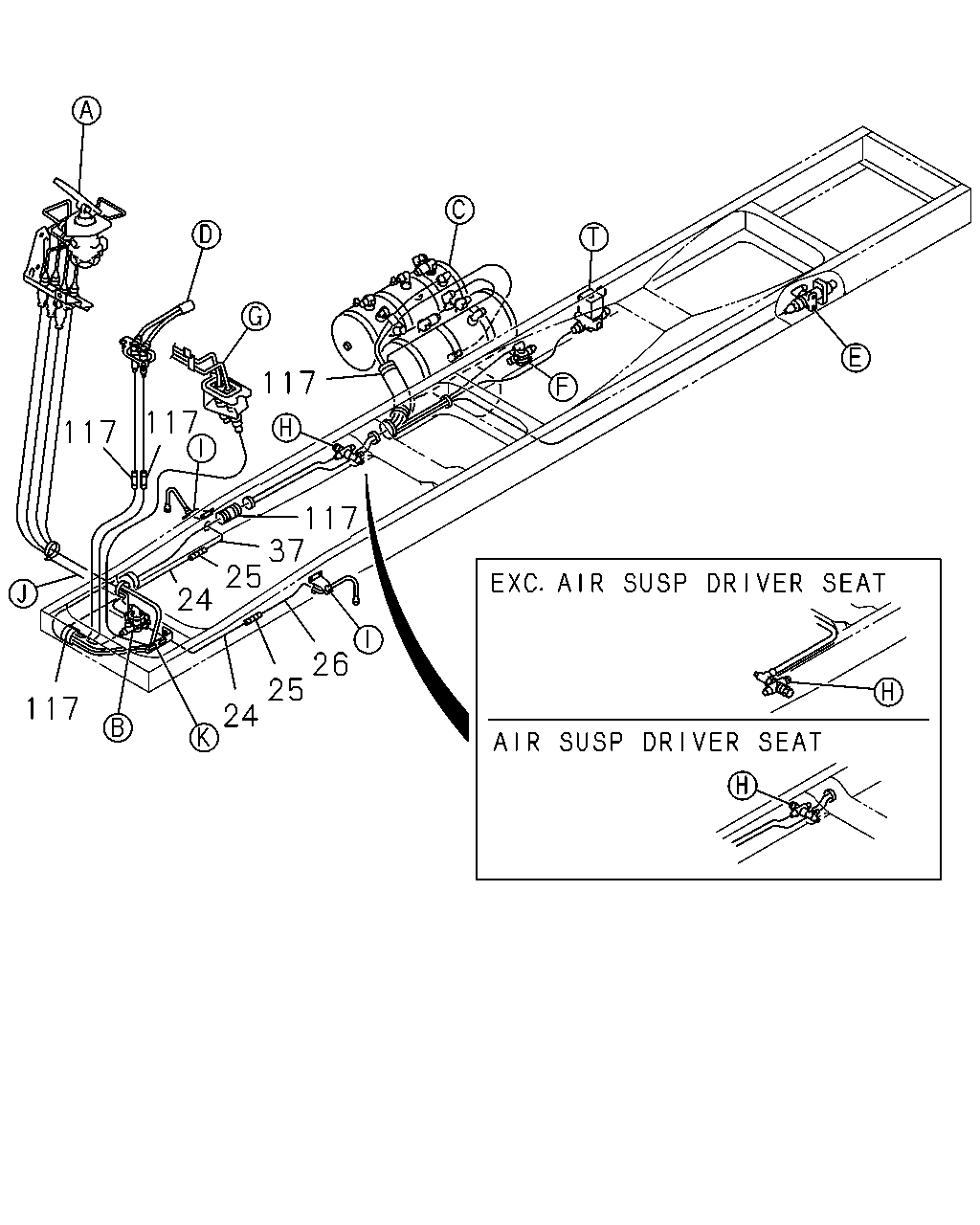

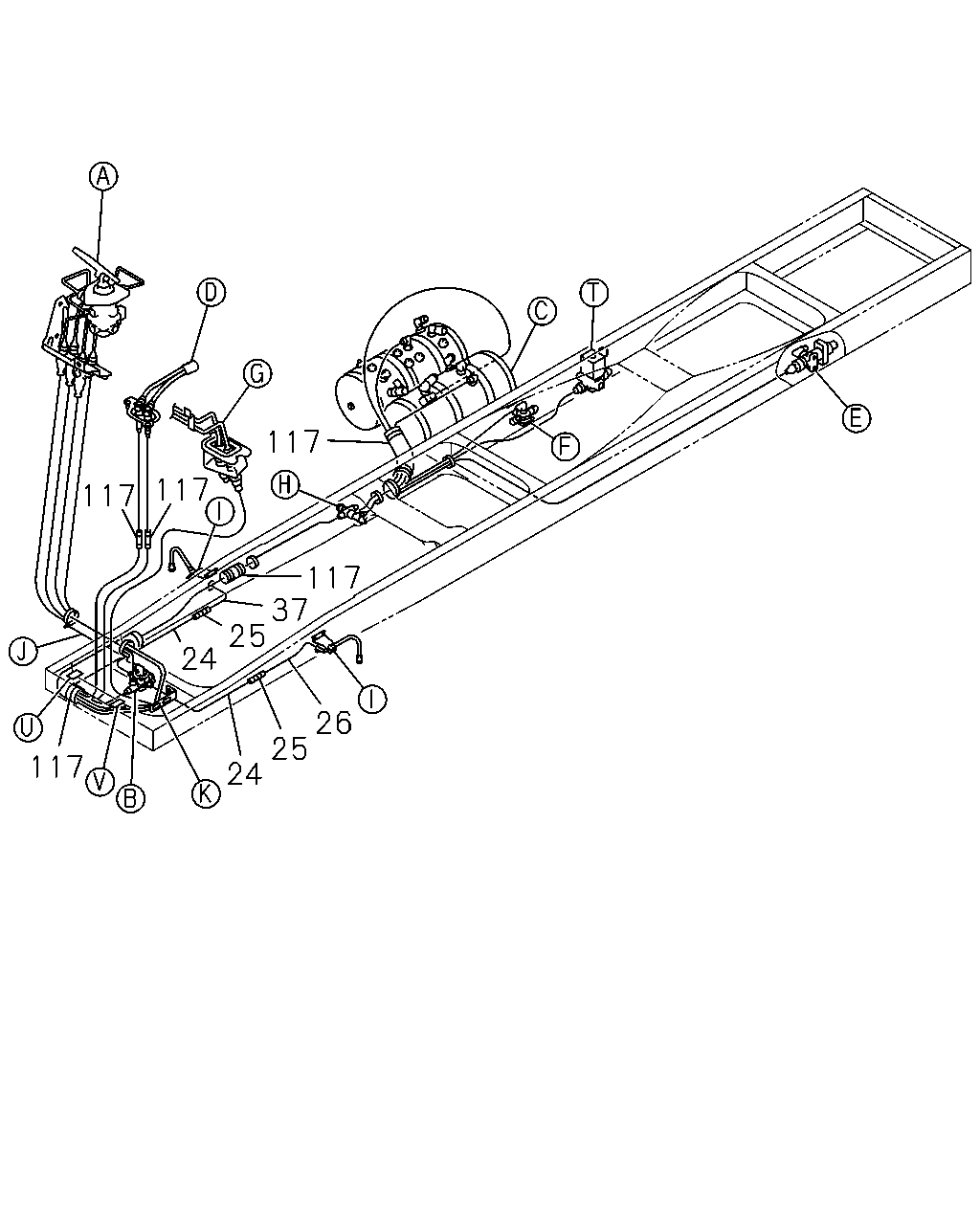

117 117 117 117 37 25 24 26 25 24 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-326-0	01	1	9601-0101
24	PIPE; AIR,RELAY VLV TO UNION EXC. FRONT SPRING LONG SPAN<W36>	1-49113-326-0	01	1	0102-
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-324-0	01	1	9601-0101
24	PIPE; AIR,RELAY VLV TO UNION EXC. FRONT SPRING LONG SPAN<W36>	1-49113-324-0	01	1	0102-0301
24	PIPE; AIR,RELAY VLV TO UNION EXC. FRONT SPRING LONG SPAN<W36>	1-49124-019-0	01	1	0302-
24	PIPE; AIR,RELAY VLV TO UNION FRONT SPRING LONG SPAN<W36> L=883 SERVICED BY L=900	1-47428-788-0	01	1	0102-
24	PIPE; AIR,RELAY VLV TO UNION FRONT SPRING LONG SPAN<W36> L=883 SERVICED BY L=900	1-47428-788-0	01	1	0102-0301
24	PIPE; AIR,RELAY VLV TO UNION FRONT SPRING LONG SPAN<W36>	1-49124-010-0	01	1	0302-
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	02	1	9601-0607
25	UNION; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	0608-
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	9601-
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	9601-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-0102
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9601-0010
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9806-0010
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0007-0010
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9705-0604
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0605-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9805-0604
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0605-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0103-0604
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0605-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0011-0604
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0605-

48 56 56 55 55 98 55 55 48 56 56 48 55 55 48 48 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	07	1	0109-0112
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	06	1	0201-0211
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	07	1	0212-0602
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
48	NUT; UNION BRKT M8	9-09110-408-0	01	1	9601-9606
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9804
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	03	1	9805-9807
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	02	1	9808-0004
48	NUT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	9805-0004
48	NUT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0005-0010
48	NUT; UNION BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0011-0602
48	NUT; UNION BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91180-108-0	01	1	0603-
55	BRACKET; TUBE UNION (F) L=60 H=30	1-47477-716-1	01	1	0212-
55	BRACKET; TUBE UNION (A)	1-47477-256-1	01	1	9601-
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	9601-9807
55	BRACKET; TUBE UNION (D)	1-47477-514-3	01	1	9805-0004
55	BRACKET; TUBE UNION ALLISON MD3560P A/T(Y3B) (D)	1-47477-514-3	01	1	9805-0004
55	BRACKET; TUBE UNION (D)	1-47477-514-3	01	1	0005-
55	BRACKET; TUBE UNION (C) L=225	1-47477-646-3	01	1	9805-0004
55	BRACKET; TUBE UNION (C) L=150 H=30	1-47477-629-2	01	1	0005-
55	BRACKET; TUBE UNION (E) L=160 B=25	1-53441-518-0	01	1	0005-0010
55	BRACKET; TUBE UNION AIR SUSP DRIVER SEAT<A56> (E) L=160 B=25	1-53441-518-0	01	1	0005-0010
55	BRACKET; TUBE UNION (E) L=160 B=25	1-53441-518-0	01	1	0011-
55	BRACKET; TUBE UNION AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (E) L=160 B=25	1-53441-518-0	01	1	0011-
55	BRACKET; TUBE UNION (C) L=100 H=30	1-47477-645-2	01	1	0109-0112
56	BOLT; UNION BRKT M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	01	1	9607-9804
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	02	1	9805-0004
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	04	1	0005-0108
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	05	1	0109-0112
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	04	1	0201-0512
56	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-
56	BOLT; UNION BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-9804
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	03	1	9805-9807
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	02	1	9808-0211
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	03	1	0212-0512
56	BOLT; UNION BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-
56	BOLT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8X25 FLANGE	0-28680-825-0	01	1	9805-0004
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28680-825-0	01	1	0005-0010
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	01	1	0011-0512
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28650-825-0	01	1	0601-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0605-
98	TUBE; NYLON WHEEL BASE 6300MM(63W) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0605-
98	TUBE; NYLON (A) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-0604
98	TUBE; NYLON LOAD SENSING PROPORTIONING VALVE<JR7> EXC. AIR SUSP DRIVER SEAT<A56>,REAR AXLE RT210(C2A) ,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (A) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0605-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9901
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0605-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9902-0604
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A),LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0605-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-0604
98	TUBE; NYLON LOAD SENSING PROPORTIONING VALVE<JR7> EXC. AIR SUSP DRIVER SEAT<A56>,REAR AXLE RT210(C2A) ,DRIVER ISRINGHAUSEN SEAT<SJA> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0605-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-0011
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0604
98	TUBE; NYLON LOAD SENSING PROPORTIONING VALVE<JR7> EXC. AIR SUSP DRIVER SEAT<A56>,REAR AXLE RT210(C2A) ,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0605-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9601-0604
98	TUBE; NYLON LOAD SENSING PROPORTIONING VALVE<JR7> EXC. AIR SUSP DRIVER SEAT<A56>,REAR AXLE RT210(C2A) ,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (A) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0605-
98	TUBE; NYLON REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0605-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9601-9606
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9805-0604
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> REAR AXLE RT210(C2A) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0605-
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR AXLE RT210(C2A) (A) SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0605-
98	TUBE; NYLON (A) SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9805-0102

117 117 117 117 37 25 24 26 25 24 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-326-0	01	1	9601-0101
24	PIPE; AIR,RELAY VLV TO UNION EXC. FRONT SPRING LONG SPAN<W36>	1-49113-326-0	01	1	0102-
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-324-0	01	1	9601-0101
24	PIPE; AIR,RELAY VLV TO UNION EXC. FRONT SPRING LONG SPAN<W36>	1-49113-324-0	01	1	0102-0301
24	PIPE; AIR,RELAY VLV TO UNION EXC. FRONT SPRING LONG SPAN<W36>	1-49124-019-0	01	1	0302-
24	PIPE; AIR,RELAY VLV TO UNION FRONT SPRING LONG SPAN<W36> L=883 SERVICED BY L=900	1-47428-788-0	01	1	0102-
24	PIPE; AIR,RELAY VLV TO UNION FRONT SPRING LONG SPAN<W36> L=883 SERVICED BY L=900	1-47428-788-0	01	1	0102-0301
24	PIPE; AIR,RELAY VLV TO UNION FRONT SPRING LONG SPAN<W36>	1-49124-010-0	01	1	0302-
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	02	1	9601-0607
25	UNION; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	0608-
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	9601-
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	9601-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-0102
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9601-0010
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9806-0010
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0007-0010
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9705-0604
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0605-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9805-0604
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0605-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0103-0604
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0605-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0011-0604
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0605-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
