◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#65133) — 965 parça

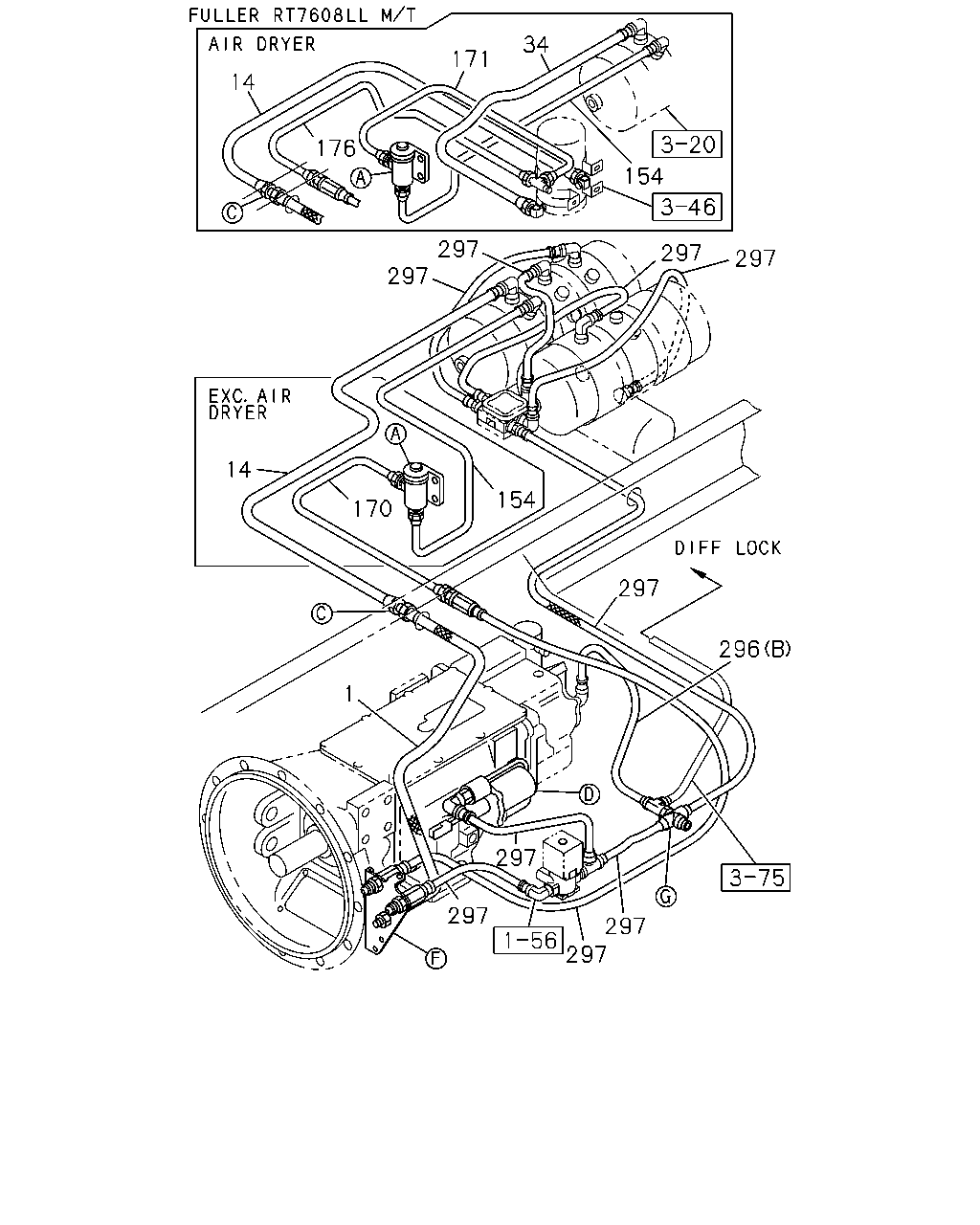

çizim 121278
34 171 14 176 154 297 297 297 297 14 154 170 297 296 1 297 297 297 297
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17726-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77726-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9607
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO<SV1> L=1500 		0-17716-150-0 01 1 9608-9804
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9805-0604
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17716-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77716-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
ENGINE REAR PTO<SV1> L=1400 		0-17716-140-0 01 1 9608-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9601-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 9805-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49117-176-0 01 1 9601-9804
34 PIPE; AIR
AIR DRYER<PS7> SOUTH AFRICA EQUIPMENT(WG4) L=587 		1-49124-624-0 01 1 0411-
34 PIPE; AIR
WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9804
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-408-0 01 1 9805-0410
34 PIPE; AIR
AIR DRYER<PS7> EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-49118-408-0 01 1 0411-
34 PIPE; AIR
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49115-546-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49117-151-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49118-410-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49122-172-0 01 1 0005-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49118-375-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> L=1096 		1-49122-170-0 01 1 0005-0104
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0105-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49117-156-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49117-157-0 01 1 9601-9804
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9804
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9805-0004
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-192-0 01 1 0005-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0212
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0604
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0605-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 9601-9810
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-1 01 1 0011-
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9805-9904
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-0212
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
WHEEL BASE 6300MM(63W) (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-9904
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9807-9903
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9904-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9811-0212
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9902-

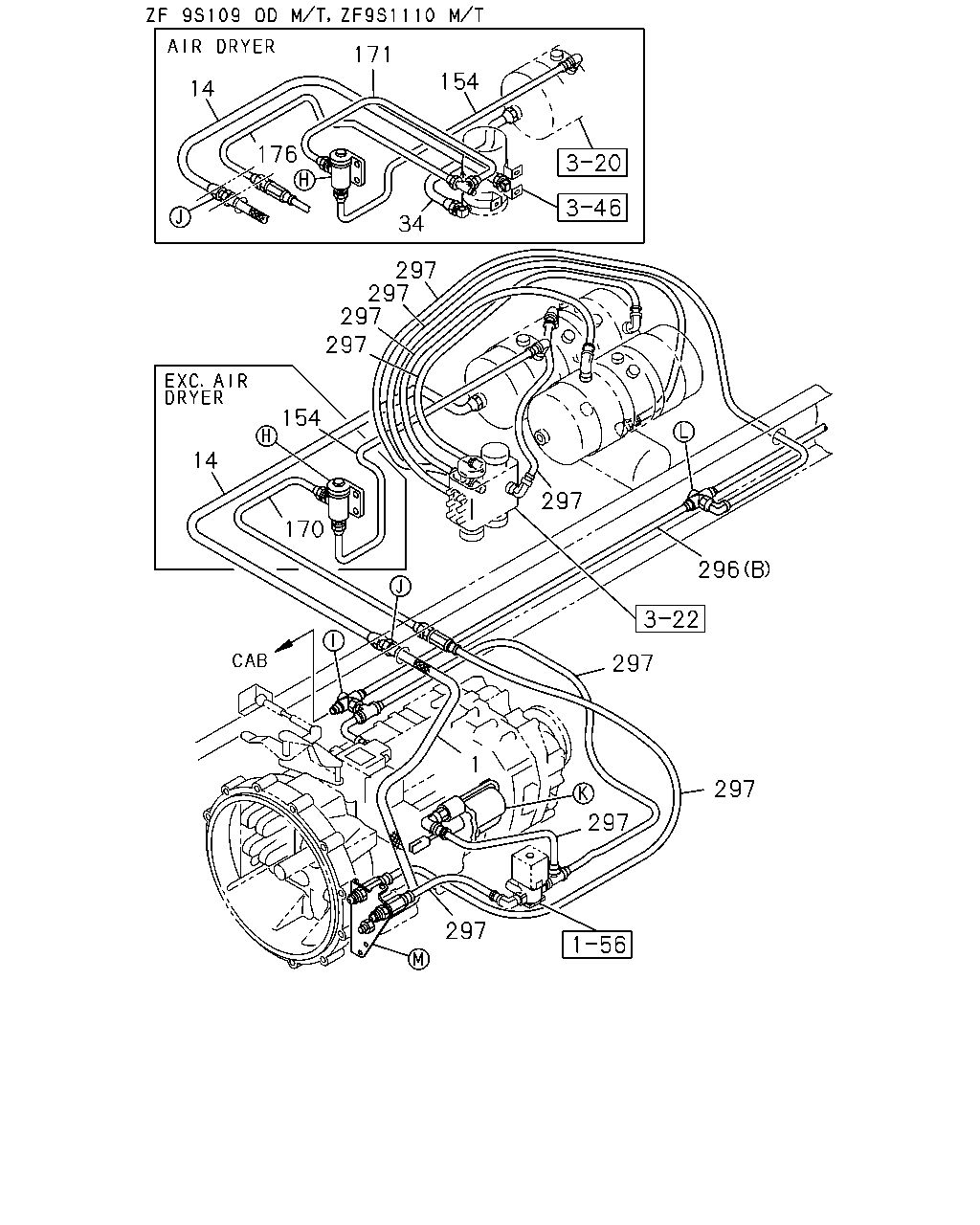

çizim 121394
171 154 14 176 34 297 297 297 297 154 14 297 170 296 297 1 297 297 297
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17726-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77726-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9607
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO<SV1> L=1500 		0-17716-150-0 01 1 9608-9804
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9805-0604
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17716-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77716-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
ENGINE REAR PTO<SV1> L=1400 		0-17716-140-0 01 1 9608-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9601-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 9805-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49117-176-0 01 1 9601-9804
34 PIPE; AIR
AIR DRYER<PS7> SOUTH AFRICA EQUIPMENT(WG4) L=587 		1-49124-624-0 01 1 0411-
34 PIPE; AIR
WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9804
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-408-0 01 1 9805-0410
34 PIPE; AIR
AIR DRYER<PS7> EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-49118-408-0 01 1 0411-
34 PIPE; AIR
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49115-546-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49117-151-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49118-410-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49122-172-0 01 1 0005-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49118-375-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> L=1096 		1-49122-170-0 01 1 0005-0104
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0105-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49117-156-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49117-157-0 01 1 9601-9804
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9804
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9805-0004
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-192-0 01 1 0005-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0212
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0604
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0605-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 9601-9810
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-1 01 1 0011-
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9805-9904
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-0212
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
WHEEL BASE 6300MM(63W) (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-9904
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9807-9903
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9904-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9811-0212
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9902-

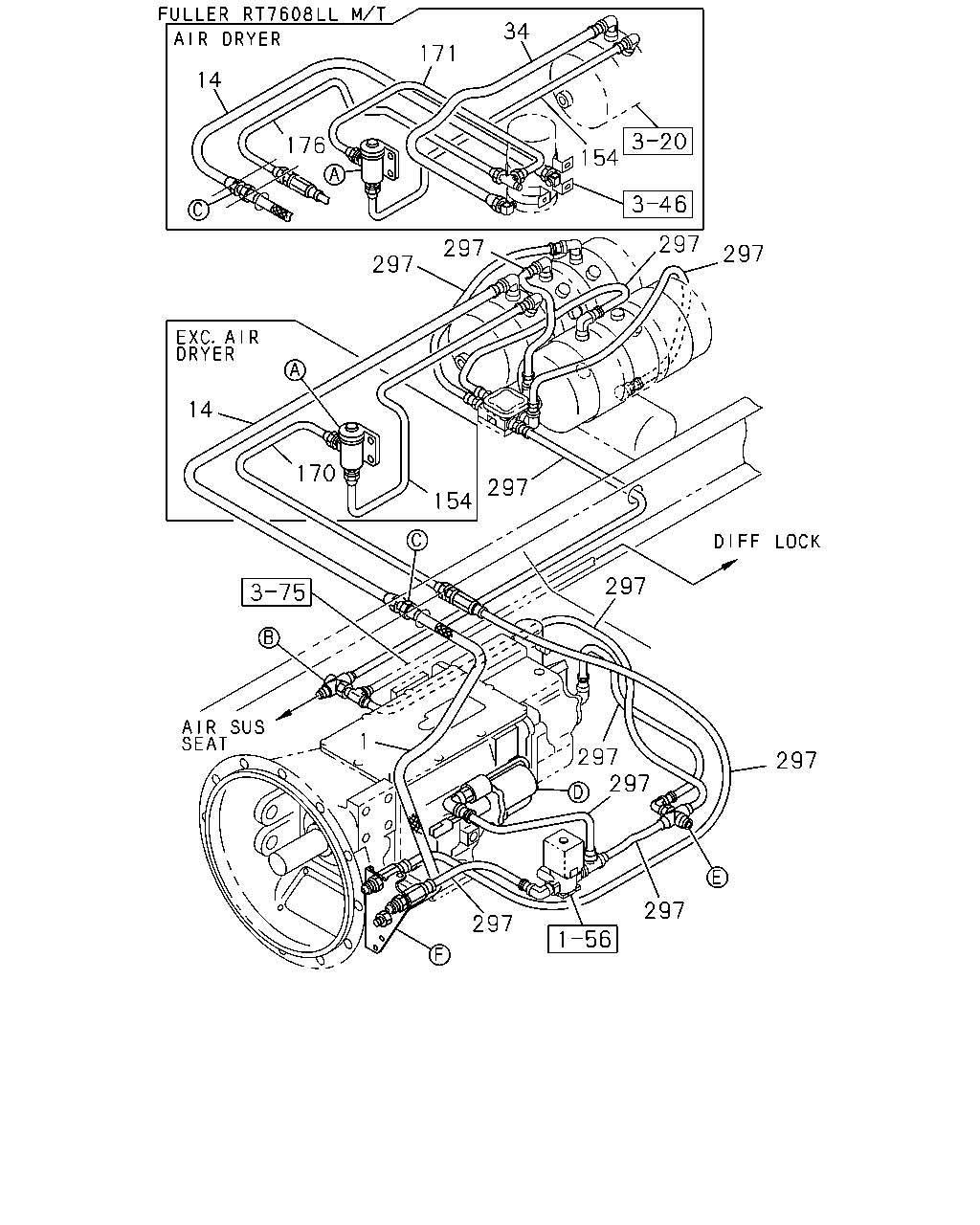

çizim 121525
34 171 14 176 154 297 297 297 297 14 170 297 154 297 297 297 1 297 297 297
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17726-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77726-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9607
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO<SV1> L=1500 		0-17716-150-0 01 1 9608-9804
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9805-0604
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17716-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77716-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
ENGINE REAR PTO<SV1> L=1400 		0-17716-140-0 01 1 9608-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9601-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 9805-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49117-176-0 01 1 9601-9804
34 PIPE; AIR
AIR DRYER<PS7> SOUTH AFRICA EQUIPMENT(WG4) L=587 		1-49124-624-0 01 1 0411-
34 PIPE; AIR
WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9804
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-408-0 01 1 9805-0410
34 PIPE; AIR
AIR DRYER<PS7> EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-49118-408-0 01 1 0411-
34 PIPE; AIR
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49115-546-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49117-151-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49118-410-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49122-172-0 01 1 0005-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49118-375-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> L=1096 		1-49122-170-0 01 1 0005-0104
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0105-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49117-156-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49117-157-0 01 1 9601-9804
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9804
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9805-0004
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-192-0 01 1 0005-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9807-9903
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9904-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9811-0212
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9902-

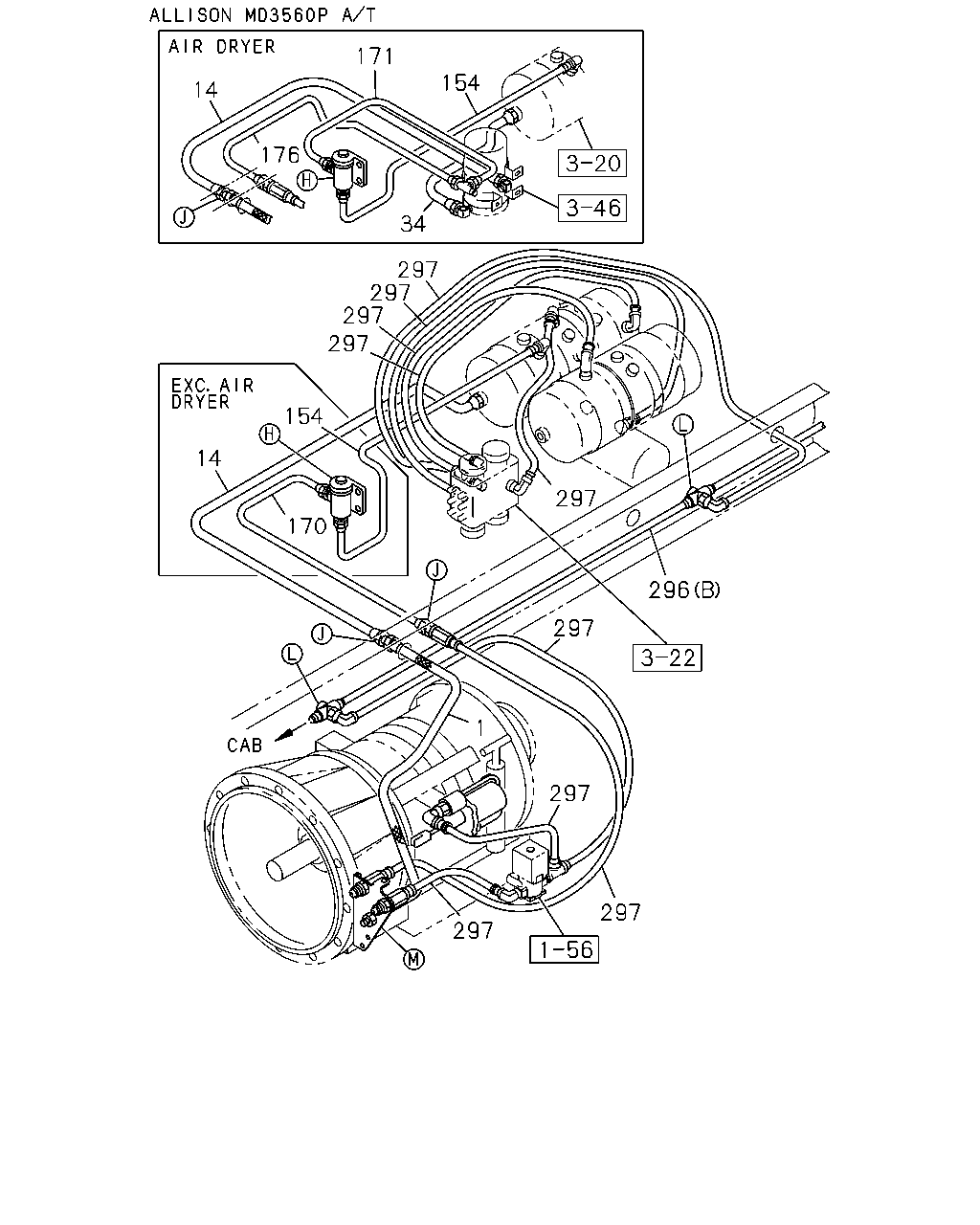

çizim 121569
171 154 14 176 34 297 297 297 297 154 14 297 170 296 297 1 297 297 297
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17726-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77726-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9607
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO<SV1> L=1500 		0-17716-150-0 01 1 9608-9804
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9805-0604
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17716-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77716-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
ENGINE REAR PTO<SV1> L=1400 		0-17716-140-0 01 1 9608-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9601-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 9805-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49117-176-0 01 1 9601-9804
34 PIPE; AIR
AIR DRYER<PS7> SOUTH AFRICA EQUIPMENT(WG4) L=587 		1-49124-624-0 01 1 0411-
34 PIPE; AIR
WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9804
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-408-0 01 1 9805-0410
34 PIPE; AIR
AIR DRYER<PS7> EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-49118-408-0 01 1 0411-
34 PIPE; AIR
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49115-546-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49117-151-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49118-410-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49122-172-0 01 1 0005-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49118-375-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> L=1096 		1-49122-170-0 01 1 0005-0104
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0105-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49117-156-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49117-157-0 01 1 9601-9804
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9804
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9805-0004
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-192-0 01 1 0005-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0212
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0604
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0605-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 9601-9810
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-1 01 1 0011-
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9805-9904
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-0212
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
WHEEL BASE 6300MM(63W) (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-9904
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9807-9903
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9904-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9811-0212
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9902-

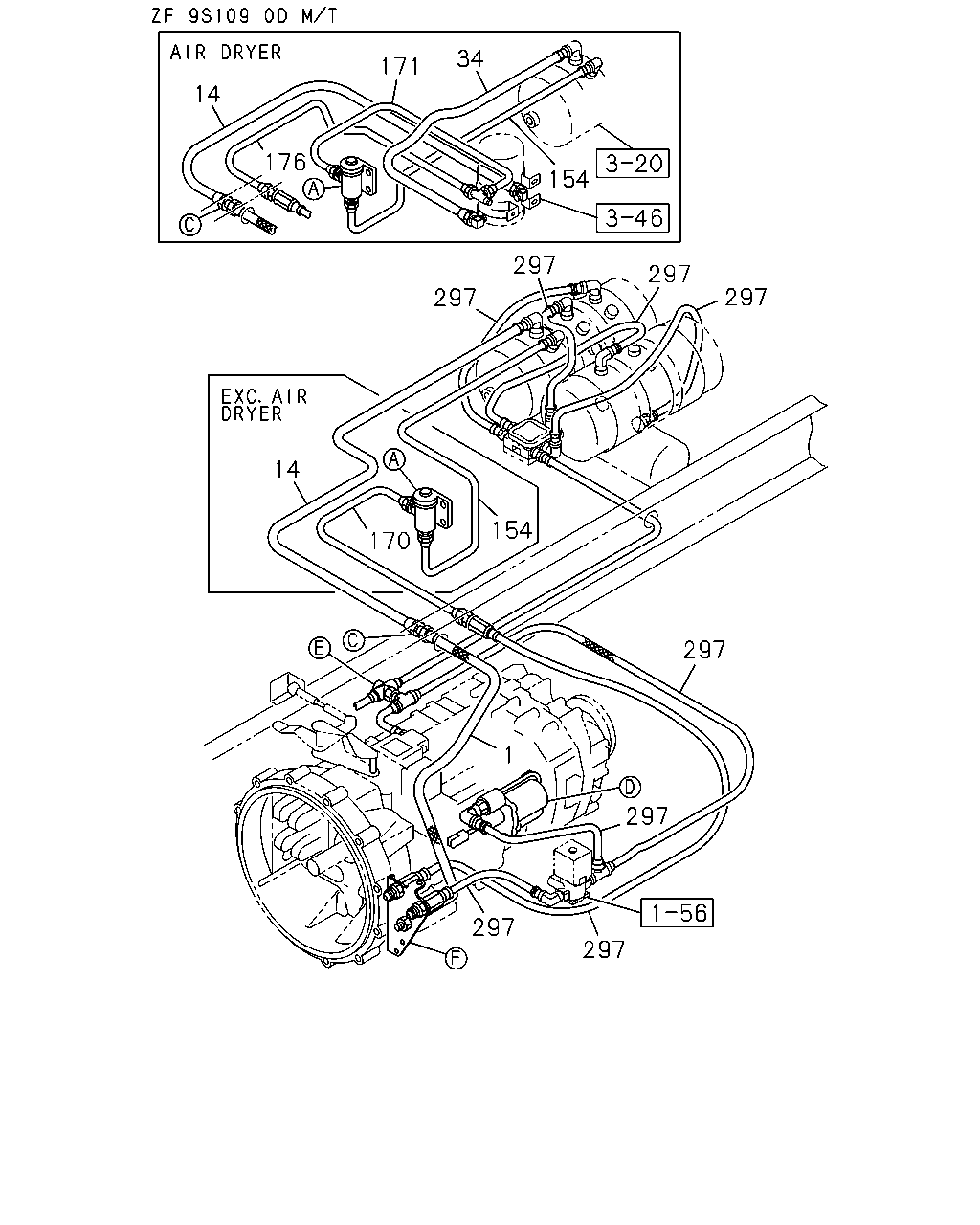

çizim 121701
34 171 14 176 154 297 297 297 297 14 154 170 297 1 297 297 297
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17726-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77726-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9607
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO<SV1> L=1500 		0-17716-150-0 01 1 9608-9804
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9805-0604
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17716-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77716-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
ENGINE REAR PTO<SV1> L=1400 		0-17716-140-0 01 1 9608-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9601-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 9805-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49117-176-0 01 1 9601-9804
34 PIPE; AIR
AIR DRYER<PS7> SOUTH AFRICA EQUIPMENT(WG4) L=587 		1-49124-624-0 01 1 0411-
34 PIPE; AIR
WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9804
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-408-0 01 1 9805-0410
34 PIPE; AIR
AIR DRYER<PS7> EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-49118-408-0 01 1 0411-
34 PIPE; AIR
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49115-546-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49117-151-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49118-410-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49122-172-0 01 1 0005-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49118-375-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> L=1096 		1-49122-170-0 01 1 0005-0104
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0105-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49117-156-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49117-157-0 01 1 9601-9804
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9804
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9805-0004
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-192-0 01 1 0005-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9807-9903
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9904-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9811-0212
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9902-

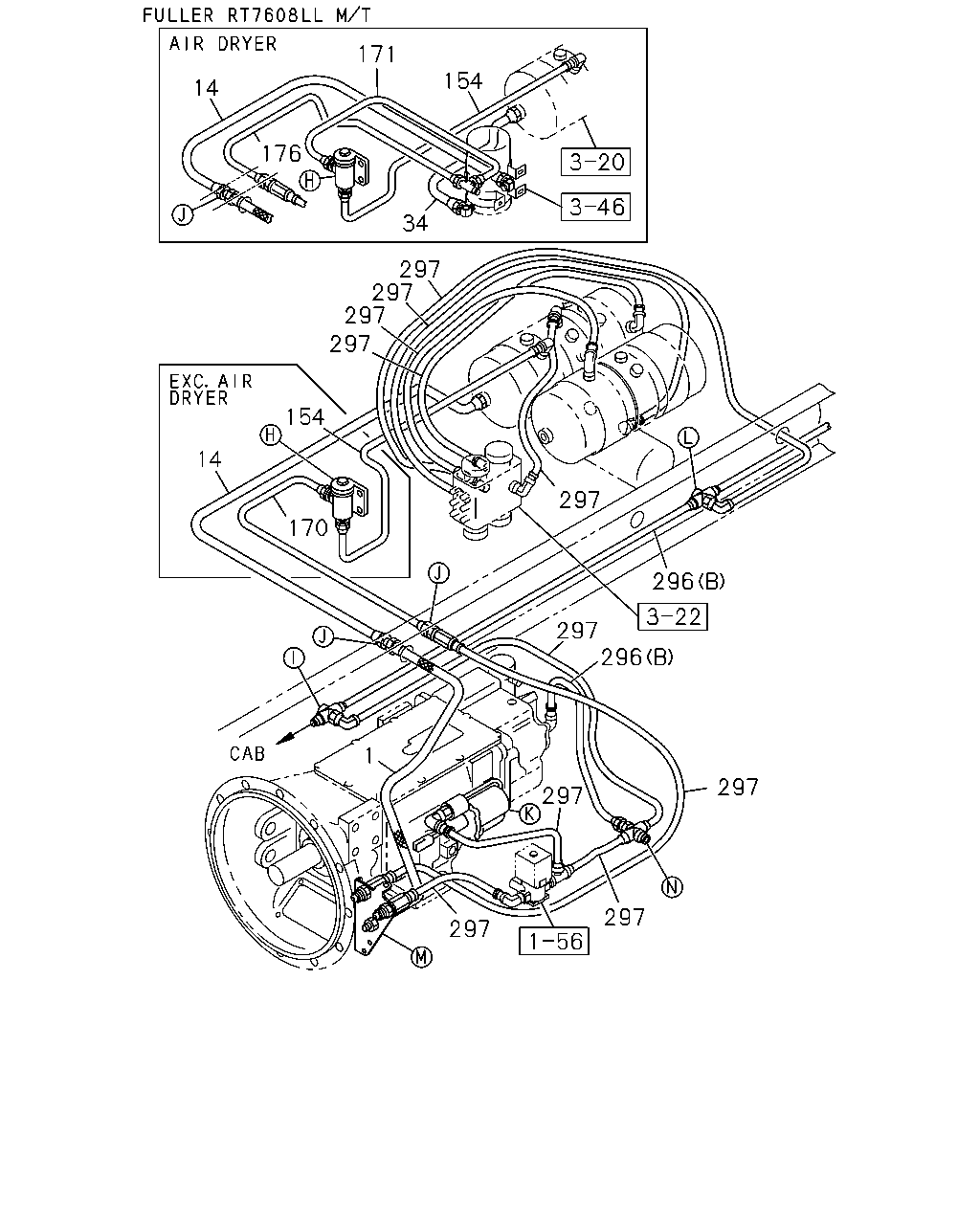

çizim 121705
171 154 14 176 34 297 297 297 297 154 14 297 170 296 297 296 1 297 297 297 297
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17726-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77726-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9607
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO<SV1> L=1500 		0-17716-150-0 01 1 9608-9804
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9805-0604
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17716-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77716-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
ENGINE REAR PTO<SV1> L=1400 		0-17716-140-0 01 1 9608-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9601-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 9805-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49117-176-0 01 1 9601-9804
34 PIPE; AIR
AIR DRYER<PS7> SOUTH AFRICA EQUIPMENT(WG4) L=587 		1-49124-624-0 01 1 0411-
34 PIPE; AIR
WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9804
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-408-0 01 1 9805-0410
34 PIPE; AIR
AIR DRYER<PS7> EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-49118-408-0 01 1 0411-
34 PIPE; AIR
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49115-546-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49117-151-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
AIR DRYER<PS7> 		1-49118-410-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49122-172-0 01 1 0005-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. AIR DRYER<PS7> 		1-49118-375-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> L=1096 		1-49122-170-0 01 1 0005-0104
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0105-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49117-156-0 01 1 9601-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49117-157-0 01 1 9601-9804
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> L=401 		1-49122-185-0 01 1 0005-0104
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0105-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9804
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9805-0004
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-192-0 01 1 0005-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0212
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0604
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0605-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 9601-9810
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-1 01 1 0011-
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9805-9904
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-0212
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
WHEEL BASE 6300MM(63W) (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-9904
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9807-9903
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9904-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9811-0212
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9902-

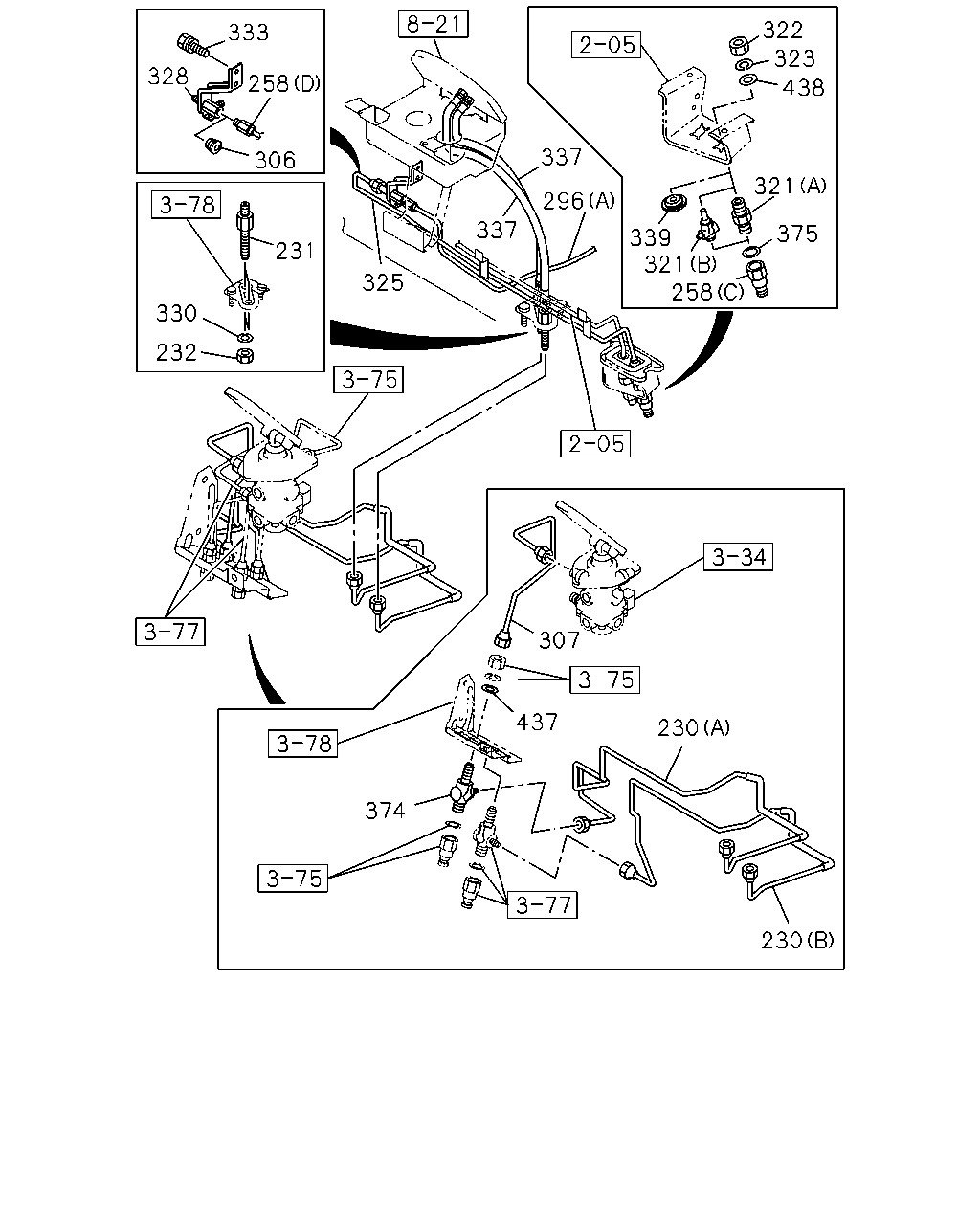

çizim 121706
322 323 333 328 258 438 337 306 321 296 337 375 339 321 258 231 325 330 232 307 437 230 374 230
BalonParca AdiParca NoAdetTipApplied Date
230 PIPE; AIR,UNION TO UNION
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-49123-979-0 01 1 0307-
230 PIPE; AIR,UNION TO UNION
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-49123-980-0 01 1 0307-
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 9601-0103
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0104-0306
230 PIPE; AIR,UNION TO UNION
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-49122-777-0 01 1 0307-
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 9601-0103
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0104-0306
230 PIPE; AIR,UNION TO UNION
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-49122-778-0 01 1 0307-
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 9601-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 9601-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9702
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9702
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-9901
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-9901
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-9901
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-9901
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-0012
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0101-1102
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0101-1102
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
(A) 		1-09660-718-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (K) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-0004
258 CONNECTOR; NYLON TUBE
(G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) EXC. ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604
258 CONNECTOR; NYLON TUBE
EXC. EURO3 SPECIFICATION<NJX> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) EXC. ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605-
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (F) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9805-9806
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR HORN<WB8> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9903
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR HORN<WB8> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9903
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) AIR HORN<WB8> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
(I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
(I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0012
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0012
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0012
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0101-0604
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0101-0604
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 9902-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0005-0604
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1103-
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0212
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0604
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0605-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 9601-9810
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-1 01 1 0011-
296 TUBE; NYLON
WHEEL BASE 5000MM(50W) (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9805-9904
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-0212
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
WHEEL BASE 6300MM(63W) (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-9904
306 PLUG; NYLON TUBE
AIR CONTROL SEAT<A60> PT1/8 		1-09605-050-0 01 1 9805-0004
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-47492-448-4 01 1 9601-9702
307 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. BRAKE REGULATION ECE<TDV> L=421 		1-47492-448-5 01 1 9703-9902
307 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. BRAKE REGULATION ECE<TDV> L=421 		1-49121-486-0 01 1 9903-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
BRAKE REGULATION ECE<TDV> 		1-49114-759-3 01 1 9703-9902
307 PIPE; AIR,FLEX HOSE TO BRK VLV
BRAKE REGULATION ECE<TDV> 		1-49121-489-0 01 1 9903-
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) 		1-09656-728-0 01 1 9805-9810
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		1-09656-728-1 01 1 9811-0004
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> (A) 		1-09654-362-1 01 1 9601-9804
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> EXC. AIR HORN<WB8> (A) 		1-09654-362-1 01 1 9805-9810
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AIR HORN<WB8> (A) 		1-09654-362-1 01 1 9811-9811
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AIR HORN<WB8> (A) 		1-09656-738-0 01 1 9812-0004
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> (A) 		1-09656-738-0 01 1 0005-0010
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-09656-738-0 01 1 0011-
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> AIR HORN<WB8> (B) 		1-09656-663-0 01 1 9805-9810
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (B) 		1-09656-663-0 01 1 9811-0004
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 9601-9804
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> M10 H=8 		1-09400-029-0 01 1 9805-9810
322 NUT; JOINT,FLEX HOSE
AIR HORN<WB8> M10 H=8 		1-09400-029-0 01 1 9805-9810
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> M10 H=8 		1-09400-029-0 01 1 9811-0004
322 NUT; JOINT,FLEX HOSE
AIR HORN<WB8> M10 H=8 		1-09400-029-0 01 1 9811-0004
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 0005-0010
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M10 H=8 		1-09400-029-0 01 1 0011-
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 9601-9804
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=10.2 		9-09150-510-0 01 1 9805-9810
323 WASHER; LK,JOINT
AIR HORN<WB8> ID=10.2 		9-09150-510-0 01 1 9805-9810
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2 		9-09150-510-0 01 1 9811-0004
323 WASHER; LK,JOINT
AIR HORN<WB8> ID=10.2 		9-09150-510-0 01 1 9811-0004
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 0005-0010
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2 		9-09150-510-0 01 1 0011-0603
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2 		0-91510-510-0 01 1 0604-
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> 		1-47492-452-2 01 1 9601-9804
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-47492-452-2 01 1 9805-9810
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47492-452-2 01 1 9811-0004
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> 		1-47492-452-2 01 1 0005-0010
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47492-452-2 01 1 0011-
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-392-0 01 1 9601-9804
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-47470-392-0 01 1 9805-9810
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47470-392-0 01 1 9811-0004
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-392-0 01 1 0005-0010
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47470-392-0 01 1 0011-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 9601-0603
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604-
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9804
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9805-9810
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9601-0608
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609-
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 9601-9804
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> OD=28 		8-94279-720-0 01 1 9805-9810
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> OD=28 		8-94279-720-0 01 1 9811-0004
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 0005-0010
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> OD=28 		8-94279-720-0 01 1 0011-
374 CONNECTOR 1-09656-451-1 01 1 9601-9804
374 CONNECTOR 1-09656-721-0 01 1 9805-0103
374 CONNECTOR 1-09656-754-0 01 1 0104-
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9601-9804
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=11 OD=18 		9-09572-510-0 01 1 9805-9810
375 GASKET
AIR HORN<WB8> ID=11 OD=18 		9-09572-510-0 01 1 9805-9810
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811
375 GASKET
AIR HORN<WB8> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9601-0605
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606-
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9601-9804
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9805-9810
438 WASHER; PL,JOINT
AIR HORN<WB8> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9805-9810
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004
438 WASHER; PL,JOINT
AIR HORN<WB8> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011-

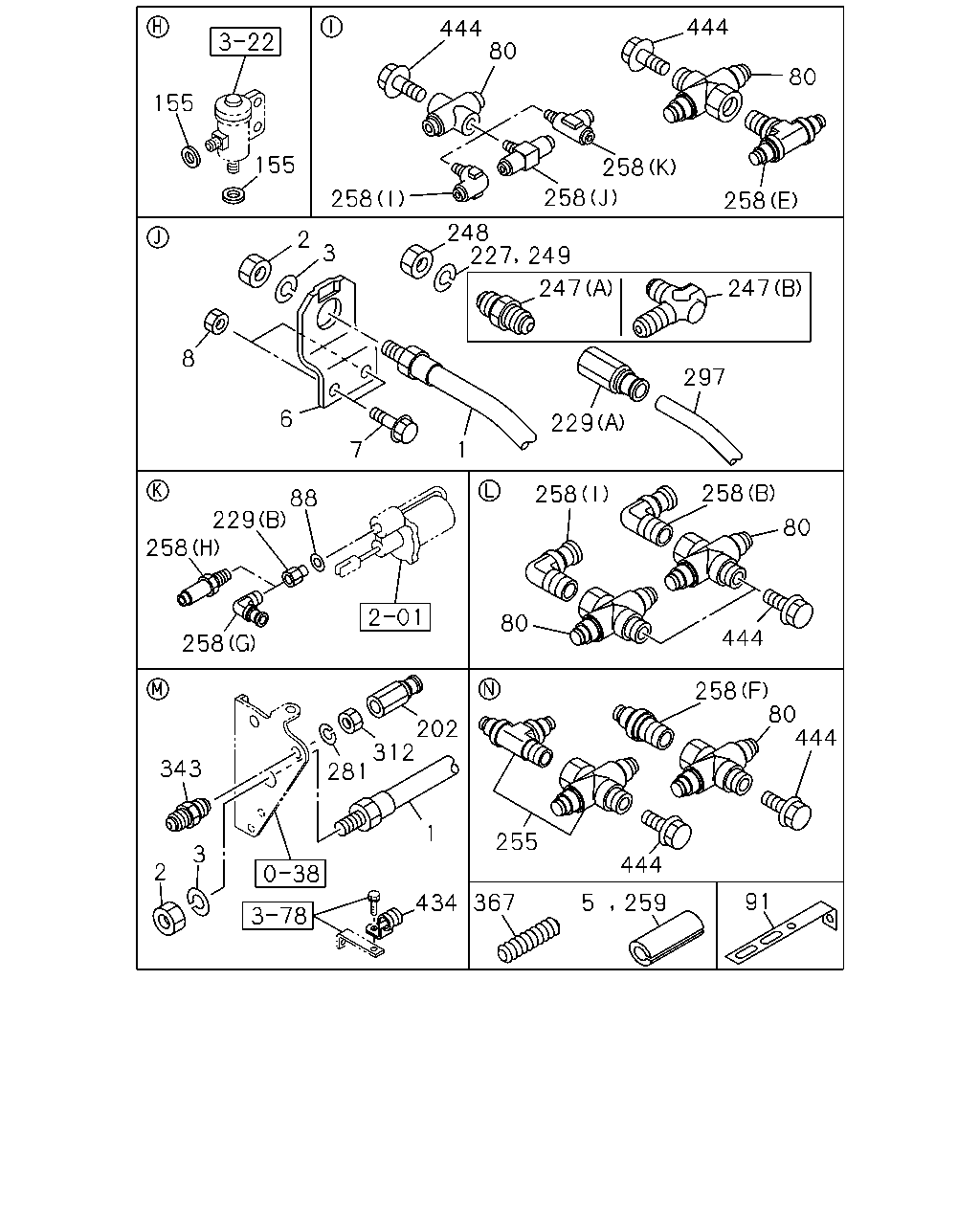

çizim 184587
444 444 80 80 155 155 258 258 258 258 248 2 3 247 247 8 297 6 229 7 1 258 258 88 229 258 80 80 444 258 258 80 444 202 312 281 343 1 255 3 444 2 91 5 259 367 434 227 249
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17726-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77726-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9607
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO<SV1> L=1500 		0-17716-150-0 01 1 9608-9804
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9805-0604
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17716-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77716-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
ENGINE REAR PTO<SV1> L=1400 		0-17716-140-0 01 1 9608-9804
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9601-0512
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-0604
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0605-
2 NUT; FLEX HOSE,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> M22 		0-91111-522-0 01 1 0605-
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 9601-0512
2 NUT; FLEX HOSE,AIR TANK
M20 		0-91111-520-0 01 1 0601-0604
2 NUT; FLEX HOSE,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> M20 		0-91111-520-0 01 1 0605-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 9601-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		0-91510-520-0 01 1 0604-0604
3 WASHER; LK,FLEX HOSE,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> ID=20.2 		0-91510-520-0 01 1 0605-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9601-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-0604
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0605-
3 WASHER; LK,FLEX HOSE,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> ID=22.5 		0-91510-522-0 01 1 0605-
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=150 		1-09360-677-1 01 1 9703-9903
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) L=150 		1-09360-677-1 01 1 9904-0004
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=150 		1-09360-677-1 01 1 0005-1102
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1103-
6 BRACKET; FLEX HOSE,AIR TANK 1-47476-693-2 01 1 9601-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 9607-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 9601-9606
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 9607-0602
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 0603-
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-9702
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-9702
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P) AIR SUSP DRIVER SEAT<A56> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9703-9804
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9703-9804
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9703-9804
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L), ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L), ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9806
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9806
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9806
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L), ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9806
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L), ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9806
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9807-9901
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9807-9901
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L),ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9807-9901
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L),ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9807-9901
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9902-9903
80 UNION; 3 WAY
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9902-9903
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L),ALLISON MD3560P A/T(Y3B) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9902-9903
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9904-0004
80 UNION; 3 WAY
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9904-0004
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L),ALLISON MD3560P A/T(Y3B),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9904-0004
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0012
80 UNION; 3 WAY
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0012
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0012
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0101-0604
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0101-0604
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0605-
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0605-
80 UNION; 3 WAY
EURO3 SPECIFICATION<NJX> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0605-
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 9601-9804
88 GASKET; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> ID=14.2 OD=23.0 		9-09572-014-0 01 1 9805-0004
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0005-
91 BRACKET; TUBE CLIP
L=225 		1-47477-646-3 01 1 0010-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9601-0004
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9601-9901
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9902-0004
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-
227 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 9601-0603
227 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604-0604
227 WASHER; LK,UNION
EXC. EURO3 SPECIFICATION<NJX> ID=12.2 		0-91510-512-0 01 1 0605-
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9601-0004
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 0005-0005
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006-
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 9601-9804
229 ADAPTER; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) M14 & PT1/4 		9-48319-149-0 01 1 9805-0004
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0403
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404-
247 UNION; AIR PIPE
EURO3 SPECIFICATION<NJX> (B) M12 ELBOW 		9-09225-206-1 01 1 0605-0607
247 UNION; AIR PIPE
EURO3 SPECIFICATION<NJX> (B) M12 ELBOW 		0-92125-206-0 01 1 0608-
247 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 9601-0604
247 UNION; AIR PIPE
EXC. EURO3 SPECIFICATION<NJX> (A) M12 L=66.5 		9-09223-306-1 02 1 0605-0607
247 UNION; AIR PIPE
EXC. EURO3 SPECIFICATION<NJX> (A) M12 L=66.5 		0-92113-306-0 02 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 02 1 9601-0604
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0605-
248 NUT; PIPE UNION
EXC. EURO3 SPECIFICATION<NJX> M12 		9-09840-280-0 01 1 0605-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 9601-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
255 UNION; NYLON TUBE 1-09660-912-0 01 1 9601-9702
255 UNION; NYLON TUBE
FULLER RT7608LL M/T(X8P) 		1-09660-912-0 01 1 9703-9804
255 UNION; NYLON TUBE
FULLER RT7608LL M/T(X8P) 		1-09660-912-0 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9702
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9702
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-9901
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-9901
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-9901
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-9901
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-0012
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0101-1102
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0101-1102
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
(A) 		1-09660-718-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (K) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-0004
258 CONNECTOR; NYLON TUBE
(G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) EXC. ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604
258 CONNECTOR; NYLON TUBE
EXC. EURO3 SPECIFICATION<NJX> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) EXC. ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605-
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (F) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9805-9806
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR HORN<WB8> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9903
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR HORN<WB8> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9903
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) AIR HORN<WB8> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
(I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
(I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0012
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0012
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0012
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0101-0604
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0101-0604
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 9902-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0005-0604
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1103-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9601-9610
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 03 1 9611-9804
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 04 1 9805-0604
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 01 1 0605-1102
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0605-1102
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 01 1 1103-
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) ID=29 OD=39 L=40 		1-09337-013-0 01 1 1103-
259 SLEEVE; RUBBER,NYLON TUBE
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> ID=29 OD=39 L=40 		1-09337-013-0 03 1 9805-0004
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 03 1 0005-0112
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 0201-
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0009-0604
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE REGULATION ECE<TDV> ID=29 OD=39 L=40 		1-09337-013-0 04 1 0605-
281 WASHER; LK UNION
ID=12.2 		9-09150-512-0 01 1 9601-9901
281 WASHER; LK UNION
AIR SUSP DRIVER SEAT<A56> ID=12.2 		9-09150-512-0 01 1 9601-9901
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 9902-0603
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		0-91510-512-0 01 1 0604-0604
281 WASHER; LK UNION
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> ID=12.2 		0-91510-512-0 01 1 0605-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9807-9903
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9904-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9811-0212
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9902-
312 NUT; UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 9601-0604
312 NUT; UNION
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> M12 		9-09840-280-0 01 1 0605-
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 01 1 9601-0604
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> M12 L=66.5 		9-09223-306-1 01 1 0605-0607
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> M12 L=66.5 		0-92113-306-0 01 1 0608-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9601-9704
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9705-0604
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0605-
434 CLIP
EURO3 SPECIFICATION<NJX> ID=21 L=30 H=40 		1-09700-991-1 01 1 0605-
434 CLIP
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) ID=18 L=25 H=50 		1-09701-096-0 01 1 0108-0604
434 CLIP
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EXC. EURO3 SPECIFICATION<NJX> ID=18 L=25 H=50 		1-09701-096-0 01 1 0605-
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 9601-9702
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE 		0-28080-820-0 01 1 9601-9702
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 9703-9804
444 BOLT; UNION
FULLER RT7608LL M/T(X8P) AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE 		0-28080-820-0 01 1 9703-9804
444 BOLT; UNION
ZF 9S109 OD M/T(Y2L) M8X20 FLANGE 		0-28080-820-0 01 1 9703-9804
444 BOLT; UNION
FULLER RT7608LL M/T(X8P) M8X25 FLANGE 		0-28680-825-0 01 1 9805-9806
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9805-9806
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9805-9806
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9807-9901
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9807-9901
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9902-0012
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9902-0012
444 BOLT; UNION
6SD1 STD ENG(37L) M8X25 FLANGE 		0-28680-825-0 01 1 9902-0012
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0101-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0101-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0604
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0604
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0605-
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0605-
444 BOLT; UNION
EURO3 SPECIFICATION<NJX> M8X25 FLANGE 		0-28650-825-0 01 1 0605-
çizim 184749
444 155 80 258 155 255 2 248 247 229 3 297 8 6 1 7 258 88 229 258 258 80 444 202 312 281 258 343 80 1 255 444 3 5 259 2 367 227 249
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17726-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77726-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9607
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO<SV1> L=1500 		0-17716-150-0 01 1 9608-9804
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9805-0604
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-17716-150-0 01 1 0605-0605
1 HOSE; FLEX,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> L=1500 		0-77716-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
ENGINE REAR PTO<SV1> L=1400 		0-17716-140-0 01 1 9608-9804
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9601-0512
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-0604
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0605-
2 NUT; FLEX HOSE,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> M22 		0-91111-522-0 01 1 0605-
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 9601-0512
2 NUT; FLEX HOSE,AIR TANK
M20 		0-91111-520-0 01 1 0601-0604
2 NUT; FLEX HOSE,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> M20 		0-91111-520-0 01 1 0605-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 9601-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		0-91510-520-0 01 1 0604-0604
3 WASHER; LK,FLEX HOSE,AIR TANK
EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> ID=20.2 		0-91510-520-0 01 1 0605-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9601-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-0604
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0605-
3 WASHER; LK,FLEX HOSE,AIR TANK
AIR COMPRESSOR HEAVY DUTY VAR2<E6A> ID=22.5 		0-91510-522-0 01 1 0605-
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=150 		1-09360-677-1 01 1 9703-9903
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) L=150 		1-09360-677-1 01 1 9904-0004
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=150 		1-09360-677-1 01 1 0005-1102
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1103-
6 BRACKET; FLEX HOSE,AIR TANK 1-47476-693-2 01 1 9601-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 9607-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 9601-9606
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 9607-0602
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 0603-
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-9702
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-9702
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P) AIR SUSP DRIVER SEAT<A56> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9703-9804
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9703-9804
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9703-9804
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L), ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L), ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9806
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9806
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9806
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L), ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9806
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L), ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-9806
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9807-9901
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9807-9901
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L),ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9807-9901
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L),ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9807-9901
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9902-9903
80 UNION; 3 WAY
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9902-9903
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L),ALLISON MD3560P A/T(Y3B) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9902-9903
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9904-0004
80 UNION; 3 WAY
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9904-0004
80 UNION; 3 WAY
ZF 9S109 OD M/T(Y2L),ALLISON MD3560P A/T(Y3B),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9904-0004
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0012
80 UNION; 3 WAY
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0012
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0012
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0101-0604
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0101-0604
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0605-
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0605-
80 UNION; 3 WAY
EURO3 SPECIFICATION<NJX> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0605-
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 9601-9804
88 GASKET; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> ID=14.2 OD=23.0 		9-09572-014-0 01 1 9805-0004
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0005-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9601-0004
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9601-9901
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9902-0004
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-
227 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 9601-0603
227 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604-0604
227 WASHER; LK,UNION
EXC. EURO3 SPECIFICATION<NJX> ID=12.2 		0-91510-512-0 01 1 0605-
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9601-0004
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 0005-0005
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006-
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 9601-9804
229 ADAPTER; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) M14 & PT1/4 		9-48319-149-0 01 1 9805-0004
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0403
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404-
247 UNION; AIR PIPE
EURO3 SPECIFICATION<NJX> (B) M12 ELBOW 		9-09225-206-1 01 1 0605-0607
247 UNION; AIR PIPE
EURO3 SPECIFICATION<NJX> (B) M12 ELBOW 		0-92125-206-0 01 1 0608-
247 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 9601-0604
247 UNION; AIR PIPE
EXC. EURO3 SPECIFICATION<NJX> (A) M12 L=66.5 		9-09223-306-1 02 1 0605-0607
247 UNION; AIR PIPE
EXC. EURO3 SPECIFICATION<NJX> (A) M12 L=66.5 		0-92113-306-0 02 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 02 1 9601-0604
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0605-
248 NUT; PIPE UNION
EXC. EURO3 SPECIFICATION<NJX> M12 		9-09840-280-0 01 1 0605-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 9601-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
255 UNION; NYLON TUBE 1-09660-912-0 01 1 9601-9702
255 UNION; NYLON TUBE
FULLER RT7608LL M/T(X8P) 		1-09660-912-0 01 1 9703-9804
255 UNION; NYLON TUBE
FULLER RT7608LL M/T(X8P) 		1-09660-912-0 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9702
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9702
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-9901
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-9901
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-9901
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-9901
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9902-9903
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-0012
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0101-1102
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0101-1102
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (J) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
(A) 		1-09660-718-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (K) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-0004
258 CONNECTOR; NYLON TUBE
(G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) EXC. ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0604
258 CONNECTOR; NYLON TUBE
EXC. EURO3 SPECIFICATION<NJX> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) EXC. ZF M/T<X9E> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0605-
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (F) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9805-9806
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9703-9804
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR HORN<WB8> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9903
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) AIR HORN<WB8> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9903
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) AIR HORN<WB8> (E) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9904-0004
258 CONNECTOR; NYLON TUBE
(I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
(I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0012
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0012
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-0012
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0101-0604
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0101-0604
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EURO3 SPECIFICATION<NJX> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 9902-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0005-0604
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L) (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0605-1102
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) EURO3 SPECIFICATION<NJX> (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1103-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) (H) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1103-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9601-9610
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 03 1 9611-9804
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 04 1 9805-0604
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 01 1 0605-1102
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0605-1102
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 01 1 1103-
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) ID=29 OD=39 L=40 		1-09337-013-0 01 1 1103-
259 SLEEVE; RUBBER,NYLON TUBE
EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> ID=29 OD=39 L=40 		1-09337-013-0 03 1 9805-0004
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 03 1 0005-0112
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 0201-
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0009-0604
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE REGULATION ECE<TDV> ID=29 OD=39 L=40 		1-09337-013-0 04 1 0605-
281 WASHER; LK UNION
ID=12.2 		9-09150-512-0 01 1 9601-9901
281 WASHER; LK UNION
AIR SUSP DRIVER SEAT<A56> ID=12.2 		9-09150-512-0 01 1 9601-9901
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 9902-0603
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		0-91510-512-0 01 1 0604-0604
281 WASHER; LK UNION
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> ID=12.2 		0-91510-512-0 01 1 0605-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9807-9903
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9904-0004
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9811-0212
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 9902-
312 NUT; UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 9601-0604
312 NUT; UNION
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> M12 		9-09840-280-0 01 1 0605-
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 01 1 9601-0604
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> M12 L=66.5 		9-09223-306-1 01 1 0605-0607
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) EXC. EURO3 SPECIFICATION<NJX> M12 L=66.5 		0-92113-306-0 01 1 0608-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9601-9704
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9705-0604
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0605-
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 9601-9702
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE 		0-28080-820-0 01 1 9601-9702
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 9703-9804
444 BOLT; UNION
FULLER RT7608LL M/T(X8P) AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE 		0-28080-820-0 01 1 9703-9804
444 BOLT; UNION
ZF 9S109 OD M/T(Y2L) M8X20 FLANGE 		0-28080-820-0 01 1 9703-9804
444 BOLT; UNION
FULLER RT7608LL M/T(X8P) M8X25 FLANGE 		0-28680-825-0 01 1 9805-9806
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9805-9806
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9805-9806
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9807-9901
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9807-9901
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9902-0012
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9902-0012
444 BOLT; UNION
6SD1 STD ENG(37L) M8X25 FLANGE 		0-28680-825-0 01 1 9902-0012
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0101-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0101-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0604
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0604
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0605-
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0605-
444 BOLT; UNION
EURO3 SPECIFICATION<NJX> M8X25 FLANGE 		0-28650-825-0 01 1 0605-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
