3-58 — FIXING PARTS; OIL PIPING (#65132) — 6 parça

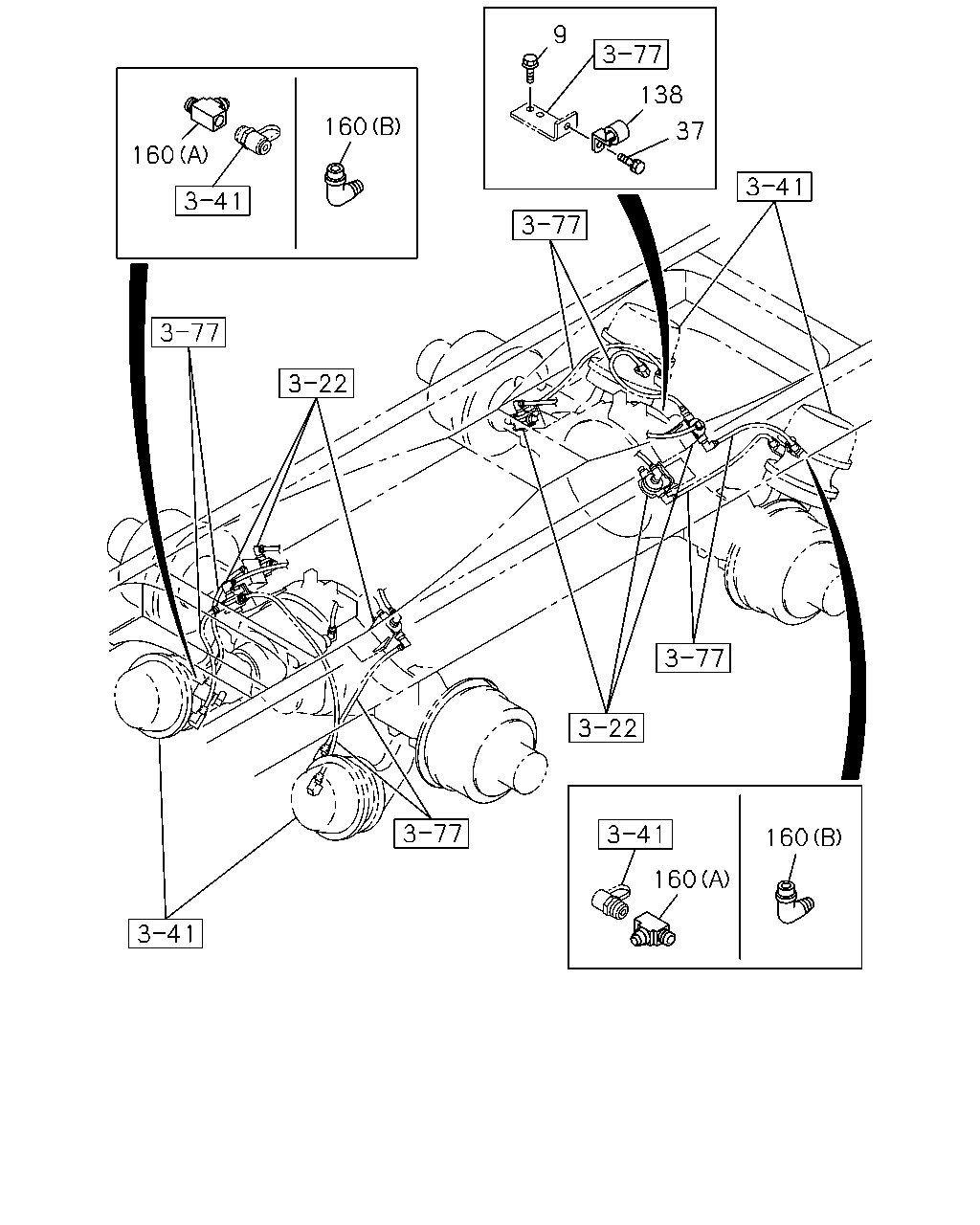

çizim 184785
160 160 9 138 37 160 160
BalonParca AdiParca NoAdetTipApplied Date
9 BOLT; BRKT
REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> M8X16 FLANGE 		0-28060-816-0 02 1 0605-
37 BOLT; CLIP FIX
REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> M8X20 FLANGE 		0-28650-820-0 01 1 0605-
138 CLIP; TUBE
REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> ID=35 H=45 L=33 		1-09700-947-0 01 1 0605-
160 CONNECTOR
BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) DIN12 & NPTF3/8 & RC1/4 3WAY 		1-09660-804-0 02 1 0005-0211
160 CONNECTOR
BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) (A) DIN12 & NPTF3/8 & RC1/4 3WAY 		1-09660-804-0 02 1 0212-
160 CONNECTOR
REAR AXLE RT210(C2A) BRAKE REGULATION ADR<TDU> (B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 02 1 0212-
