3-45 — LOAD SENSING PROPORTIONING VALVE (#65129) — 143 parça

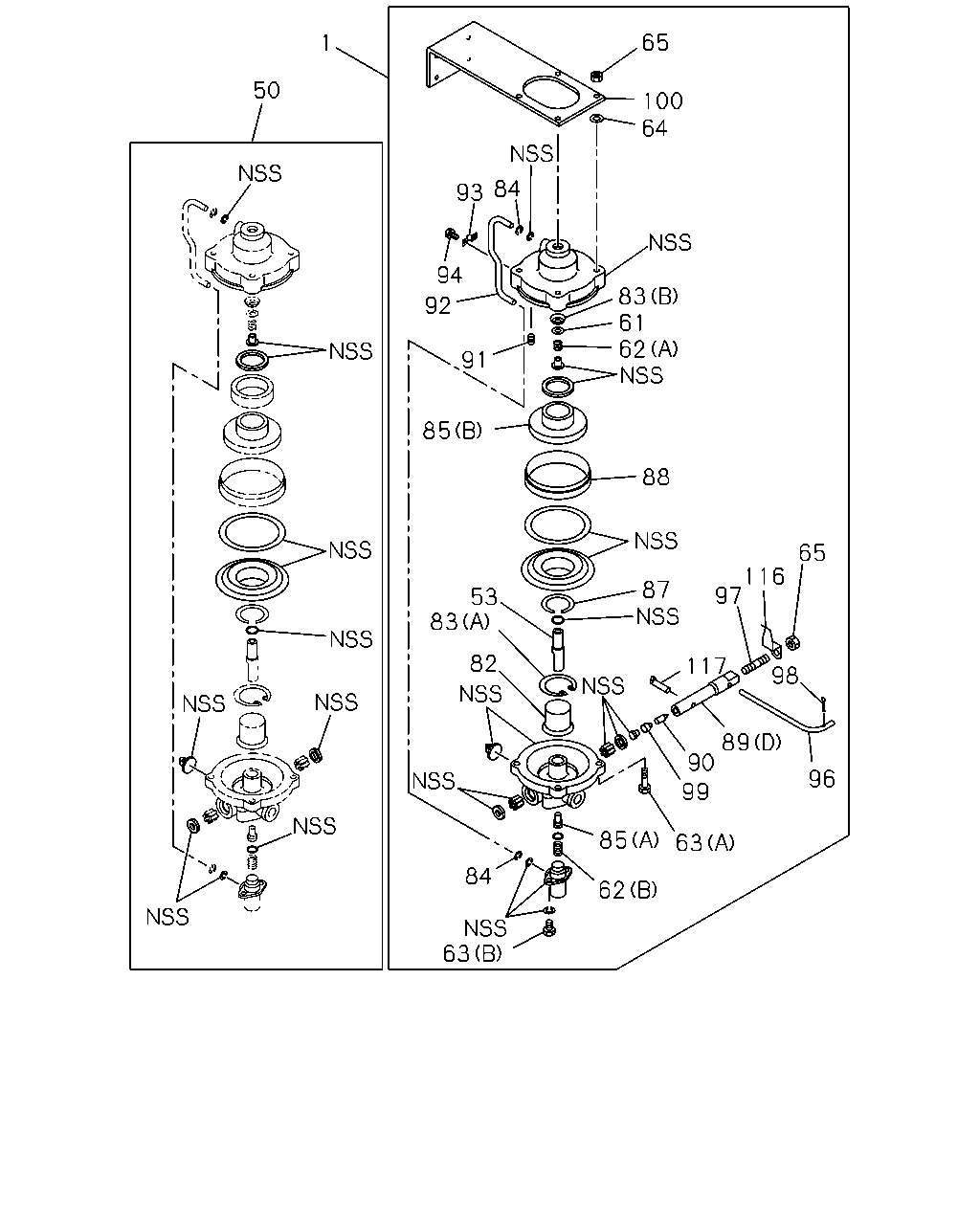

65 1 50 100 64 84 93 94 83 61 62 92 91 85 88 65 116 97 87 53 83 82 117 98 89 90 96 99 85 63 84 62 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47720-061-0	01	1	9601-9702
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47720-094-0	01	1	9703-0004
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-094-0	01	1	0005-
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-088-0	01	1	9601-0004
50	REPAIR KIT; LSPV BRAKE REGULATION ECE<TDV>	1-47769-088-0	01	1	0005-
53	PLUNGER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-033-0	01	1	9601-0004
53	PLUNGER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	0005-
61	RETAINER; SPRING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-026-0	01	1	9601-0004
61	RETAINER; SPRING BRAKE REGULATION ECE<TDV>	1-47769-026-0	01	1	0005-
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-025-0	01	1	9601-0004
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-025-0	01	1	0005-
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-042-0	01	1	9601-0004
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-042-0	01	1	0005-
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-045-0	02	1	9601-0004
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-045-0	02	1	0005-
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-094-0	04	1	9601-0004
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-094-0	04	1	0005-
64	WASHER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-079-0	04	1	9601-0004
64	WASHER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-079-0	04	1	0005-
65	NUT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-48199-320-0	05	1	9601-0004
65	NUT; LSPV BRAKE REGULATION ECE<TDV>	1-48199-320-0	05	1	0005-
82	GUIDE; PISTON,LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-016-0	01	1	9601-0004
82	GUIDE; PISTON,LSPV BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	0005-
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-017-0	01	1	9601-0004
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (A)	1-47769-017-0	01	1	0005-
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-027-0	01	1	9601-0004
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (B)	1-47769-027-0	01	1	0005-
84	RETAINER; GASKET LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-021-0	02	1	9601-0004
84	RETAINER; GASKET BRAKE REGULATION ECE<TDV>	1-47769-021-0	02	1	0005-
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-023-0	01	1	9601-0004
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-023-0	01	1	0005-
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-043-0	01	1	9601-0004
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-043-0	01	1	0005-
87	RETAINER; DIAPH LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-086-0	01	1	9601-0004
87	RETAINER; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-086-0	01	1	0005-
88	GUIDE; DIAPH LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-032-0	01	1	9601-0004
88	GUIDE; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-032-0	01	1	0005-
89	ROD; CONN,LSPV REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-305-0	01	1	0605-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. REAR AXLE RT210(C2A) (B)	1-09765-270-0	02	1	0605-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-269-1	01	1	9601-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-269-1	01	1	0005-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-270-0	02	1	9601-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-270-0	02	1	0005-0604
89	ROD; CONN,LSPV REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-270-0	01	1	0605-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (C)	1-09765-279-0	01	1	9601-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (C)	1-09765-279-0	01	1	0005-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (D)	1-47769-083-0	01	1	9601-0004
89	ROD; CONN,LSPV BRAKE REGULATION ECE<TDV> (D)	1-47769-083-0	01	1	0005-
90	SCREW; CAM LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-039-0	01	1	9601-0004
90	SCREW; CAM BRAKE REGULATION ECE<TDV>	1-47769-039-0	01	1	0005-
91	FILTER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-047-0	01	1	9601-0004
91	FILTER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-047-0	01	1	0005-
92	PIPE; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-048-0	01	1	9601-0004
92	PIPE; LSPV BRAKE REGULATION ECE<TDV>	1-47769-048-0	01	1	0005-
93	CLIP; PIPE LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-050-0	01	1	9601-0004
93	CLIP; PIPE BRAKE REGULATION ECE<TDV>	1-47769-050-0	01	1	0005-
94	SCREW; CLIP LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-144-0	02	1	9601-0004
94	SCREW; CLIP BRAKE REGULATION ECE<TDV>	1-47769-144-0	02	1	0005-
96	ARM; OPERATING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-143-0	01	1	9601-0004
96	ARM; OPERATING BRAKE REGULATION ECE<TDV>	1-47769-143-0	01	1	0005-
97	BOLT; OPERATING ARM LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-081-0	01	1	9601-0004
97	BOLT; OPERATING ARM BRAKE REGULATION ECE<TDV>	1-47769-081-0	01	1	0005-
98	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=15	9-08112-015-0	01	1	9601-0004
98	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=15	9-08112-015-0	01	1	0005-
99	CAP; SCREW LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-055-0	01	1	9601-0004
99	CAP; SCREW BRAKE REGULATION ECE<TDV>	1-47769-055-0	01	1	0005-
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-147-0	01	1	9601-0004
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV>	1-47769-147-0	01	1	0005-
116	INDICATOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-078-0	01	1	9601-0004
116	INDICATOR; LSPV BRAKE REGULATION ECE<TDV>	1-47769-078-0	01	1	0005-
117	CAM; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-038-0	01	1	9601-0004
117	CAM; LSPV BRAKE REGULATION ECE<TDV>	1-47769-038-0	01	1	0005-

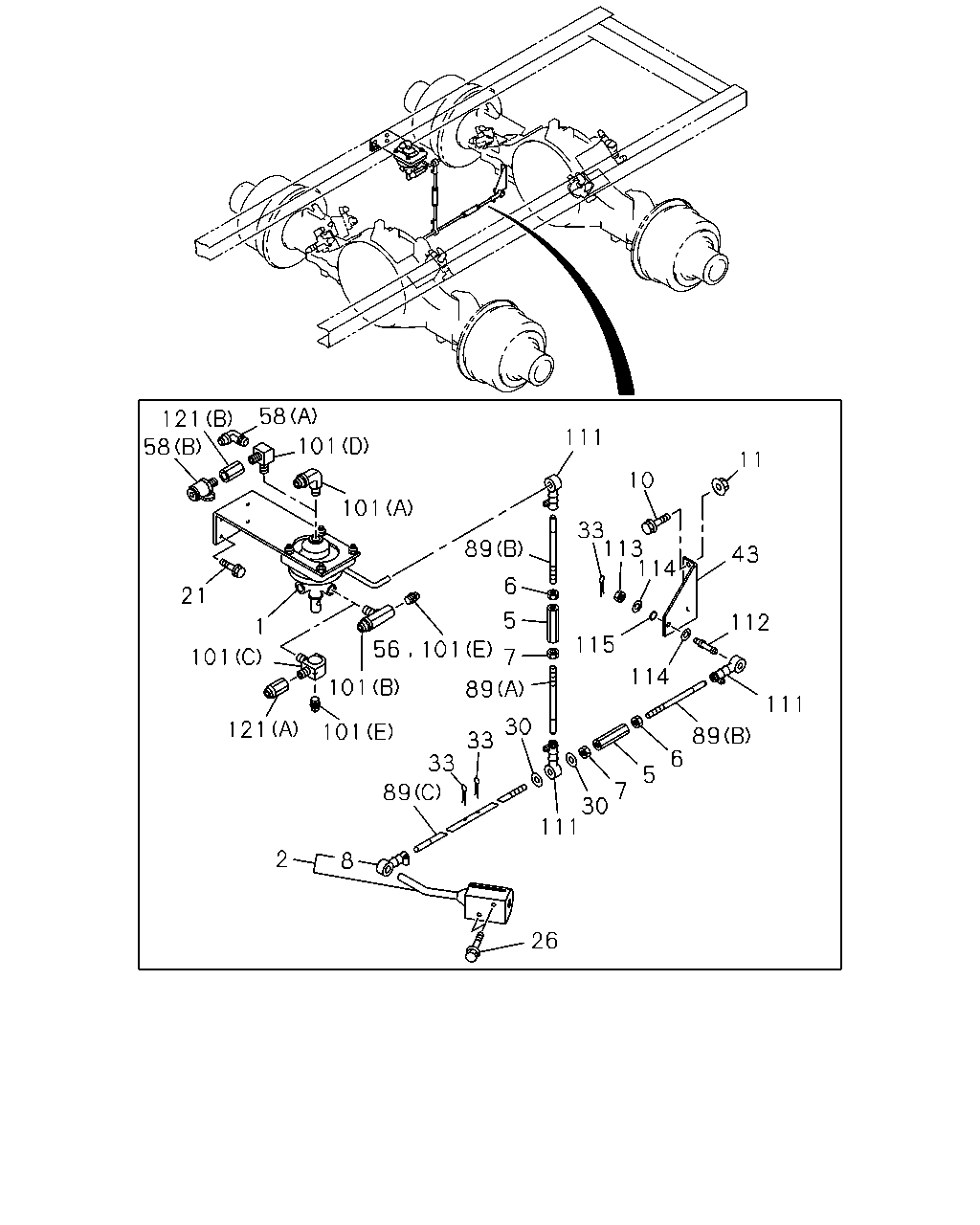

58 121 58 111 101 11 10 101 33 113 114 89 43 6 21 5 112 1 115 56 101 101 7 114 101 89 111 30 121 101 89 6 33 33 5 7 30 111 89 2 8 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47720-061-0	01	1	9601-9702
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47720-094-0	01	1	9703-0004
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-094-0	01	1	0005-
2	DAMPER LOAD SENSING PROPORTIONING VALVE<JR7>	1-47725-016-0	01	1	9601-
5	JOINT LOAD SENSING PROPORTIONING VALVE<JR7>	1-09768-004-0	02	1	9601-
6	NUT; LK,UPR LOAD SENSING PROPORTIONING VALVE<JR7> M8	9-09111-408-0	02	1	9601-0512
6	NUT; LK,UPR LOAD SENSING PROPORTIONING VALVE<JR7> M8	0-91111-508-0	02	1	0601-
7	NUT; LK,LWR LOAD SENSING PROPORTIONING VALVE<JR7> M8 LH THREAD	1-09400-002-0	02	1	9601-
8	ROD END LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	01	1	9601-
10	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8X25 FLANGE	0-28680-825-0	02	1	9703-0512
10	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8X25 FLANGE	0-28650-825-0	02	1	0601-0604
10	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. REAR AXLE RT210(C2A) M8X25 FLANGE	0-28650-825-0	02	1	0605-
11	NUT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91150-108-0	02	1	9703-0602
11	NUT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91180-108-0	02	1	0603-0604
11	NUT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. REAR AXLE RT210(C2A) M8 FLANGE	0-91180-108-0	02	1	0605-
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8X30 FLANGE	0-28080-830-0	04	1	9601-9605
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8X35 FLANGE	0-28680-835-0	04	1	9606-0512
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8X35 FLANGE	0-28650-835-0	04	1	0601-
26	BOLT; DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> M8X18 W/LK WASHER	0-50040-818-0	02	1	9601-9611
26	BOLT; DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> M8X12 FLANGE	0-28080-812-0	02	1	9612-0512
26	BOLT; DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> M8X12 FLANGE	0-28050-812-0	02	1	0601-
30	WASHER; PL LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	04	1	9601-0004
30	WASHER; PL LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	02	1	0005-0605
30	WASHER; PL LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4 OD=16	0-91610-508-0	02	1	0606-
33	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	9-08112-025-0	01	1	9601-0606
33	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	0-81122-025-0	01	1	0607-
33	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	9-08112-025-0	02	1	9601-0606
33	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	0-81122-025-0	02	1	0607-
43	BRACKET; DAMPER TO AXLE REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7>	1-42129-185-0	01	1	0605-
43	BRACKET; DAMPER TO AXLE LOAD SENSING PROPORTIONING VALVE<JR7>	1-42129-232-0	01	1	9703-0604
43	BRACKET; DAMPER TO AXLE LOAD SENSING PROPORTIONING VALVE<JR7> EXC. REAR AXLE RT210(C2A)	1-42129-232-0	01	1	0605-
56	PLUG; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> PT1/4	9-99204-513-0	01	1	9601-9702
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	9703-9804
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9805-
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9703-9804
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	9805-
89	ROD; CONN,LSPV REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-305-0	01	1	0605-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. REAR AXLE RT210(C2A) (B)	1-09765-270-0	02	1	0605-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-269-1	01	1	9601-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-269-1	01	1	0005-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-270-0	02	1	9601-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-270-0	02	1	0005-0604
89	ROD; CONN,LSPV REAR AXLE RT210(C2A) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-270-0	01	1	0605-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (C)	1-09765-279-0	01	1	9601-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (C)	1-09765-279-0	01	1	0005-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (D)	1-47769-083-0	01	1	9601-0004
89	ROD; CONN,LSPV BRAKE REGULATION ECE<TDV> (D)	1-47769-083-0	01	1	0005-
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9702
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (C)	1-09656-557-1	01	1	9703-9804
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0004
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09660-839-0	01	1	9601-9702
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9703-9804
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9805-
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (E) PT1/4	9-99204-513-0	01	1	9703-0004
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (E) PT1/4	9-99204-513-0	01	1	0005-
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-0	01	1	9805-0004
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-1	01	1	0005-
111	RUBBER; JOINT,LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	03	1	9601-
112	PIN; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-052-0	01	1	9601-9611
112	PIN; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-123-0	01	1	9612-
113	NUT; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> M8	9-09110-408-0	01	1	9601-9611
113	NUT; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91150-108-0	01	1	9612-0602
113	NUT; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91180-108-0	01	1	0603-
114	WASHER; PL,JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	01	1	9601-9611
114	WASHER; PL,JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.2	9-09150-508-0	02	1	9703-9803
114	WASHER; PL,JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	02	1	9804-0605
114	WASHER; PL,JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4 OD=16	0-91610-508-0	02	1	0606-
115	WASHER; LK,JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.2	9-09150-508-0	01	1	9601-9611
121	ADAPTER LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9703-9804
121	ADAPTER LOAD SENSING PROPORTIONING VALVE<JR7> (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	9703-9804
121	ADAPTER BRAKE REGULATION ECE<TDV> (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	9805-
