Sayfa 3-41 - Isuzu EPC

3-41 — REAR BRAKE POWER CHAMBER (#65128) — 608 parça

1 32 32 31 1 32 31 32 1 32 1 32

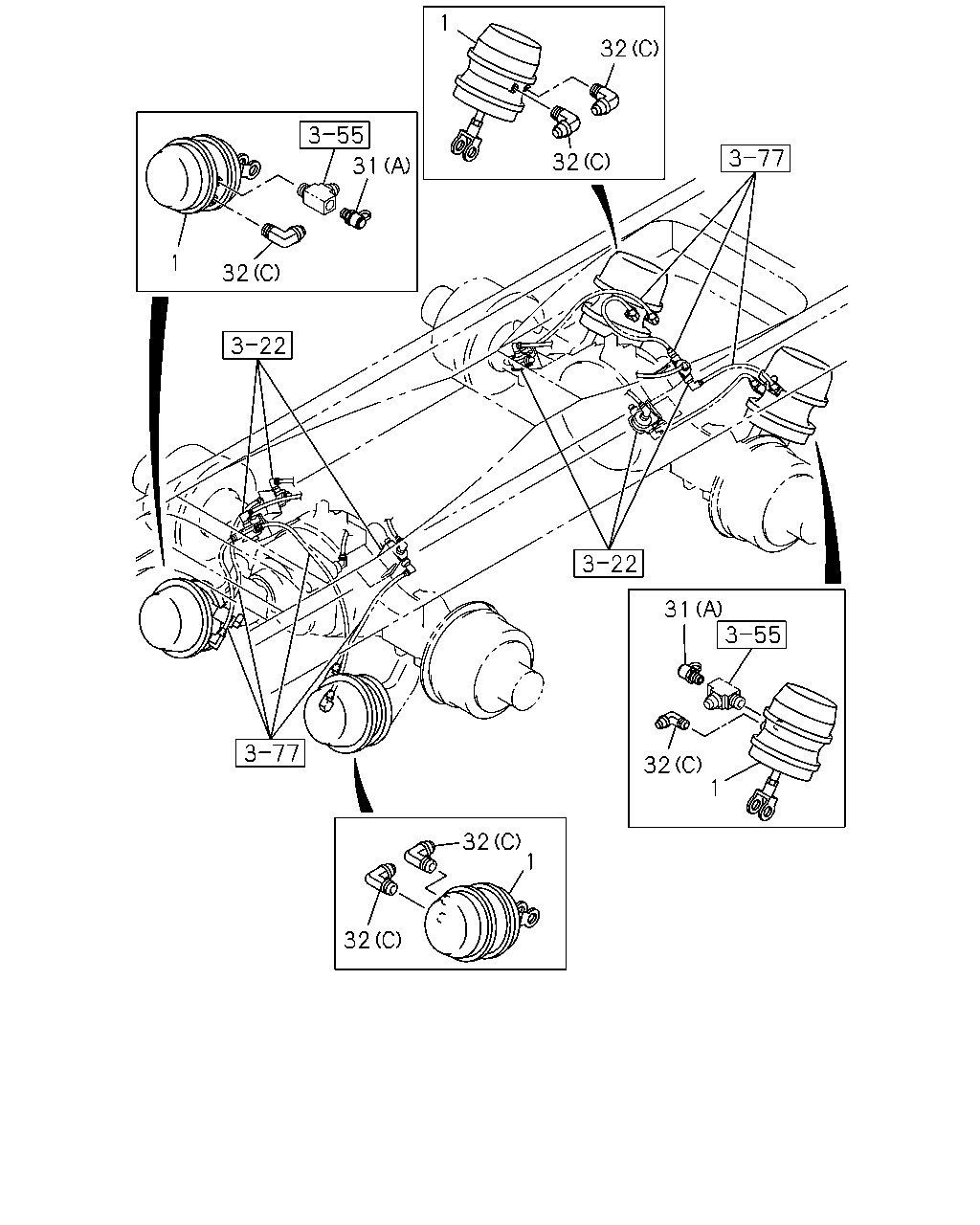

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48250-180-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48250-181-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) REARWARD	1-48250-252-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) REARWARD	1-48250-253-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48250-176-2	02	1	0212-0604
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48250-176-2	02	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48250-177-2	02	1	0212-0604
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48250-177-2	02	1	0605-
1	CHAMBER ASM; SPRING	1-48250-579-0	04	1	9601-9802
1	CHAMBER ASM; SPRING	1-48250-638-0	04	1	9803-9804
1	CHAMBER ASM; SPRING FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 43/715" ROCKWELL(W6S)	1-48250-638-0	04	1	9805-0004
1	CHAMBER ASM; SPRING FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) EXC. AUTO ADJUSTER BRAKE<BCU>	1-48250-638-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 41/10 15" ROCKWELL(W6L)	1-48250-638-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) AUTO ADJUSTER BRAKE<BCU>	1-48250-749-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48250-177-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48250-249-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48250-176-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48250-248-2	01	1	9811-
31	CONNECTOR (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9601-9804
31	CONNECTOR BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9805-0604
31	CONNECTOR BRAKE REGULATION ADR<TDU> (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0605-
31	CONNECTOR BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0605-
31	CONNECTOR FINAL GEAR 43/7 17.5" HYPOID(W3Y) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9811-
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0605-
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0605-
32	CONNECTOR; SPR CHAMBER REAR AXLE RT210(C2A) BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0212-
32	CONNECTOR; SPR CHAMBER (C)	1-09660-741-0	06	1	9601-9804
32	CONNECTOR; SPR CHAMBER BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	06	1	9805-0211
32	CONNECTOR; SPR CHAMBER BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) (C) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	06	1	0212-

1 1 52 77 65 51 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48250-180-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48250-181-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) REARWARD	1-48250-252-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) REARWARD	1-48250-253-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48250-176-2	02	1	0212-0604
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48250-176-2	02	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48250-177-2	02	1	0212-0604
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48250-177-2	02	1	0605-
1	CHAMBER ASM; SPRING	1-48250-579-0	04	1	9601-9802
1	CHAMBER ASM; SPRING	1-48250-638-0	04	1	9803-9804
1	CHAMBER ASM; SPRING FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 43/715" ROCKWELL(W6S)	1-48250-638-0	04	1	9805-0004
1	CHAMBER ASM; SPRING FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) EXC. AUTO ADJUSTER BRAKE<BCU>	1-48250-638-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 41/10 15" ROCKWELL(W6L)	1-48250-638-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) AUTO ADJUSTER BRAKE<BCU>	1-48250-749-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48250-177-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48250-249-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48250-176-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48250-248-2	01	1	9811-
51	PIN; SPLIT	1-48259-275-0	04	1	9803-9804
51	PIN; SPLIT FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 43/715" ROCKWELL(W6S)	1-48259-275-0	04	1	9805-0004
51	PIN; SPLIT FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) EXC. AUTO ADJUSTER BRAKE<BCU>	1-48259-275-0	04	1	0005-
51	PIN; SPLIT FINAL GEAR 41/10 15" ROCKWELL(W6L)	1-48259-275-0	04	1	0005-
52	WASHER; PL	1-41519-038-0	08	1	9803-9804
52	WASHER; PL FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 43/715" ROCKWELL(W6S)	1-41519-038-0	08	1	9805-0004
52	WASHER; PL FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q)	1-41519-038-0	08	1	0005-
65	JOINT; JAW	1-48259-274-0	04	1	9803-9804
65	JOINT; JAW FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 43/715" ROCKWELL(W6S)	1-48259-274-0	04	1	9805-0004
65	JOINT; JAW FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) EXC. AUTO ADJUSTER BRAKE<BCU>	1-48259-274-0	04	1	0005-
65	JOINT; JAW FINAL GEAR 41/10 15" ROCKWELL(W6L)	1-48259-274-0	04	1	0005-
77	NUT; SPR CHAMBER BRK	1-87050-052-0	08	1	9803-9804
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 43/715" ROCKWELL(W6S)	1-87050-052-0	08	1	9805-0004
77	NUT; SPR CHAMBER BRK FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q)	1-87050-052-0	08	1	0005-
96	PIN; JAW JOINT	1-48259-273-0	04	1	9803-9804
96	PIN; JAW JOINT FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 43/715" ROCKWELL(W6S)	1-48259-273-0	04	1	9805-0004
96	PIN; JAW JOINT FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) EXC. AUTO ADJUSTER BRAKE<BCU>	1-48259-273-0	04	1	0005-
96	PIN; JAW JOINT FINAL GEAR 41/10 15" ROCKWELL(W6L)	1-48259-273-0	04	1	0005-

1 32 1 1 32 32 1

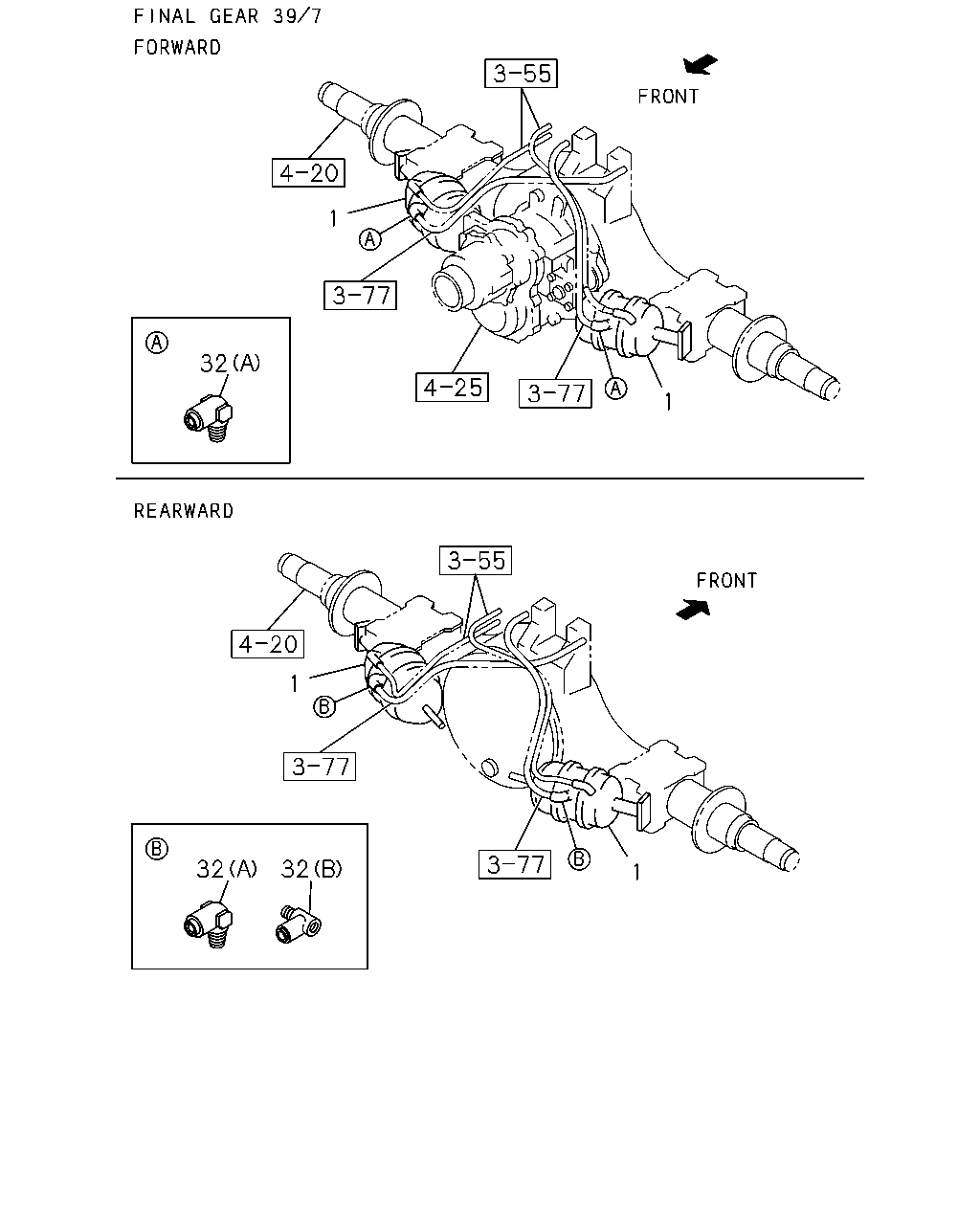

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48250-180-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48250-181-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) REARWARD	1-48250-252-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) REARWARD	1-48250-253-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48250-176-2	02	1	0212-0604
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48250-176-2	02	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48250-177-2	02	1	0212-0604
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48250-177-2	02	1	0605-
1	CHAMBER ASM; SPRING	1-48250-579-0	04	1	9601-9802
1	CHAMBER ASM; SPRING	1-48250-638-0	04	1	9803-9804
1	CHAMBER ASM; SPRING FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 43/715" ROCKWELL(W6S)	1-48250-638-0	04	1	9805-0004
1	CHAMBER ASM; SPRING FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) EXC. AUTO ADJUSTER BRAKE<BCU>	1-48250-638-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 41/10 15" ROCKWELL(W6L)	1-48250-638-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) AUTO ADJUSTER BRAKE<BCU>	1-48250-749-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48250-177-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48250-249-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48250-176-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48250-248-2	01	1	9811-
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0605-
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0605-
32	CONNECTOR; SPR CHAMBER REAR AXLE RT210(C2A) BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0212-
32	CONNECTOR; SPR CHAMBER (C)	1-09660-741-0	06	1	9601-9804
32	CONNECTOR; SPR CHAMBER BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	06	1	9805-0211
32	CONNECTOR; SPR CHAMBER BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) (C) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	06	1	0212-

1 16 1 15 14 10 10 9 2 12 7 11 4 34 8 5 10 69 10 26 27 28 29 70 12 21 33 11 23 41 19 25 24 39 38 67 22 37 20 5 40 35 36 17 36 13 14 13 14

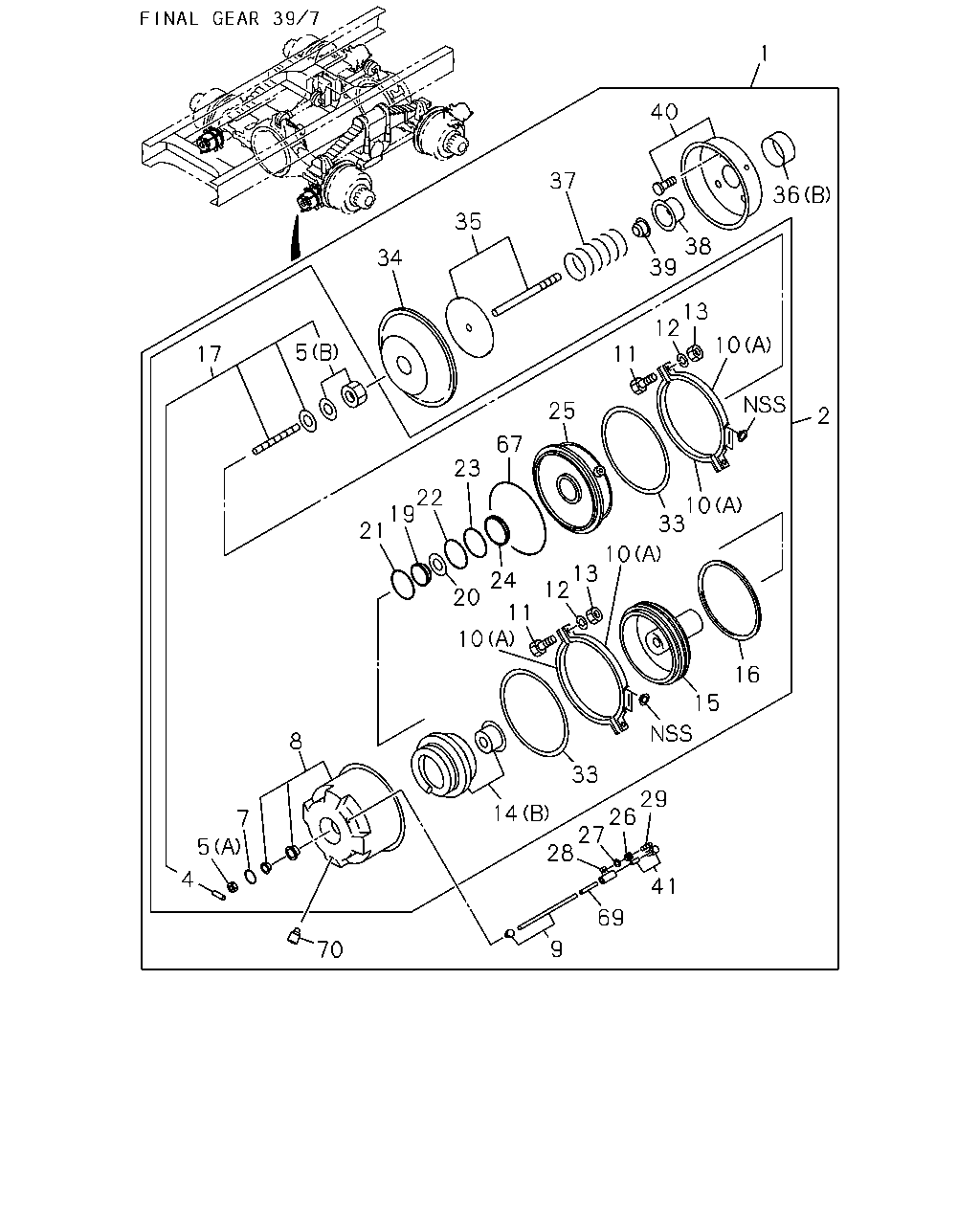

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48250-180-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48250-181-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) REARWARD	1-48250-252-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) REARWARD	1-48250-253-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48250-176-2	02	1	0212-0604
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48250-176-2	02	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48250-177-2	02	1	0212-0604
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48250-177-2	02	1	0605-
1	CHAMBER ASM; SPRING	1-48250-579-0	04	1	9601-9802
1	CHAMBER ASM; SPRING	1-48250-638-0	04	1	9803-9804
1	CHAMBER ASM; SPRING FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 43/715" ROCKWELL(W6S)	1-48250-638-0	04	1	9805-0004
1	CHAMBER ASM; SPRING FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) EXC. AUTO ADJUSTER BRAKE<BCU>	1-48250-638-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 41/10 15" ROCKWELL(W6L)	1-48250-638-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) AUTO ADJUSTER BRAKE<BCU>	1-48250-749-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48250-177-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48250-249-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48250-176-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48250-248-2	01	1	9811-
2	CHAMBER; EMERGENCY FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48252-018-0	01	1	0605-
2	CHAMBER; EMERGENCY FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48252-019-0	01	1	0605-
2	CHAMBER; EMERGENCY FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48252-020-0	02	1	0212-0604
2	CHAMBER; EMERGENCY FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48252-020-0	02	1	0605-
2	CHAMBER; EMERGENCY FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48252-021-0	02	1	0212-0604
2	CHAMBER; EMERGENCY FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48252-021-0	02	1	0605-
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48252-021-0	01	1	9811-
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48252-040-0	01	1	9811-0402
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48252-031-0	01	1	0403-
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48252-020-0	01	1	9811-
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48252-039-0	01	1	9811-0402
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48252-033-0	01	1	0403-
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-056-0	04	1	0605-
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-056-0	08	1	9811-0211
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-056-0	08	1	0212-0604
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-056-0	04	1	0605-
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-056-0	04	1	0605-
5	NUT; SHELL FINAL GEAR 39/7 17.5" HYPOID(W3Z) (A)	1-48259-054-0	02	1	0605-
5	NUT; SHELL FINAL GEAR 39/7 17.5" HYPOID(W3Z) (B)	1-48259-074-0	02	1	0605-
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y) (A)	1-48259-054-0	04	1	9811-0211
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (A)	1-48259-054-0	04	1	0212-0604
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (A)	1-48259-054-0	02	1	0605-
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (A)	1-48259-054-0	02	1	0605-
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y) (B)	1-48259-074-0	04	1	9811-0211
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (B)	1-48259-074-0	04	1	0212-0604
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-074-0	02	1	0605-
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-074-0	02	1	0605-
7	GASKET FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-055-0	02	1	0605-
7	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD LH	1-09623-095-0	01	1	0403-
7	GASKET FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-055-0	04	1	0403-0604
7	GASKET FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-055-0	04	1	0605-
7	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-055-0	04	1	9811-0211
7	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-055-0	04	1	0212-0402
7	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD,REARWARD RH	1-48259-055-0	03	1	0403-
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48259-069-0	02	1	0212-0604
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48259-069-0	02	1	0605-
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48259-070-0	02	1	0212-0604
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48259-070-0	02	1	0605-
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48251-043-0	02	1	9811-
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-070-0	01	1	9811-0604
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48259-070-0	01	1	0605-
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-069-0	01	1	9811-0604
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48259-069-0	01	1	0605-
9	PIPE ASM; SHELL FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-076-0	02	1	0605-
9	PIPE ASM; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-076-0	04	1	9811-0211
9	PIPE ASM; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-076-0	04	1	0212-0604
9	PIPE ASM; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-076-0	02	1	0605-
9	PIPE ASM; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-076-0	02	1	0605-
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) (A)	1-48259-016-0	08	1	9811-0211
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (A)	1-48259-016-0	08	1	0212-0604
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) (B)	1-48259-031-0	08	1	9811-0211
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (B)	1-48259-031-0	08	1	0212-0604
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-031-0	04	1	0605-

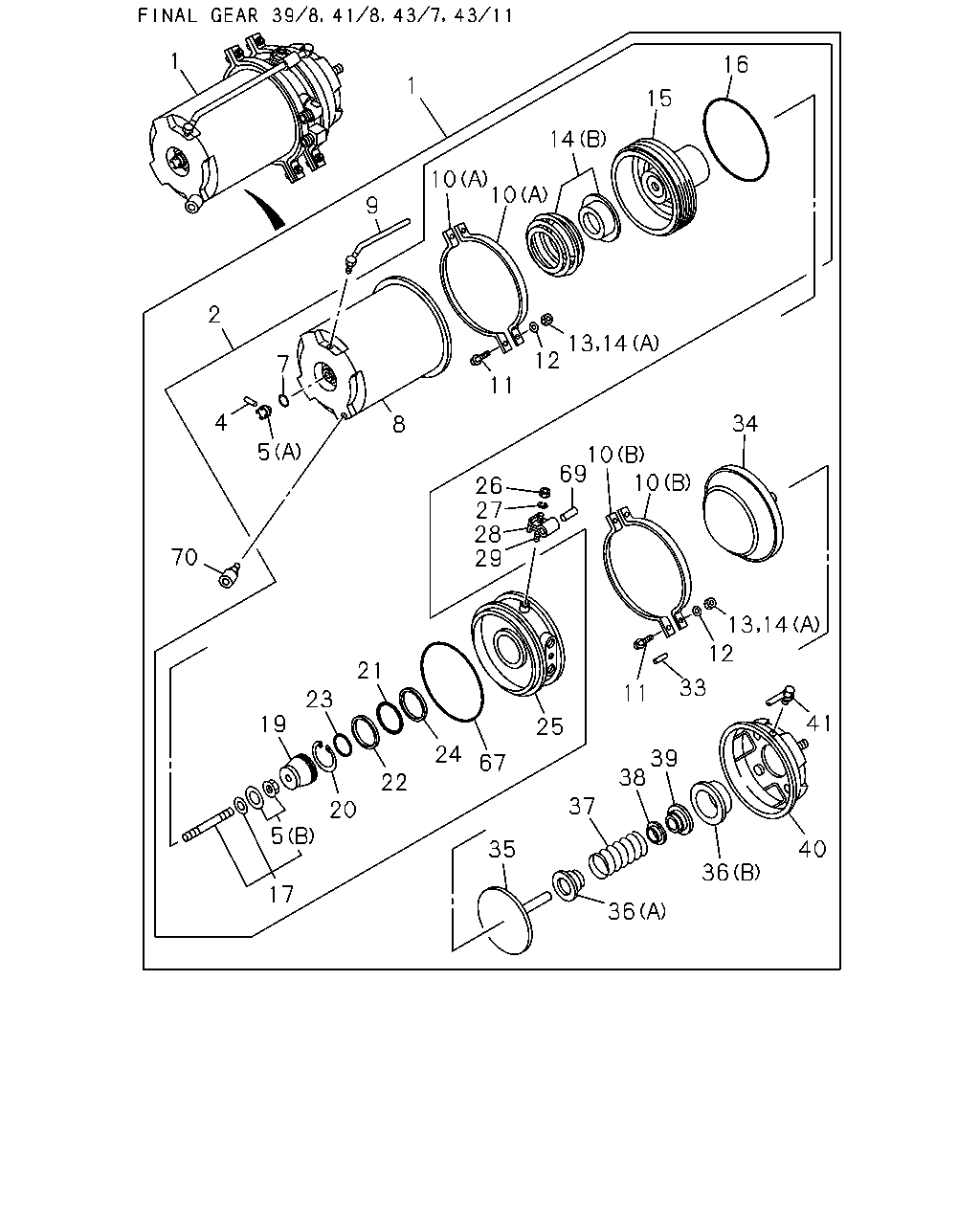

10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-031-0	04	1	0605-
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (A)	1-48259-016-0	08	1	0605-
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z) (A)	1-48259-016-0	08	1	0605-
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z) (A)	1-48259-016-0	08	1	0605-
11	BOLT; CLAMP RING FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-035-0	08	1	0605-
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-035-0	16	1	9811-0211
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-035-0	16	1	0212-0604
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-035-0	08	1	0605-
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-035-0	08	1	0605-
12	WASHER; LK,CLAMP RING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-046-0	16	1	0212-0604
12	WASHER; LK,CLAMP RING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-046-0	16	1	0605-
12	WASHER; LK,CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-046-0	08	1	9811-0604
12	WASHER; LK,CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48259-046-0	08	1	0605-
12	WASHER; LK,CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD ID=10.2	9-09150-510-0	08	1	9811-
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y) M10	9-09110-510-0	04	1	0403-
13	NUT; CLAMP RING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) M10	9-09110-510-0	16	1	0212-0604
13	NUT; CLAMP RING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) M10	9-09110-510-0	16	1	0605-
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y) M10	9-09110-510-0	12	1	9811-0402
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y) M10	9-09110-510-0	08	1	0403-0604
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) M10	9-09110-510-0	08	1	0605-
14	SPRING & SEAT SET FINAL GEAR 39/7 17.5" HYPOID(W3Z) (B)	1-48259-037-0	02	1	0605-
14	SPRING & SEAT SET FINAL GEAR 43/7 17.5" HYPOID(W3Y) (B)	1-48259-037-0	04	1	9811-0211
14	SPRING & SEAT SET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (B)	1-48259-037-1	04	1	0212-0604
14	SPRING & SEAT SET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-037-1	02	1	0605-
14	SPRING & SEAT SET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-037-1	02	1	0605-
14	SPRING & SEAT SET FINAL GEAR 43/7 17.5" HYPOID(W3Y) (A)	8-83315-080-0	04	1	9811-
15	PISTON FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48262-005-0	02	1	0605-
15	PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48262-005-0	04	1	9811-0211
15	PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48262-005-0	04	1	0212-0604
15	PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48262-005-0	02	1	0605-
15	PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48262-005-0	02	1	0605-
16	GASKET FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-048-0	02	1	0605-
16	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-048-0	04	1	9811-0211
16	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-048-0	04	1	0212-0604
16	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-048-0	02	1	0605-
16	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-048-0	02	1	0605-
17	BOLT ASM; EMERGENCY FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-073-0	02	1	0605-
17	BOLT ASM; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-073-0	04	1	9811-0211
17	BOLT ASM; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-073-0	04	1	0212-0604
17	BOLT ASM; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-073-0	02	1	0605-
17	BOLT ASM; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-073-0	02	1	0605-
19	COVER; PISTON FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48269-011-0	02	1	0605-
19	COVER; PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48269-011-0	04	1	9811-0211
19	COVER; PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48269-011-0	04	1	0212-0604
19	COVER; PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48269-011-0	02	1	0605-
19	COVER; PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48269-011-0	02	1	0605-
20	RING; RET FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-060-0	02	1	0605-
20	RING; RET FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-060-0	04	1	9811-0211
20	RING; RET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-060-0	04	1	0212-0604
20	RING; RET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-060-0	02	1	0605-
20	RING; RET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-060-0	02	1	0605-
21	GASKET; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-049-0	02	1	0605-
21	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-049-0	04	1	9811-0211
21	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-049-0	04	1	0212-0604
21	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-049-0	02	1	0605-
21	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-049-0	02	1	0605-
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-019-0	02	1	0605-
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-019-0	04	1	9811-0211
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-019-0	04	1	0212-0604
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-019-0	02	1	0605-
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-019-0	02	1	0605-
23	GASKET; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-047-0	02	1	0605-
23	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-047-0	04	1	9811-0211
23	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-047-0	04	1	0212-0604
23	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-047-0	02	1	0605-
23	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-047-0	02	1	0605-
24	BEARING; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-020-0	02	1	0605-
24	BEARING; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-020-0	04	1	9811-0211
24	BEARING; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-020-0	04	1	0212-0604
24	BEARING; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-020-0	02	1	0605-
24	BEARING; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-020-0	02	1	0605-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-085-0	01	1	0605-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-086-0	01	1	0605-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48259-087-0	02	1	0212-0604
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48259-087-0	02	1	0605-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48259-088-0	02	1	0212-0604
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48259-088-0	02	1	0605-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-088-0	01	1	9811-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-140-0	01	1	9811-0402
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-122-0	01	1	0403-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-087-0	01	1	9811-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-138-0	01	1	9811-0402
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-116-0	01	1	0403-
26	NUT; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD M8	9-09111-508-0	04	1	0403-
26	NUT; PRESSURE PLATE FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-058-0	08	1	0403-0604
26	NUT; PRESSURE PLATE FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-058-0	08	1	0605-
26	NUT; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-058-0	08	1	9811-0211
26	NUT; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-058-0	08	1	0212-0402
26	NUT; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-058-0	04	1	0403-0604
26	NUT; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48259-058-0	04	1	0605-
27	WASHER; PRESSURE PLATE FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-057-0	04	1	0212-0604
27	WASHER; PRESSURE PLATE FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-057-0	04	1	0605-
27	WASHER; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-057-0	02	1	9811-0604
27	WASHER; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48259-057-0	02	1	0605-
27	WASHER; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD ID=8.2	9-09150-508-0	02	1	9811-
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-059-0	02	1	0605-
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-059-0	04	1	9811-0211
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-059-0	04	1	0212-0604
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-059-0	02	1	0605-
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-059-0	02	1	0605-
29	STUD; PRESSURE PLATE FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-050-0	02	1	0605-
29	STUD; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-050-0	04	1	9811-0211
29	STUD; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-050-0	04	1	0212-0604
29	STUD; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-050-0	02	1	0605-
29	STUD; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-050-0	02	1	0605-
33	RETAINER; DIAPH FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-044-0	08	1	0212-0604
33	RETAINER; DIAPH FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-044-0	08	1	0605-
33	RETAINER; DIAPH FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-044-0	08	1	9811-0604
33	RETAINER; DIAPH FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-044-0	08	1	0605-
33	RETAINER; DIAPH FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-044-0	04	1	0605-
34	DIAPHRAGM FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48252-010-0	02	1	0605-
34	DIAPHRAGM FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48252-011-0	04	1	0212-0604
34	DIAPHRAGM FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48252-011-0	04	1	0605-
34	DIAPHRAGM FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48252-011-0	02	1	9811-
34	DIAPHRAGM FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48258-011-0	02	1	9811-
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48253-010-0	02	1	0605-
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48253-011-0	04	1	0212-0604
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48253-011-0	04	1	0605-
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48253-011-0	02	1	9811-
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48253-035-0	01	1	9811-0402
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48253-029-0	01	1	9811-0402
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48253-029-0	02	1	0403-
36	RETAINER; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z) (B)	1-48259-043-0	04	1	0605-
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) (A)	1-48259-033-0	04	1	9811-0211
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (A)	1-48259-033-0	04	1	0212-0604
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (A)	1-48259-033-0	02	1	0605-
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (A)	1-48259-033-0	02	1	0605-
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) (B)	1-48259-043-0	04	1	9811-0211
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (B)	1-48259-043-0	04	1	0212-0604
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-043-0	02	1	0605-
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-043-0	02	1	0605-
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48255-003-0	02	1	0605-
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48255-003-0	04	1	9811-0211
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48255-003-0	04	1	0212-0604
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48255-003-0	02	1	0605-
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48255-003-0	02	1	0605-
38	COVER; ROD & PLATE FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-066-0	02	1	0605-
38	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-066-0	04	1	9811-0211
38	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-066-0	04	1	0212-0604
38	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-066-0	02	1	0605-
38	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-066-0	02	1	0605-
39	COVER; ROD & PLATE FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-065-0	02	1	0605-
39	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-065-0	04	1	9811-0211
39	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-065-0	04	1	0212-0604
39	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-065-0	02	1	0605-
39	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-065-0	02	1	0605-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-067-1	01	1	0605-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-068-1	01	1	0605-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48259-081-1	02	1	0212-0604
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48259-081-1	02	1	0605-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48259-082-1	02	1	0212-0604
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48259-082-1	02	1	0605-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-082-1	01	1	9811-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-139-0	01	1	9811-0402
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-119-0	01	1	0403-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-081-1	01	1	9811-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-137-0	01	1	9811-0402
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-115-0	01	1	0403-
41	PIPE ASM; LWR COVER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-075-0	02	1	0605-
41	PIPE ASM; LWR COVER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-080-0	04	1	9811-0211
41	PIPE ASM; LWR COVER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-080-0	04	1	0212-0604
41	PIPE ASM; LWR COVER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-080-0	02	1	0605-
41	PIPE ASM; LWR COVER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-080-0	02	1	0605-
67	GASKET; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-053-0	02	1	0605-
67	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-053-0	04	1	9811-0211
67	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-053-0	04	1	0212-0604
67	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-053-0	02	1	0605-
67	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-053-0	02	1	0605-
69	HOSE; PRESSURE PLATE FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-051-0	02	1	0605-
69	HOSE; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-051-0	04	1	9811-0211
69	HOSE; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-051-0	04	1	0212-0604
69	HOSE; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-051-0	02	1	0605-
69	HOSE; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-051-0	02	1	0605-
70	COVER; EXH,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-052-0	02	1	0605-
70	COVER; EXH,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-052-0	04	1	0212-0604
70	COVER; EXH,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-052-0	04	1	0605-
70	COVER; EXH,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-052-0	03	1	9811-

1 1 1 1 31

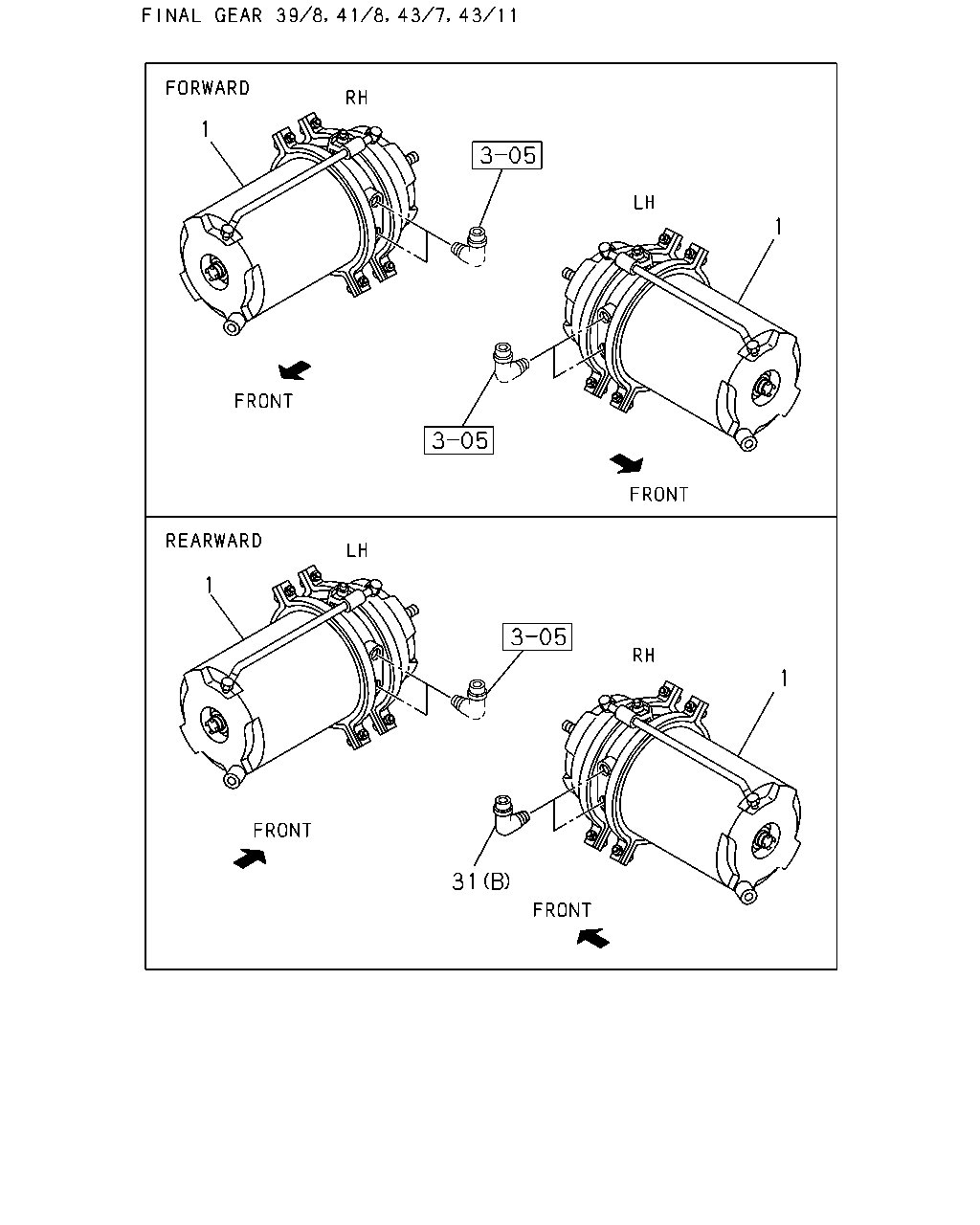

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48250-180-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48250-181-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) REARWARD	1-48250-252-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) REARWARD	1-48250-253-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48250-176-2	02	1	0212-0604
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48250-176-2	02	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48250-177-2	02	1	0212-0604
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48250-177-2	02	1	0605-
1	CHAMBER ASM; SPRING	1-48250-579-0	04	1	9601-9802
1	CHAMBER ASM; SPRING	1-48250-638-0	04	1	9803-9804
1	CHAMBER ASM; SPRING FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 43/715" ROCKWELL(W6S)	1-48250-638-0	04	1	9805-0004
1	CHAMBER ASM; SPRING FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) EXC. AUTO ADJUSTER BRAKE<BCU>	1-48250-638-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 41/10 15" ROCKWELL(W6L)	1-48250-638-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) AUTO ADJUSTER BRAKE<BCU>	1-48250-749-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48250-177-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48250-249-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48250-176-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48250-248-2	01	1	9811-
31	CONNECTOR (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9601-9804
31	CONNECTOR BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9805-0604
31	CONNECTOR BRAKE REGULATION ADR<TDU> (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0605-
31	CONNECTOR BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0605-
31	CONNECTOR FINAL GEAR 43/7 17.5" HYPOID(W3Y) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9811-

1 40 37 36 35 38 39 34 13 12 10 5 17 11 25 2 67 23 22 19 21 10 33 10 13 12 24 20 11 10 16 15 8 33 29 26 27 28 14 7 5 4 41 69 9 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48250-180-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48250-181-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) REARWARD	1-48250-252-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 39/7 17.5" HYPOID(W3Z) REARWARD	1-48250-253-2	01	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48250-176-2	02	1	0212-0604
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48250-176-2	02	1	0605-
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48250-177-2	02	1	0212-0604
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48250-177-2	02	1	0605-
1	CHAMBER ASM; SPRING	1-48250-579-0	04	1	9601-9802
1	CHAMBER ASM; SPRING	1-48250-638-0	04	1	9803-9804
1	CHAMBER ASM; SPRING FINAL GEAR 43/10 15" ROCKWELL(W6J),FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 41/10 15" ROCKWELL(W6L),FINAL GEAR 37/7 15" ROCKWELL(W6Q),FINAL GEAR 43/715" ROCKWELL(W6S)	1-48250-638-0	04	1	9805-0004
1	CHAMBER ASM; SPRING FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) EXC. AUTO ADJUSTER BRAKE<BCU>	1-48250-638-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 41/10 15" ROCKWELL(W6L)	1-48250-638-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 39/8 15" ROCKWELL(W6K),FINAL GEAR 37/7 15" ROCKWELL(W6Q) AUTO ADJUSTER BRAKE<BCU>	1-48250-749-0	04	1	0005-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48250-177-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48250-249-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48250-176-2	01	1	9811-
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48250-248-2	01	1	9811-
2	CHAMBER; EMERGENCY FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48252-018-0	01	1	0605-
2	CHAMBER; EMERGENCY FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48252-019-0	01	1	0605-
2	CHAMBER; EMERGENCY FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48252-020-0	02	1	0212-0604
2	CHAMBER; EMERGENCY FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48252-020-0	02	1	0605-
2	CHAMBER; EMERGENCY FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48252-021-0	02	1	0212-0604
2	CHAMBER; EMERGENCY FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48252-021-0	02	1	0605-
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48252-021-0	01	1	9811-
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48252-040-0	01	1	9811-0402
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48252-031-0	01	1	0403-
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48252-020-0	01	1	9811-
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48252-039-0	01	1	9811-0402
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48252-033-0	01	1	0403-
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-056-0	04	1	0605-
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-056-0	08	1	9811-0211
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-056-0	08	1	0212-0604
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-056-0	04	1	0605-
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-056-0	04	1	0605-
5	NUT; SHELL FINAL GEAR 39/7 17.5" HYPOID(W3Z) (A)	1-48259-054-0	02	1	0605-
5	NUT; SHELL FINAL GEAR 39/7 17.5" HYPOID(W3Z) (B)	1-48259-074-0	02	1	0605-
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y) (A)	1-48259-054-0	04	1	9811-0211
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (A)	1-48259-054-0	04	1	0212-0604
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (A)	1-48259-054-0	02	1	0605-
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (A)	1-48259-054-0	02	1	0605-
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y) (B)	1-48259-074-0	04	1	9811-0211
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (B)	1-48259-074-0	04	1	0212-0604
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-074-0	02	1	0605-
5	NUT; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-074-0	02	1	0605-
7	GASKET FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-055-0	02	1	0605-
7	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD LH	1-09623-095-0	01	1	0403-
7	GASKET FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-055-0	04	1	0403-0604
7	GASKET FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-055-0	04	1	0605-
7	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-055-0	04	1	9811-0211
7	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-055-0	04	1	0212-0402
7	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD,REARWARD RH	1-48259-055-0	03	1	0403-
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48259-069-0	02	1	0212-0604
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48259-069-0	02	1	0605-
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48259-070-0	02	1	0212-0604
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48259-070-0	02	1	0605-
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48251-043-0	02	1	9811-
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-070-0	01	1	9811-0604
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48259-070-0	01	1	0605-
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-069-0	01	1	9811-0604
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48259-069-0	01	1	0605-
9	PIPE ASM; SHELL FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-076-0	02	1	0605-
9	PIPE ASM; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-076-0	04	1	9811-0211
9	PIPE ASM; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-076-0	04	1	0212-0604
9	PIPE ASM; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-076-0	02	1	0605-
9	PIPE ASM; SHELL FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-076-0	02	1	0605-
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) (A)	1-48259-016-0	08	1	9811-0211
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (A)	1-48259-016-0	08	1	0212-0604
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) (B)	1-48259-031-0	08	1	9811-0211
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (B)	1-48259-031-0	08	1	0212-0604
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-031-0	04	1	0605-
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-031-0	04	1	0605-
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (A)	1-48259-016-0	08	1	0605-
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z) (A)	1-48259-016-0	08	1	0605-
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z) (A)	1-48259-016-0	08	1	0605-
11	BOLT; CLAMP RING FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-035-0	08	1	0605-
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-035-0	16	1	9811-0211
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-035-0	16	1	0212-0604
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-035-0	08	1	0605-
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-035-0	08	1	0605-
12	WASHER; LK,CLAMP RING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-046-0	16	1	0212-0604
12	WASHER; LK,CLAMP RING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-046-0	16	1	0605-
12	WASHER; LK,CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-046-0	08	1	9811-0604
12	WASHER; LK,CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48259-046-0	08	1	0605-
12	WASHER; LK,CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD ID=10.2	9-09150-510-0	08	1	9811-
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y) M10	9-09110-510-0	04	1	0403-
13	NUT; CLAMP RING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) M10	9-09110-510-0	16	1	0212-0604
13	NUT; CLAMP RING FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) M10	9-09110-510-0	16	1	0605-
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y) M10	9-09110-510-0	12	1	9811-0402
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y) M10	9-09110-510-0	08	1	0403-0604
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) M10	9-09110-510-0	08	1	0605-
14	SPRING & SEAT SET FINAL GEAR 39/7 17.5" HYPOID(W3Z) (B)	1-48259-037-0	02	1	0605-
14	SPRING & SEAT SET FINAL GEAR 43/7 17.5" HYPOID(W3Y) (B)	1-48259-037-0	04	1	9811-0211
14	SPRING & SEAT SET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (B)	1-48259-037-1	04	1	0212-0604
14	SPRING & SEAT SET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-037-1	02	1	0605-
14	SPRING & SEAT SET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-037-1	02	1	0605-
14	SPRING & SEAT SET FINAL GEAR 43/7 17.5" HYPOID(W3Y) (A)	8-83315-080-0	04	1	9811-
15	PISTON FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48262-005-0	02	1	0605-
15	PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48262-005-0	04	1	9811-0211
15	PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48262-005-0	04	1	0212-0604
15	PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48262-005-0	02	1	0605-
15	PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48262-005-0	02	1	0605-
16	GASKET FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-048-0	02	1	0605-
16	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-048-0	04	1	9811-0211
16	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-048-0	04	1	0212-0604
16	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-048-0	02	1	0605-
16	GASKET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-048-0	02	1	0605-
17	BOLT ASM; EMERGENCY FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-073-0	02	1	0605-
17	BOLT ASM; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-073-0	04	1	9811-0211
17	BOLT ASM; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-073-0	04	1	0212-0604
17	BOLT ASM; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-073-0	02	1	0605-
17	BOLT ASM; EMERGENCY FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-073-0	02	1	0605-
19	COVER; PISTON FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48269-011-0	02	1	0605-
19	COVER; PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48269-011-0	04	1	9811-0211
19	COVER; PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48269-011-0	04	1	0212-0604
19	COVER; PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48269-011-0	02	1	0605-
19	COVER; PISTON FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48269-011-0	02	1	0605-
20	RING; RET FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-060-0	02	1	0605-
20	RING; RET FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-060-0	04	1	9811-0211
20	RING; RET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-060-0	04	1	0212-0604
20	RING; RET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-060-0	02	1	0605-
20	RING; RET FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-060-0	02	1	0605-
21	GASKET; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-049-0	02	1	0605-
21	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-049-0	04	1	9811-0211
21	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-049-0	04	1	0212-0604
21	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-049-0	02	1	0605-
21	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-049-0	02	1	0605-
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-019-0	02	1	0605-
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-019-0	04	1	9811-0211
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-019-0	04	1	0212-0604
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-019-0	02	1	0605-
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-019-0	02	1	0605-
23	GASKET; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-047-0	02	1	0605-
23	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-047-0	04	1	9811-0211
23	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-047-0	04	1	0212-0604
23	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-047-0	02	1	0605-
23	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-047-0	02	1	0605-
24	BEARING; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-020-0	02	1	0605-
24	BEARING; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-020-0	04	1	9811-0211
24	BEARING; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-020-0	04	1	0212-0604
24	BEARING; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-020-0	02	1	0605-
24	BEARING; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-020-0	02	1	0605-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-085-0	01	1	0605-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-086-0	01	1	0605-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48259-087-0	02	1	0212-0604
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48259-087-0	02	1	0605-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48259-088-0	02	1	0212-0604
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48259-088-0	02	1	0605-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-088-0	01	1	9811-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-140-0	01	1	9811-0402
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-122-0	01	1	0403-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-087-0	01	1	9811-
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-138-0	01	1	9811-0402
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-116-0	01	1	0403-
26	NUT; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD M8	9-09111-508-0	04	1	0403-
26	NUT; PRESSURE PLATE FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-058-0	08	1	0403-0604
26	NUT; PRESSURE PLATE FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-058-0	08	1	0605-
26	NUT; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-058-0	08	1	9811-0211
26	NUT; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-058-0	08	1	0212-0402
26	NUT; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-058-0	04	1	0403-0604
26	NUT; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48259-058-0	04	1	0605-
27	WASHER; PRESSURE PLATE FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-057-0	04	1	0212-0604
27	WASHER; PRESSURE PLATE FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-057-0	04	1	0605-
27	WASHER; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-057-0	02	1	9811-0604
27	WASHER; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) FORWARD	1-48259-057-0	02	1	0605-
27	WASHER; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD ID=8.2	9-09150-508-0	02	1	9811-
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-059-0	02	1	0605-
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-059-0	04	1	9811-0211
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-059-0	04	1	0212-0604
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-059-0	02	1	0605-
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-059-0	02	1	0605-
29	STUD; PRESSURE PLATE FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-050-0	02	1	0605-
29	STUD; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-050-0	04	1	9811-0211
29	STUD; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-050-0	04	1	0212-0604
29	STUD; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-050-0	02	1	0605-
29	STUD; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-050-0	02	1	0605-
33	RETAINER; DIAPH FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-044-0	08	1	0212-0604
33	RETAINER; DIAPH FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-044-0	08	1	0605-
33	RETAINER; DIAPH FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-044-0	08	1	9811-0604
33	RETAINER; DIAPH FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-044-0	08	1	0605-
33	RETAINER; DIAPH FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-044-0	04	1	0605-
34	DIAPHRAGM FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48252-010-0	02	1	0605-
34	DIAPHRAGM FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48252-011-0	04	1	0212-0604
34	DIAPHRAGM FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48252-011-0	04	1	0605-
34	DIAPHRAGM FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48252-011-0	02	1	9811-
34	DIAPHRAGM FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48258-011-0	02	1	9811-
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48253-010-0	02	1	0605-
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48253-011-0	04	1	0212-0604
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48253-011-0	04	1	0605-
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48253-011-0	02	1	9811-
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48253-035-0	01	1	9811-0402
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48253-029-0	01	1	9811-0402
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48253-029-0	02	1	0403-
36	RETAINER; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z) (B)	1-48259-043-0	04	1	0605-
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) (A)	1-48259-033-0	04	1	9811-0211
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (A)	1-48259-033-0	04	1	0212-0604
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (A)	1-48259-033-0	02	1	0605-
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (A)	1-48259-033-0	02	1	0605-
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) (B)	1-48259-043-0	04	1	9811-0211
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) (B)	1-48259-043-0	04	1	0212-0604
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-043-0	02	1	0605-
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S) (B)	1-48259-043-0	02	1	0605-
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48255-003-0	02	1	0605-
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48255-003-0	04	1	9811-0211
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48255-003-0	04	1	0212-0604
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48255-003-0	02	1	0605-
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48255-003-0	02	1	0605-
38	COVER; ROD & PLATE FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-066-0	02	1	0605-
38	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-066-0	04	1	9811-0211
38	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-066-0	04	1	0212-0604
38	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-066-0	02	1	0605-
38	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-066-0	02	1	0605-
39	COVER; ROD & PLATE FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-065-0	02	1	0605-
39	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-065-0	04	1	9811-0211
39	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-065-0	04	1	0212-0604
39	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-065-0	02	1	0605-
39	COVER; ROD & PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-065-0	02	1	0605-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-067-1	01	1	0605-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-068-1	01	1	0605-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD RH,REARWARD LH	1-48259-081-1	02	1	0212-0604
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD RH,REARWARD LH	1-48259-081-1	02	1	0605-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B) FORWARD LH,REARWARD RH	1-48259-082-1	02	1	0212-0604
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S) FORWARD LH,REARWARD RH	1-48259-082-1	02	1	0605-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-082-1	01	1	9811-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-139-0	01	1	9811-0402
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-119-0	01	1	0403-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) FORWARD	1-48259-081-1	01	1	9811-
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-137-0	01	1	9811-0402
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) REARWARD	1-48259-115-0	01	1	0403-
41	PIPE ASM; LWR COVER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-075-0	02	1	0605-
41	PIPE ASM; LWR COVER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-080-0	04	1	9811-0211
41	PIPE ASM; LWR COVER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-080-0	04	1	0212-0604
41	PIPE ASM; LWR COVER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-080-0	02	1	0605-
41	PIPE ASM; LWR COVER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-080-0	02	1	0605-
67	GASKET; SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-053-0	02	1	0605-
67	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-053-0	04	1	9811-0211
67	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-053-0	04	1	0212-0604
67	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-053-0	02	1	0605-
67	GASKET; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-053-0	02	1	0605-
69	HOSE; PRESSURE PLATE FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-051-0	02	1	0605-
69	HOSE; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-051-0	04	1	9811-0211
69	HOSE; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-051-0	04	1	0212-0604
69	HOSE; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-051-0	02	1	0605-
69	HOSE; PRESSURE PLATE FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B), FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-051-0	02	1	0605-
70	COVER; EXH,SPR CHAMBER FINAL GEAR 39/7 17.5" HYPOID(W3Z)	1-48259-052-0	02	1	0605-
70	COVER; EXH,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B)	1-48259-052-0	04	1	0212-0604
70	COVER; EXH,SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 39/8 17.5" HYPOID(W4B),FINAL GEAR 43/11 17.5" HYPOID(W4S)	1-48259-052-0	04	1	0605-
70	COVER; EXH,SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y)	1-48259-052-0	03	1	9811-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
