3-40 — FRONT BRAKE POWER CHAMBER (#65127) — 89 parça

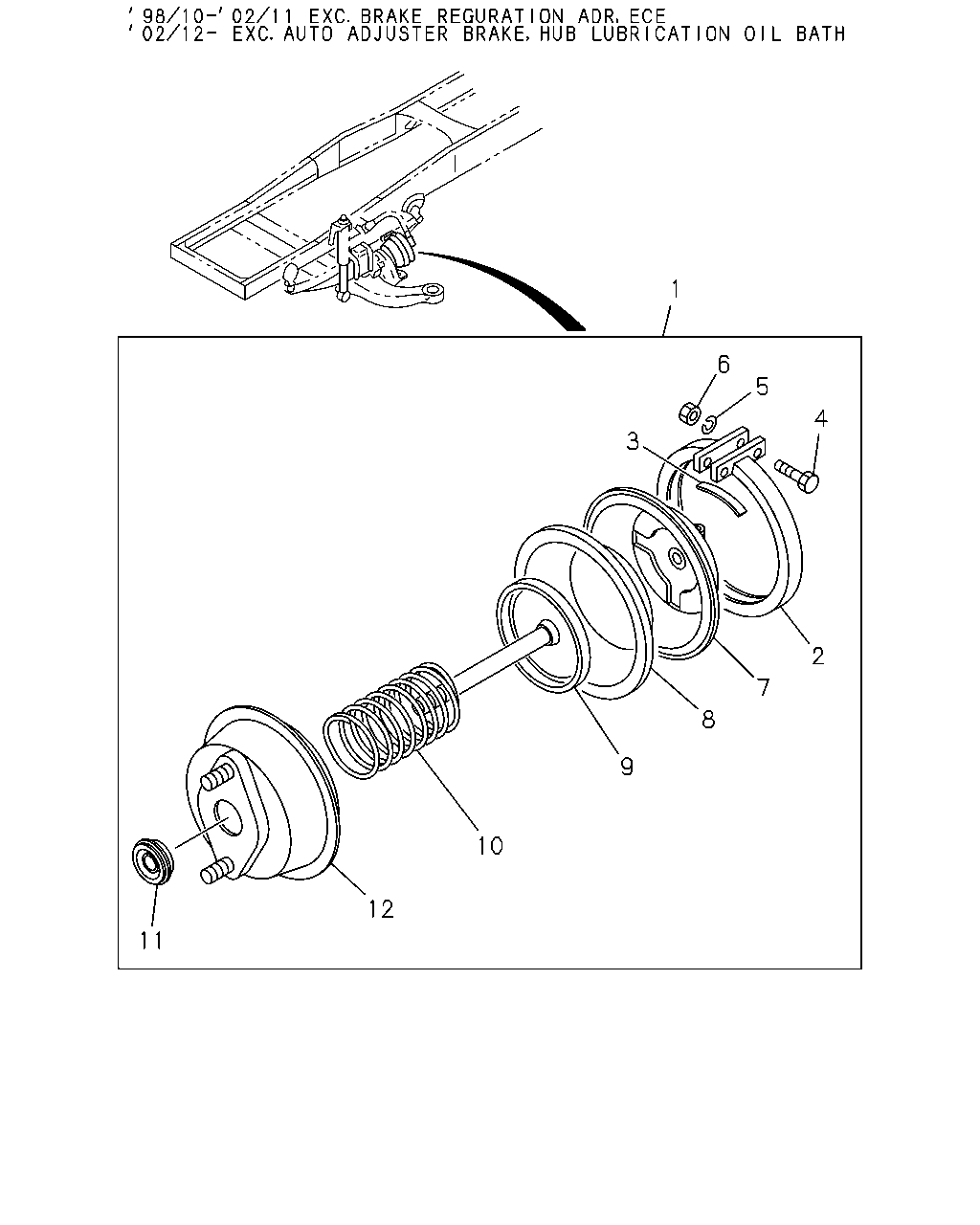

1 6 5 4 3 2 7 8 9 10 12 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48250-062-2	01	1	0212-0604
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48250-062-2	01	1	0605-
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48250-524-0	01	1	0212-0604
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48250-524-0	01	1	0605-
1	CHAMBER ASM; POWER,FRT BRK	1-48250-560-0	01	1	9601-9804
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48250-560-0	01	1	9805-0004
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU>	1-48250-560-0	01	1	0005-0211
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K> EXC. AUTO ADJUSTER BRAKE<BCU>	1-48250-560-0	01	1	0212-
1	CHAMBER ASM; POWER,FRT BRK	1-48250-561-0	01	1	9601-9804
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48250-561-0	01	1	9805-0004
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU>	1-48250-561-0	01	1	0005-0211
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K> EXC. AUTO ADJUSTER BRAKE<BCU>	1-48250-561-0	01	1	0212-
1	CHAMBER ASM; POWER,FRT BRK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48250-338-0	02	1	9810-0203
1	CHAMBER ASM; POWER,FRT BRK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48250-062-2	02	1	0204-0211
1	CHAMBER ASM; POWER,FRT BRK EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-48250-062-2	02	1	0212-
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ECE<TDV>	1-48250-684-0	02	1	0005-0211
1	CHAMBER ASM; POWER,FRT BRK AUTO ADJUSTER BRAKE<BCU>	1-48250-684-0	02	1	0212-
2	RING; CLAMP,SPR CHAMBER EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48259-001-0	02	1	9810-0211
2	RING; CLAMP,SPR CHAMBER EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48259-001-0	02	1	0212-
3	RETAINER; DIAPH EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	9-48259-016-0	04	1	9810-0203
3	RETAINER; DIAPH EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	9-48259-016-0	02	1	0204-0211
3	RETAINER; DIAPH EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	9-48259-016-0	02	1	0212-
4	BOLT; CLAMP RING EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48259-002-0	04	1	9810-0211
4	BOLT; CLAMP RING EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48259-002-0	04	1	0212-
5	WASHER; LK,CLAMP RING EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> ID=10.2	9-09150-510-0	04	1	9810-0211
5	WASHER; LK,CLAMP RING EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K> ID=10.2	9-09150-510-0	04	1	0212-
6	NUT; CLAMP RING EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> M10	9-09110-010-0	04	1	9810-0211
6	NUT; CLAMP RING EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K> M10	9-09110-010-0	04	1	0212-
7	COVER ASM; UPR,SPR CHAMBER BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48251-007-0	01	1	0212-0604
7	COVER ASM; UPR,SPR CHAMBER BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48251-007-0	01	1	0605-
7	COVER ASM; UPR,SPR CHAMBER BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48251-039-0	01	1	0212-0604
7	COVER ASM; UPR,SPR CHAMBER BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48251-039-0	01	1	0605-
7	COVER ASM; UPR,SPR CHAMBER EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48251-039-0	02	1	9810-0211
7	COVER ASM; UPR,SPR CHAMBER EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-48251-039-0	02	1	0212-
8	DIAPHRAGM; SPR CHAMBER BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48252-006-0	01	1	0212-0604
8	DIAPHRAGM; SPR CHAMBER BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48252-006-0	01	1	0605-
8	DIAPHRAGM; SPR CHAMBER BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48252-054-0	01	1	0212-0604
8	DIAPHRAGM; SPR CHAMBER BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48252-054-0	01	1	0605-
8	DIAPHRAGM; SPR CHAMBER EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48252-006-0	02	1	9810-0203
8	DIAPHRAGM; SPR CHAMBER EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48252-054-0	02	1	0204-0211
8	DIAPHRAGM; SPR CHAMBER EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-48252-054-0	02	1	0212-
9	PISTON; SPR CHAMBER EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48253-001-0	02	1	9810-0211
9	PISTON; SPR CHAMBER EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48253-001-0	02	1	0212-
10	SPRING; PISTON,SPR CHAMBER EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48255-001-0	02	1	9810-0211
10	SPRING; PISTON,SPR CHAMBER EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48255-001-0	02	1	0212-
11	SEAL; PISTON,SPR CHAMBER EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48252-025-0	02	1	9810-0211
11	SEAL; PISTON,SPR CHAMBER EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48252-025-0	02	1	0212-
12	COVER ASM; LWR,SPR CHAMBER BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48251-018-0	01	1	0212-0604
12	COVER ASM; LWR,SPR CHAMBER BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48251-018-0	01	1	0605-
12	COVER ASM; LWR,SPR CHAMBER BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48251-019-0	01	1	0212-0604
12	COVER ASM; LWR,SPR CHAMBER BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48251-019-0	01	1	0605-
12	COVER ASM; LWR,SPR CHAMBER EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48251-019-0	02	1	9810-0211
12	COVER ASM; LWR,SPR CHAMBER EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-48251-019-0	02	1	0212-

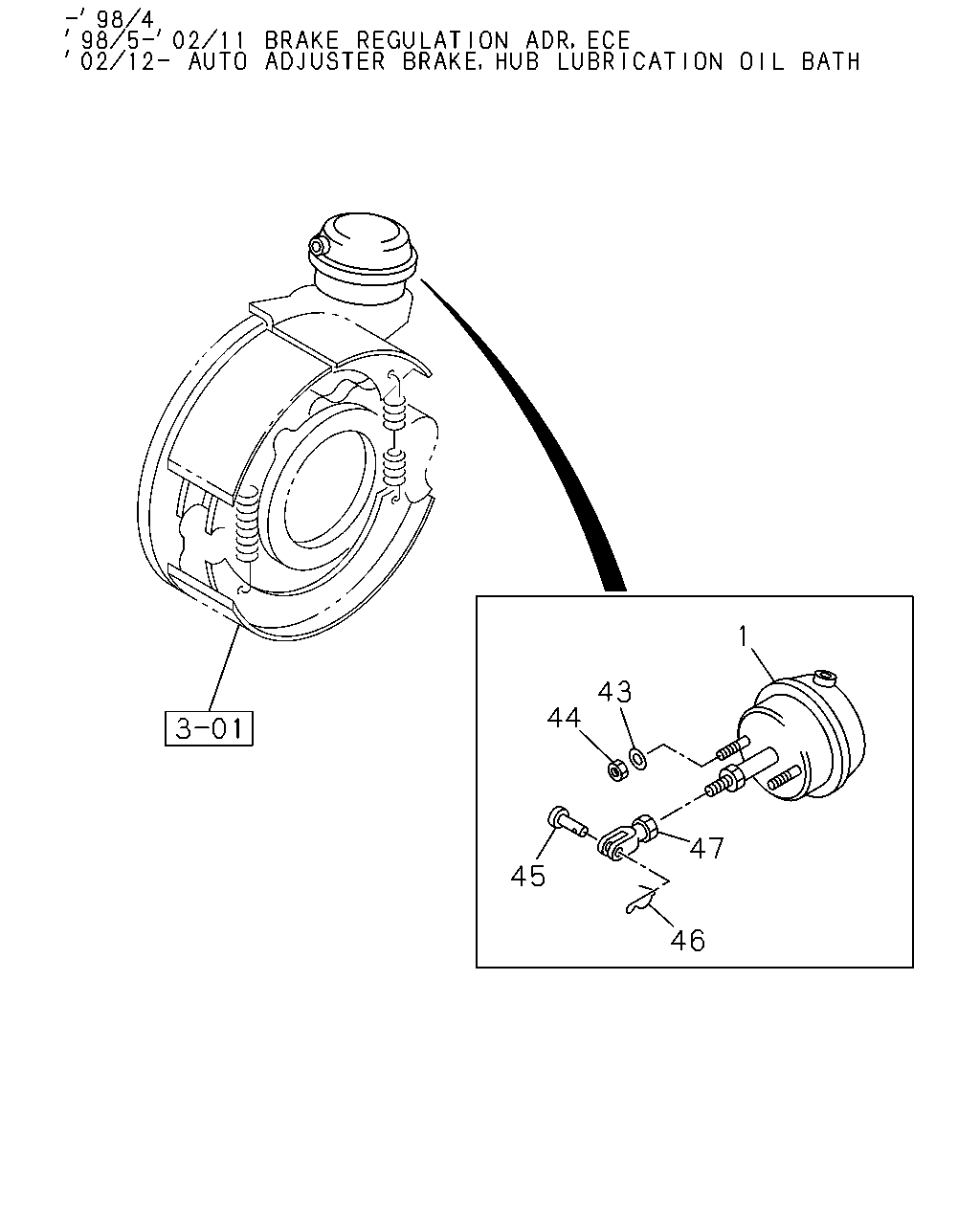

1 43 44 47 45 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48250-062-2	01	1	0212-0604
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48250-062-2	01	1	0605-
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48250-524-0	01	1	0212-0604
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>	1-48250-524-0	01	1	0605-
1	CHAMBER ASM; POWER,FRT BRK	1-48250-560-0	01	1	9601-9804
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48250-560-0	01	1	9805-0004
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU>	1-48250-560-0	01	1	0005-0211
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K> EXC. AUTO ADJUSTER BRAKE<BCU>	1-48250-560-0	01	1	0212-
1	CHAMBER ASM; POWER,FRT BRK	1-48250-561-0	01	1	9601-9804
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48250-561-0	01	1	9805-0004
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ADR<TDU>	1-48250-561-0	01	1	0005-0211
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K> EXC. AUTO ADJUSTER BRAKE<BCU>	1-48250-561-0	01	1	0212-
1	CHAMBER ASM; POWER,FRT BRK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48250-338-0	02	1	9810-0203
1	CHAMBER ASM; POWER,FRT BRK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48250-062-2	02	1	0204-0211
1	CHAMBER ASM; POWER,FRT BRK EXC. AUTO ADJUSTER BRAKE<BCU>,HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR<TDU>	1-48250-062-2	02	1	0212-
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ECE<TDV>	1-48250-684-0	02	1	0005-0211
1	CHAMBER ASM; POWER,FRT BRK AUTO ADJUSTER BRAKE<BCU>	1-48250-684-0	02	1	0212-
43	WASHER; LK,POWER CHAMBER	1-48259-282-0	04	1	9601-0004
43	WASHER; LK,POWER CHAMBER BRAKE REGULATION ADR<TDU>	1-48259-282-0	04	1	0005-0211
43	WASHER; LK,POWER CHAMBER HUB LUBRICATION OIL BATH<C5K> EXC. AUTO ADJUSTER BRAKE<BCU>	1-48259-282-0	04	1	0212-
43	WASHER; LK,POWER CHAMBER BRAKE REGULATION ECE<TDV>	1-41519-038-0	04	1	0005-0211
43	WASHER; LK,POWER CHAMBER AUTO ADJUSTER BRAKE<BCU>	1-41519-038-0	04	1	0212-
44	NUT; POWER CHAMBER	1-48259-283-0	04	1	9601-0004
44	NUT; POWER CHAMBER BRAKE REGULATION ADR<TDU>	1-48259-283-0	04	1	0005-0211
44	NUT; POWER CHAMBER HUB LUBRICATION OIL BATH<C5K> EXC. AUTO ADJUSTER BRAKE<BCU>	1-48259-283-0	04	1	0212-
44	NUT; POWER CHAMBER BRAKE REGULATION ECE<TDV>	1-87050-052-0	04	1	0005-0211
44	NUT; POWER CHAMBER AUTO ADJUSTER BRAKE<BCU>	1-87050-052-0	04	1	0212-
45	PIN; JAW JOINT,POWER CHAMBER	1-48259-285-0	02	1	9601-0004
45	PIN; JAW JOINT,POWER CHAMBER BRAKE REGULATION ADR<TDU>	1-48259-285-0	02	1	0005-0211
45	PIN; JAW JOINT,POWER CHAMBER HUB LUBRICATION OIL BATH<C5K> EXC. AUTO ADJUSTER BRAKE<BCU>	1-48259-285-0	02	1	0212-
46	PIN; SPLIT,JAW JOINT	1-48259-284-0	02	1	9601-0004
46	PIN; SPLIT,JAW JOINT BRAKE REGULATION ADR<TDU>	1-48259-284-0	02	1	0005-0211
46	PIN; SPLIT,JAW JOINT HUB LUBRICATION OIL BATH<C5K> EXC. AUTO ADJUSTER BRAKE<BCU>	1-48259-284-0	02	1	0212-
47	JOINT; JAW,POWER CHAMBER	1-48259-286-0	02	1	9601-0004
47	JOINT; JAW,POWER CHAMBER BRAKE REGULATION ADR<TDU>	1-48259-286-0	02	1	0005-0211
47	JOINT; JAW,POWER CHAMBER HUB LUBRICATION OIL BATH<C5K> EXC. AUTO ADJUSTER BRAKE<BCU>	1-48259-286-0	02	1	0212-
