◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 3 - Brakes, Brake System ▶ 3-34 - BRAKE VALVE; AIR ▶
3-34 — BRAKE VALVE; AIR (#65126) — 85 parça

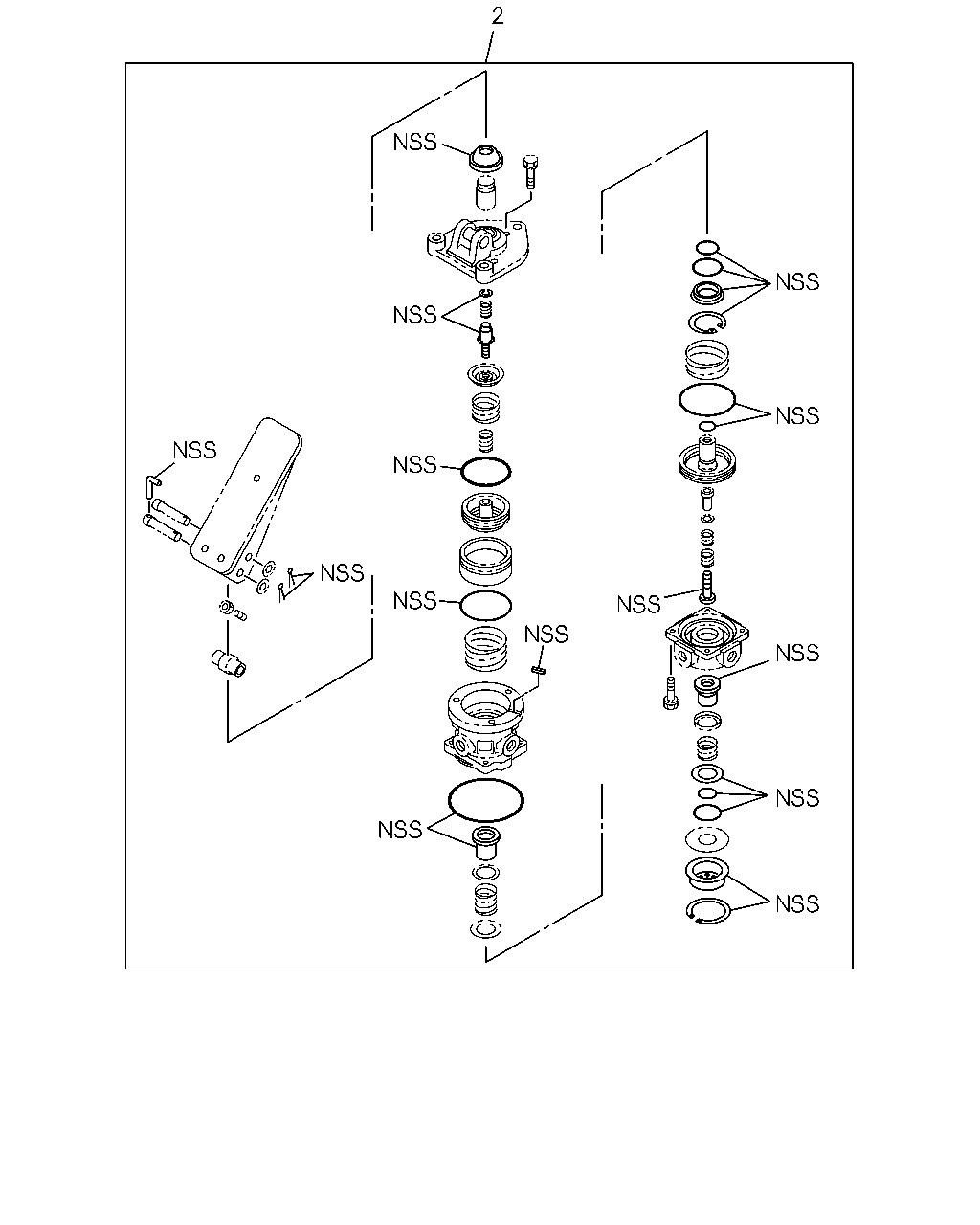

çizim 117219
2
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; BRK VLV 1-85576-182-0 01 1 9607-9702
2 REPAIR KIT; BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-85576-182-0 01 1 9703-0201
2 REPAIR KIT; BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-85576-285-0 01 1 0202-1211
2 REPAIR KIT; BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		8-98222-819-0 01 1 1212-
2 REPAIR KIT; BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-85576-156-0 01 1 9703-0206
2 REPAIR KIT; BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-85576-318-0 01 1 0207-1211
2 REPAIR KIT; BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		8-98223-905-0 01 1 1212-

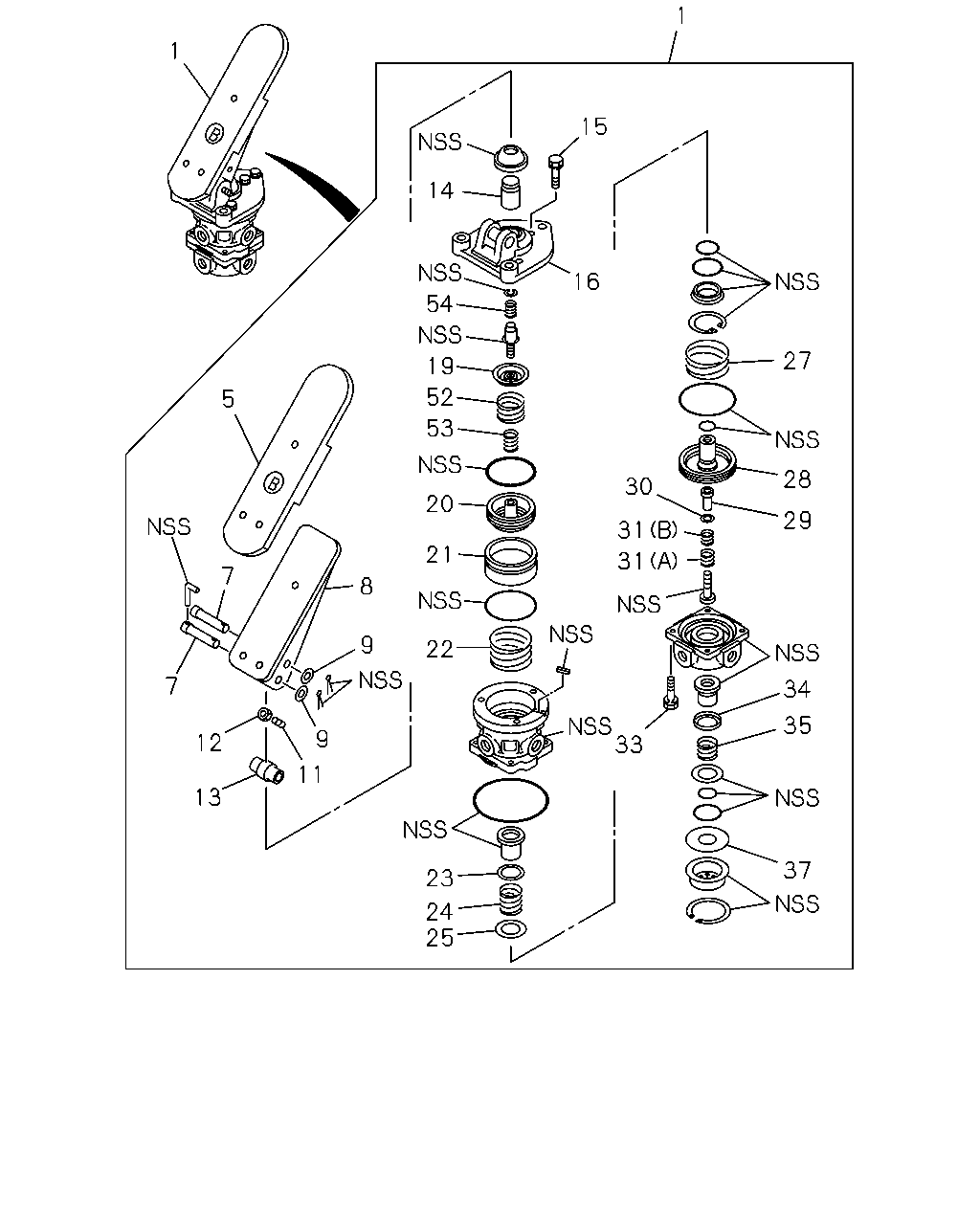

çizim 184747
1 1 15 14 16 54 27 19 52 5 53 28 30 20 29 31 21 31 7 8 9 22 7 34 35 33 9 12 11 13 37 23 24 25
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; BRK 1-48100-727-2 01 1 9601-9606
1 VALVE; BRK 1-48100-775-0 01 1 9607-9702
1 VALVE; BRK
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48100-775-0 01 1 9703-0201
1 VALVE; BRK
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48100-844-0 01 1 0202-1211
1 VALVE; BRK
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		8-98222-791-0 01 1 1212-
1 VALVE; BRK
SOUTH AFRICA EQUIPMENT(WG4) 		1-48100-717-1 01 1 9703-0206
1 VALVE; BRK
SOUTH AFRICA EQUIPMENT(WG4) 		1-48100-862-0 01 1 0207-1211
1 VALVE; BRK
SOUTH AFRICA EQUIPMENT(WG4) 		8-98222-770-0 01 1 1212-
5 COVER; PEDAL,BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-432-0 01 1 0202-0206
5 COVER; PEDAL,BRK VLV 1-48119-432-0 01 1 0207-
5 COVER; PEDAL,BRK VLV 1-48119-333-0 01 1 9601-0201
5 COVER; PEDAL,BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-333-0 01 1 0202-0206
7 PIN; PEDAL,BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-431-0 02 1 0202-0206
7 PIN; PEDAL,BRK VLV 1-48119-431-0 02 1 0207-
7 PIN; PEDAL,BRK VLV 1-48119-244-0 02 1 9601-0201
7 PIN; PEDAL,BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-244-0 02 1 0202-0206
8 PEDAL; BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-428-0 01 1 0202-
8 PEDAL; BRK VLV 1-48119-332-0 01 1 9601-0201
8 PEDAL; BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-332-0 01 1 0202-0206
8 PEDAL; BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-429-0 01 1 0207-
9 WASHER; PIN,BRK VLV 1-48119-106-0 02 1 9601-0201
9 WASHER; PIN,BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-106-0 02 1 0202-0206
11 SCREW; SET,BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-003-1 01 1 0202-0206
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 0207-
11 SCREW; SET,BRK VLV 1-48119-245-0 01 1 9601-0201
11 SCREW; SET,BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-245-0 01 1 0202-0206
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9601-
13 ROLLER; PEDAL,BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-430-0 01 1 0202-0206
13 ROLLER; PEDAL,BRK VLV 1-48119-430-0 01 1 0207-
13 ROLLER; PEDAL,BRK VLV 1-48119-243-0 01 1 9601-0201
13 ROLLER; PEDAL,BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-243-0 01 1 0202-0206
14 PLUNGER; BRK VLV 1-48119-383-0 01 1 9607-9702
14 PLUNGER; BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-383-0 01 1 9703-0201
14 PLUNGER; BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-561-0 01 1 0202-0206
14 PLUNGER; BRK VLV 1-48119-561-0 01 1 0207-
14 PLUNGER; BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-362-0 01 1 9703-0206
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 9601-
16 PLATE; MTG,BRKT VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-547-0 01 1 0202-1211
16 PLATE; MTG,BRKT VLV 1-48119-547-0 01 1 1212-
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 9601-0201
16 PLATE; MTG,BRKT VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-268-0 01 1 0202-1211
19 SEAT; SPRING,BRK VLV 1-48123-041-0 01 1 9601-
20 PISTON; UPR,BRK VLV 1-48119-381-0 01 1 9607-9702
20 PISTON; UPR,BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-381-0 01 1 9703-0201
20 PISTON; UPR,BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-560-0 01 1 0202-
20 PISTON; UPR,BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-336-0 01 1 9703-0206
20 PISTON; UPR,BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-565-0 01 1 0207-
21 BUSHING; UPR BODY
SOUTH AFRICA EQUIPMENT(WG4) 		1-48119-293-0 01 1 9703-
22 SPRING; PISTON,LWR,BRK VLV 1-48143-009-0 01 1 9601-9606
22 SPRING; PISTON,LWR,BRK VLV 1-48123-071-0 01 1 9607-9702
22 SPRING; PISTON,LWR,BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48123-071-0 01 1 9703-
22 SPRING; PISTON,LWR,BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48143-009-0 01 1 9703-
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 9601-
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9601-
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 9601-
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 9601-9702
27 SPRING; PISTON,LWR,BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48123-055-0 01 1 9703-0004
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 0005-
27 SPRING; PISTON,LWR,BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48129-055-0 01 1 9703-0004
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9601-9702
28 PISTON; LWR,BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48129-140-0 01 1 9703-0201
28 PISTON; LWR,BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48129-313-0 01 1 0202-
28 PISTON; LWR,BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48129-292-0 01 1 9703-0206
28 PISTON; LWR,BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48129-317-0 01 1 0207-
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 9601-
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9601-
31 SPRING; VLV,BRK VLV
(B) 		1-48123-032-0 01 1 9601-
31 SPRING; VLV,BRK VLV
(A) 		1-48123-033-0 01 1 9601-
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 9601-
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 9601-
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 9601-
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9601-
52 SPRING; PISTON,OUTER,BRK VLV 1-48123-040-0 01 1 9601-9606
52 SPRING; PISTON,OUTER,BRK VLV 1-48123-074-0 01 1 9607-9702
52 SPRING; PISTON,OUTER,BRK VLV
EXC. SOUTH AFRICA EQUIPMENT(WG4) 		1-48123-074-0 01 1 9703-
52 SPRING; PISTON,OUTER,BRK VLV
SOUTH AFRICA EQUIPMENT(WG4) 		1-48123-040-0 01 1 9703-
53 SPRING; PISTON,INNER,BRK VLV 1-48123-068-0 01 1 9601-
54 SPRING; PISTON,UPR,BRK VLV 1-48123-067-0 01 1 9601-
