Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10707 - FVZ-RHD
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#65125) — 35 parça
◀

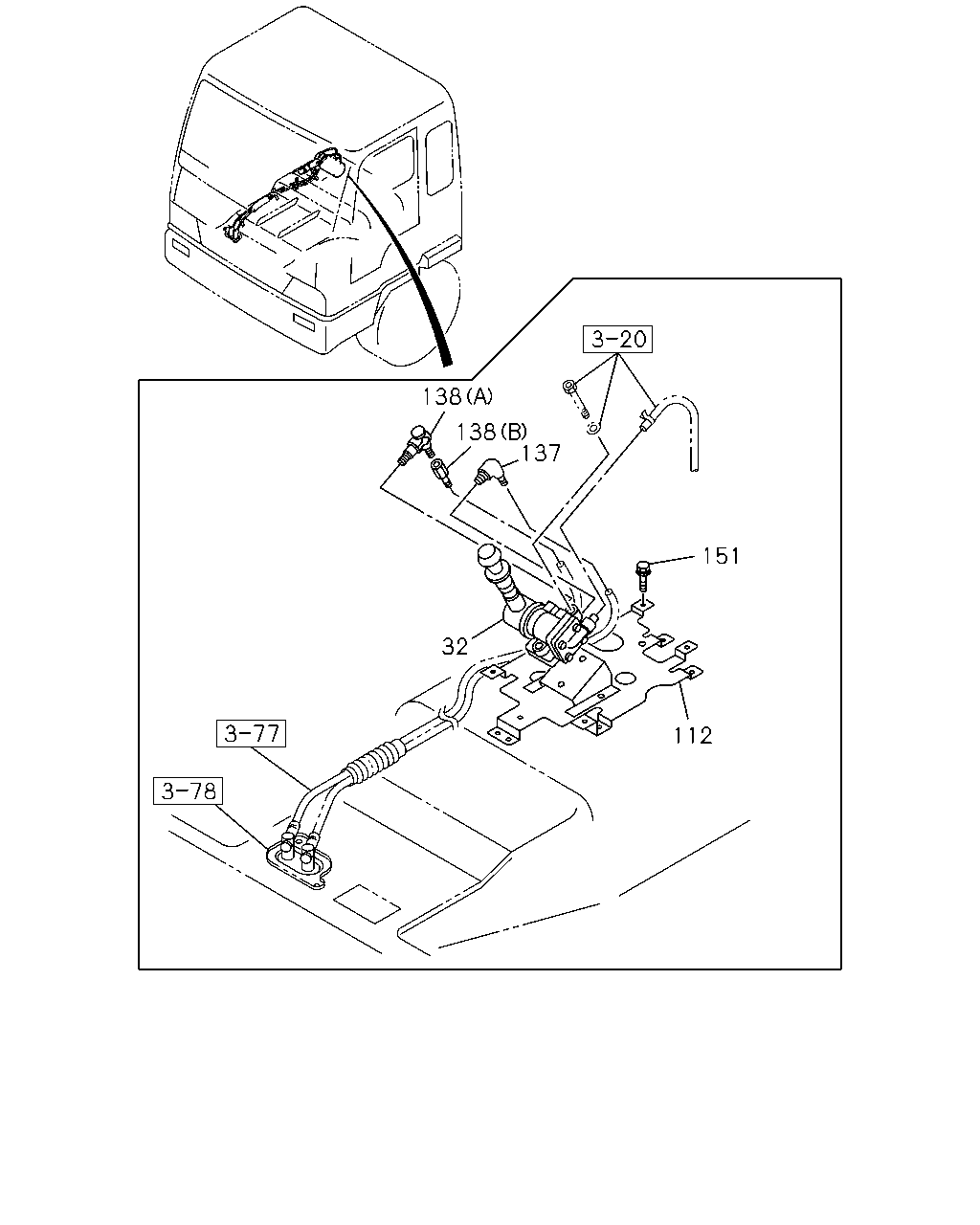

[326A] NO.1 (9 parça)

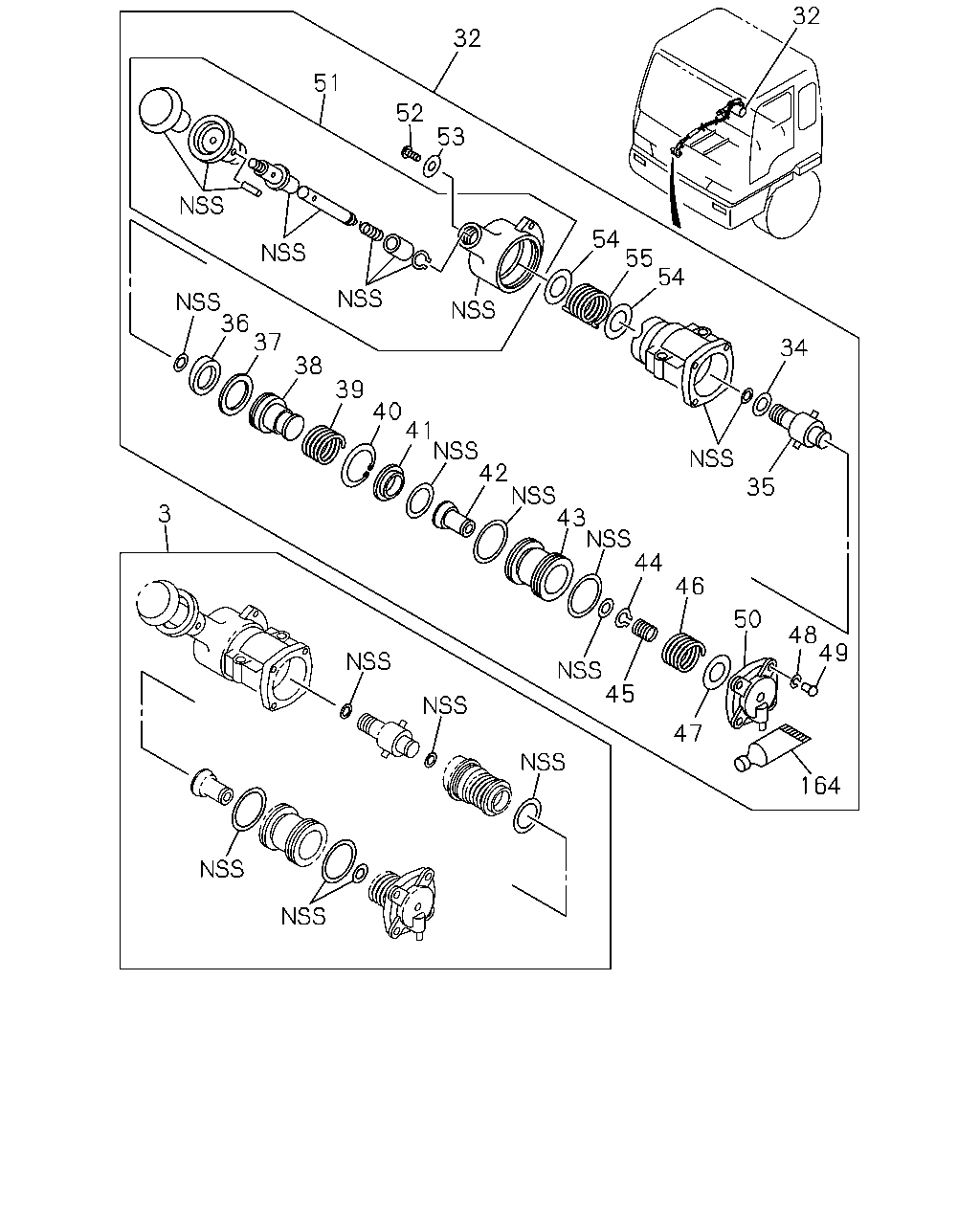

[326A] NO.2 (26 parça)
▶
138
138
137
151
32
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
9601-
112
BRACKET; CONT VLV
1-73908-054-7
01
1
9601-
137
CONNECTOR; SUPPLY
DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
9601-9811
137
CONNECTOR; SUPPLY
DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
9812-
138
CONNECTOR; DELIVERY
(A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
9601-
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
9601-9811
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09661-094-0
01
1
9812-0007
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0008-
151
BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
9601-
32
32
51
52
53
54
55
54
36
37
34
38
39
40
41
42
43
44
35
3
46
50
48
49
45
47
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
9601-
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
9601-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
9601-
35
HOLDER; CAM
1-48469-054-0
01
1
9601-
36
RING; CAM
1-48469-056-0
01
1
9601-
37
GUIDE; CAM RING
1-48469-058-0
01
1
9601-
38
SEAT; EXH VLV
1-48469-057-0
01
1
9601-
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
9601-
40
RING; SNAP
1-48469-067-0
01
1
9601-
41
SEAT; FEED VLV
1-48469-066-0
01
1
9601-
42
VALVE; FEED
1-48469-065-0
01
1
9601-
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
9601-
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
9601-
45
SPRING; FEED VLV
1-48469-070-0
01
1
9601-
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
9601-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
9601-
48
WASHER; COVER
1-48469-091-0
04
1
9601-
49
SCREW; COVER
1-48469-092-0
04
1
9601-
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
9601-
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
9601-
52
SCREW; HANDLE
1-48469-062-0
01
1
9601-
53
WASHER; HANDLE
1-48469-061-0
01
1
9601-
54
SEAT; SPRING
1-48469-123-0
02
1
9601-0004
54
SEAT; SPRING
1-48469-082-0
02
1
0005-
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
9601-
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
9601-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
