Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#65124) — 711 parça

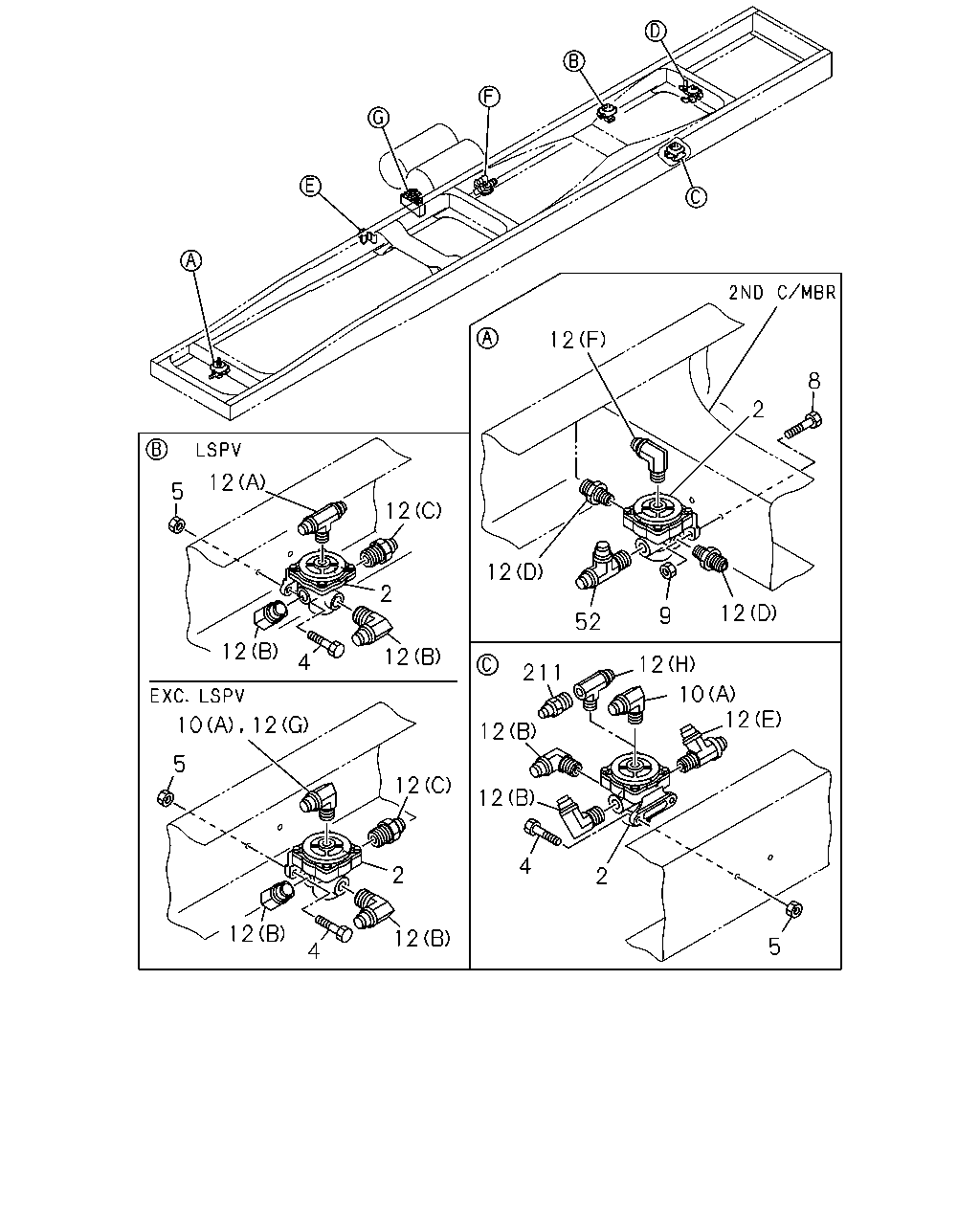

12 8 2 12 5 12 12 2 12 9 52 12 12 4 12 211 10 12 10 12 12 5 12 12 4 2 2 12 12 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-278-0	03	1	9601-0004
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0211
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0211
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0211
2	VALVE; RELAY	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY	1-48210-755-0	01	1	0605-
2	VALVE; RELAY EXC. REAR AXLE RT210(C2A)	1-48210-755-0	01	1	0605-
2	VALVE; RELAY BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0605-
2	VALVE; RELAY REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0605-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28081-035-0	04	1	9601-9702
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	04	1	9703-0512
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	0601-
5	NUT M10	9-09110-410-0	04	1	9601-9606
5	NUT M10 FLANGE	0-91150-210-0	04	1	9607-0602
5	NUT M10 FLANGE	0-91180-210-0	04	1	0603-
8	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	02	1	9601-9702
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9703-0512
8	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-
9	NUT M10	9-09110-510-0	02	1	9601-9606
9	NUT M10 FLANGE	0-91150-210-0	02	1	9607-0602
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	0201-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0201-
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9702
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9703-9804
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0211
10	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0211
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-0212
10	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-0212
10	CONNECTOR BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-0212
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
12	CONNECTOR; RELAY VLV (D) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-
12	CONNECTOR; RELAY VLV (F) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-654-1	04	1	9601-9804
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-9810
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9811-0211
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9811-0211
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0212-0212
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) BRAKE REGULATION ADR<TDU> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0212-0212
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0212-0212
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0301-0604
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0301-0604
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0605-
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0605-
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	9805-0004
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0211
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0212-0212
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0212-0212
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0301-0604
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0301-0604
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0301-0604
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0301-0604
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0605-
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0605-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0605-
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0605-
12	CONNECTOR; RELAY VLV (E)	1-09660-742-1	01	1	9601-9810
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (E)	1-09660-742-1	01	1	9811-0211
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (E)	1-09660-742-1	01	1	9811-0211
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (E)	1-09660-742-1	01	1	0212-0604
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (E)	1-09660-742-1	01	1	0212-0604
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> EXC. REAR AXLE RT210(C2A) (E)	1-09660-742-1	01	1	0212-0604
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> EXC. REAR AXLE RT210(C2A) (E)	1-09660-742-1	01	1	0605-
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A) (E)	1-09660-742-1	01	1	0605-
12	CONNECTOR; RELAY VLV LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (H) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-1	01	1	9805-
12	CONNECTOR; RELAY VLV LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9805-
12	CONNECTOR; RELAY VLV EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (G) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
52	CONNECTOR; RELAY VLV	1-09660-719-1	01	1	9601-9804
52	CONNECTOR; RELAY VLV DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9805-
211	CONNECTOR; TEST LOAD SENSING PROPORTIONING VALVE<JR7> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9703-9804
211	CONNECTOR; TEST BRAKE REGULATION ECE<TDV> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	9805-

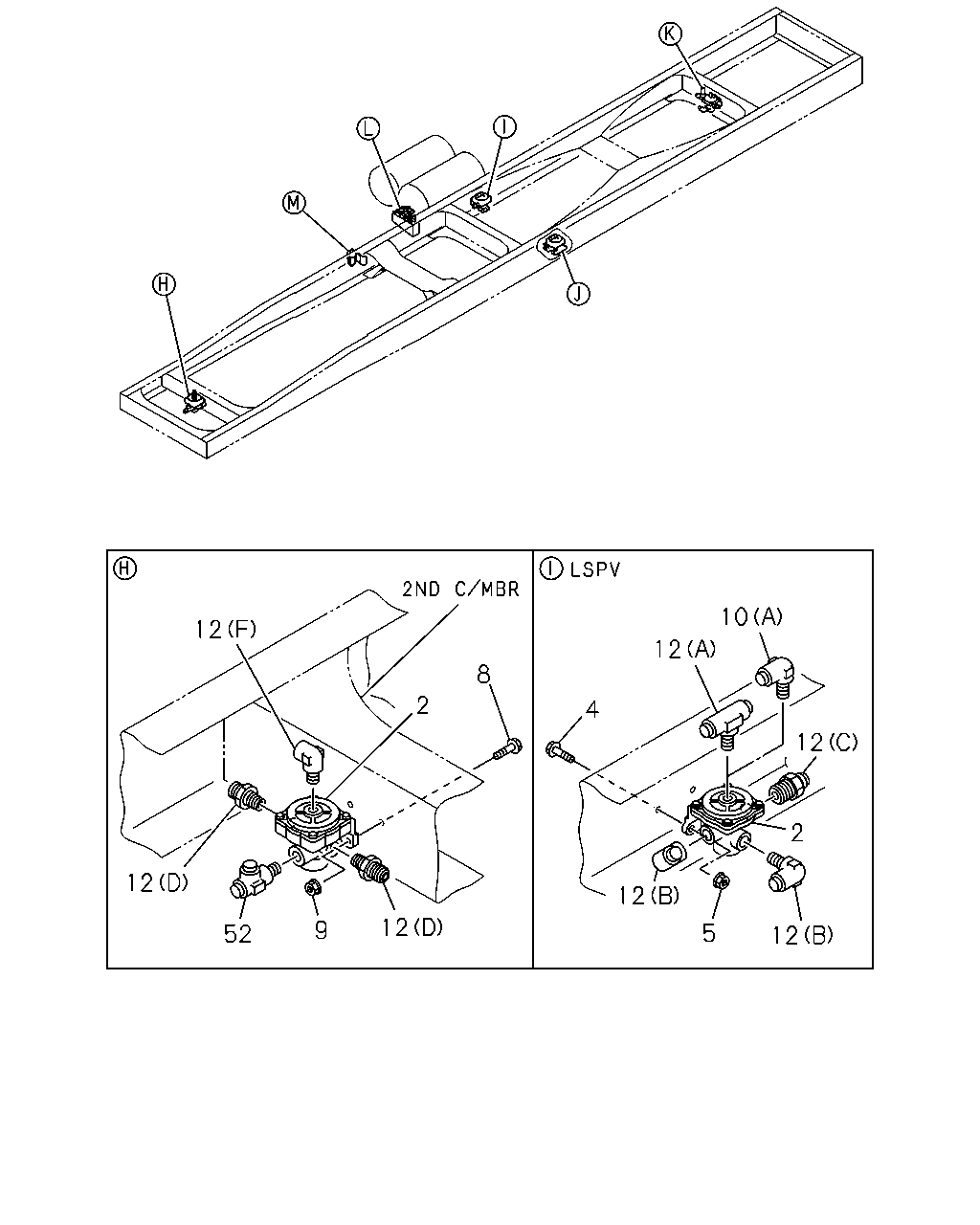

10 12 12 8 2 4 12 2 12 12 12 9 5 52 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-278-0	03	1	9601-0004
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0211
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0211
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0211
2	VALVE; RELAY	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY	1-48210-755-0	01	1	0605-
2	VALVE; RELAY EXC. REAR AXLE RT210(C2A)	1-48210-755-0	01	1	0605-
2	VALVE; RELAY BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0605-
2	VALVE; RELAY REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0605-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28081-035-0	04	1	9601-9702
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	04	1	9703-0512
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	0601-
5	NUT M10	9-09110-410-0	04	1	9601-9606
5	NUT M10 FLANGE	0-91150-210-0	04	1	9607-0602
5	NUT M10 FLANGE	0-91180-210-0	04	1	0603-
8	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	02	1	9601-9702
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9703-0512
8	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-
9	NUT M10	9-09110-510-0	02	1	9601-9606
9	NUT M10 FLANGE	0-91150-210-0	02	1	9607-0602
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	0201-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0201-
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9702
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9703-9804
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0211
10	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0211
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-0212
10	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-0212
10	CONNECTOR BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-0212
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
12	CONNECTOR; RELAY VLV (D) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-
12	CONNECTOR; RELAY VLV (F) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-654-1	04	1	9601-9804
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-9810
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9811-0211
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9811-0211
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0212-0212
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) BRAKE REGULATION ADR<TDU> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0212-0212
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0212-0212
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0301-0604
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0301-0604
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0605-
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0605-
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	9805-0004
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0211
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0212-0212
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0212-0212
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0301-0604
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0301-0604
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0301-0604
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0301-0604
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0605-
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0605-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0605-
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0605-
12	CONNECTOR; RELAY VLV (E)	1-09660-742-1	01	1	9601-9810
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (E)	1-09660-742-1	01	1	9811-0211
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (E)	1-09660-742-1	01	1	9811-0211
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (E)	1-09660-742-1	01	1	0212-0604
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (E)	1-09660-742-1	01	1	0212-0604
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> EXC. REAR AXLE RT210(C2A) (E)	1-09660-742-1	01	1	0212-0604
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> EXC. REAR AXLE RT210(C2A) (E)	1-09660-742-1	01	1	0605-
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A) (E)	1-09660-742-1	01	1	0605-
12	CONNECTOR; RELAY VLV LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (H) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-1	01	1	9805-
12	CONNECTOR; RELAY VLV LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9805-
12	CONNECTOR; RELAY VLV EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (G) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
52	CONNECTOR; RELAY VLV	1-09660-719-1	01	1	9601-9804
52	CONNECTOR; RELAY VLV DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9805-

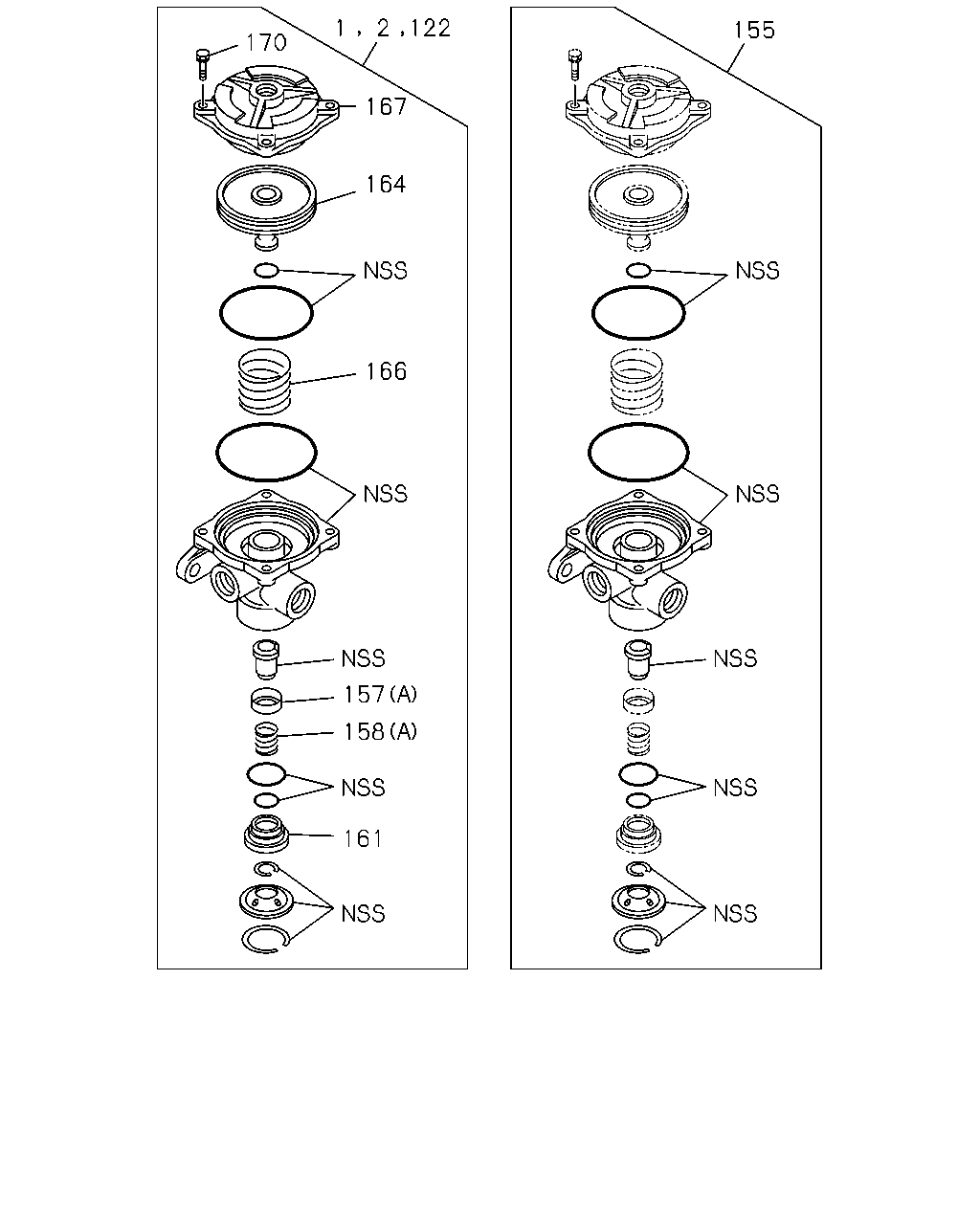

2 122 1 155 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48210-755-0	01	1	0005-
2	VALVE; RELAY	1-48210-278-0	03	1	9601-0004
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0211
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0211
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0211
2	VALVE; RELAY	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY	1-48210-755-0	01	1	0605-
2	VALVE; RELAY EXC. REAR AXLE RT210(C2A)	1-48210-755-0	01	1	0605-
2	VALVE; RELAY BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0605-
2	VALVE; RELAY REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0605-
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9601-0004
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	04	1	9601-0211
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-0212
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-0212
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-0212
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-0212
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ADR<TDU>	1-85576-033-0	01	1	0212-0212
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0301-0604
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0301-0604
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0301-0604
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0301-0604
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ADR<TDU>	1-85576-033-0	01	1	0301-0604
155	REPAIR KIT; RELAY VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-85576-033-0	01	1	0301-0604
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0605-
155	REPAIR KIT; RELAY VALVE EXC. REAR AXLE RT210(C2A)	1-85576-033-0	01	1	0605-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ADR<TDU>	1-85576-033-0	01	1	0605-
155	REPAIR KIT; RELAY VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-85576-033-0	01	1	0605-
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B)	1-48419-020-0	02	1	0110-
157	RETAINER; VALVE (B)	1-48419-020-0	04	1	0110-0604
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU> (B)	1-48419-020-0	04	1	0605-
157	RETAINER; VALVE (A)	1-48213-002-0	04	1	9601-0211
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0212
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0212
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0212
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0212
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU> (A)	1-48213-002-0	01	1	0212-0212
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0301-0604
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0301-0604
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0301-0604
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0301-0604
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU> (A)	1-48213-002-0	01	1	0301-0604
157	RETAINER; VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU> (A)	1-48213-002-0	01	1	0301-0604
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0605-
157	RETAINER; VALVE EXC. REAR AXLE RT210(C2A) (A)	1-48213-002-0	01	1	0605-
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU> (A)	1-48213-002-0	01	1	0605-
157	RETAINER; VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU> (A)	1-48213-002-0	01	1	0605-
158	SPRING; VALVE BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B)	9-48419-003-0	02	1	0110-
158	SPRING; VALVE (B)	9-48419-003-0	04	1	0110-0604
158	SPRING; VALVE BRAKE REGULATION ADR<TDU> (B)	9-48419-003-0	04	1	0605-
158	SPRING; VALVE (A)	1-47819-089-0	04	1	9601-0211
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0212
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0212
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0212
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0212
158	SPRING; VALVE BRAKE REGULATION ADR<TDU> (A)	1-47819-089-0	01	1	0212-0212
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0301-0604
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0301-0604
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0301-0604
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0301-0604
158	SPRING; VALVE BRAKE REGULATION ADR<TDU> (A)	1-47819-089-0	01	1	0301-0604
158	SPRING; VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU> (A)	1-47819-089-0	01	1	0301-0604
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0605-
158	SPRING; VALVE EXC. REAR AXLE RT210(C2A) (A)	1-47819-089-0	01	1	0605-
158	SPRING; VALVE BRAKE REGULATION ADR<TDU> (A)	1-47819-089-0	01	1	0605-
158	SPRING; VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU> (A)	1-47819-089-0	01	1	0605-
161	GUIDE; VALVE	1-48129-014-0	04	1	9601-0211
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-0212
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-0212
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-0212
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-0212
161	GUIDE; VALVE BRAKE REGULATION ADR<TDU>	1-48129-014-0	01	1	0212-0212
161	GUIDE; VALVE	1-48129-014-0	01	1	0301-0604
161	GUIDE; VALVE	1-48129-014-0	01	1	0301-0604
161	GUIDE; VALVE	1-48129-014-0	01	1	0301-0604
161	GUIDE; VALVE	1-48129-014-0	01	1	0301-0604
161	GUIDE; VALVE BRAKE REGULATION ADR<TDU>	1-48129-014-0	01	1	0301-0604
161	GUIDE; VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48129-014-0	01	1	0301-0604
161	GUIDE; VALVE	1-48129-014-0	01	1	0605-
161	GUIDE; VALVE EXC. REAR AXLE RT210(C2A)	1-48129-014-0	01	1	0605-
161	GUIDE; VALVE BRAKE REGULATION ADR<TDU>	1-48129-014-0	01	1	0605-
161	GUIDE; VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48129-014-0	01	1	0605-
164	PISTON; RELAY VALVE	1-48219-071-0	04	1	9601-0211
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-0212
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-0212
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-0212
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-0212
164	PISTON; RELAY VALVE BRAKE REGULATION ADR<TDU>	1-48219-071-0	01	1	0212-0212
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0301-0604
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0301-0604
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0301-0604
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0301-0604
164	PISTON; RELAY VALVE BRAKE REGULATION ADR<TDU>	1-48219-071-0	01	1	0301-0604
164	PISTON; RELAY VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48219-071-0	01	1	0301-0604
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0605-
164	PISTON; RELAY VALVE EXC. REAR AXLE RT210(C2A)	1-48219-071-0	01	1	0605-
164	PISTON; RELAY VALVE BRAKE REGULATION ADR<TDU>	1-48219-071-0	01	1	0605-
164	PISTON; RELAY VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48219-071-0	01	1	0605-
166	SPRING; PISTON	1-47819-090-0	04	1	9601-0211
166	SPRING; PISTON	1-47819-090-0	01	1	0212-0212
166	SPRING; PISTON	1-47819-090-0	01	1	0212-0212
166	SPRING; PISTON	1-47819-090-0	01	1	0212-0212
166	SPRING; PISTON	1-47819-090-0	01	1	0212-0212
166	SPRING; PISTON BRAKE REGULATION ADR<TDU>	1-47819-090-0	01	1	0212-0212
166	SPRING; PISTON	1-47819-090-0	01	1	0301-0604
166	SPRING; PISTON	1-47819-090-0	01	1	0301-0604
166	SPRING; PISTON	1-47819-090-0	01	1	0301-0604
166	SPRING; PISTON	1-47819-090-0	01	1	0301-0604
166	SPRING; PISTON BRAKE REGULATION ADR<TDU>	1-47819-090-0	01	1	0301-0604
166	SPRING; PISTON REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-47819-090-0	01	1	0301-0604
166	SPRING; PISTON	1-47819-090-0	01	1	0605-
166	SPRING; PISTON EXC. REAR AXLE RT210(C2A)	1-47819-090-0	01	1	0605-
166	SPRING; PISTON BRAKE REGULATION ADR<TDU>	1-47819-090-0	01	1	0605-
166	SPRING; PISTON REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-47819-090-0	01	1	0605-
167	COVER; VALVE	1-48219-070-0	04	1	9601-0211
167	COVER; VALVE	1-48219-070-0	01	1	0212-0212
167	COVER; VALVE	1-48219-070-0	01	1	0212-0212
167	COVER; VALVE	1-48219-070-0	01	1	0212-0212
167	COVER; VALVE	1-48219-070-0	01	1	0212-0212
167	COVER; VALVE BRAKE REGULATION ADR<TDU>	1-48219-070-0	01	1	0212-0212
167	COVER; VALVE	1-48219-070-0	01	1	0301-0604
167	COVER; VALVE	1-48219-070-0	01	1	0301-0604
167	COVER; VALVE	1-48219-070-0	01	1	0301-0604
167	COVER; VALVE	1-48219-070-0	01	1	0301-0604
167	COVER; VALVE BRAKE REGULATION ADR<TDU>	1-48219-070-0	01	1	0301-0604
167	COVER; VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48219-070-0	01	1	0301-0604
167	COVER; VALVE	1-48219-070-0	01	1	0605-
167	COVER; VALVE EXC. REAR AXLE RT210(C2A)	1-48219-070-0	01	1	0605-
167	COVER; VALVE BRAKE REGULATION ADR<TDU>	1-48219-070-0	01	1	0605-
167	COVER; VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48219-070-0	01	1	0605-
170	SCREW; COVER TO BODY	1-48219-039-0	16	1	9601-0211
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-0212
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-0212
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-0212
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-0212
170	SCREW; COVER TO BODY BRAKE REGULATION ADR<TDU>	1-48219-039-0	04	1	0212-0212
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0301-0604
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0301-0604
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0301-0604
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0301-0604
170	SCREW; COVER TO BODY BRAKE REGULATION ADR<TDU>	1-48219-039-0	04	1	0301-0604
170	SCREW; COVER TO BODY REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48219-039-0	04	1	0301-0604
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0605-
170	SCREW; COVER TO BODY EXC. REAR AXLE RT210(C2A)	1-48219-039-0	04	1	0605-
170	SCREW; COVER TO BODY BRAKE REGULATION ADR<TDU>	1-48219-039-0	04	1	0605-
170	SCREW; COVER TO BODY REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48219-039-0	04	1	0605-

25 38 33 35 6 30 122 181 31 14 14 34 14 14 7 54 54 59 59 13 60 60 15 13 99 29 29 99 274 274 29 29 29 29 29 29 29 224 103 102 103 105 104 104 105 10 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV (B) M8X20 FLANGE	0-28080-820-0	08	1	9601-9804
6	BOLT; VLV (B) M8X25 FLANGE	0-28680-825-0	08	1	9805-0512
6	BOLT; VLV (B) M8X25 FLANGE	0-28650-825-0	08	1	0601-0604
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X25 FLANGE	0-28650-825-0	08	1	0605-
6	BOLT; VLV (A) M10X30 FLANGE	0-28081-030-0	02	1	9601-9702
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	9703-0512
6	BOLT; VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9601-9606
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9607-0602
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	0201-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0201-
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9702
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9703-9804
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0211
10	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0211
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-0212
10	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-0212
10	CONNECTOR BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-0212
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
13	VALVE ASM; QUICK RELEASE REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (C)	1-48410-659-0	02	1	0605-
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	01	1	9601-9804
13	VALVE ASM; QUICK RELEASE (A)	1-48410-234-0	01	1	9805-0604
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-234-0	01	1	0605-0701
13	VALVE ASM; QUICK RELEASE (A)	1-48410-782-0	01	1	0702-
13	VALVE ASM; QUICK RELEASE (B)	1-48410-320-0	04	1	9601-0109
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	04	1	0110-0604
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-659-0	04	1	0605-
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A)	1-09656-476-0	01	1	9805-
14	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-
14	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9805-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	9805-0112
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) PT1/2	1-09664-041-1	01	1	9805-0112
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) PT1/2	1-09664-041-1	03	1	0201-
15	PLUG; VALVE (B) PT3/8	9-09204-517-0	04	1	9601-0604
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	04	1	0605-
15	PLUG; VALVE LOAD SENSING PROPORTIONING VALVE<JR7> (A) PT3/8	9-09204-517-0	01	1	9601-9804
15	PLUG; VALVE LOAD SENSING PROPORTIONING VALVE<JR7> (A) NPTF3/8-18	8-94231-272-1	01	1	9805-0004

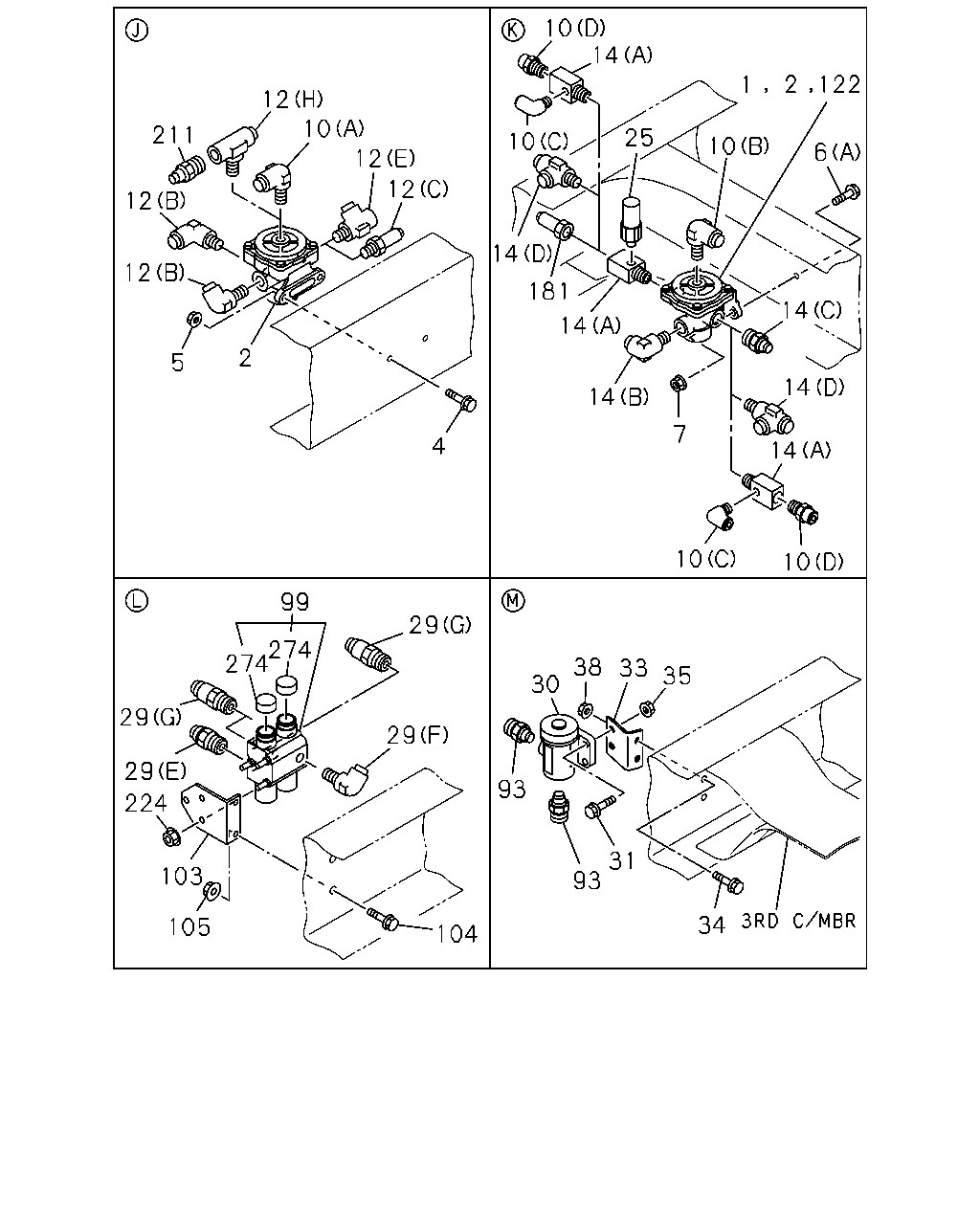

25	SWITCH; PRESSURE	1-82410-163-1	01	1	9601-
29	CONNECTOR; AIR VLV (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9804
29	CONNECTOR; AIR VLV (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9805-
29	CONNECTOR; AIR VLV (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
29	CONNECTOR; AIR VLV (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-
29	CONNECTOR; AIR VLV (C) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
29	CONNECTOR; AIR VLV (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9805-
29	CONNECTOR; AIR VLV (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9601-9804

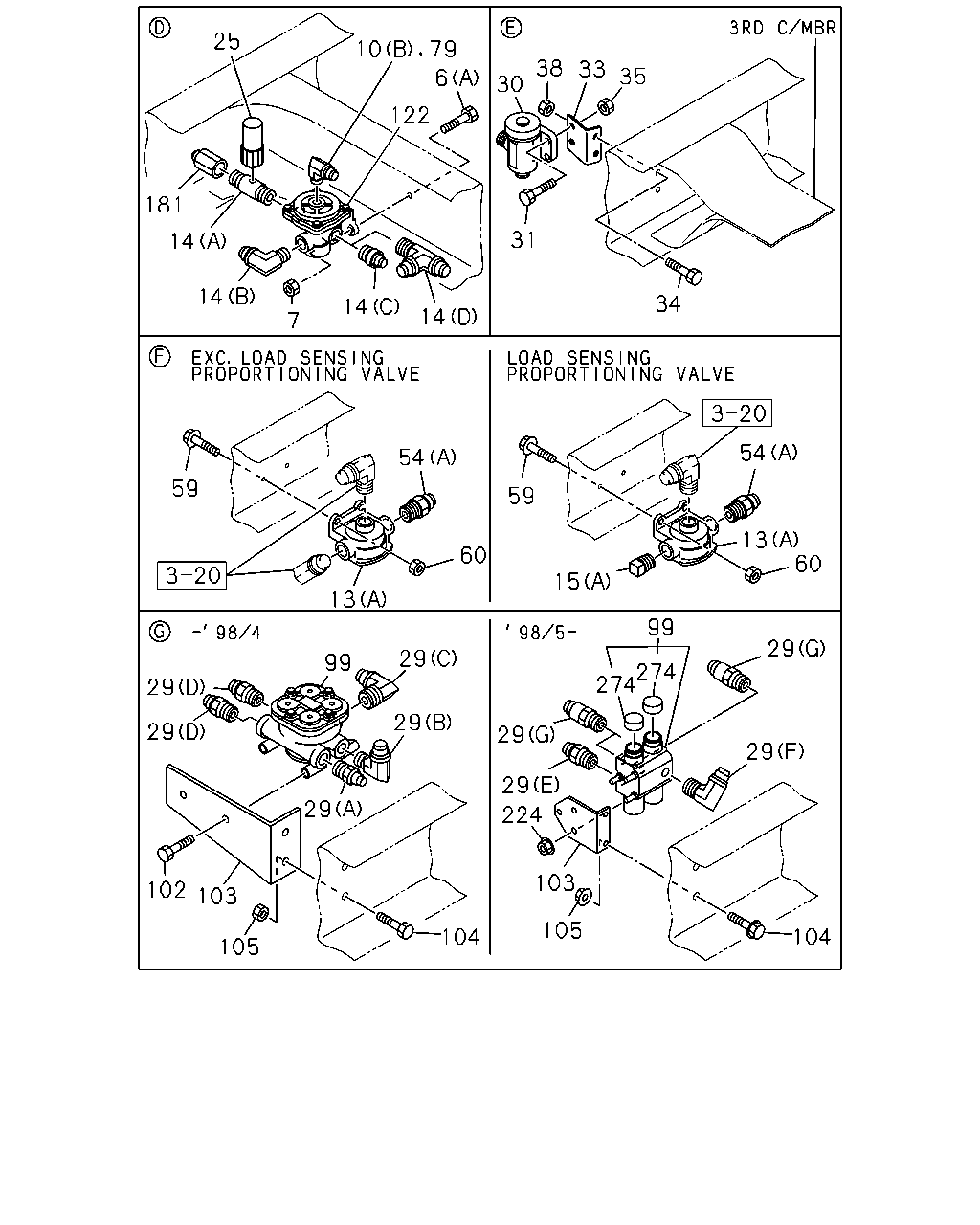

30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9601-9804
30	GOVERNOR; AIR CONT EXC. BRAKE REGULATION ADR<TDU>	1-48350-059-0	01	1	9805-9903
30	GOVERNOR; AIR CONT EXC. BRAKE REGULATION ADR<TDU>,SOUTH AFRICA EQUIPMENT(WG4)	1-48350-059-0	01	1	9904-0004
30	GOVERNOR; AIR CONT BRAKE REGULATION ADR<TDU>	1-48350-062-0	01	1	9805-9903
30	GOVERNOR; AIR CONT BRAKE REGULATION ADR<TDU> EXC. SOUTH AFRICA EQUIPMENT(WG4)	1-48350-062-0	01	1	9904-0004
30	GOVERNOR; AIR CONT SOUTH AFRICA EQUIPMENT(WG4) EXC. BRAKE REGULATION ADR<TDU>	1-48350-058-0	01	1	9904-0004
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0005-
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9804
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9805-0004
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0512
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	9601-0004
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0005-
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28680-835-0	02	1	9607-0512
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28650-835-0	02	1	0601-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9601-9606
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0602
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
38	NUT; BRKT,GOV M8	9-09110-408-0	02	1	9601-9606
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	9607-0602
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-

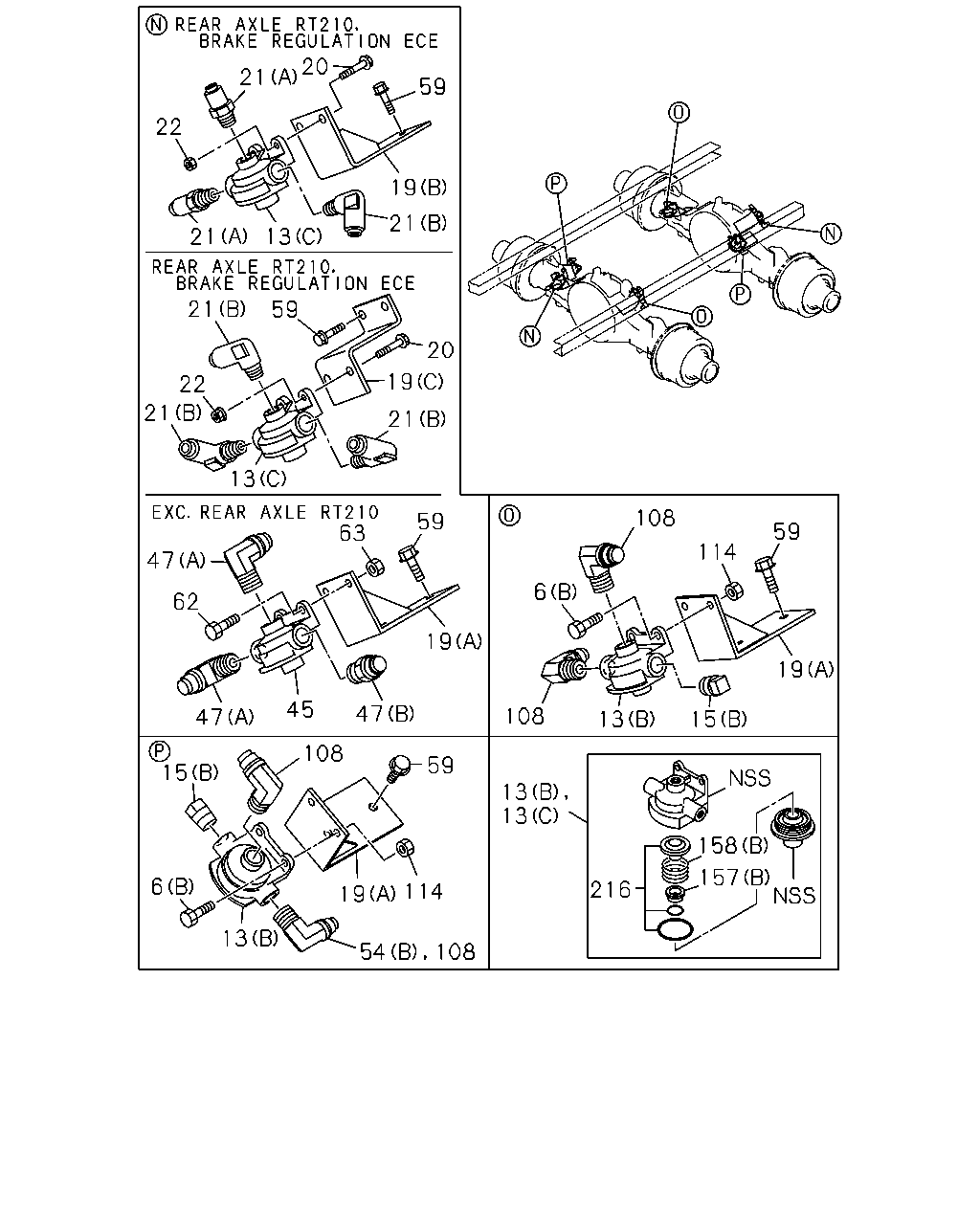

54	CONNECTOR; QUICK RELEASE VLV REAR AXLE RT210(C2A) BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0301-
54	CONNECTOR; QUICK RELEASE VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9601-9804
54	CONNECTOR; QUICK RELEASE VLV (A)	1-09660-968-0	01	1	9805-0604
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A)	1-09660-968-0	01	1	0605-
59	BOLT; RELEASE VALVE FIX REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> M8X30 FLANGE	0-28650-830-0	02	1	0605-
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28050-816-0	04	1	0605-
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) M8X16 FLANGE	0-28050-816-0	04	1	0605-
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	08	1	9601-0512
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	08	1	0601-0604
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28050-816-0	08	1	0605-
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	9601-0512
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0601-0604
59	BOLT; RELEASE VALVE FIX REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> M8X16 FLANGE	0-28050-816-0	02	1	0605-
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	9601-0512
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28050-830-0	02	1	0601-0604
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28050-830-0	02	1	0605-
60	NUT; RELEASE VALVE FIX M8	9-09110-408-0	02	1	9601-9606
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	9607-0602
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91180-108-0	02	1	0603-0604
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91180-108-0	02	1	0605-
60	NUT; RELEASE VALVE FIX REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91180-108-0	02	1	0605-
79	CONNECTOR; RELAY VLV DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
99	VALVE; PROTECTION	1-48110-079-0	01	1	9601-9804
99	VALVE; PROTECTION BRAKE REGULATION ECE<TDV>	1-48110-136-4	01	1	9805-0004
99	VALVE; PROTECTION BRAKE REGULATION ADR<TDU>	1-48110-135-4	01	1	9805-0004
99	VALVE; PROTECTION BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48110-135-5	01	1	0005-
102	BOLT; PROTECTION VALVE M8X25 FLANGE	0-28080-825-0	02	1	9601-9804
103	BRACKET; PROTECTION VALVE	1-47477-412-2	01	1	9601-9804
103	BRACKET; PROTECTION VALVE	1-47477-860-0	01	1	9805-
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
104	BOLT; BRKT,VALVE M8X35 FLANGE	0-28680-835-0	02	1	9607-0512
104	BOLT; BRKT,VALVE M8X35 FLANGE	0-28650-835-0	02	1	0601-
105	NUT; BRKT,VALVE M8	9-09110-408-0	02	1	9601-9606
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	9607-0602
105	NUT; BRKT,VALVE M8 FLANGE	0-91180-108-0	02	1	0603-
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9601-0004
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-
181	ADAPTER; PRESSURE SW DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9601-0004
181	ADAPTER; PRESSURE SW DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0005-0007
181	ADAPTER; PRESSURE SW DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	9805-0602
224	NUT; PROTECTION VALVE M8 FLANGE	0-91180-108-0	03	1	0603-
274	COVER; DUST BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48119-450-0	02	1	0005-

240 241 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

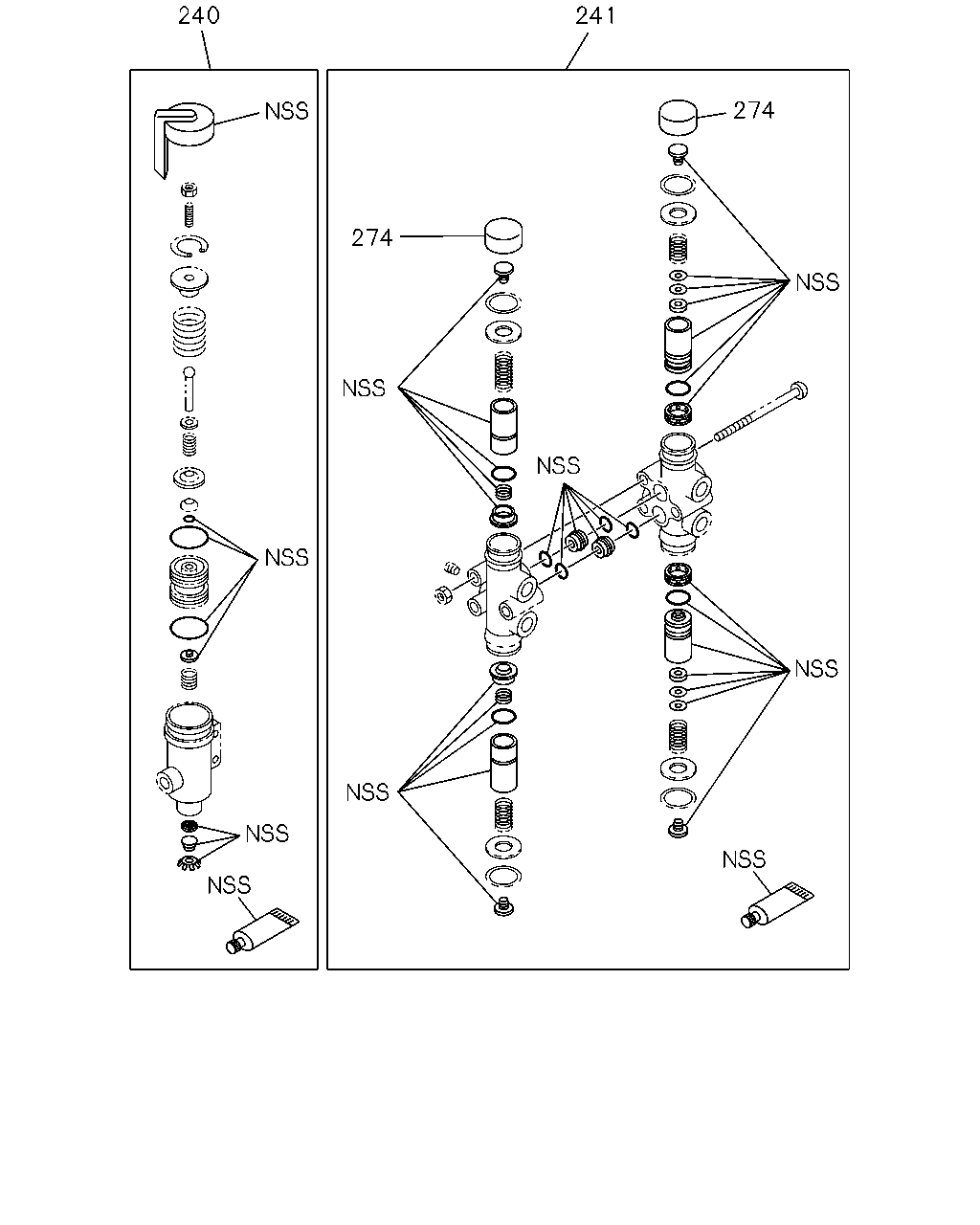

240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0005-
241	REPAIR KIT; PROTECTION VALVE BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-85576-224-0	01	1	0005-
274	COVER; DUST BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48119-450-0	02	1	0005-

10 14 2 122 1 12 10 12 211 25 10 10 6 12 12 14 12 181 14 14 2 5 14 14 7 4 14 10 10 99 29 274 274 38 33 35 30 29 29 29 93 224 31 93 103 34 105 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48210-755-0	01	1	0005-
2	VALVE; RELAY	1-48210-278-0	03	1	9601-0004
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0211
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0211
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0211
2	VALVE; RELAY	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0212-0212
2	VALVE; RELAY	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0301-0604
2	VALVE; RELAY	1-48210-755-0	01	1	0605-
2	VALVE; RELAY EXC. REAR AXLE RT210(C2A)	1-48210-755-0	01	1	0605-
2	VALVE; RELAY BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0605-
2	VALVE; RELAY REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>	1-48210-755-0	01	1	0605-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28081-035-0	04	1	9601-9702
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	04	1	9703-0512
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	0601-
5	NUT M10	9-09110-410-0	04	1	9601-9606
5	NUT M10 FLANGE	0-91150-210-0	04	1	9607-0602
5	NUT M10 FLANGE	0-91180-210-0	04	1	0603-
6	BOLT; VLV (B) M8X20 FLANGE	0-28080-820-0	08	1	9601-9804
6	BOLT; VLV (B) M8X25 FLANGE	0-28680-825-0	08	1	9805-0512
6	BOLT; VLV (B) M8X25 FLANGE	0-28650-825-0	08	1	0601-0604
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X25 FLANGE	0-28650-825-0	08	1	0605-
6	BOLT; VLV (A) M10X30 FLANGE	0-28081-030-0	02	1	9601-9702
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	9703-0512
6	BOLT; VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9601-9606
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9607-0602
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	0201-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0201-
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9702
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9703-9804
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0211
10	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0211
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-0212
10	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-0212
10	CONNECTOR BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0212-0212
10	CONNECTOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
10	CONNECTOR (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
12	CONNECTOR; RELAY VLV (D) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-
12	CONNECTOR; RELAY VLV (F) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-654-1	04	1	9601-9804
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-9810
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9811-0211
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9811-0211
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0212-0212
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) BRAKE REGULATION ADR<TDU> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0212-0212
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0212-0212
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0301-0604
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0301-0604
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0605-
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0605-
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	9805-0004
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0211
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0212-0212
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0212-0212
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0301-0604
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0301-0604
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0301-0604
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0301-0604
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0605-
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0605-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0605-
12	CONNECTOR; RELAY VLV REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0605-
12	CONNECTOR; RELAY VLV (E)	1-09660-742-1	01	1	9601-9810
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (E)	1-09660-742-1	01	1	9811-0211
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (E)	1-09660-742-1	01	1	9811-0211
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (E)	1-09660-742-1	01	1	0212-0604
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A),BRAKE REGULATION ECE<TDV> (E)	1-09660-742-1	01	1	0212-0604
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> EXC. REAR AXLE RT210(C2A) (E)	1-09660-742-1	01	1	0212-0604
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> EXC. REAR AXLE RT210(C2A) (E)	1-09660-742-1	01	1	0605-
12	CONNECTOR; RELAY VLV EXC. REAR AXLE RT210(C2A) (E)	1-09660-742-1	01	1	0605-
12	CONNECTOR; RELAY VLV LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (H) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-1	01	1	9805-
12	CONNECTOR; RELAY VLV LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9805-
12	CONNECTOR; RELAY VLV EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (G) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A)	1-09656-476-0	01	1	9805-
14	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-
14	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9805-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	9805-0112
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) PT1/2	1-09664-041-1	01	1	9805-0112
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) PT1/2	1-09664-041-1	03	1	0201-
25	SWITCH; PRESSURE	1-82410-163-1	01	1	9601-
29	CONNECTOR; AIR VLV (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9804
29	CONNECTOR; AIR VLV (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9805-
29	CONNECTOR; AIR VLV (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
29	CONNECTOR; AIR VLV (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-
29	CONNECTOR; AIR VLV (C) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
29	CONNECTOR; AIR VLV (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9805-
29	CONNECTOR; AIR VLV (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9601-9804
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9601-9804
30	GOVERNOR; AIR CONT EXC. BRAKE REGULATION ADR<TDU>	1-48350-059-0	01	1	9805-9903
30	GOVERNOR; AIR CONT EXC. BRAKE REGULATION ADR<TDU>,SOUTH AFRICA EQUIPMENT(WG4)	1-48350-059-0	01	1	9904-0004
30	GOVERNOR; AIR CONT BRAKE REGULATION ADR<TDU>	1-48350-062-0	01	1	9805-9903
30	GOVERNOR; AIR CONT BRAKE REGULATION ADR<TDU> EXC. SOUTH AFRICA EQUIPMENT(WG4)	1-48350-062-0	01	1	9904-0004
30	GOVERNOR; AIR CONT SOUTH AFRICA EQUIPMENT(WG4) EXC. BRAKE REGULATION ADR<TDU>	1-48350-058-0	01	1	9904-0004
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0005-
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9804
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9805-0004
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0512
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	9601-0004
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0005-
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28680-835-0	02	1	9607-0512
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28650-835-0	02	1	0601-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9601-9606
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0602
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
38	NUT; BRKT,GOV M8	9-09110-408-0	02	1	9601-9606
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	9607-0602
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-
99	VALVE; PROTECTION	1-48110-079-0	01	1	9601-9804
99	VALVE; PROTECTION BRAKE REGULATION ECE<TDV>	1-48110-136-4	01	1	9805-0004
99	VALVE; PROTECTION BRAKE REGULATION ADR<TDU>	1-48110-135-4	01	1	9805-0004
99	VALVE; PROTECTION BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48110-135-5	01	1	0005-
103	BRACKET; PROTECTION VALVE	1-47477-412-2	01	1	9601-9804
103	BRACKET; PROTECTION VALVE	1-47477-860-0	01	1	9805-
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
104	BOLT; BRKT,VALVE M8X35 FLANGE	0-28680-835-0	02	1	9607-0512
104	BOLT; BRKT,VALVE M8X35 FLANGE	0-28650-835-0	02	1	0601-
105	NUT; BRKT,VALVE M8	9-09110-408-0	02	1	9601-9606
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	9607-0602
105	NUT; BRKT,VALVE M8 FLANGE	0-91180-108-0	02	1	0603-
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9601-0004
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-
181	ADAPTER; PRESSURE SW DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9601-0004
181	ADAPTER; PRESSURE SW DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0005-0007
181	ADAPTER; PRESSURE SW DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
211	CONNECTOR; TEST LOAD SENSING PROPORTIONING VALVE<JR7> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9703-9804
211	CONNECTOR; TEST BRAKE REGULATION ECE<TDV> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	9805-
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	9805-0602
224	NUT; PROTECTION VALVE M8 FLANGE	0-91180-108-0	03	1	0603-
274	COVER; DUST BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48119-450-0	02	1	0005-

20 21 59 22 19 21 13 21 21 59 20 19 22 21 21 13 63 108 59 59 114 47 6 62 19 19 45 47 108 47 13 15 15 108 59 13 13 158 157 6 216 114 19 13 54 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV (B) M8X20 FLANGE	0-28080-820-0	08	1	9601-9804
6	BOLT; VLV (B) M8X25 FLANGE	0-28680-825-0	08	1	9805-0512
6	BOLT; VLV (B) M8X25 FLANGE	0-28650-825-0	08	1	0601-0604
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X25 FLANGE	0-28650-825-0	08	1	0605-
6	BOLT; VLV (A) M10X30 FLANGE	0-28081-030-0	02	1	9601-9702
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	9703-0512
6	BOLT; VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-
13	VALVE ASM; QUICK RELEASE REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (C)	1-48410-659-0	02	1	0605-
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	01	1	9601-9804
13	VALVE ASM; QUICK RELEASE (A)	1-48410-234-0	01	1	9805-0604
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-234-0	01	1	0605-0701
13	VALVE ASM; QUICK RELEASE (A)	1-48410-782-0	01	1	0702-
13	VALVE ASM; QUICK RELEASE (B)	1-48410-320-0	04	1	9601-0109
13	VALVE ASM; QUICK RELEASE (B)	1-48410-659-0	04	1	0110-0604
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-659-0	04	1	0605-
15	PLUG; VALVE (B) PT3/8	9-09204-517-0	04	1	9601-0604
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	04	1	0605-
15	PLUG; VALVE LOAD SENSING PROPORTIONING VALVE<JR7> (A) PT3/8	9-09204-517-0	01	1	9601-9804
15	PLUG; VALVE LOAD SENSING PROPORTIONING VALVE<JR7> (A) NPTF3/8-18	8-94231-272-1	01	1	9805-0004
19	BRACKET; QUICK RELEASE VLV REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (B)	1-47475-199-1	01	1	0605-
19	BRACKET; QUICK RELEASE VLV REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (C)	1-47475-540-1	01	1	0605-
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	06	1	9601-9804
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	02	1	9805-0604
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A)	1-47465-885-1	02	1	0605-
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) (A)	1-47465-885-1	02	1	0605-
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	04	1	9805-0604
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A)	1-47465-885-1	04	1	0605-
20	BOLT; BRKT REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28650-825-0	04	1	0605-
21	CONNECTOR; QUICK RELEASE VLV REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0605-
21	CONNECTOR; QUICK RELEASE VLV REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0605-
22	NUT; BRKT REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> M8	0-91110-508-0	04	1	0605-
45	VALVE; QUICK RELEASE	1-48410-320-0	02	1	9601-0109
45	VALVE; QUICK RELEASE	1-48410-659-0	02	1	0110-0604
45	VALVE; QUICK RELEASE BRAKE REGULATION ADR<TDU>	1-48410-659-0	02	1	0605-
45	VALVE; QUICK RELEASE BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A)	1-48410-659-0	02	1	0605-
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	9601-9804
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	9805-0604
47	CONNECTOR; RELAY VLV,CONT BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0605-
47	CONNECTOR; RELAY VLV,CONT BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0605-
47	CONNECTOR; RELAY VLV,CONT (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9601-9804
47	CONNECTOR; RELAY VLV,CONT (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9805-0604
47	CONNECTOR; RELAY VLV,CONT BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0605-
47	CONNECTOR; RELAY VLV,CONT BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0605-
54	CONNECTOR; QUICK RELEASE VLV REAR AXLE RT210(C2A) BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0301-
54	CONNECTOR; QUICK RELEASE VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9601-9804
54	CONNECTOR; QUICK RELEASE VLV (A)	1-09660-968-0	01	1	9805-0604
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A)	1-09660-968-0	01	1	0605-
59	BOLT; RELEASE VALVE FIX REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> M8X30 FLANGE	0-28650-830-0	02	1	0605-
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28050-816-0	04	1	0605-
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) M8X16 FLANGE	0-28050-816-0	04	1	0605-
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	08	1	9601-0512
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	08	1	0601-0604
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28050-816-0	08	1	0605-
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	9601-0512
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0601-0604
59	BOLT; RELEASE VALVE FIX REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> M8X16 FLANGE	0-28050-816-0	02	1	0605-
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	9601-0512
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28050-830-0	02	1	0601-0604
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28050-830-0	02	1	0605-
62	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	04	1	9601-0512
62	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	04	1	0601-0604
62	BOLT; BRKT FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28050-820-0	04	1	0605-
62	BOLT; BRKT FIX BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) M8X20 FLANGE	0-28050-820-0	04	1	0605-
63	NUT; BRKT FIX M8	9-09110-408-0	04	1	9601-0512
63	NUT; BRKT FIX M8	0-91110-508-0	04	1	0601-0604
63	NUT; BRKT FIX BRAKE REGULATION ADR<TDU> M8	0-91110-508-0	04	1	0605-
63	NUT; BRKT FIX BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) M8	0-91110-508-0	04	1	0605-
108	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-653-1	08	1	9601-9804
108	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	9805-0604
108	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	0605-
114	NUT; VLV M8	9-09110-408-0	08	1	9601-9804
114	NUT; VLV M8 FLANGE	0-91150-108-0	08	1	9805-0602
114	NUT; VLV M8 FLANGE	0-91180-108-0	08	1	0603-0604
114	NUT; VLV BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91180-108-0	08	1	0605-
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B)	1-48419-020-0	02	1	0110-
157	RETAINER; VALVE (B)	1-48419-020-0	04	1	0110-0604
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU> (B)	1-48419-020-0	04	1	0605-
157	RETAINER; VALVE (A)	1-48213-002-0	04	1	9601-0211
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0212
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0212
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0212
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-0212
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU> (A)	1-48213-002-0	01	1	0212-0212
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0301-0604
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0301-0604
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0301-0604
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0301-0604
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU> (A)	1-48213-002-0	01	1	0301-0604
157	RETAINER; VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU> (A)	1-48213-002-0	01	1	0301-0604
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0605-
157	RETAINER; VALVE EXC. REAR AXLE RT210(C2A) (A)	1-48213-002-0	01	1	0605-
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU> (A)	1-48213-002-0	01	1	0605-
157	RETAINER; VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU> (A)	1-48213-002-0	01	1	0605-
158	SPRING; VALVE BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B)	9-48419-003-0	02	1	0110-
158	SPRING; VALVE (B)	9-48419-003-0	04	1	0110-0604
158	SPRING; VALVE BRAKE REGULATION ADR<TDU> (B)	9-48419-003-0	04	1	0605-
158	SPRING; VALVE (A)	1-47819-089-0	04	1	9601-0211
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0212
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0212
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0212
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-0212
158	SPRING; VALVE BRAKE REGULATION ADR<TDU> (A)	1-47819-089-0	01	1	0212-0212
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0301-0604
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0301-0604
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0301-0604
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0301-0604
158	SPRING; VALVE BRAKE REGULATION ADR<TDU> (A)	1-47819-089-0	01	1	0301-0604
158	SPRING; VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU> (A)	1-47819-089-0	01	1	0301-0604
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0605-
158	SPRING; VALVE EXC. REAR AXLE RT210(C2A) (A)	1-47819-089-0	01	1	0605-
158	SPRING; VALVE BRAKE REGULATION ADR<TDU> (A)	1-47819-089-0	01	1	0605-
158	SPRING; VALVE REAR AXLE RT210(C2A) EXC. BRAKE REGULATION ADR<TDU> (A)	1-47819-089-0	01	1	0605-
216	REPAIR KIT; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-85576-235-0	02	1	0110-
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	04	1	0110-0604
216	REPAIR KIT; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>	1-85576-235-0	04	1	0605-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
