Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#65123) — 544 parça

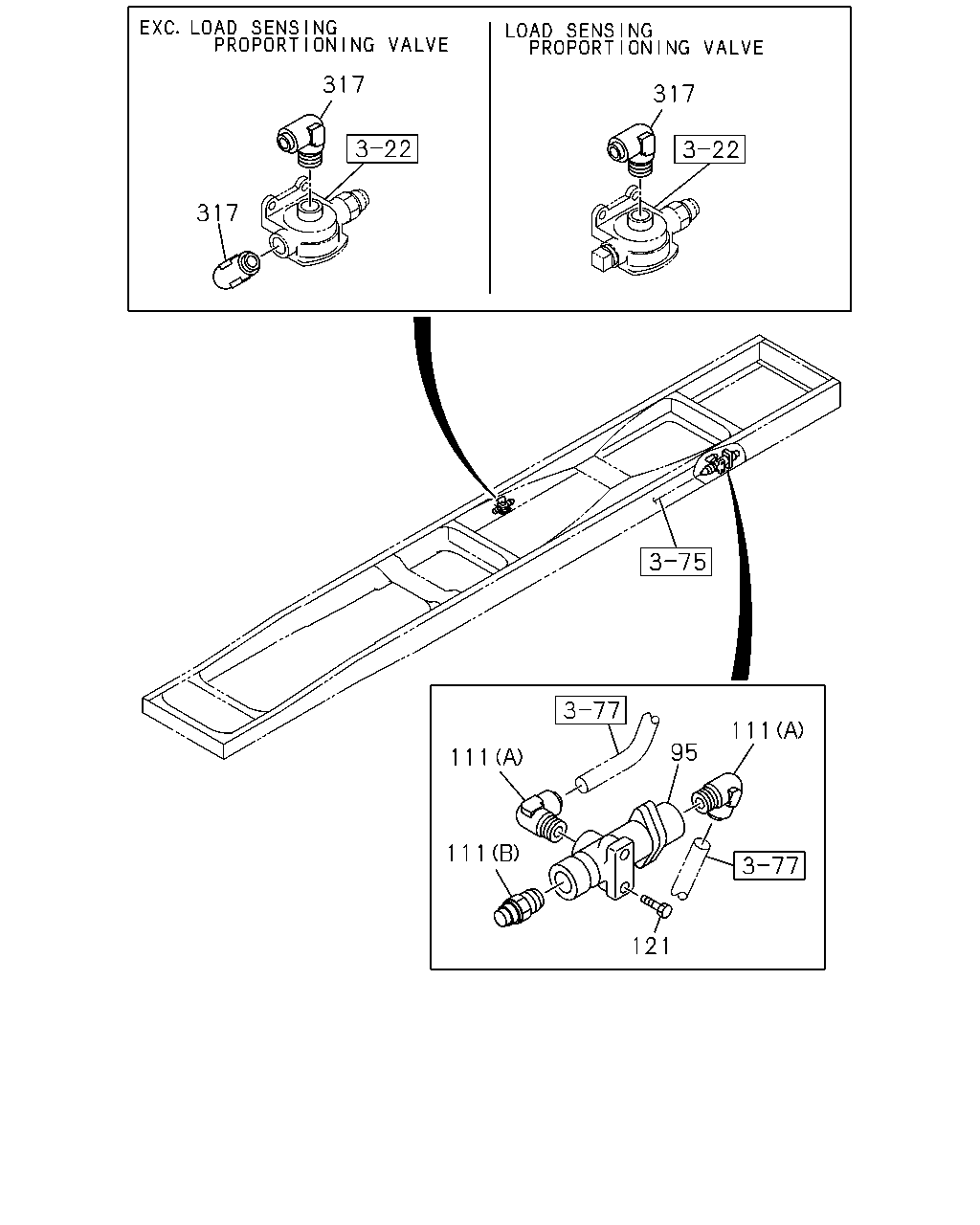

317 317 317 111 95 111 111 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
95	VALVE; DOUBLE CHECK	1-48410-050-0	01	1	9601-9804
95	VALVE; DOUBLE CHECK BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48410-050-0	01	1	9805-9902
95	VALVE; DOUBLE CHECK BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48410-531-0	01	1	9903-0211
95	VALVE; DOUBLE CHECK BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A)	1-48410-531-1	01	1	0212-
111	CONNECTOR; CHECK VLV (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9804
111	CONNECTOR; CHECK VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9805-0211
111	CONNECTOR; CHECK VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0212-
111	CONNECTOR; CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9804
111	CONNECTOR; CHECK VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9805-0211
111	CONNECTOR; CHECK VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0212-
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28080-820-0	02	1	9601-0211
121	BOLT; DOUBLE CHECK VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) M8X20 FLANGE	0-28080-820-0	02	1	0212-0512
121	BOLT; DOUBLE CHECK VLV BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A) M8X20 FLANGE	0-28050-820-0	02	1	0601-
317	CONNECTOR; MODULATOR LOAD SENSING PROPORTIONING VALVE<JR7> DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
317	CONNECTOR; MODULATOR LOAD SENSING PROPORTIONING VALVE<JR7> DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	9805-0004
317	CONNECTOR; MODULATOR BRAKE REGULATION ADR<TDU> DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0005-
317	CONNECTOR; MODULATOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9601-9804
317	CONNECTOR; MODULATOR EXC. LOAD SENSING PROPORTIONING VALVE<JR7> DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	9805-0004

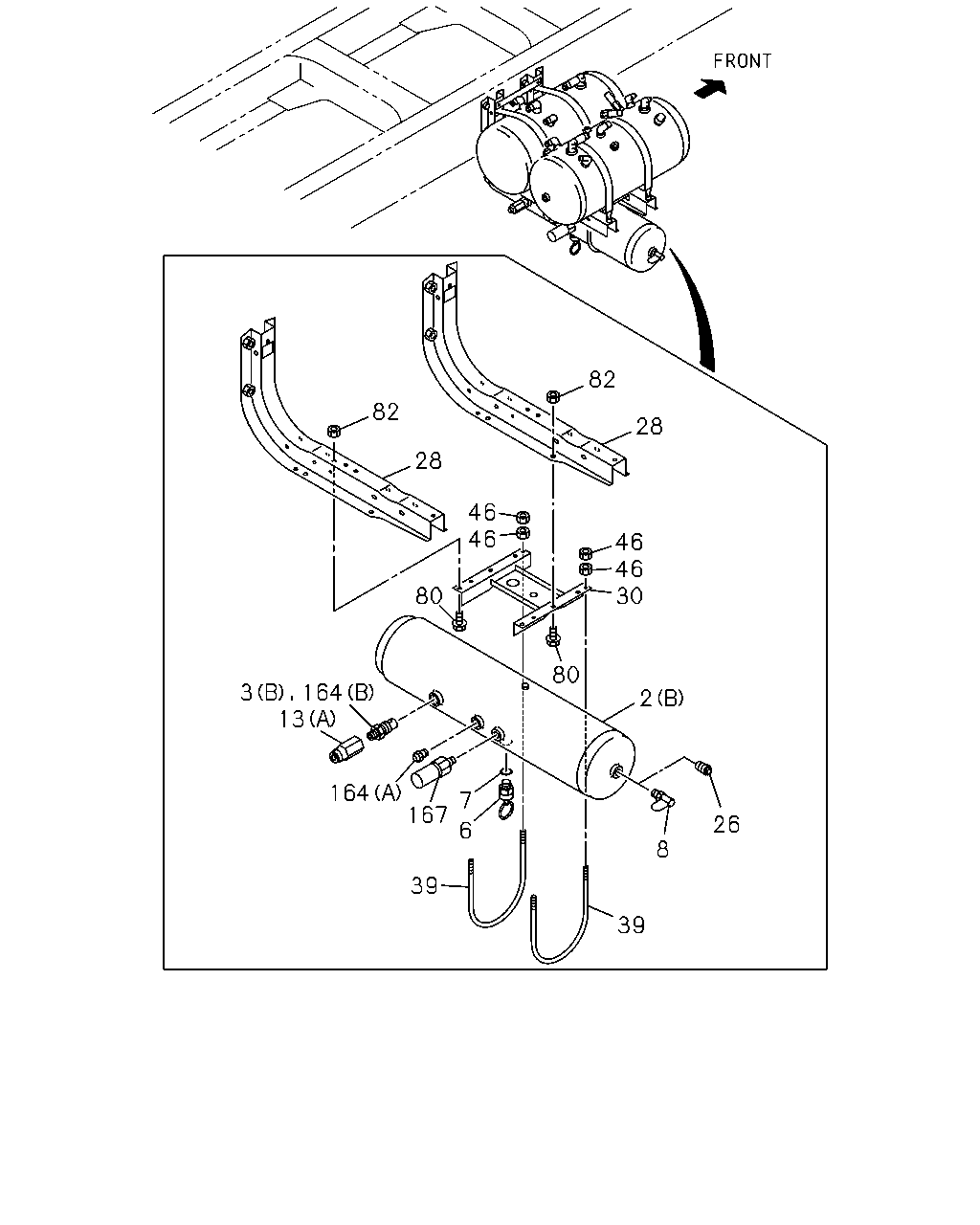

82 82 28 28 46 46 46 46 30 80 80 3 164 13 2 164 167 7 26 6 8 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A)	1-48370-182-1	01	1	9601-
2	TANK; AIR (B)	1-48370-183-0	01	1	9601-9903
2	TANK; AIR EXC. BRAKE REGULATION ECE<TDV> (B)	1-48370-183-0	01	1	9904-0004
2	TANK; AIR (B)	1-48370-183-0	01	1	0005-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	03	1	9601-9804
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0005-
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9903
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	02	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	0005-
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	02	1	0005-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9601-9904
6	COCK; DRAIN,AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE<TDV>	1-48312-015-0	02	1	0005-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9905-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ECE<TDV>	1-48312-015-0	05	1	0005-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4>	1-48312-015-0	01	1	9904-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9904-0004
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	9607-
8	CONNECTOR; AIR TANK R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9601-9702
8	CONNECTOR; AIR TANK R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9703-9804
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9703-9804
8	CONNECTOR; AIR TANK R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9805-9903
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9904-9904
8	CONNECTOR; AIR TANK R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	9905-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9703-9804
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9804
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9904-9904
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9905-0004
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9805-0004
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
26	PLUG; SUB AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	0005-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9601-
30	BRACKET; AIR TANK,SUB	1-48317-695-0	01	1	9601-
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	9601-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	9601-0512
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-
80	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	06	1	9601-9605
80	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	04	1	9606-9606
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9607-0512
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-410-0	06	1	9601-9605
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-410-0	04	1	9606-9606
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9607-0602
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-
164	CONNECTOR; SUB AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9601-9804
164	CONNECTOR; SUB AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9805-
164	CONNECTOR; SUB AIR TANK BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	9904-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB 530KPA	1-48340-054-0	01	1	9601-9903
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-0	01	1	9904-9904
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	9905-0604
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE REGULATION ECE<TDV>	1-48340-058-0	01	1	9904-9907
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE REGULATION ECE<TDV>	1-48340-063-0	01	1	9908-0004
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE REGULATION ECE<TDV>	1-48340-058-2	01	1	0005-0604
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A)	1-48340-058-2	01	1	0605-

3 38 13 38 5 5 8 5 5 5 166 5 10 3 2 32 13 3 11 10 174 166 342 31 10 38 5 41 28 10 67 345 5 175 43 42 185 64 38 45 1 5 7 6 10 43 45 64 5 8 45 43 45 28 43 7 6

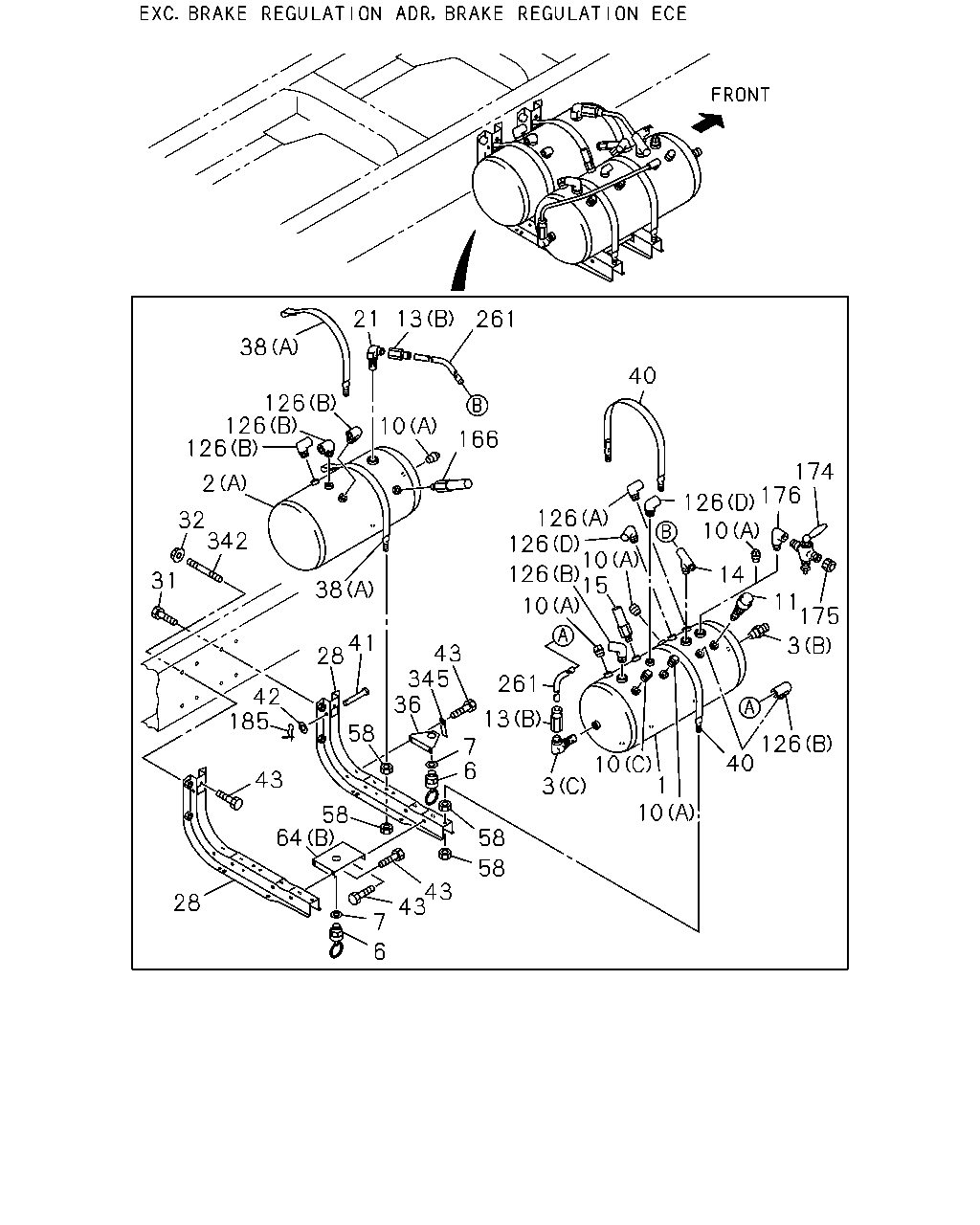

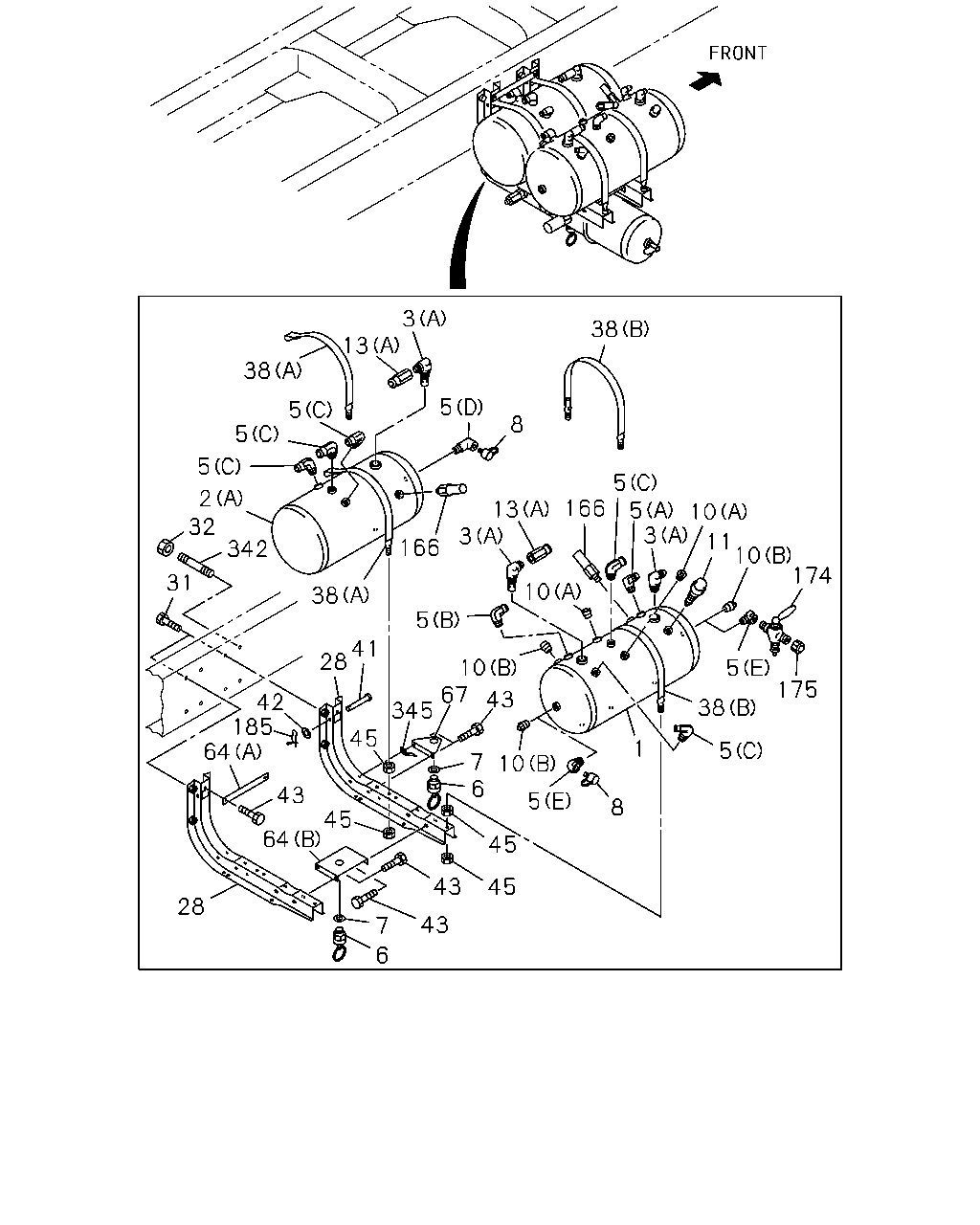

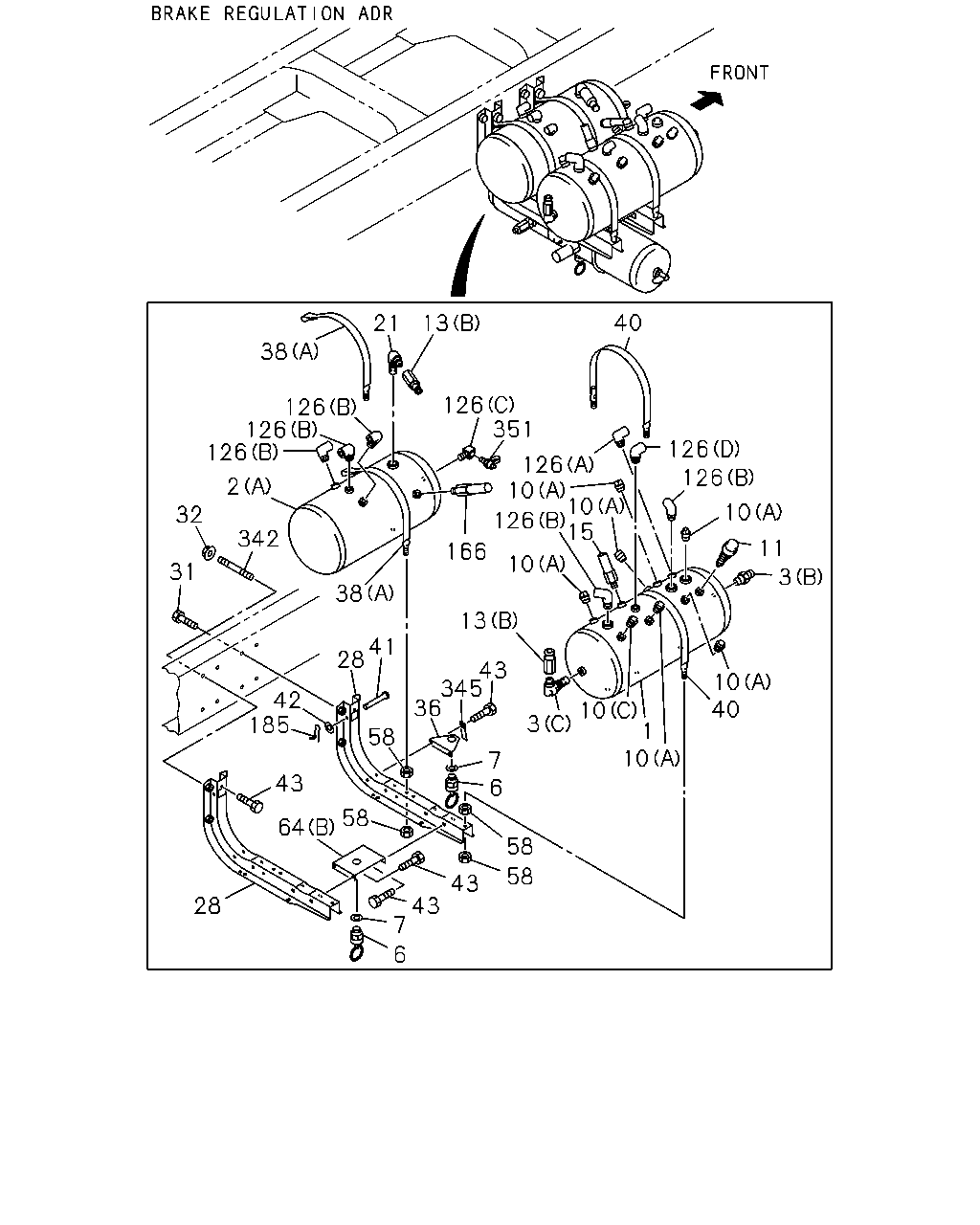

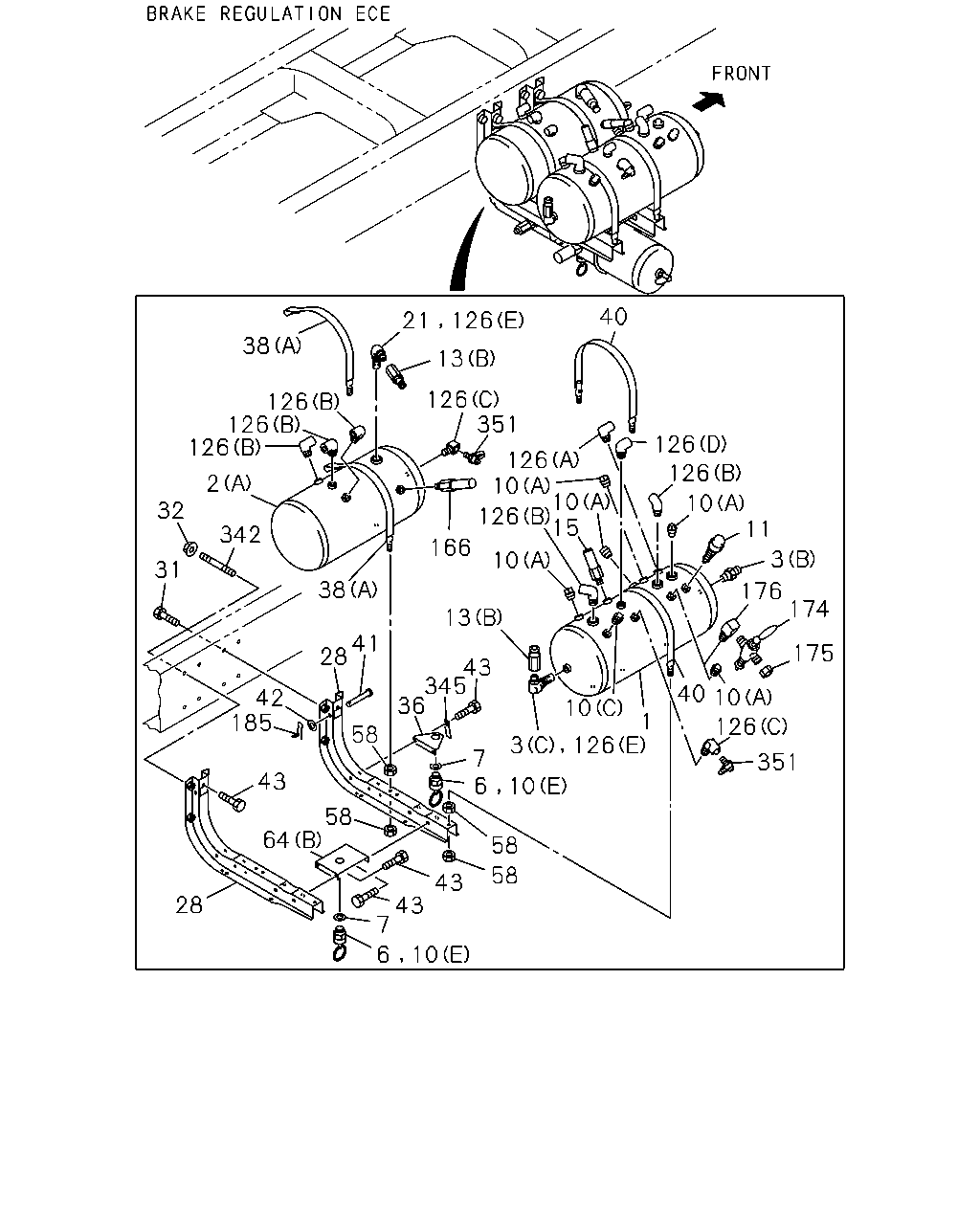

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9804
1	TANK ASM; AIR	1-48370-221-0	01	1	9805-
2	TANK; AIR (A)	1-48370-182-1	01	1	9601-
2	TANK; AIR (B)	1-48370-183-0	01	1	9601-9903
2	TANK; AIR EXC. BRAKE REGULATION ECE<TDV> (B)	1-48370-183-0	01	1	9904-0004
2	TANK; AIR (B)	1-48370-183-0	01	1	0005-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	03	1	9601-9804
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0005-
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9903
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	02	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	0005-
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	02	1	0005-
5	UNION; AIR TANK (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9804
5	UNION; AIR TANK (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9804
5	UNION; AIR TANK (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9601-9804
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9703-9704
5	UNION; AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4> (E) PT1/4 2WAY	1-09660-693-0	01	1	9705-9804
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV> (E) PT1/4 2WAY	1-09660-693-0	02	1	9703-9804
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9601-9904
6	COCK; DRAIN,AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE<TDV>	1-48312-015-0	02	1	0005-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9905-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ECE<TDV>	1-48312-015-0	05	1	0005-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4>	1-48312-015-0	01	1	9904-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9904-0004
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	9607-
8	CONNECTOR; AIR TANK R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9601-9702
8	CONNECTOR; AIR TANK R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9703-9804
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9703-9804
8	CONNECTOR; AIR TANK R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9805-9903
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9904-9904
8	CONNECTOR; AIR TANK R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	9905-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE<TDV> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9703-9804
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	9601-9804
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	04	1	9808-0004
10	PLUG; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	05	1	0005-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	06	1	9805-
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (E)	1-48312-015-0	03	1	0005-
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT1/4	9-99204-513-0	02	1	9703-9804
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	05	1	9805-9807
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	05	1	9808-0004
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV> (B) PT1/4	9-99204-513-0	01	1	9703-9804
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	9805-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9601-
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9804
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9904-9904
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9905-0004
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9805-0004
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9601-
31	BOLT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M12X40 FLANGE	0-28681-240-0	06	1	9601-9804
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	08	1	9805-9807
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	9808-0512
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	06	1	0601-
31	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) M12X40 FLANGE	0-28681-240-0	08	1	9601-9804
32	NUT; BRKT TO FRAME M12 FLANGE	0-91250-112-0	02	1	9808-0602
32	NUT; BRKT TO FRAME M12 FLANGE	0-91280-112-0	02	1	0603-
32	NUT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M12	9-09120-412-0	02	1	9601-9606
32	NUT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M12 FLANGE	0-91250-112-0	02	1	9607-9804
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9601-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9601-9804
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9601-0606
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9601-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	08	1	9601-9605
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9702
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-0512
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	0601-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9601-9804
64	STAY; AIR TANK,MAIN (A)	1-48317-451-0	01	1	9601-9605
64	STAY; AIR TANK,MAIN (B)	1-48317-607-0	01	1	9601-
67	STAY; SUB TANK	1-48317-691-0	01	1	9601-9804
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	02	1	9601-9804
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	01	1	9805-0004
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0005-0604
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ECE<TDV>	1-48340-058-2	01	1	0005-0604
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A)	1-48340-058-2	01	1	0605-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV>	1-09680-036-0	01	1	9703-9804
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-036-0	01	1	9805-0004
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV>	9-48319-102-0	01	1	9703-9804
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	9-48319-102-0	01	1	9805-0004
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9601-
342	STUD M12X40 L=64	9-94321-240-0	02	1	9808-0604
342	STUD M12X40 L=64	0-43211-240-0	02	1	0605-
342	STUD WHEEL BASE 5000MM(50W) M12X40 L=64	9-94321-240-0	02	1	9601-9804
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9607-0305

40 21 13 38 126 351 126 126 126 126 126 10 10 126 15 126 2 10 32 342 11 166 10 31 3 38 13 41 28 43 345 36 10 40 42 185 10 1 10 3 58 7 6 58 64 43 58 58 43 28 43 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9804
1	TANK ASM; AIR	1-48370-221-0	01	1	9805-
2	TANK; AIR (A)	1-48370-182-1	01	1	9601-
2	TANK; AIR (B)	1-48370-183-0	01	1	9601-9903
2	TANK; AIR EXC. BRAKE REGULATION ECE<TDV> (B)	1-48370-183-0	01	1	9904-0004
2	TANK; AIR (B)	1-48370-183-0	01	1	0005-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	03	1	9601-9804
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0005-
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9903
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	02	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	0005-
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	02	1	0005-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9601-9904
6	COCK; DRAIN,AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE<TDV>	1-48312-015-0	02	1	0005-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9905-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ECE<TDV>	1-48312-015-0	05	1	0005-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4>	1-48312-015-0	01	1	9904-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9904-0004
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	9607-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	9601-9804
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	04	1	9808-0004
10	PLUG; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	05	1	0005-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	06	1	9805-
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (E)	1-48312-015-0	03	1	0005-
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT1/4	9-99204-513-0	02	1	9703-9804
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	05	1	9805-9807
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	05	1	9808-0004
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV> (B) PT1/4	9-99204-513-0	01	1	9703-9804
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	9805-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9601-
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9804
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9904-9904
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9905-0004
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9805-0004
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
15	SWITCH; LOW PRESS,AIR TANK 530KPA	1-48340-054-0	01	1	9805-9903
15	SWITCH; LOW PRESS,AIR TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	9904-0604
15	SWITCH; LOW PRESS,AIR TANK REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
15	SWITCH; LOW PRESS,AIR TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ECE<TDV>	1-48340-058-0	01	1	9904-9907
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ECE<TDV>	1-48340-063-0	01	1	9908-0004
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ECE<TDV>	1-48340-058-2	01	1	0005-0604
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A)	1-48340-058-2	01	1	0605-
21	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-9903
21	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9904-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9601-
31	BOLT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M12X40 FLANGE	0-28681-240-0	06	1	9601-9804
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	08	1	9805-9807
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	9808-0512
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	06	1	0601-
31	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) M12X40 FLANGE	0-28681-240-0	08	1	9601-9804
32	NUT; BRKT TO FRAME M12 FLANGE	0-91250-112-0	02	1	9808-0602
32	NUT; BRKT TO FRAME M12 FLANGE	0-91280-112-0	02	1	0603-
32	NUT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M12	9-09120-412-0	02	1	9601-9606
32	NUT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M12 FLANGE	0-91250-112-0	02	1	9607-9804
36	STAY; MAIN TANK	1-48317-691-0	01	1	9805-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9601-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9601-9804
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	9805-
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9601-0606
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9601-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	08	1	9601-9605
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9702
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-0512
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	0601-
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	9805-0512
58	NUT; BAND,AIR TANK M8	0-91110-508-0	12	1	0601-
64	STAY; AIR TANK,MAIN (A)	1-48317-451-0	01	1	9601-9605
64	STAY; AIR TANK,MAIN (B)	1-48317-607-0	01	1	9601-
126	CONNECTOR; ELBOW (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9805-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9805-
126	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9805-
126	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9805-
126	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9805-
126	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (E) M20 & PT3/4	1-09650-261-2	01	1	9904-0004
126	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (E) M20 & PT3/4	1-09650-261-2	02	1	0005-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	02	1	9601-9804
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	01	1	9805-0004
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0005-0604
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ECE<TDV>	1-48340-058-2	01	1	0005-0604
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A)	1-48340-058-2	01	1	0605-
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9601-
342	STUD M12X40 L=64	9-94321-240-0	02	1	9808-0604
342	STUD M12X40 L=64	0-43211-240-0	02	1	0605-
342	STUD WHEEL BASE 5000MM(50W) M12X40 L=64	9-94321-240-0	02	1	9601-9804
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9607-0305
351	CONNECTOR; TEST BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	9805-
351	CONNECTOR; TEST BRAKE REGULATION ECE<TDV> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	9805-

21 13 261 38 40 126 126 126 10 166 174 176 126 10 2 126 126 10 126 15 32 342 14 31 38 11 175 10 41 28 3 43 345 36 261 42 185 126 40 13 7 6 58 10 3 1 10 43 58 64 58 58 43 43 28 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9804
1	TANK ASM; AIR	1-48370-221-0	01	1	9805-
2	TANK; AIR (A)	1-48370-182-1	01	1	9601-
2	TANK; AIR (B)	1-48370-183-0	01	1	9601-9903
2	TANK; AIR EXC. BRAKE REGULATION ECE<TDV> (B)	1-48370-183-0	01	1	9904-0004
2	TANK; AIR (B)	1-48370-183-0	01	1	0005-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	03	1	9601-9804
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0005-
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9903
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	02	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	0005-
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	02	1	0005-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9601-9904
6	COCK; DRAIN,AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE<TDV>	1-48312-015-0	02	1	0005-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9905-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ECE<TDV>	1-48312-015-0	05	1	0005-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4>	1-48312-015-0	01	1	9904-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9904-0004
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	9607-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	9601-9804
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	04	1	9808-0004
10	PLUG; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	05	1	0005-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	06	1	9805-
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (E)	1-48312-015-0	03	1	0005-
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT1/4	9-99204-513-0	02	1	9703-9804
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	05	1	9805-9807
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	05	1	9808-0004
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV> (B) PT1/4	9-99204-513-0	01	1	9703-9804
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	9805-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9601-
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9804
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9904-9904
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9905-0004
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9805-0004
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
14	UNION; 3 WAY,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9805-
15	SWITCH; LOW PRESS,AIR TANK 530KPA	1-48340-054-0	01	1	9805-9903
15	SWITCH; LOW PRESS,AIR TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	9904-0604
15	SWITCH; LOW PRESS,AIR TANK REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
15	SWITCH; LOW PRESS,AIR TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ECE<TDV>	1-48340-058-0	01	1	9904-9907
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ECE<TDV>	1-48340-063-0	01	1	9908-0004
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ECE<TDV>	1-48340-058-2	01	1	0005-0604
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A)	1-48340-058-2	01	1	0605-
21	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-9903
21	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9904-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9601-
31	BOLT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M12X40 FLANGE	0-28681-240-0	06	1	9601-9804
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	08	1	9805-9807
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	9808-0512
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	06	1	0601-
31	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) M12X40 FLANGE	0-28681-240-0	08	1	9601-9804
32	NUT; BRKT TO FRAME M12 FLANGE	0-91250-112-0	02	1	9808-0602
32	NUT; BRKT TO FRAME M12 FLANGE	0-91280-112-0	02	1	0603-
32	NUT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M12	9-09120-412-0	02	1	9601-9606
32	NUT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M12 FLANGE	0-91250-112-0	02	1	9607-9804
36	STAY; MAIN TANK	1-48317-691-0	01	1	9805-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9601-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9601-9804
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	9805-
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9601-0606
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9601-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	08	1	9601-9605
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9702
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-0512
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	0601-
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	9805-0512
58	NUT; BAND,AIR TANK M8	0-91110-508-0	12	1	0601-
64	STAY; AIR TANK,MAIN (A)	1-48317-451-0	01	1	9601-9605
64	STAY; AIR TANK,MAIN (B)	1-48317-607-0	01	1	9601-
126	CONNECTOR; ELBOW (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9805-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9805-
126	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9805-
126	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9805-
126	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9805-
126	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (E) M20 & PT3/4	1-09650-261-2	01	1	9904-0004
126	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (E) M20 & PT3/4	1-09650-261-2	02	1	0005-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	02	1	9601-9804
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	01	1	9805-0004
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0005-0604
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ECE<TDV>	1-48340-058-2	01	1	0005-0604
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A)	1-48340-058-2	01	1	0605-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV>	1-09680-036-0	01	1	9703-9804
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-036-0	01	1	9805-0004
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV>	9-48319-102-0	01	1	9703-9804
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	9-48319-102-0	01	1	9805-0004
176	ADAPTER TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9805-0004
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9601-
261	TUBE; NYLON EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	9805-0212
261	TUBE; NYLON EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-
261	TUBE; NYLON EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-
342	STUD M12X40 L=64	9-94321-240-0	02	1	9808-0604
342	STUD M12X40 L=64	0-43211-240-0	02	1	0605-
342	STUD WHEEL BASE 5000MM(50W) M12X40 L=64	9-94321-240-0	02	1	9601-9804
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9607-0305

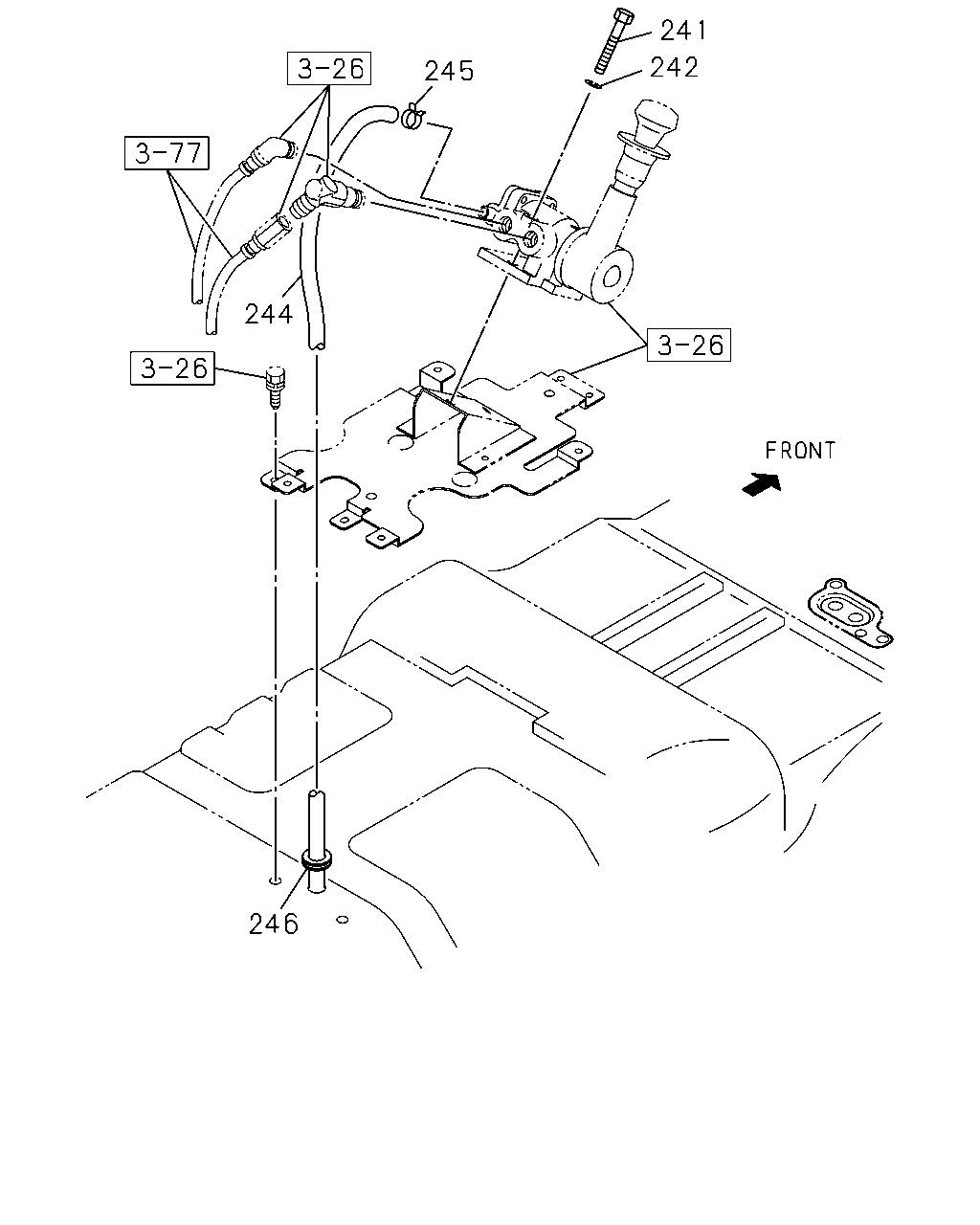

241 242 245 244 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	BOLT; SET,CONT VLV M8X65	0-10805-865-0	02	1	9601-9704
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	9705-0004
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	0005-0512
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0601-
242	WASHER; LK,CONT VLV ID=8.2	9-09150-508-0	02	1	9601-9704
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9601-
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	9601-
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	9601-

40 21 126 38 13 126 351 126 126 126 126 126 10 10 126 15 126 2 10 11 32 342 166 3 10 31 38 176 174 13 41 28 175 43 345 36 40 10 42 185 10 1 126 126 58 3 7 6 351 58 64 43 10 58 58 43 28 43 7 6 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9804
1	TANK ASM; AIR	1-48370-221-0	01	1	9805-
2	TANK; AIR (A)	1-48370-182-1	01	1	9601-
2	TANK; AIR (B)	1-48370-183-0	01	1	9601-9903
2	TANK; AIR EXC. BRAKE REGULATION ECE<TDV> (B)	1-48370-183-0	01	1	9904-0004
2	TANK; AIR (B)	1-48370-183-0	01	1	0005-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	03	1	9601-9804
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0005-
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9903
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	02	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	0005-
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> (B) M22 & PT3/4	1-48410-136-3	02	1	0005-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9601-9904
6	COCK; DRAIN,AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE<TDV>	1-48312-015-0	02	1	0005-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9905-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ECE<TDV>	1-48312-015-0	05	1	0005-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4>	1-48312-015-0	01	1	9904-0004
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9904-0004
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	9607-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	9601-9804
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	04	1	9808-0004
10	PLUG; AIR TANK EXC. BRAKE REGULATION ECE<TDV> (A) PT3/8	9-09204-517-0	05	1	0005-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	06	1	9805-
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> (E)	1-48312-015-0	03	1	0005-
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT1/4	9-99204-513-0	02	1	9703-9804
10	PLUG; AIR TANK BRAKE REGULATION ECE<TDV> EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	05	1	9805-9807
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	05	1	9808-0004
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV> (B) PT1/4	9-99204-513-0	01	1	9703-9804
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	9805-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9601-
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9804
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9904-9904
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9905-0004
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9805-0004
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
15	SWITCH; LOW PRESS,AIR TANK 530KPA	1-48340-054-0	01	1	9805-9903
15	SWITCH; LOW PRESS,AIR TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	9904-0604
15	SWITCH; LOW PRESS,AIR TANK REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
15	SWITCH; LOW PRESS,AIR TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ECE<TDV>	1-48340-058-0	01	1	9904-9907
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ECE<TDV>	1-48340-063-0	01	1	9908-0004
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ECE<TDV>	1-48340-058-2	01	1	0005-0604
15	SWITCH; LOW PRESS,AIR TANK BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A)	1-48340-058-2	01	1	0605-
21	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-9903
21	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE<TDV> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9904-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9601-
31	BOLT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M12X40 FLANGE	0-28681-240-0	06	1	9601-9804
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	08	1	9805-9807
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	9808-0512
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	06	1	0601-
31	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) M12X40 FLANGE	0-28681-240-0	08	1	9601-9804
32	NUT; BRKT TO FRAME M12 FLANGE	0-91250-112-0	02	1	9808-0602
32	NUT; BRKT TO FRAME M12 FLANGE	0-91280-112-0	02	1	0603-
32	NUT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M12	9-09120-412-0	02	1	9601-9606
32	NUT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M12 FLANGE	0-91250-112-0	02	1	9607-9804
36	STAY; MAIN TANK	1-48317-691-0	01	1	9805-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9601-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9601-9804
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	9805-
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9601-0606
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9601-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	08	1	9601-9605
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9702
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-0512
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	0601-
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	9805-0512
58	NUT; BAND,AIR TANK M8	0-91110-508-0	12	1	0601-
64	STAY; AIR TANK,MAIN (A)	1-48317-451-0	01	1	9601-9605
64	STAY; AIR TANK,MAIN (B)	1-48317-607-0	01	1	9601-
126	CONNECTOR; ELBOW (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9805-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9805-
126	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9805-
126	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9805-
126	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	9805-
126	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (E) M20 & PT3/4	1-09650-261-2	01	1	9904-0004
126	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (E) M20 & PT3/4	1-09650-261-2	02	1	0005-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	02	1	9601-9804
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	01	1	9805-0004
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0005-0604
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR AXLE RT210(C2A) BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ECE<TDV> 530KPA	1-48340-054-1	01	1	0605-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ECE<TDV>	1-48340-058-2	01	1	0005-0604
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ECE<TDV> EXC. REAR AXLE RT210(C2A)	1-48340-058-2	01	1	0605-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV>	1-09680-036-0	01	1	9703-9804
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-036-0	01	1	9805-0004
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> BRAKE REGULATION ECE<TDV>	9-48319-102-0	01	1	9703-9804
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	9-48319-102-0	01	1	9805-0004
176	ADAPTER TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9805-0004
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9601-
342	STUD M12X40 L=64	9-94321-240-0	02	1	9808-0604
342	STUD M12X40 L=64	0-43211-240-0	02	1	0605-
342	STUD WHEEL BASE 5000MM(50W) M12X40 L=64	9-94321-240-0	02	1	9601-9804
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9607-0305
351	CONNECTOR; TEST BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	9805-
351	CONNECTOR; TEST BRAKE REGULATION ECE<TDV> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	9805-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
