◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10772 - LV280(THAI) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#6512) — 74 parça

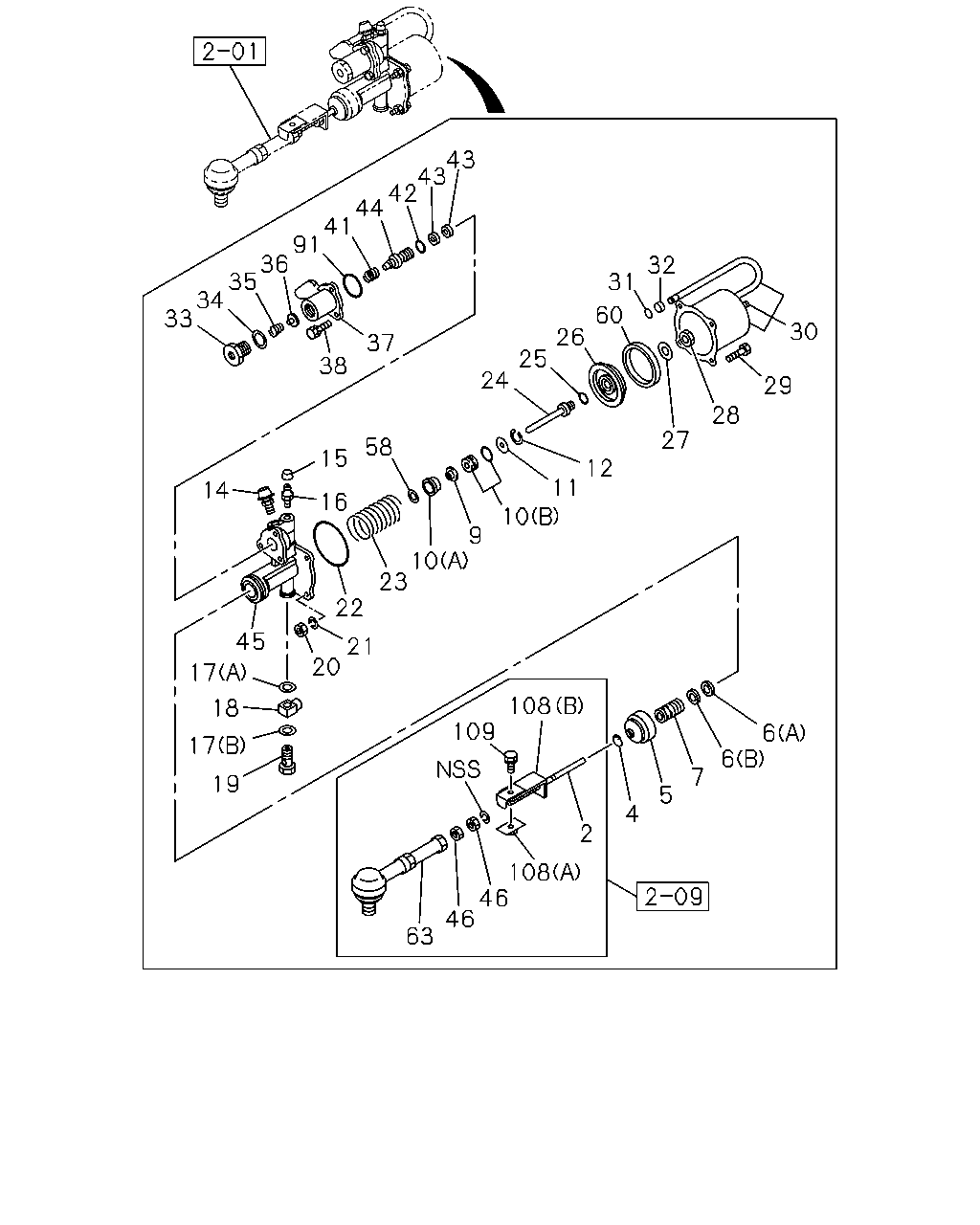

çizim 6397
43 43 42 44 41 91 36 35 34 33 32 31 60 30 26 25 24 37 38 29 28 27 58 15 12 11 10 14 16 9 10 23 22 45 21 20 17 108 18 109 6 6 17 7 19 5 4 2 108 46 46 63
BalonParca AdiParca NoAdetTipApplied Date
2 ROD; PUSH,CLU BOOSTER 1-31824-128-0 01 1 9705-
4 CLAMP; BOOSTER 1-31829-168-0 01 1 9705-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9705-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-055-0 01 1 9705-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-056-0 01 1 9705-
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9705-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9705-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 9705-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-300-0 01 1 9705-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9705-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9705-
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9705-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9705-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9705-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9705-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9705-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9705-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9705-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 9705-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 9705-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 9705-
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9705-
24 ROD; PUSH,CLU BOOSTER 1-31829-302-0 01 1 9705-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9705-
26 PISTON; SHELL,CLU BOOSTER 1-31821-017-0 01 1 9705-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9705-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9705-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9705-
30 SHELL; CYL,CLU BOOSTER 1-31811-016-0 01 1 9705-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 9705-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 9705-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9705-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9705-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9705-
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9705-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-084-0 01 1 9705-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9705-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-299-0 01 1 9705-
42 GASKET; FITTING,CLU BOOSTER 8-94465-507-0 01 1 9705-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9705-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-051-0 01 1 9705-
45 PLATE; END,CLU BOOSTER 1-31811-057-0 01 1 9705-
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 9705-
58 WASHER; PISTON,CLU BOOSTER 1-31829-301-0 01 1 9705-
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 9705-
63 JOINT; PUSH ROD 1-31824-124-0 01 1 9705-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9705-
108 PLATE; INDICATOR
(A) 		1-31824-093-0 01 1 9705-
108 PLATE; INDICATOR
(B) 		1-31824-127-0 01 1 9705-
109 BOLT; INDICATOR PLATE 1-33739-302-0 01 1 9705-
124 WASHER; INDICATOR
ID=10.2 		9-09150-510-0 01 1 9705-

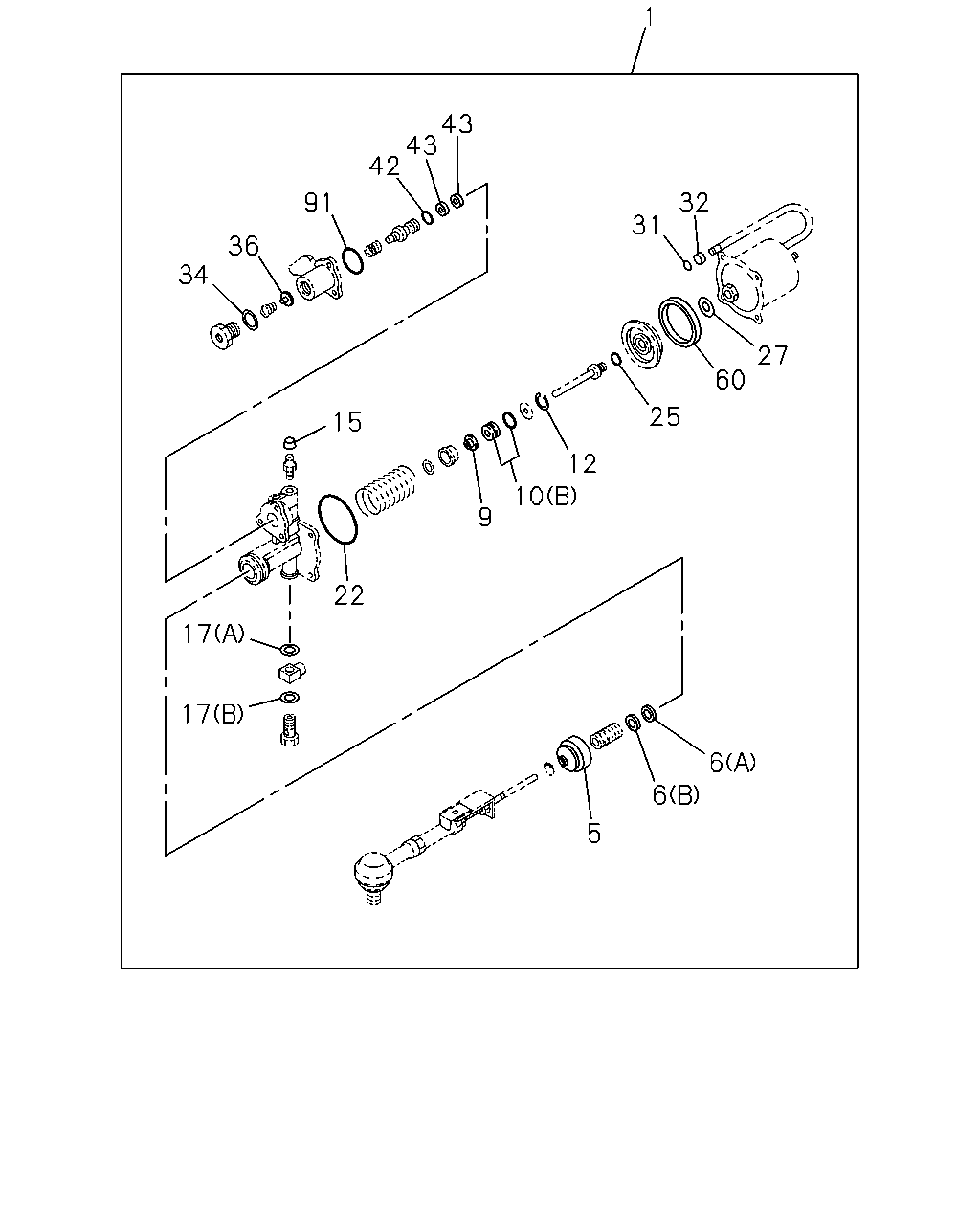

çizim 43681
1 43 43 42 32 91 31 36 34 27 60 25 15 12 10 9 22 17 17 6 6 5
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-303-0 01 1 9705-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9705-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-055-0 01 1 9705-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-056-0 01 1 9705-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9705-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 9705-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-300-0 01 1 9705-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9705-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9705-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9705-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9705-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 9705-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9705-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9705-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 9705-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 9705-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9705-
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9705-
42 GASKET; FITTING,CLU BOOSTER 8-94465-507-0 01 1 9705-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9705-
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 9705-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9705-
124 WASHER; INDICATOR
ID=10.2 		9-09150-510-0 01 1 9705-
