Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10707 - FVZ-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53C - TRANSMISSION OIL COOLER SYSTEM
▶
2-53C — TRANSMISSION OIL COOLER SYSTEM
(#65112) — 47 parça
◀

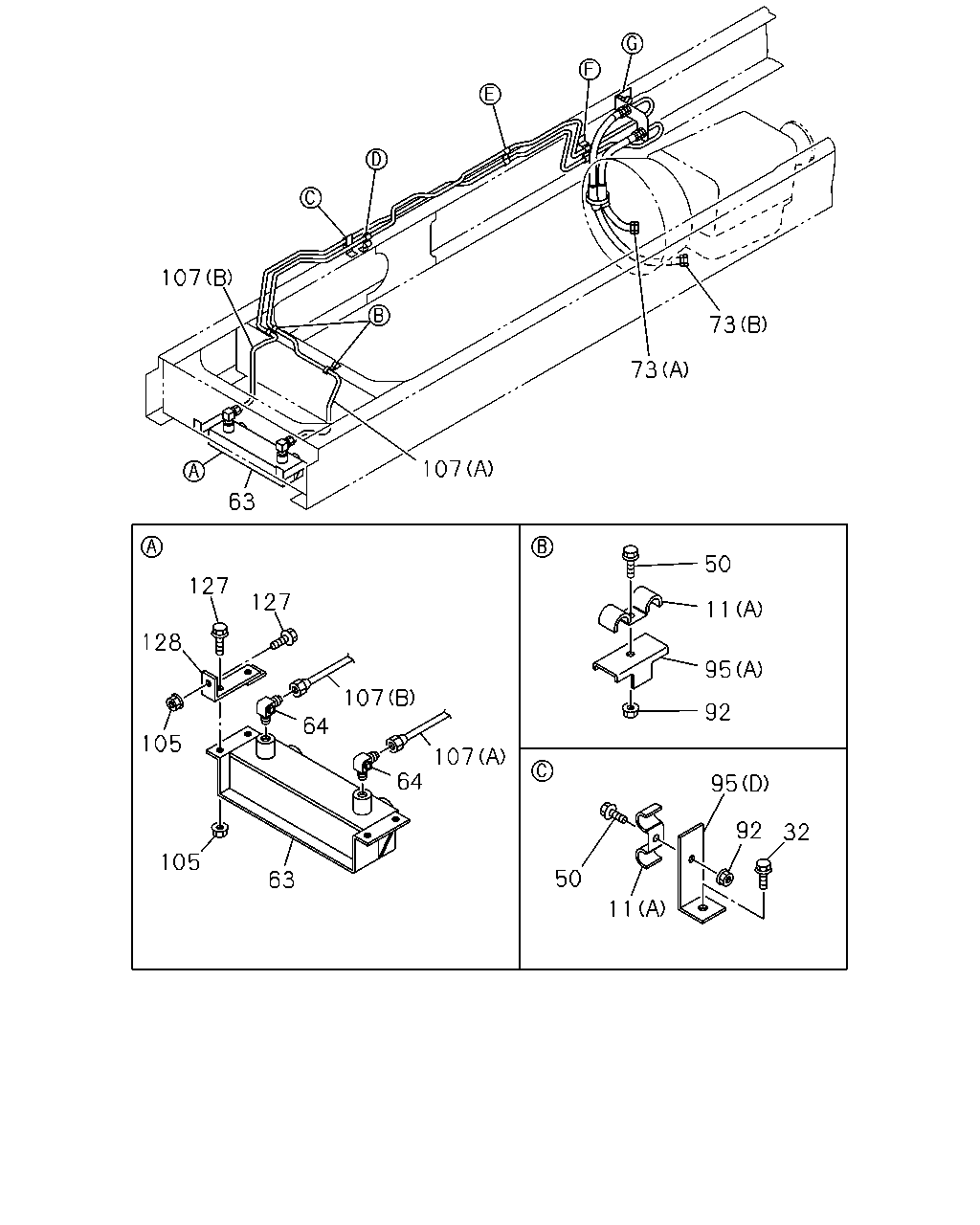

[253C] NO.1 (21 parça)

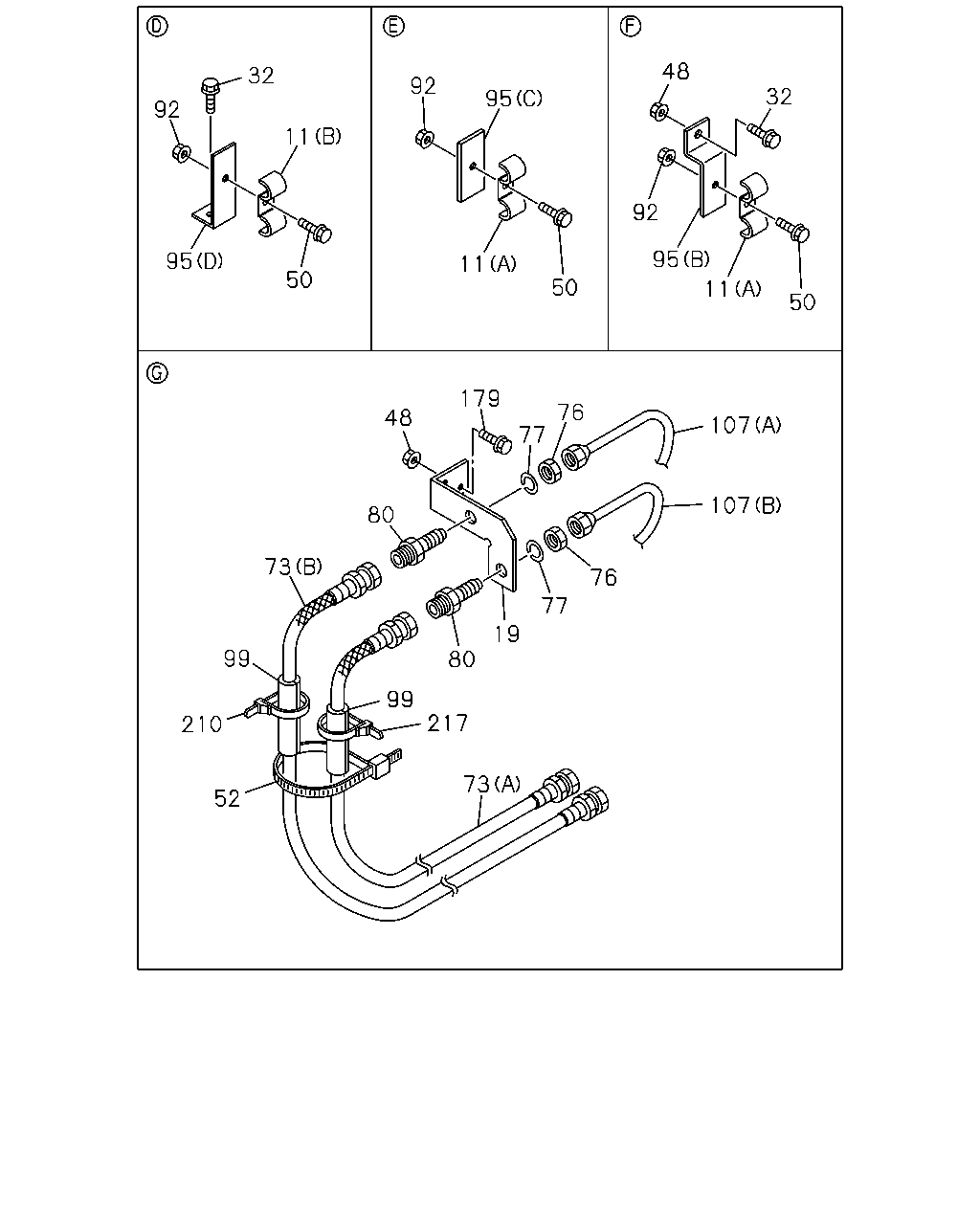

[253C] NO.2 (26 parça)
▶
107
73
73
107
63
50
127
127
11
128
95
107
92
64
105
107
64
95
92
32
105
50
63
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
CLIP; PIPE
(B) ID=16 & 13 L=21.5 & 21.5
1-09700-668-0
01
1
9805-0004
11
CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
05
1
9805-0004
32
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
03
1
9805-0004
50
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
04
1
9805-0004
50
BOLT; CLIP
M8X40 FLANGE
0-28680-840-0
02
1
9805-0004
63
COOLER; OIL
1-21700-326-1
01
1
9805-0004
64
CONNECTOR; OIL COOLER
M22 & PT3/4 ELBOW
1-09650-277-0
02
1
9805-0004
73
HOSE; FLEX,TRANS
(A) L=700
1-09365-016-0
01
1
9805-0004
73
HOSE; FLEX,TRANS
(B) L=750
1-09365-017-0
01
1
9805-0004
92
NUT; CLIP
M8 FLANGE
0-91150-108-0
06
1
9805-0004
95
BRACKET; CLIP
(C) L=50
1-47475-299-2
01
1
9805-0004
95
BRACKET; CLIP
(A)
1-47475-427-1
02
1
9805-0004
95
BRACKET; CLIP
(D) L=68
1-47475-525-0
02
1
9805-0004
95
BRACKET; CLIP
(B)
1-47475-601-0
01
1
9805-0004
105
NUT; OIL COOLER
M8 FLANGE
0-91150-108-0
06
1
9805-0004
107
PIPE; OIL,COOLER TO FLEX HOSE
(A)
1-49162-597-0
01
1
9805-9806
107
PIPE; OIL,COOLER TO FLEX HOSE
(A)
1-49162-950-0
01
1
9807-0004
107
PIPE; OIL,COOLER TO FLEX HOSE
(B)
1-49162-602-0
01
1
9805-9806
107
PIPE; OIL,COOLER TO FLEX HOSE
(B)
1-49162-951-0
01
1
9807-0004
127
BOLT; COOLER
M8X25 FLANGE
0-28680-825-0
06
1
9805-0004
128
BRACKET; COOLER
1-47477-873-0
02
1
9805-0004
48
32
92
32
95
92
11
92
95
95
11
50
50
11
50
179
76
48
107
77
107
80
73
76
77
19
99
80
99
217
210
73
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
CLIP; PIPE
(B) ID=16 & 13 L=21.5 & 21.5
1-09700-668-0
01
1
9805-0004
11
CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
05
1
9805-0004
19
BRACKET; FLEX HOSE
1-47478-142-0
01
1
9805-0004
32
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
03
1
9805-0004
48
NUT; BRKT
M8 FLANGE
0-91150-108-0
03
1
9805-0004
50
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
04
1
9805-0004
50
BOLT; CLIP
M8X40 FLANGE
0-28680-840-0
02
1
9805-0004
52
CLIP; FLEX HOSE,A/T
L=500
1-09707-082-1
01
1
9805-0004
73
HOSE; FLEX,TRANS
(A) L=700
1-09365-016-0
01
1
9805-0004
73
HOSE; FLEX,TRANS
(B) L=750
1-09365-017-0
01
1
9805-0004
76
NUT; FLEX HOSE
M22
9-09111-422-0
02
1
9805-0004
77
WASHER; LK
ID=22.5
9-09150-522-0
02
1
9805-0004
80
UNION; FLEX HOSE
M22 & M30 STRAIGHT
1-09664-237-0
02
1
9805-0004
92
NUT; CLIP
M8 FLANGE
0-91150-108-0
06
1
9805-0004
95
BRACKET; CLIP
(C) L=50
1-47475-299-2
01
1
9805-0004
95
BRACKET; CLIP
(A)
1-47475-427-1
02
1
9805-0004
95
BRACKET; CLIP
(D) L=68
1-47475-525-0
02
1
9805-0004
95
BRACKET; CLIP
(B)
1-47475-601-0
01
1
9805-0004
99
SLEEVE; RUBBER,FLEX HOSE
ID=32 OD=36 L=50
1-09337-023-0
02
1
9805-9806
107
PIPE; OIL,COOLER TO FLEX HOSE
(A)
1-49162-597-0
01
1
9805-9806
107
PIPE; OIL,COOLER TO FLEX HOSE
(A)
1-49162-950-0
01
1
9807-0004
107
PIPE; OIL,COOLER TO FLEX HOSE
(B)
1-49162-602-0
01
1
9805-9806
107
PIPE; OIL,COOLER TO FLEX HOSE
(B)
1-49162-951-0
01
1
9807-0004
179
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
9805-0004
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
9807-0004
217
CLIP; BAND,FLEX HOSE
L=140
5-09707-031-1
01
1
9805-0004
